CHEVROLET KODIAK 2008 Owners Manual

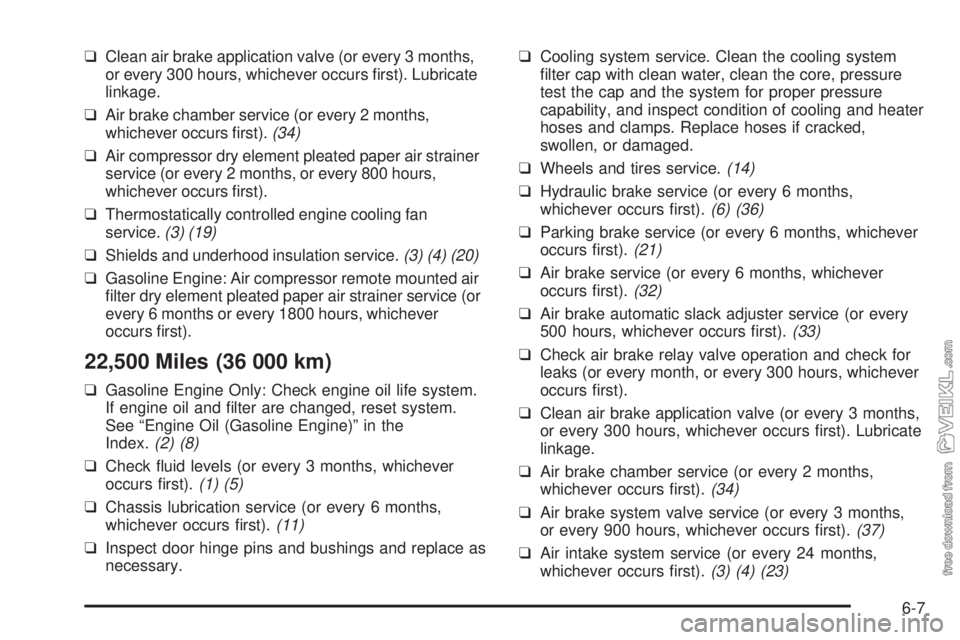

❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air compressor dry element pleated paper air strainer
service (or every 2 months, or every 800 hours,
whichever occurs first).
❑Thermostatically controlled engine cooling fan
service.(3) (19)
❑Shields and underhood insulation service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote mounted air
filter dry element pleated paper air strainer service (or
every 6 months or every 1800 hours, whichever
occurs first).
22,500 Miles (36 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Inspect door hinge pins and bushings and replace as
necessary.❑Cooling system service. Clean the cooling system
filter cap with clean water, clean the core, pressure
test the cap and the system for proper pressure
capability, and inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every 3 months,
or every 900 hours, whichever occurs first).(37)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
6-7

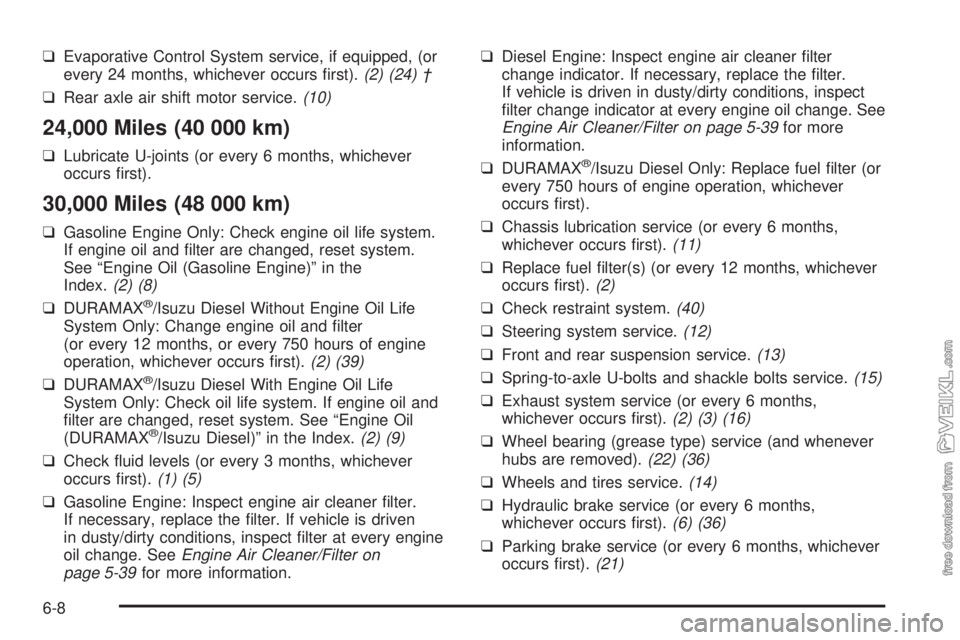

❑Evaporative Control System service, if equipped, (or
every 24 months, whichever occurs first).(2) (24) †
❑Rear axle air shift motor service.(10)
24,000 Miles (40 000 km)
❑Lubricate U-joints (or every 6 months, whichever
occurs first).
30,000 Miles (48 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑DURAMAX
®/Isuzu Diesel Without Engine Oil Life
System Only: Change engine oil and filter
(or every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2) (39)
❑DURAMAX
®/Isuzu Diesel With Engine Oil Life
System Only: Check oil life system. If engine oil and
filter are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner filter.
If necessary, replace the filter. If vehicle is driven
in dusty/dirty conditions, inspect filter at every engine
oil change. SeeEngine Air Cleaner/Filter on
page 5-39for more information.❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions, inspect
filter change indicator at every engine oil change. See
Engine Air Cleaner/Filter on page 5-39for more
information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel filter (or
every 750 hours of engine operation, whichever
occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Replace fuel filter(s) (or every 12 months, whichever
occurs first).(2)
❑Check restraint system.(40)
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheel bearing (grease type) service (and whenever
hubs are removed).(22) (36)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
6-8

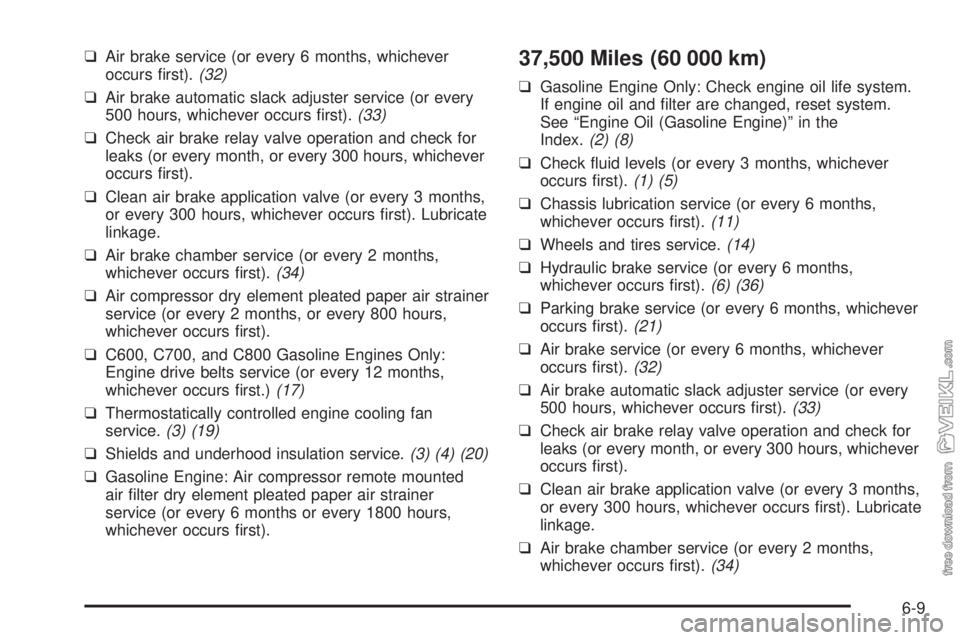

❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air compressor dry element pleated paper air strainer
service (or every 2 months, or every 800 hours,
whichever occurs first).
❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first.)(17)
❑Thermostatically controlled engine cooling fan
service.(3) (19)
❑Shields and underhood insulation service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote mounted
air filter dry element pleated paper air strainer
service (or every 6 months or every 1800 hours,
whichever occurs first).37,500 Miles (60 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
6-9

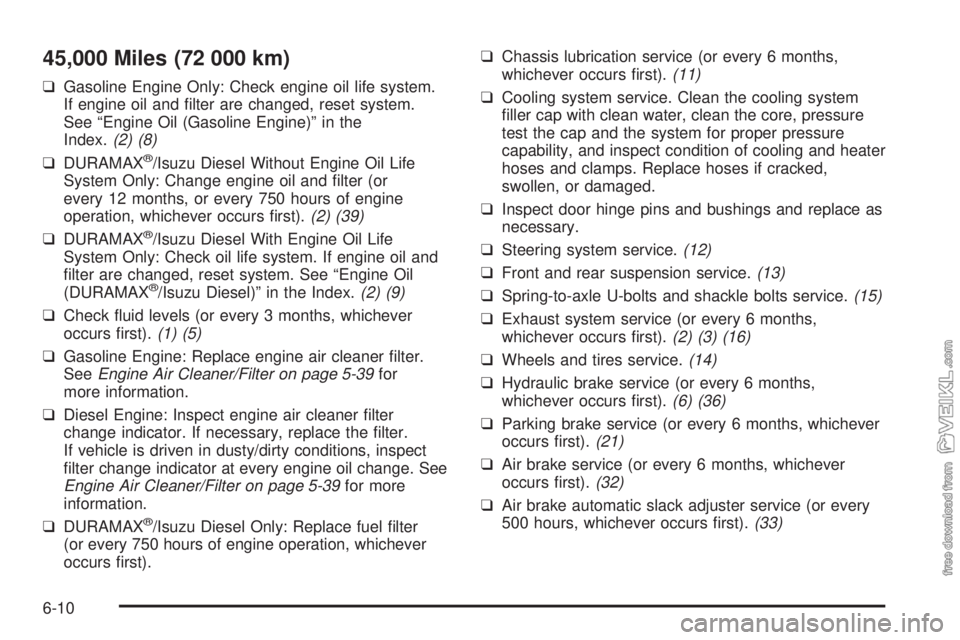

45,000 Miles (72 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑DURAMAX
®/Isuzu Diesel Without Engine Oil Life
System Only: Change engine oil and filter (or
every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2) (39)
❑DURAMAX
®/Isuzu Diesel With Engine Oil Life
System Only: Check oil life system. If engine oil and
filter are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Replace engine air cleaner filter.
SeeEngine Air Cleaner/Filter on page 5-39for
more information.
❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions, inspect
filter change indicator at every engine oil change. See
Engine Air Cleaner/Filter on page 5-39for more
information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel filter
(or every 750 hours of engine operation, whichever
occurs first).❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Cooling system service. Clean the cooling system
filler cap with clean water, clean the core, pressure
test the cap and the system for proper pressure
capability, and inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Inspect door hinge pins and bushings and replace as
necessary.
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
6-10

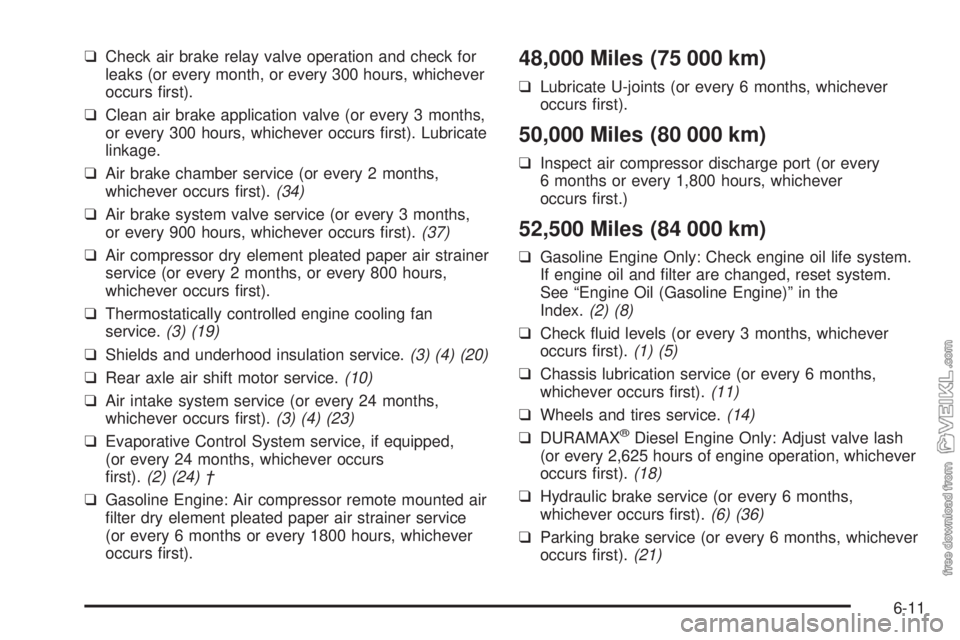

❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every 3 months,
or every 900 hours, whichever occurs first).(37)
❑Air compressor dry element pleated paper air strainer
service (or every 2 months, or every 800 hours,
whichever occurs first).
❑Thermostatically controlled engine cooling fan
service.(3) (19)
❑Shields and underhood insulation service.(3) (4) (20)
❑Rear axle air shift motor service.(10)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service, if equipped,
(or every 24 months, whichever occurs
first).(2) (24) †
❑Gasoline Engine: Air compressor remote mounted air
filter dry element pleated paper air strainer service
(or every 6 months or every 1800 hours, whichever
occurs first).48,000 Miles (75 000 km)
❑Lubricate U-joints (or every 6 months, whichever
occurs first).
50,000 Miles (80 000 km)
❑Inspect air compressor discharge port (or every
6 months or every 1,800 hours, whichever
occurs first.)
52,500 Miles (84 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑DURAMAX
®Diesel Engine Only: Adjust valve lash
(or every 2,625 hours of engine operation, whichever
occurs first).(18)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
6-11

❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
60,000 Miles (96 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑DURAMAX
®/Isuzu Diesel Without Engine Oil Life
System Only: Change engine oil and filter (or
every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2) (39)
❑DURAMAX
®/Isuzu Diesel With Engine Oil Life
System Only: Check oil life system. If engine oil and
filter are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (9)
❑Gasoline Engine Only (Vehicles with GVW greater
than 16,000 lbs): Spark plug service.(2) (25)❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner filter.
If necessary, replace the filter. If vehicle is driven
in dusty/dirty conditions, inspect filter at every engine
oil change. SeeEngine Air Cleaner/Filter on
page 5-39for more information.
❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions, inspect
filter change indicator at every engine oil change. See
Engine Air Cleaner/Filter on page 5-39for more
information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel filter
(or every 750 hours of engine operation, whichever
occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Replace fuel filter(s) (or every 12 months, whichever
occurs first).(2)
❑Inspect door hinge pins and bushings and replace as
necessary.
❑Check restraint system.(40)
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts service.(15)
6-12

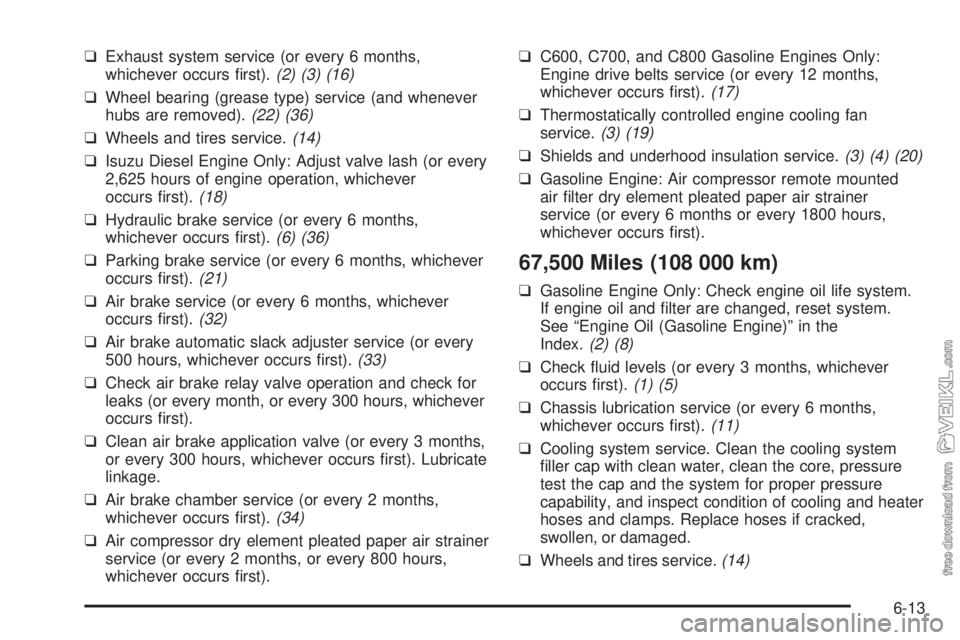

❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheel bearing (grease type) service (and whenever
hubs are removed).(22) (36)
❑Wheels and tires service.(14)
❑Isuzu Diesel Engine Only: Adjust valve lash (or every
2,625 hours of engine operation, whichever
occurs first).(18)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air compressor dry element pleated paper air strainer
service (or every 2 months, or every 800 hours,
whichever occurs first).❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first).(17)
❑Thermostatically controlled engine cooling fan
service.(3) (19)
❑Shields and underhood insulation service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote mounted
air filter dry element pleated paper air strainer
service (or every 6 months or every 1800 hours,
whichever occurs first).
67,500 Miles (108 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Cooling system service. Clean the cooling system
filler cap with clean water, clean the core, pressure
test the cap and the system for proper pressure
capability, and inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Wheels and tires service.(14)
6-13

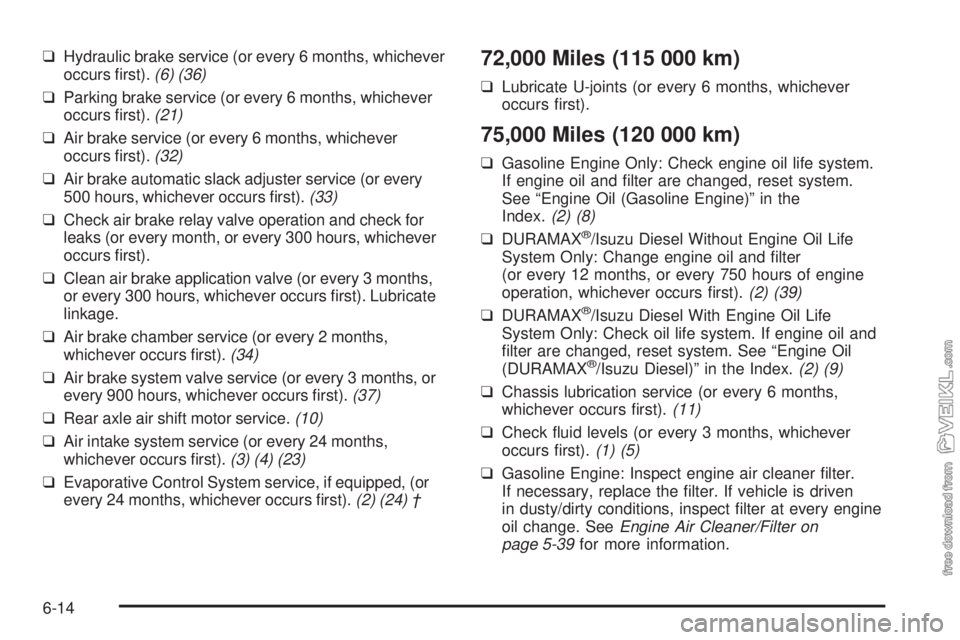

❑Hydraulic brake service (or every 6 months, whichever
occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every 3 months, or
every 900 hours, whichever occurs first).(37)
❑Rear axle air shift motor service.(10)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service, if equipped, (or
every 24 months, whichever occurs first).(2) (24) †72,000 Miles (115 000 km)
❑Lubricate U-joints (or every 6 months, whichever
occurs first).
75,000 Miles (120 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑DURAMAX
®/Isuzu Diesel Without Engine Oil Life
System Only: Change engine oil and filter
(or every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2) (39)
❑DURAMAX
®/Isuzu Diesel With Engine Oil Life
System Only: Check oil life system. If engine oil and
filter are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (9)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Inspect engine air cleaner filter.
If necessary, replace the filter. If vehicle is driven
in dusty/dirty conditions, inspect filter at every engine
oil change. SeeEngine Air Cleaner/Filter on
page 5-39for more information.
6-14

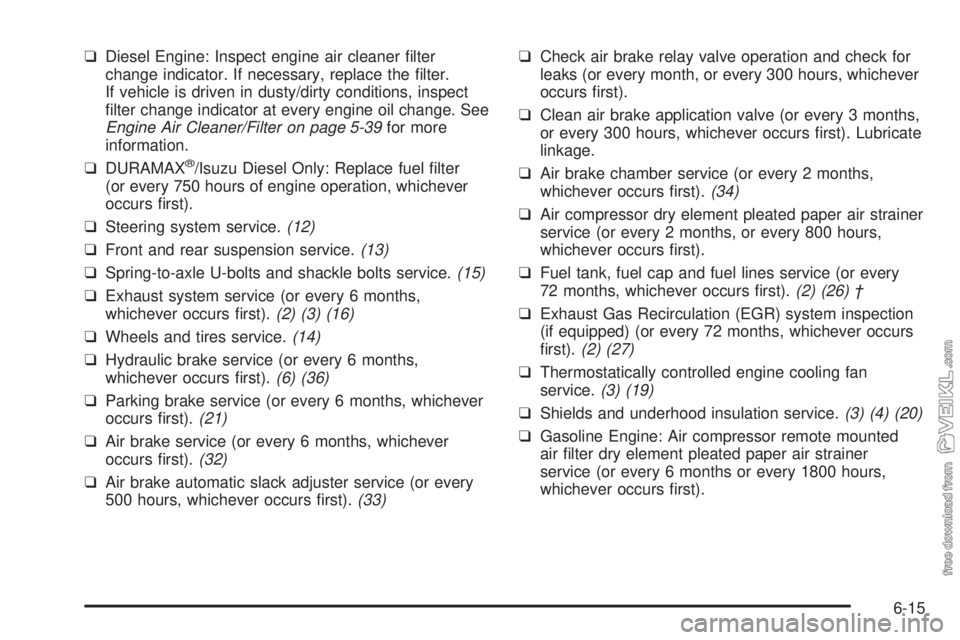

❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions, inspect
filter change indicator at every engine oil change. See
Engine Air Cleaner/Filter on page 5-39for more
information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel filter
(or every 750 hours of engine operation, whichever
occurs first).
❑Steering system service.(12)
❑Front and rear suspension service.(13)
❑Spring-to-axle U-bolts and shackle bolts service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air compressor dry element pleated paper air strainer
service (or every 2 months, or every 800 hours,
whichever occurs first).
❑Fuel tank, fuel cap and fuel lines service (or every
72 months, whichever occurs first).(2) (26) †
❑Exhaust Gas Recirculation (EGR) system inspection
(if equipped) (or every 72 months, whichever occurs
first).(2) (27)
❑Thermostatically controlled engine cooling fan
service.(3) (19)
❑Shields and underhood insulation service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote mounted
air filter dry element pleated paper air strainer
service (or every 6 months or every 1800 hours,
whichever occurs first).
6-15

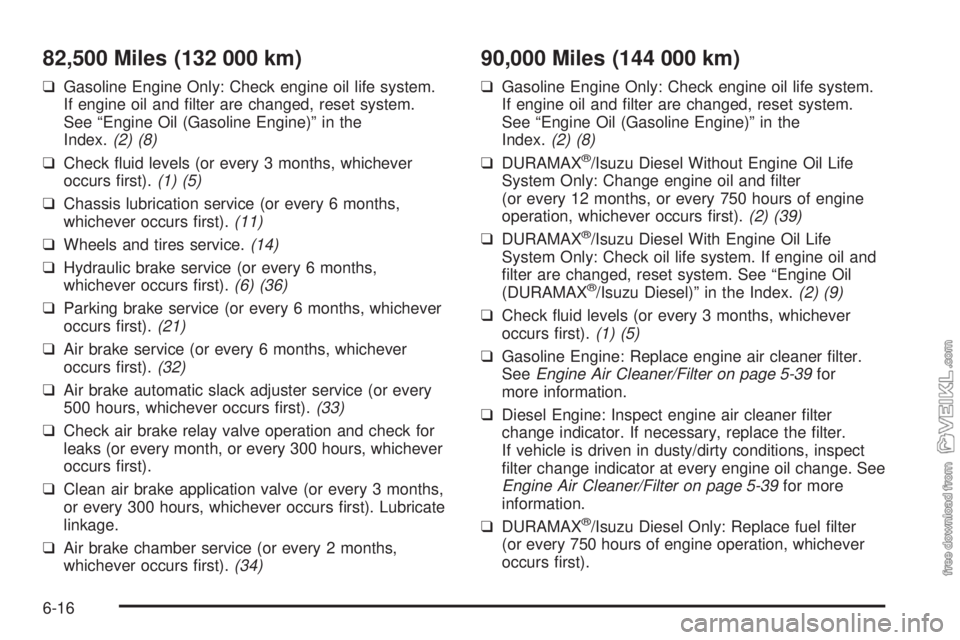

82,500 Miles (132 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months, whichever
occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or every
500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check for
leaks (or every month, or every 300 hours, whichever
occurs first).
❑Clean air brake application valve (or every 3 months,
or every 300 hours, whichever occurs first). Lubricate
linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
90,000 Miles (144 000 km)
❑Gasoline Engine Only: Check engine oil life system.
If engine oil and filter are changed, reset system.
See “Engine Oil (Gasoline Engine)” in the
Index.(2) (8)
❑DURAMAX
®/Isuzu Diesel Without Engine Oil Life
System Only: Change engine oil and filter
(or every 12 months, or every 750 hours of engine
operation, whichever occurs first).(2) (39)
❑DURAMAX
®/Isuzu Diesel With Engine Oil Life
System Only: Check oil life system. If engine oil and
filter are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months, whichever
occurs first).(1) (5)
❑Gasoline Engine: Replace engine air cleaner filter.
SeeEngine Air Cleaner/Filter on page 5-39for
more information.
❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the filter.
If vehicle is driven in dusty/dirty conditions, inspect
filter change indicator at every engine oil change. See
Engine Air Cleaner/Filter on page 5-39for more
information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel filter
(or every 750 hours of engine operation, whichever
occurs first).
6-16
