Windshield Wipers
You control the windshield
wipers by turning the band
with the wiper symbol on it.
9(Off):Turn the band on the lever to this symbol to
turn off the windshield wipers.
8(Mist):For a single wiping cycle, turn the band to
this symbol. Hold it there until the wipers start, then
let go. The wipers will stop after one cycle. If you want
more cycles, hold the band on mist longer.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to select the delay time.
The farther the band is turned upward, the longer the
delay will be. The farther the band is turned downward,
the shorter the delay will be.For steady wiping at low speed, turn the band toward
you to the first solid band below the delay settings.
For high-speed wiping, turn the band farther, to the
last solid band below the delay settings. To stop
the wipers, move the band to off.
Be sure to clear ice and snow from the wiper blades
before using them. If they are frozen to the windshield,
carefully loosen or thaw them. If your blades do
become worn or damaged, get new blades or blade
inserts. For more information, seeWindshield Wiper
Blade Replacement on page 5-76.
Heavy snow or ice can overload your wipers.
The windshield wiper motor is protected from overload
by a circuit breaker and a fuse. If the motor overheats
due to heavy snow or ice the wiper will stop until
the motor cools. Although the circuit is protected from
electrical overload, overload due to heavy snow or
ice may cause wiper linkage damage. Always clear ice
and heavy snow from the windshield before using
your windshield wipers.
3-9

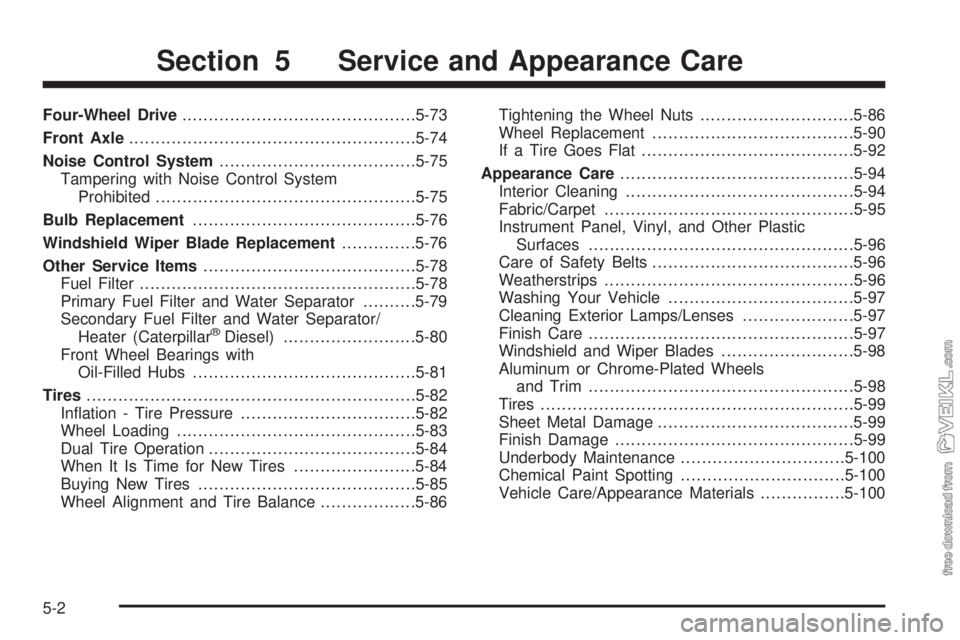

Four-Wheel Drive............................................5-73
Front Axle......................................................5-74
Noise Control System.....................................5-75
Tampering with Noise Control System
Prohibited.................................................5-75
Bulb Replacement..........................................5-76
Windshield Wiper Blade Replacement..............5-76
Other Service Items........................................5-78
Fuel Filter....................................................5-78
Primary Fuel Filter and Water Separator..........5-79
Secondary Fuel Filter and Water Separator/
Heater (Caterpillar
®Diesel).........................5-80
Front Wheel Bearings with
Oil-Filled Hubs..........................................5-81
Tires..............................................................5-82
Inflation - Tire Pressure.................................5-82
Wheel Loading.............................................5-83
Dual Tire Operation.......................................5-84
When It Is Time for New Tires.......................5-84
Buying New Tires.........................................5-85
Wheel Alignment and Tire Balance..................5-86Tightening the Wheel Nuts.............................5-86
Wheel Replacement......................................5-90
If a Tire Goes Flat........................................5-92
Appearance Care............................................5-94
Interior Cleaning...........................................5-94
Fabric/Carpet...............................................5-95
Instrument Panel, Vinyl, and Other Plastic
Surfaces..................................................5-96
Care of Safety Belts......................................5-96
Weatherstrips...............................................5-96
Washing Your Vehicle...................................5-97
Cleaning Exterior Lamps/Lenses.....................5-97
Finish Care..................................................5-97
Windshield and Wiper Blades.........................5-98
Aluminum or Chrome-Plated Wheels
and Trim..................................................5-98
Tires...........................................................5-99
Sheet Metal Damage.....................................5-99
Finish Damage.............................................5-99
Underbody Maintenance...............................5-100
Chemical Paint Spotting...............................5-100
Vehicle Care/Appearance Materials................5-100
Section 5 Service and Appearance Care
5-2

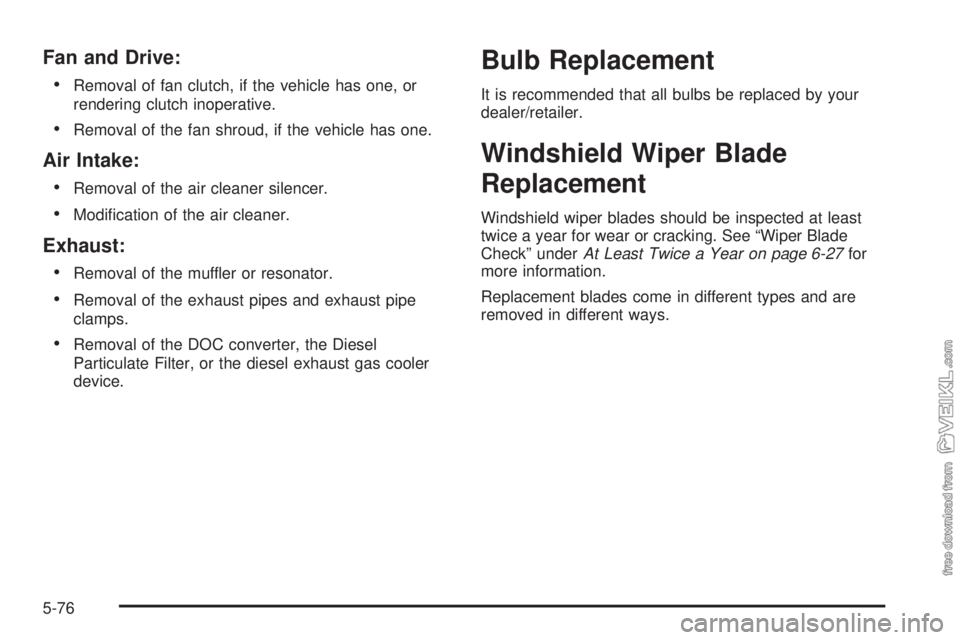

Fan and Drive:
•
Removal of fan clutch, if the vehicle has one, or
rendering clutch inoperative.
•Removal of the fan shroud, if the vehicle has one.
Air Intake:
•
Removal of the air cleaner silencer.
•Modification of the air cleaner.
Exhaust:
•
Removal of the muffler or resonator.
•Removal of the exhaust pipes and exhaust pipe
clamps.
•Removal of the DOC converter, the Diesel
Particulate Filter, or the diesel exhaust gas cooler
device.
Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer/retailer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” underAt Least Twice a Year on page 6-27for
more information.
Replacement blades come in different types and are
removed in different ways.
5-76

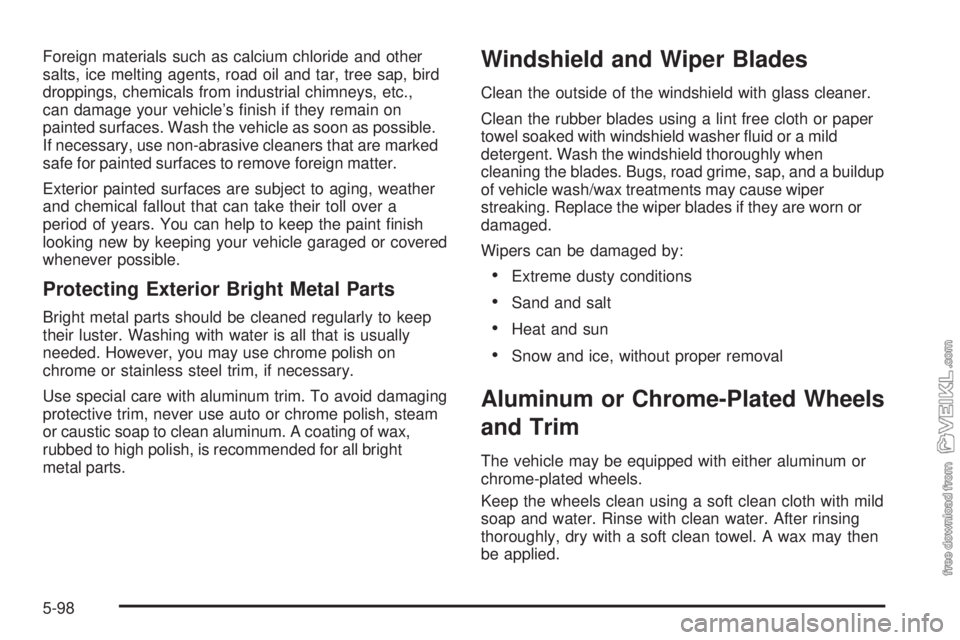

Foreign materials such as calcium chloride and other
salts, ice melting agents, road oil and tar, tree sap, bird
droppings, chemicals from industrial chimneys, etc.,
can damage your vehicle’s finish if they remain on
painted surfaces. Wash the vehicle as soon as possible.
If necessary, use non-abrasive cleaners that are marked
safe for painted surfaces to remove foreign matter.
Exterior painted surfaces are subject to aging, weather
and chemical fallout that can take their toll over a
period of years. You can help to keep the paint finish
looking new by keeping your vehicle garaged or covered
whenever possible.
Protecting Exterior Bright Metal Parts
Bright metal parts should be cleaned regularly to keep
their luster. Washing with water is all that is usually
needed. However, you may use chrome polish on
chrome or stainless steel trim, if necessary.
Use special care with aluminum trim. To avoid damaging
protective trim, never use auto or chrome polish, steam
or caustic soap to clean aluminum. A coating of wax,
rubbed to high polish, is recommended for all bright
metal parts.
Windshield and Wiper Blades
Clean the outside of the windshield with glass cleaner.
Clean the rubber blades using a lint free cloth or paper
towel soaked with windshield washer fluid or a mild
detergent. Wash the windshield thoroughly when
cleaning the blades. Bugs, road grime, sap, and a buildup
of vehicle wash/wax treatments may cause wiper
streaking. Replace the wiper blades if they are worn or
damaged.
Wipers can be damaged by:
•Extreme dusty conditions
•Sand and salt
•Heat and sun
•Snow and ice, without proper removal
Aluminum or Chrome-Plated Wheels
and Trim
The vehicle may be equipped with either aluminum or
chrome-plated wheels.
Keep the wheels clean using a soft clean cloth with mild
soap and water. Rinse with clean water. After rinsing
thoroughly, dry with a soft clean towel. A wax may then
be applied.
5-98

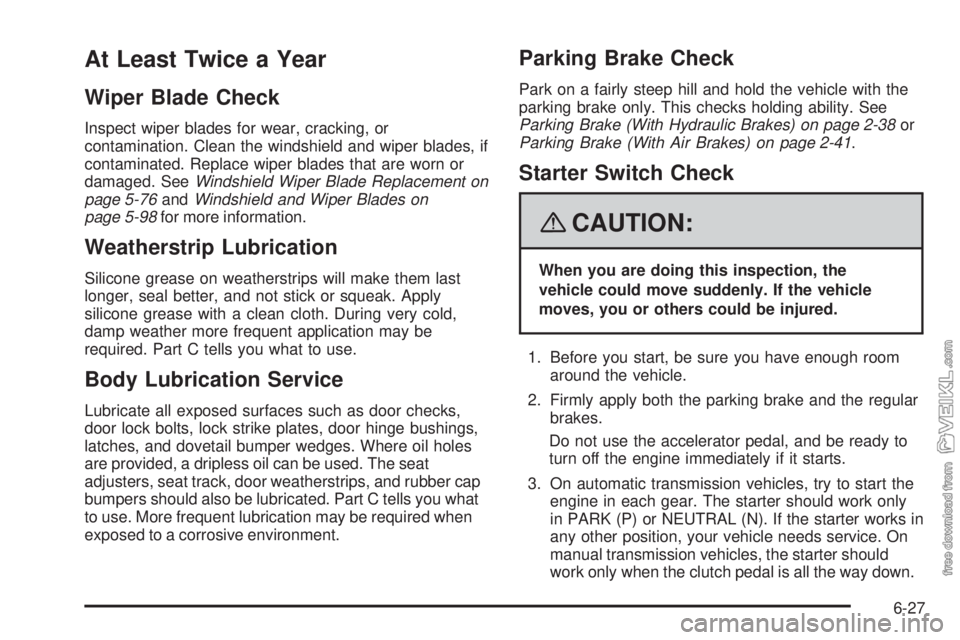

At Least Twice a Year
Wiper Blade Check
Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades, if
contaminated. Replace wiper blades that are worn or
damaged. SeeWindshield Wiper Blade Replacement on
page 5-76andWindshield and Wiper Blades on
page 5-98for more information.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. Part C tells you what to use.
Body Lubrication Service
Lubricate all exposed surfaces such as door checks,
door lock bolts, lock strike plates, door hinge bushings,
latches, and dovetail bumper wedges. Where oil holes
are provided, a dripless oil can be used. The seat
adjusters, seat track, door weatherstrips, and rubber cap
bumpers should also be lubricated. Part C tells you what
to use. More frequent lubrication may be required when
exposed to a corrosive environment.
Parking Brake Check
Park on a fairly steep hill and hold the vehicle with the
parking brake only. This checks holding ability. See
Parking Brake (With Hydraulic Brakes) on page 2-38or
Parking Brake (With Air Brakes) on page 2-41.
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brakes.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine in each gear. The starter should work only
in PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service. On
manual transmission vehicles, the starter should
work only when the clutch pedal is all the way down.
6-27

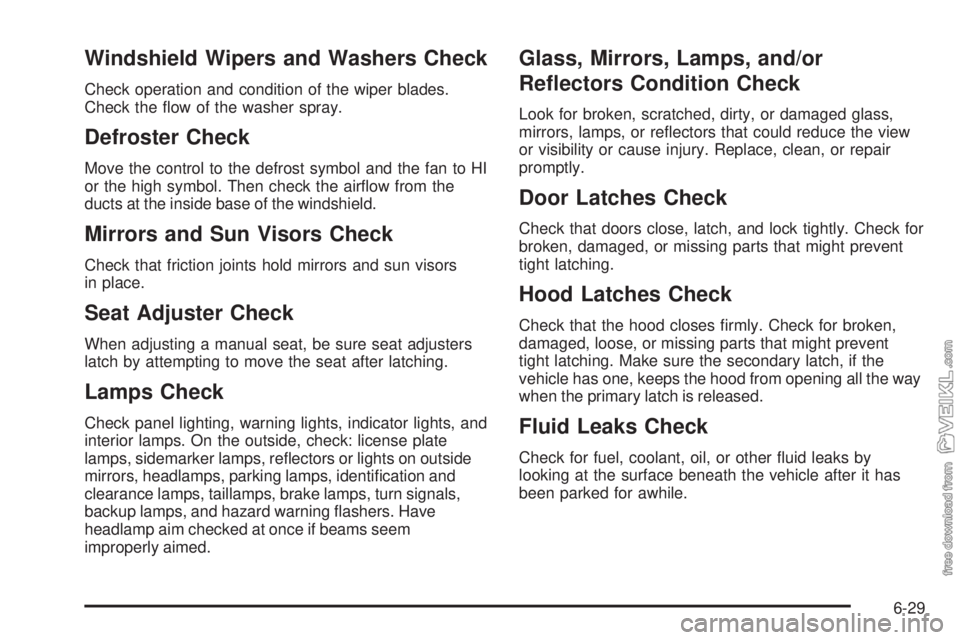

Windshield Wipers and Washers Check
Check operation and condition of the wiper blades.
Check the flow of the washer spray.
Defroster Check
Move the control to the defrost symbol and the fan to HI
or the high symbol. Then check the airflow from the
ducts at the inside base of the windshield.
Mirrors and Sun Visors Check
Check that friction joints hold mirrors and sun visors
in place.
Seat Adjuster Check
When adjusting a manual seat, be sure seat adjusters
latch by attempting to move the seat after latching.
Lamps Check
Check panel lighting, warning lights, indicator lights, and
interior lamps. On the outside, check: license plate
lamps, sidemarker lamps, reflectors or lights on outside
mirrors, headlamps, parking lamps, identification and
clearance lamps, taillamps, brake lamps, turn signals,
backup lamps, and hazard warning flashers. Have
headlamp aim checked at once if beams seem
improperly aimed.
Glass, Mirrors, Lamps, and/or
Reectors Condition Check
Look for broken, scratched, dirty, or damaged glass,
mirrors, lamps, or reflectors that could reduce the view
or visibility or cause injury. Replace, clean, or repair
promptly.
Door Latches Check
Check that doors close, latch, and lock tightly. Check for
broken, damaged, or missing parts that might prevent
tight latching.
Hood Latches Check
Check that the hood closes firmly. Check for broken,
damaged, loose, or missing parts that might prevent
tight latching. Make sure the secondary latch, if the
vehicle has one, keeps the hood from opening all the way
when the primary latch is released.
Fluid Leaks Check
Check for fuel, coolant, oil, or other fluid leaks by
looking at the surface beneath the vehicle after it has
been parked for awhile.
6-29

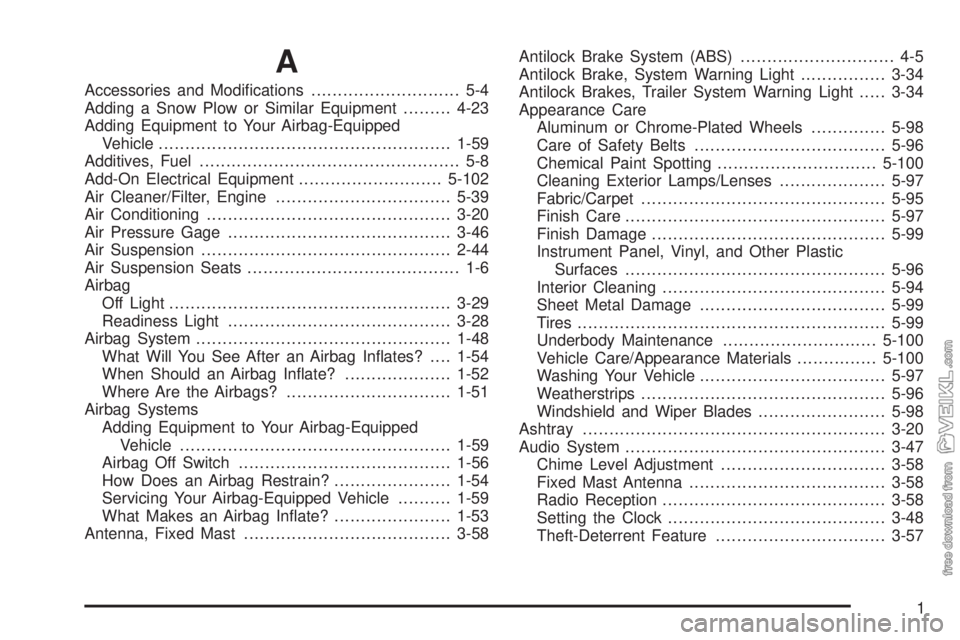

A
Accessories and Modifications............................ 5-4
Adding a Snow Plow or Similar Equipment.........4-23
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-59
Additives, Fuel................................................. 5-8
Add-On Electrical Equipment...........................5-102
Air Cleaner/Filter, Engine.................................5-39
Air Conditioning..............................................3-20
Air Pressure Gage..........................................3-46
Air Suspension...............................................2-44
Air Suspension Seats........................................ 1-6
Airbag
Off Light.....................................................3-29
Readiness Light..........................................3-28
Airbag System................................................1-48
What Will You See After an Airbag Inflates?....1-54
When Should an Airbag Inflate?....................1-52
Where Are the Airbags?...............................1-51
Airbag Systems
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-59
Airbag Off Switch........................................1-56
How Does an Airbag Restrain?......................1-54
Servicing Your Airbag-Equipped Vehicle..........1-59
What Makes an Airbag Inflate?......................1-53
Antenna, Fixed Mast.......................................3-58Antilock Brake System (ABS)............................. 4-5
Antilock Brake, System Warning Light................3-34
Antilock Brakes, Trailer System Warning Light.....3-34
Appearance Care
Aluminum or Chrome-Plated Wheels..............5-98
Care of Safety Belts....................................5-96
Chemical Paint Spotting..............................5-100
Cleaning Exterior Lamps/Lenses....................5-97
Fabric/Carpet..............................................5-95
Finish Care.................................................5-97
Finish Damage............................................5-99
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-96
Interior Cleaning..........................................5-94
Sheet Metal Damage...................................5-99
Tires..........................................................5-99
Underbody Maintenance.............................5-100
Vehicle Care/Appearance Materials...............5-100
Washing Your Vehicle...................................5-97
Weatherstrips..............................................5-96
Windshield and Wiper Blades........................5-98
Ashtray.........................................................3-20
Audio System.................................................3-47
Chime Level Adjustment...............................3-58
Fixed Mast Antenna.....................................3-58
Radio Reception..........................................3-58
Setting the Clock.........................................3-48
Theft-Deterrent Feature................................3-57
1

Cleaning
Aluminum or Chrome-Plated Wheels..............5-98
Exterior Lamps/Lenses.................................5-97
Fabric/Carpet..............................................5-95
Finish Care.................................................5-97
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-96
Interior.......................................................5-94
Tires..........................................................5-99
Underbody Maintenance.............................5-100
Washing Your Vehicle...................................5-97
Weatherstrips..............................................5-96
Windshield and Wiper Blades........................5-98
Climate Control System...................................3-20
Outlet Adjustment........................................3-23
Rear Heating System...................................3-24
Clock, Setting.................................................3-48
Collision Damage Repair................................... 7-6
Control of a Vehicle.......................................... 4-3
Coolant
Engine Temperature Gage............................3-35
Heater, Engine............................................2-25
Low Warning Light.......................................3-35
Surge Tank Pressure Cap.............................5-47
Cooling System..............................................5-50
Cruise Control................................................3-10
Customer Assistance Information
Customer Assistance for Text
Telephone (TTY) Users............................... 7-3
Customer Assistance Offices........................... 7-4Customer Assistance Information (cont.)
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
Reporting Safety Defects to General Motors...... 7-9
Reporting Safety Defects to the Canadian
Government.............................................. 7-9
Reporting Safety Defects to the United
States Government.................................... 7-9
Roadside Assistance Program......................... 7-5
Service Publications Ordering Information........7-10
D
Daytime Running Lamps..................................3-15
Daytime Running Lamps Indicator Light.............3-41
Defensive Driving............................................. 4-2
Diesel
Running Out of Fuel....................................2-50
Diesel Engine.................................................2-26
Engine Alarm and Automatic Shutdown...........2-18
Exhaust Restrictor.......................................2-22
Fuel............................................................ 5-9
High Idle System.........................................2-20
Starting......................................................2-14
Diesel Particulate Filter....................................2-46
Diesel Particulate Filter Warning Light................3-45
Differential Lock Control, Rear Axle..................... 4-7
Differential Lock Indicator Light.........................3-40
Doing Your Own Service Work........................... 5-6
3

V
Vehicle
Control........................................................ 4-3
Damage Warnings........................................... iv
Loading......................................................4-21
Symbols......................................................... iv
Vehicle Data Recording and Privacy..................7-11
Vehicle Identification
Number (VIN)............................................5-101
Service Parts Identification Label..................5-102
Ventilation Adjustment......................................3-23
Visors............................................................. 2-9
Voltmeter Gage..............................................3-31
W
Wait to Start Indicator......................................3-36
Warning Lights, Gages and Indicators................3-24
Warnings
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Washer Fluid, Low Warning Light......................3-42
Water
Fuel..........................................................5-12Water in Fuel Warning Light.............................3-44
What Fuel to Use............................................. 5-9
Wheels
Alignment and Tire Balance..........................5-86
Front Bearings with Oil-Filled Hubs................5-81
Loading......................................................5-83
Replacement...............................................5-90
Tightening the Wheel Nuts............................5-86
Where to Put the Restraint...............................1-38
Windows......................................................... 2-8
Manual........................................................ 2-8
Power......................................................... 2-9
Sliding Rear................................................. 2-9
Windshield
Washer......................................................3-10
Washer Fluid..............................................5-55
Wiper Blade Replacement.............................5-76
Wiper Blades, Cleaning................................5-98
Wiper Fuses.............................................5-102
Wipers......................................................... 3-9
Winter Driving................................................4-16
Y
Your Vehicle and the Environment....................... 6-2
12
