CHEVROLET LOW CAB FORWARD 2017 User Guide

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
10 Introduction
No. Description1 Cab tilt instruction
2 Automatic transmission fluid
level
3 Vehicle certification and
Greenhouse Gas (GHG)
emissions
4 NO STEP instruction
5 Towing
6 Vehicle noise emission
control information
7 Engine cooling
8 Fan blade
9 Vehicle emission control
information Crew cab model

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Introduction 11
No. Description1 Vehicle emission control
information
2 Vehicle certification and
Greenhouse Gas (GHG)
emissions
3 Engine coolant check
4 Engine coolant level
5 NO STEP instruction
6 Power steering fluid
7 Vehicle noise emission
control information
8 Engine cooling
9 Fan blade
10 Towing
11 Automatic transmission fluid
level

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
12 Introduction
No. Description1 Safety lock pin (Single cab)
2 Engine cover notice
(Crew cab)
3 Radiator cap
4 Engine emission control
information
5 Engine coolant (Single cab)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
In Brief 13
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . 14
Instrument Panel (Driver Side -Diesel) . . . . . . . . . . . . . . . . . . . . . . . 16
Instrument Panel (Driver Side - Gas) . . . . . . . . . . . . . . . . . . . . . . . . 17
Instrument Panel (Vehicle Interior) . . . . . . . . . . . . . . . . . . . . . . . 18
Initial Drive Information
Initial Drive Information . . . . . . . . 19
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . 19
Getting In and Out of the Vehicle . . . . . . . . . . . . . . . . . . . . . . . 19
Door Locks . . . . . . . . . . . . . . . . . . . . 19
Windows . . . . . . . . . . . . . . . . . . . . . . . 20
Seat Adjustment . . . . . . . . . . . . . . . 21
Seat Belts . . . . . . . . . . . . . . . . . . . . . 22
Mirror Adjustment . . . . . . . . . . . . . . 23
Steering Wheel Adjustment . . . . 23
Interior Lighting . . . . . . . . . . . . . . . . 24
Exterior Lighting . . . . . . . . . . . . . . . 24
Windshield Wiper/Washer . . . . . . 25
Climate Controls . . . . . . . . . . . . . . . 25
Vehicle Features
Radio(s) . . . . . . . . . . . . . . . . . . . . . . . 26 Portable Audio Devices . . . . . . . . 27
Cruise Control (Diesel) . . . . . . . . . 27
Cruise Control (Gas) . . . . . . . . . . . 28
Driver Information Center (DIC)
(Diesel Only) . . . . . . . . . . . . . . . . . 28
Power Outlets . . . . . . . . . . . . . . . . . 29
Performance and Maintenance
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . . . 29
Diesel Exhaust Fluid . . . . . . . . . . . 30

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
14 In Brief

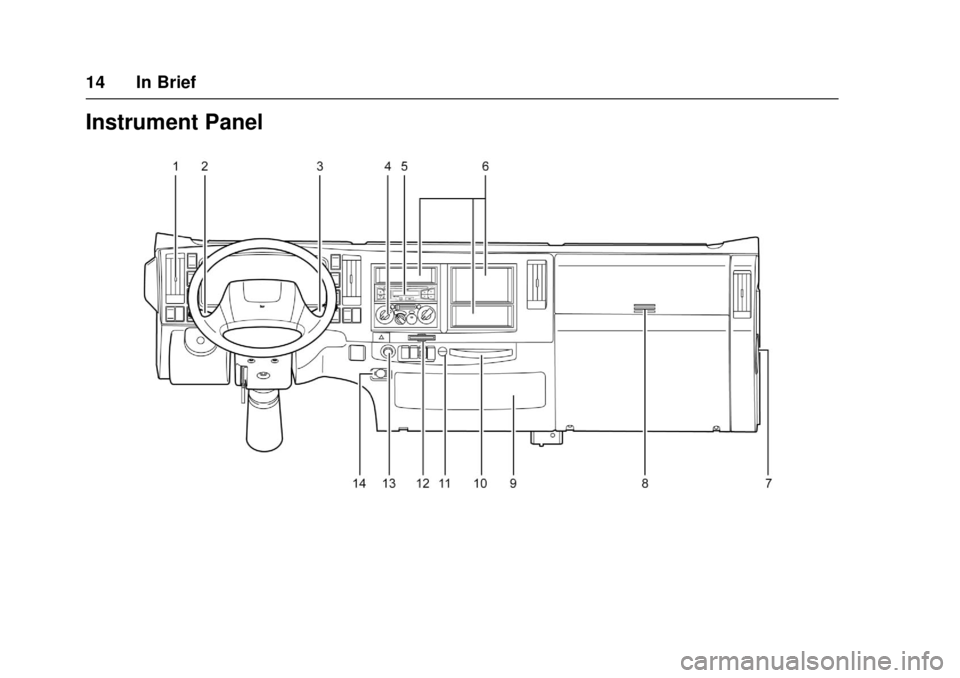

Instrument Panel

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
In Brief 15
1. Air Flow Direction ControlLever. See Air Vents0129.
2. Exterior Lamp Controls 0103.
Cruise Control Set Switch.
See Cruise Control (Diesel)
0 224 orCruise Control (Gas)
0 227.
3. Windshield Wiper and Windshield Washer Switch.
See Windshield Wiper/Washer
0 73.
Exhaust Brake Switch (Diesel
Only). See Exhaust Brake
(Diesel Only) 0222.
4. Heater and Manual Air Conditioner. See Climate
Control Systems 0126.
5. Radio with CD/USB. See AM-FM Radio 0108.
6. Small Article Storage Pockets. See Instrument Panel Storage
0 61.
7. Windshield Washer Fluid Tank. See Washer Fluid 0274.
8. Glove Box 061. 9. Relay Box. See
Electrical
System Overload 0298.
10. Cupholders 062.
11. Hook. See Shopping Bag
Hooks 064.
12. Card Holder. See Instrument
Panel Storage 061.
13. Cigarette Lighter 074.
14. Accessory Power Outlet. See Power Outlets 074.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
16 In Brief
Instrument Panel (Driver Side - Diesel)
1. Instrument Panel Light LevelControl. See Instrument Panel
Illumination Control 0106.
2. Power Take Off (PTO) Main Switch. See Power Take-Off
(PTO) 0242.
3. Power Take Off (PTO) Engine Speed Control Switch. See
Power Take-Off (PTO) 0242. 4. Rear Body Interior Light
Switch. See Cargo Lamp
0 107.
5. Instruments, Warning Lights and Indicator Lights. See
Instrument Cluster 077.
6. Horn Button. See Horn072. 7. Outside Rearview Mirror
Heater Switch. See Heated
Mirrors 040.
8. Cruise Control Main Switch. See Cruise Control (Diesel)
0 224 orCruise Control (Gas)
0 227.
9. Hazard Warning Flasher Switch. See Hazard Warning
Flashers 0105.
10. Diesel Particulate Filter (DPF) Switch. See Diesel Particulate
Filter 0180.
11. Odometer Check Switch. See Odometer 080.
Engine Oil Level Check Switch.
See Engine Oil (Gasoline)
0 257 orEngine Oil (Diesel)
0 251.
12. Door Lock Switch. See Power
Door Locks 039.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
In Brief 17
Instrument Panel (Driver Side - Gas)
1. Instrument Panel Light LevelControl. See Instrument Panel
Illumination Control 0106.
2. Rear Body Interior Light Switch. See Cargo Lamp
0 107.
3. Instruments, Warning Lights and Indicator Lights. See
Instrument Cluster 077. 4. Horn Button. See
Horn072.
5. Rear Power Window Lock Switch. See Power Windows
0 41.
6. Outside Rearview Mirror Heater Switch. See Heated
Mirrors 040. 7. Cruise Control Main Switch.
See Cruise Control (Diesel)
0 224 orCruise Control (Gas)
0 227.
8. Hazard Warning Flasher Switch. See Hazard Warning
Flashers 0105.
9. Rear Power Window Switch. See Power Windows 041.
10. Odometer Check Switch. See Odometer 080.
11. Door Lock Switch. See Power
Door Locks 039.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
18 In Brief
Instrument Panel (Vehicle Interior)
1. Overhead Tray. SeeStorage
Compartments 060.
2. Sun Visor. See Sun Visors
0 43.
3. Dome Lamps 0107.
4. Seat Belt. See Three-Point
Seat Belt 051. 5. Seat Back Pocket (Driver
’s
Side). See Storage
Compartments 060.
6. Seat. See Seat Position044.
7. Cupholders 062. 8. Parking Brake Lever. See
Parking Brake 0221.
9. Selector Lever 0214.
10. Fully Adjustable Steering. See Steering Wheel Adjustment
072.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
In Brief 19
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner’s manual.
Remote Keyless Entry
(RKE) System
Unlocking and Locking the
Doors
Unlocking
Press the unlock button (2) of the
remote control unit for 1 second or
longer. The vehicle's keyless entry
system causes the right and left turn
signal lights to simultaneously flash
twice upon receiving the signals
from the remote control unit.
Locking
Press the lock button (1) of the
remote control unit for 1 second or
longer. The vehicle's keyless entry
system causes the right and left turn
signal lights to simultaneously flash
once upon receiving the signals
from the remote control unit.
SeeRemote Keyless Entry (RKE)
System Operation 032.
Getting In and Out of the
Vehicle
Carefully check that the area around
the vehicle is safe, hold the grip,
and place your foot on the step
when getting in or out of the vehicle.
See Getting In and Out of the
Vehicle 035.
Door Locks
Locking and Unlocking the Door
from Outside Using the Key
Turn the key toward the front of the
vehicle to lock the door and turn it
toward the rear of the vehicle to
unlock it. The doors can be opened
by pulling the outside door handle.
