flammable material, such as
grass, waste paper, oil, or old
tires near the exhaust pipe.
Cold Weather Starting
If you plan ahead for cold weather,
starting and driving your vehicle
should be no problem.
Oil gets thicker as it gets colder,
which slows down the engine
cranking speed.
To be sure the engine can turn fast
enough to start, use SAE 0W-30
viscosity engine oil when prevailing
temperatures drop below 0 °C (32 °
F). See the oil quality and oil
viscosity recommendations. Using
the proper viscosity oil will make
starting easier down to -23 °C (-10 °
F). When prevailing temperatures
drop below -23 °C (-10 °F), the
optional engine block heater may be
needed for starting.
Stopping the Engine
When stopping the gasoline engine,
take the following steps: 1. Bring the vehicle to a complete stop. 2. Firmly apply the parking brake.
3. Move the selector lever to the
P position and make sure that
the shift indicator shows P.
4. Allow the engine to idle for approximately 3 minutes.
5. Turn the engine control switch to the ACC or LOCK position.
To prevent the battery from going
dead, turn the engine control switch
to the ACC or LOCK position after
stopping the engine. If you leave the
vehicle for an extended period of
time, place the engine control switch
in the LOCK position.
If the Vehicle Has Not Been Used
for a Long Period
If the vehicle is to be placed in
storage for a prolonged period of
time, certain precautions must be
taken to prevent deterioration. See
your authorized dealer for more
detailed information.
. Before using a vehicle that has
not been driven for a long
period, check the engine and
transmission for oil leakage, and make sure the oil is at the
required levels. If there is
insufficient oil, it will not
adequately reach and lubricate
components, and a breakdown
will result.
. Start the engine and allow it to
idle for at least 5 minutes. Check
for abnormal noises.
. For instructions on warming up
the engine, refer to “Starting the
Engine” previously in this
section.
Starting and Stopping the
Vehicle (Diesel Only)
Check around the Vehicle before
Starting the Engine
Proper care and operation will not
only extend the service life of your
vehicle but also improve fuel
economy.
Before pulling away, perform a
thorough safety check, making sure
there are no children or obstructions
around the vehicle. Take off the
chocks after confirming that the
parking brake is securely applied.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 205
Starting
Start the engine in either the P or
the N position. The engine should
not start in any other selector
position. If it does, something is
wrong. Have your truck checked by
your dealer as soon as possible.
Always apply either the foot brake
or the parking brake before shifting
into any driving position. This will
prevent creeping.
The engine should be running at
idle when shifting from P or N to one
of the driving positions. See
Selector Lever0214.
Caution
Do not apply water from a
high-pressure washer nozzle
directly to the electric connectors.
Failure to observe this precaution
can lead to faulty operation of the
electrical system.
Caution
Never move the selector into the
P position when the vehicle is in
motion. This will damage the
automatic transmission.
Firmly press the brake pedal to
prevent the vehicle from moving
even if it is stopped on a level road,
and move the selector lever into P
and firmly apply the parking brake
as needed.
The engine speed rises and
creeping will be stronger than usual
during the conditions noted below.
Keep the brake pedal firmly
pressed:
. Immediately after engine
start up.
. While the air conditioner is
running.
. For diesel vehicles, during the
diesel particulate filter (DPF)
regeneration. How to Use the Automatic
Transmission{Warning
Before starting the engine, move
the selector lever into P or N (P is
preferred), make sure the shift
indicator indicates P or N, pull up
the parking brake lever and firmly
press the brake pedal.
When moving the selector lever to
any position other than P, be sure
to press the brake pedal.
Never leave the driver's seat with
the selector lever placed in D, 2,
1 or R (diesel engine), or D6, D4,
2, 1, or R (gasoline engine). The
vehicle may start moving. When
leaving the driver's seat, be sure
to move the selector lever into P
and securely set the parking
brake.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 211
2. Move the selector lever in theP position, check that the shift
indicator is indicating P, and
slowly ease your right foot off
the brake pedal.
3. Stop the engine and remove the key. When the selector
lever is not placed in the P
position, the shift lock system
operates and the key cannot
be removed.
See Starting and Stopping the
Vehicle (Gasoline Only) 0165 or
Starting and Stopping the Vehicle
(Diesel Only) 0168, and Parking
Brake 0221.
If you cannot move the selector
lever from the P position after
starting the engine, perform the
following necessary checks:
. Check that you are firmly
pressing the brake pedal.
. Check if the area where your
vehicle is parked is not a slope.
. If your vehicle is parked on a
downhill slope, the push
operation of the selector lever
may become heavy to move. In this case, you can operate the
selector lever more smoothly by
pushing the selector lever
towards the front of the vehicle
while pushing the button.
Shift Lock System (Diesel
vehicles only)
When Starting Your Vehicle
The selector lever cannot be
operated from the P position to any
other position without the brake
pedal being pressed. Be sure to
operate the lever while pressing the
brake pedal.
When Parking Your Vehicle
The key cannot be removed unless
the selector lever is securely placed
in the P position (key interlock
system). Be sure to place the
selector lever in the P position when
parking the vehicle.
The shift lock system is a system for
safety to prevent incorrect operation
of the automatic transmission. Use it
correctly and drive safely.
If You Cannot Move the Selector
Lever from the P Position
Caution
When the selector cannot be
operated from the P position to
any other position even after
performing the operation below
repeatedly, the shift lock system
may have a failure. Have the
vehicle inspected at your dealer.
If you cannot move the selector
lever from the P position after
starting the engine, perform the
following checks:
. Check that you are firmly
pressing the brake pedal. When
the brake pedal is not pressed,
the shift lock system operates
and the selector lever cannot be
shifted from P to any other
position.
. Check if the area where your
vehicle is parked is not a slope.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 217
Overdrive Off Indicator Light
Indicator lightFunction Usage conditions
Goes Off. 6-Speed (4-speed + overdrive) automatic
change (Overdrive ON). Use under normal driving conditions.
Comes On. 4-speed automatic change, but no change to
overdrive (overdrive OFF). Used when a light engine brake is required.
Doing so will reduce the number of gear
changes making the ride smoother on roads
that have many hills.
. During cold weather, the
transmission may not shift to the
5th or 6th gear (overdrive) until
the engine warms up.
. Even if the engine is stopped
with the overdrive OFF, the
overdrive will be ON the next
time the engine is started.
Brakes
Antilock Brake
System (ABS)
Wheels may be locked and slip
during sudden braking or braking on
a slippery road surface such as a
snowy road. ABS is a device to
prevent the wheels from locking by
detecting a slippery condition during
braking and securing the directional
stability and handling stability of the
vehicle. ABS only assists in limited
road conditions and will not prevent
an accident if you exceed safe
driving speeds for road conditions.
Always drive safely.
{Warning
The braking distance on slippery
road surfaces is longer than that
on a normal dry paved road even
with an ABS-equipped vehicle. In
addition the braking distance can
be slightly longer in deep snow
and on a gravel road when ABS
is activated. Therefore, always
keep in mind the road condition
and tire condition (type of tires
and worn condition), observe safe
driving habits and drive the
vehicle while keeping a proper
distance between vehicles.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 225
drive with the set speed
automatically maintained
without using the accelerator
pedal.
At the same time the cruise set
indicator light comes on.

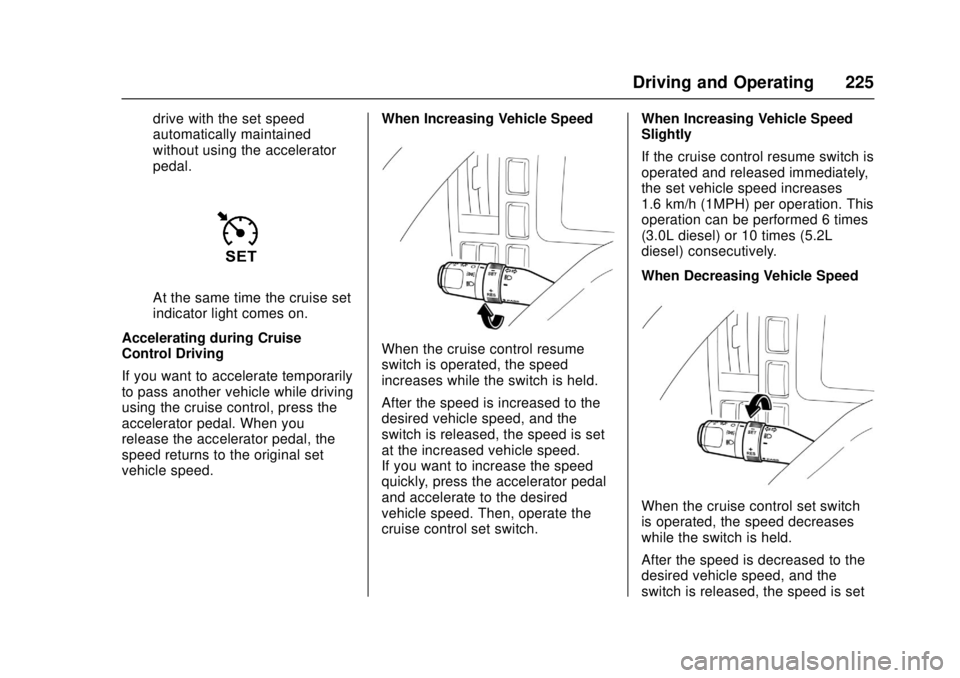

Accelerating during Cruise
Control Driving
If you want to accelerate temporarily
to pass another vehicle while driving
using the cruise control, press the
accelerator pedal. When you
release the accelerator pedal, the
speed returns to the original set

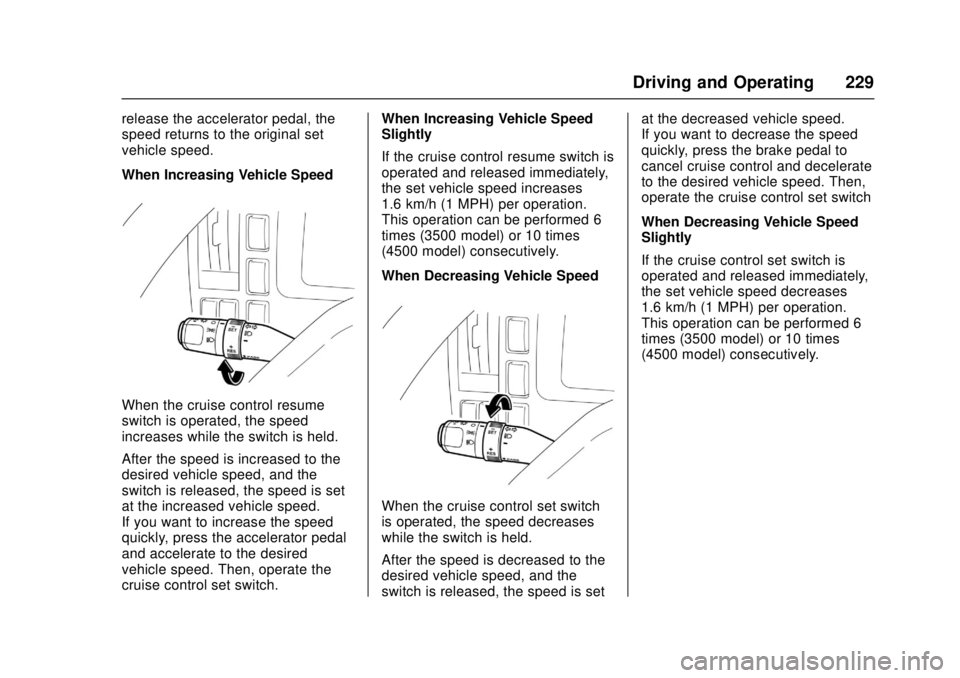

vehicle speed. When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1MPH) per operation. This
operation can be performed 6 times
(3.0L diesel) or 10 times (5.2L
diesel) consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is set

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
226 Driving and Operating
at the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set switch
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3.0L diesel) or 10 times (5.2L

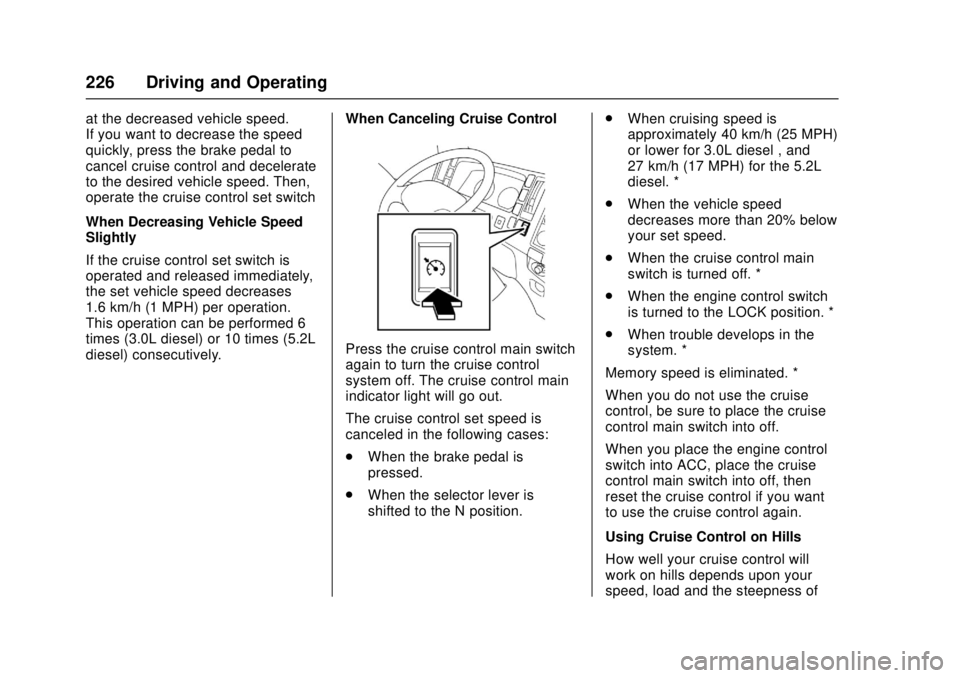

diesel) consecutively.When Canceling Cruise Control
Press the cruise control main switch
again to turn the cruise control
system off. The cruise control main
indicator light will go out.
The cruise control set speed is
canceled in the following cases:
.
When the brake pedal is
pressed.
. When the selector lever is
shifted to the N position. .
When cruising speed is
approximately 40 km/h (25 MPH)
or lower for 3.0L diesel , and
27 km/h (17 MPH) for the 5.2L
diesel. *
. When the vehicle speed
decreases more than 20% below
your set speed.
. When the cruise control main
switch is turned off. *
. When the engine control switch
is turned to the LOCK position. *
. When trouble develops in the
system. *
Memory speed is eliminated. *
When you do not use the cruise
control, be sure to place the cruise
control main switch into off.
When you place the engine control
switch into ACC, place the cruise
control main switch into off, then
reset the cruise control if you want
to use the cruise control again.
Using Cruise Control on Hills
How well your cruise control will
work on hills depends upon your
speed, load and the steepness of

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Driving and Operating 229
release the accelerator pedal, the
speed returns to the original set
vehicle speed.
When Increasing Vehicle Speed
When the cruise control resume
switch is operated, the speed
increases while the switch is held.
After the speed is increased to the
desired vehicle speed, and the
switch is released, the speed is set
at the increased vehicle speed.
If you want to increase the speed
quickly, press the accelerator pedal
and accelerate to the desired
vehicle speed. Then, operate the
cruise control set switch.When Increasing Vehicle Speed
Slightly
If the cruise control resume switch is
operated and released immediately,
the set vehicle speed increases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.
When Decreasing Vehicle Speed
When the cruise control set switch
is operated, the speed decreases
while the switch is held.
After the speed is decreased to the
desired vehicle speed, and the
switch is released, the speed is setat the decreased vehicle speed.
If you want to decrease the speed
quickly, press the brake pedal to
cancel cruise control and decelerate
to the desired vehicle speed. Then,
operate the cruise control set switch
When Decreasing Vehicle Speed
Slightly
If the cruise control set switch is
operated and released immediately,
the set vehicle speed decreases
1.6 km/h (1 MPH) per operation.
This operation can be performed 6
times (3500 model) or 10 times
(4500 model) consecutively.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 247
For diesel vehicles, when working
on the fuel line or fuel filter, remove
the fuel tank filler cap. The fuel
system is under pressure and the
fuel will overspill unless the
pressure is relieved, possibly
leading to combustion or a fire.
Do not make engine adjustments
yourself. Be sure to consult your
dealer.
Use only appropriate tools.
Oils, brake fluid and engine coolant
have lubrication, cooling and rust
prevention functions. If these liquids
deteriorate through loss or
contamination, it will cause a
decline in the performance of the
parts and such problems as seizure
or malfunctioning. Replenish or
change these liquids when
performing the checks (daily and
periodic checks) as required by the
relevant regulations or in
accordance with the Maintenance
Schedule (when either the specified
driving distance or period of time,
whichever comes first, has expired).Confirm that all systems and
components are normal after
performing the work.
Do not leave the removed parts or
tools in the engine compartment.
They could damage the equipment if
caught in the belts or other moving
components.
Dirty water, dirt and other impurities
seriously impair the effectiveness of
the oil, grease and fluids, and
damage the parts. Exercise all due
caution to prevent waste or other
refuse from coming in contact with
parts or materials that have been
removed when changing or
replenishing them.
Do not step on the engine or climb
onto it. You could cause an engine
failure by, for example, damaging
the cylinder head cover or various
connectors.
Electric Welding
Careless electric welding of vehicle
parts can cause welding current to
flow back through the vehicle’s
ground circuit and damage electrical
and electronic parts so that they donot function normally. Whenever
electric welding is necessary,
consult your dealer.
Cab Tilting
Before Tilting the Cab (Single Cab
Model)
{Warning
To help avoid personal injury and
property damage:
. Park the vehicle on level
ground and check that there
is enough space in front of
and above the cab.
. Set the parking brake firmly
and block the front wheels.
. Move the selector lever in
the "P" position.
. Secure loose articles in
the cab.
. Stop the engine.
. Close the cab door.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 249
4. Lower the cab and push thehandle (2) down firmly to lock.
{Warning
To help avoid personal injury or
death, be sure the tilt cab is
securely locked in the lowered
position before operating the
vehicle.
You and others could be seriously
injured.
Engine Compartment
Overview
3.0L L4 Diesel Engine
5.2L L4 Diesel Engine
6.0L V8 Gasoline Engine

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
10716700) - 2017 - crc - 12/6/16
Vehicle Care 263
.Diesel Engine Dipstick H
(HOT) —Transmission fluid
temperature Approx. 70 -
80 °C (158 - 176 °F).
. For diesel engines, the “C
(COLD)” range on the
dipstick is a guide used by
your dealer for specialized
equipment used to replace
or service the automatic
transmission fluid. When
performing your own
inspections, always use the
“H (HOT)” range after
warming up the vehicle.
The fluid must be hot to
ensure an accurate check.
The fluid level rises as
temperature increases.
6. If the fluid level is too low, add the specified fluid through the
dipstick guide tube. Also, check
whether there are no fluid
leaks.
7. Insert the dipstick securely into position.{Warning
Be extremely careful not to burn
yourself when checking the oil
level if the engine temperature is
high. Protect yourself with
gloves etc.
You and others could be seriously
injured.
Discarded parts, oil, grease and
fluids could have an adverse effect
on the environment. It is difficult to
dispose of these, so have your
dealer handle all checks and
replacements.
Engine Air Cleaner/Filter
Air Cleaner
Use of clogged air cleaner element
not only causes a deterioration in
the engine output but also increased
fuel consumption and dark exhaust
smoke. Be sure to use a genuine air cleaner
element. If other air cleaner element
is used, it may cause the sensor to
output a wrong signal.
See
Maintenance Schedule 0345.
Air Cleaner Indicator Light
(Diesel Vehicles Only)
When the air cleaner indicator light
comes on, check the air cleaner
element. If the air cleaner element is
clogged, replace the air cleaner
element.
See Vehicle Messages (Diesel
Only) 097.
See Maintenance Schedule 0345.
Engine Coolant
Protection of Engine against
Overcooling
Overcooling of the engine not only
accelerates wear of the vital engine
parts but also hurts fuel economy.
