CHEVROLET LOW CAB FORWARD 2018 Service Manual

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

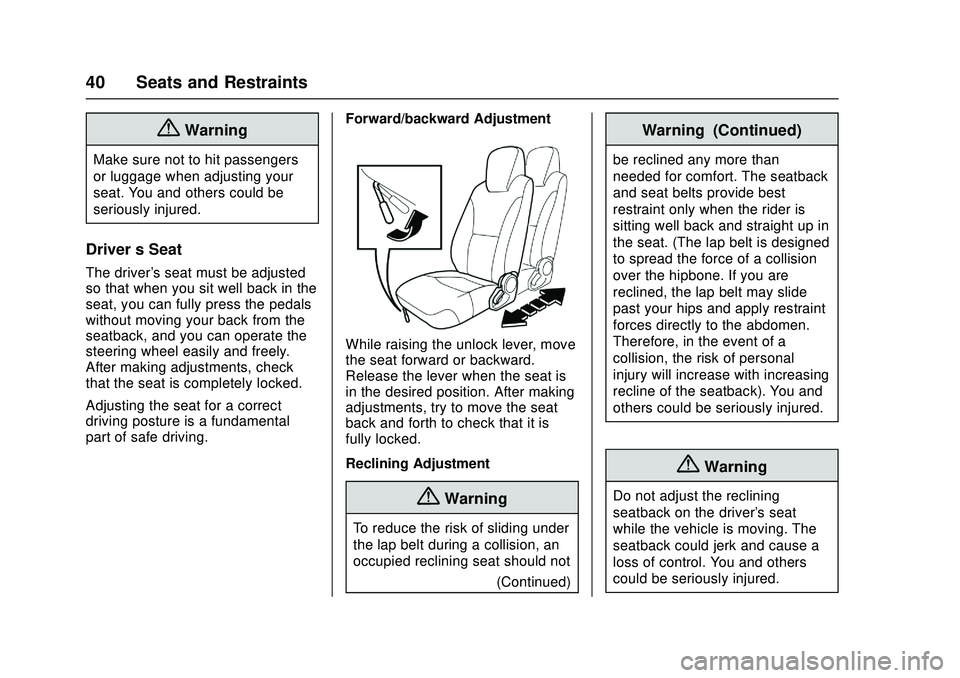

40 Seats and Restraints
{Warning
Make sure not to hit passengers
or luggage when adjusting your
seat. You and others could be
seriously injured.
Driver’s Seat
The driver's seat must be adjusted
so that when you sit well back in the
seat, you can fully press the pedals
without moving your back from the
seatback, and you can operate the
steering wheel easily and freely.
After making adjustments, check
that the seat is completely locked.
Adjusting the seat for a correct
driving posture is a fundamental
part of safe driving. Forward/backward Adjustment
While raising the unlock lever, move
the seat forward or backward.
Release the lever when the seat is
in the desired position. After making
adjustments, try to move the seat
back and forth to check that it is
fully locked.
Reclining Adjustment
{Warning
To reduce the risk of sliding under
the lap belt during a collision, an
occupied reclining seat should not
(Continued)
Warning (Continued)
be reclined any more than
needed for comfort. The seatback
and seat belts provide best
restraint only when the rider is
sitting well back and straight up in
the seat. (The lap belt is designed
to spread the force of a collision
over the hipbone. If you are
reclined, the lap belt may slide
past your hips and apply restraint
forces directly to the abdomen.
Therefore, in the event of a
collision, the risk of personal
injury will increase with increasing
recline of the seatback). You and
others could be seriously injured.
{Warning
Do not adjust the reclining
seatback on the driver's seat
while the vehicle is moving. The
seatback could jerk and cause a
loss of control. You and others
could be seriously injured.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Seats and Restraints 41
To recline the seatback, raise the
seatback tilt lever and gently lean
back to the desired position.
To move the seatback forward, lean
forward with your back slightly clear
of the seatback and raise the lever.
After making adjustments, check
that the seatback is fully locked.
Suspension Adjustment
Avoid making any kind of contact
with the pointer on the scale. Doing
so may result in damage to the
pointer, preventing appropriate
weight adjustments from being
possible.Before sitting on the seat, use the
knob to adjust the suspension to
suit your weight. Turn the knob
clockwise to move the pointer down
the scale and counterclockwise to
move it up the scale. The pointer
should be alongside your weight on
the scale.
The range of adjustment is
50-130 kg (110-290 lbs). If your
weight is outside this range, the
suspension may not be fully
effective. However, you will be able
to sit in the correct position for
driving.
Passenger’s Seat/Center Seat
{Warning
Baggage must not be placed on
the center seat. If the baggage
falls on the floor when braking, it
may prevent the driver from
operating the pedals. You and
others could be seriously injured.
Passenger ’s Seat

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
42 Seats and Restraints
Center Seat
You can tip the seatback forward if
you pull forward the lever at the side
of the seatback. Normally, you
should keep the seatback in the
raised position.
Rear Seats
Rear Seats (Crew
Cab Only)
Do not remove the seat cushion
except when taking out or stowing
onboard tools.
{Warning
Do not drive with the seat cushion
removed. The seat would not be
stable, which could lead to an
accident. You and others could be
seriously injured.
The rear seat headrests are not
adjustable.
Do not use the rear seats with the
headrests removed during driving.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Seats and Restraints 43
Seat Belts
The protection provided by seat
belts might be significantly reduced
if they are not fastened properly; in
certain cases, improperly fastened
seat belts can even play a role in
causing injury to the wearer. Seat
belts must be worn not only by the
driver but also by the passenger(s)
before the vehicle starts moving.
You should be fully acquainted with
the proper use of seat belts and
important points to be respected as
described in the following pages.Familiarizing yourself with the
correct use of seat belts is essential
for your safety.
{Warning
To help reduce the risk of
personal injury in collisions or
sudden maneuvers, use the seat
belts following these instructions
on their proper use, maintenance,
and use with child restraint
systems.
Seat belts must always be
fastened BEFORE starting to
drive.
Seat belts provide full protection
only when the driver and
passenger(s) fasten them while
sitting upright and fully back on
the seat.
Wearing a seat belt with the
seatback excessively reclined
could be very dangerous in a
collision or sudden stop since the
occupant may slide under the belt
(Continued)
Warning (Continued)
and be seriously injured. Seat
belts work best only when the
occupant is sitting well back and
straight up in the seat.
Be sure to insert the latch plate
into the buckle until a click is
heard. An incompletely inserted
latch plate is dangerous in the
event of a collision or
sudden stop.
Do not run the seat belt over your
face, chin or neck.
Wear the seat belt as low as
possible around the hips, not
around the waist. A seat belt
running over the waist would
press the abdomen with a strong
force and could increase the
likelihood of injuries in a collision
or sudden stop.
Do not use a seat belt for a small
child if the belt is on or very close
to the child's neck or chin. Also,(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

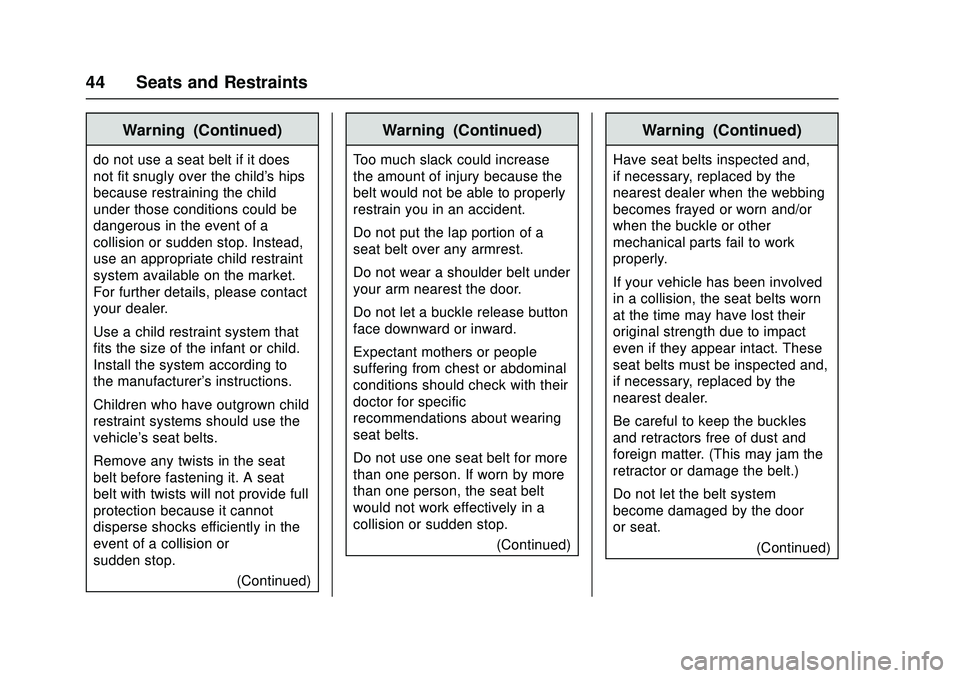

44 Seats and Restraints
Warning (Continued)
do not use a seat belt if it does
not fit snugly over the child's hips
because restraining the child
under those conditions could be
dangerous in the event of a
collision or sudden stop. Instead,
use an appropriate child restraint
system available on the market.
For further details, please contact
your dealer.
Use a child restraint system that
fits the size of the infant or child.
Install the system according to
the manufacturer's instructions.
Children who have outgrown child
restraint systems should use the
vehicle's seat belts.
Remove any twists in the seat
belt before fastening it. A seat
belt with twists will not provide full
protection because it cannot
disperse shocks efficiently in the
event of a collision or
sudden stop.(Continued)
Warning (Continued)
Too much slack could increase
the amount of injury because the
belt would not be able to properly
restrain you in an accident.
Do not put the lap portion of a
seat belt over any armrest.
Do not wear a shoulder belt under
your arm nearest the door.
Do not let a buckle release button
face downward or inward.
Expectant mothers or people
suffering from chest or abdominal
conditions should check with their
doctor for specific
recommendations about wearing
seat belts.
Do not use one seat belt for more
than one person. If worn by more
than one person, the seat belt
would not work effectively in a
collision or sudden stop.(Continued)
Warning (Continued)
Have seat belts inspected and,
if necessary, replaced by the
nearest dealer when the webbing
becomes frayed or worn and/or
when the buckle or other
mechanical parts fail to work
properly.
If your vehicle has been involved
in a collision, the seat belts worn
at the time may have lost their
original strength due to impact
even if they appear intact. These
seat belts must be inspected and,
if necessary, replaced by the
nearest dealer.
Be careful to keep the buckles
and retractors free of dust and
foreign matter. (This may jam the
retractor or damage the belt.)
Do not let the belt system
become damaged by the door
or seat.
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Seats and Restraints 45
Warning (Continued)
Do not let the belt twist while it is
rewinding: it may cause the
retractor to jam so it will not
rewind further. If it is not fully
rewound, the belt cannot be
pulled out. Should the belt jam,
you may be able to release it by
working the belt in and out until
the belt rewinds far enough to
unlock. However, if the belt
remains jammed or other parts of
the restraint system do not work
properly, have your dealer
service it.
Wearing seat belts is a legal
requirement. All other passengers
must wear seat belts. The driver
is responsible not only for
wearing a seat belt himself/herself
but also for prompting all
passengers to wear their seat
belts. It is necessary, however, to
check with a doctor about the
appropriateness of a seat belt for(Continued)
Warning (Continued)
an expectant mother or a
passenger with a chest/abdominal
condition.
Three-Point Seat Belt
{Warning
The shoulder belt should be
adequately positioned on your
shoulder but should not touch
your neck and/or face. The
shoulder belt could harm you in a
collision or sudden stop if it is in
contact with your neck and/
or face.Every seat except the center seat
on your vehicle is equipped with a
three-point seat belt. The seat belt
extends or retracts freely if the
wearer moves slowly, but it locks
and restrains the occupant during
forward force caused by the
occupant's body following a strong
shock.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

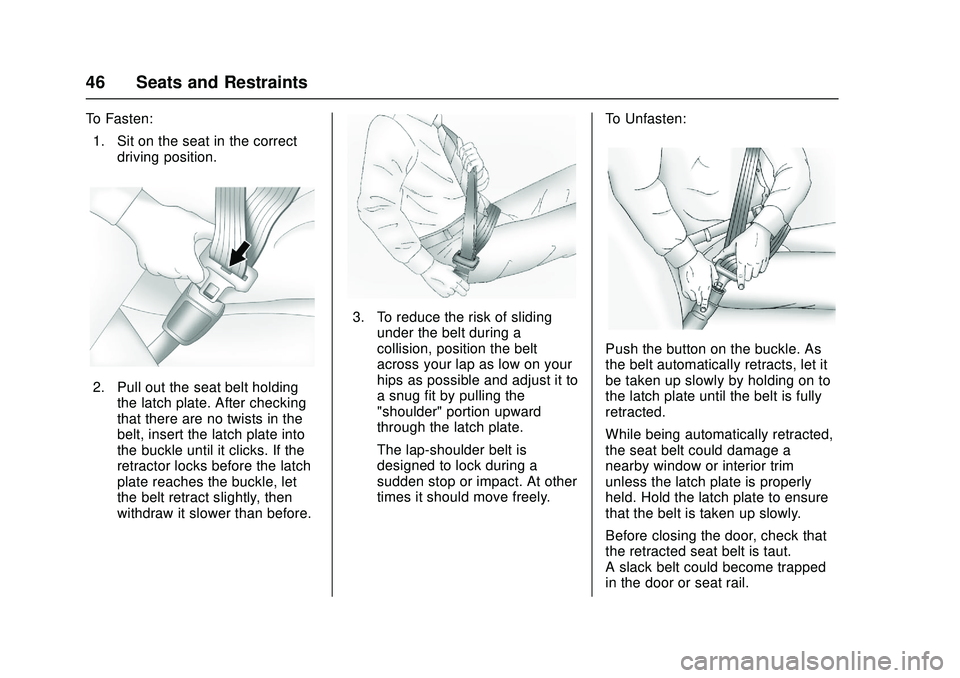

46 Seats and Restraints
To Fasten:1. Sit on the seat in the correct driving position.
2. Pull out the seat belt holdingthe latch plate. After checking
that there are no twists in the
belt, insert the latch plate into
the buckle until it clicks. If the
retractor locks before the latch
plate reaches the buckle, let
the belt retract slightly, then
withdraw it slower than before.
3. To reduce the risk of slidingunder the belt during a
collision, position the belt
across your lap as low on your
hips as possible and adjust it to
a snug fit by pulling the
"shoulder" portion upward
through the latch plate.
The lap-shoulder belt is
designed to lock during a
sudden stop or impact. At other
times it should move freely. To Unfasten:
Push the button on the buckle. As
the belt automatically retracts, let it
be taken up slowly by holding on to
the latch plate until the belt is fully
retracted.
While being automatically retracted,
the seat belt could damage a
nearby window or interior trim
unless the latch plate is properly
held. Hold the latch plate to ensure
that the belt is taken up slowly.
Before closing the door, check that
the retracted seat belt is taut.
A slack belt could become trapped
in the door or seat rail.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Seats and Restraints 47
When the passenger's seat belt is
fully taken up (or not pulled out),
check that the stopper is holding the
belt in a fully taut state.
Emergency Locking Retractor
(ELR) Function
The three-point seat belts are
provided with an Emergency
Locking Retractor (ELR) function.
The ELR normally allows the seat
belt to move in and out freely as the
occupant moves. However, it locks
the seat belt to restrain the
occupant when a forward force
resulting from a collision or sudden
stop acts on the occupant.
The ELR also locks the seat belt
when the belt is pulled out quickly.
If this happens, allow it to retract
once and then pull it out slowly.Seat Belt Use During
Pregnancy
{Warning
Unless the seat belt is correctly
worn, it may dig into the abdomen
in the event of hard braking or a
collision, harming not only the
expectant mother but also the
unborn child, putting them both in
danger of serious injuries or
death.
An expectant mother or a person
who is ill riding in the vehicle must
also wear a seat belt. In light of the
risk that the seat belt will apply
pressure to the abdomen, chest and
shoulders in the event of a collision,
however, an expectant mother or
person who is ill should get advice
from a physician beforehand.
.An expectant mother should use
a three-point seat belt.
. An expectant mother should
position the lap belt snugly as
low as possible on the hips (not
across the abdomen). Also, she
should fasten the shoulder belt
so it rests on her chest, not on
her abdomen.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

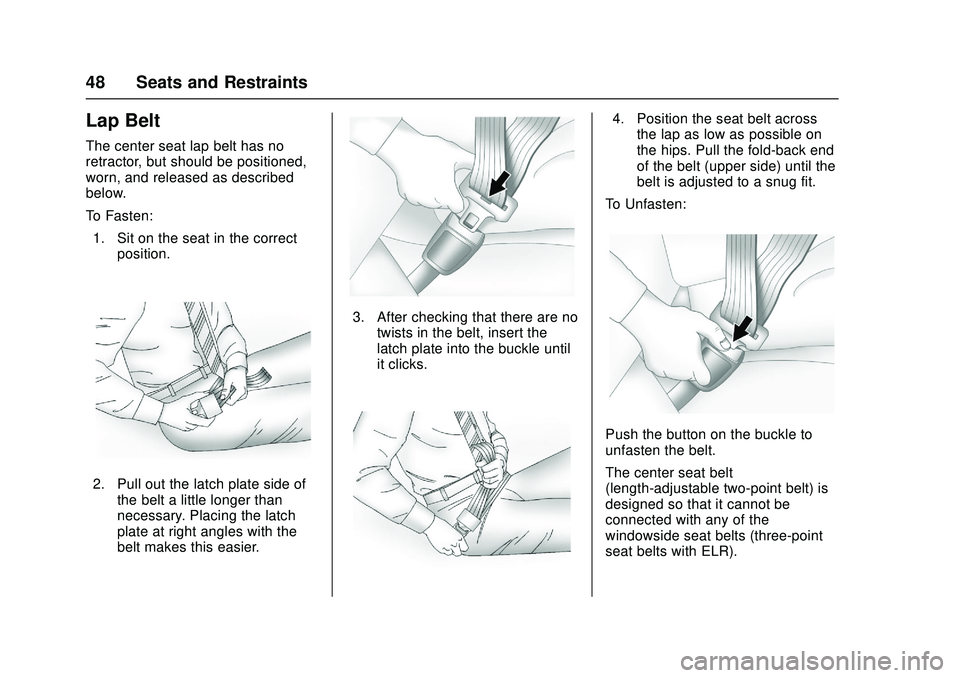

48 Seats and Restraints
Lap Belt
The center seat lap belt has no
retractor, but should be positioned,
worn, and released as described
below.
To Fasten:1. Sit on the seat in the correct position.
2. Pull out the latch plate side ofthe belt a little longer than
necessary. Placing the latch
plate at right angles with the
belt makes this easier.
3. After checking that there are no
twists in the belt, insert the
latch plate into the buckle until
it clicks.
4. Position the seat belt acrossthe lap as low as possible on
the hips. Pull the fold-back end
of the belt (upper side) until the
belt is adjusted to a snug fit.
To Unfasten:
Push the button on the buckle to
unfasten the belt.
The center seat belt
(length-adjustable two-point belt) is
designed so that it cannot be
connected with any of the
windowside seat belts (three-point
seat belts with ELR).

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

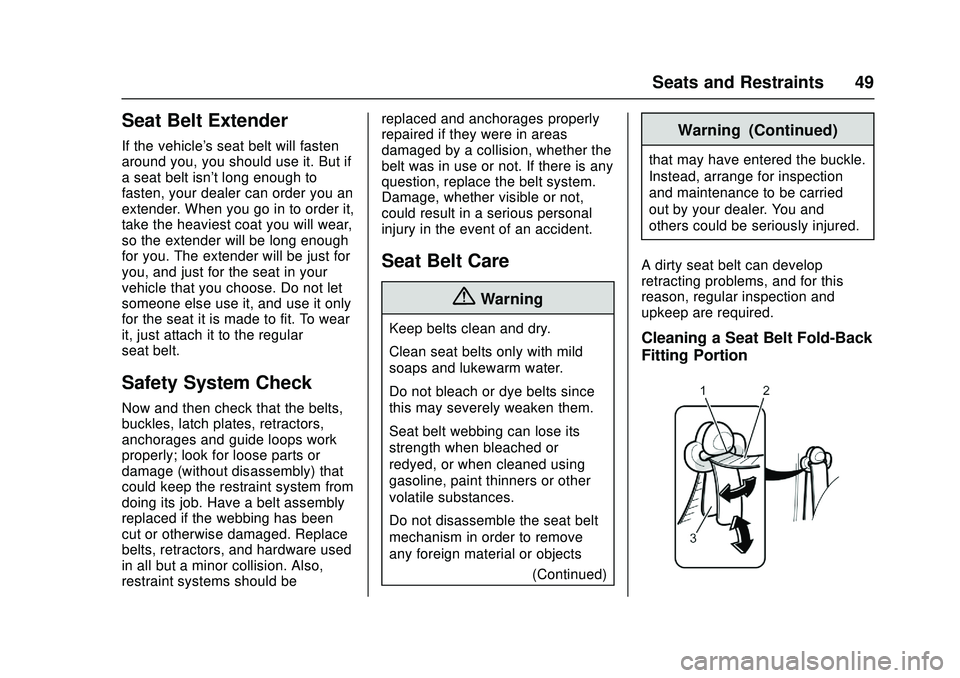

Seats and Restraints 49
Seat Belt Extender
If the vehicle's seat belt will fasten
around you, you should use it. But if
a seat belt isn't long enough to
fasten, your dealer can order you an
extender. When you go in to order it,
take the heaviest coat you will wear,
so the extender will be long enough
for you. The extender will be just for
you, and just for the seat in your
vehicle that you choose. Do not let
someone else use it, and use it only
for the seat it is made to fit. To wear
it, just attach it to the regular
seat belt.
Safety System Check
Now and then check that the belts,
buckles, latch plates, retractors,
anchorages and guide loops work
properly; look for loose parts or
damage (without disassembly) that
could keep the restraint system from
doing its job. Have a belt assembly
replaced if the webbing has been
cut or otherwise damaged. Replace
belts, retractors, and hardware used
in all but a minor collision. Also,
restraint systems should bereplaced and anchorages properly
repaired if they were in areas
damaged by a collision, whether the
belt was in use or not. If there is any
question, replace the belt system.
Damage, whether visible or not,
could result in a serious personal
injury in the event of an accident.
Seat Belt Care
{Warning
Keep belts clean and dry.
Clean seat belts only with mild
soaps and lukewarm water.
Do not bleach or dye belts since
this may severely weaken them.
Seat belt webbing can lose its
strength when bleached or
redyed, or when cleaned using
gasoline, paint thinners or other
volatile substances.
Do not disassemble the seat belt
mechanism in order to remove
any foreign material or objects
(Continued)
Warning (Continued)
that may have entered the buckle.
Instead, arrange for inspection
and maintenance to be carried
out by your dealer. You and
others could be seriously injured.
A dirty seat belt can develop
retracting problems, and for this
reason, regular inspection and
upkeep are required.
Cleaning a Seat Belt Fold-Back
Fitting Portion
