218 Vehicle Care
General Information
Your authorized dealer has trained
technicians and genuine parts to
service your vehicle properly. For
expert advice and quality service,
see your authorized dealer.
California Proposition
65 Warning
Most motor vehicles, including this
one, as well as many of its service
parts and fluids, contain and/or emit
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Engine exhaust, many parts and
systems (including some inside the
vehicle), many fluids and some
component wear by-products
contain and/or emit these
chemicals.
California Perchlorate
Materials Requirements
Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained inremote keyless transmitters, may
contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications
Factory-Approved Accessories
Your dealer can furnish a wide
range of comfort, convenience, and
safety accessories, especially
designed for you and your new
truck. They can install all of the
safety accessories you will need to
comply with local, state and D.O.T.
regulations and advise you how to
comply with these regulations.
Be sure to ask your authorized
dealer about the accessories.
Vehicle Checks
Doing Your Own
Service Work
Precautions for Checking and
Adjustments
Your authorized dealer has trained
technicians and genuine parts to
service your vehicle properly. For
expert advice and quality service,
see your authorized dealer.
{Warning
To help avoid personal injury, take
care when doing any
maintenance or making any
check or repair. Follow
manufacturer's instructions for all
materials used during service and
maintenance of this vehicle.
If used or handled improperly,
they may be hazardous. Improper
or incomplete service can also
affect the vehicle and result in
personal injury, or damage to the
(Continued)

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Vehicle Care 219
Warning (Continued)
vehicle or its equipment. If you
have any questions about
carrying out some service, have
the work done by a skilled
technician.
To prevent personal injury, keep
hands, tools and clothing clear of
the engine cooling fan when the
engine is running.
The engine, exhaust pipe and
radiator will be hot immediately
after the vehicle is driven. Be
careful around these parts to
prevent burns. Perform all checks
when the engine is cold.
Do not perform work near an
open flame or other heat sources.
Do not let the engine run in poorly
ventilated garages or sheds. This
could cause carbon monoxide
poisoning.(Continued)
Warning (Continued)
Performing maintenance work on
a truck or chassis can be
dangerous. In trying to do some
jobs, you can be seriously injured.
Do your own maintenance work
only if you have the required
know-how and the proper tools
and equipment for the job. If you
have any doubts, contact your
dealer.
You and others could be seriously
injured.
Pull firmly on the parking brake
lever and move the selector lever to
"P" and make sure the shift indicator
displays "P".
Make sure to turn off the engine and
remove the key from the engine
control switch before performing any
checks.
Select a place with a solid and level
surface to perform the checking and
maintenance work. Make sure to chock the wheels. It would be very
dangerous if the vehicle started
to move.
When performing work on the
electrical system, begin by turning
the engine control switch to the
"LOCK" position, wait at least
3 minutes, and then disconnect the
negative cable from the negative
terminal on battery. If the negative
cable is disconnected within
3 minutes, the engine control
module may malfunction.
When working on the fuel line or
fuel filter, remove the fuel tank filler
cap. The fuel system is under
pressure and the fuel will overspill
unless the pressure is relieved,
possibly leading to combustion or
a fire.
Do not make engine adjustments
yourself. Be sure to consult your
dealer.
Use only appropriate tools.
Oils, brake fluid and engine coolant
have lubrication, cooling and rust
prevention functions. If these liquids
deteriorate through loss or

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
220 Vehicle Care
contamination, it will cause a
decline in the performance of the
parts and such problems as seizure
or malfunctioning. Replenish or
change these liquids when
performing the checks (daily and
periodic checks) as required by the
relevant regulations or in
accordance with the Maintenance
Schedule (when either the specified
driving distance or period of time,
whichever comes first, has expired).
Confirm that all systems and
components are normal after
performing the work.
Do not leave the removed parts or
tools in the engine compartment.
They could damage the equipment if
caught in the belts or other moving
components.
Dirty water, dirt and other impurities
seriously impair the effectiveness of
the oil, grease and fluids, and
damage the parts. Exercise all due
caution to prevent waste or other
refuse from coming in contact with
parts or materials that have been
removed when changing or
replenishing them.Do not step on the engine or climb
onto it. You could cause an engine
failure by, for example, damaging
the cylinder head cover or various
connectors.
Electric Welding
Careless electric welding of vehicle
parts can cause welding current to
flow back through the vehicle’s
ground circuit and damage electrical
and electronic parts so that they do
not function normally. Whenever
electric welding is necessary,
consult your dealer.
Cab Tilting
Before Tilting the Cab (Single Cab
Model)
{Warning
To help avoid personal injury and
property damage:
(Continued)
Warning (Continued)
.Park the vehicle on level
ground and check that there
is enough space in front of
and above the cab.
. Set the parking brake firmly
and block the front wheels.
. Move the selector lever in
the "P" position.
. Secure loose articles in
the cab.
. Stop the engine.
. Close the cab door.
. Keep the area surrounding
the cab clear.
You and others could be seriously
injured.
Tilting the Cab 1. Check that all personnel are clear of the cab.
2. Read the label on the rear of the cab.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Vehicle Care 223
Engine Coolant Reserve Tank
Inspection Cover (Crew Cab
Model)
To gain access to the engine
coolant reserve tank, remove the
inspection cover located under the
rear left seat.
Engine Oil
Engine oil is an important factor
determining engine performance
and longevity. Be sure to use only
the specified oil and oil filters. The
engine oil level must be checked
and the oil should be changed
regularly according to the
Maintenance Schedule.The engine oil performs the
following important functions:
.
It prevents engine parts from
becoming worn.
. It cools engine parts.
. It cleans engine parts.
. It seals the combustion
chambers and prevents rust.
Replace the engine oil at regular
intervals.
When particulate matter (PM) has
accumulated to a preset level in the
diesel particulate filter (DPF), the
filter is automatically regenerated
through combustion. To make this
regeneration (combustion) possible,
a small amount of fuel is injected
into the engine combustion chamber
after firing. This causes fuel to
gradually become mixed with the
engine oil, and the engine oil level
may rise beyond the original level.
This does not indicate a malfunction
of the engine.
Access to the Engine
Single Cab Model
Access to the engine oil dipstick is
located on the engine left side after
tilting the cab. See Cab Tilting
0 220.
Crew Cab Model
The engine oil dipstick is under the
engine inspection sub cover located
beneath the driver's seat.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

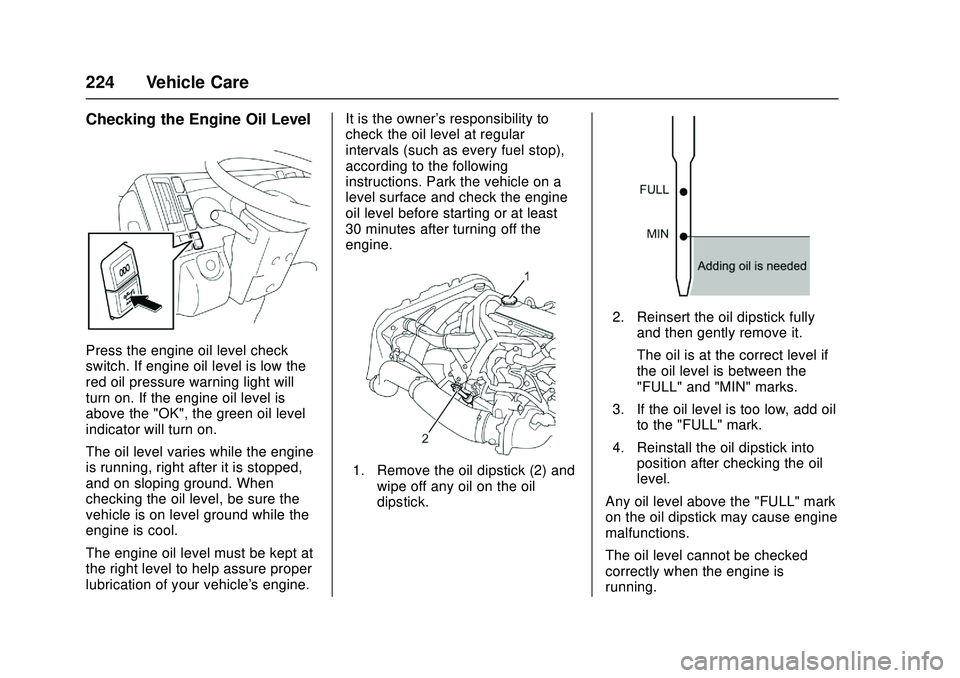

224 Vehicle Care
Checking the Engine Oil Level
Press the engine oil level check
switch. If engine oil level is low the
red oil pressure warning light will
turn on. If the engine oil level is
above the "OK", the green oil level
indicator will turn on.
The oil level varies while the engine
is running, right after it is stopped,
and on sloping ground. When
checking the oil level, be sure the
vehicle is on level ground while the
engine is cool.
The engine oil level must be kept at
the right level to help assure proper
lubrication of your vehicle's engine.It is the owner's responsibility to
check the oil level at regular
intervals (such as every fuel stop),
according to the following
instructions. Park the vehicle on a
level surface and check the engine
oil level before starting or at least
30 minutes after turning off the
engine.
1. Remove the oil dipstick (2) and
wipe off any oil on the oil
dipstick.
2. Reinsert the oil dipstick fullyand then gently remove it.
The oil is at the correct level if
the oil level is between the
"FULL" and "MIN" marks.
3. If the oil level is too low, add oil to the "FULL" mark.
4. Reinstall the oil dipstick into position after checking the oil
level.
Any oil level above the "FULL" mark
on the oil dipstick may cause engine
malfunctions.
The oil level cannot be checked
correctly when the engine is
running.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Vehicle Care 225
If the engine has been running, wait
at least 30 minutes before checking.
Adding the Engine Oil
When the engine oil level is near or
below the "MIN" mark on the oil
dipstick, remove the oil filler cap (1)
and add the oil. Remove the oil
dipstick (2) at this time. Use only the
specified engine oil.
Caution
When adding oil, be careful not to
spill any, but keep a workshop rag
handy just in case there are any
spills. If any oil should spill onto
the engine, carefully wipe it away.
If this precaution is not taken, the
spilled oil could ignite and a fire
could spread.
Do not leave flammable items,
such as rags or gloves, in the
engine compartment. They could
cause a fire. You and others could
be seriously injured.
Engine oil lubricates and cools the
engine's internal components. The
quality of the oil is degraded and the
quantity of oil is reduced by
evaporation, discharge and
combustion during the operation of
the engine. Continually using the
same oil without checking the level,
or without replenishing and
changing it could cause seizure or
damage to the engine. Prevent dirt from entering the filler
port when adding the oil. If foreign
matter mixes with the oil, it could
damage the engine.
Adding oil above the "FULL" mark
on the oil dipstick could result in
faulty engine operation. Be sure to
check the oil level by using the oil
dipstick.
Failure to use the recommended
engine oil could result in engine or
DPF breakdown, or in poor fuel
efficiency. Be sure to use the
recommended engine oil.
Choosing the Right Quality Oil
If you do not use the oil intended for
a vehicle equipped with a Diesel
Particulate Filter (DPF), both the
engine and the DPF may break
down and fuel economy may
decrease. Be sure, therefore, to use
the oil intended for vehicles
equipped with DPF.
GM recommends engine oil that
supports DPF (Low ash oil). Use of
engine oil that does not support low
ash will increase the PM produced
by engine combustion.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
228 Vehicle Care
This Engine Oil Viscosity Grade
Chart shows general information.
For this vehicle, oil with *W-40
viscosity is recommended.
Changing the Engine Oil and
Oil Filter
Engine oil and the oil filter are
important factors in engine
performance and lifespan. Be sure
to use only the specified oil and oilfilters. The engine oil level must be
checked and the oil should be
changed regularly according to the
Maintenance Schedule.
Use the indicated oil quantities only
as guidelines when changing the
engine oil. After changing the oil,
make sure the oil is at the required
level. See
Capacities and
Specifications 0335. Failure to use the recommended
engine oil could result in engine or
DPF breakdown, or in poor fuel
efficiency. Be sure to use the
recommended engine oil.
Engine oil change precaution:
.
When adding oil, remove the
dipstick.
. After adding oil, wait for at least
5 minutes before starting the
engine. Be sure to reinstall the
dipstick.
Discarded Parts, Oils and
Other Liquids
When changing oils, filters, engine
coolant or other liquids, be sure to
have a container ready in advance
for their disposal.
Use methods conforming to legal
requirements for discarding or
disposing of parts, oils, filters or
engine coolant after change or
replacement.
Do not dispose of used engine oil,
fuel or any other oil in a careless
manner such as pouring it on the
ground, into sewers, or into streams

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

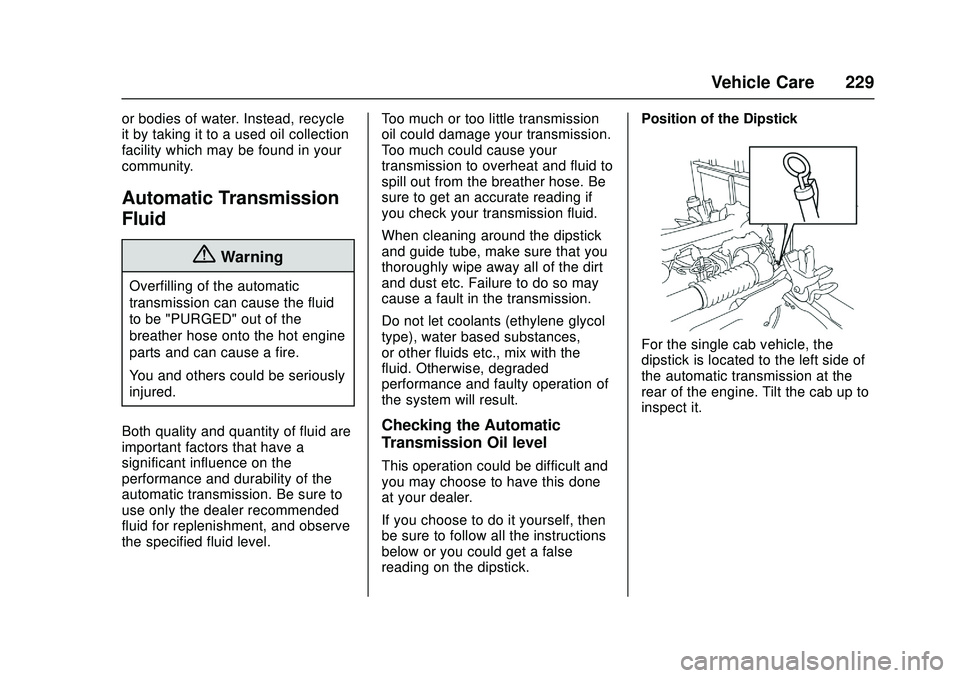

Vehicle Care 229
or bodies of water. Instead, recycle
it by taking it to a used oil collection
facility which may be found in your
community.
Automatic Transmission
Fluid
{Warning
Overfilling of the automatic
transmission can cause the fluid
to be "PURGED" out of the
breather hose onto the hot engine
parts and can cause a fire.
You and others could be seriously
injured.
Both quality and quantity of fluid are
important factors that have a
significant influence on the
performance and durability of the
automatic transmission. Be sure to
use only the dealer recommended
fluid for replenishment, and observe
the specified fluid level. Too much or too little transmission
oil could damage your transmission.
Too much could cause your
transmission to overheat and fluid to
spill out from the breather hose. Be
sure to get an accurate reading if
you check your transmission fluid.
When cleaning around the dipstick
and guide tube, make sure that you
thoroughly wipe away all of the dirt
and dust etc. Failure to do so may
cause a fault in the transmission.
Do not let coolants (ethylene glycol
type), water based substances,
or other fluids etc., mix with the
fluid. Otherwise, degraded
performance and faulty operation of
the system will result.
Checking the Automatic
Transmission Oil level
This operation could be difficult and
you may choose to have this done
at your dealer.
If you choose to do it yourself, then
be sure to follow all the instructions
below or you could get a false
reading on the dipstick.Position of the Dipstick
For the single cab vehicle, the
dipstick is located to the left side of
the automatic transmission at the
rear of the engine. Tilt the cab up to
inspect it.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
230 Vehicle Care
For the crew cab vehicle, the
dipstick is located beneath the
rear-of-engine inspection panel.
After unlatching the A/T fluid
inspection cover, the dipstick will be
visible.
Inspection
Wait at least 30 minutes before
checking the transmission fluid if
you have been driving at high speed
for a long period of time, in city/
heavy traffic or while pulling a trailer.1. Start the engine, and drive the vehicle for approximately
10 minutes to warm up the
engine. During 10 minutes, the
automatic transmission fluid should reach a temperature of
approximately 70 - 80 °C
(158 - 176 °F). During the
winter when temperatures are
low, adjust the amount of
driving time according to the
actual conditions.
2. Park the vehicle on level ground, and firmly apply the
parking brake.
3. With the engine idling, move the selector lever from the “P”
position to the “1”position
while pressing the brake pedal,
and then return the lever from
the “1”position to the “P”
position.
4. With the engine still idling, pull out the dipstick and wipe it with
a clean cloth.Transmission Dipstick
5. Reinsert the dipstick into position, pull out the dipstick
slowly, and check whether the
fluid level is within the “H”
marked range. Always check
the fluid level at least twice.
Consistently is important in
maintaining accuracy.
If inconsistent readings persist,
check the transmission
breather to ensure that it is
clean and free of debris.
. Dipstick C (COLD) —
Transmission fluid
temperature Approx.
20 - 30 °C (68 - 86 °F).
