Climate Controls
Climate Control Systems
Climate Control Systems . . . . . 131
Air Vents
Air Vents . . . . . . . . . . . . . . . . . . . . . 134
Maintenance
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . 135
Service . . . . . . . . . . . . . . . . . . . . . . . 136
Climate Control
Systems
The heating, cooling, and ventilation
for the vehicle can be controlled
with this system.
Climate Control System w/Air
Conditioning shown, Heater Only similar
1. Outlet Selector Knob
2. Air Selector Lever
3. Temperature Control Knob
4. Air Conditioning (A/C) Switch, if equipped
5. Fan Speed Control Knob Outlet Selector Knob :
The Air
Selector Knob regulates air flow
from the upper, floor and defroster
outlets.
H: Air flows through the upper
outlets.
): Air flows through the upper and
floor outlets.
6: Air is flows through the floor
outlets.
-: Air flows through the floor
outlets, with some air coming from
the door window and windshield
outlets.
1: Air flows through the door
window and windshield outlets.
Air Selector Lever : The intake of
outside air and the circulation of
inside air is controlled by sliding this
lever right or left.
P: Use this position to ventilate
the interior of the cab. This position
should be normally selected.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
132 Climate Controls
O:Use this position to prevent
dusty or otherwise contaminated
outside air from entering the cab,
such as in a tunnel or in congested
traffic.
Extended use of the inside air
recirculation position causes the
windshield and windows to fog up
easily, making visibility poor. For
good ventilation, switch to outside
air as soon as possible.
Temperature Control Knob : Use
this knob to select the preferred cab
interior temperature. Turn the knob
counterclockwise to lower the outlet
air temperature and clockwise to
raise it.
Fan Speed Control Knob : The fan
speed can be adjusted to any of the
four speeds available.
Air Conditioning (A/C) Switch :
Press this switch to use the air
conditioning system. The indicator
light inside the switch will come on
to show that the air conditioning
system is in operation. The air
conditioning system can also be
used for dehumidifying while the heater is being used. To turn off the
air conditioning, push this switch in
again.
When the defrost mode is selected,
the air conditioner compressor will
be on.
Even if the A/C switch is turned on,
the air conditioning system will not
operate when the fan speed control
knob is placed in the stop position.
Make sure that the fan speed
control knob is in a position other
than the stop position.
Even in seasons when the air
conditioning system is not used,
occasionally operate the system for
a few minutes with the engine
running at a low speed in order to
keep the system's components
lubricated.
Ventilation
Outside Air Ventilation :
Press the
A/C switch to the off position. Turn
the outlet selector knob to the
preferred position. Move the air
selector lever to the
Pposition. Set the temperature control knob to
the desired position. Adjust the fan
speed control knob to the preferred
speed.
How to Use the Heater
Normal Heating :
Set the outlet
selector knob to the
6or-
position. Use the-position for
warming your feet while defogging
the windshield.
Set the air selector lever to the
P
position. Adjust the temperature
control knob and the fan speed
control knob to the desired
positions.
To dehumidify the cab interior while
heating, press the A/C switch to the
on position.
As the heater uses the heat from
the engine coolant, its heating effect
is weak when the engine coolant
temperature is low.
Maximum Heating : Turn the outlet
selector knob to the
6position, set
the air selector lever to the
O

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Climate Controls 133
position, and turn the temperature
control knob fully towards the high
temperature direction.
Set the fan speed control knob to
the maximum speed position.
Bi-Level Heating :Set the outlet
selector knob to the
)position. Set
the air selector lever to the
P
position. Set the temperature control
knob to the middle position.
Adjust the fan speed control knob
as desired. The air from the floor
outlets is warmer than the air from
the upper outlets in this position.
However, when the temperature
control knob is moved to either the
full hot or the full cold position, the
air from the floor outlets and the air
from the upper outlets will be the
same temperature. This position can
give cool upper level air and warm
floor level air when the temperature
control is adjusted in between cold
and hot. This is useful in cool
weather with bright sunlight
conditions. Defogging and Defrosting the
Windshield
Defogging :
Set the outlet selector
knob to the
1position. Set the air
selector lever to the
Pposition.
Turn the temperature control knob
to a high-temperature position
according to your preference. For
defogging in the summer months,
set the temperature control knob to
any desired position.
Set the fan speed control knob to
any speed position, except the off
position. The A/C compressor
automatically operates when the
1
position is selected. Defogging is
performed very effectively with the
dehumidifying effect.
Defrosting : Set the outlet selector
knob to the
1position. Set the air
selector lever to the
Oposition.
Turn the temperature control knob
fully towards the high-temperature
direction. Set the fan speed control
knob to the maximum speed
position. After defrosting, be certain to return
the air selector lever to the
P
position. Failure to do so will cause
the windshield to fog up, impeding
forward visibility.
Cooling
Normal/Moderate Cooling :
This
setting is suitable for extended
periods of cooling or moderate
cooling. Press the A/C switch to the
on position.
Set the outlet selector knob to the
Hposition for normal cooling or set
it to the
)position for moderate
cooling. Adjust the temperature
control knob to the desired position.
Adjust the fan speed control knob
as desired
Maximum Cooling : Set the outlet
selector knob to the
Hposition.
Press the A/C switch to the on
position. Move the air selector lever
to the
Oposition

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
134 Climate Controls
Turn the temperature control knob
fully towards the low-temperature
direction. Set the fan speed control
knob to the maximum speed
position.
After prolonged parking in direct
sunlight, open the windows or doors
to ventilate the interior of the cab
and release the heat.
During cooling operation, mist may
come out of the air outlets. This
results from quick cooling of humid
air, and does not indicate any
problem.
After maximum cooling, be certain
to return the air selector lever to the
Pposition. Failure to do so will
cause the windshield to fog up,
impeding forward visibility.
Air Vents
1. Driver Side Outlets. Airflow
direction is adjustable.
2. Windshield Outlets. Air is delivered towards the
windshield.
3. Passenger Side Outlets. Airflow direction is
adjustable. 4. Door Windows Outlet. Air is
delivered towards the door
windows
5. Foot Outlets. Air is delivered towards the feet.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Climate Controls 135
Air Flow Direction Control Lever
Use the tab to adjust the airflow
direction from the outlet. To close
the outlet, move the tab fully down.
Maintenance
Passenger Compartment
Air Filter
Removing the Inside Air Filter
1. Remove the 2 clips securingthe cover. Remove the clips in
the order of the inner clip (1)
followed by the outer clip (2).
2. Remove the cover by pushing it upwards.
3. Remove and clean the filter.Use a vacuum cleaner or the
like to clean dust and dirt from
its surface.
Avoid interference with electric
harnesses when removing the filter.
In order to avoid filter damage, hard
brushes should not be used for filter
cleaning.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
136 Climate Controls

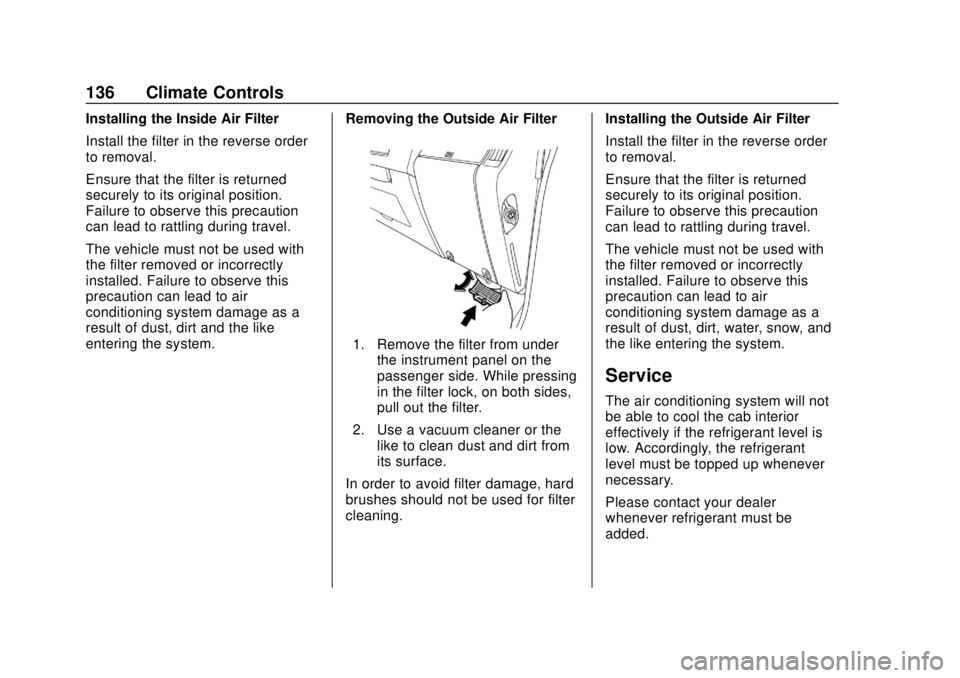

Installing the Inside Air Filter
Install the filter in the reverse order
to removal.
Ensure that the filter is returned
securely to its original position.
Failure to observe this precaution
can lead to rattling during travel.
The vehicle must not be used with
the filter removed or incorrectly
installed. Failure to observe this
precaution can lead to air
conditioning system damage as a
result of dust, dirt and the like
entering the system.Removing the Outside Air Filter
1. Remove the filter from under
the instrument panel on the
passenger side. While pressing
in the filter lock, on both sides,
pull out the filter.
2. Use a vacuum cleaner or the like to clean dust and dirt from
its surface.
In order to avoid filter damage, hard
brushes should not be used for filter
cleaning. Installing the Outside Air Filter
Install the filter in the reverse order
to removal.
Ensure that the filter is returned
securely to its original position.
Failure to observe this precaution
can lead to rattling during travel.
The vehicle must not be used with
the filter removed or incorrectly
installed. Failure to observe this
precaution can lead to air
conditioning system damage as a
result of dust, dirt, water, snow, and
the like entering the system.
Service
The air conditioning system will not
be able to cool the cab interior
effectively if the refrigerant level is
low. Accordingly, the refrigerant
level must be topped up whenever
necessary.
Please contact your dealer
whenever refrigerant must be
added.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Climate Controls 137

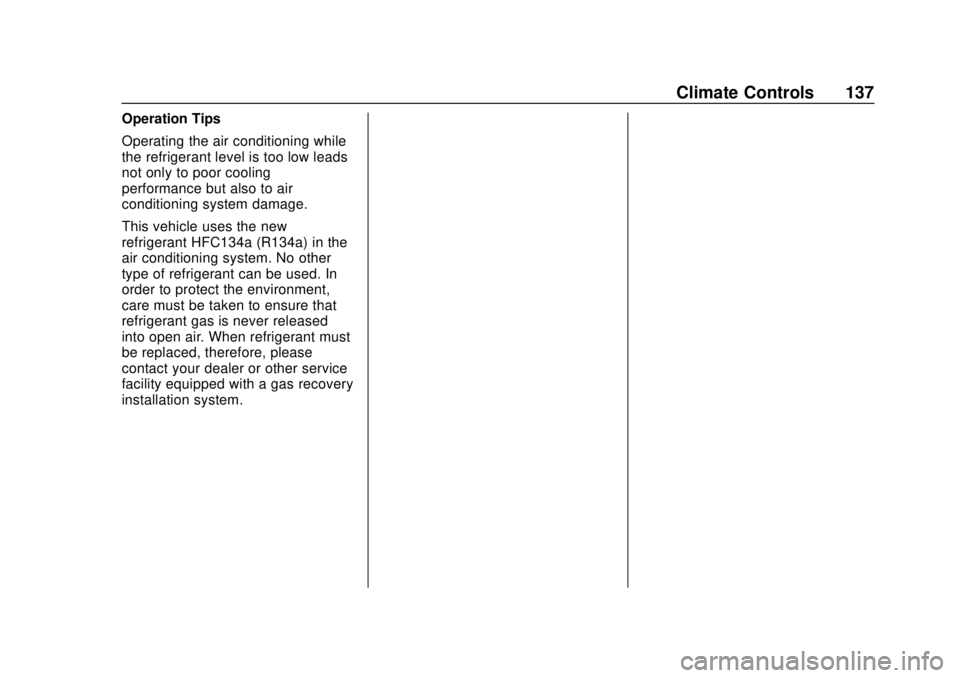

Operation Tips
Operating the air conditioning while
the refrigerant level is too low leads
not only to poor cooling
performance but also to air
conditioning system damage.
This vehicle uses the new
refrigerant HFC134a (R134a) in the
air conditioning system. No other
type of refrigerant can be used. In
order to protect the environment,
care must be taken to ensure that
refrigerant gas is never released
into open air. When refrigerant must
be replaced, therefore, please
contact your dealer or other service
facility equipped with a gas recovery
installation system.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
138 Driving and Operating
Driving and
Operating
Driving Information
Driver Behavior . . . . . . . . . . . . . . . 139
Distracted Driving . . . . . . . . . . . . 139
Control of a Vehicle . . . . . . . . . . . 139
Braking . . . . . . . . . . . . . . . . . . . . . . . 143
Steering . . . . . . . . . . . . . . . . . . . . . . 149
Driving on Wet Roads . . . . . . . . 149
Hill and Mountain Roads . . . . . 150
Winter Driving . . . . . . . . . . . . . . . . 151
If the Vehicle Is Stuck . . . . . . . . 153
Emergencies(Troubleshooting) . . . . . . . . . . . 154
Emergencies (Disabled Vehicle) . . . . . . . . . . . . . . . . . . . . . 164
Starting and Operating
New Vehicle Break-In . . . . . . . . . 165
Pedals . . . . . . . . . . . . . . . . . . . . . . . . 166
Ignition Positions . . . . . . . . . . . . . 166
Starting and Stopping theVehicle . . . . . . . . . . . . . . . . . . . . . . 168
Operating Temperature . . . . . . . 171
Winter Cover . . . . . . . . . . . . . . . . . 172
Engine Heater . . . . . . . . . . . . . . . . 172 Engine Alarm and Automatic
Shutdown . . . . . . . . . . . . . . . . . . . 173
Idle Shutdown . . . . . . . . . . . . . . . . 174
High Idle System . . . . . . . . . . . . . 174
Engine Checks Before Operating . . . . . . . . . . . . . . . . . . . 175
Parking over Things That Burn . . . . . . . . . . . . . . . . . . . 176
Engine Exhaust
Engine Exhaust . . . . . . . . . . . . . . 177
Running the Vehicle WhileParked . . . . . . . . . . . . . . . . . . . . . . 179
Diesel Particulate Filter
Diesel Particulate Filter . . . . . . . 180
Diesel Exhaust Fluid
Diesel Exhaust Fluid . . . . . . . . . . 189
Automatic Transmission
Automatic Transmission . . . . . . 205
Selector Lever . . . . . . . . . . . . . . . . 214
Overdrive Off . . . . . . . . . . . . . . . . . 215
Brakes
Antilock BrakeSystem (ABS) . . . . . . . . . . . . . . . 216
Parking Brake . . . . . . . . . . . . . . . . 220
Exhaust Brake . . . . . . . . . . . . . . . . 222
Cruise Control
Cruise Control . . . . . . . . . . . . . . . . 223
Fuel
Fuel for Diesel Engines . . . . . . . 227
Biodiesel . . . . . . . . . . . . . . . . . . . . . 228
Cold Weather Operation . . . . . . 230
Water in Fuel . . . . . . . . . . . . . . . . . 231
Running Out of Fuel . . . . . . . . . . 233
Filling the Tank . . . . . . . . . . . . . . . 235
Conversions and Add-Ons
Add-On Electrical Equipment . . . . . . . . . . . . . . . . . . 236
Power Take-Off (PTO) . . . . . . . . 237

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500/5500 Series (GMNA-
Localizing-U.S.-12407814) - 2019 - crc - 12/13/17
Driving and Operating 139
Driving Information
Driver Behavior
Napping in the Vehicle
{Warning
Before taking a nap in the vehicle,
be sure to shut off the engine and
place the ignition in the LOCK
position. Otherwise, any
unintended contact with the
accelerator pedal while you are
asleep could cause the vehicle to
move, resulting in a crash.. If you leave the engine
running and unintentionally
keep the accelerator pedal
pressed while asleep, the
engine and exhaust pipe
could become abnormally
hot, resulting in a fire.
. If you leave the engine
running while taking a nap
with the vehicle parked in a
place where exhaust gases
(Continued)
Warning (Continued)
could get into the cab (for
example, a place that is
poorly ventilated), you could
suffer carbon monoxide
poisoning.
. You and others could be
seriously injured.
Distracted Driving
Do Not Use a Mobile Phone
While Driving
{Warning
Drivers should never use mobile
telephones or car phones in any
mode other than Hands Free
while driving. Doing so is
dangerous. Using a mobile
telephone while driving could
result in a crash because you
would not be paying full attention
to your surroundings. If you are
(Continued)
Warning (Continued)
driving and you wish to use a
mobile telephone, first stop the
vehicle in a safe place.
You and others could be seriously
injured.
Control of a Vehicle
Warnings for Driving
{Warning
Concentrate on driving safely,
obeying all legally designated
speed limits, road signs and
traffic signals.
If you notice any abnormal noise,
abnormal smell or abnormal
vibration from any part of the
vehicle, immediately stop the
vehicle in a safe place and
perform checks.(Continued)
