Storage 47
Model MaximumGVWR
kg (lb.) Front GAWR
Capacitykg (lb.) Rear GAWR
Capacitykg (lb.)
4500HD 6 577 (14,500) 2 431 (5,360) 4 482 (9,880)
4500XD 7 258 (16,000) 3 007 (6,630) 4 998 (11,020)
5500HD 8 142 (17,950) 3 098 (6,830) 5 888 (12,980)
5500XD 8 845 (19,500) 3 300 (7,275) 6 196 (13,660)
Maximum Front and Rear Axle
Weights
The weight of the cargo load must
be properly distributed over both the
front and rear axles. The “VIN,Weight Rating, and Greenhouse
Gas (GHG) Emissions Plate”
shows
the maximum weight that the front
axle can carry (front GAWR). It also
shows the maximum weight that the
rear axle can carry (rear GAWR).
The GVWR is the maximum
permissible loaded weight of the
vehicle and takes into account the
capabilities of the engine,
transmission, frame, springs,
brakes, axles and tires. Actual loads
at the front and the rear axles can
only be determined by weighing the
vehicle. This can be done at
highway weigh stations or other
such places. See your dealer for help. The cargo load should be
distributed on both sides of the
center line as equally as possible.
Tires
The tires on your truck must be of
the proper size and properly inflated
for the load that you are carrying.
The
“VIN, Weight Rating, and
Greenhouse Gas (GHG) Emissions
Plate” shows the originally equipped
tire size and recommended inflation
pressures.
For the vehicle plate location, see
Vehicle Identification Number (VIN)
0 343.
See “Tire Load and Inflation Table”
under Tire Pressure 0297.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
48 Storage

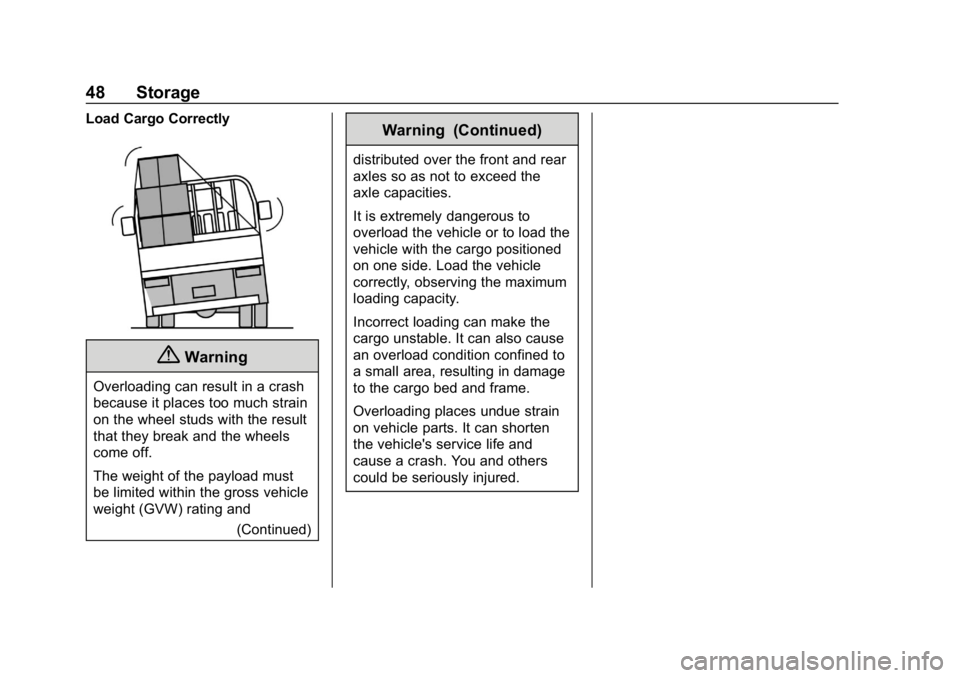

Load Cargo Correctly
{Warning
Overloading can result in a crash
because it places too much strain
on the wheel studs with the result
that they break and the wheels
come off.
The weight of the payload must
be limited within the gross vehicle
weight (GVW) rating and(Continued)
Warning (Continued)
distributed over the front and rear
axles so as not to exceed the
axle capacities.
It is extremely dangerous to
overload the vehicle or to load the
vehicle with the cargo positioned
on one side. Load the vehicle
correctly, observing the maximum
loading capacity.
Incorrect loading can make the
cargo unstable. It can also cause
an overload condition confined to
a small area, resulting in damage
to the cargo bed and frame.
Overloading places undue strain
on vehicle parts. It can shorten
the vehicle's service life and
cause a crash. You and others
could be seriously injured.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Storage 51
Loading Equipment
Do not load equipment from the rear
of the cargo bed. The frame may
become deformed when equipment
is loaded from the rear of the cargo
bed. In addition, the frame may
become deformed even when
loading equipment that has a weight
under the maximum loading
capacity.When loading equipment, a device
for securing the cargo bed is
required. Use a car carrier or attach
a rear support stand. If you have
any questions, contact your dealer.
Make Sure There is No Flammable
Material between the Cab and
Cargo Bed
Caution
Be careful not to allow a sheet,
canvas top, or the ends of ropes
or rubber straps to touch or come
close to the engine or exhaust
pipe. During vehicle operation,
the engine’s heat could set them
on fire. Carefully secure the
sheet, canvas top, or the ends of
ropes or rubber straps.
Do not Carry Fuel and Spray Cans
in the Cab
{Danger
It is extremely dangerous to carry
fuel and spray cans in the cab.
If such a container were to ignite
or rupture, it could cause a fire or
explosion. You and others could
be seriously injured.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Vehicle Care 285
{Warning
Always use fuses specified by the
dealer when replacing the
slow-blow fuse. Using fuses with
a rating other than that specified,
or using wire or tin foil, etc., could
result in fire or damage.
If the new fuses blow right away
and the cause is unknown,
contact your dealer.
Do not inspect or replace fuses
when the starter switch is in the
ON position. Doing so may lead
to an accident.(Continued)
Warning (Continued)
When inspecting fuses, be sure to
park the vehicle on flat, level
ground and apply chocks to the
wheels.
It is not necessary to open or close
the cover unless trouble is found.
The relay box structure makes it
difficult for water to enter. If you
should spill water or a beverage of
the cover, however, wipe it off
before opening the cover.
The area around the cover will get
warm when the vehicle is being
driven, but this is not abnormal.
Wheels and Tires
The operating load and cold inflation
pressure on the rim and wheel must
not exceed the rim and wheel
manufacturer's recommendations
even though the tire may be
approved for a higher load or
inflation. Rim and wheel may be
identified (stamped) with maximum
load and maximum cold inflation
rating. For rims and wheels not so
identified or for service conditions
exceeding the rate capacities,
consult the rim and wheel
manufacturer to determine rim and
wheel capacities for the intended
service. The factory-installed tires
on this vehicle were selected to
provide the best all-around tire
performance for normal operation.
When inflated, as shown on the
vehicle, they have the load carrying
capacity to operate satisfactorily at
all loads up to and including the full
rated load specified for the vehicle.
For more information concerning the
differences in capacities of tires and

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
288 Vehicle Care
Warning (Continued)
Consult your dealer before
replacing wheels. Never use
wheels that are not designed for
the vehicle. Doing so would
impede safe vehicle operation.

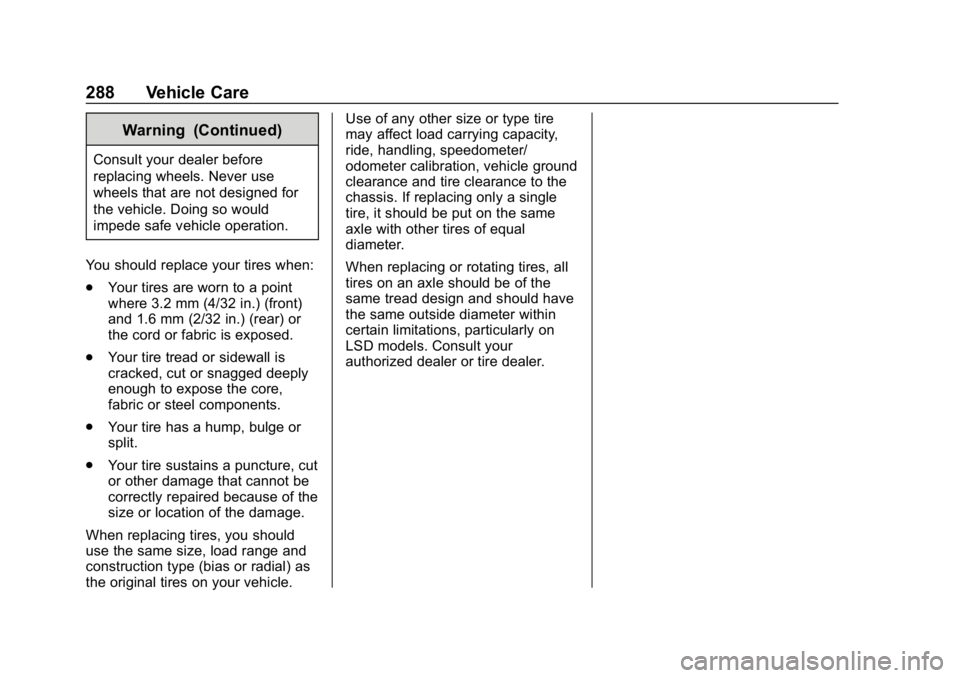

You should replace your tires when:
. Your tires are worn to a point
where 3.2 mm (4/32 in.) (front)
and 1.6 mm (2/32 in.) (rear) or
the cord or fabric is exposed.
. Your tire tread or sidewall is
cracked, cut or snagged deeply
enough to expose the core,
fabric or steel components.
. Your tire has a hump, bulge or
split.
. Your tire sustains a puncture, cut
or other damage that cannot be
correctly repaired because of the
size or location of the damage.
When replacing tires, you should
use the same size, load range and
construction type (bias or radial) as
the original tires on your vehicle. Use of any other size or type tire
may affect load carrying capacity,
ride, handling, speedometer/
odometer calibration, vehicle ground
clearance and tire clearance to the
chassis. If replacing only a single
tire, it should be put on the same
axle with other tires of equal
diameter.
When replacing or rotating tires, all
tires on an axle should be of the
same tread design and should have
the same outside diameter within
certain limitations, particularly on
LSD models. Consult your
authorized dealer or tire dealer.

Chevrolet Low Cab Forward 5.2L Diesel Engine 4500 HD/XD/5500 HD/XD
Owner Manual (GMNA-Localizing-U.S.-13337621) - 2020 - crc - 12/5/18
Vehicle Care 289
Recommended replacement tire for Greenhouse Gas (GHG) emissions
Tire sizeTire makerTire name Rolling
resistance
LT215/85R16E BRIDGESTONE CORPORATION
M779AZ LRRA
THE YOKOHAMA RUBBER CO., LTD. TY213B LRRA
225/70R19.5F BRIDGESTONE CORPORATION
M895Z LRRA
SUMITOMO RUBBER INDUSTRIES, LTD. (DUNLOP) SP688 LRRA
If the original equipment tires are
low rolling tires, it is recommended
to use the LRRA tires shown in the
above table.
Refer to the emission control
identifiers on Greenhouse Gas
(GHG) emission plate for your
original equipment tires. Also,
please refer to “VIN, Weight Rating,
and Greenhouse Gas (GHG)
Emissions Plate” for the location of
the Greenhouse Gas (GHG)
emission plate. See Vehicle
Identification Number (VIN) 0343. Wheel Replacement
Recommendations
Wheels must be replaced if they
become damaged (for example:
bent, heavily rusted, leak air) or if
wheel nuts often become loose. Do
not use bent wheels that have been
straightened and do not use inner
tubes in leaking wheels which are
designed for tubeless tires. Such
wheels may have structural damage
and could fail without warning.
When replacing wheels for any
reason, the new wheels should be
equal in load capacity, diameter, width, offset and mounting types to
those originally installed in your
vehicle.
A wheel of the wrong size or type
may adversely affect wheel and
bearing life, brake cooling,
speedometer/odometer calibration,
stopping ability, headlight aim,
bumper height, vehicle ground
clearance and tire or tire chain
clearance on the body and chassis.
Replacement with "used" wheels is
not advised. They may have been
subjected to harsh treatment or very
high mileage and could fail without
warning.
