CHEVROLET LUMINA 1993 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fiberglass Springs Chemical Paint Spotting
Some weather and atmospheric
conditions can create a chemical fallout.
Airborne pollutants can fall upon and
attack painted surfaces on your vehicle.
This damage can tale two forms:
blotchy, ringlet-shaped discolorations, and small irregular dark spots etched
into the paint surface.
Although no defect in the paint job
causes this, Chevrolet will repair, at no
charge to the owner, the surfaces of
new vehicles damaged by this fallout
condition within 12 months or 12,000
miles (20
000 km) of purchase,
whichever comes first.

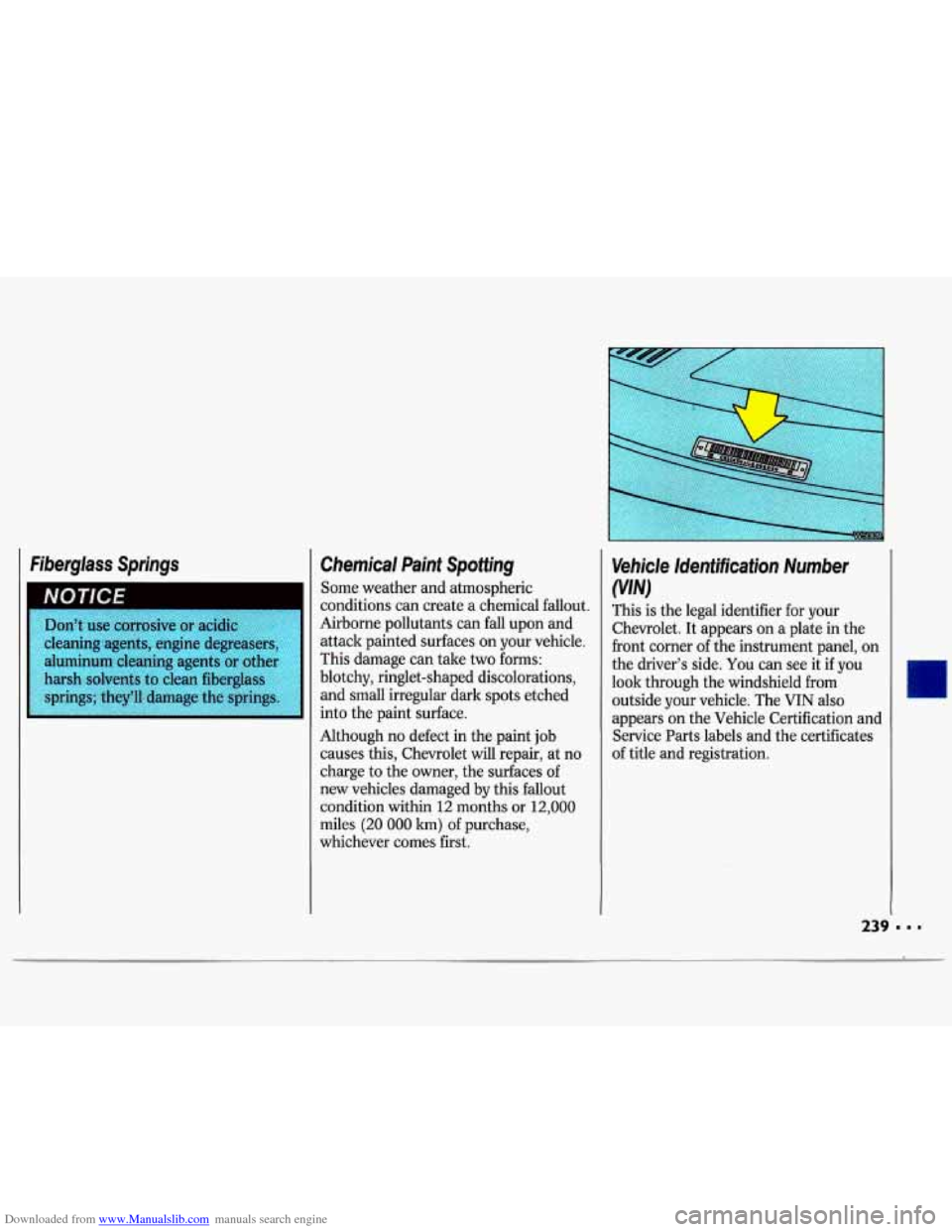

Vehicle Identification Number
0
This is the legal identifier for your
Chevrolet. It appears on
a plate in the
front corner of the instrument panel,
on
the driver's side. You can see it if you
look through the windshield from
outside your vehicle. The VIN also
appears on the Vehicle Certification and
Service Parts labels and the certificates
of title and registration.

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
240

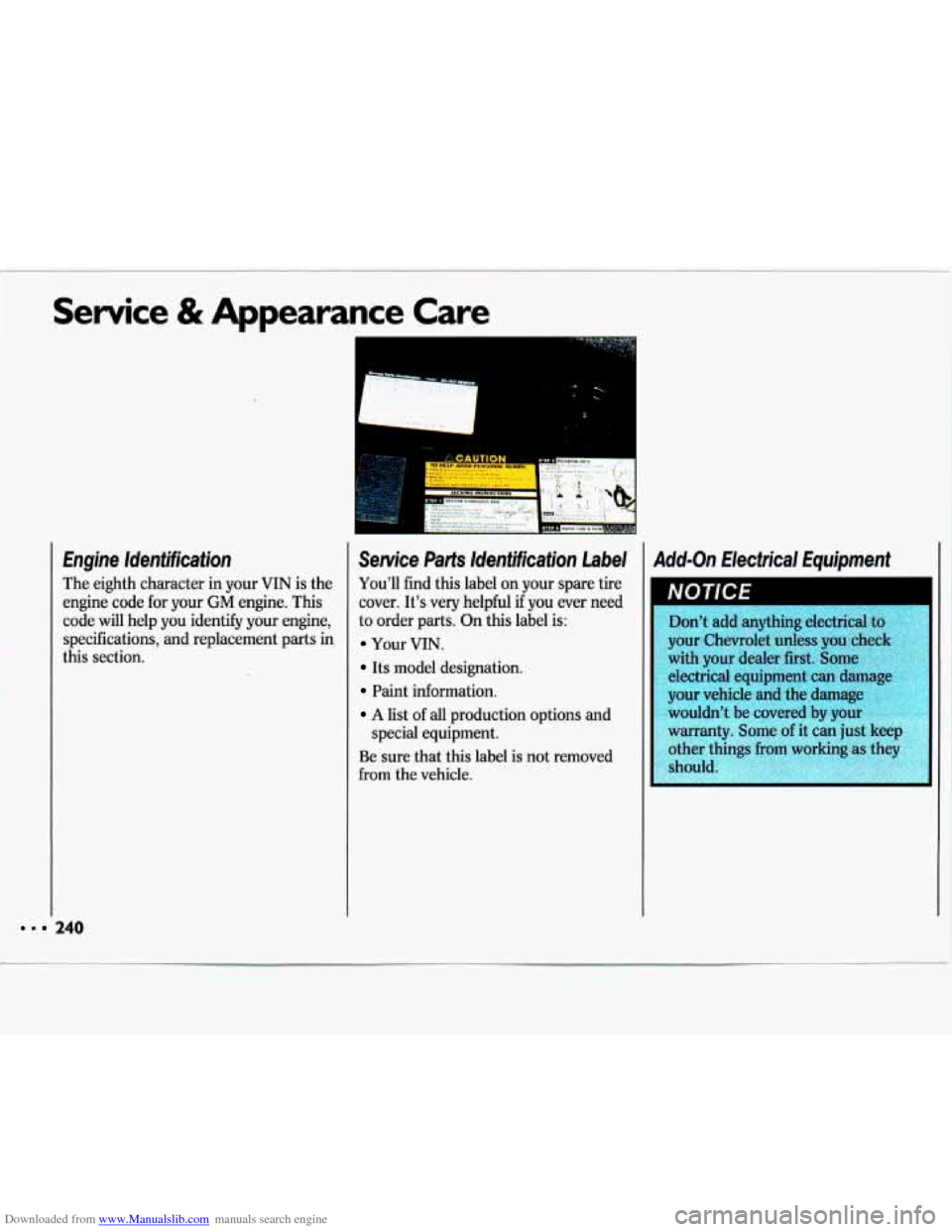

Engine Identification
The eighth character in your VIN is the
engine code for your
GM engine. This
code will help you identify your engine, specifications, and replacement parts in
this section.
e
AUTION rm I
Service Parts ldentification Label
You'll find this label on your spare tire
cover. It's very helpful
if you ever need
to order parts. On this label is:
Your VIN.
Its model designation.
Paint information.
A list of all production options and
special equipment.
Be sure that this label is not removed
from the vehicle.
Add-on Electrical Equipment

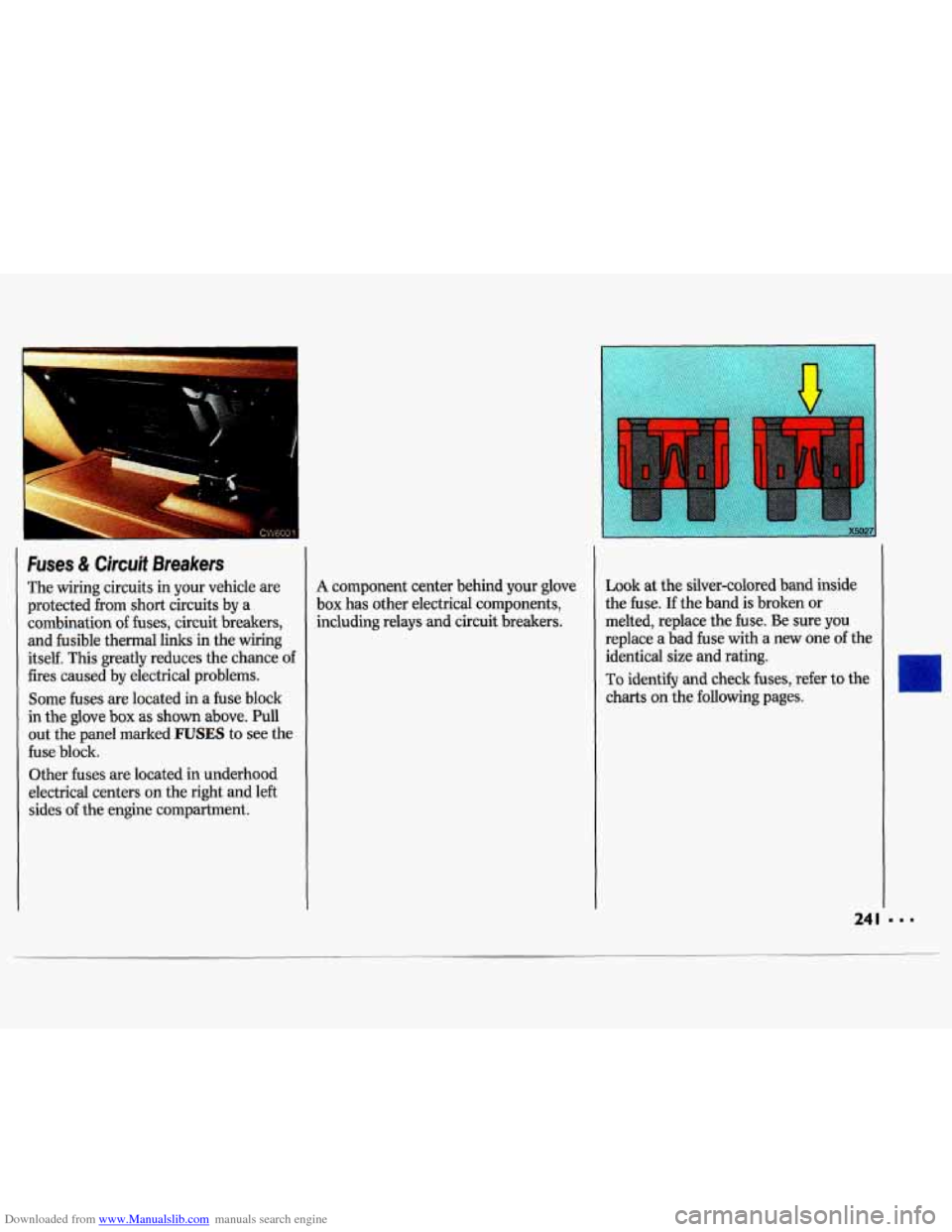

Downloaded from www.Manualslib.com manuals search engine Fuses & Circuit Breakers
The wiring circuits in your vehicle are
protected
from short circuits by a
combination of fuses, circuit breakers,
and fusible thermal links in the wiring
itself. This greatly reduces the chance
of
fires caused by electrical problems.
Some fuses are located in a fuse block
in the glove box
as shown above. Pull
out the panel marked
FUSES to see the
fuse block.
Other fuses are located in underhood
electrical centers
on the right and left
sides
of the engine compartment.
I
A component center behind your glove
box has other electrical components,
including relays and circuit breakers. Look at the silver-colored band inside
the fuse.
If the band is broken or
melted, replace the fuse. Be sure you
replace a bad fuse with a new one
of the
identical size and rating.
To identify and check fuses, refer to the
charts on the
following pages.
241

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

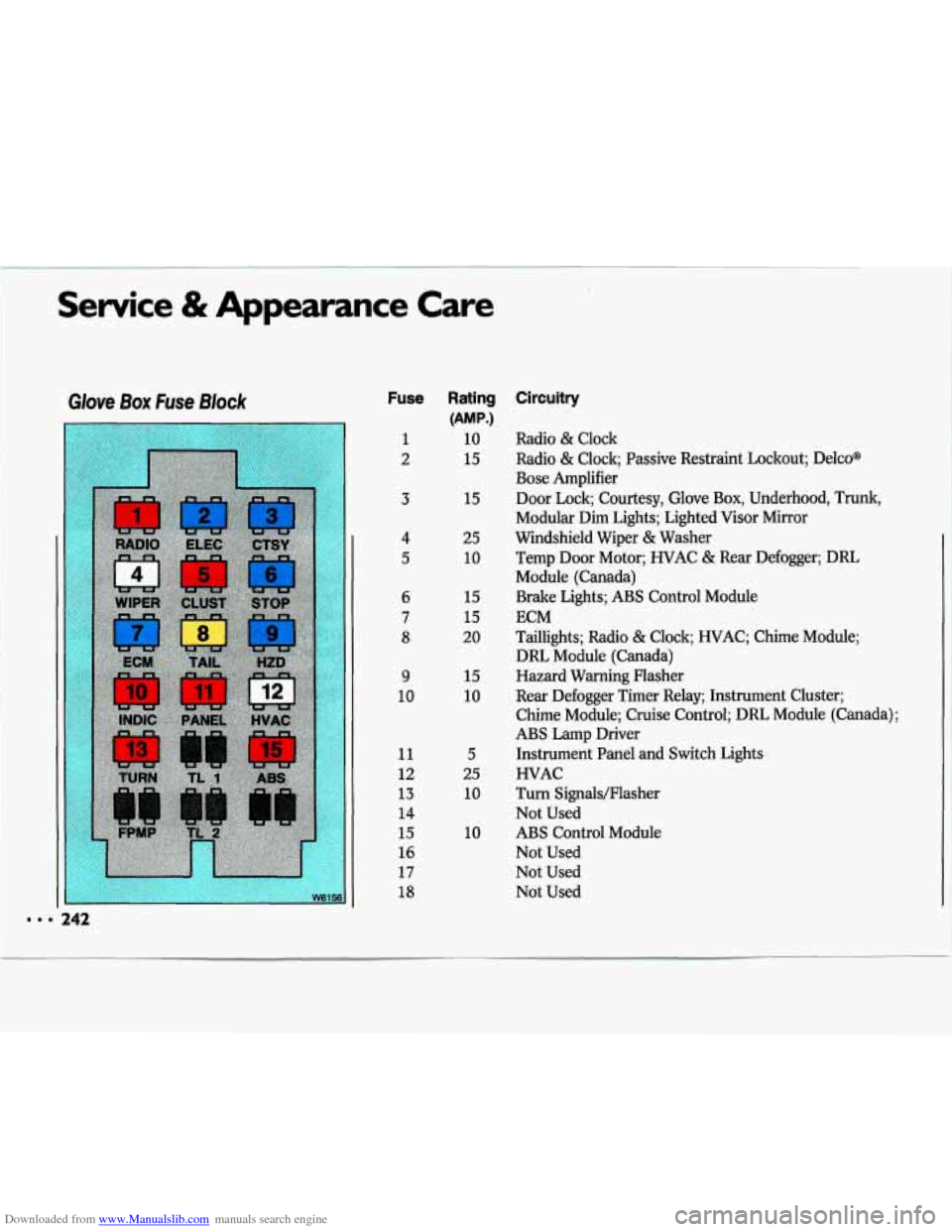

Glove Box Fuse Block
I-
. . . 242
W61561
Fuse
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
15
25
10
15
15
20
15
10 5
25
10 10
Rating Circuitry
1 10 Radio & Clock
2 15 Radio & Clock; Passive Restraint Lockout; Delcom
Bose Amplifier
Door Lock; Courtesy, Glove
Box, Underhood, Trunk,
Modular Dim Lights; Lighted Visor Mirror
Windshield Wiper
& Washer
Temp Door Motor; HVAC
& Rear Defogger; DRL
Module (Canada)
Brake Lights; ABS Control Module
ECM
Taillights; Radio
& Clock HVAC; Chime Module;
DRL Module (Canada)
Hazard Warning Flasher
Rear Defogger Timer Relay; Instrument Cluster;
Chime Module; Cruise Control; DIU Module (Canada);
ABS Lamp Driver
Instrument Panel and Switch Lights
HVAC
Turn Signals/Flasher
Not Used
ABS Control Module
Not Used
Not Used
Not Used
(AMP.)

Downloaded from www.Manualslib.com manuals search engine 30
30
30
20

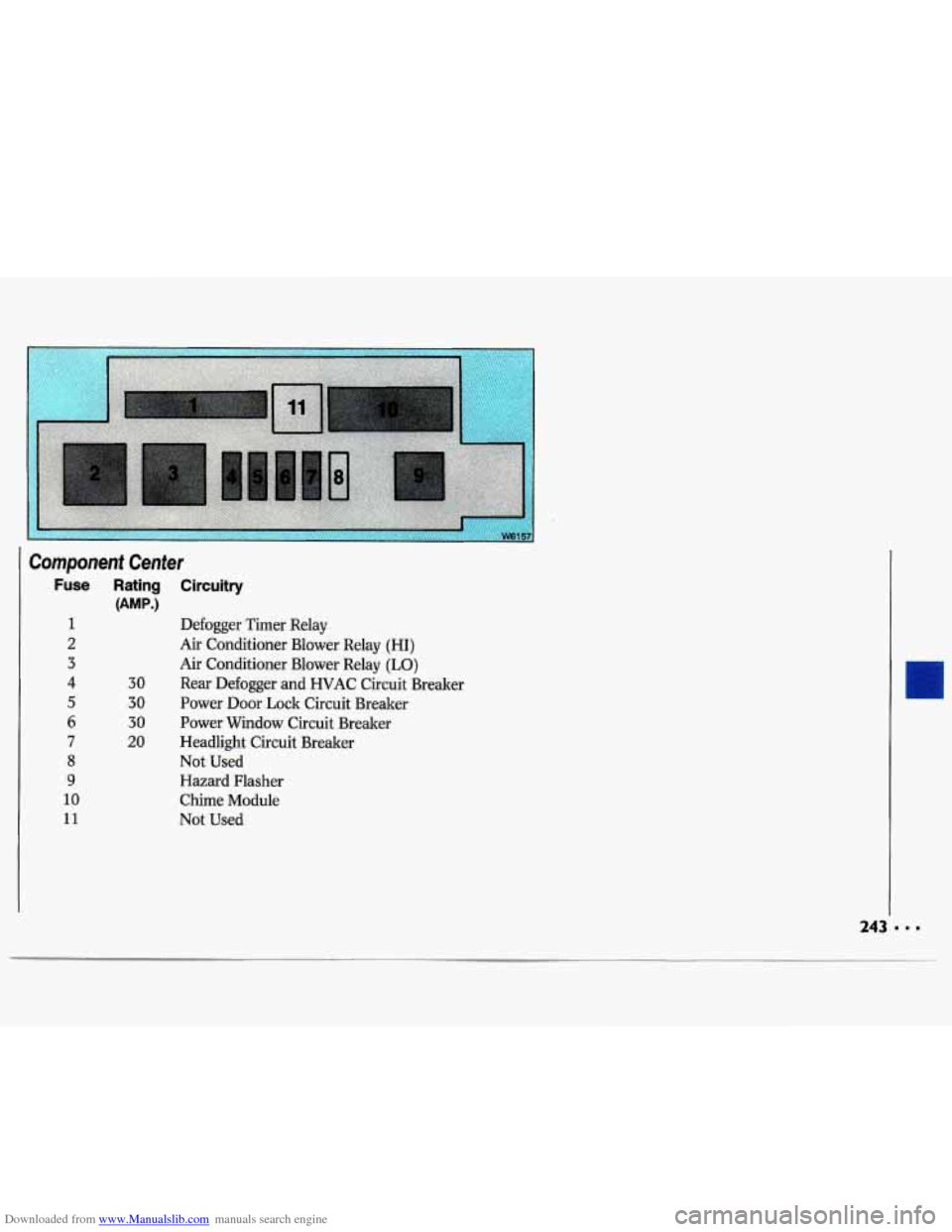

Component Center
Fuse Rating Circuitry
(AMP.)
1 Defogger Timer Relay
2 Air Conditioner Blower Relay (HI)
3 Air Conditioner Blower Relay (LO)
4 Rear Defogger and WAC Circuit Breaker
5 Power Door Lock Circuit Breaker
6 Power Window Circuit Breaker
7 Headlight Circuit Breaker
8 Not Used
9 Hazard Flasher
10 Chime Module
11 Not Used

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

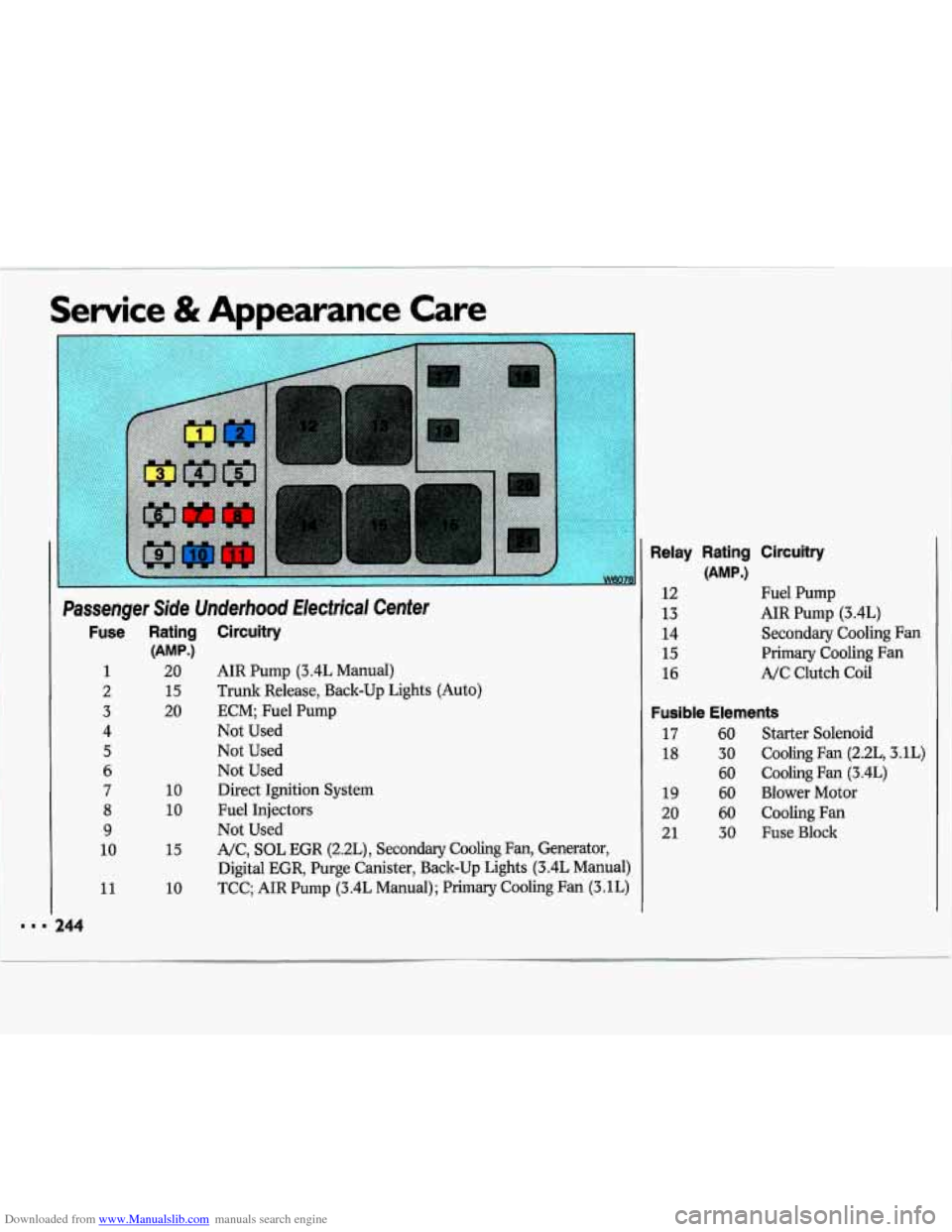

Passenger Side Underhood Electrical Center
Fuee Rating Circuitry
(AMP*)
1 20 AIR Pump (3.4L Manual)
2 15 Trunk Release, Back-up Lights (Auto)
3 20 ECM; Fuel Pump
4 Not Used
5 Not Used
6 Not Used
7 10 Direct Ignition System
8 10 Fuel Injectors
9 Not Used
10
15 A/C, SOL EGR (2.2L), Secondary Cooling Fan, Generator,
11 10 TCC; AIR Pump (3.4L Manual) ; Primary Cooling Fan (3.1 L)
Digital EGR, Purge Canister, Back-up Lights (3.4L Manual)
1 1.. 244
Relay Rating Circuitry
(AMP.)
12 Fuel Pump
13 AIR Pump (3.4L)
14 Secondary Cooling Fan
15 Primary Cooling Fan
16 A/C Clutch Coil
Fusible Elements
17 60 Starter Solenoid
18 30 Cooling Fan (2.2L, 3.1L)
19 60 Blower Motor
20 60 Cooling Fan
21 30 Fuse Block
60 Cooling Fan (3.4L)
Y

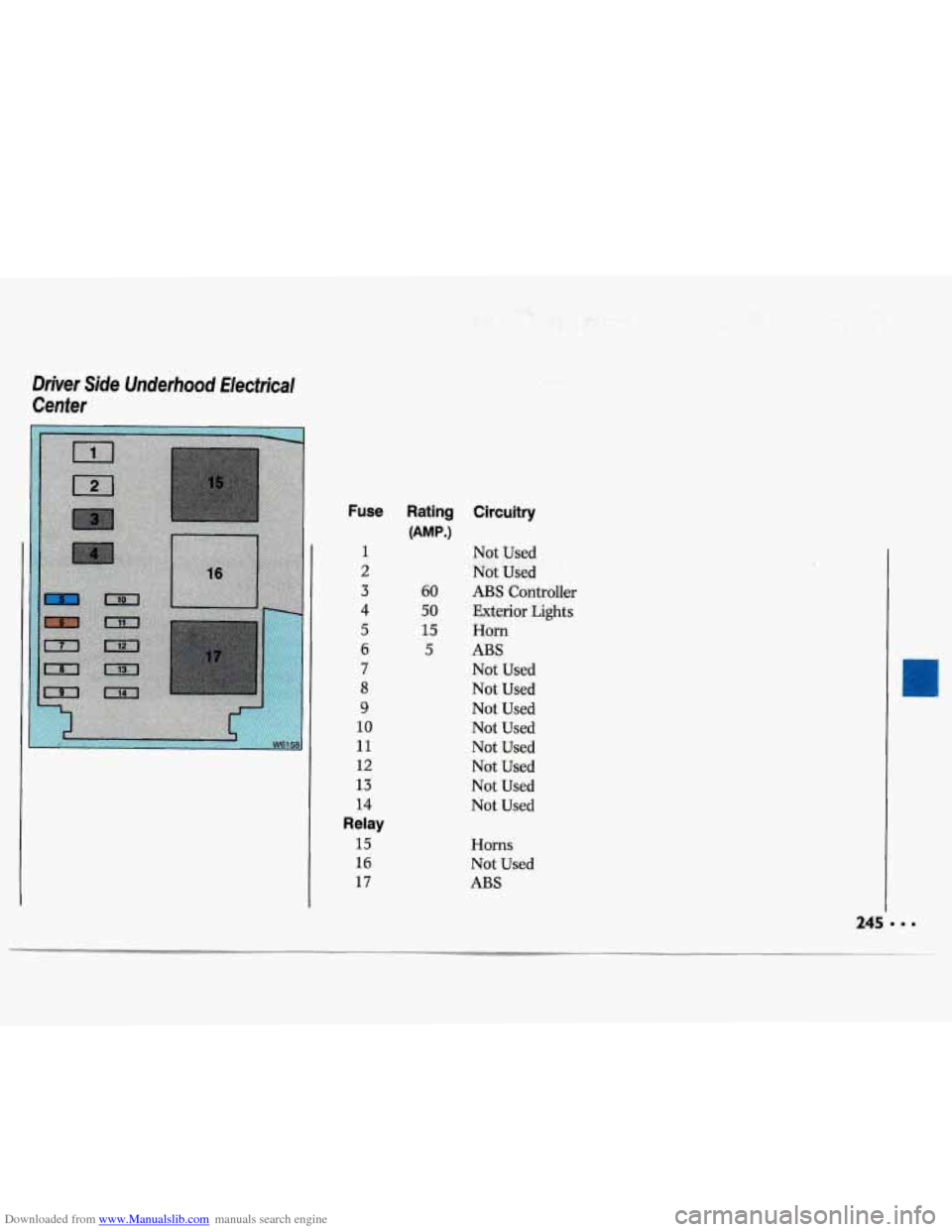

Downloaded from www.Manualslib.com manuals search engine Driver Side Underhood EIectricaI
Center
Fuse
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Relay
15
16
17
Rating Circuitry
Not Used
Not Used
60 ABS Controller
50 Exterior Lights
15 Horn
5 ABS
(AMP.)
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
Horns
Not Used
ABS

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

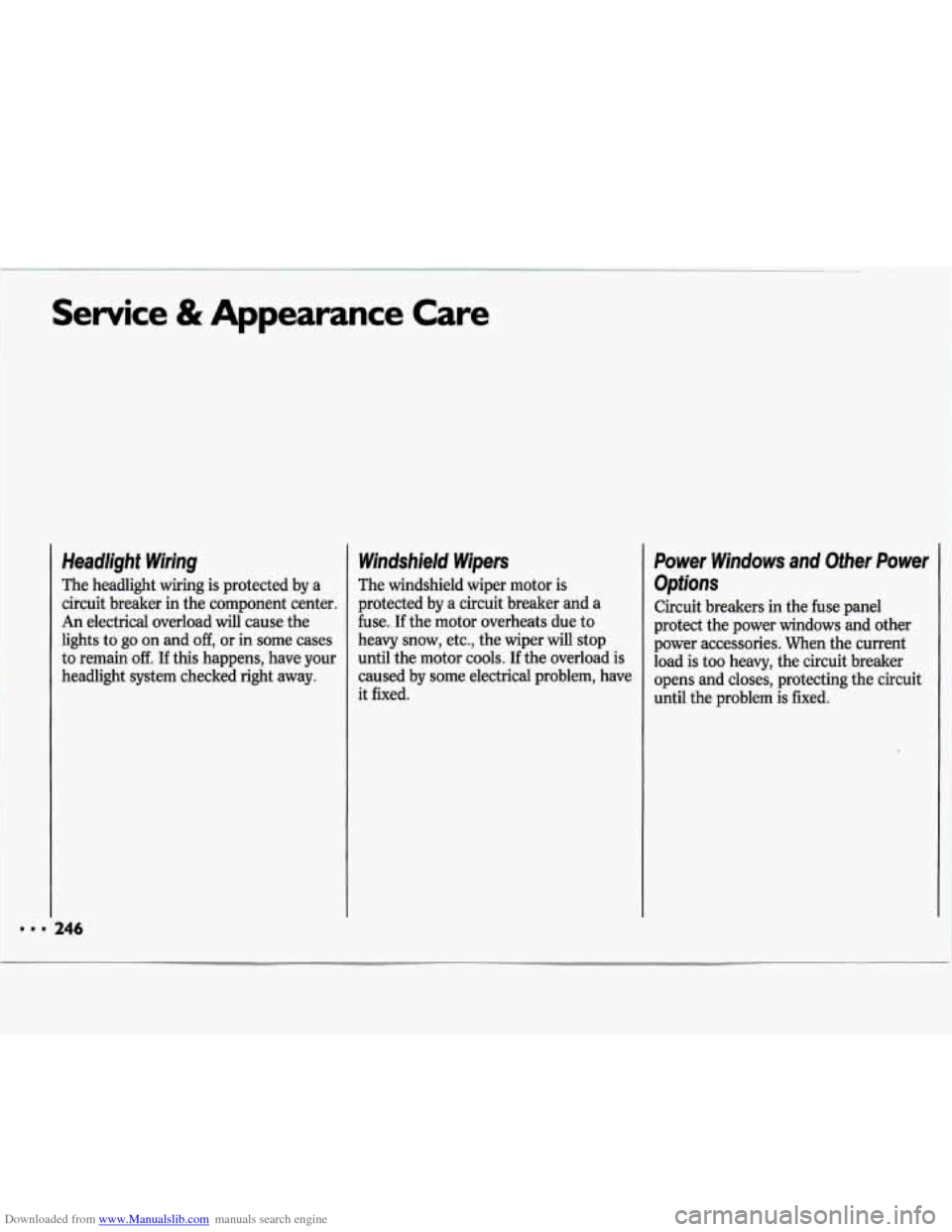

Headlight Wiring
The headlight wiring is protected by a
circuit breaker in the component center.
An electrical overload will cause the
lights to
go on and off, or in some cases
to remain off. If this happens, have your
headlight system checked right away.
Windshield Wipers
The windshield wiper motor is
protected by
a circuit breaker and a
fuse.
If the motor overheats due to
heavy snow, etc., the wiper will stop
until the motor cools.
If the overload is
caused by some electrical problem, have
it fixed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel
protect the power windows and other
power accessories. When the current
load
is too heavy, the circuit breaker
opens and closes, protecting the circuit
I
until the problem is fixed.

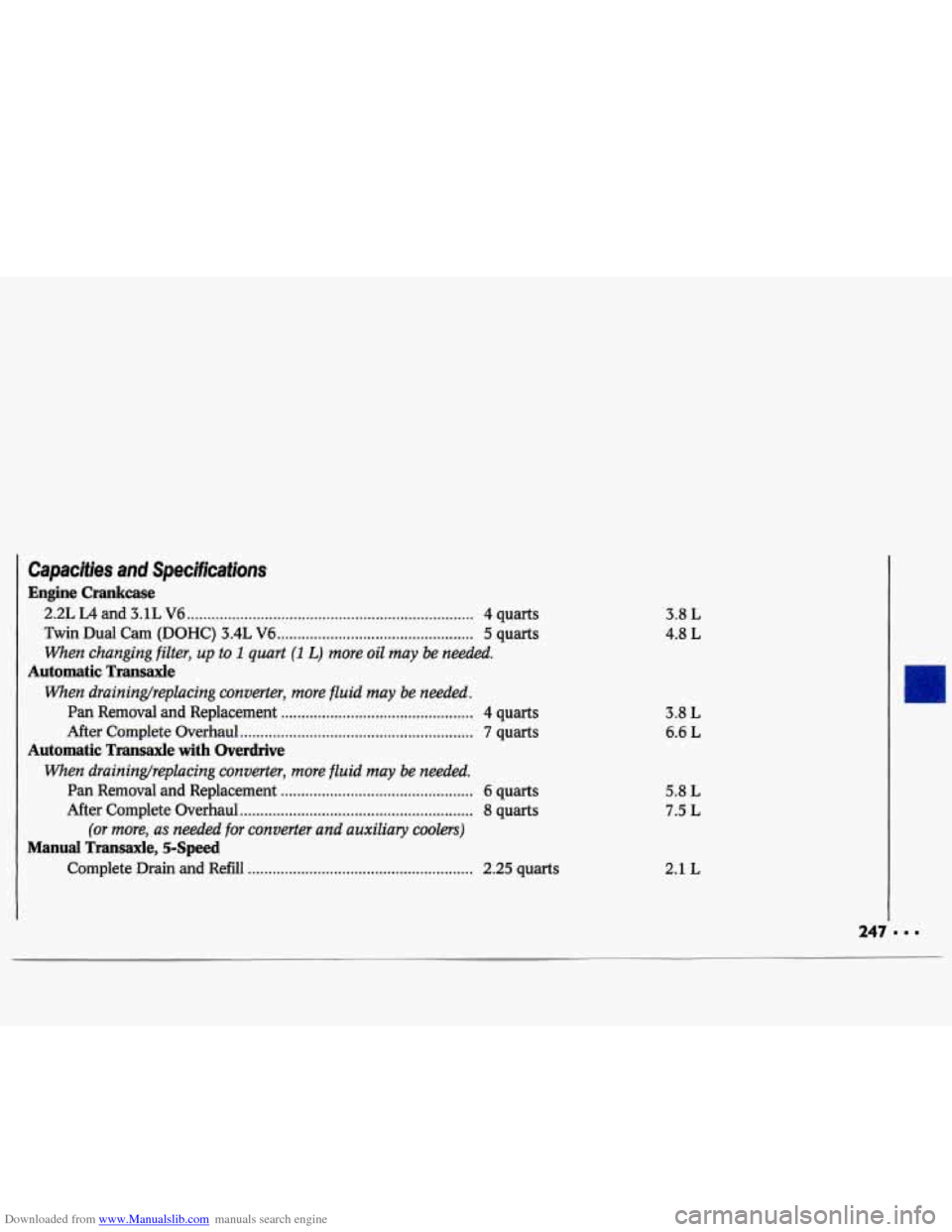

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine Crankcase
2.2L L4 and 3.1L V6 ...................................................................... 4 quarts
Twin Dual Cam (DOHC) 3.4L V6 ................................................ 5 quarts
When changing filter, up to 1 quart (1 L) more oil may be needed.
When drainingheplucing converter, more fluid may be needed.
Automatic Transaxle
Pan Removal and Replacement ............................................... 4 quarts
After Complete Overhaul
......................................................... 7 quarts
Automatic Transaxle with Overdrive
When drainingheplacing converter, more fluid may be needed.
Pan Removal and Replacement ............................................... 6 quarts
After Complete Overhaul
......................................................... 8 quarts
(or more, as needed for converter and auxiliary coolers)
Manual Transaxle, 5-Speed
Complete Drain and Refill ....................................................... 2.25 quarts
3.8 L
4.8 L
3.8 L
6.6 L
5.8 L
7.5 L
2.1 L

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care

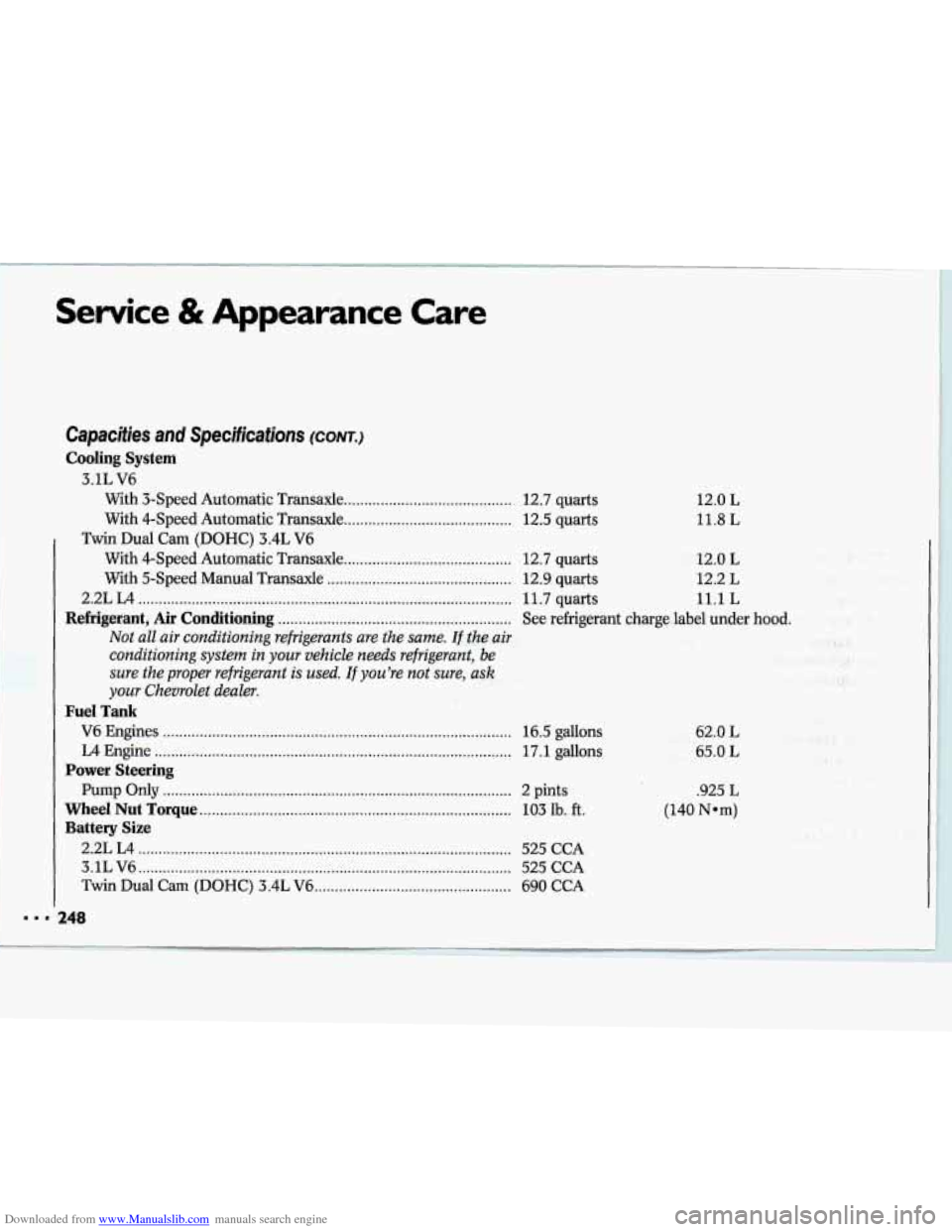

Capacities and Specifications (CONT.)
Cooling System
3.1L V6 With 3-Speed Automatic Transaxle
......................................... 12.7 quarts
With 4-Speed Automatic Transaxle
......................................... 12.5 quarts
With 4-Speed Automatic Transaxle
......................................... 12.7 quarts 12.0 L
With 5-Speed Manual Transaxle 12.9 quarts 12.2 L
Twin Dual
Cam (DOHC) 3.4L
V6
-%<&? I> -- .............................................
2.2L L4 ........................................................................\
................... 11.7 quarts 11.1 L :,gRB",i A
Not all air conditioning refrigerants are the same. If the air &p&!#j ... 2
conditioning system in your vehicle needs refrigerant, be &3%Si hkL
sure the proper refrigerant is used. If you're not sure, ask .=@, , 'i
your Chevrolet dealer.
,-
Refrigerant, Air Conditioning ......................................................... See refrigerant charge label under hood. ;I ~s~t:
Fuel Tank
........................................................................\
.............
........................................................................\
............... V6 Engines 16.5 gallons
L4 Engine 17.1 gallons
Power Steering
Wheel Nut Torque
........................................................................\
.... 103 lb. ft.
Battery Size
, Pump Only ........................................................................\
............. 2 pints
2.2L L4
........................................................................\
................... 525 CCA
3.1L V6
........................................................................\
................... 525 CCA
Twin Dual Cam (DOHC) 3.4L V6
................................................ 690 CCA
... 248
12.0 L
11.8 L
62.0 L 65.0 L
.925 L
(140 Nom)
