CHEVROLET LUMINA 1999 2.G Repair Manual

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-5 Remote Keyless Entry (If Equipped)
2
-9 Trunk
2
-10 Theft
2
-11 Pass-Key
II
2
-13 New Vehicle ªBreak-Inº
2
-13 Ignition Positions
2
-15 Starting Your V6 Engine
2
-17 Engine Coolant Heater (If Equipped)
2
-18 Automatic Transaxle Operation
2
-22 Parking Brake
2
-23 Shifting Into PARK (P)
2
-26 Shifting Out of PARK (P)
2
-27 Parking Over Things That Burn
2
-28 Engine Exhaust
2
-28 Running Your Engine While You're Parked
2
-29 Windows2
-30 Horn
2
-30 Tilt Wheel
2
-31 Turn Signal/Multifunction Lever
2
-36 Exterior Lamps
2
-37 Interior Lamps
2
-39 Mirrors
2
-40 Storage Compartments
2
-42 Ashtrays and Cigarette Lighter
2
-42 Sun Visors
2
-44 Auxiliary Power Connection
2
-45 Sunroof (Option)
2
-45 Cellular Telephone (Option)
2
-45 OnStar
(Option)
2
-46 The Instrument Panel -- Your
Information System
2
-48 Instrument Panel Cluster
2
-51 Warning Lights, Gages and Indicators

yellowblue
2-2

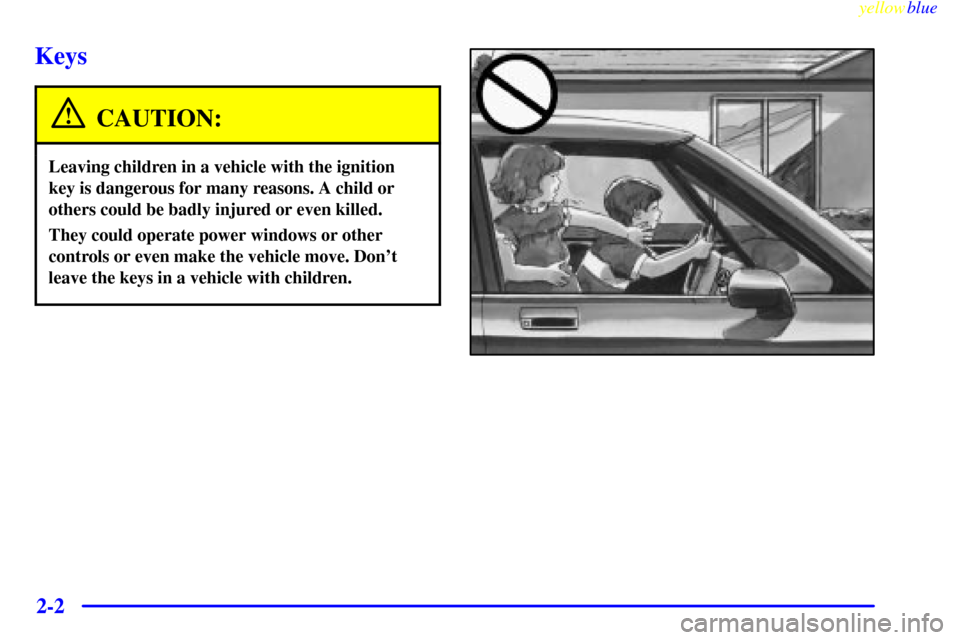

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

yellowblue
2-3
This key is for the
ignition only.
This key is for the doors
and all other locks.
When a new vehicle is delivered, the dealer removes
the plugs from the door keys and gives them to the
first owner.The ignition keys don't have plugs. Your dealer or
Chevrolet Roadside Assistance has the code for
your keys.
The door keys do have plugs. The plug has a code on it
that tells your dealer or a qualified locksmith how to
make extra door keys. Keep the plugs in a safe place. If
you lose your door keys, you'll be able to have new ones
made easily using these plugs.
If you need a new ignition key, contact your dealer who
can obtain the correct key code, or, in an emergency, call
Chevrolet Roadside Assistance at 1-800-CHEV-USA

(1-800-243-8872). In Canada, call 1-800-268-6800.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. But you can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

yellowblue
2-4

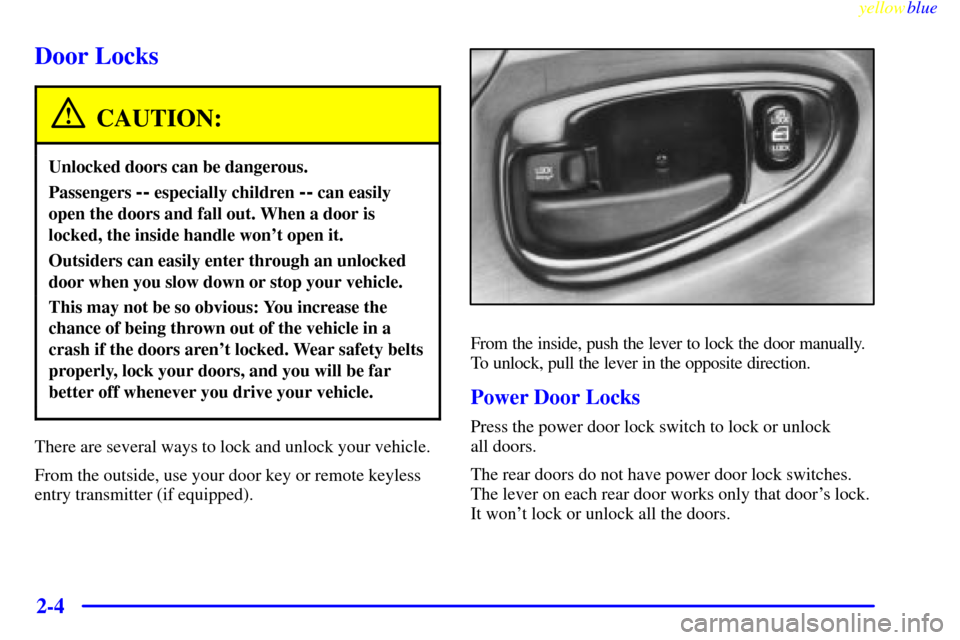

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or remote keyless
entry transmitter (if equipped).
From the inside, push the lever to lock the door manually.
To unlock, pull the lever in the opposite direction.
Power Door Locks
Press the power door lock switch to lock or unlock
all doors.
The rear doors do not have power door lock switches.
The lever on each rear door works only that door's lock.
It won't lock or unlock all the doors.

yellowblue
2-5 Rear Door Security Locks
When these locks are set, the inside door handles will
not open the rear doors. Be sure to let adults and
older children know how the locks work and how to
cancel them.
To use the rear door security locks:
1. Open the rear door. Use a key to move the lever all
the way up.2. Close the door.
3. Do the same thing on the other rear door.
To open a door when the security locks are set, unlock
the door from the inside and then open the door using
the outside door handle. If you want to cancel the
security locks, move the lever down.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Remote Keyless Entry (If Equipped)
If your vehicle has this option, you can lock and unlock
your doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter supplied
with your vehicle.
Your remote keyless entry transmitter operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.

yellowblue
2-6
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.This system has a range of about 3 feet (1 m) up to 30 feet
(9 m). At times you may notice a decrease in range. This
is normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer to
your vehicle for the transmitter to work, try this:

Check to determine if battery replacement is
necessary. See the instructions that follow.

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

If you're still having trouble, see your dealer or a
qualified technician for service.

yellowblue
2-7 Operation
Press UNLOCK once to
unlock the driver's door.
Press UNLOCK again
within five seconds to
unlock all remaining doors;
pressing UNLOCK will also
cause the vehicle's interior
lamps to come on for a
period of time.
(See ªSustained Interior Illuminationº in the Index for
more details.) To lock both doors, press LOCK. To
unlock the trunk, press the trunk symbol on the
transmitter. The trunk will only unlock if your transaxle
is in PARK (P). Pressing LOCK or the trunk symbol
will also cause the vehicle's interior lamps to come on
for a period of time. (See ªSustained Interior
Illuminationº in the Index for more details.)
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

yellowblue
2-8
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery:
1. Insert a flat object like a dime into the slot on the
back of the transmitter. Gently pry apart the front
and back.
2. Remove the old battery and replace it with the new
one, making sure the positive (+) side of the battery
is facing down. Do not use a metal object to remove
the old battery. (Use type CR2032 or an equivalent.)
3. Snap the top and bottom together, making sure the
halves are together tightly so water won't get in.
4. Test the operation of the transmitter with your
vehicle. If the transmitter does not work, try
resynchronizing the transmitter. (See
ªResynchronizationº following.)

yellowblue
2-9
Resynchronization
Resynchronization may be necessary due to the security
method used by this remote keyless entry system. The
transmitter does not send the same signal twice to the
receiver. The receiver will not respond to a signal it has
previously been sent. This prevents someone from
recording and playing back the signal from the transmitter.
To resynchronize the transmitter with the receiver, do
the following:
1. Stand close to your vehicle.
2. Simultaneously press and hold the LOCK and
UNLOCK buttons on the transmitter for about seven
seconds. The door locks should cycle (lock and
unlock) to confirm resynchronization.
If the locks do not cycle, see your dealer for service.Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on VENT. That will force outside air into
your vehicle. See ªComfort Controlsº in
the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.

yellowblue
2-10 Trunk Lock
To unlock the trunk from the outside, insert the door
key and turn it. You can also use the remote keyless
entry transmitter (if equipped). Just press the trunk
symbol on the transmitter, making sure your shift lever
is in PARK (P).
Remote Trunk Release (Option)
Press the button under the
instrument panel on the
driver's side. Your transaxle
shift lever must be in
PARK (P) for the remote
trunk release button
to work.
Remember, your trunk can be opened at any time using
this lock release, so be sure to lock your doors.
Theft
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft
-deterrent
features, we know that nothing we put on it can make it
impossible to steal. However, there are ways you can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
When you park your vehicle and open the driver's door,
you'll hear a chime reminding you to remove your key
from the ignition and take it with you. Always do this.
Your steering wheel will be locked, and so will your
ignition and transaxle. And remember to lock the doors.
Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
