CHEVROLET MALIBU 2006 6.G User Guide

The seats have manual reclining seatbacks. The lever
used to operate them is located on the outboard side of
the seats.
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it
is locked.To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position. Release the lever to lock the seatback
in place.
2. Push and pull on the seatback to make sure it
is locked.
1-5

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a crash,
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
1-6

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull the restraint up to
raise it. To lower the head
restraint, press the
button, located on the top
of the seatback, and
push the restraint down.
The rear seat head restraints are also adjustable.
1-7

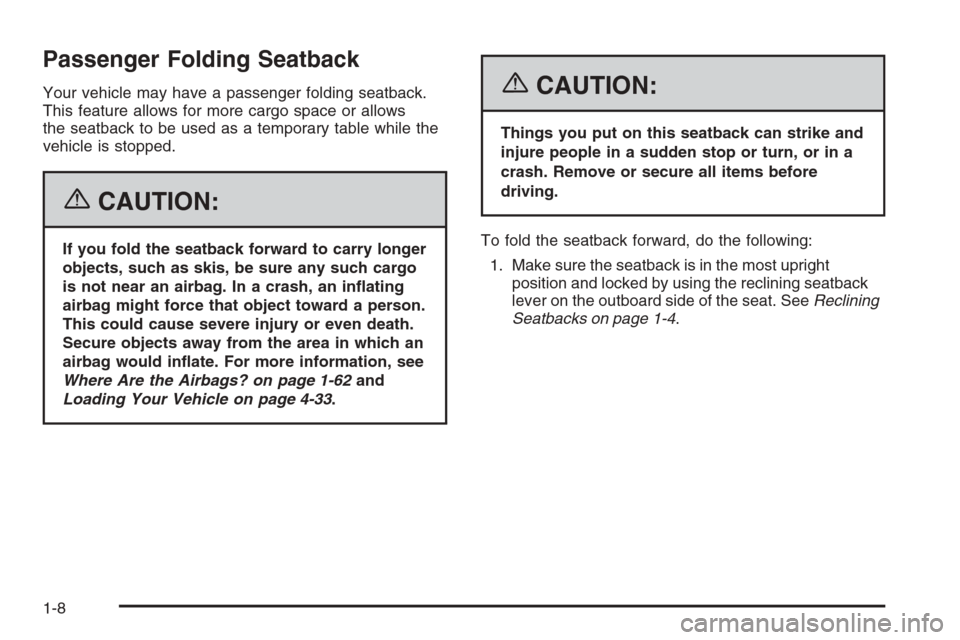

Passenger Folding Seatback
Your vehicle may have a passenger folding seatback.
This feature allows for more cargo space or allows
the seatback to be used as a temporary table while the
vehicle is stopped.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which an
airbag would inate. For more information, see
Where Are the Airbags? on page 1-62and
Loading Your Vehicle on page 4-33.
{CAUTION:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before
driving.
To fold the seatback forward, do the following:
1. Make sure the seatback is in the most upright
position and locked by using the reclining seatback
lever on the outboard side of the seat. SeeReclining
Seatbacks on page 1-4.
1-8

2. If your vehicle has the passenger folding seat without
an airbag, press either lever located on the back of
the seatback and fold the seatback forward.
If your vehicle has the passenger folding seat with
an airbag, press the lever located on the back of the
seatback on the inboard side. Press the lever and
fold the seatback forward.To raise the seatback, do the following:
1. If your vehicle has the passenger folding seat
without an airbag, press either lever located on
the back of the seatback. Pull the seatback up to
lock it into place. Make sure the safety belt is
not twisted or caught in the seatback.
If your vehicle has the passenger folding seat with
an airbag, press the lever located on the back
of the seatback on the inboard side. Pull the
seatback up to lock it into place. Make sure the
safety belt is not twisted or caught in the seatback.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Push and pull the seatback to make sure it is
locked into place.
3. Use the reclining seatback lever to adjust the
seatback to a comfortable position. SeeReclining
Seatbacks on page 1-4. Seat without Side Impact Airbag shown,
Seat with Airbag similar
1-9

Power Lift Seat
Your vehicle may have this feature. First move the seat
forward or rearward to where you want it. SeeManual
Seats on page 1-2.
The power lift seat switch is located on the outboard
side of the driver’s seat. To raise or lower the seat,
press the top or bottom of the switch.
Rear Seats
Rear Seat Operation
Folding the Seatback
Your vehicle may have a split folding rear seatback.
To fold down the rear seatback on the sedan, do
the following:
1. Open the trunk and pull one or both of the handles
located on the upper part of the trunk opening. The
driver’s side handle will open the larger side of
the seatback. The passenger’s side handle will open
the smaller side of the seatback.
1-10

Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
2. Once a handle is pulled, the seatback can be
pushed open through the trunk, or pulled open from
inside the vehicle.To fold down the rear seatback on the MAXX, do the
following:
1. Pull up on and hold the lever located on the side of
either rear seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
1-11

2. Once a lever is pulled, the seatback can be pushed
into the down position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
1-12

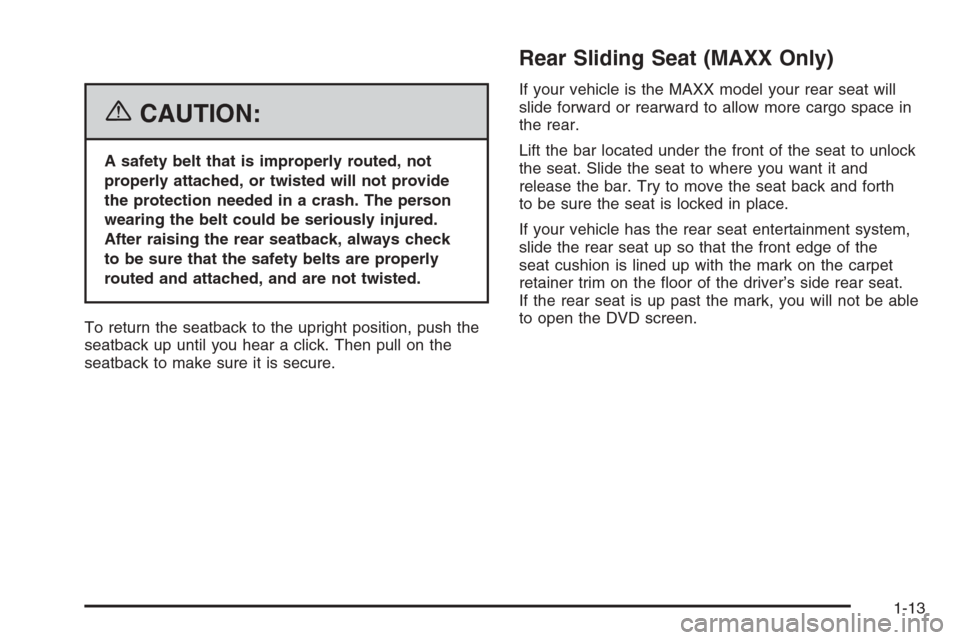

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
To return the seatback to the upright position, push the
seatback up until you hear a click. Then pull on the
seatback to make sure it is secure.
Rear Sliding Seat (MAXX Only)
If your vehicle is the MAXX model your rear seat will
slide forward or rearward to allow more cargo space in
the rear.
Lift the bar located under the front of the seat to unlock
the seat. Slide the seat to where you want it and
release the bar. Try to move the seat back and forth
to be sure the seat is locked in place.
If your vehicle has the rear seat entertainment system,
slide the rear seat up so that the front edge of the
seat cushion is lined up with the mark on the carpet
retainer trim on the oor of the driver’s side rear seat.
If the rear seat is up past the mark, you will not be able
to open the DVD screen.
1-13

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in
a seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-34.
1-14
