CHEVROLET MALIBU 2007 6.G Owners Manual

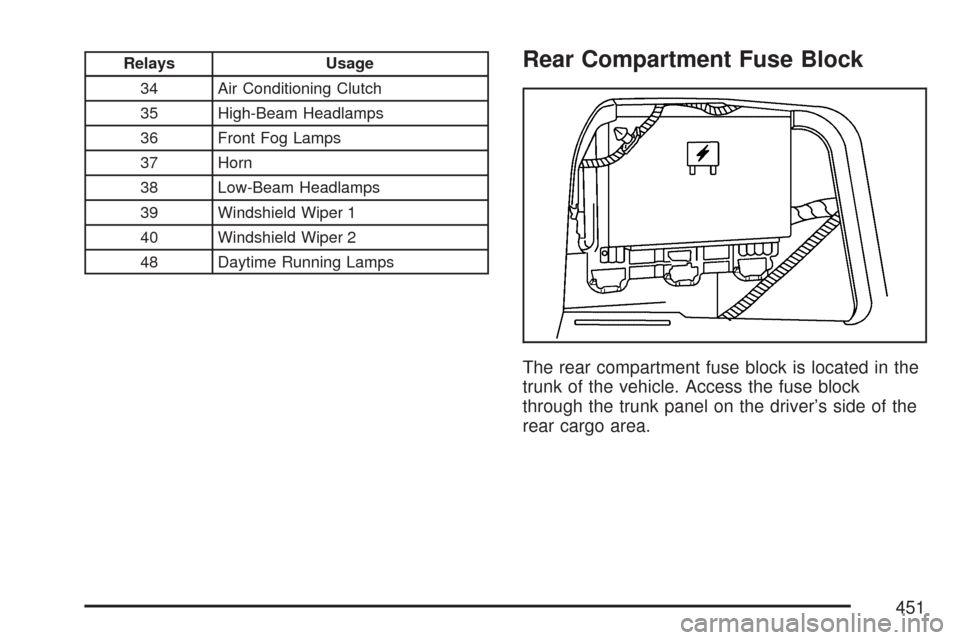

Relays Usage
34 Air Conditioning Clutch
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running LampsRear Compartment Fuse Block
The rear compartment fuse block is located in the
trunk of the vehicle. Access the fuse block
through the trunk panel on the driver’s side of the
rear cargo area.
451

Fuses Usage
1 Not Used
2 Driver Seat Controls
3 Not UsedFuses Usage
4 Not Used
5 Emission
6 Parklamps
452

Fuses Usage
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Auxiliary Power 2
13 Not Used
14 Heated Seat Controls
15 Not Used
16Remote Keyless Entry System,
XM Satellite Radio, Rear Seat
Entertainment System, Homelink
17 Back-up Lamps
18 Not Used
19 Not Used
20Cigarette Lighter, Auxiliary Power
Outlet
21 Not Used
22 TrunkFuses Usage
23 Rear Window Defogger
24 Heated Mirror Controls
25 Fuel Pump
Relays Usage
26 Rear Window Defogger
27 Parklamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk
37 Fuel Pump
38 (Diode) Trunk, Cargo Lamps
453

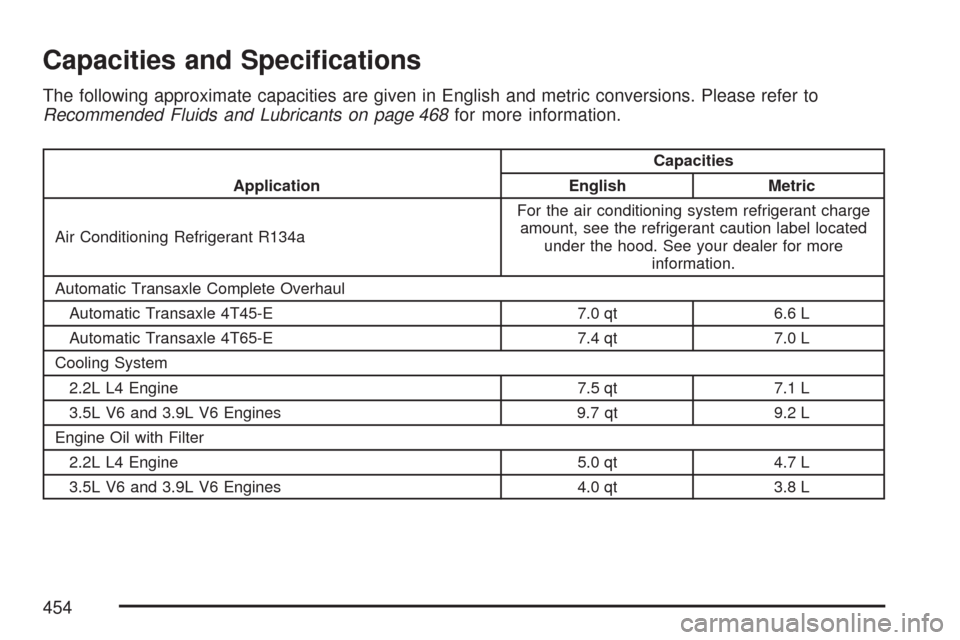

Capacities and Specications
The following approximate capacities are given in English and metric conversions. Please refer to
Recommended Fluids and Lubricants on page 468for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Automatic Transaxle Complete Overhaul
Automatic Transaxle 4T45-E 7.0 qt 6.6 L
Automatic Transaxle 4T65-E 7.4 qt 7.0 L
Cooling System
2.2L L4 Engine 7.5 qt 7.1 L
3.5L V6 and 3.9L V6 Engines 9.7 qt 9.2 L
Engine Oil with Filter
2.2L L4 Engine 5.0 qt 4.7 L
3.5L V6 and 3.9L V6 Engines 4.0 qt 3.8 L
454

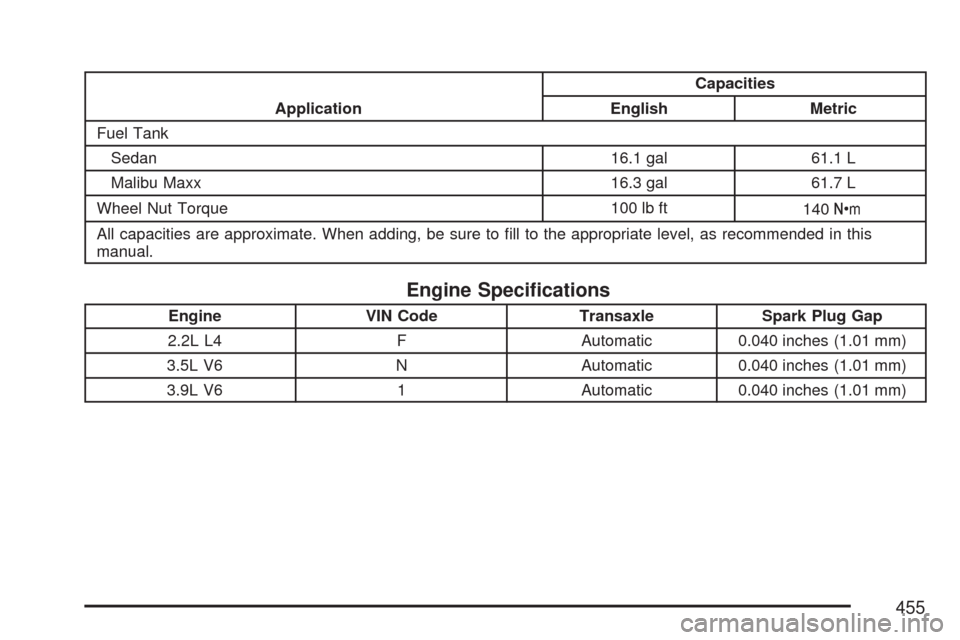

ApplicationCapacities
English Metric
Fuel Tank
Sedan 16.1 gal 61.1 L
Malibu Maxx 16.3 gal 61.7 L
Wheel Nut Torque100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
2.2L L4 F Automatic 0.040 inches (1.01 mm)
3.5L V6 N Automatic 0.040 inches (1.01 mm)
3.9L V6 1 Automatic 0.040 inches (1.01 mm)
455

✍NOTES
456

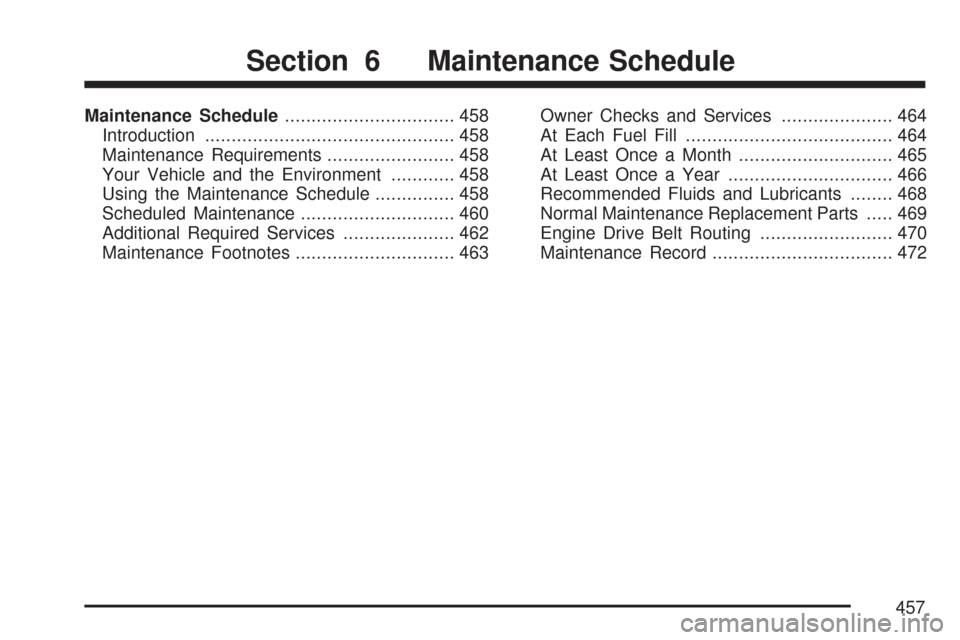

Maintenance Schedule................................ 458
Introduction............................................... 458
Maintenance Requirements........................ 458
Your Vehicle and the Environment............ 458
Using the Maintenance Schedule............... 458
Scheduled Maintenance............................. 460
Additional Required Services..................... 462
Maintenance Footnotes.............................. 463Owner Checks and Services..................... 464
At Each Fuel Fill....................................... 464
At Least Once a Month............................. 465
At Least Once a Year............................... 466
Recommended Fluids and Lubricants........ 468
Normal Maintenance Replacement Parts..... 469
Engine Drive Belt Routing......................... 470
Maintenance Record.................................. 472
Section 6 Maintenance Schedule
457

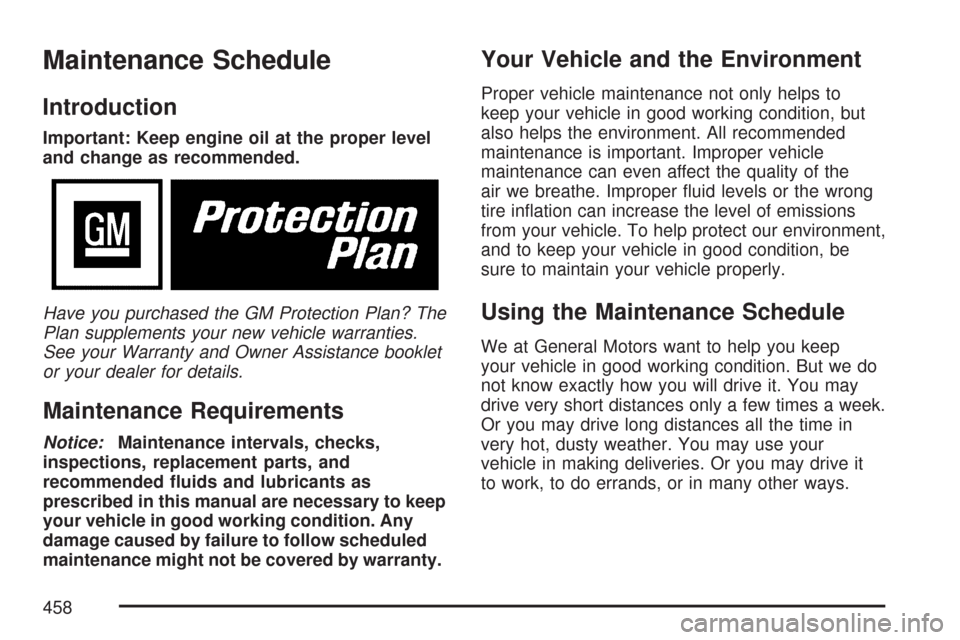

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level
and change as recommended.
Have you purchased the GM Protection Plan? The
Plan supplements your new vehicle warranties.
See your Warranty and Owner Assistance booklet
or your dealer for details.
Maintenance Requirements
Notice:Maintenance intervals, checks,
inspections, replacement parts, and
recommended uids and lubricants as
prescribed in this manual are necessary to keep
your vehicle in good working condition. Any
damage caused by failure to follow scheduled
maintenance might not be covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to
keep your vehicle in good working condition, but
also helps the environment. All recommended
maintenance is important. Improper vehicle
maintenance can even affect the quality of the
air we breathe. Improper uid levels or the wrong
tire ination can increase the level of emissions
from your vehicle. To help protect our environment,
and to keep your vehicle in good condition, be
sure to maintain your vehicle properly.
Using the Maintenance Schedule
We at General Motors want to help you keep
your vehicle in good working condition. But we do
not know exactly how you will drive it. You may
drive very short distances only a few times a week.
Or you may drive long distances all the time in
very hot, dusty weather. You may use your
vehicle in making deliveries. Or you may drive it
to work, to do errands, or in many other ways.
458

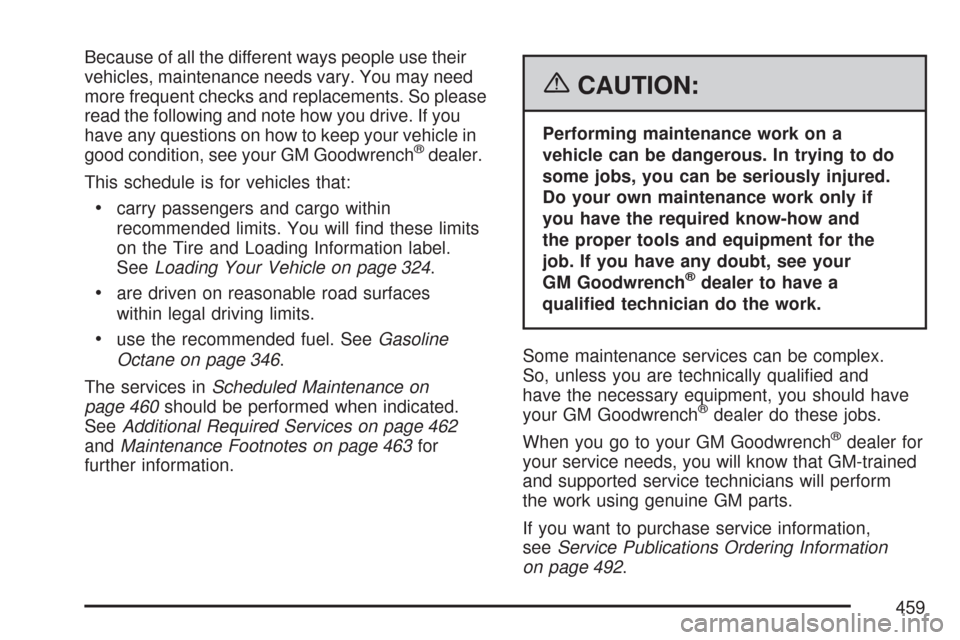

Because of all the different ways people use their
vehicles, maintenance needs vary. You may need
more frequent checks and replacements. So please
read the following and note how you drive. If you
have any questions on how to keep your vehicle in
good condition, see your GM Goodwrench
®dealer.
This schedule is for vehicles that:
carry passengers and cargo within
recommended limits. You will nd these limits
on the Tire and Loading Information label.
SeeLoading Your Vehicle on page 324.
are driven on reasonable road surfaces
within legal driving limits.
use the recommended fuel. SeeGasoline
Octane on page 346.
The services inScheduled Maintenance on
page 460should be performed when indicated.
SeeAdditional Required Services on page 462
andMaintenance Footnotes on page 463for
further information.
{CAUTION:
Performing maintenance work on a
vehicle can be dangerous. In trying to do
some jobs, you can be seriously injured.
Do your own maintenance work only if
you have the required know-how and
the proper tools and equipment for the
job. If you have any doubt, see your
GM Goodwrench
®dealer to have a
qualied technician do the work.
Some maintenance services can be complex.
So, unless you are technically qualied and
have the necessary equipment, you should have
your GM Goodwrench
®dealer do these jobs.
When you go to your GM Goodwrench
®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information,
seeService Publications Ordering Information
on page 492.
459

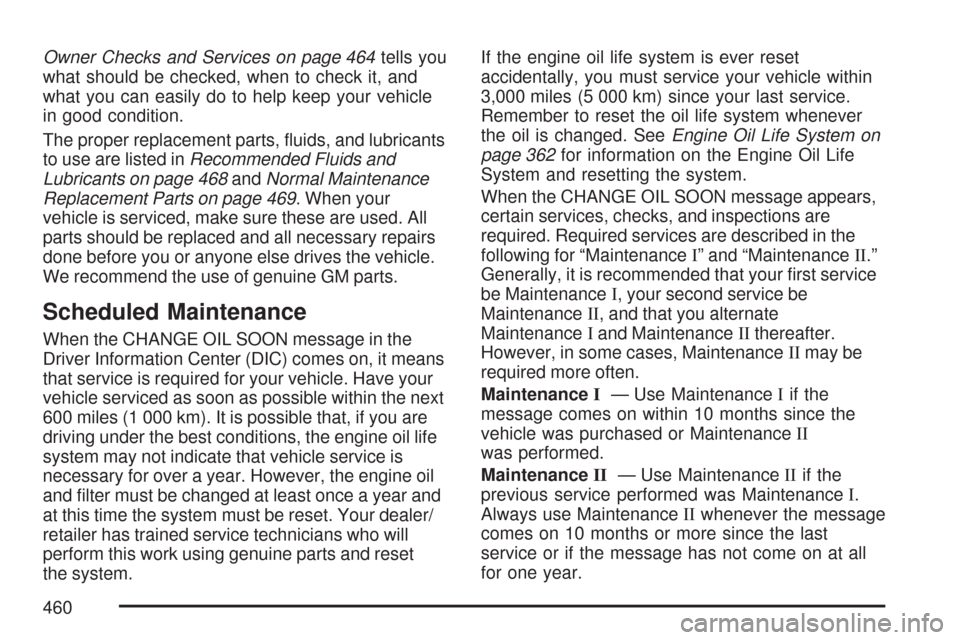

Owner Checks and Services on page 464tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle
in good condition.
The proper replacement parts, uids, and lubricants
to use are listed inRecommended Fluids and
Lubricants on page 468andNormal Maintenance
Replacement Parts on page 469. When your
vehicle is serviced, make sure these are used. All
parts should be replaced and all necessary repairs
done before you or anyone else drives the vehicle.
We recommend the use of genuine GM parts.
Scheduled Maintenance
When the CHANGE OIL SOON message in the
Driver Information Center (DIC) comes on, it means
that service is required for your vehicle. Have your
vehicle serviced as soon as possible within the next
600 miles (1 000 km). It is possible that, if you are
driving under the best conditions, the engine oil life
system may not indicate that vehicle service is
necessary for over a year. However, the engine oil
and lter must be changed at least once a year and
at this time the system must be reset. Your dealer/
retailer has trained service technicians who will
perform this work using genuine parts and reset
the system.If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 362for information on the Engine Oil Life
System and resetting the system.
When the CHANGE OIL SOON message appears,
certain services, checks, and inspections are
required. Required services are described in the
following for “MaintenanceI” and “MaintenanceII.”
Generally, it is recommended that your rst service
be MaintenanceI, your second service be
MaintenanceII, and that you alternate
MaintenanceIand MaintenanceIIthereafter.
However, in some cases, MaintenanceIImay be
required more often.
MaintenanceI— Use MaintenanceIif the
message comes on within 10 months since the
vehicle was purchased or MaintenanceII
was performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
460
