Black plate (34,1)Chevrolet Malibu Owner Manual - 2012
10-34 Vehicle Care

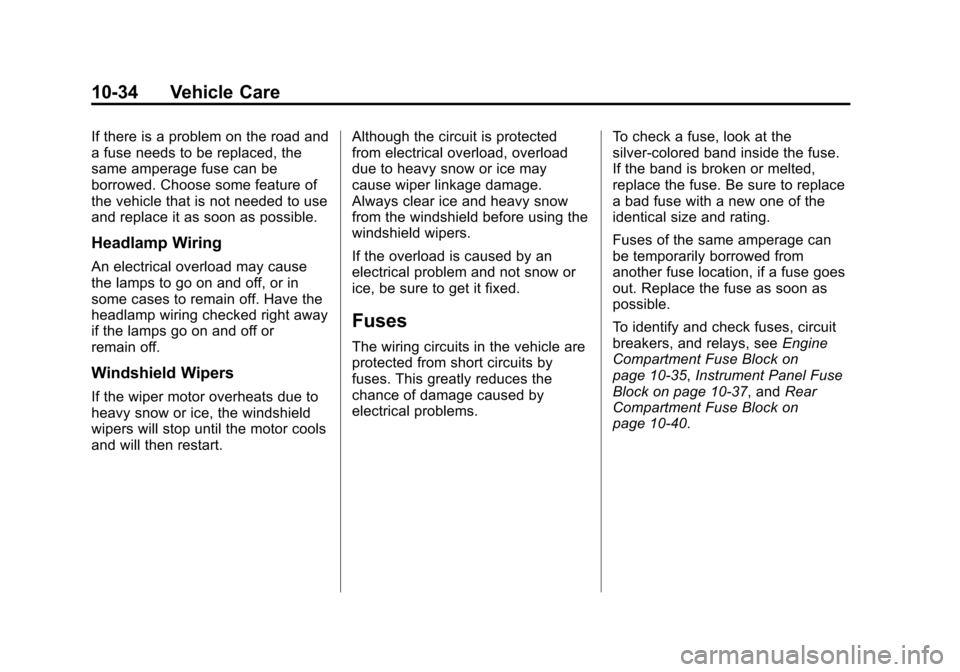

If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses
The wiring circuits in the vehicle are
protected from short circuits by
fuses. This greatly reduces the
chance of damage caused by
electrical problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
To identify and check fuses, circuit
breakers, and relays, see
Engine
Compartment Fuse Block on
page 10‑35, Instrument Panel Fuse
Block on page 10‑37, and Rear
Compartment Fuse Block on
page 10‑40.

Black plate (12,1)Chevrolet Malibu Owner Manual - 2012
i-12 INDEX
V
VehicleCanadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-3
IdentificationNumber (VIN) . . . . . . . . . . . . . . . 12-1
Load Limits . . . . . . . . . . . . . . . . . . . 9-11
Messages . . . . . . . . . . . . . . . . . . . . 5-26
Personalization . . . . . . . . . . . . . . . 5-31
Reminder Messages . . . . . . . . . . 5-31
Remote Start . . . . . . . . . . . . . . . . . . 2-5
Security . . . . . . . . . . . . . . . . . . . . . . 2-11
Towing . . . . . . . . . . . . . . . . . . . . . . 10-87
Vehicle Care Storing the Tire Sealantand Compressor Kit . . . . . . . 10-73
Tire Pressure . . . . . . . . . . . . . . . 10-50
Vehicle Identification Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Ventilation, Air . . . . . . . . . . . . . . . . . . 8-9
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-17
W
Warning Brake System Light . . . . . . . . . . . 5-18
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 5-9
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . iv Cautions and Danger . . . . . . . . . . . .iv
Hazard Flashers . . . . . . . . . . . . . . . 6-4
Washer Fluid . . . . . . . . . . . . . . . . . 10-23
Washer Fluid Messages . . . . . . . 5-31
Wheels Alignment and TireBalance . . . . . . . . . . . . . . . . . . . 10-63
Different Size . . . . . . . . . . . . . . . 10-61
Replacement . . . . . . . . . . . . . . . 10-64
When It Is Time for
New Tires . . . . . . . . . . . . . . . . . . . 10-59
Where to Put the Restraint . . . . 3-40
Windows . . . . . . . . . . . . . . . . . . . . . . 2-15 Power . . . . . . . . . . . . . . . . . . . . . . . . 2-16 Windshield
Wiper/Washer . . . . . . . . . . . . . . . . . 5-4
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 9-8
Winter Tires . . . . . . . . . . . . . . . . . . 10-43
Wiper Blade Replacement . . . . 10-29
