CHEVROLET MONTE CARLO 1997 5.G User Guide

Downloaded from www.Manualslib.com manuals search engine This is a correction to information found on page 6-58 and 6-59 for Lumina and Monte Carlo.

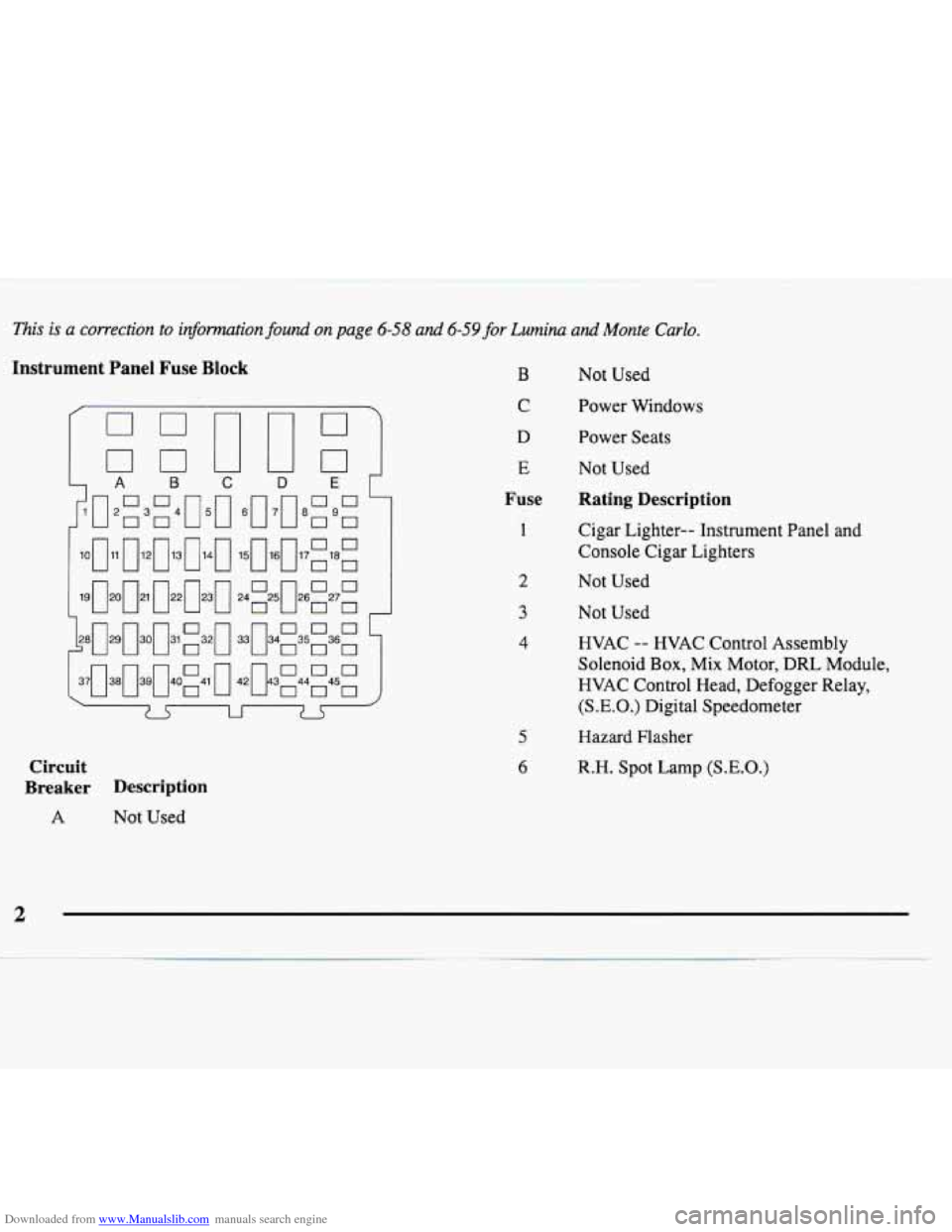

Instrument Panel Fuse Block B Not Used
Circuit
Breaker Description
C Power Windows
D Power Seats
E Not Used
Fuse Rating Description
1
5
6
Cigar Lighter-- Instrument Panel and
Console Cigar Lighters
Not Used
Not Used
HVAC
-- HVAC Control Assembly
Solenoid Box, Mix Motor, DRL Module,
HVAC Control Head, Defogger Relay,
(S.E.O.) Digital Speedometer
nazard Flasher
R.H. Spot Lamp
(S.E.O.)
A
Not Used
2

Downloaded from www.Manualslib.com manuals search engine This is a correction to information found on page 6-58 and 6-59 for Lumina and Monte Carlo.
Fuse
7
8
9
10
11
12
13
14
15
16
Rating Description
Starter Relay
Not Used
Not Used
VP Electronics Battery -- Chime
Module, Electronic Brake Control
Module (EBCM), Theft-Deterrent
Module, Radio DLC
Power Accessory #2
-- Sunroof Control
Unit,
(S.E.O.) Accessory Feed
Anti-Theft/PCM
-- Theft-Deterrent
Module, Powertrain Control Module,
(PCM)
IGN Syst. Relay
ABS
-- Electronic Brake Control Module
(EBCM), ABS Relay
HVAC Blower Motor
-- Blower Motor
Relay
L.H. Spot Lamp
(S.E.O.)
Steering Wheel Control #1 -- Steering
Wheel Radio Control Lighting
Fuse Rating Description
17
18
19
20
21
22
23
24
25
26
27
Not Used
Not Used
Power Accessory
#1 -- Door Lock
Switches, Trunk Courtesy Lamp,
O/S
Mirror Switch, (S.E.O.) Emergency
Vehicle-Rear Compartment Lid Lamp or
Window Panel Lamps
Steering Wheel Control
#2 -- Steering
Wheel Radio Controls
Air Bag
-- Air Bag System
Cruise Control
-- Cruise Control Cut-Out
Switch, Cruise Control Module, Turn
Signal Cruise Control Switches
Stoplamps
-- Stoplamp Switch (Brake)
Not Used
EnglisWMetric
(S.E.O.)
Not Used
Not Used
3

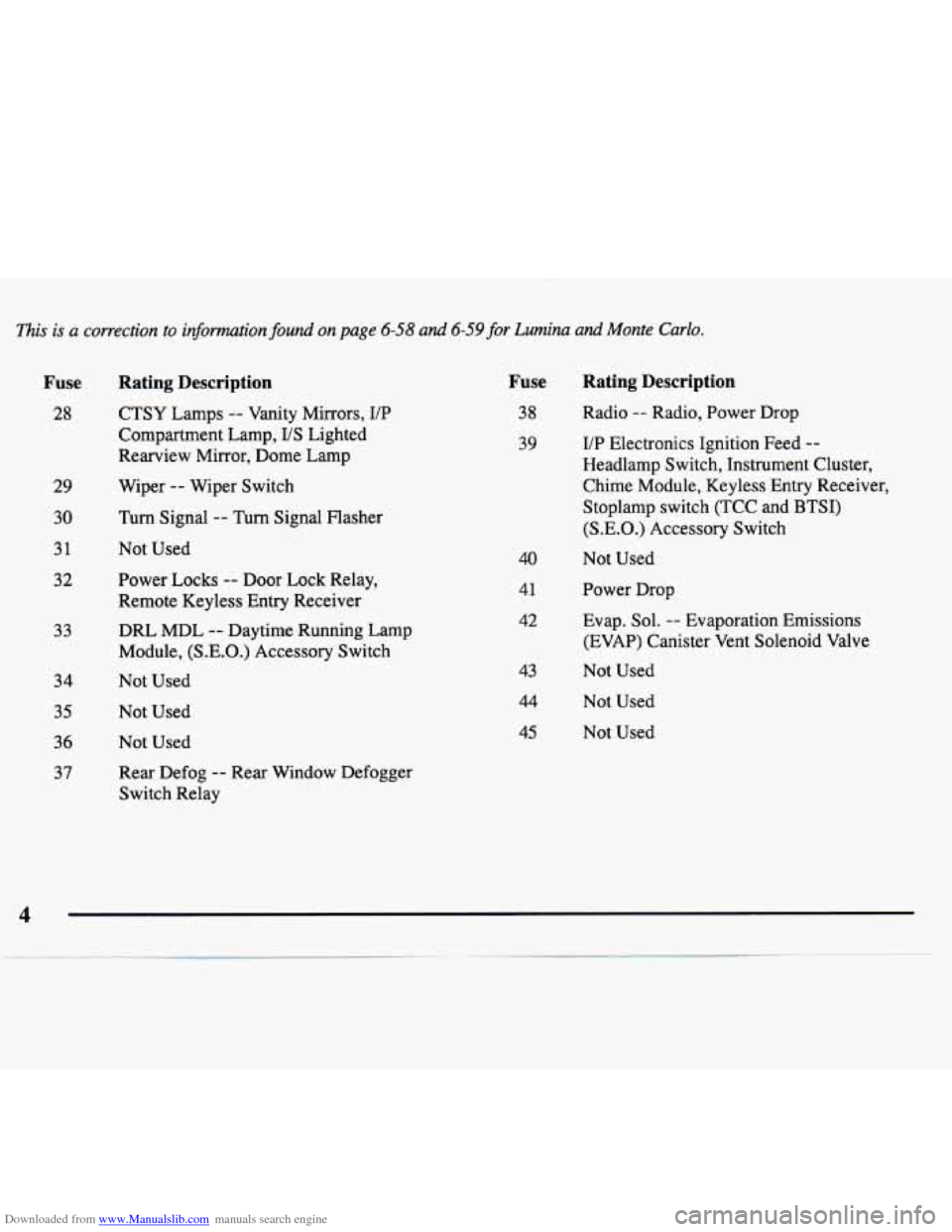

Downloaded from www.Manualslib.com manuals search engine fiis is a correction to information found on page 6-58 and 6-59 for Lumina and Monte Carlo.
Fuse Rating Description
28
29
30
31
32
33
34
35
36
37
CTSY Lamps -- Vanity Mirrors, VP
Compartment Lamp,
US Lighted
Rearview Mirror, Dome Lamp
Wiper
-- Wiper Switch
Turn Signal -- Turn Signal Flasher
Not Used
Power Locks
-- Door Lock Relay,
Remote Keyless Entry Receiver
DRL
MDL -- Daytime Running Lamp
Module, (S.E.O.) Accessory Switch
Not Used
Not Used
Not Used
Rear Defog
-- Rear Window Defogger
Switch Relay
Fuse
38
39
40
41
42
43
44
Rating Description
Radio -- Radio, Power Drop
UP Electronics Ignition Feed
--
Headlamp Switch, Instrument Cluster,
Chime Module, Keyless Entry Receiver,
Stoplamp switch (TCC and BTSI)
(S.E.O.) Accessory Switch
Not Used
Power Drop
Evap. Sol.
-- Evaporation Emissions
(EVAP) Canister Vent Solenoid Valve
Not Used
Not Used
45 Not Used
4

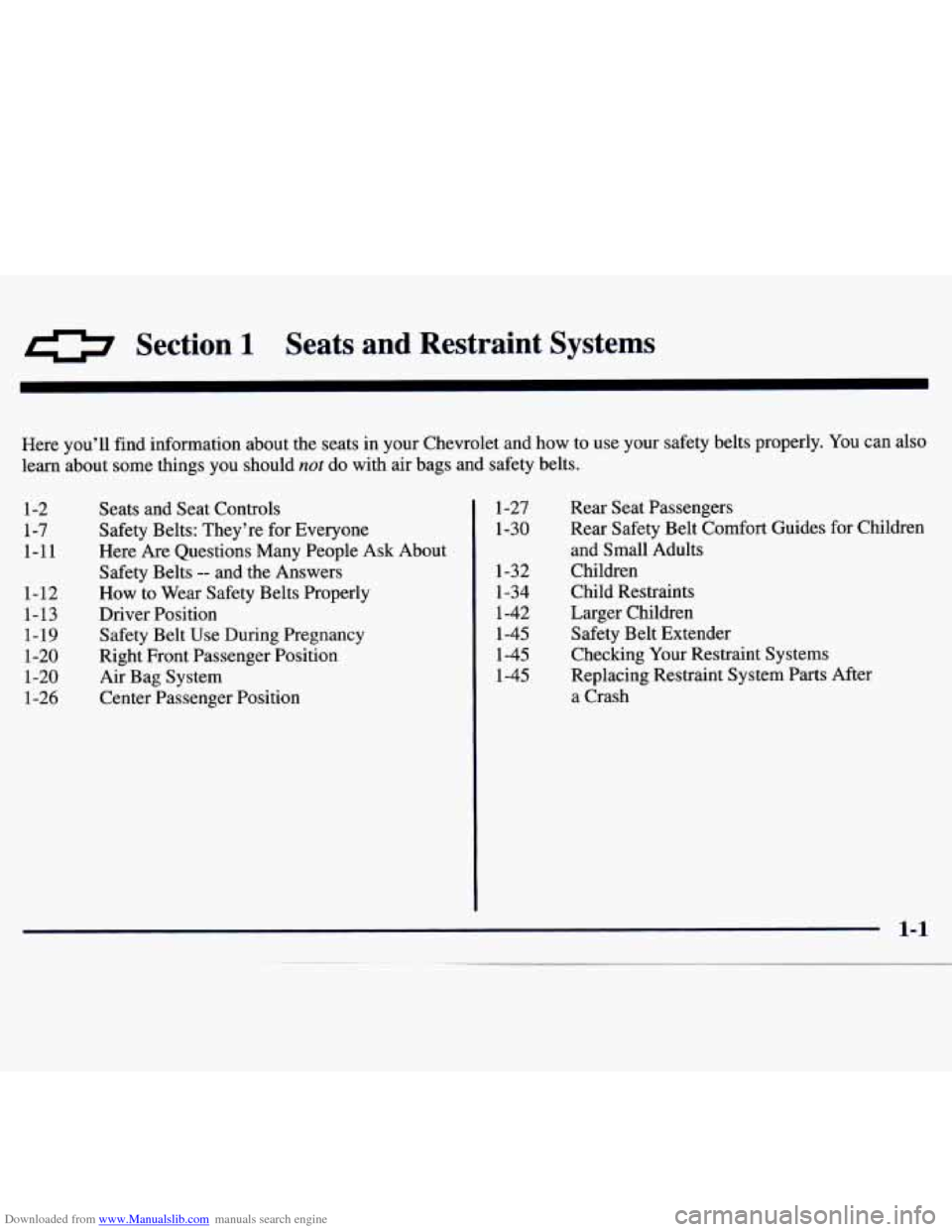

Downloaded from www.Manualslib.com manuals search engine Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Chevrolet and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2
1-7
1-11
1-12
1-13 1-19
1-20
1-20
1-26
Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position
Safety Belt Use During Pregnancy
Right Front Passenger Position
Air Bag System Center Passenger Position
1-27
1-30
1-32
1-34
1-42
1-45
1-45
1-45
Rear Seat Passengers
Rear Safety Belt Comfort Guides for Children
and Small Adults
Children
Child Restraints
Larger Children
Safety Belt Extender
Checking
Your Restraint Systems
Replacing Restraint System Parts After
a Crash

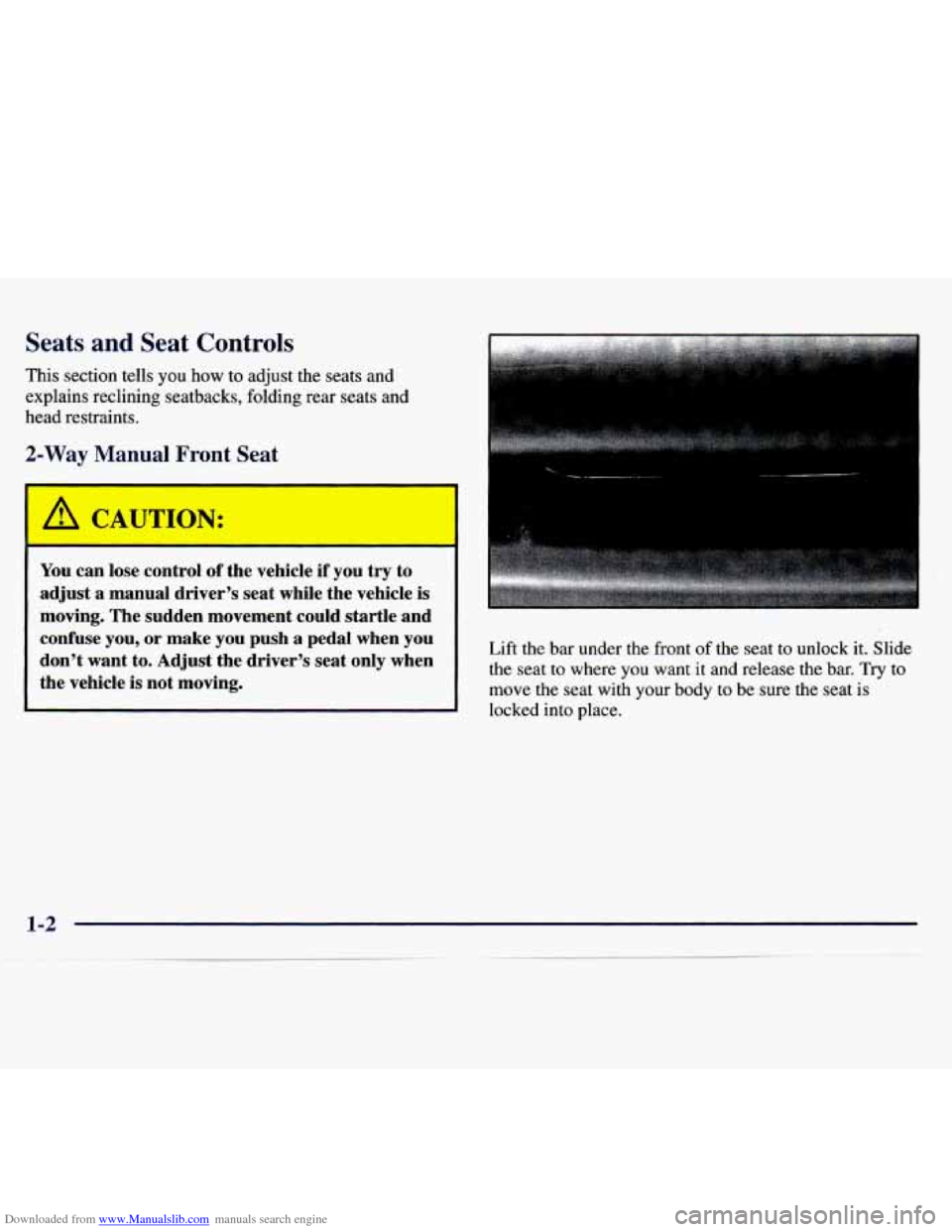

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you how to adjust the seats and
explains reclining seatbacks, folding rear seats and
head restraints.
2-Way Manual Front Seat
I
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle is not moving.
Lift the bar under the front of the seat to unlock it. Slide
the seat to where you want it and release the
bar. Try to
move the seat with your body to be sure the seat is
locked into place.

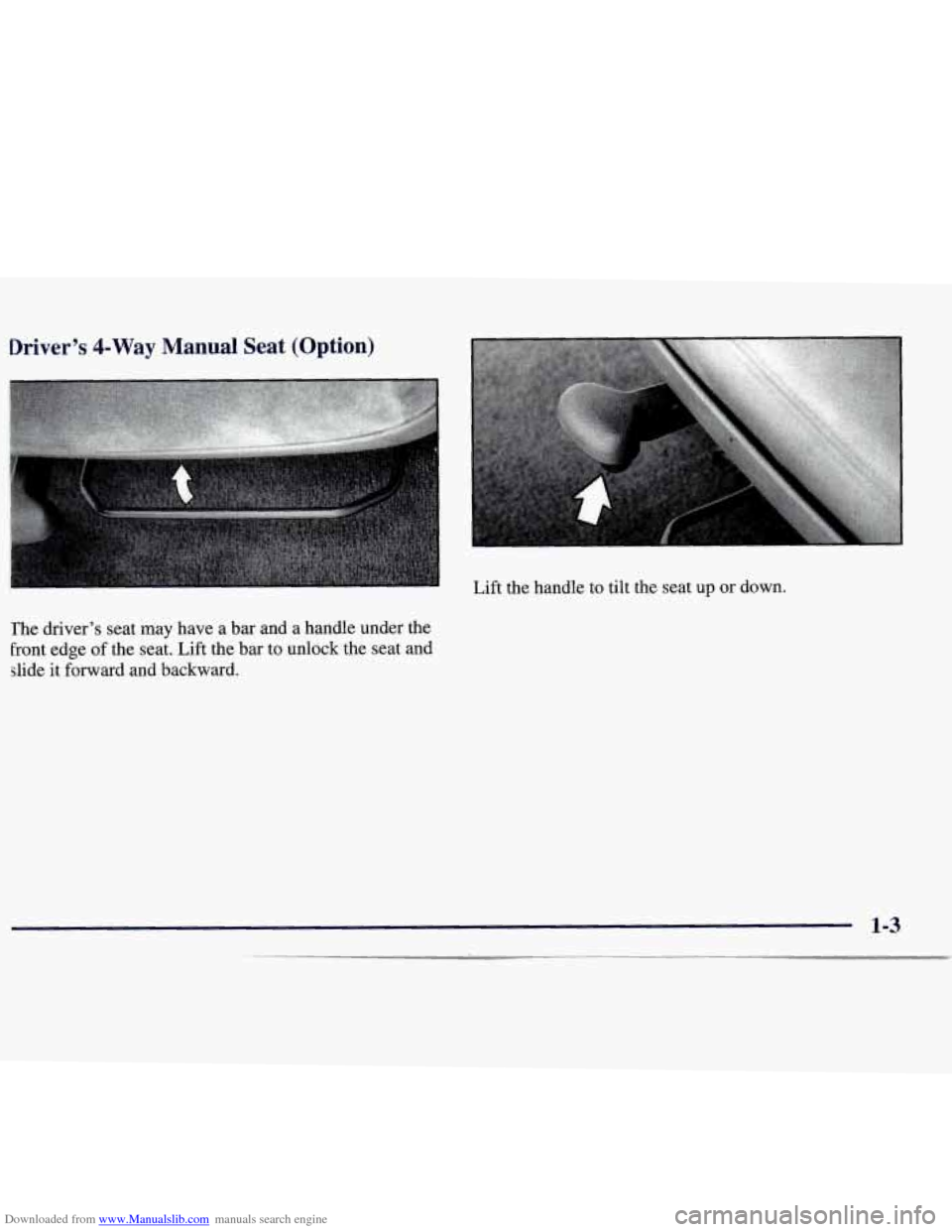

Downloaded from www.Manualslib.com manuals search engine Driver's 4-Way Manual Seat (Option)
The driver's seat may have a bar and a handle under the
Front edge of the seat. Lift the
bar to unlock the seat and
slide it forward and backward.
i
~
Lift the handle to tilt the seat up or down.
1-3

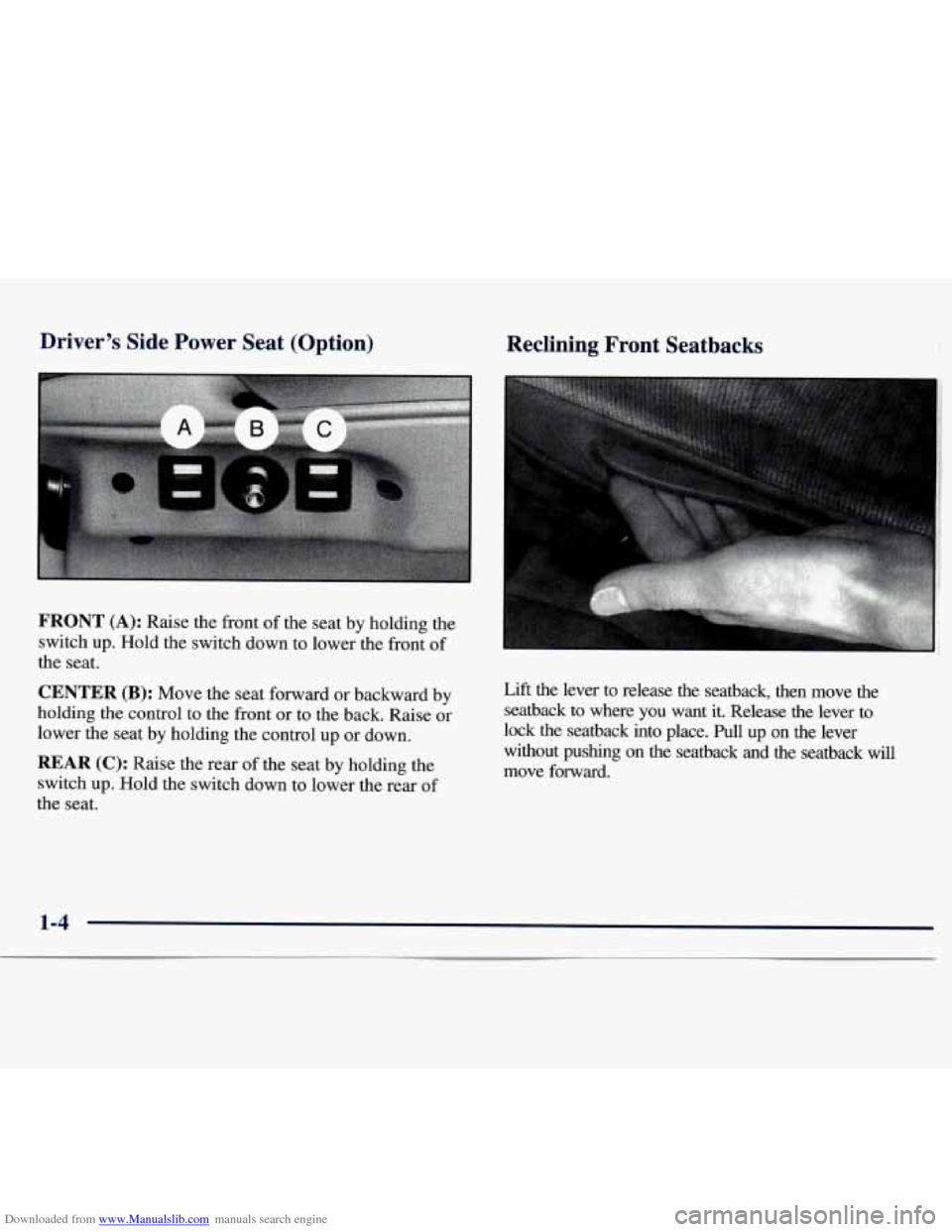

Downloaded from www.Manualslib.com manuals search engine Driver’s Side Power Seat (Option)
FRONT (A): Raise the front of the seat by holding the
switch up. Hold the switch down to lower the front of
the seat.
CENTER (B): Move the seat forward or backward by
holding the control to the front or to the back. Raise or
lower the seat by holding the control up or down.
REAR (C): Raise the rear of the seat by holding the
switch up. Hold the switch down to lower the rear of
the seat.
Reclining Front Seatbacks
Lift the lever to release the seatback, then move the
seatback to where
you want it. Release the lever to
lock the seatback into place.
Pull up on the lever
without pushing
on the seatback and the seatback will
move forward.
1-4

Downloaded from www.Manualslib.com manuals search engine c

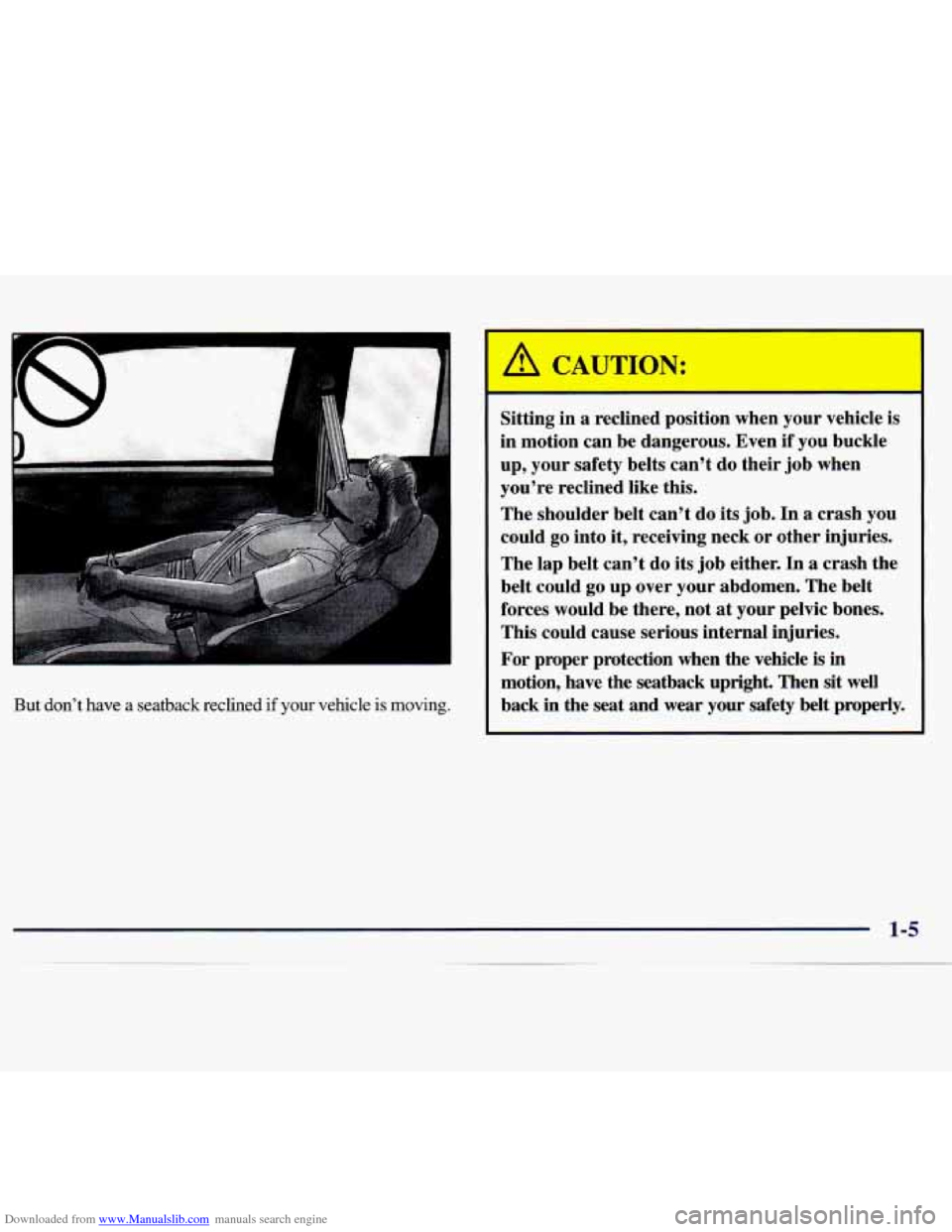

But don’t have a seatback reclined if your vehicle is moving.
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job. In
a crash you
could go into it, receiving neck or other injuries.
The lap belt can’t do its job either. In
a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle
is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.

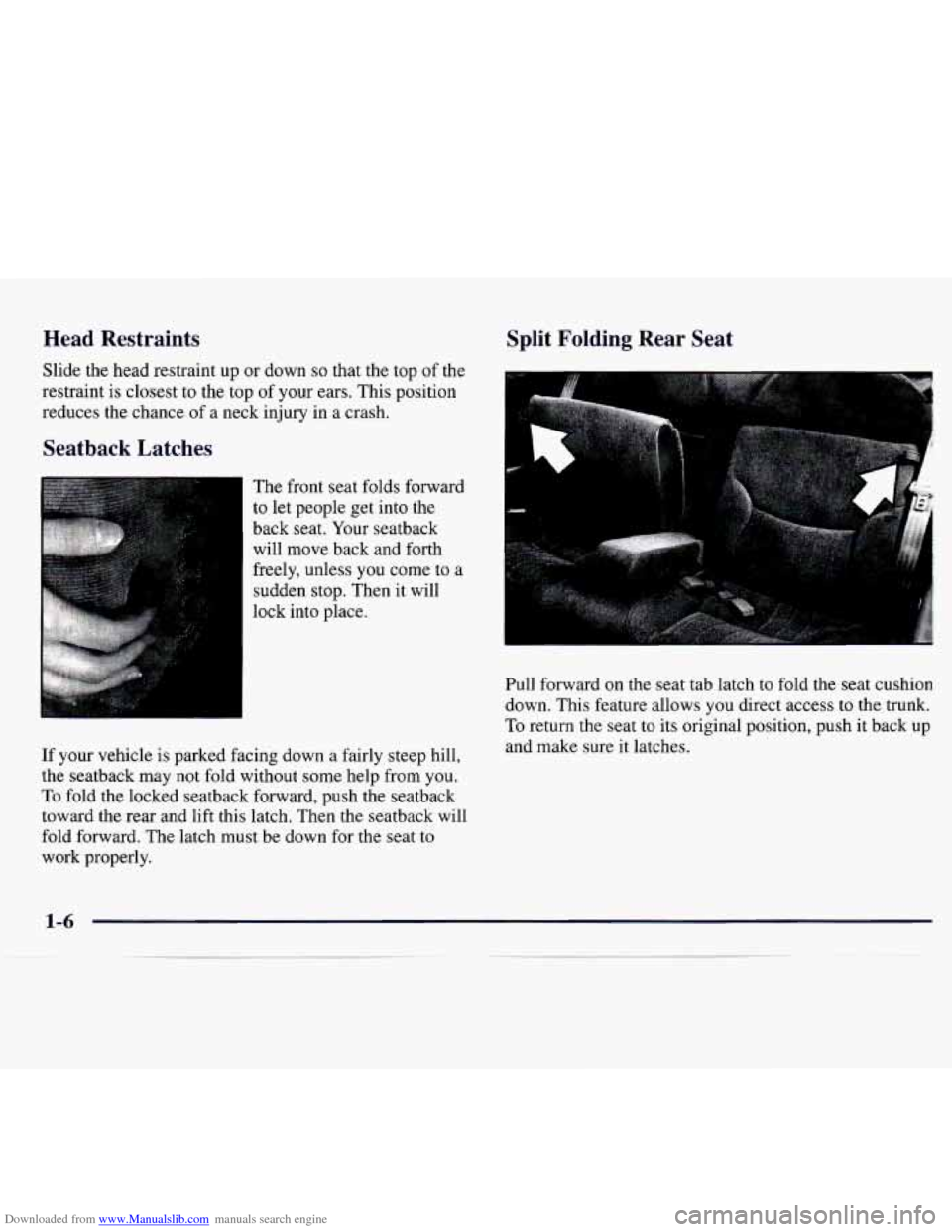

Downloaded from www.Manualslib.com manuals search engine Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top
of your ears. This position
reduces the chance of a neck injury in a crash.
Seatback Latches
The front seat folds forward
to let people get into the
back seat. Your seatback
will move back and forth
freely, unless you come to a
sudden stop. Then it will
lock into place.
If your vehicle is parked facing down a fairly steep hill,
the seatback may not fold without some help from you.
To fold the locked seatback forward, push the seatback
toward the rear and lift this latch. Then the seatback will
fold forward. The latch must be down for the seat to
work properly.
Split Folding Rear Seat
Pull forward on the seat tab latch to fold the seat cushion
down. This feature allows you direct access to the trunk.
To return the seat to its original position, push it back up
and make sure it latches.

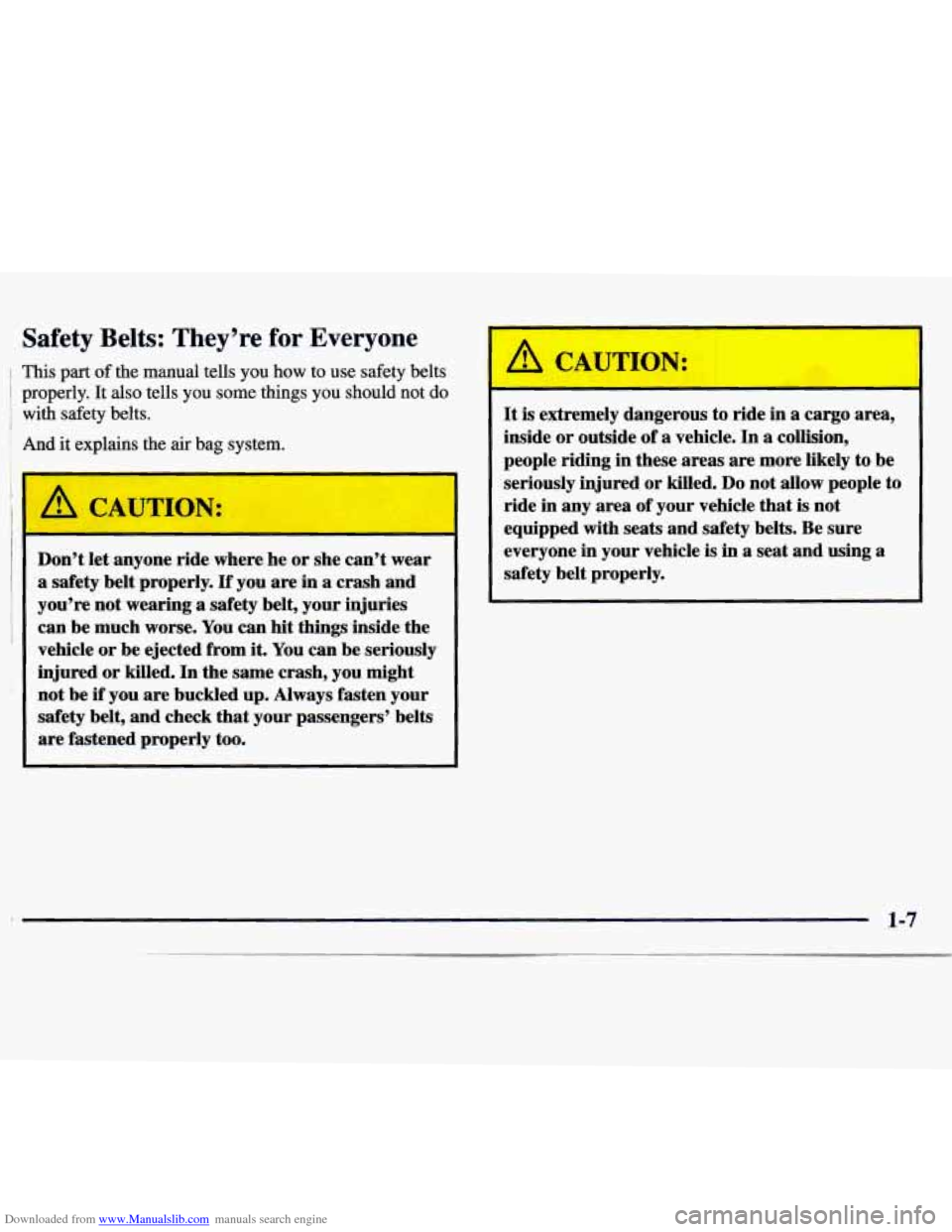

Downloaded from www.Manualslib.com manuals search engine Safety Belts: They’re for Everyone
1 This part of the manual tells you how to use safety belts
j properly. It also tells you some things you should not do
’ with safety belts. I
And it explains the air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from
it. You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too. It
is extremely
dangerous to ride in a cargo area,
inside or outside of
a vehicle. In a collision,
people riding
in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in
a seat and using a
safety belt properly.
1-7
