headlamp CHEVROLET MONTE CARLO 2004 Owner's Manual

Wheel Replacement......................................5-79
Tire Chains..................................................5-80
If a Tire Goes Flat........................................5-81
Changing a Flat Tire.....................................5-82
Compact Spare Tire......................................5-93
Appearance Care............................................5-94
Cleaning the Inside of Your Vehicle.................5-94
Care of Safety Belts......................................5-97
Weatherstrips...............................................5-97
Cleaning the Outside of Your Vehicle..............5-97
Sheet Metal Damage.....................................5-99
Finish Damage.............................................5-99
Underbody Maintenance...............................5-100Chemical Paint Spotting...............................5-100
Vehicle Care/Appearance Materials................5-100
Vehicle Identication.....................................5-102
Vehicle Identication Number (VIN)................5-102
Service Parts Identication Label...................5-102
Electrical System..........................................5-103
Add-On Electrical Equipment.........................5-103
Headlamp Wiring........................................5-103
Windshield Wiper Fuses...............................5-103
Power Windows and Other Power Options......5-103
Fuses and Circuit Breakers..........................5-104
Capacities and Specications........................5-110
Section 5 Service and Appearance Care
5-2

Headlamp Aiming
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment to the low beam
may be necessary if it is difficult to see lane markers
(for horizontal aim), or if oncoming drivers ash
their high beams at you (for vertical aim). If you believe
your headlamps need to be re-aimed, we recommend
that you take your vehicle to the dealer for service.
Bulb Replacement
For the proper type of replacement bulb, see
Replacement Bulbs on page 5-63.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
A. High-Beam Headlamp
B. Low-Beam Headlamp
C. Parking/Turn Signal and Sidemarker Lamp
5-60

1. Open the hood.
2. Remove the air baffle.
3. Remove the two headlamp fasteners by pulling
up on them.
4. Gently pull the headlamp assembly away from the
vehicle and remove the electrical connector.
5. Remove the round dust caps to gain access to
the bulbs.6. Turn the bulb counterclockwise and remove it from
the retaining ring by gently pulling it away from the
headlamp assembly.
7. Remove the electrical connector from the bulb by
raising the lock tab and pulling the connector away
from the bulb’s base.
8. Install the electrical connector to the new bulb.
9. Install the new bulb by inserting the smallest tab on
the bulb base into the matching notch in the
retaining ring. Turn the bulb a quarter-turn clockwise
until it stops.
10. Reverse Steps 1 through 5 to reinstall the headlamp
assembly.
5-61

Back-Up Lamps
The back-up lamps are located in the rear bumper.
1. Open the trunk.
2. Remove the two screws.
3. Pull the assembly from the body of the vehicle.
4. To remove a socket, turn the socket
counterclockwise and pull it out.
5. Pull the old bulb out. Do not twist it.
6. Push the new bulb into the socket.
7. Push the socket back into the assembly.
Tighten the socket by turning it clockwise.
8. Reinstall the assembly with the two screws.
Replacement Bulbs
Exterior Lamps Bulb Number
Back-Up 921
Front Park/Turn Signal3357NAK or
3457NAK
Front Sidemarker Lamps 194
Headlamps, High-Beam 9005
Headlamps, Low-Beam 9006
Rear Sidemarker Lamps 168
Taillamps/Stoplamps/Turn Signal 3057
For any bulb not listed here, contact you dealer.
5-63

Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing are
not needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted
the same way as the one it replaces.If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new GM
original equipment parts. This way, you will be sure to
have the right wheel, wheel bolts and wheel nuts
for your vehicle.
{CAUTION:
Using the wrong replacement wheels, wheel
bolts or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance and tire or tire chain
clearance to the body and chassis.
SeeChanging a Flat Tire on page 5-82for more
information.
5-79

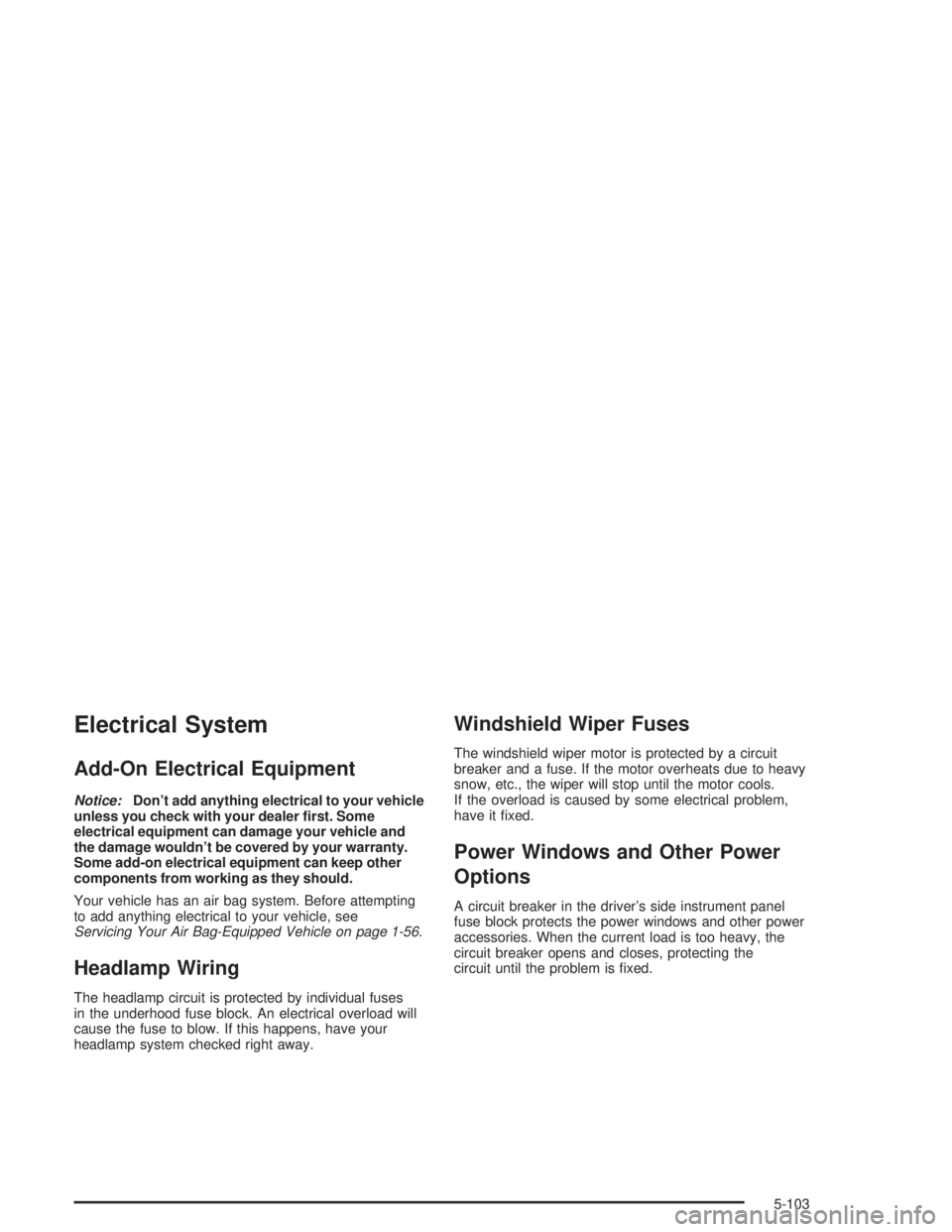

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an air bag system. Before attempting
to add anything electrical to your vehicle, see
Servicing Your Air Bag-Equipped Vehicle on page 1-56.
Headlamp Wiring
The headlamp circuit is protected by individual fuses
in the underhood fuse block. An electrical overload will
cause the fuse to blow. If this happens, have your
headlamp system checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If the overload is caused by some electrical problem,
have it xed.
Power Windows and Other Power
Options
A circuit breaker in the driver’s side instrument panel
fuse block protects the power windows and other power
accessories. When the current load is too heavy, the
circuit breaker opens and closes, protecting the
circuit until the problem is xed.
5-103

Fuses Usage
CIG/AUXAccommodated Device
(Accessory)
BCM Body Control Module (Accessory)
SRS Supplemental Restraint System
ABS/PCMAnti-Lock Brake System,
Powertrain Control Module,
Brake Switch, Crank Relay,
Canister Vent Solenoid
(Run, Crank)
STOPBrake Lamps, Body Control
Module (Run, Crank)
TURN SIGNAL Turn Signal Flashers
CRUISECruise Control Steering
Column Controls
AC/CRUISEHVAC Temp Door Motors &
Module, Cruise Control Module
A/C FAN HVAC Blower
STR COL Steering Wheel LightingFuses Usage
DR LKBody Control Module,
Door Lock Controls
PWR MIR Power Mirrors
CLSTR/BCMCluster, Body Control Module,
Data Link Connector (Battery)
LH HTD ST/BCMDriver’s Heated Seat, Body
Control Module, Battery
controlled Loads
Circuit Breakers Usage
RETAINED
ACCESSORY
PWR BRKRPower Windows,
Sunroof Breaker
Relays Usage
RETAINED
ACCESSORY
PWR RELAYRetained Accessory Power Relay
HEADLAMP
RELAYHeadlamp Relay
5-105

Underhood Fuse Block (Upper)
Some fuses are in a fuse block in the engine
compartment on the passenger’s side of the vehicle.
SeeEngine Compartment Overview on page 5-12
for more information on location.
Relays Usage
FUEL PUMP Fuel Pump
DRL RELAY Daytime Running Lamps
CRANK RLY Starter (Crank) Relay
HORNS Horn
FOG LTS Fog Lamps
Fuses Usage
LEFT I/P Left Fuse Block
RT I/P #1 Right Fuse Block (Battery)
RT I/P #2 Right Fuse Block (Battery)
U/HOOD #1 Underhood (Top) Fuse Block
HORN RLY Horn Relay
BLANK Blank
BLANK Blank
FOG RLY Fog Lamps Relay
F/PMP RLY Fuel Pump Relay
DRL/EXIT LTSLow (Left Front) & High
(Left Front) Headlamps
EXT LTSLow (Right Front) & High
(Right Front) Headlamps
PCM PCM Battery
A/C RLY (COMP)HVAC Compressor Relay &
Generator
BLOWER MOTOR HVAC Blower Motor
5-108

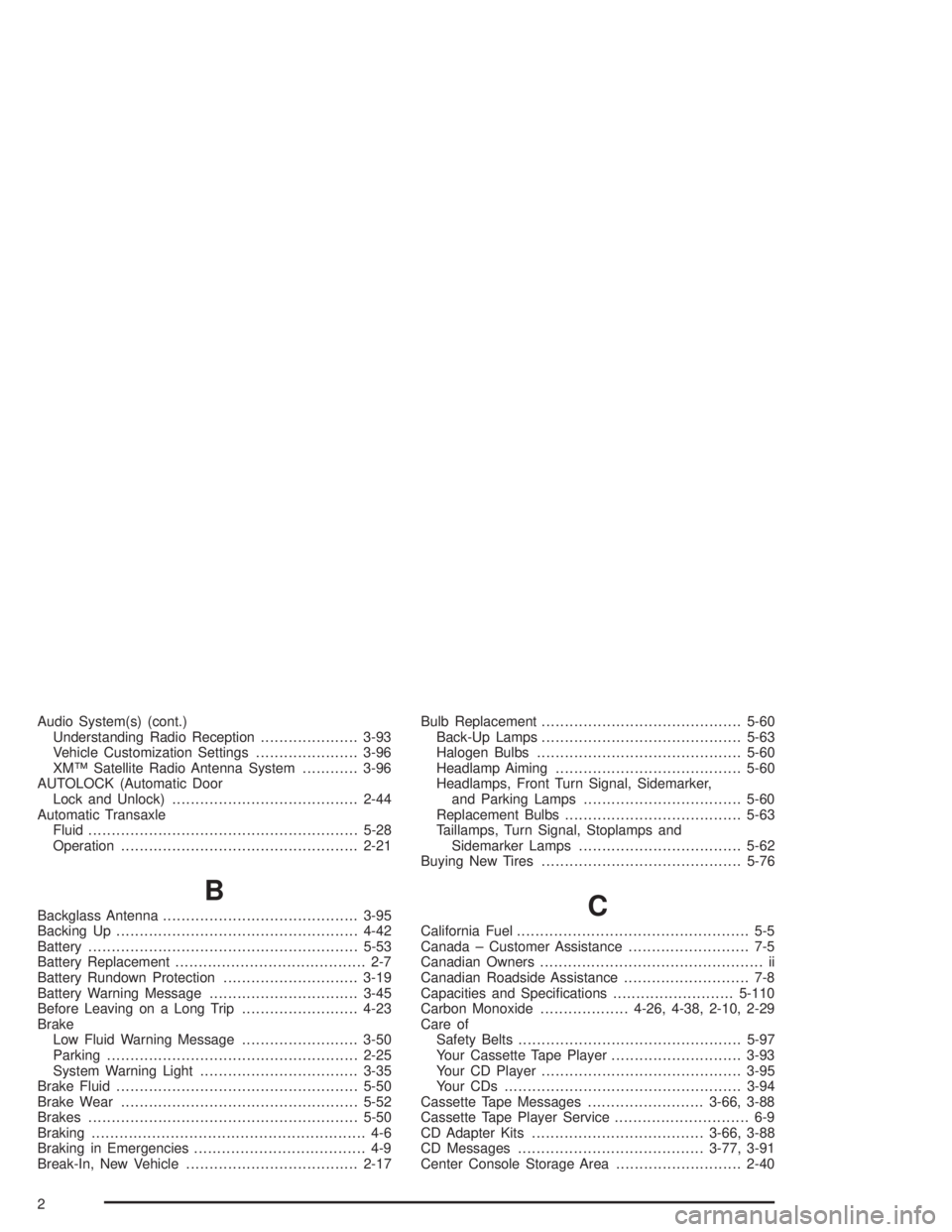

Audio System(s) (cont.)
Understanding Radio Reception.....................3-93
Vehicle Customization Settings......................3-96
XM™ Satellite Radio Antenna System............3-96
AUTOLOCK (Automatic Door
Lock and Unlock)........................................2-44
Automatic Transaxle
Fluid..........................................................5-28
Operation...................................................2-21
B
Backglass Antenna..........................................3-95
Backing Up....................................................4-42
Battery..........................................................5-53
Battery Replacement......................................... 2-7
Battery Rundown Protection.............................3-19
Battery Warning Message................................3-45
Before Leaving on a Long Trip.........................4-23
Brake
Low Fluid Warning Message.........................3-50
Parking......................................................2-25
System Warning Light..................................3-35
Brake Fluid....................................................5-50
Brake Wear...................................................5-52
Brakes..........................................................5-50
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-9
Break-In, New Vehicle.....................................2-17Bulb Replacement...........................................5-60
Back-Up Lamps...........................................5-63
Halogen Bulbs............................................5-60
Headlamp Aiming........................................5-60
Headlamps, Front Turn Signal, Sidemarker,
and Parking Lamps..................................5-60
Replacement Bulbs......................................5-63
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps...................................5-62
Buying New Tires...........................................5-76C
California Fuel.................................................. 5-5
Canada – Customer Assistance.......................... 7-5
Canadian Owners................................................ ii
Canadian Roadside Assistance........................... 7-8
Capacities and Specications..........................5-110
Carbon Monoxide...................4-26, 4-38, 2-10, 2-29
Care of
Safety Belts................................................5-97
Your Cassette Tape Player............................3-93
Your CD Player...........................................3-95
Your CDs ...................................................3-94
Cassette Tape Messages.........................3-66, 3-88
Cassette Tape Player Service............................. 6-9
CD Adapter Kits.....................................3-66, 3-88
CD Messages........................................3-77, 3-91
Center Console Storage Area...........................2-40
2

Cooling System..............................................5-37
Courtesy Lamps.............................................3-16
Cruise Control................................................3-11
Cruise Control Light........................................3-42
Current and Past Model Order Forms................7-14
Customer Assistance Information
Courtesy Transportation.................................. 7-8
Customer Assistance for Text Telephone (TTY)
Users....................................................... 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Program for Persons with
Disabilities................................................ 7-6
Reporting Safety Defects to General Motors....7-12
Reporting Safety Defects to the Canadian
Government............................................7-12
Reporting Safety Defects to the United States
Government............................................7-12
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-13
D
Daytime Running Lamps / Automatic Headlamp
System......................................................3-15
Defensive Driving............................................. 4-2
Defogging and Defrosting.................................3-24
Delayed Entry Lighting.....................................3-17Delayed Exit Lighting.......................................3-18
Delayed Headlamps........................................3-15
Dinghy Towing................................................4-32
Disarming with the Remote Keyless Entry
Transmitter.................................................2-16
Disarming with Your Key..................................2-16
Doing Your Own Service Work........................... 5-3
Dolly Towing..................................................4-32
Dome Lamp...................................................3-18
Door
Ajar Warning Message.................................3-48
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
Programmable Automatic Door Locks............... 2-9
Driver
Position, Safety Belt.....................................1-16
Driver Information Center (DIC).........................3-52
Driving
At Night.....................................................4-17
City...........................................................4-21
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Freeway.....................................................4-22
Hill and Mountain Roads..............................4-24
In Rain and on Wet Roads...........................4-18
Winter........................................................4-26
Driving On Grades..........................................4-43
Driving on Snow or Ice....................................4-27
4
