CHEVROLET MONTE CARLO 2007 6.G Owners Manual

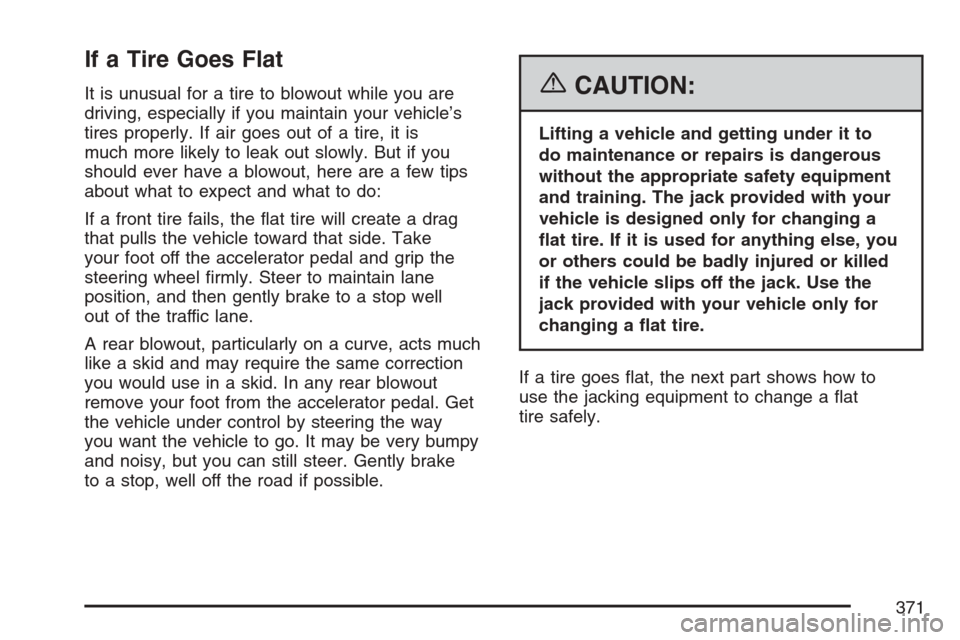

If a Tire Goes Flat
It is unusual for a tire to blowout while you are
driving, especially if you maintain your vehicle’s
tires properly. If air goes out of a tire, it is
much more likely to leak out slowly. But if you
should ever have a blowout, here are a few tips
about what to expect and what to do:
If a front tire fails, the at tire will create a drag
that pulls the vehicle toward that side. Take
your foot off the accelerator pedal and grip the
steering wheel rmly. Steer to maintain lane
position, and then gently brake to a stop well
out of the traffic lane.
A rear blowout, particularly on a curve, acts much
like a skid and may require the same correction
you would use in a skid. In any rear blowout
remove your foot from the accelerator pedal. Get
the vehicle under control by steering the way
you want the vehicle to go. It may be very bumpy
and noisy, but you can still steer. Gently brake
to a stop, well off the road if possible.{CAUTION:
Lifting a vehicle and getting under it to
do maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
If a tire goes at, the next part shows how to
use the jacking equipment to change a at
tire safely.
371

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place. Turn
on your vehicle’s hazard warning ashers.
SeeHazard Warning Flashers on page 148for
more information.
{CAUTION:
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire.
To help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
CAUTION: (Continued)
CAUTION: (Continued)
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain
in the vehicle.
To be even more certain the vehicle will
not move, you should put blocks at the
front and rear of the tire farthest away
from the one being changed. That would
be the tire, on the other side, at the
opposite end of the vehicle.
372

When your vehicle has a at tire, use the following
example as a guide to assist you in the placement
of wheel blocks.
The following information will tell you next how to
use the jack and change a tire.Removing the Spare Tire and Tools
The equipment you will need is located in
the trunk.
1. Open the trunk. SeeTrunk on page 101for
more information.
2. Turn the center nut
on the compact
spare tire cover
counterclockwise to
remove it. Then
remove the cover.
3. Remove the compact spare tire. SeeCompact
Spare Tire on page 384for more information.
373

4. Turn the nut holding the jack counterclockwise
and remove it. Then remove the jack and
wrench.The tools you will need to change a tire include
the jack (A), extension and protection guide (B),
and wheel wrench (C).
374

Removing the Flat Tire and
Installing the Spare Tire
Your vehicle may have aluminum wheels with
exposed wheel nuts. Use the wheel wrench to
loosen all the wheel nuts. Do not remove them yet.
Or, your vehicle may have steel wheel covers.
To remove the steel wheel covers and wheel nut
caps, loosen the plastic nut caps with the wheel
wrench in a counterclockwise direction. If needed,
you can nish loosening them with your ngers.
The plastic nut caps will not come off.
Use the at end of the wheel wrench and pry
along the edge of the cover until it comes off.
The edge of the wheel cover could be sharp, so
do not try to remove it with your bare hands.
Do not drop the cover or lay it face down, as it
could become scratched or damaged.
375

Once you have removed the wheel cover, use the
following procedure to remove the at tire and
install the spare tire.
1. It is recommended
that you do a
safety check before
preceding. See
Changing a Flat
Tire on page 372for
more information.
Turn the wheel wrench once on each wheel
nut to loosen them. Do not remove them yet.2. For all wheel types, nd the jacking
location using the diagram above and the
corresponding hoisting notches located on
the bottom side of the plastic molding.
The notches in the plastic molding are marked
with a triangle shape to help you nd them.
The front location is about 7.0 inches (17.7 cm)
from the rear edge of the front wheel well.
The rear location is about 4.5 inches (11.4 cm)
from the rear edge of the wheel well.
3. Put the compact spare tire near you.
376

{CAUTION:
Getting under a vehicle when it is jacked
up is dangerous. If the vehicle slips off
the jack you could be badly injured or
killed. Never get under a vehicle when it
is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack
improperly positioned can damage the
vehicle and even make the vehicle fall.
To help avoid personal injury and vehicle
damage, be sure to t the jack lift head
into the proper location before raising
the vehicle.
377

{CAUTION:
Lifting a vehicle and getting under it to
do maintenance or repairs is dangerous
without the appropriate safety equipment
and training. The jack provided with your
vehicle is designed only for changing a
at tire. If it is used for anything else, you
or others could be badly injured or killed
if the vehicle slips off the jack. Use the
jack provided with your vehicle only for
changing a at tire.
4. Raise the vehicle by turning the jack handle
clockwise. Raise the vehicle far enough off
the ground to install the compact spare tire.
5. Remove all wheel nuts and take off the
at tire.
378

{CAUTION:
Rust or dirt on the wheel, or on the parts
to which it is fastened, can make the
wheel nuts become loose after time.
The wheel could come off and cause an
accident. When you change a wheel,
remove any rust or dirt from the places
where the wheel attaches to the vehicle.
In an emergency, you can use a cloth or
a paper towel to do this; but be sure to
use a scraper or wire brush later, if
needed, to get all the rust or dirt off.6. Remove any rust
or dirt from the
wheel bolts,
mounting surfaces
and spare wheel.
7. Install the compact spare tire.
379

{CAUTION:
Never use oil or grease on studs or nuts.
If you do, the nuts might come loose.
Your wheel could fall off, causing a
serious accident.
8. Reinstall the wheel
nuts with the
rounded end of the
nuts toward the
wheel. Tighten
each nut by hand
until the wheel
is held against
the hub.9. Lower the vehicle by turning the jack handle
counterclockwise. Lower the jack completely.
380
