CHEVROLET OPTRA 5 2007 1.G Owners Manual

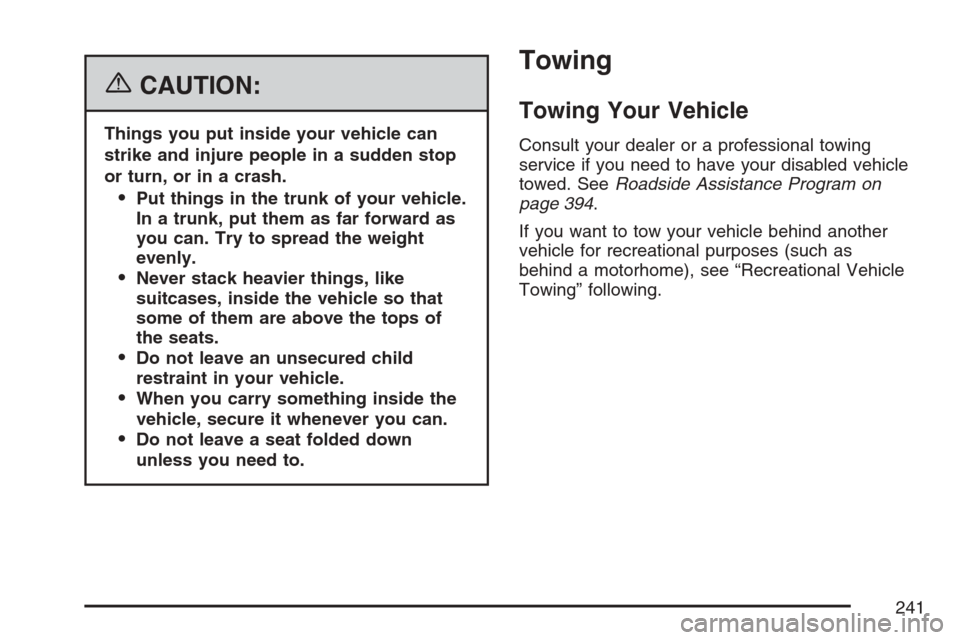

{CAUTION:
Things you put inside your vehicle can
strike and injure people in a sudden stop
or turn, or in a crash.
Put things in the trunk of your vehicle.
In a trunk, put them as far forward as
you can. Try to spread the weight
evenly.
Never stack heavier things, like
suitcases, inside the vehicle so that
some of them are above the tops of
the seats.
Do not leave an unsecured child
restraint in your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
Do not leave a seat folded down
unless you need to.
Towing
Towing Your Vehicle
Consult your dealer or a professional towing
service if you need to have your disabled vehicle
towed. SeeRoadside Assistance Program on
page 394.
If you want to tow your vehicle behind another
vehicle for recreational purposes (such as
behind a motorhome), see “Recreational Vehicle
Towing” following.
241

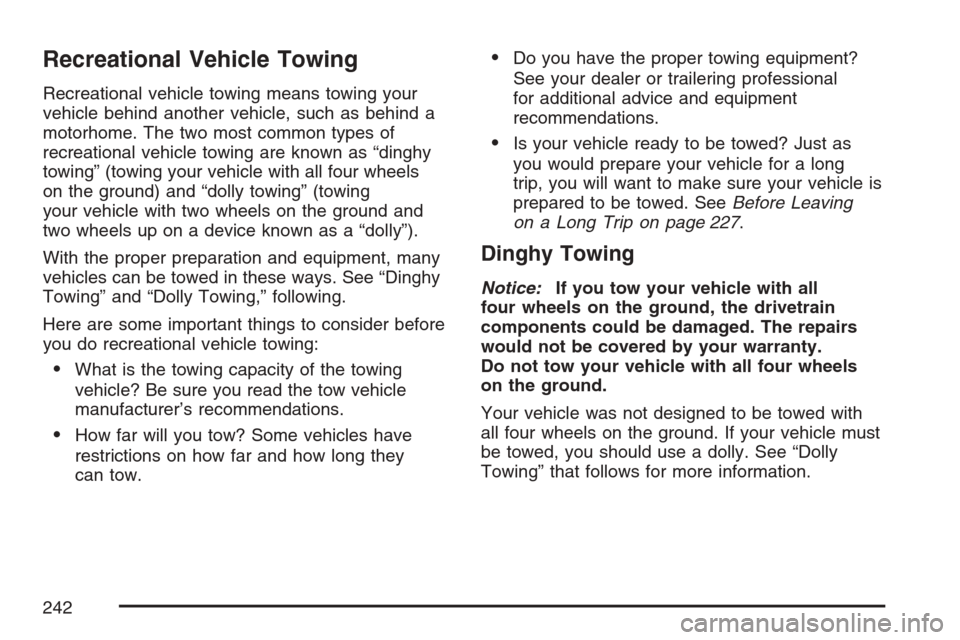

Recreational Vehicle Towing
Recreational vehicle towing means towing your
vehicle behind another vehicle, such as behind a
motorhome. The two most common types of
recreational vehicle towing are known as “dinghy
towing” (towing your vehicle with all four wheels
on the ground) and “dolly towing” (towing
your vehicle with two wheels on the ground and
two wheels up on a device known as a “dolly”).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See “Dinghy
Towing” and “Dolly Towing,” following.
Here are some important things to consider before
you do recreational vehicle towing:
•What is the towing capacity of the towing
vehicle? Be sure you read the tow vehicle
manufacturer’s recommendations.
•How far will you tow? Some vehicles have
restrictions on how far and how long they
can tow.
•Do you have the proper towing equipment?
See your dealer or trailering professional
for additional advice and equipment
recommendations.
•Is your vehicle ready to be towed? Just as
you would prepare your vehicle for a long
trip, you will want to make sure your vehicle is
prepared to be towed. SeeBefore Leaving
on a Long Trip on page 227.
Dinghy Towing
Notice:If you tow your vehicle with all
four wheels on the ground, the drivetrain
components could be damaged. The repairs
would not be covered by your warranty.
Do not tow your vehicle with all four wheels
on the ground.
Your vehicle was not designed to be towed with
all four wheels on the ground. If your vehicle must
be towed, you should use a dolly. See “Dolly
Towing” that follows for more information.
242

Dolly Towing
Notice:Towing your vehicle from the rear
with the front wheels on the ground could
cause transaxle damage. Do not tow the
vehicle from the rear with the front wheels
on the road.
Your vehicle can be towed using a dolly. To tow
your vehicle using a dolly, follow these steps:
1. Put the front wheels on a dolly.
2. Turn the ignition to ACC.3. Put the vehicle in NEUTRAL (N).
4. Set the parking brake and then remove
the key.
5. Clamp the steering wheel in a straight-ahead
position.
6. Release the parking brake.
Towing a Trailer
Do not use your vehicle to tow a trailer. The vehicle
is not designed or intended for such a use. Towing
a trailer can adversely affect handling, durability
and fuel economy.
243

✍NOTES
244

Service........................................................ 248
Accessories and Modifications................... 249
California Proposition 65 Warning.............. 249
Doing Your Own Service Work.................. 250
Adding Equipment to the Outside of
Your Vehicle.......................................... 251
Fuel............................................................. 251
Gasoline Octane........................................ 251
Gasoline Specifications.............................. 251
California Fuel........................................... 252
Additives................................................... 252
Fuels in Foreign Countries........................ 253
Filling the Tank......................................... 254
Filling a Portable Fuel Container............... 256
Checking Things Under the Hood.............. 256
Hood Release........................................... 257
Engine Compartment Overview.................. 258
Engine Oil................................................. 260
Engine Air Cleaner/Filter............................ 264
Automatic Transaxle Fluid......................... 266Manual Transaxle Fluid............................. 266
Hydraulic Clutch........................................ 266
Engine Coolant.......................................... 268
Coolant Surge Tank Pressure Cap............ 271
Engine Overheating................................... 271
Cooling System......................................... 273
Power Steering Fluid ................................. 279
Windshield Washer Fluid........................... 280
Brakes...................................................... 281
Battery...................................................... 284
Jump Starting............................................ 285
Headlamp Aiming........................................ 290
Bulb Replacement....................................... 290
Halogen Bulbs........................................... 290
Headlamps................................................ 290
Front Turn Signal and Parking Lamps.......... 292
Turn Signal Lamps (Side).......................... 293
Sidemarker Lamps (Front)......................... 294
Sidemarker Lamps (Rear).......................... 295
Section 5 Service and Appearance Care
245

Center High-Mounted Stoplamp (CHMSL)
(Hatchback)............................................ 296
Center High-Mounted Stoplamp (CHMSL)
(Wagon)................................................. 297
Taillamps, Turn Signal, and Stoplamps
(Hatchback)............................................ 298
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps (Wagon)........................ 299
Taillamps, Stoplamps and Back-up Lamps
(Hatchback)............................................ 300
License Plate Lamp................................... 301
Replacement Bulbs................................... 301
Windshield Wiper Blade Replacement....... 302
Tires............................................................ 303
Tire Sidewall Labeling............................... 304
Tire Terminology and Definitions............... 307
Inflation - Tire Pressure............................. 311
Tire Pressure Monitor System................... 312
Tire Inspection and Rotation...................... 316
When It Is Time for New Tires.................. 317Buying New Tires...................................... 318
Different Size Tires and Wheels................ 319
Uniform Tire Quality Grading..................... 320
Wheel Alignment and Tire Balance............ 321
Wheel Replacement.................................. 322
Tire Chains............................................... 323
If a Tire Goes Flat.................................... 324
Changing a Flat Tire................................. 324
Removing the Spare Tire and Tools.......... 326
Removing the Flat Tire and Installing the
Spare Tire............................................. 329
Storing a Flat or Spare Tire and Tools...... 333
Compact Spare Tire.................................. 334
Appearance Care........................................ 335
Cleaning the Inside of Your Vehicle.......... 335
Fabric/Carpet............................................. 337
Leather...................................................... 338
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 338
Care of Safety Belts.................................. 339
Section 5 Service and Appearance Care
246

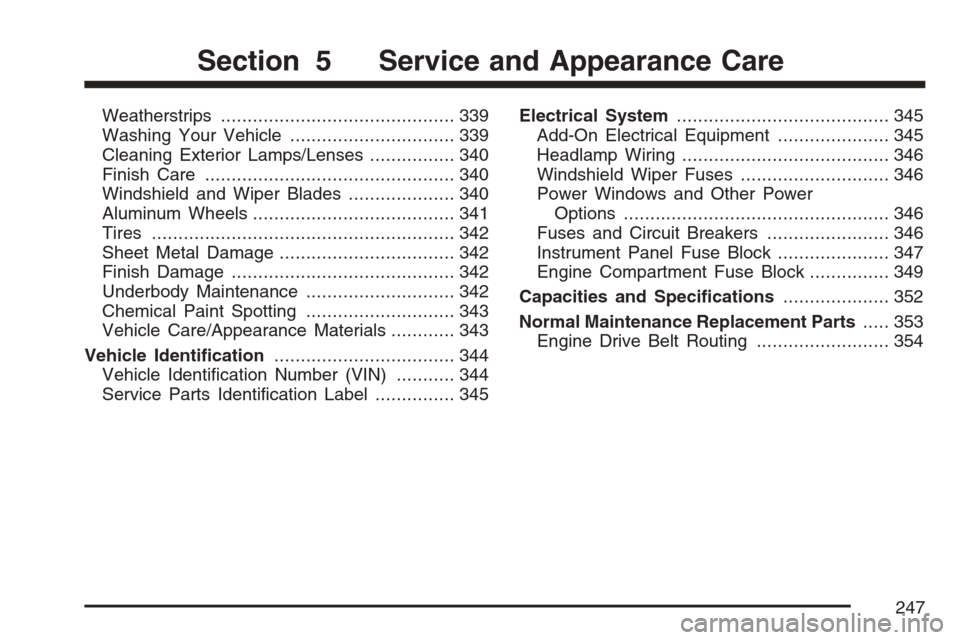

Weatherstrips............................................ 339
Washing Your Vehicle............................... 339
Cleaning Exterior Lamps/Lenses................ 340
Finish Care............................................... 340
Windshield and Wiper Blades.................... 340
Aluminum Wheels...................................... 341
Tires......................................................... 342
Sheet Metal Damage................................. 342
Finish Damage.......................................... 342
Underbody Maintenance............................ 342
Chemical Paint Spotting............................ 343
Vehicle Care/Appearance Materials............ 343
Vehicle Identication.................................. 344
Vehicle Identification Number (VIN)........... 344
Service Parts Identification Label............... 345Electrical System........................................ 345
Add-On Electrical Equipment..................... 345
Headlamp Wiring....................................... 346
Windshield Wiper Fuses............................ 346
Power Windows and Other Power
Options.................................................. 346
Fuses and Circuit Breakers....................... 346
Instrument Panel Fuse Block..................... 347
Engine Compartment Fuse Block............... 349
Capacities and Specications.................... 352
Normal Maintenance Replacement Parts..... 353
Engine Drive Belt Routing......................... 354
Section 5 Service and Appearance Care
247

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will go
to your dealer for all your service needs. You will
get genuine GM parts and GM-trained and
supported service people.We hope you will want to keep your GM vehicle all
GM. Genuine GM parts have one of these marks:
248

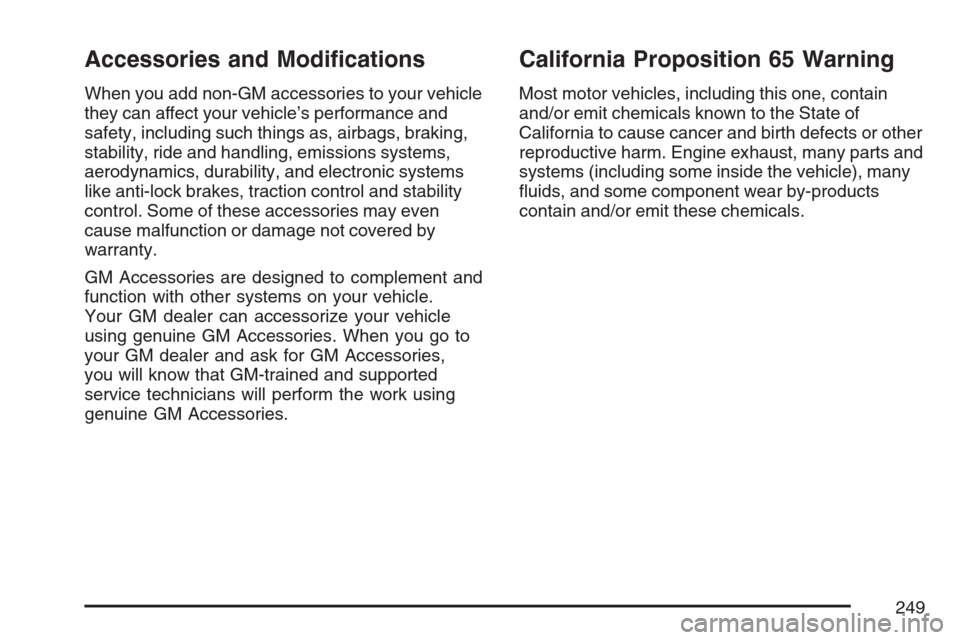

Accessories and Modications
When you add non-GM accessories to your vehicle
they can affect your vehicle’s performance and
safety, including such things as, airbags, braking,
stability, ride and handling, emissions systems,
aerodynamics, durability, and electronic systems
like anti-lock brakes, traction control and stability
control. Some of these accessories may even
cause malfunction or damage not covered by
warranty.
GM Accessories are designed to complement and
function with other systems on your vehicle.
Your GM dealer can accessorize your vehicle
using genuine GM Accessories. When you go to
your GM dealer and ask for GM Accessories,
you will know that GM-trained and supported
service technicians will perform the work using
genuine GM Accessories.
California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
fluids, and some component wear by-products
contain and/or emit these chemicals.
249

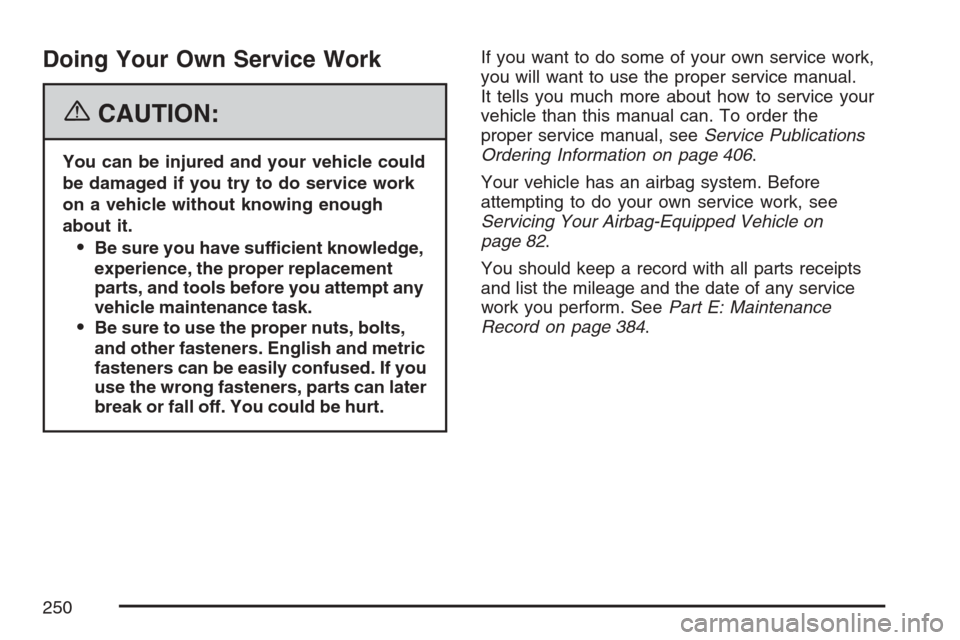

Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 406.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 82.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeePart E: Maintenance
Record on page 384.
250
