fuel filter CHEVROLET OPTRA 5 2007 1.G Owners Manual

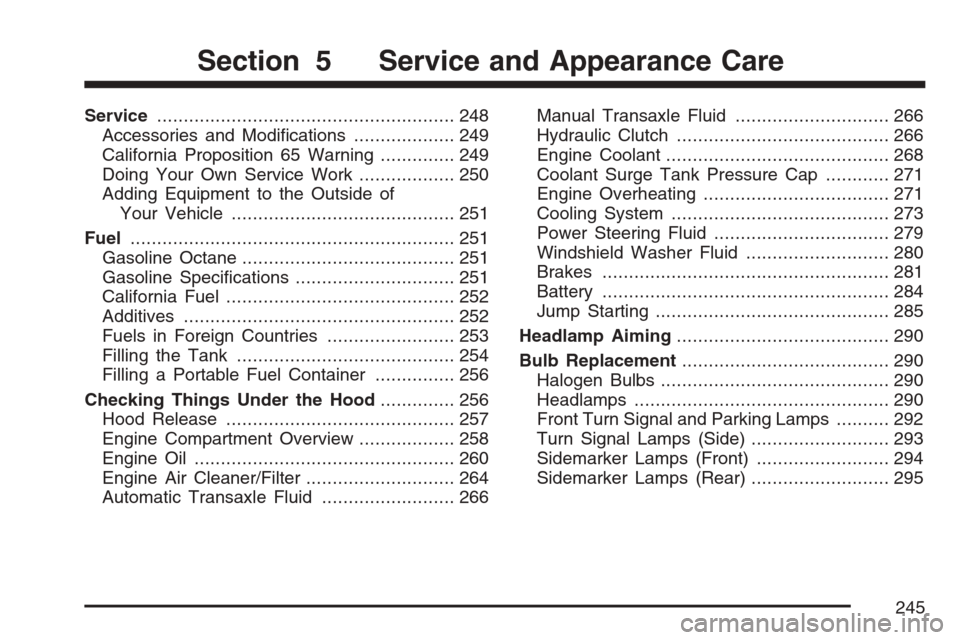

Service........................................................ 248
Accessories and Modifications................... 249
California Proposition 65 Warning.............. 249
Doing Your Own Service Work.................. 250
Adding Equipment to the Outside of
Your Vehicle.......................................... 251
Fuel............................................................. 251
Gasoline Octane........................................ 251
Gasoline Specifications.............................. 251
California Fuel........................................... 252
Additives................................................... 252
Fuels in Foreign Countries........................ 253
Filling the Tank......................................... 254
Filling a Portable Fuel Container............... 256
Checking Things Under the Hood.............. 256
Hood Release........................................... 257
Engine Compartment Overview.................. 258
Engine Oil................................................. 260
Engine Air Cleaner/Filter............................ 264
Automatic Transaxle Fluid......................... 266Manual Transaxle Fluid............................. 266
Hydraulic Clutch........................................ 266
Engine Coolant.......................................... 268
Coolant Surge Tank Pressure Cap............ 271
Engine Overheating................................... 271
Cooling System......................................... 273
Power Steering Fluid ................................. 279
Windshield Washer Fluid........................... 280
Brakes...................................................... 281
Battery...................................................... 284
Jump Starting............................................ 285
Headlamp Aiming........................................ 290
Bulb Replacement....................................... 290
Halogen Bulbs........................................... 290
Headlamps................................................ 290
Front Turn Signal and Parking Lamps.......... 292
Turn Signal Lamps (Side).......................... 293
Sidemarker Lamps (Front)......................... 294
Sidemarker Lamps (Rear).......................... 295
Section 5 Service and Appearance Care
245

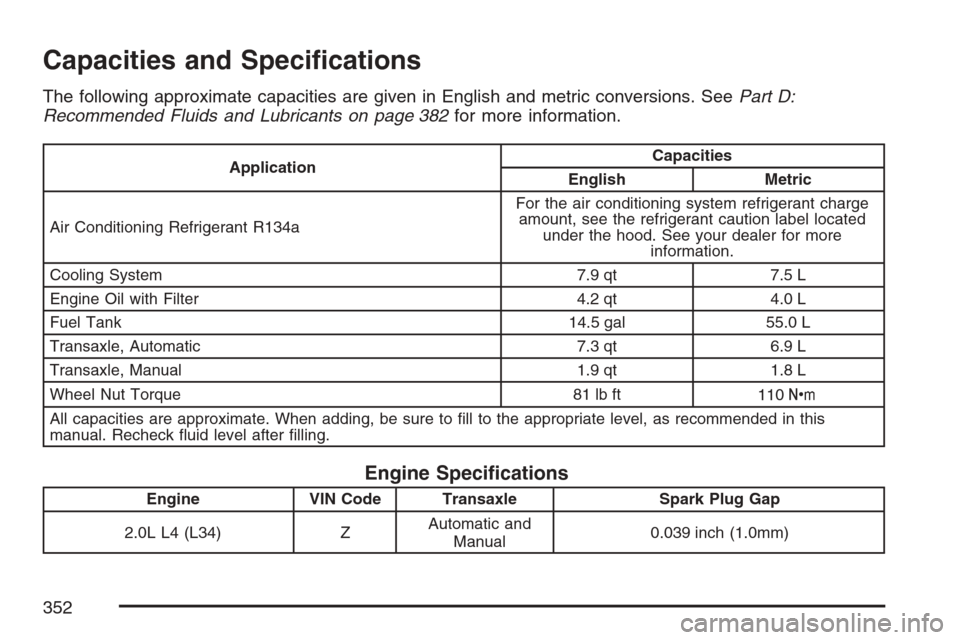

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeePart D:
Recommended Fluids and Lubricants on page 382for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134aFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System 7.9 qt 7.5 L
Engine Oil with Filter 4.2 qt 4.0 L
Fuel Tank 14.5 gal 55.0 L
Transaxle, Automatic 7.3 qt 6.9 L
Transaxle, Manual 1.9 qt 1.8 L
Wheel Nut Torque 81 lb ft
110Y
All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
2.0L L4 (L34) ZAutomatic and
Manual0.039 inch (1.0mm)
352

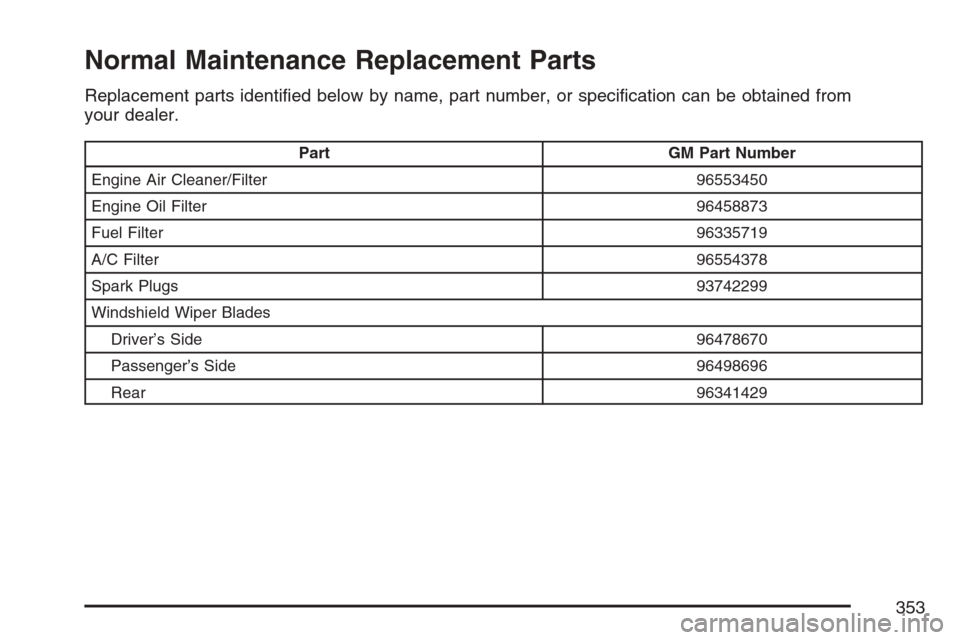

Normal Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from
your dealer.
Part GM Part Number
Engine Air Cleaner/Filter 96553450
Engine Oil Filter 96458873
Fuel Filter96335719
A/C Filter96554378
Spark Plugs93742299
Windshield Wiper Blades
Driver’s Side 96478670
Passenger’s Side 96498696
Rear96341429
353

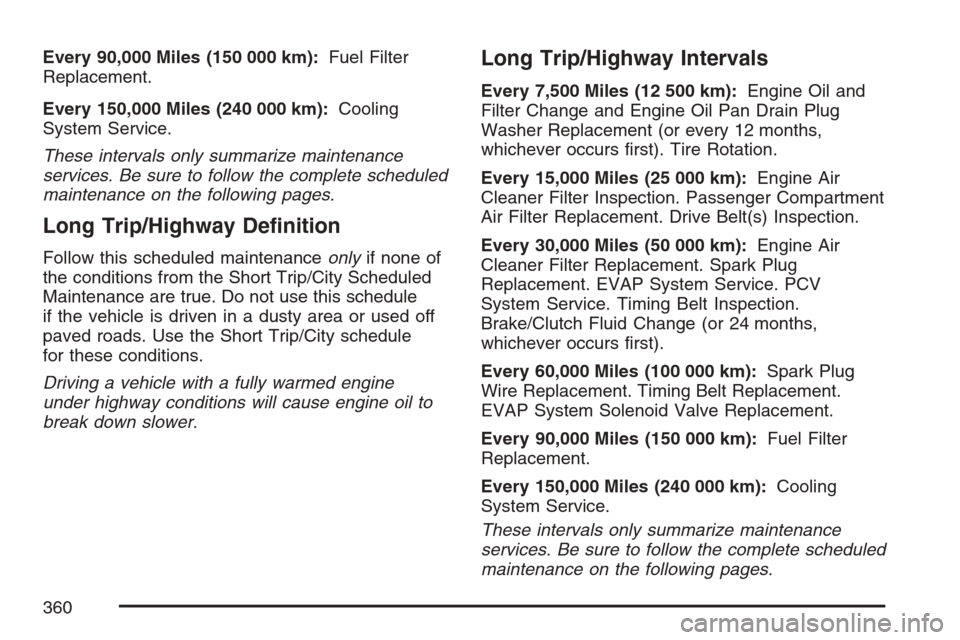

Every 90,000 Miles (150 000 km):Fuel Filter
Replacement.
Every 150,000 Miles (240 000 km):Cooling
System Service.
These intervals only summarize maintenance
services. Be sure to follow the complete scheduled
maintenance on the following pages.
Long Trip/Highway Denition
Follow this scheduled maintenanceonlyif none of
the conditions from the Short Trip/City Scheduled
Maintenance are true. Do not use this schedule
if the vehicle is driven in a dusty area or used off
paved roads. Use the Short Trip/City schedule
for these conditions.
Driving a vehicle with a fully warmed engine
under highway conditions will cause engine oil to
break down slower.
Long Trip/Highway Intervals
Every 7,500 Miles (12 500 km):Engine Oil and
Filter Change and Engine Oil Pan Drain Plug
Washer Replacement (or every 12 months,
whichever occurs first). Tire Rotation.
Every 15,000 Miles (25 000 km):Engine Air
Cleaner Filter Inspection. Passenger Compartment
Air Filter Replacement. Drive Belt(s) Inspection.
Every 30,000 Miles (50 000 km):Engine Air
Cleaner Filter Replacement. Spark Plug
Replacement. EVAP System Service. PCV
System Service. Timing Belt Inspection.
Brake/Clutch Fluid Change (or 24 months,
whichever occurs first).
Every 60,000 Miles (100 000 km):Spark Plug
Wire Replacement. Timing Belt Replacement.
EVAP System Solenoid Valve Replacement.
Every 90,000 Miles (150 000 km):Fuel Filter
Replacement.
Every 150,000 Miles (240 000 km):Cooling
System Service.
These intervals only summarize maintenance
services. Be sure to follow the complete scheduled
maintenance on the following pages.
360

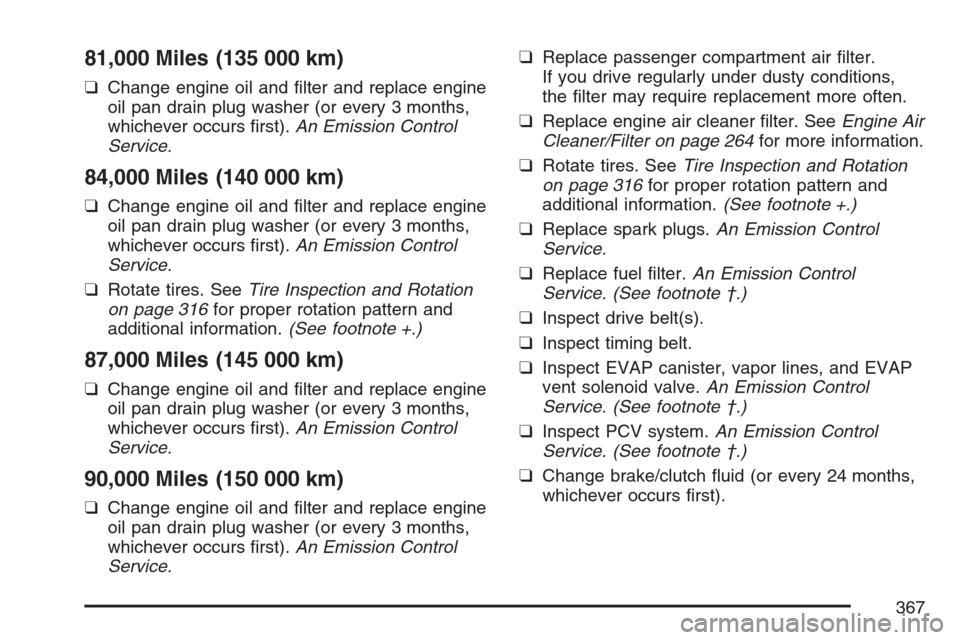

81,000 Miles (135 000 km)
❑Change engine oil and filter and replace engine
oil pan drain plug washer (or every 3 months,
whichever occurs first).An Emission Control
Service.
84,000 Miles (140 000 km)
❑Change engine oil and filter and replace engine
oil pan drain plug washer (or every 3 months,
whichever occurs first).An Emission Control
Service.
❑Rotate tires. SeeTire Inspection and Rotation
on page 316for proper rotation pattern and
additional information.(See footnote +.)
87,000 Miles (145 000 km)
❑Change engine oil and filter and replace engine
oil pan drain plug washer (or every 3 months,
whichever occurs first).An Emission Control
Service.
90,000 Miles (150 000 km)
❑Change engine oil and filter and replace engine
oil pan drain plug washer (or every 3 months,
whichever occurs first).An Emission Control
Service.❑Replace passenger compartment air filter.
If you drive regularly under dusty conditions,
the filter may require replacement more often.
❑Replace engine air cleaner filter. SeeEngine Air
Cleaner/Filter on page 264for more information.
❑Rotate tires. SeeTire Inspection and Rotation
on page 316for proper rotation pattern and
additional information.(See footnote +.)
❑Replace spark plugs.An Emission Control
Service.
❑Replace fuel filter.An Emission Control
Service. (See footnote †.)
❑Inspect drive belt(s).
❑Inspect timing belt.
❑Inspect EVAP canister, vapor lines, and EVAP
vent solenoid valve.An Emission Control
Service. (See footnote †.)
❑Inspect PCV system.An Emission Control
Service. (See footnote †.)
❑Change brake/clutch fluid (or every 24 months,
whichever occurs first).
367

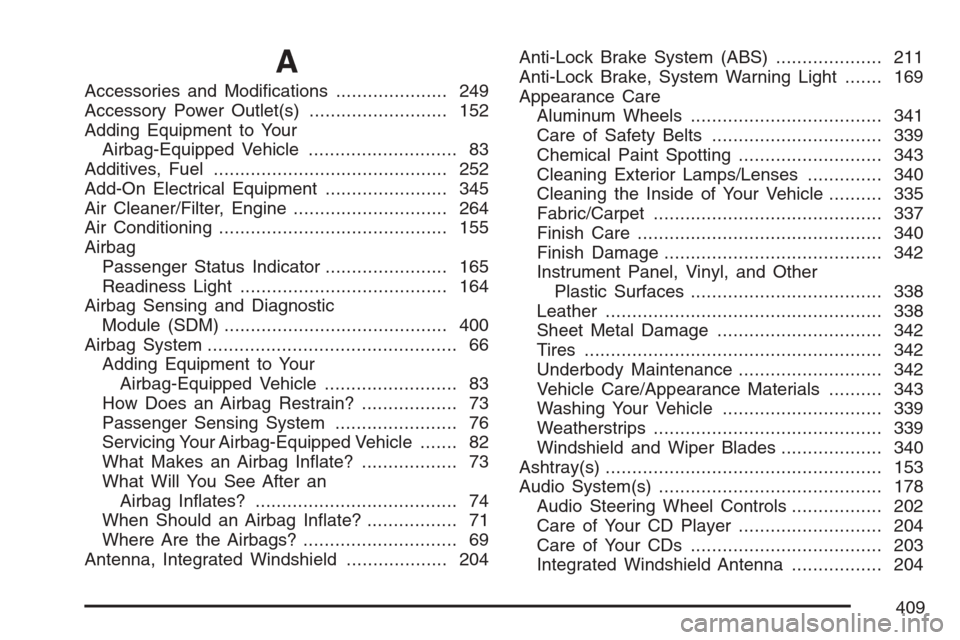

A
Accessories and Modifications..................... 249
Accessory Power Outlet(s).......................... 152
Adding Equipment to Your
Airbag-Equipped Vehicle............................ 83
Additives, Fuel............................................ 252
Add-On Electrical Equipment....................... 345
Air Cleaner/Filter, Engine............................. 264
Air Conditioning........................................... 155
Airbag
Passenger Status Indicator....................... 165
Readiness Light....................................... 164
Airbag Sensing and Diagnostic
Module (SDM).......................................... 400
Airbag System............................................... 66
Adding Equipment to Your
Airbag-Equipped Vehicle......................... 83
How Does an Airbag Restrain?.................. 73
Passenger Sensing System....................... 76
Servicing Your Airbag-Equipped Vehicle....... 82
What Makes an Airbag Inflate?.................. 73
What Will You See After an
Airbag Inflates?...................................... 74
When Should an Airbag Inflate?................. 71
Where Are the Airbags?............................. 69
Antenna, Integrated Windshield................... 204Anti-Lock Brake System (ABS).................... 211
Anti-Lock Brake, System Warning Light....... 169
Appearance Care
Aluminum Wheels.................................... 341
Care of Safety Belts................................ 339
Chemical Paint Spotting........................... 343
Cleaning Exterior Lamps/Lenses.............. 340
Cleaning the Inside of Your Vehicle.......... 335
Fabric/Carpet........................................... 337
Finish Care.............................................. 340
Finish Damage......................................... 342
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 338
Leather.................................................... 338
Sheet Metal Damage............................... 342
Tires........................................................ 342
Underbody Maintenance........................... 342
Vehicle Care/Appearance Materials.......... 343
Washing Your Vehicle .............................. 339
Weatherstrips........................................... 339
Windshield and Wiper Blades................... 340
Ashtray(s).................................................... 153
Audio System(s).......................................... 178
Audio Steering Wheel Controls................. 202
Care of Your CD Player........................... 204
Care of Your CDs.................................... 203
Integrated Windshield Antenna................. 204
409

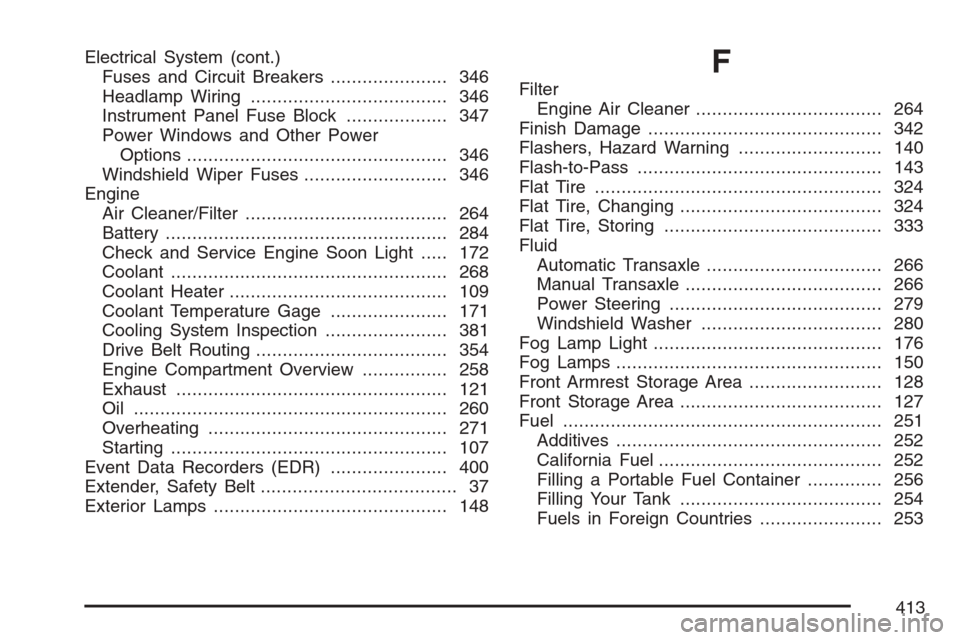

Electrical System (cont.)
Fuses and Circuit Breakers...................... 346
Headlamp Wiring..................................... 346
Instrument Panel Fuse Block................... 347
Power Windows and Other Power
Options................................................. 346
Windshield Wiper Fuses........................... 346
Engine
Air Cleaner/Filter...................................... 264
Battery..................................................... 284
Check and Service Engine Soon Light..... 172
Coolant.................................................... 268
Coolant Heater......................................... 109
Coolant Temperature Gage...................... 171
Cooling System Inspection....................... 381
Drive Belt Routing.................................... 354
Engine Compartment Overview................ 258
Exhaust................................................... 121
Oil ........................................................... 260
Overheating............................................. 271
Starting.................................................... 107
Event Data Recorders (EDR)...................... 400
Extender, Safety Belt..................................... 37
Exterior Lamps............................................ 148F
Filter
Engine Air Cleaner................................... 264
Finish Damage............................................ 342
Flashers, Hazard Warning........................... 140
Flash-to-Pass.............................................. 143
Flat Tire...................................................... 324
Flat Tire, Changing...................................... 324
Flat Tire, Storing......................................... 333
Fluid
Automatic Transaxle................................. 266
Manual Transaxle..................................... 266
Power Steering........................................ 279
Windshield Washer.................................. 280
Fog Lamp Light........................................... 176
Fog Lamps.................................................. 150
Front Armrest Storage Area......................... 128
Front Storage Area...................................... 127
Fuel............................................................ 251
Additives.................................................. 252
California Fuel.......................................... 252
Filling a Portable Fuel Container.............. 256
Filling Your Tank...................................... 254
Fuels in Foreign Countries....................... 253
413
