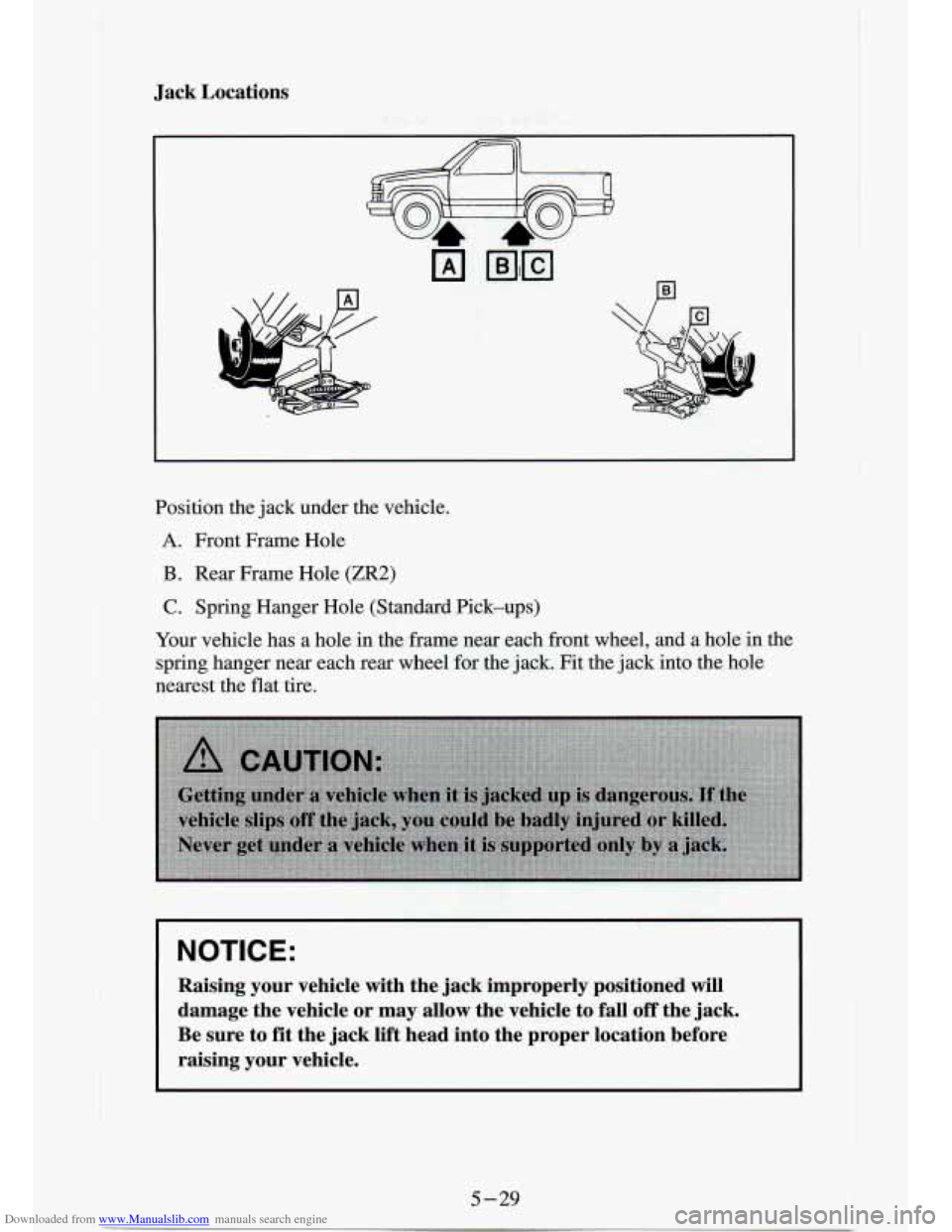

Downloaded from www.Manualslib.com manuals search engine Jack Locations
Position the jack under the vehicle.
A. Front Frame Hole
B. Rear Frame Hole (ZR2)
C. Spring Hanger Hole (Standard Pick-ups)
Your vehicle has a hole in the frame near each front wheel, and a hole in the
spring hanger near each rear wheel
for the jack. Fit the jack into the hole
nearest the flat tire.
I NOTICE:
Raising your vehicle with the jack improperly positioned will
damage the vehicle
or may anow the vehicle to fall off the jack.
Be sure to fit the jack lift head into the proper location before
raising your vehicle.
5 -29

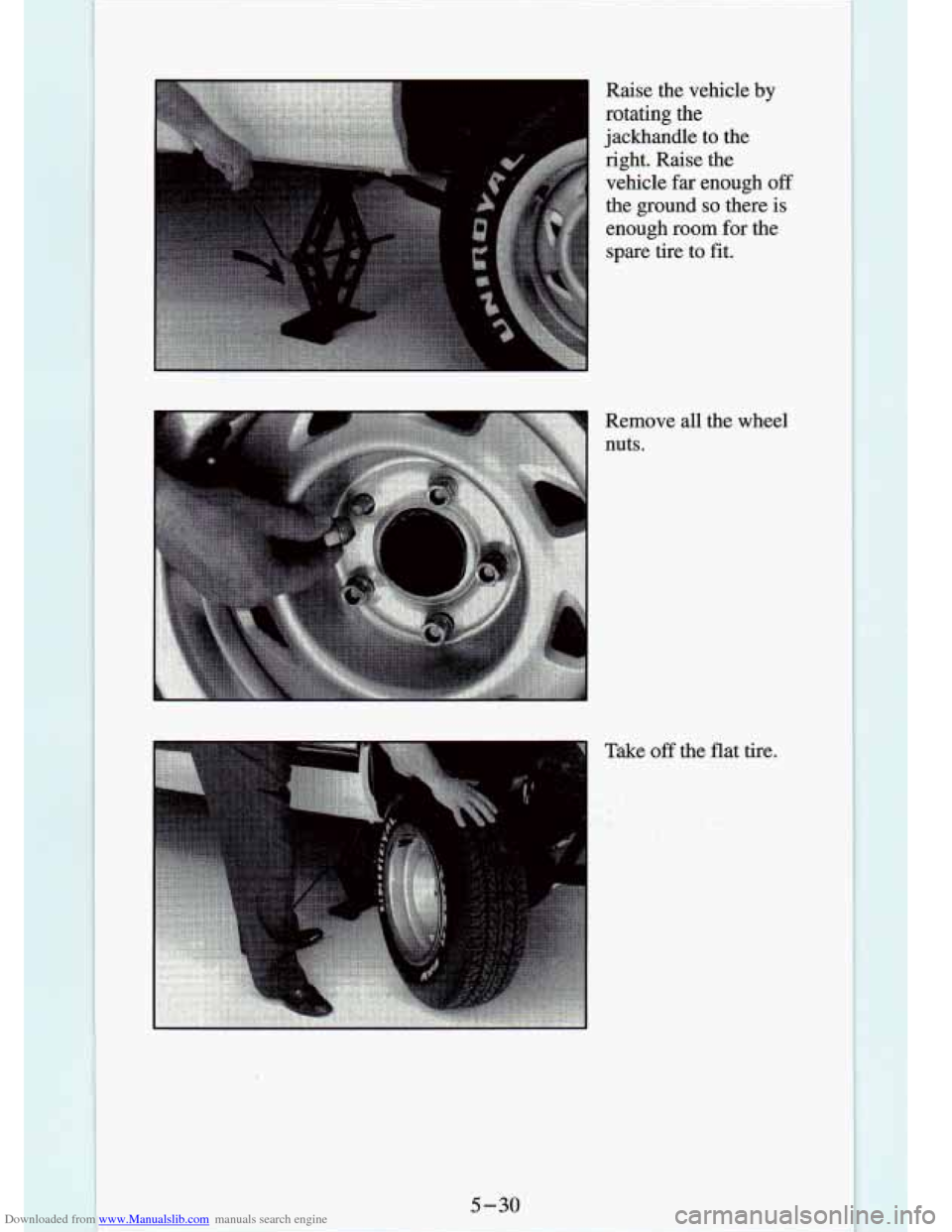

Downloaded from www.Manualslib.com manuals search engine Raise the vehicle by
rotating the
jackhandle
to the
right. Raise the
vehicle far enough off
the ground so there
is
enough room for the
spare tire to
fit.
5-30

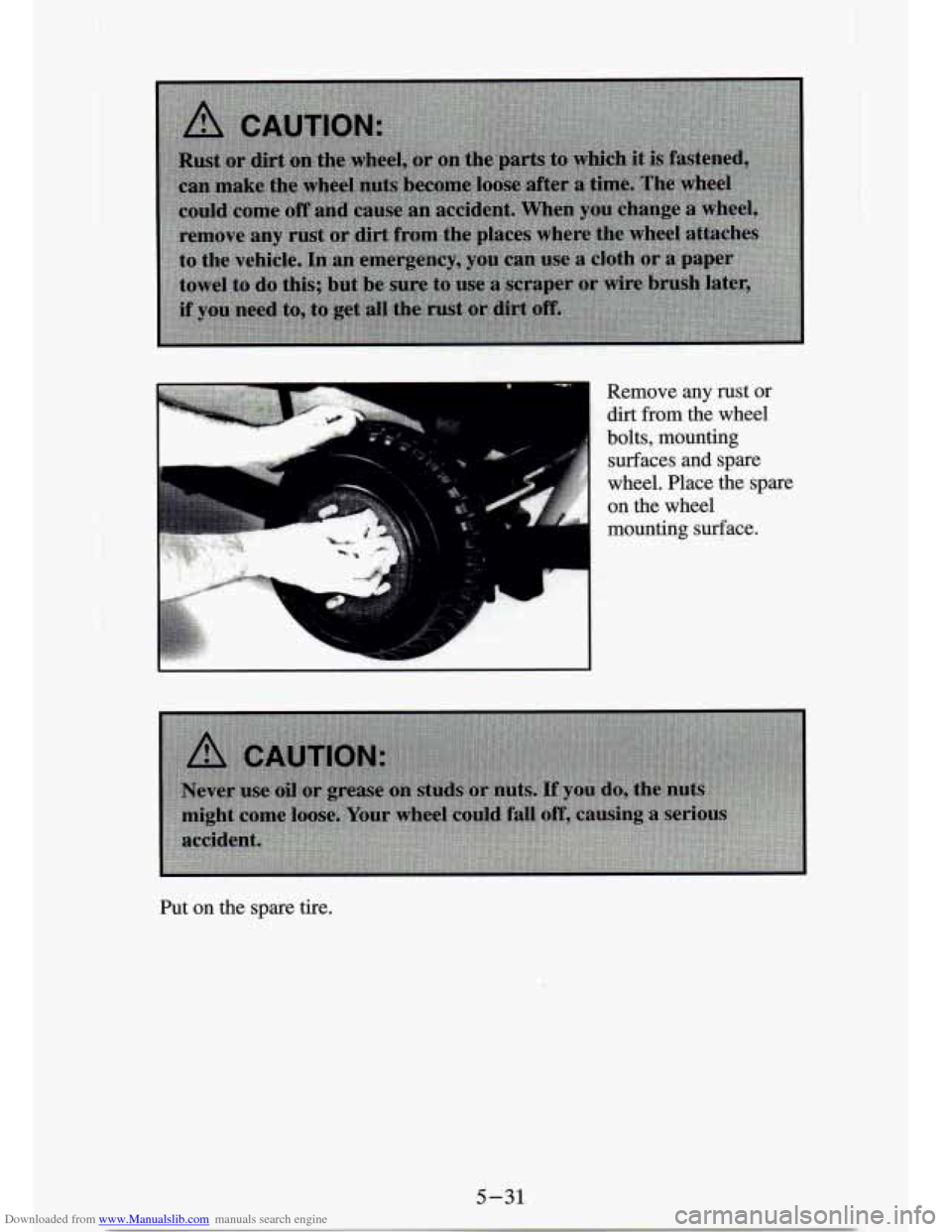

Downloaded from www.Manualslib.com manuals search engine Remove any rust or
dirt from the wheel
surfaces
and spare
wheel. Place the spare
on the wheel
mounting
surface.
bolts, mounting
€'ut
on the spare tire.
5 -31

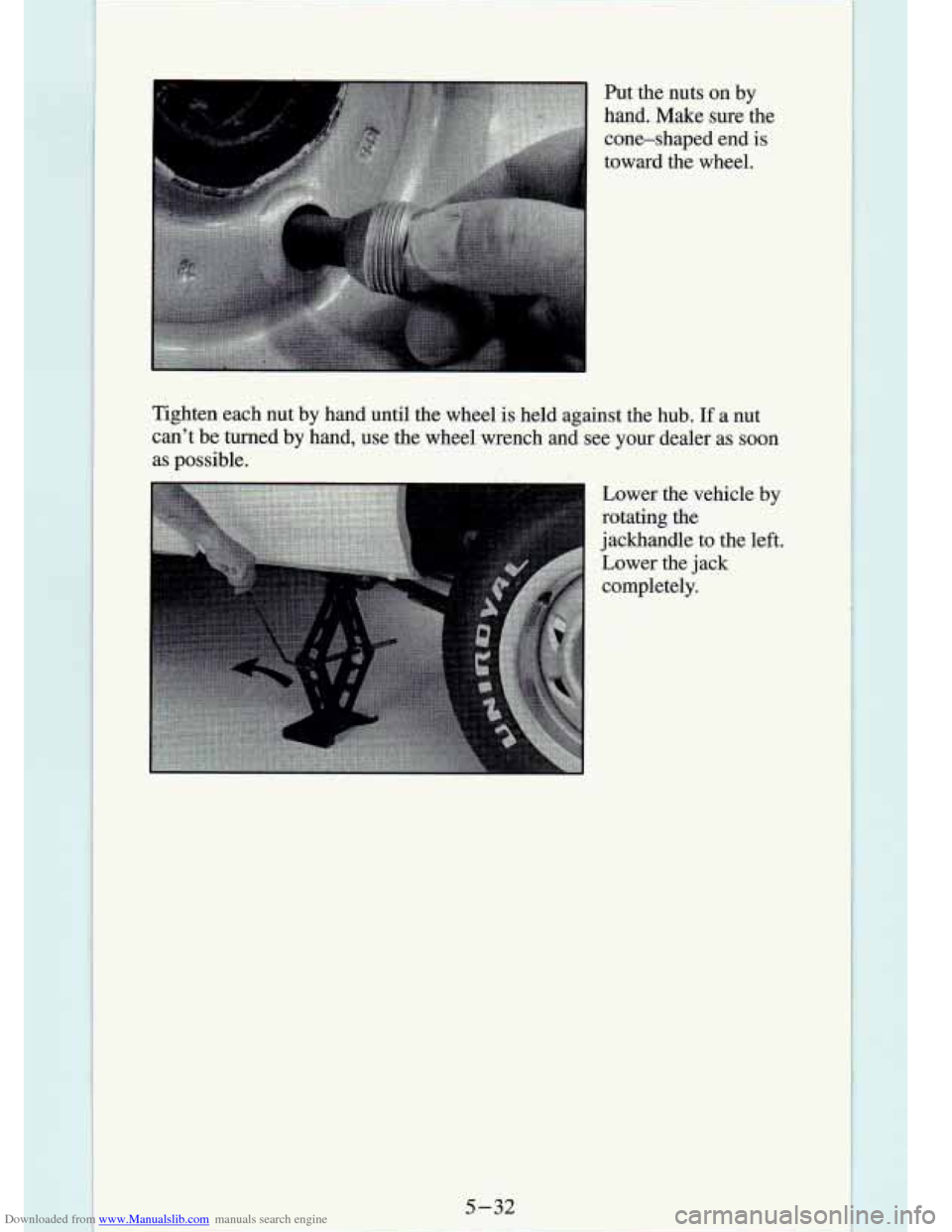

Downloaded from www.Manualslib.com manuals search engine L
Put the nuts on by
hand. Make sure the
cone-shaped end
is
toward the wheel.
Tighten each nut by hand until the wheel
is held against the hub. If a nut
can’t be turned by hand, use the wheel wrench and see your dealer \
as soon
as possible.
Lower the vehicle by
rotating the
jackhandle to the left.
Lower the jack
completely. ..
5-32
k.

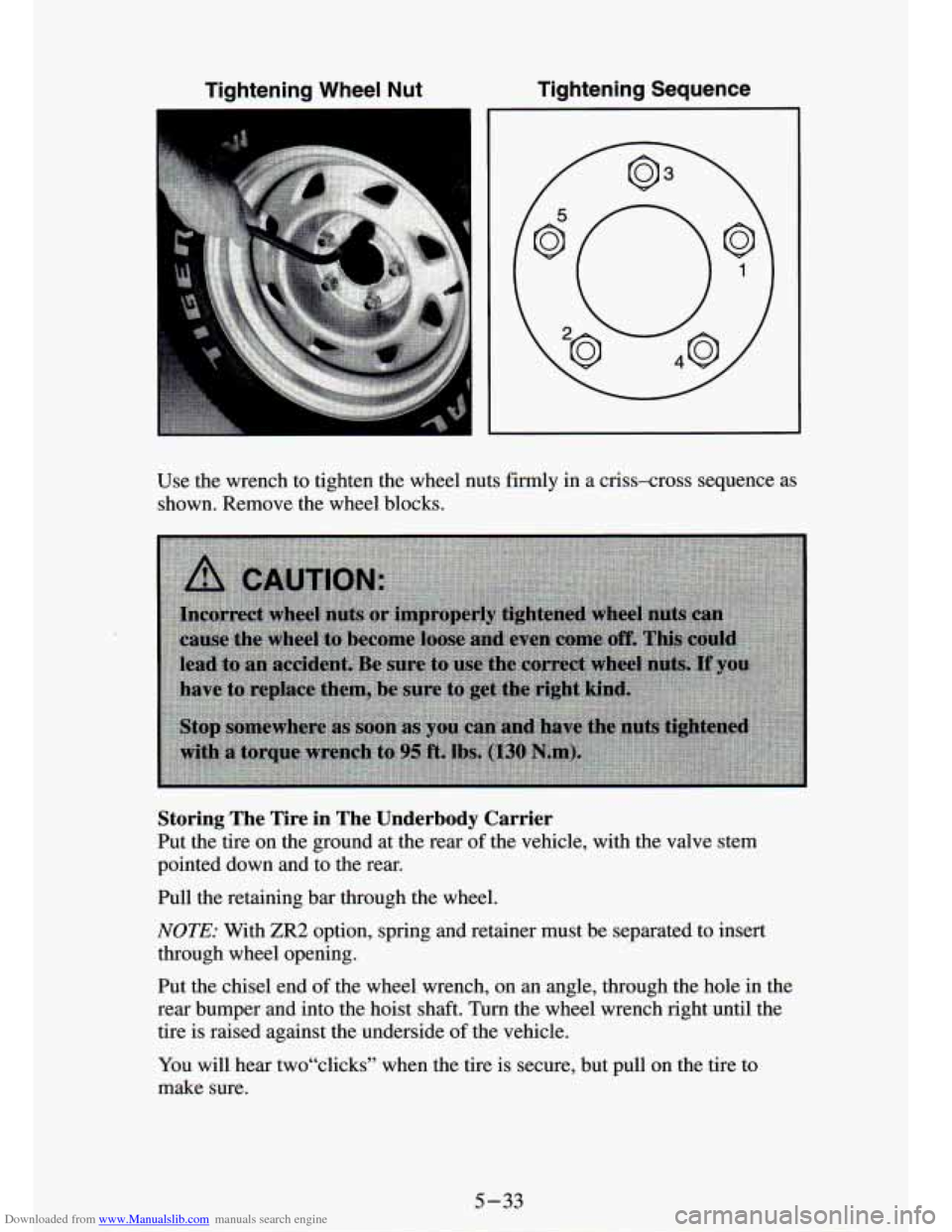

Downloaded from www.Manualslib.com manuals search engine Tightening Wheel Nut Tightening Sequence
Use the wrench to tighten the wheel nuts firmly in a criss-cross sequence as
shown. Remove the wheel blocks.
Storing 'The Tire in The Underbody Carrier
Put the tire on the ground at the rear of the vehicle, with the valve stem
pointed down and to the rear.
Pull the retaining bar through the wheel.
NOTE: With ZR2 option, spring and retainer must be separated to insert
through wheel opening.
Put the chisel end
of the wheel wrench, on an angle, through the hole in the
rear bumper and into the hoist shaft. Turn the wheel wrench right until the
tire is raised against the underside
of the vehicle.
You will hear two"clicks" when the tire is secure, but pull on th\
e tire to
make sure.
5-33

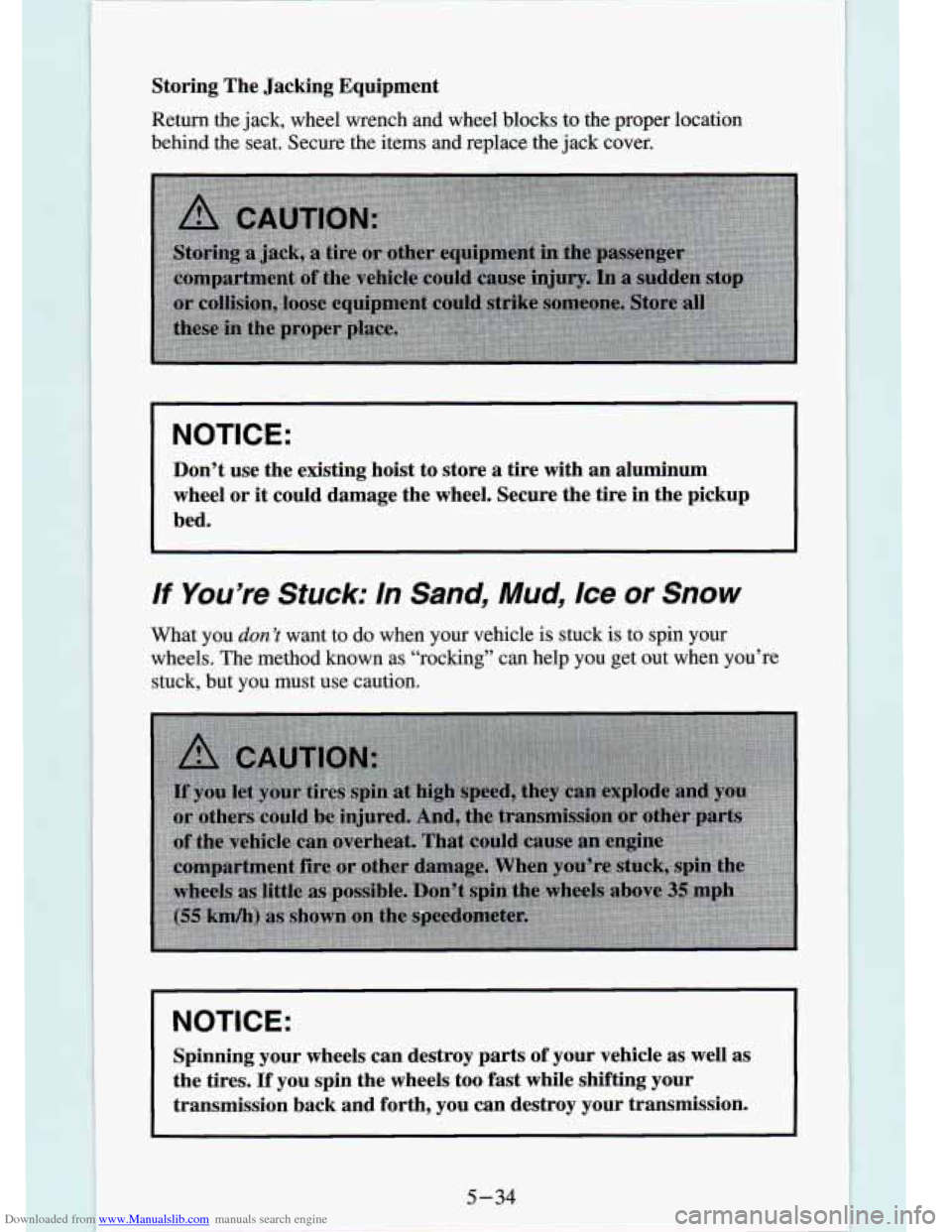

Downloaded from www.Manualslib.com manuals search engine Storing The Jacking Equipment
Return the jack, wheel wrench and wheel blocks to the proper location
behind the seat. Secure the items
and replace the jack cover.
NOTICE:
Don’t use the existing hoist to store a tire with an aluminum
wheel or it could damage the wheel. Secure the tire in the pickup
bed.
If You’re Stuck: In Sand, Mud, Ice or Snow
What you don’t want to do when your vehicle is stuck is to spin your
wheels. The method
known as “rocking” can help you get out when you’re
stuck, but
you must use caution.
NOTICE:
Spinning your wheels can destroy parts of your vehicle as well as
the tires.
If you spin the wheels too fast while shifting your
transmission back and forth, you can destroy your transmission.
5-34

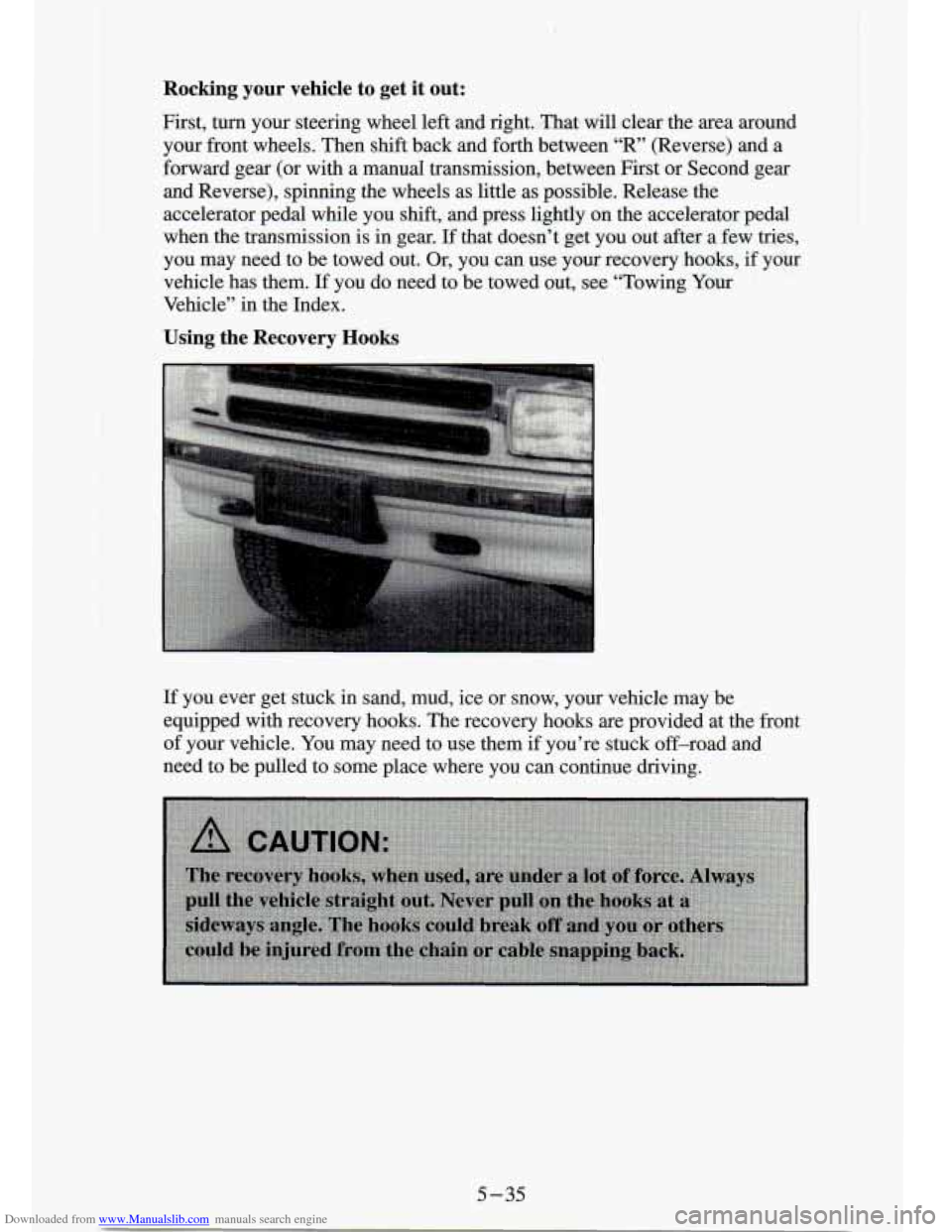

Downloaded from www.Manualslib.com manuals search engine Rocking your vehicle to get it out:
First, turn your steering wheel left and right. That will clear the area around
your front wheels. Then shift back and forth between
“R’ (Reverse) and a
forward gear (or with a manual transmission, between First or \
Second gear and Reverse), spinning the wheels as little as possible. Release the
accelerator pedal while you shift, and press lightly on the accelerator pedal
when the transmission is
in gear. If that doesn’t get you out after a few .tries,
you may need to be towed out. Or, you can use your recovery hooks, if your
vehicle has them.
If you do need to be towed out, see “Towing Your
Vehicle” in the Index.
Using the Recovery Hooks
If you ever get stuck in sand, mud, ice or snow, your vehicle may be
equipped with recovery hooks. The recovery hooks are provided at the front
of your vehicle. You may need to use them if you’re stuck off-road and
need to be pulled to some place where you can continue driving.
5-35

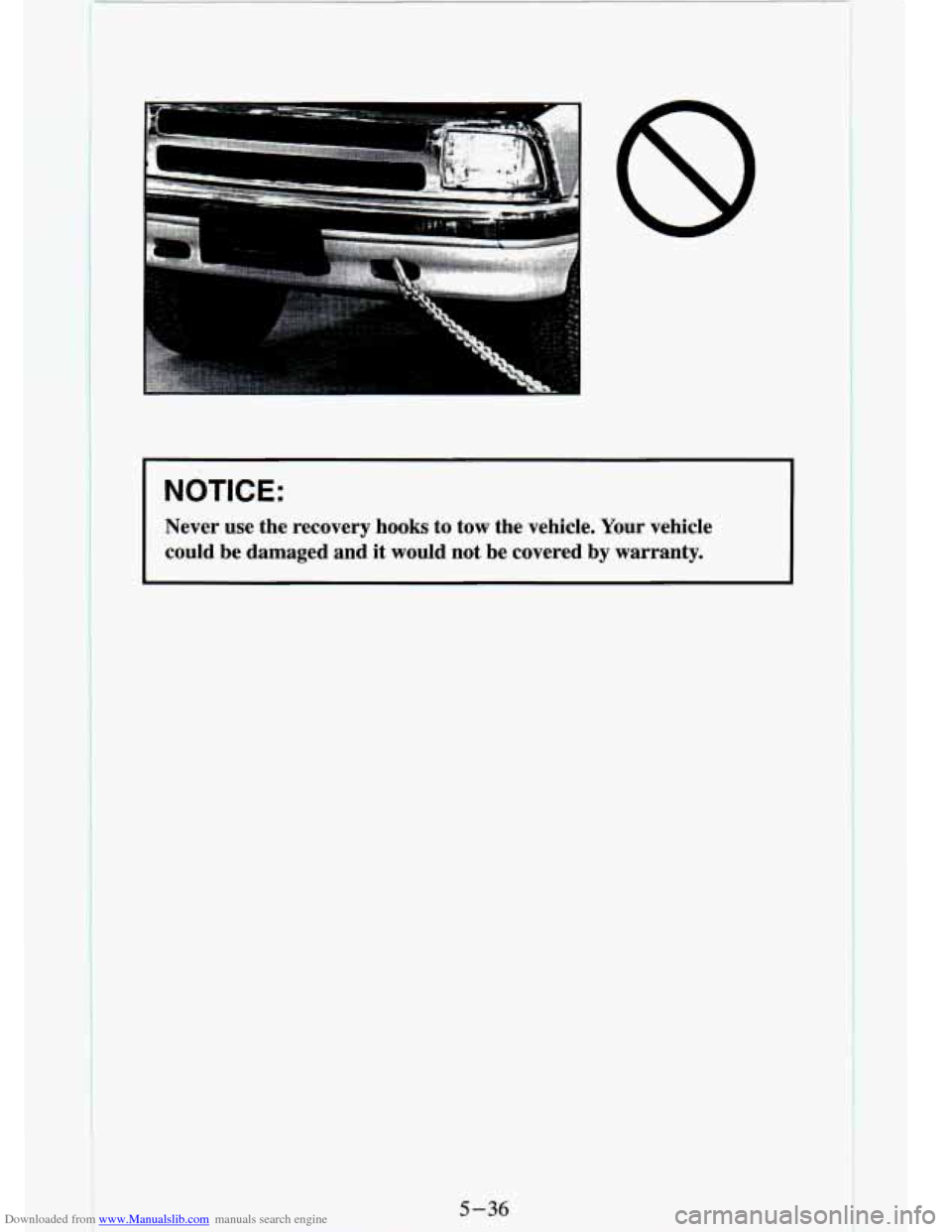

Downloaded from www.Manualslib.com manuals search engine I NOTICE:
I
Never use the recovery hooks to tow the vehicle. Your vehicle \
could be damaged and it would not be covered by warranty.
5 -.3 6

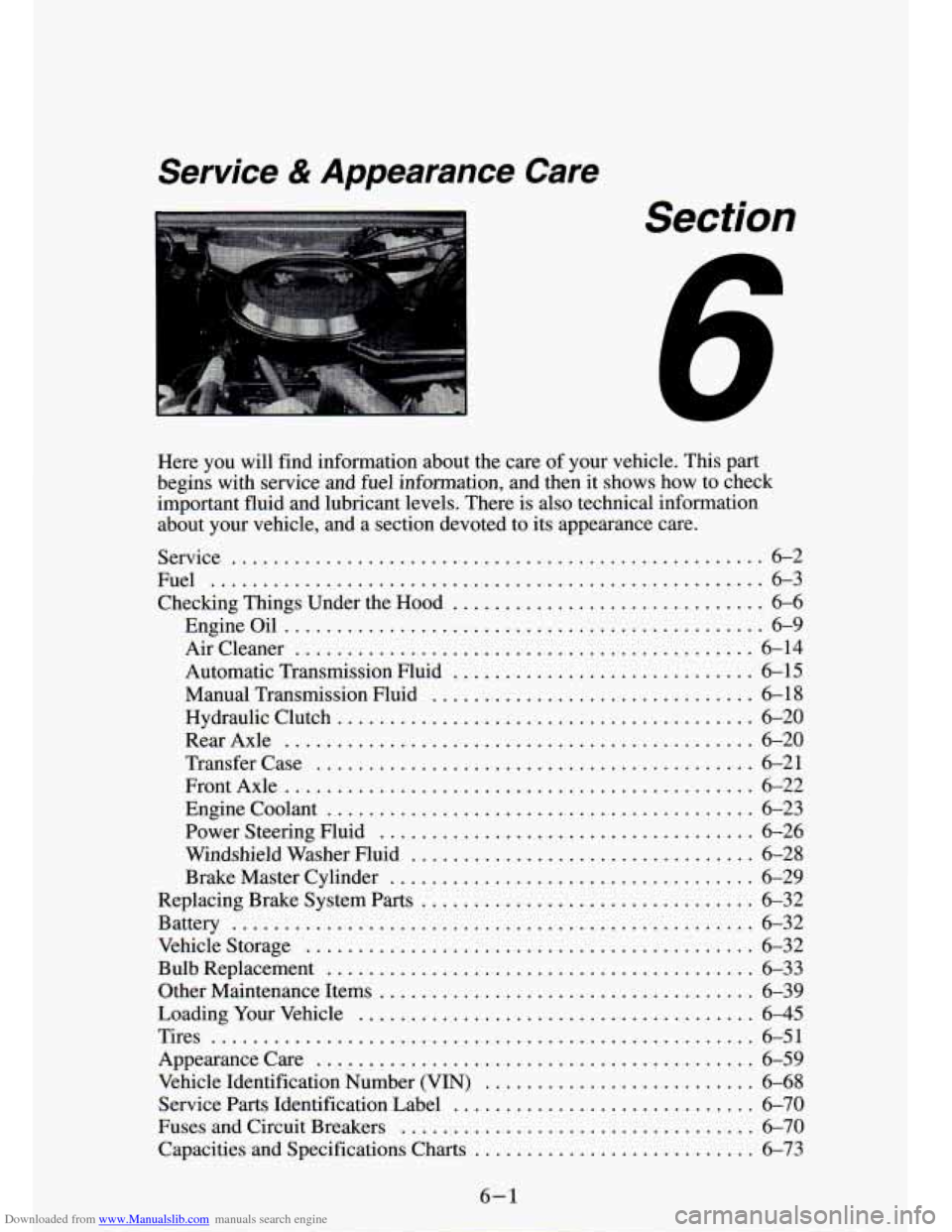

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
I
Section
Here you will find information about the care of your vehicle . This part
begins with service and fuel information. and then it shows ho\
w to check important fluid and lubricant levels
. There is also technical information
about your vehicle. and a section devoted to its appearance care
.
Service ................................................... 6-2
Fuel
..................................................... 6-3
Engineoil
.............................................. 6-9
Aircleaner
............................................ 6-14
Automatic Transmission Fluid
............................. 6-15
Manual Transmission Fluid
............................... 6-18
Hydraulic Clutch
........................................ 6-20
RearAxle
............................................. 6-20
Transfer Case
.......................................... 6-21
FrontAxle
............................................. 6-22
Power Steering Fluid
.................................... 6-26
Windshield Washer Fluid
................................. 6-28
Checking Things Under the Hood
.............................. 6-6
Engine Coolant
......................................... 6-23
Brake Master Cylinder
................................... 6-29
Replacing Brake System Parts
................................ 6-32
Bulb Replacement
......................................... 6-33
Battery
.................................................. 6-32
Vehiclestorage
........................................... 6-32
Other Maintenance Items
.................................... 6-39
Loading Your Vehicle
...................................... 6-45
Tires
.................................................... 6-51
Appearancecare
.......................................... 6-59
Vehicle Identification Number (VIN)
.......................... 6-68
Service Parts Identification Label
............................. 6-70
Fuses and Circuit Breakers
.................................. 6-70
Capacities and Specifications Charts
........................... 6-73
6-1

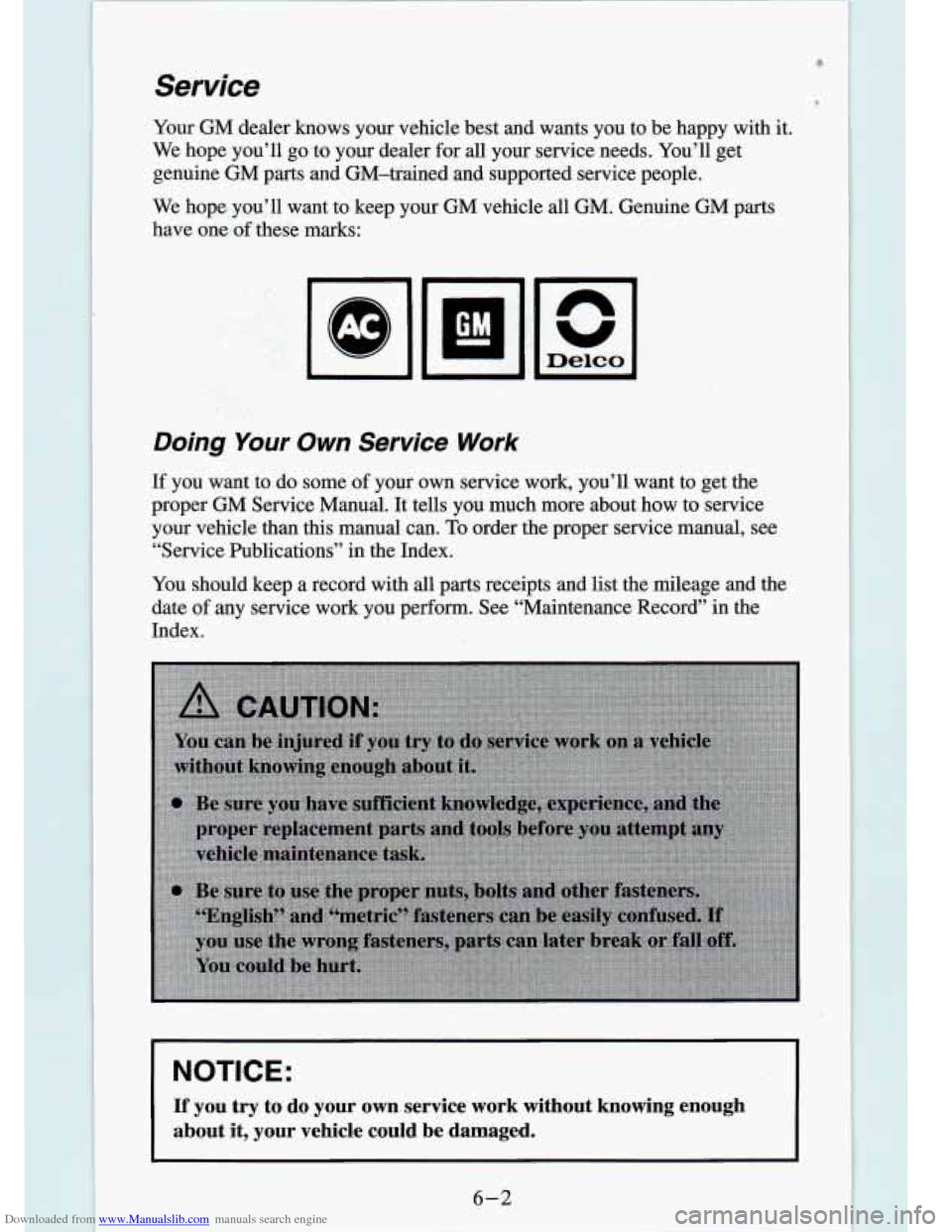

Downloaded from www.Manualslib.com manuals search engine Service
