Rear Seat Top Strap Anchors (Extended Cab Models)
If your vehicle is an extended cab model, you'll find the
top strap anchors for the rear seating positions near the
top of the seatback. In addition to the top strap anchors,
each seating position has a fabric loop at the top of the
seatback that you'll use to route a top strap through.
When using a child restraint with a top strap in either
rear outboard position, raise the head restraint and route
the top strap through the fabric loop on the seatback.
Then, attach the top strap to the anchor point at the
center rear seating position.

1-55
When using a child restraint with a top strap in the
center rear position, route the top strap through the
fabric loop on the seatback. Then, raise the head
restraint and attach the top strap to the anchor point
located at the closest outboard position.
Once you have the top strap anchored, you'll be ready to
secure the child restrain itself. Tighten the top strap
when and as the child restraint manufacturer's
instructions say.Rear Seat Top Strap Anchors (Crew Cab Models)
If your vehicle is a Crew Cab model, you'll find top
strap anchors for the rear seating positions located on
the back panel of your vehicle, behind the rear seat.
In order to get to the brackets, you'll have to remove the
trim plugs covering them.
There are also anchorage points at the rear base of the
front passenger's seat.

1-56 Lower Anchorages and Top Tethers for
Children (LATCH System) (If Equipped)
Your vehicle may have the LATCH system. If it does,
you'll find anchors (A) in the seat, where the seatback
meets the seat cushion. For front passenger seat
positions, there is an anchor behind and to the bottom of
the seat to secure the top strap. For rear center seat
positions, there is an anchor near the driver's side rear
seat head restraint.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the LATCH
system will have a visible metal anchor point in the seat
where the seatback meets the seat cushion.

1-57
In order to use the system, you need either a
forward
-facing child restraint that has attaching
points (B) at its base and a top tether anchor (C), or a
rear
-facing child restraint that has attaching points (B),
as shown here.
With this system, use the LATCH system instead of the
vehicle's safety belts to secure a child restraint.

1-58
CAUTION:
If a LATCH-type child restraint isn't attached to
its anchorage points, the restraint won't be able
to protect a child sitting there. In a crash, the
child could be seriously injured or killed. Make
sure that a LATCH
-type child restraint is
properly installed using the anchorage points, or
use the vehicle's safety belts to secure the
restraint. See ªSecuring a Child Restraint in the
Center Rear Seat Position (Extended Cab and
Crew Cab)º or ªSecuring a Child Restraint in the
Right Front Seat Positionº in the Index for
information on how to secure a child restraint in
your vehicle using the vehicle's safety belts.
Securing a Child Restraint Designed for the
LATCH System
1. Find the anchors for the seating position you want to
use, where the bottom of the seatback meets the back
of the seat cushion.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
4. If the child restraint is forward
-facing, attach the top
strap to the top strap anchor. See ªTop Strapº in the
Index. Tighten the top strap according to the child
restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect the
anchor points.

1-59 Securing a Child Restraint in a Rear
Outside Seat Position (Extended Cab
and Crew Cab)
There is limited space in the rear seating area of an
extended cab model. If you want to secure a child
restraint in a rear outside seating position, be sure
to study the instructions that came with your child
restraint to see if there is enough room to secure your
seat properly.
You'll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one. Be sure
to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or
around the restraint. The child restraint instructions
will show you how. If the shoulder belt goes in
front of the child's face or neck, put it behind the
child restraint.

1-60
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.

1-61

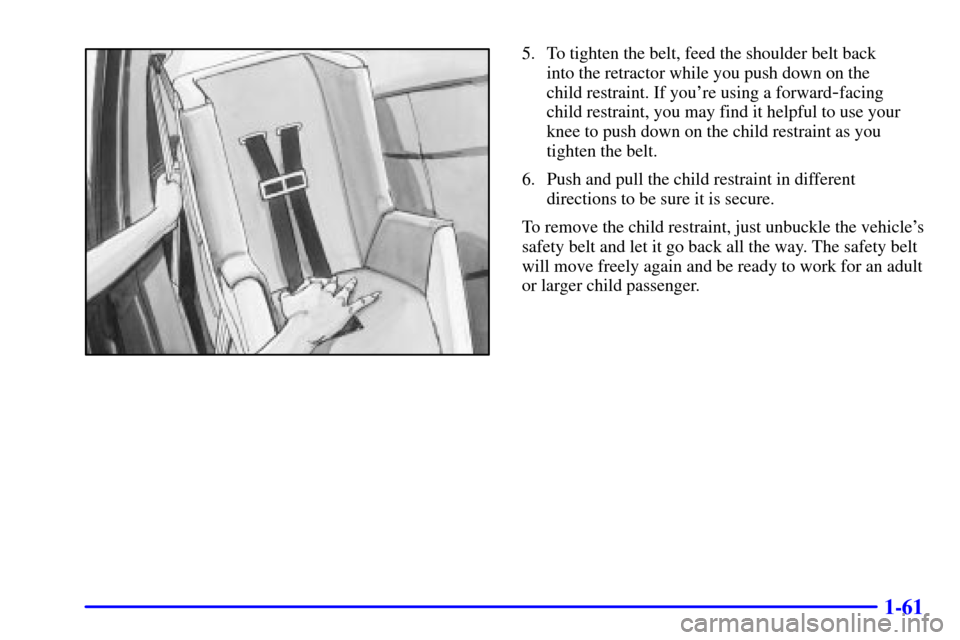

5. To tighten the belt, feed the shoulder belt back
into the retractor while you push down on the
child restraint. If you're using a forward
-facing
child restraint, you may find it helpful to use your
knee to push down on the child restraint as you
tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.

1-62 Securing a Child Restraint in the Center
Front Seat Position
Don't use child restraints in this position. The restraints
won't work properly.
Securing a Child Restraint in the Center
Rear Seat Position (Extended Cab and
Crew Cab)
If you have an extended cab or a Crew Cab pickup, you
can secure a child restraint in the center rear seat position.

1-63
There is limited space in the rear seating area of an
extended cab model. If you want to secure a child restraint
in a rear seating position of an extended cab model,
especially in the rear center position, be sure to study the
instructions that came with your child restraint to see if
there is enough room to secure your seat properly.
You'll be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure the
child in the child restraint when and as the instructions
say. See the earlier part about the top strap if the child
restraint has one.
If your child restraint is equipped with the LATCH
system, see ªLower Anchorages and Top Tethers for
Children (LATCH)º in the Index.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
