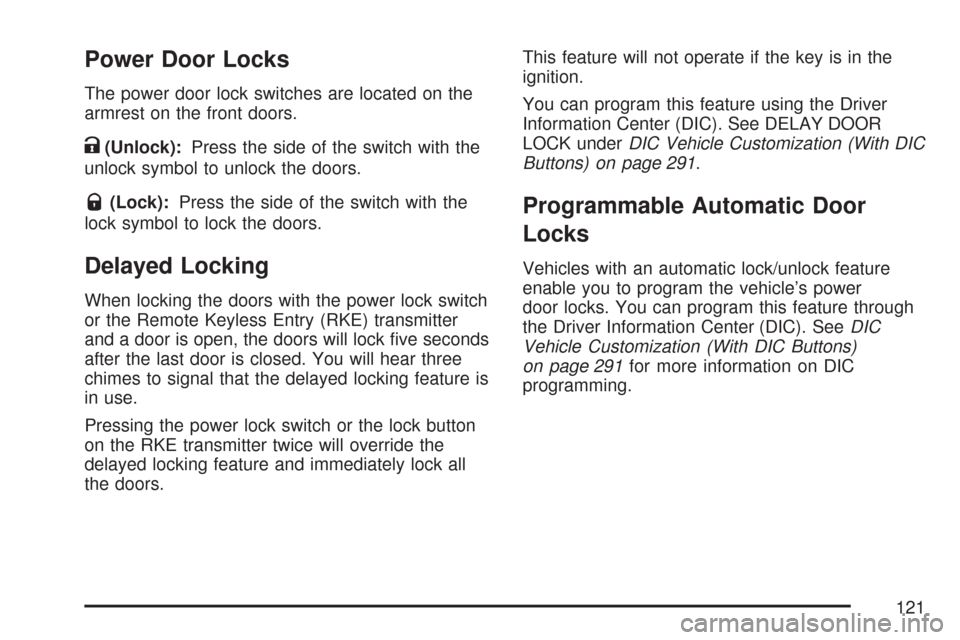

Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the
lock symbol to lock the doors.
Delayed Locking
When locking the doors with the power lock switch
or the Remote Keyless Entry (RKE) transmitter
and a door is open, the doors will lock ve seconds
after the last door is closed. You will hear three
chimes to signal that the delayed locking feature is
in use.
Pressing the power lock switch or the lock button
on the RKE transmitter twice will override the
delayed locking feature and immediately lock all
the doors.This feature will not operate if the key is in the
ignition.
You can program this feature using the Driver
Information Center (DIC). See DELAY DOOR
LOCK underDIC Vehicle Customization (With DIC
Buttons) on page 291.
Programmable Automatic Door
Locks
Vehicles with an automatic lock/unlock feature
enable you to program the vehicle’s power
door locks. You can program this feature through
the Driver Information Center (DIC). SeeDIC
Vehicle Customization (With DIC Buttons)
on page 291for more information on DIC
programming.
121

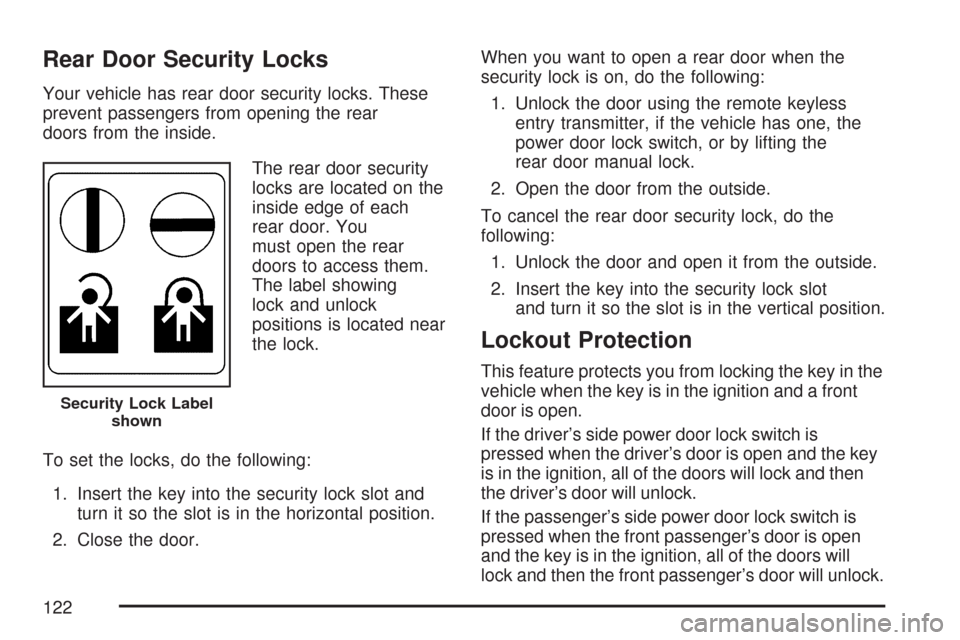

Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear
doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You
must open the rear
doors to access them.
The label showing
lock and unlock
positions is located near
the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one, the
power door lock switch, or by lifting the
rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Lockout Protection
This feature protects you from locking the key in the
vehicle when the key is in the ignition and a front
door is open.
If the driver’s side power door lock switch is
pressed when the driver’s door is open and the key
is in the ignition, all of the doors will lock and then
the driver’s door will unlock.
If the passenger’s side power door lock switch is
pressed when the front passenger’s door is open
and the key is in the ignition, all of the doors will
lock and then the front passenger’s door will unlock.
Security Lock Label
shown
122

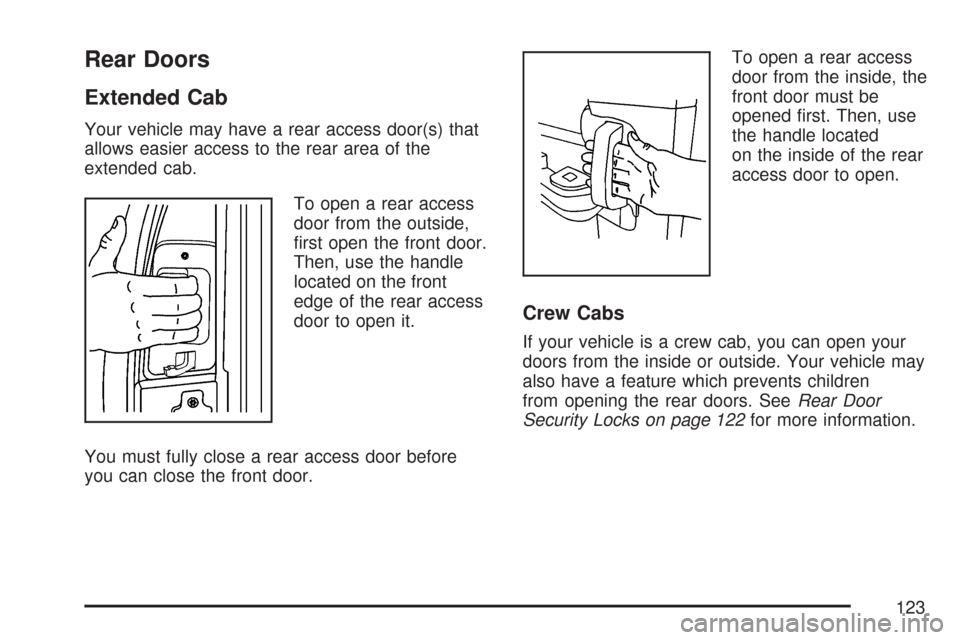

Rear Doors
Extended Cab
Your vehicle may have a rear access door(s) that
allows easier access to the rear area of the
extended cab.
To open a rear access
door from the outside,
rst open the front door.
Then, use the handle
located on the front
edge of the rear access
door to open it.
You must fully close a rear access door before
you can close the front door.To open a rear access
door from the inside, the
front door must be
opened rst. Then, use
the handle located
on the inside of the rear
access door to open.
Crew Cabs
If your vehicle is a crew cab, you can open your
doors from the inside or outside. Your vehicle may
also have a feature which prevents children
from opening the rear doors. SeeRear Door
Security Locks on page 122for more information.
123

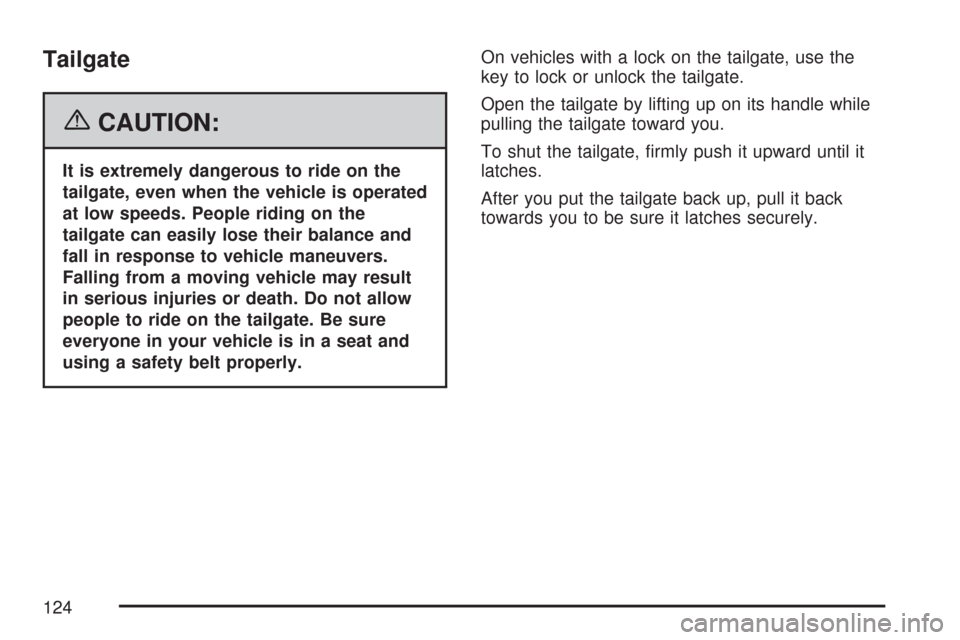

Tailgate
{CAUTION:
It is extremely dangerous to ride on the
tailgate, even when the vehicle is operated
at low speeds. People riding on the
tailgate can easily lose their balance and
fall in response to vehicle maneuvers.
Falling from a moving vehicle may result
in serious injuries or death. Do not allow
people to ride on the tailgate. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.On vehicles with a lock on the tailgate, use the
key to lock or unlock the tailgate.
Open the tailgate by lifting up on its handle while
pulling the tailgate toward you.
To shut the tailgate, rmly push it upward until it
latches.
After you put the tailgate back up, pull it back
towards you to be sure it latches securely.
124

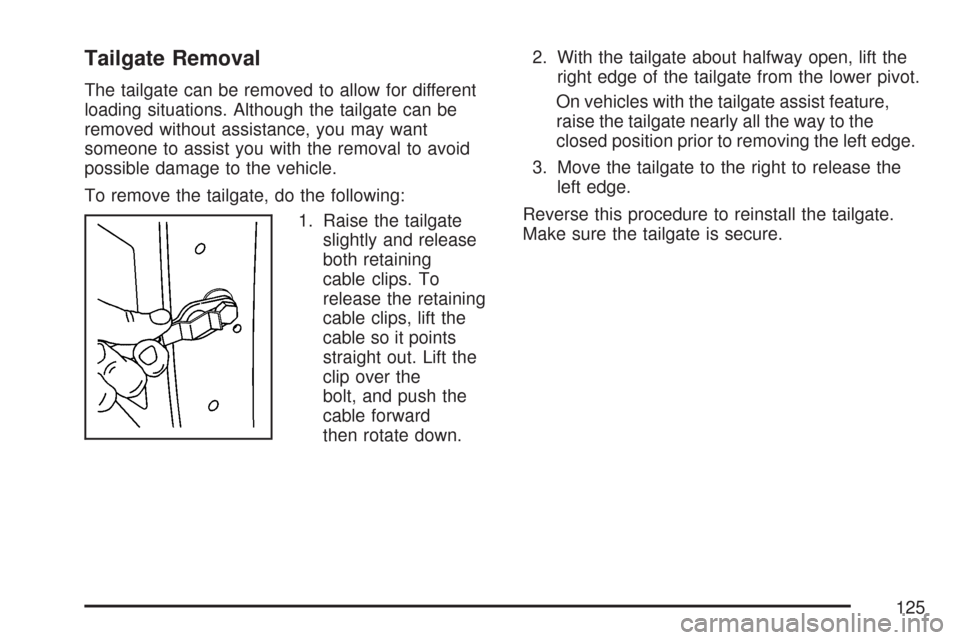

Tailgate Removal
The tailgate can be removed to allow for different
loading situations. Although the tailgate can be
removed without assistance, you may want
someone to assist you with the removal to avoid
possible damage to the vehicle.
To remove the tailgate, do the following:
1. Raise the tailgate
slightly and release
both retaining
cable clips. To
release the retaining
cable clips, lift the
cable so it points
straight out. Lift the
clip over the
bolt, and push the
cable forward
then rotate down.2. With the tailgate about halfway open, lift the
right edge of the tailgate from the lower pivot.
On vehicles with the tailgate assist feature,
raise the tailgate nearly all the way to the
closed position prior to removing the left edge.
3. Move the tailgate to the right to release the
left edge.
Reverse this procedure to reinstall the tailgate.
Make sure the tailgate is secure.
125

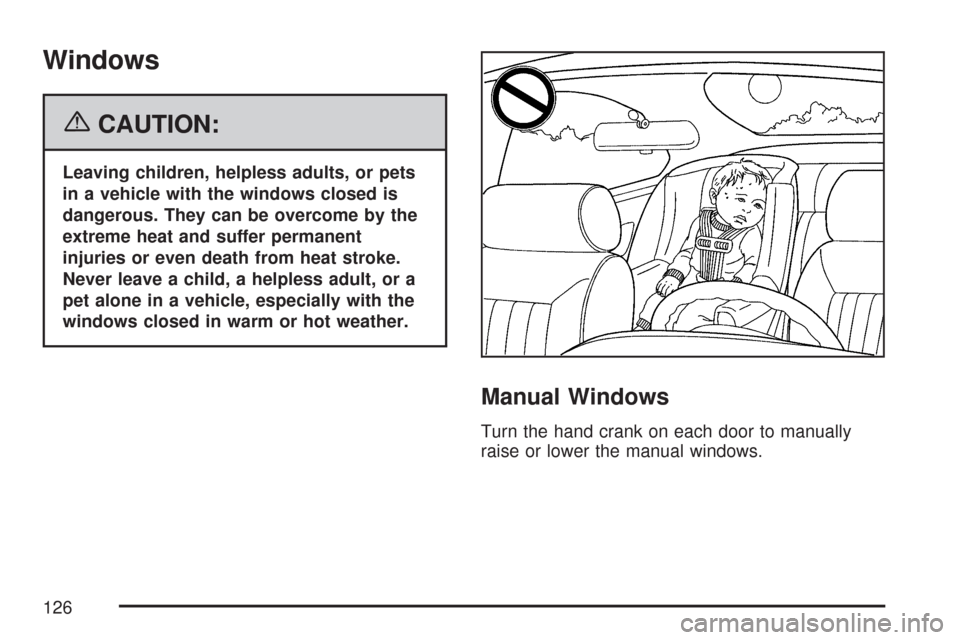

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
Manual Windows
Turn the hand crank on each door to manually
raise or lower the manual windows.
126

Power Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave keys in a
vehicle with children.
CAUTION: (Continued)
CAUTION: (Continued)
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.
If your vehicle has power windows, the controls
are located on each of the side doors in the front
and rear for crew cab and extended cab models.
The driver’s door has a switch for the passenger’s
and rear windows as well. Your power windows
will work when the ignition has been turned
to ACCESSORY or RUN or when Retained
Accessory Power (RAP) is active. SeeRetained
Accessory Power (RAP) on page 136.
K(Window Up/Down):Press the switch down
to lower the window, and pull up the front of
the switch to raise the window.
127

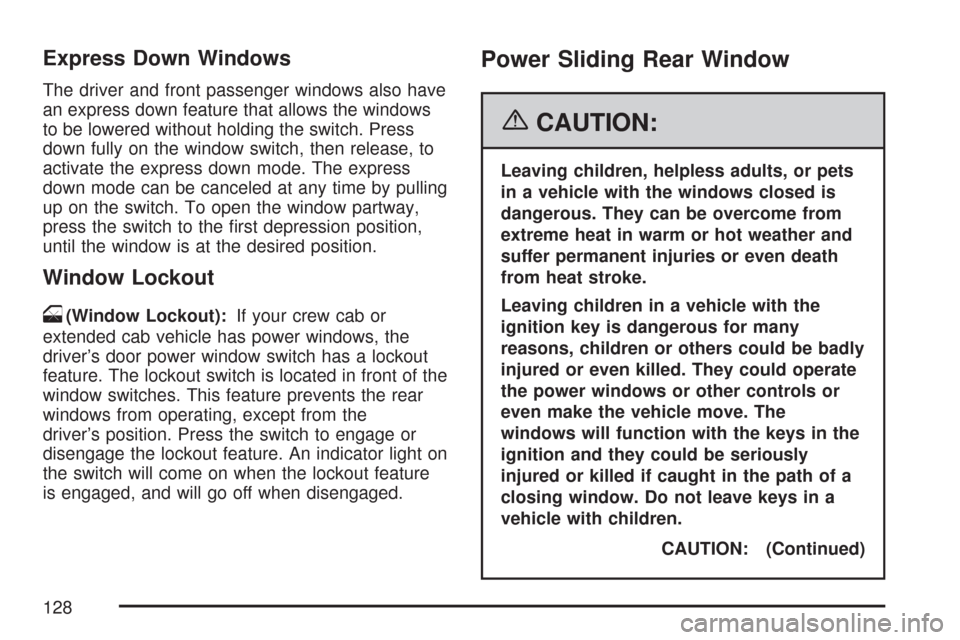

Express Down Windows
The driver and front passenger windows also have
an express down feature that allows the windows
to be lowered without holding the switch. Press
down fully on the window switch, then release, to
activate the express down mode. The express
down mode can be canceled at any time by pulling
up on the switch. To open the window partway,
press the switch to the rst depression position,
until the window is at the desired position.
Window Lockout
o
(Window Lockout):If your crew cab or
extended cab vehicle has power windows, the
driver’s door power window switch has a lockout
feature. The lockout switch is located in front of the
window switches. This feature prevents the rear
windows from operating, except from the
driver’s position. Press the switch to engage or
disengage the lockout feature. An indicator light on
the switch will come on when the lockout feature
is engaged, and will go off when disengaged.
Power Sliding Rear Window
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome from
extreme heat in warm or hot weather and
suffer permanent injuries or even death
from heat stroke.
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be badly
injured or even killed. They could operate
the power windows or other controls or
even make the vehicle move. The
windows will function with the keys in the
ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave keys in a
vehicle with children.
CAUTION: (Continued)
128

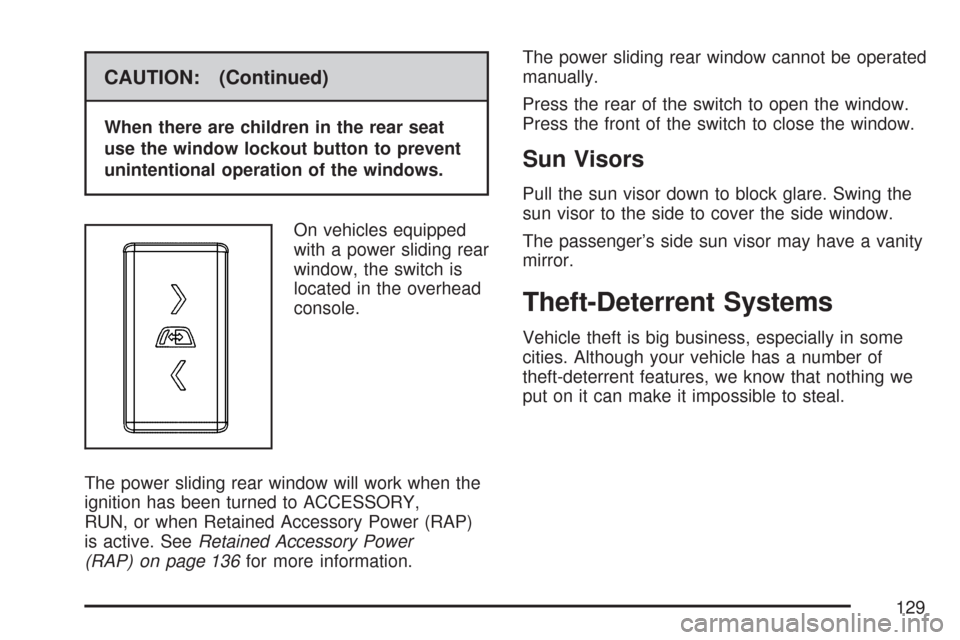

CAUTION: (Continued)
When there are children in the rear seat
use the window lockout button to prevent
unintentional operation of the windows.
On vehicles equipped
with a power sliding rear
window, the switch is
located in the overhead
console.
The power sliding rear window will work when the
ignition has been turned to ACCESSORY,
RUN, or when Retained Accessory Power (RAP)
is active. SeeRetained Accessory Power
(RAP) on page 136for more information.The power sliding rear window cannot be operated
manually.
Press the rear of the switch to open the window.
Press the front of the switch to close the window.
Sun Visors
Pull the sun visor down to block glare. Swing the
sun visor to the side to cover the side window.
The passenger’s side sun visor may have a vanity
mirror.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
129

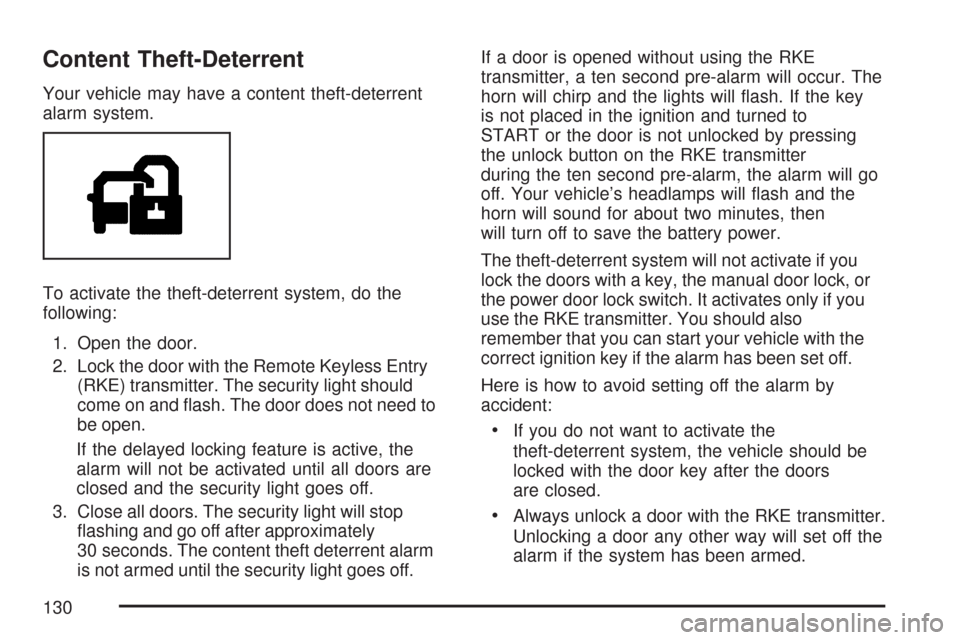

Content Theft-Deterrent
Your vehicle may have a content theft-deterrent
alarm system.
To activate the theft-deterrent system, do the
following:
1. Open the door.
2. Lock the door with the Remote Keyless Entry
(RKE) transmitter. The security light should
come on and ash. The door does not need to
be open.
If the delayed locking feature is active, the
alarm will not be activated until all doors are
closed and the security light goes off.
3. Close all doors. The security light will stop
ashing and go off after approximately
30 seconds. The content theft deterrent alarm
is not armed until the security light goes off.If a door is opened without using the RKE
transmitter, a ten second pre-alarm will occur. The
horn will chirp and the lights will ash. If the key
is not placed in the ignition and turned to
START or the door is not unlocked by pressing
the unlock button on the RKE transmitter
during the ten second pre-alarm, the alarm will go
off. Your vehicle’s headlamps will ash and the
horn will sound for about two minutes, then
will turn off to save the battery power.
The theft-deterrent system will not activate if you
lock the doors with a key, the manual door lock, or
the power door lock switch. It activates only if you
use the RKE transmitter. You should also
remember that you can start your vehicle with the
correct ignition key if the alarm has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the
theft-deterrent system, the vehicle should be
locked with the door key after the doors
are closed.
Always unlock a door with the RKE transmitter.
Unlocking a door any other way will set off the
alarm if the system has been armed.
130
