5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and toLower Anchors and
Tethers for Children (LATCH) on page 60.
7. Push and pull the restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to a top tether anchor, disconnect it.
Unbuckle the vehicle’s safety belt and let it
go back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
71

Securing a Child Restraint in the
Center Front Seat Position
{CAUTION:
A child in a child restraint in the center
front seat can be badly injured or killed by
the right front passenger’s airbag if it
inates. Never secure a child restraint in
the center front seat. It is always better to
secure a child restraint in the rear seat.
Do not use child restraints in this position.
Securing a Child Restraint in the
Right Front Seat Position (With
Airbag Off Switch)
Your vehicle has a right front passenger airbag.
If one of the switches pictured in the following
illustrations is located in your glove box, your
vehicle has an airbag on-off switch that you can use
to manually turn on or off the right front passenger’s
airbag.
United StatesCanada
72

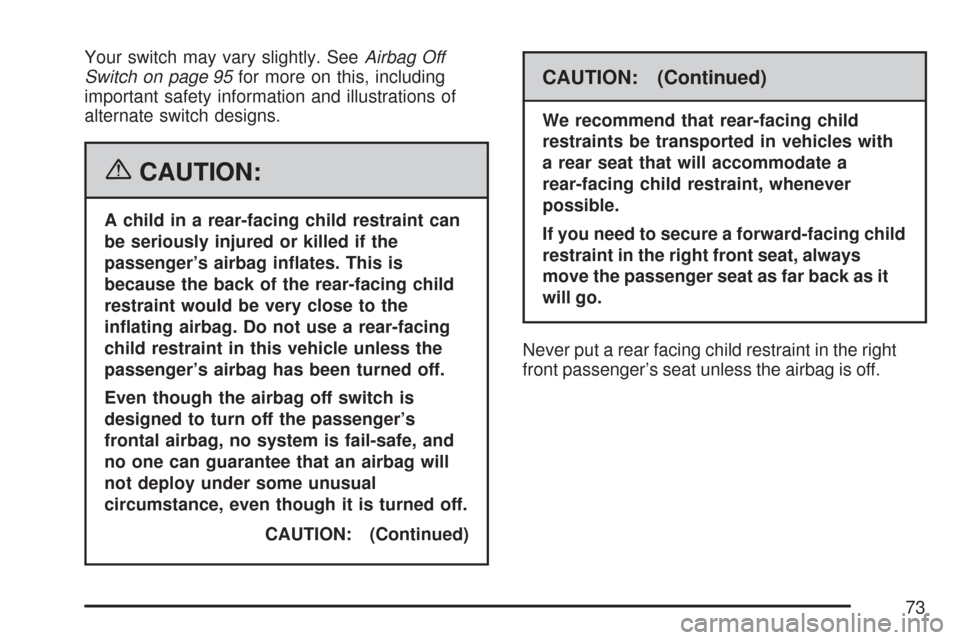

Your switch may vary slightly. SeeAirbag Off
Switch on page 95for more on this, including
important safety information and illustrations of
alternate switch designs.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the
passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in this vehicle unless the
passenger’s airbag has been turned off.
Even though the airbag off switch is
designed to turn off the passenger’s
frontal airbag, no system is fail-safe, and
no one can guarantee that an airbag will
not deploy under some unusual
circumstance, even though it is turned off.
CAUTION: (Continued)
CAUTION: (Continued)
We recommend that rear-facing child
restraints be transported in vehicles with
a rear seat that will accommodate a
rear-facing child restraint, whenever
possible.
If you need to secure a forward-facing child
restraint in the right front seat, always
move the passenger seat as far back as it
will go.
Never put a rear facing child restraint in the right
front passenger’s seat unless the airbag is off.
73

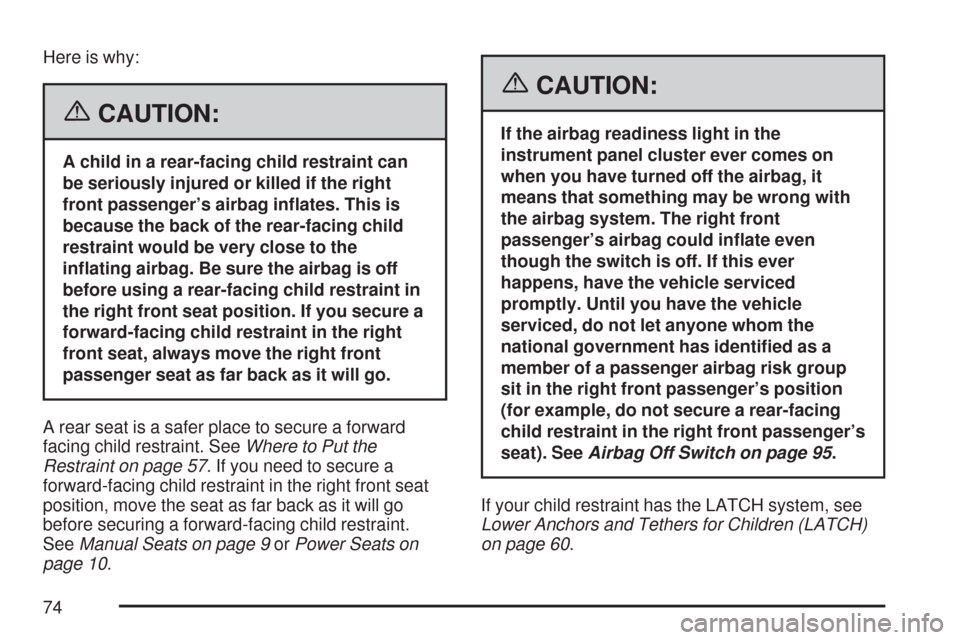

Here is why:
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Be sure the airbag is off
before using a rear-facing child restraint in
the right front seat position. If you secure a
forward-facing child restraint in the right
front seat, always move the right front
passenger seat as far back as it will go.
A rear seat is a safer place to secure a forward
facing child restraint. SeeWhere to Put the
Restraint on page 57. If you need to secure a
forward-facing child restraint in the right front seat
position, move the seat as far back as it will go
before securing a forward-facing child restraint.
SeeManual Seats on page 9orPower Seats on
page 10.
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
when you have turned off the airbag, it
means that something may be wrong with
the airbag system. The right front
passenger’s airbag could inate even
though the switch is off. If this ever
happens, have the vehicle serviced
promptly. Until you have the vehicle
serviced, do not let anyone whom the
national government has identied as a
member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing
child restraint in the right front passenger’s
seat). SeeAirbag Off Switch on page 95.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH)
on page 60.
74

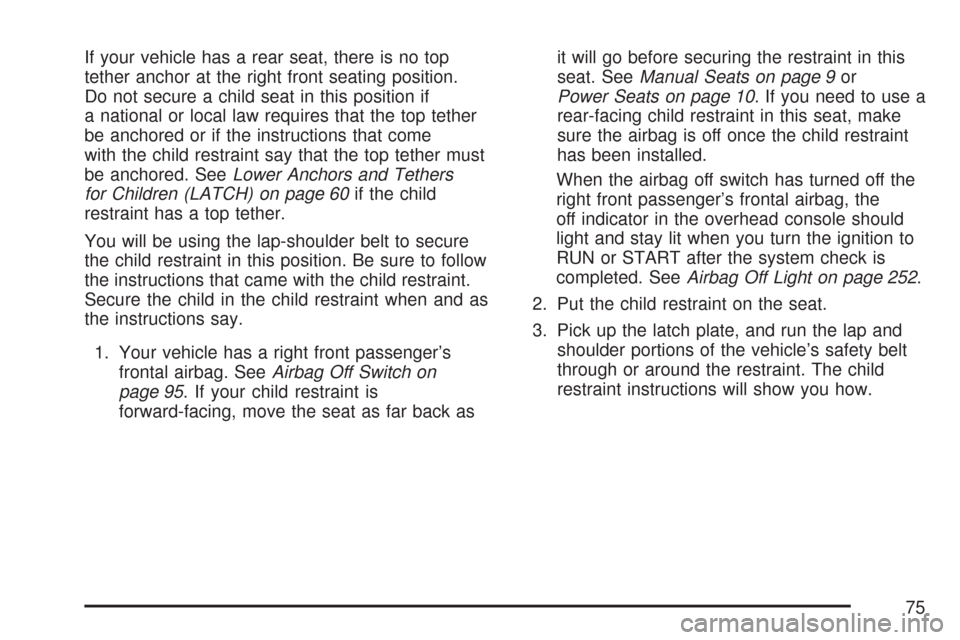

If your vehicle has a rear seat, there is no top
tether anchor at the right front seating position.
Do not secure a child seat in this position if
a national or local law requires that the top tether
be anchored or if the instructions that come
with the child restraint say that the top tether must
be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 60if the child
restraint has a top tether.
You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeeAirbag Off Switch on
page 95. If your child restraint is
forward-facing, move the seat as far back asit will go before securing the restraint in this
seat. SeeManual Seats on page 9or
Power Seats on page 10. If you need to use a
rear-facing child restraint in this seat, make
sure the airbag is off once the child restraint
has been installed.
When the airbag off switch has turned off the
right front passenger’s frontal airbag, the
off indicator in the overhead console should
light and stay lit when you turn the ignition to
RUN or START after the system check is
completed. SeeAirbag Off Light on page 252.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
75

4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.5. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
76

6. To tighten the belt, push down on the child
restraint, pull the shoulder belt to tighten the lap
belt portion, and feed the shoulder belt back
into the retractor. If you are using a
forward-facing child restraint, you may nd it
helpful to use your knee to push down on the
child restraint as you tighten the belt. You
should not be able to pull more of the belt out of
the retractor once the lock has been set.7. If your child restraint manufacturer
recommends using a top tether, and the
position you are using has a top tether anchor,
attach and tighten the top tether to the top
tether anchor. Refer to the instructions
that came with the child restraint and toLower
Anchors and Tethers for Children (LATCH)
on page 60.
8. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
77

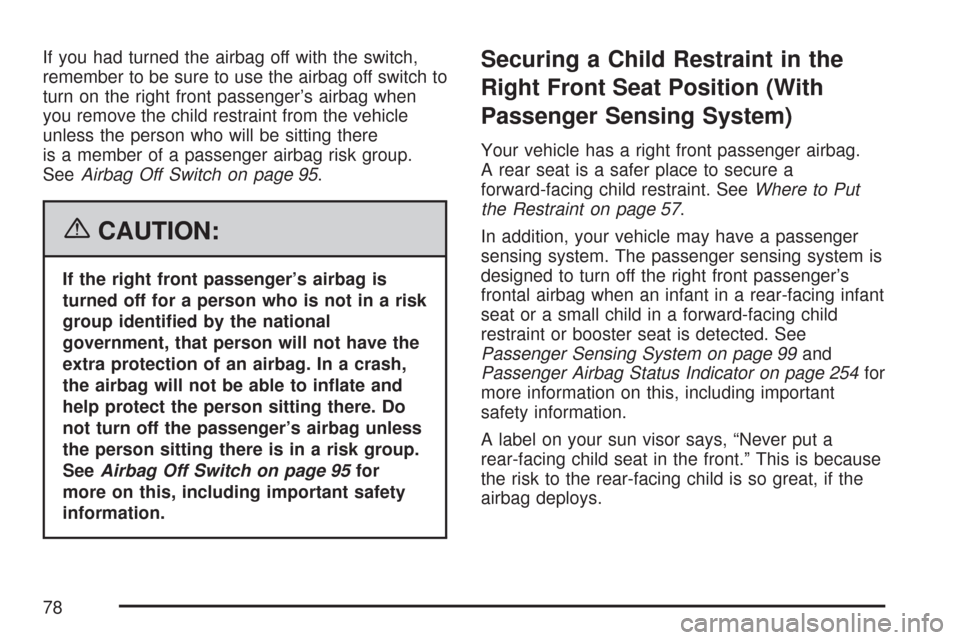

If you had turned the airbag off with the switch,
remember to be sure to use the airbag off switch to
turn on the right front passenger’s airbag when
you remove the child restraint from the vehicle
unless the person who will be sitting there
is a member of a passenger airbag risk group.
SeeAirbag Off Switch on page 95.
{CAUTION:
If the right front passenger’s airbag is
turned off for a person who is not in a risk
group identied by the national
government, that person will not have the
extra protection of an airbag. In a crash,
the airbag will not be able to inate and
help protect the person sitting there. Do
not turn off the passenger’s airbag unless
the person sitting there is in a risk group.
SeeAirbag Off Switch on page 95for
more on this, including important safety
information.
Securing a Child Restraint in the
Right Front Seat Position (With
Passenger Sensing System)
Your vehicle has a right front passenger airbag.
A rear seat is a safer place to secure a
forward-facing child restraint. SeeWhere to Put
the Restraint on page 57.
In addition, your vehicle may have a passenger
sensing system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag when an infant in a rear-facing infant
seat or a small child in a forward-facing child
restraint or booster seat is detected. See
Passenger Sensing System on page 99and
Passenger Airbag Status Indicator on page 254for
more information on this, including important
safety information.
A label on your sun visor says, “Never put a
rear-facing child seat in the front.” This is because
the risk to the rear-facing child is so great, if the
airbag deploys.
78

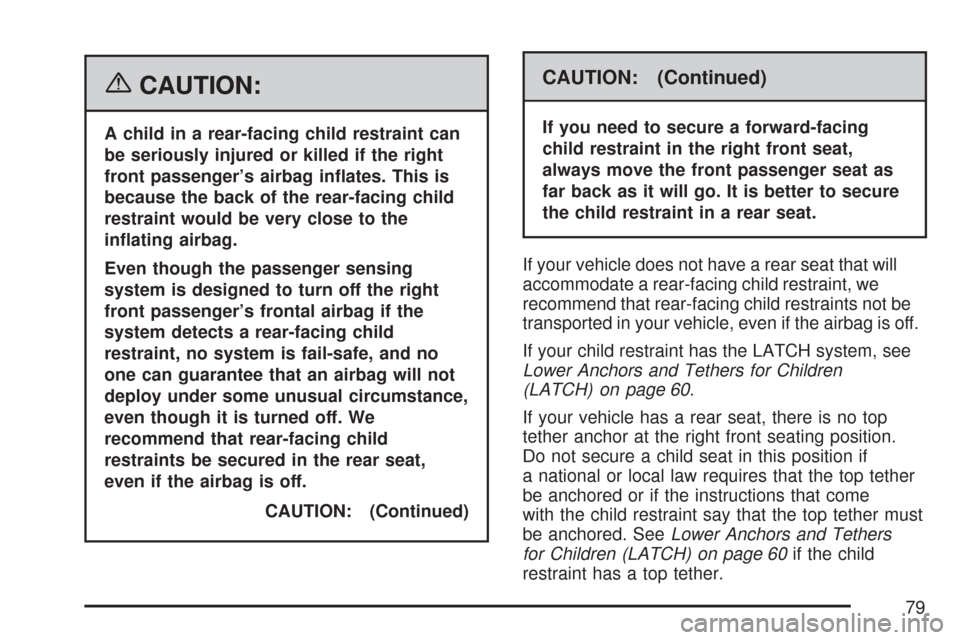

{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag.
Even though the passenger sensing
system is designed to turn off the right
front passenger’s frontal airbag if the
system detects a rear-facing child
restraint, no system is fail-safe, and no
one can guarantee that an airbag will not
deploy under some unusual circumstance,
even though it is turned off. We
recommend that rear-facing child
restraints be secured in the rear seat,
even if the airbag is off.
CAUTION: (Continued)
CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
If your vehicle does not have a rear seat that will
accommodate a rear-facing child restraint, we
recommend that rear-facing child restraints not be
transported in your vehicle, even if the airbag is off.
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 60.
If your vehicle has a rear seat, there is no top
tether anchor at the right front seating position.
Do not secure a child seat in this position if
a national or local law requires that the top tether
be anchored or if the instructions that come
with the child restraint say that the top tether must
be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 60if the child
restraint has a top tether.
79

You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeePassenger Sensing
System on page 99. We recommend that
rear-facing child restraints be secured in a rear
seat, even if the airbag is off. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the
child restraint in this seat. SeeManual Seats
on page 9orPower Seats on page 10.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag, the off indicator in the passenger
airbag status indicator should light and stay lit
when you turn the ignition to RUN or
START after the system check is completed.
SeePassenger Airbag Status Indicator on
page 254.2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
80
