Page 391 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total gross weight
of the vehicle. The Gross Vehicle Weight (GVW)
includes the

Page 392 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Do not exceed the maximum allowable tongue weight
for the vehicle. Choose the shortest hitch extension that
will position the hitch ball closest to the vehicle. This
will help reduce the effect of tra

Page 393 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual If the vehicle has many options and there is a front seat
passenger and two rear seat passengers with some
luggage and gear in the vehicle as well. 300 lbs (136 kg)
could be added to the front axle we

Page 394 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Hitches
It is important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why the right hitch is needed.
Weight-Distributing Hitches and Weight
C

Page 395 of 600

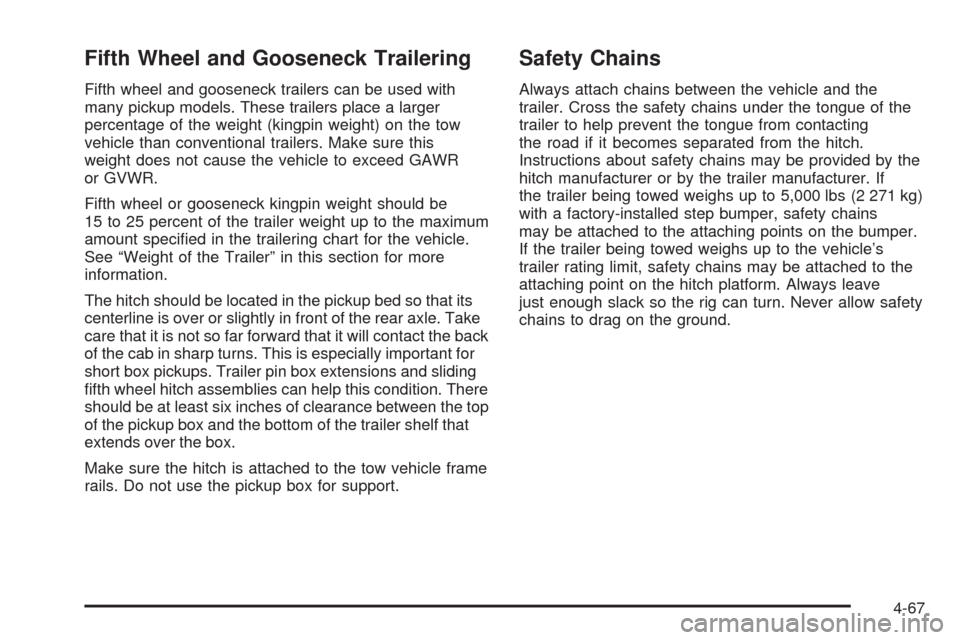

CHEVROLET SILVERADO 2009 2.G Owners Manual Fifth Wheel and Gooseneck Trailering
Fifth wheel and gooseneck trailers can be used with
many pickup models. These trailers place a larger
percentage of the weight (kingpin weight) on the tow
vehicle

Page 396 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Tow/Haul Mode
Pressing this button at
the end of the shift lever
turns on and off the
tow/haul mode.
This indicator light on the
instrument panel cluster
comes on when the
tow/haul mode is on.
Tow/Hau

Page 397 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Trailer Brakes
A loaded trailer that weighs more than 2,000 lbs
(900 kg) needs to have its own brake system that is
adequate for the weight of the trailer. Be sure to read
and follow the instructions

Page 398 of 600

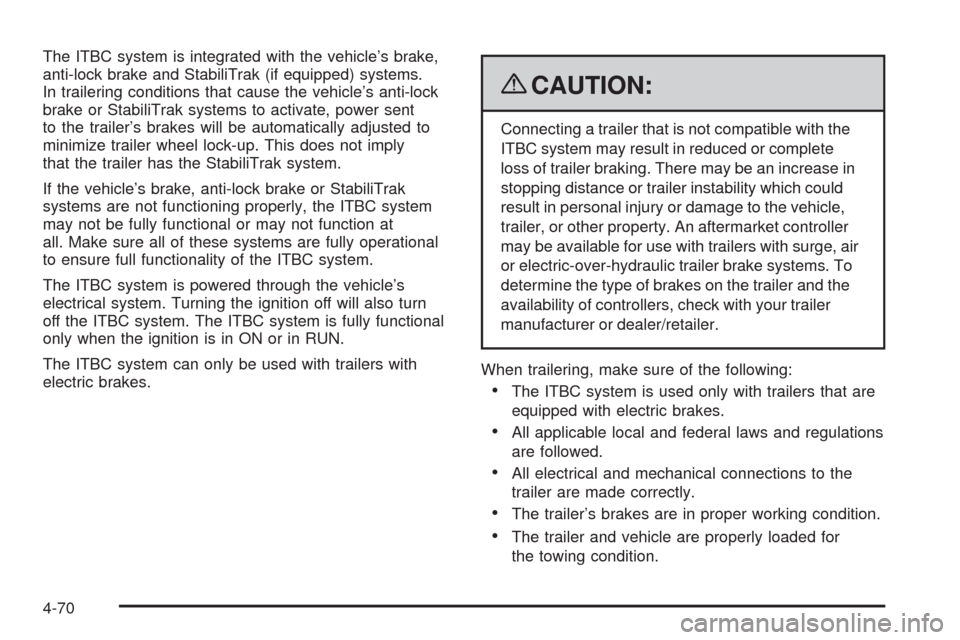

CHEVROLET SILVERADO 2009 2.G Owners Manual The ITBC system is integrated with the vehicle’s brake,
anti-lock brake and StabiliTrak (if equipped) systems.
In trailering conditions that cause the vehicle’s anti-lock
brake or StabiliTrak syst

Page 399 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual The ITBC system is a factory installed item.
Out-of-factory installation of this system should not be
attempted. GM is not responsible for warranty or
performance of the system resulting from out-of-f

Page 400 of 600

CHEVROLET SILVERADO 2009 2.G Owners Manual Trailer Brake DIC Display Page
The ITBC system displays messages into the vehicle’s
Driver Information Center (DIC). SeeDIC Warnings
and Messages on page 3-66for more information.
The display page i
