CHEVROLET SILVERADO 2011 2.G Owner's Manual
Manufacturer: CHEVROLET, Model Year: 2011, Model line: SILVERADO, Model: CHEVROLET SILVERADO 2011 2.GPages: 588, PDF Size: 7.99 MB
Page 21 of 588
Black plate (15,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-15

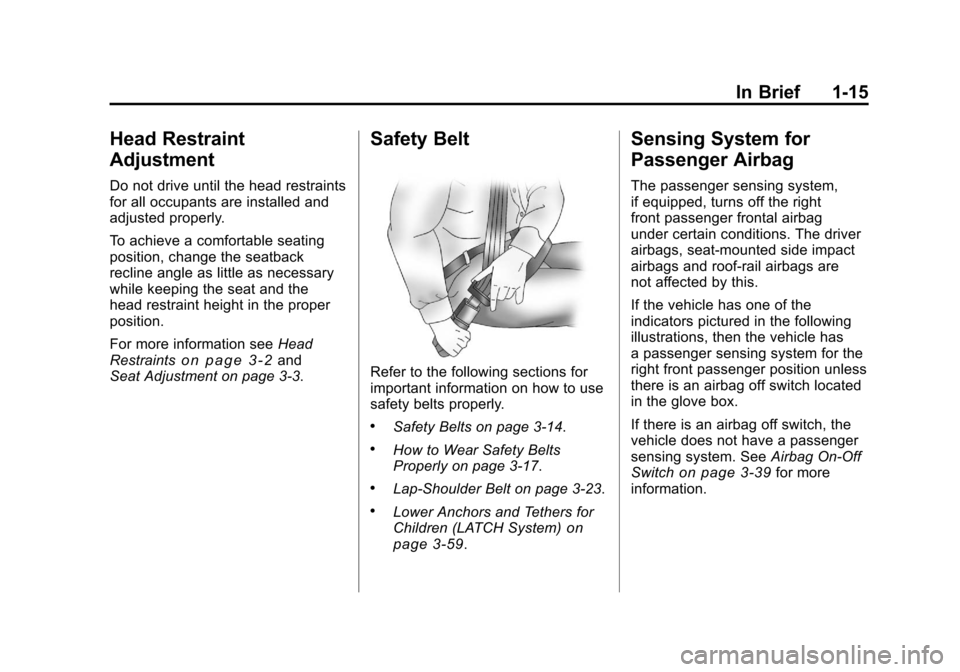

Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the
head restraint height in the proper
position.
For more information seeHead
Restraints
on page 3‑2and
Seat Adjustment on page 3‑3.
Safety Belt
Refer to the following sections for
important information on how to use
safety belts properly.
.Safety Belts on page 3‑14.
.How to Wear Safety Belts
Properly on page 3‑17.
.Lap-Shoulder Belt on page 3‑23.
.Lower Anchors and Tethers for
Children (LATCH System)on
page 3‑59.
Sensing System for
Passenger Airbag
The passenger sensing system,
if equipped, turns off the right
front passenger frontal airbag
under certain conditions. The driver
airbags, seat‐mounted side impact
airbags and roof‐rail airbags are
not affected by this.
If the vehicle has one of the
indicators pictured in the following
illustrations, then the vehicle has
a passenger sensing system for the
right front passenger position unless
there is an airbag off switch located
in the glove box.
If there is an airbag off switch, the
vehicle does not have a passenger
sensing system. See Airbag On-Off
Switch
on page 3‑39for more
information.
Page 22 of 588
Black plate (16,1)Chevrolet Silverado Owner Manual - 2011
1-16 In Brief
The passenger airbag status
indicator will be visible on the
overhead console when the
vehicle is started.
United States
Canada and Mexico
See Passenger Sensing System
on
page 3‑42for important information.
Mirror Adjustment
Exterior Mirrors
Vehicles with outside power mirrors
and foldaway mirrors have controls
located on the driver door.
1. Press (A) or (B) to select the driver or passenger side mirror.
2. Press one of the four arrows located on the control pad to
adjust the mirror.
3. Press either (A) or (B) again to deselect the mirror. See
Manual Mirrors
on page 2‑16orPower Mirrors on page 2‑16.
If the vehicle has towing mirrors,
they can be adjusted for a clearer
view of the objects behind you.
Manually pull out the mirror head to
extend it for better visibility when
towing a trailer. See Trailer-Tow
Mirrors on page 2‑16.
Power Foldaway Mirrors
To fold the mirrors:
1. Press (C) to fold the mirrors out
to the driving position.
2. Press (D) to fold the mirrors in to the folded position.
Manual Foldaway Mirrors
Manually fold the mirrors inward
to prevent damage when going
through an automatic car wash.
To fold, pull the mirror toward the
vehicle. Push the mirror outward,
to return to its original position.
See Folding Mirrors on page 2‑17.
Page 23 of 588
Black plate (17,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-17

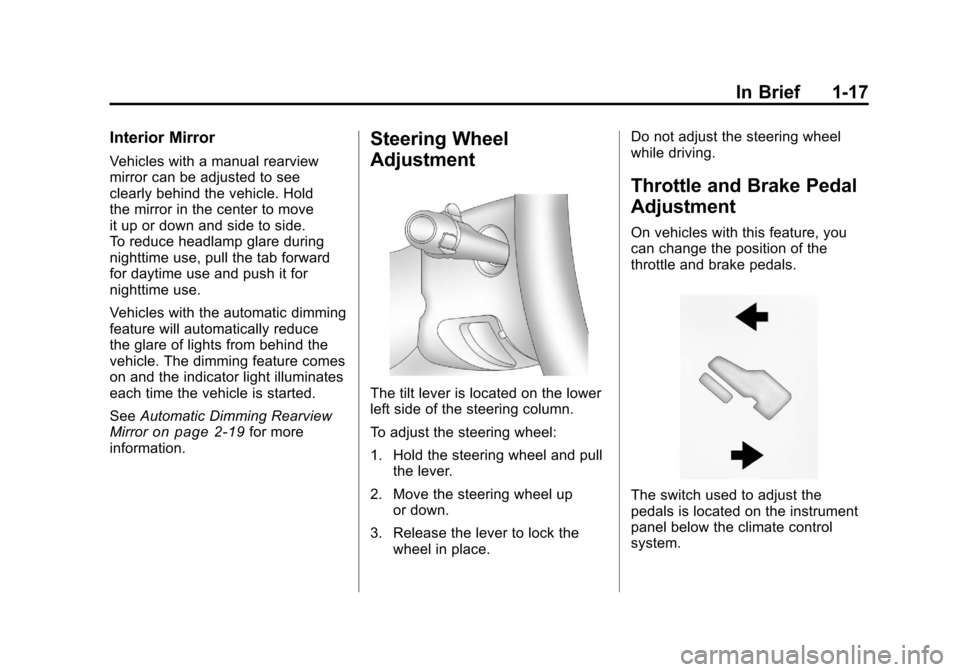

Interior Mirror
Vehicles with a manual rearview
mirror can be adjusted to see
clearly behind the vehicle. Hold
the mirror in the center to move
it up or down and side to side.
To reduce headlamp glare during
nighttime use, pull the tab forward
for daytime use and push it for
nighttime use.
Vehicles with the automatic dimming
feature will automatically reduce
the glare of lights from behind the
vehicle. The dimming feature comes
on and the indicator light illuminates
each time the vehicle is started.
SeeAutomatic Dimming Rearview
Mirror
on page 2‑19for more
information.
Steering Wheel
Adjustment
The tilt lever is located on the lower
left side of the steering column.
To adjust the steering wheel:
1. Hold the steering wheel and pull the lever.
2. Move the steering wheel up or down.
3. Release the lever to lock the wheel in place. Do not adjust the steering wheel
while driving.
Throttle and Brake Pedal
Adjustment
On vehicles with this feature, you
can change the position of the
throttle and brake pedals.
The switch used to adjust the
pedals is located on the instrument
panel below the climate control
system.
Page 24 of 588
Black plate (18,1)Chevrolet Silverado Owner Manual - 2011
1-18 In Brief
Press the arrow at the bottom of the
switch to move the pedals closer to
your body. Press the arrow at the
top of the switch to move the pedals
away from your body.
SeeAdjustable Throttle and Brake
Pedal on page 9‑32.
Interior Lighting
Dome Lamps
The dome lamps come on when any
door is opened. They turn off after
all the doors are closed.
Turn the instrument panel
brightness knob clockwise to the
farthest position to turn on the
dome lamps. The dome lamps
remain on until the knob is turned
counterclockwise. Dome Lamp Override
The dome lamp override button is
located next to the exterior lamps
control.
k:
Press the button in and the
dome lamps remain off when a door
is opened. Press the button again to
return it to the extended position so
that the dome lamps come on when
a door is opened. Reading Lamps
For vehicles with reading lamps in
the overhead console, press the
button located next to the lamp to
turn it on or off.
The vehicle may also have reading
lamps in other locations. The lamps
cannot be adjusted.
For more information about interior
lamps, see:
.Dome Lamps on page 6‑8.
.Reading Lamps on page 6‑8.
.Instrument Panel Illumination
Control on page 6‑7.
Page 25 of 588
Black plate (19,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-19
Exterior Lighting
The exterior lamps control is located
on the instrument panel to the left of
the steering wheel.
O:Turns off the automatic
headlamps and daytime running
lamps (DRL). Turn the headlamp
control to the off position again to
turn the automatic headlamps or
DRL back on. For vehicles first sold in Canada,
the off position will only work when
the vehicle is shifted into P (Park).
AUTO:
Automatically turns on
the headlamps, parking lamps,
taillamps, instrument panel lights,
and license plate lamps.
;: Turns on the parking lamps,
taillamps, instrument panel lights,
and license plate lamps.
2: Turns on the headlamps,
parking lamps, taillamps, instrument
panel lights, and license plate
lamps.
For more information, see:
.Exterior Lamp Controlson
page 6‑1.
.Daytime Running Lamps (DRL)on page 6‑4.
.Fog Lamps on page 6‑6.
Windshield Wiper/Washer
8: Single wipe, turn to8, then
release. Several wipes, hold the
band on
8longer.
9: Turns the windshield
wipers off.
Page 26 of 588
Black plate (20,1)Chevrolet Silverado Owner Manual - 2011
1-20 In Brief
6:Turn the band up for more
frequent wipes or down for less
frequent wipes.
]: Slow wipes.
?:Fast wipes.
L:Push the paddle at the top of
the lever to spray washer fluid on
the windshield.
See Windshield Wiper/Washer
on
page 5‑5.
Climate Controls
These systems control the heating,
cooling, and ventilation.
Climate Control System (With Air Conditioning)
A. Fan Control
B. Temperature Control
C. Air Delivery Mode Control
D. Air Conditioning E. Outside Air
F. Air Recirculation
G. Rear Window Defogger
Page 27 of 588
Black plate (21,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-21

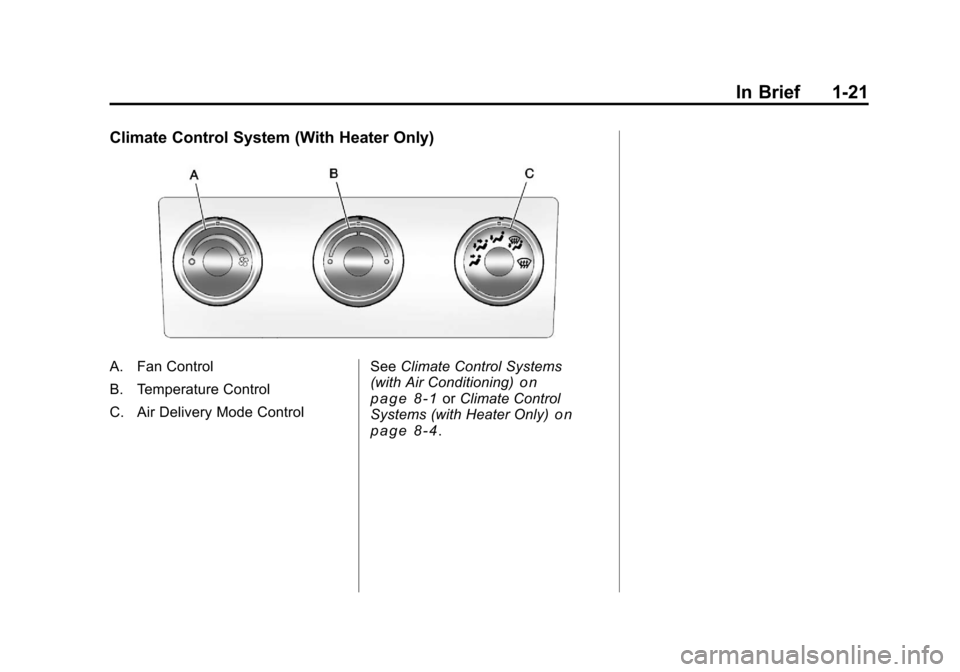

Climate Control System (With Heater Only)
A. Fan Control
B. Temperature Control
C. Air Delivery Mode ControlSee
Climate Control Systems
(with Air Conditioning)on
page 8‑1or Climate Control
Systems (with Heater Only)on
page 8‑4.
Page 28 of 588
Black plate (22,1)Chevrolet Silverado Owner Manual - 2011
1-22 In Brief

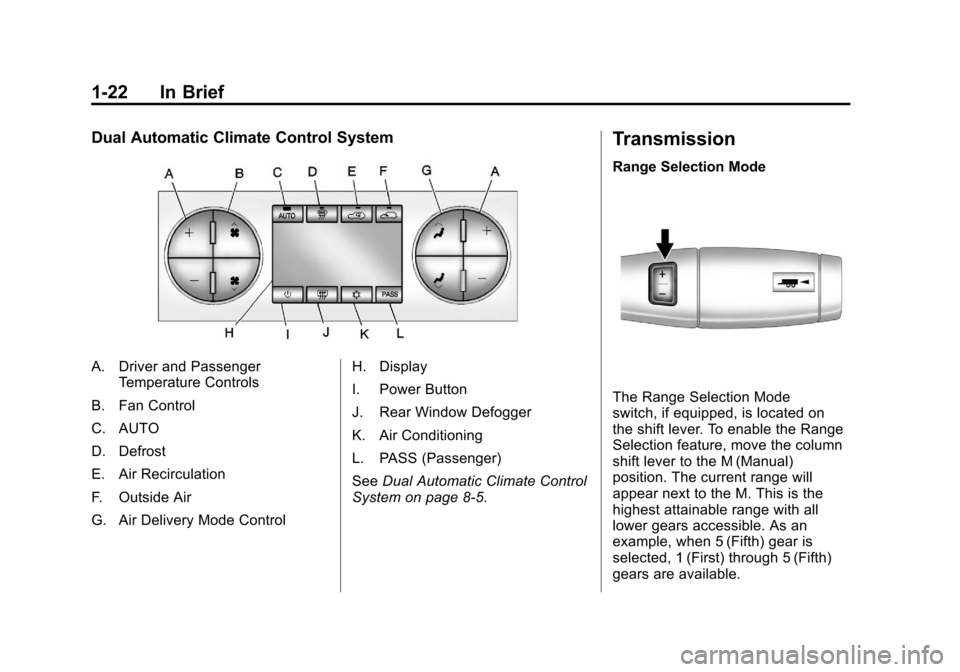

Dual Automatic Climate Control System
A. Driver and PassengerTemperature Controls
B. Fan Control
C. AUTO
D. Defrost
E. Air Recirculation
F. Outside Air
G. Air Delivery Mode Control H. Display
I. Power Button
J. Rear Window Defogger
K. Air Conditioning
L. PASS (Passenger)
See
Dual Automatic Climate Control
System on page 8‑5.
Transmission
Range Selection Mode
The Range Selection Mode
switch, if equipped, is located on
the shift lever. To enable the Range
Selection feature, move the column
shift lever to the M (Manual)
position. The current range will
appear next to the M. This is the
highest attainable range with all
lower gears accessible. As an
example, when 5 (Fifth) gear is
selected, 1 (First) through 5 (Fifth)
gears are available.
Page 29 of 588
Black plate (23,1)Chevrolet Silverado Owner Manual - 2011
In Brief 1-23
Press the plus/minus buttons,
located on the steering column shift
lever, to select the desired range of
gears for current driving conditions.
SeeManual Mode on page 9‑47.
While using Range Selection Mode,
cruise control and the Tow/Haul
mode can be used.
Grade Braking is not available when
Range Selection Mode is active.
See Tow/Haul Mode on page 9‑49.

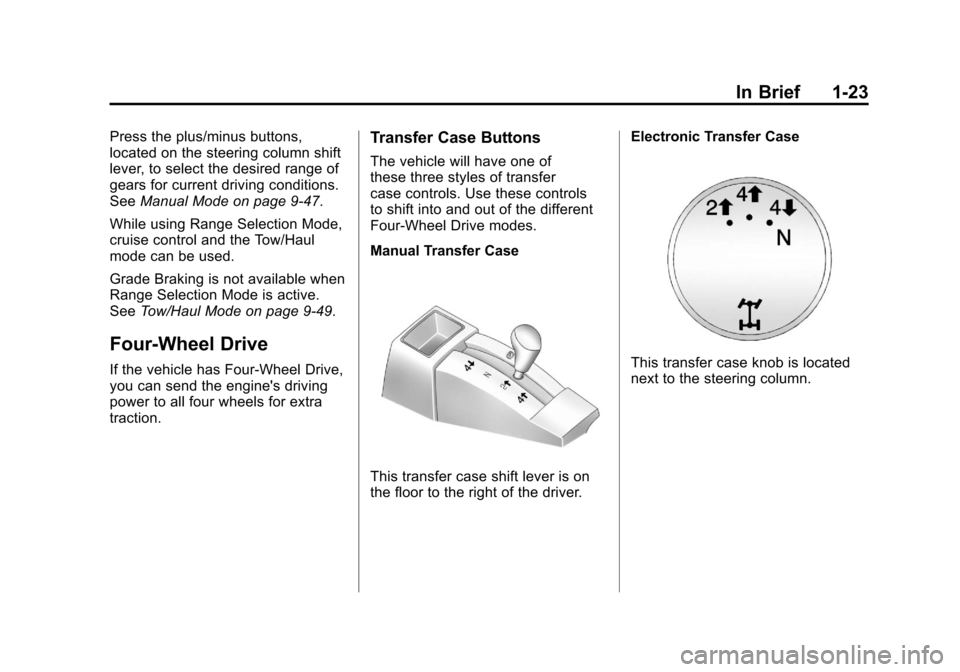

Four-Wheel Drive
If the vehicle has Four-Wheel Drive,
you can send the engine's driving
power to all four wheels for extra
traction.
Transfer Case Buttons
The vehicle will have one of
these three styles of transfer
case controls. Use these controls
to shift into and out of the different
Four-Wheel Drive modes.
Manual Transfer Case
This transfer case shift lever is on
the floor to the right of the driver. Electronic Transfer Case
This transfer case knob is located
next to the steering column.
Page 30 of 588
Black plate (24,1)Chevrolet Silverado Owner Manual - 2011
1-24 In Brief

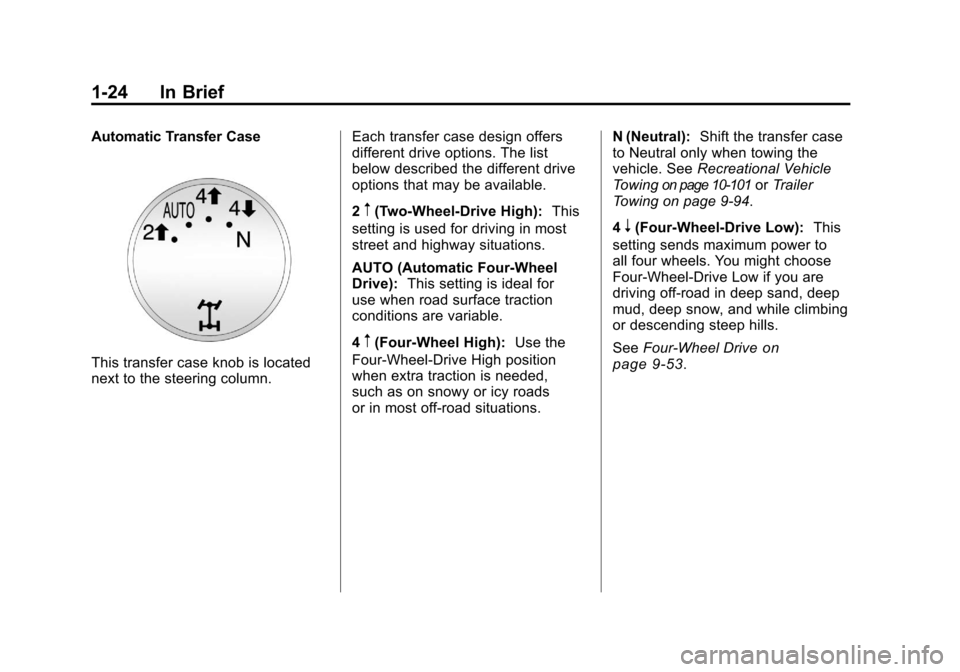

Automatic Transfer Case
This transfer case knob is located
next to the steering column.Each transfer case design offers
different drive options. The list
below described the different drive
options that may be available.
2
m(Two-Wheel-Drive High):
This
setting is used for driving in most
street and highway situations.
AUTO (Automatic Four-Wheel
Drive): This setting is ideal for
use when road surface traction
conditions are variable.
4
m(Four-Wheel High): Use the
Four-Wheel-Drive High position
when extra traction is needed,
such as on snowy or icy roads
or in most off-road situations. N (Neutral):
Shift the transfer case
to Neutral only when towing the
vehicle. See Recreational Vehicle
Towing
on page 10‑101or Trailer
Towing on page 9‑94.
4
n(Four-Wheel-Drive Low): This
setting sends maximum power to
all four wheels. You might choose
Four-Wheel-Drive Low if you are
driving off-road in deep sand, deep
mud, deep snow, and while climbing
or descending steep hills.
See Four-Wheel Drive
on
page 9‑53.
