Page 32 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
In Brief 31
Premium Recommended Fuel
Use premium 93 octane unleadedgasoline in your vehicle. Unleadedgasoline with an octane rating aslow as 87 may be used, but it willreduce performance and fueleconomy. SeeFuel0311.
E85 or FlexFuel
FlexFuel Possible
Certain models are compatible withE85 fuel. SeeFuel0311.
Engine Oil Life System
The engine oil life system calculatesengine oil life based on vehicle useand, on most vehicles, displays aDIC message when it is necessaryto change the engine oil and filter.The oil life system should be resetto 100% only following an oilchange.
Resetting the Oil Life System
To r e s e t t h e e n g i n e o i l l i f e s y s t e m :
1. Display OIL LIFE REMAININGon the DIC. SeeDriverInformation Center (DIC) (BaseLevel)0145orDriverInformation Center (DIC)(Uplevel)0147.Ifthevehicledoes not have DIC buttons, thevehicle must be in P (Park) toaccess this display.
2. Press and hold theVbutton on
the DIC, or the trip odometerreset stem if the vehicle doesnot have DIC buttons, forseveral seconds. The oil lifewill change to 100%.
The oil life system can also be resetas follows:
1. Turn the ignition to ON/RUNwith the engine off.
2. Fully press the acceleratorpedal slowly three times withinfive seconds.
3. Display OIL LIFE REMAININGon the DIC. If the displayshows 100%, the system isreset.
SeeEngine Oil Life System0362.
Driving for Better Fuel
Economy
Driving habits can affect fuelmileage. Here are some driving tipsto get the best fuel economypossible.
.Avoid fast starts and acceleratesmoothly.
.Brake gradually and avoidabrupt stops.
.Avoid idling the engine for longperiods of time.
.When road and weatherconditions are appropriate, usecruise control.
.Always follow posted speedlimits or drive more slowly whenconditions require.
.Keep vehicle tires properlyinflated.
Page 351 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
350 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . . . . . 351California Proposition65 Warning . . . . . . . . . . . . . . . . . 351California PerchlorateMaterials Requirements . . . . . 352Accessories andModifications . . . . . . . . . . . . . . . . 352
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 353Hood . . . . . . . . . . . . . . . . . . . . . . . . . 353Engine CompartmentOverview . . . . . . . . . . . . . . . . . . . . 354Engine Oil . . . . . . . . . . . . . . . . . . . . 359Engine Oil Life System . . . . . . . 362Automatic Transmission Fluid(6-Speed Transmission) . . . . . 363Automatic Transmission Fluid(8-Speed Transmission) . . . . . 366Manual Transmission Fluid . . . 366Hydraulic Clutch . . . . . . . . . . . . . . 366Engine Air Cleaner/Filter . . . . . . 367Cooling System . . . . . . . . . . . . . . 368Engine Coolant . . . . . . . . . . . . . . . 369Engine Overheating . . . . . . . . . . 372
Overheated Engine ProtectionOperating Mode . . . . . . . . . . . . . 374Engine Fan . . . . . . . . . . . . . . . . . . . 374Power Steering Fluid (1500Series) . . . . . . . . . . . . . . . . . . . . . . 375Power Steering Fluid (2500/3500 Series) . . . . . . . . . . . . . . . . 375Washer Fluid . . . . . . . . . . . . . . . . . 375Brakes . . . . . . . . . . . . . . . . . . . . . . . 376Brake Fluid . . . . . . . . . . . . . . . . . . . 377Battery - North America . . . . . . 378Four-Wheel Drive . . . . . . . . . . . . . 379Front Axle . . . . . . . . . . . . . . . . . . . . 380Rear Axle . . . . . . . . . . . . . . . . . . . . 380Noise Control System . . . . . . . . 382Starter Switch Check . . . . . . . . . 383Automatic Transmission ShiftLock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 383Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . 383Park Brake and P (Park)Mechanism Check . . . . . . . . . . 384Wiper Blade Replacement . . . . 384Glass Replacement . . . . . . . . . . 385
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 385
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 385
Halogen Bulbs . . . . . . . . . . . . . . . . 385High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . 386LED Lighting . . . . . . . . . . . . . . . . . 386Headlamps, Front Turn Signal,Sidemarker, and ParkingLamps . . . . . . . . . . . . . . . . . . . . . . 386Fog Lamps . . . . . . . . . . . . . . . . . . . 387Ta i l l a m p s ( C h a s s i s C a bModels) . . . . . . . . . . . . . . . . . . . . . 387Ta i l l a m p s , T u r n S i g n a l ,Stoplamps, and Back-UpLamps . . . . . . . . . . . . . . . . . . . . . . 387Center High-MountedStoplamp (CHMSL) andCargo Lamp . . . . . . . . . . . . . . . . . 389Replacement Bulbs . . . . . . . . . . . 389
Electrical System
High Voltage Devices andWiring . . . . . . . . . . . . . . . . . . . . . . . 389Electrical System Overload . . . 389Fuses . . . . . . . . . . . . . . . . . . . . . . . . 390Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 390Instrument Panel Fuse Block(Right) . . . . . . . . . . . . . . . . . . . . . . 393Instrument Panel FuseBlock (Left) . . . . . . . . . . . . . . . . . 395
Page 356 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 355
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Remote Negative (–)Location.SeeJump Starting - NorthAmerica0432.
7. Engine Cooling Fans (Out ofView). SeeCoolingSystem0368.
8. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
9. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
10. Brake Fluid Reservoir. SeeBrake Fluid0377.
11 . W i n d s h i e l d Wa s h e r F l u i dReservoir. See“Adding WasherFluid”underWasherFluid0375.
12. Clutch Fluid Reservoir (IfEquipped). SeeHydraulicClutch0366.
13.Engine Compartment FuseBlock0390.
Page 358 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 357
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Remote Negative (–)Location(Out of View). SeeJumpStarting - North America0432.
7. Engine Cooling Fans (Out ofView). SeeCoolingSystem0368.
8. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
9. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
10. Windshield Washer FluidReservoir. See“Adding WasherFluid”underWasherFluid0375.
11 . B r a k e F l u i d R e s e r v o i r. S e eBrake Fluid0377.
12.Engine Compartment FuseBlock0390.
Page 360 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 359
1. Positive (+) Terminal. SeeJump Starting - NorthAmerica0432.
2.Battery - North America0378.
3. Coolant Surge Tank andPressure Cap. SeeCoolingSystem0368.
4.Engine Air Cleaner/Filter0367.
5. Automatic TransmissionDipstick (If Equipped). See“How to Check AutomaticTransmission Fluid”underAutomatic Transmission Fluid(6-Speed Transmission)0363orAutomatic TransmissionFluid (8-SpeedTr a n s m i s s i o n )0366.
6. Engine Oil Dipstick. See“Checking Engine Oil”underEngine Oil0359.
7. Engine Oil Fill Cap. See“Whento Add Engine Oil”underEngine Oil0359.
8. Engine Cooling Fan (Out ofView). SeeCoolingSystem0368.
9. Remote Negative (–)Location.SeeJump Starting - NorthAmerica0432.
10. Power Steering FluidReservoir. SeePower SteeringFluid (1500 Series)0375orPower Steering Fluid (2500/3500 Series)0375.
11 . W i n d s h i e l d Wa s h e r F l u i dReservoir. See“Adding WasherFluid”underWasherFluid0375.
12. Brake Fluid Reservoir. SeeBrake Fluid0377.
13. Auxiliary Battery (If Equipped).SeeBattery - NorthAmerica0378.
14.Engine Compartment FuseBlock0390.
If the vehicle has a diesel engineand/or an Allison Transmission, seethe Duramax diesel supplement.
For an eAssist vehicle, see theSilverado/Sierra eAssistsupplement.
Engine Oil
For diesel engine vehicles, see“Engine Oil”in the Duramax dieselsupplement.
To e n s u r e p r o p e r e n g i n eperformance and long life, carefulattention must be paid to engine oil.Following these simple, butimportant steps will help protectyour investment:
.Use engine oil approved to theproper specification and of theproper viscosity grade. See“Selecting the Right Engine Oil”in this section.
.Check the engine oil levelregularly and maintain theproper oil level. See“CheckingEngine Oil”and“When to AddEngine Oil”in this section.
.Change the engine oil at theappropriate time. SeeEngine OilLife System0362.
.Always dispose of engine oilproperly. See“What to Do withUsed Oil”in this section.

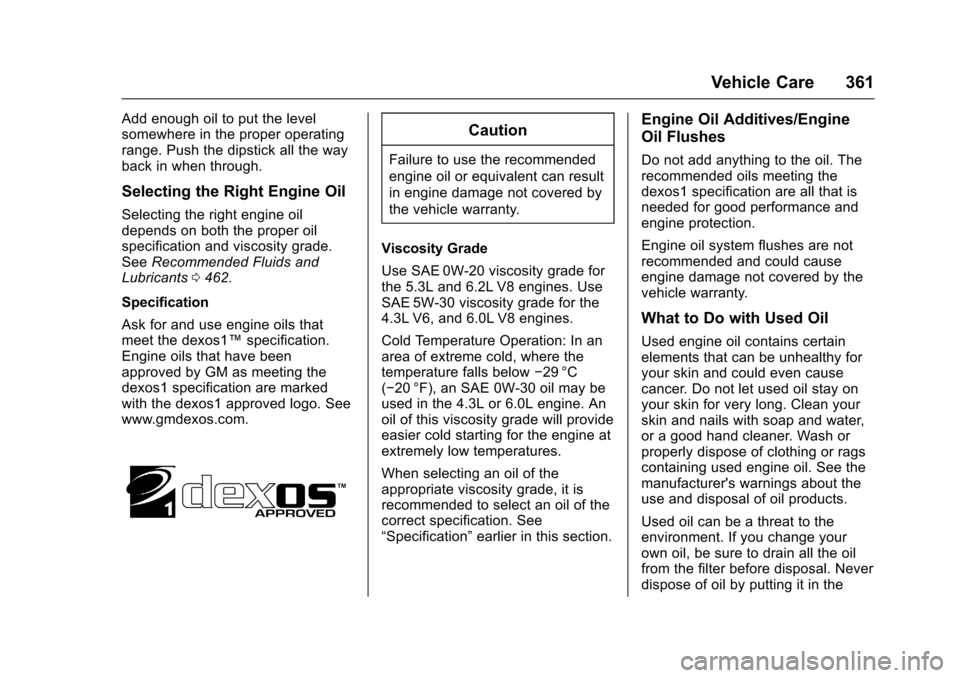

Page 362 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 361
Add enough oil to put the levelsomewhere in the proper operatingrange. Push the dipstick all the wayback in when through.
Selecting the Right Engine Oil
Selecting the right engine oildepends on both the proper oilspecification and viscosity grade.SeeRecommended Fluids andLubricants0462.
Specification
Ask for and use engine oils thatmeet the dexos1™specification.Engine oils that have beenapproved by GM as meeting thedexos1 specification are markedwith the dexos1 approved logo. Seewww.gmdexos.com.
Caution
Failure to use the recommended
engine oil or equivalent can result
in engine damage not covered by
the vehicle warranty.
Viscosity Grade
Use SAE 0W-20 viscosity grade forthe 5.3L and 6.2L V8 engines. UseSAE 5W-30 viscosity grade for the4.3L V6, and 6.0L V8 engines.
Cold Temperature Operation: In anarea of extreme cold, where thetemperature falls below✓29 °C(✓20 °F), an SAE 0W-30 oil may beused in the 4.3L or 6.0L engine. Anoil of this viscosity grade will provideeasier cold starting for the engine atextremely low temperatures.
When selecting an oil of theappropriate viscosity grade, it isrecommended to select an oil of thecorrect specification. See“Specification”earlier in this section.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. Therecommended oils meeting thedexos1 specification are all that isneeded for good performance andengine protection.
Engine oil system flushes are notrecommended and could causeengine damage not covered by thevehicle warranty.
What to Do with Used Oil
Used engine oil contains certainelements that can be unhealthy foryour skin and could even causecancer. Do not let used oil stay onyour skin for very long. Clean yourskin and nails with soap and water,or a good hand cleaner. Wash orproperly dispose of clothing or ragscontaining used engine oil. See themanufacturer's warnings about theuse and disposal of oil products.
Used oil can be a threat to theenvironment. If you change yourown oil, be sure to drain all the oilfrom the filter before disposal. Neverdispose of oil by putting it in the
Page 363 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
362 Vehicle Care
trash or pouring it on the ground,into sewers, or into streams orbodies of water. Recycle it by takingit to a place that collects used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer systemthat indicates when to change theengine oil and filter. This is basedon a combination of factors whichinclude engine revolutions, enginetemperature, and miles driven.Based on driving conditions, themileage at which an oil change isindicated can vary considerably. Forthe oil life system to work properly,the system must be reset every timethe oil is changed.
On some vehicles, when the systemhas calculated that oil life has beendiminished, a CHANGE ENGINEOIL SOON message comes on toindicate that an oil change isnecessary. SeeEngine OilMessages0152.Changetheoilassoon as possible within the next1000km (600mi). It is possible that,if driving under the best conditions,
the oil life system might indicate thatan oil change is not necessary forup to a year. The engine oil andfilter must be changed at least onceayearand,atthistime,thesystemmust be reset. For vehicles withoutthe CHANGE ENGINE OIL SOONmessage, an oil change is neededwhen the OIL LIFE REMAININGpercentage is near 0%. Your dealerhas trained service people who willperform this work and reset thesystem. It is also important to checkthe oil regularly over the course ofan oil drain interval and keep it atthe proper level.
If the system is ever resetaccidentally, the oil must bechanged at 5 000 km (3,000 mi)since the last oil change.Remember to reset the oil lifesystem whenever the oil is changed.
How to Reset the Engine Oil
Life System
Reset the system whenever theengine oil is changed so that thesystem can calculate the nextengine oil change. Always reset the
engine oil life to 100% after every oilchange. It will not reset itself. Toreset the engine oil life system:
1. Display the OIL LIFEREMAINING on the DIC. If thevehicle does not have DICbuttons, the vehicle must be inP(Park)toaccessthisdisplay.SeeDriver Information Center(DIC) (Base Level)0145orDriver Information Center (DIC)(Uplevel)0147.
2. Press and holdV,orthetrip
odometer reset stem if thevehicle does not have DICbuttons, for several seconds.The oil life will changeto 100%.
The oil life system can also be resetas follows:
1. Turn the ignition to ON/RUNwith the engine off.
2. Fully press the acceleratorpedal slowly three times withinfive seconds.
Page 364 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Vehicle Care 363
3. Display the OIL LIFEREMAINING on the DIC. If thedisplay shows 100%, thesystem is reset.
If the vehicle has a CHANGEENGINE OIL SOON message and itcomes back on when the vehicle isstarted and/or the OIL LIFEREMAINING is near 0%, the engineoil life system has not been reset.Repeat the procedure.
Automatic Transmission
Fluid (6-Speed
Transmission)
When to Check and Change
Automatic Transmission Fluid
It is usually not necessary to checkthe transmission fluid level. The onlyreason for fluid loss is atransmission leak or overheatedtransmission. If a small leak issuspected, then use the followingchecking procedures to check thefluid level. However, if there is alarge leak, then it may be necessaryto have the vehicle towed to a
dealer service department and haveit repaired before driving the vehiclefurther.
Caution
Use of the incorrect automatic
transmission fluid may damage
the vehicle, and the damage may
not be covered by the vehicle
warranty. Always use the
automatic transmission fluid listed
inRecommended Fluids and
Lubricants0462.
Change the fluid and filter at thescheduled maintenance intervalslisted inMaintenance Schedule0452.Besuretousethetransmission fluid listed inRecommended Fluids andLubricants0462.
How to Check Automatic
Transmission Fluid
Caution
To o m u c h o r t o o l i t t l e f l u i d c a n
damage the transmission. Too
much can mean that some of the
fluid could come out and fall on
hot engine parts or exhaust
system parts, starting a fire. Too
little fluid could cause the
transmission to overheat. Be sure
to get an accurate reading if
checking the transmission fluid.
Before checking the fluid level,prepare the vehicle:
1. Start the engine and park thevehicle on a level surface.Keep the engine running.
2. Apply the parking brake andplace the shift lever in P (Park).
3. With your foot on the brakepedal, move the shift leverthrough each gear range,pausing for about
Page 453 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
452 Service and Maintenance
keep the vehicle in good workingcondition, improves fuel economy,and reduces vehicle emissions.
Because of the way people usevehicles, maintenance needs vary.There may need to be morefrequent checks and services.
Normal Service
All maintenance services, includingthose listed under AdditionalRequired Services, are forvehicles that:
.Carry passengers and cargowithin recommended limits onthe Tire and Loading Informationlabel. SeeVehicle LoadLimits0259.
.Are driven on reasonable roadsurfaces within legal drivinglimits.
.Use the recommended fuel. SeeFuel0311.
Severe Service
In addition to the normal serviceschedule, some vehicles requireservice more often. Severe serviceis for vehicles that are:
.Mainly driven in heavy city trafficin hot weather.
.Mainly driven in hilly ormountainous terrain.
.Frequently towing a trailer.
.Used for high-speed orcompetitive driving.
.Used for taxi, police, or deliveryservice.
{Warning
Performing maintenance work can
be dangerous and can cause
serious injury. Perform
maintenance work only if the
required information, proper tools,
and equipment are available.
If they are not, see your dealer to
have a trained technician do the
work. SeeDoing Your Own
Service Work0353.
Maintenance
Schedule
Owner Checks and Services
At Each Fuel Stop
.Check the engine oil level. SeeEngine Oil0359.
Once a Month
.Check the tire inflationpressures. SeeTirePressure0405.
.Inspect the tires for wear. SeeTire Inspection0411.
.Check the windshield washerfluid level. SeeWasherFluid0375.
Engine Oil Change
When the CHANGE ENGINE OILSOON message displays, have theengine oil and filter changed withinthe next 1 000 km/600 mi. If drivenunder the best conditions, theengine oil life system may notindicate the need for vehicle servicefor up to a year. The engine oil andfilter must be changed at least once
Page 454 of 509
Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-9956065) - 2017 - CRC - 4/29/16
Service and Maintenance 453
ayearandtheoillifesystemmustbe reset. Your trained dealertechnician can perform this work.If the engine oil life system is resetaccidentally, service the vehiclewithin 5 000 km/3,000 mi since thelast service. Reset the oil lifesystem when the oil is changed.SeeEngine Oil Life System0362.
Passenger Compartment Air
Filter
The passenger compartment airfilter removes dust, pollen, andother airborne irritants from outsideair that is pulled into the vehicle.The filter should be replaced as partof routine scheduled maintenance.Inspect the passenger compartmentair filter every 36 000 km/22,500 miles or two years,whichever comes first. Replace ifnecessary. More frequentreplacement may be needed if thevehicle is driven in areas with heavytraffic, areas with poor air quality,or areas with high dust levels.
Replacement may also be needed ifthere is a reduction in air flow,excessive window fogging, or odors.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended forthe vehicle, and perform thefollowing services. SeeTireRotation0412.
.Check engine oil level and oillife percentage. If needed,change engine oil and filter, andreset oil life system. SeeEngineOil0359andEngine Oil LifeSystem0362.
.Check engine coolant level. SeeEngine Coolant0369.
.Check windshield washer fluidlevel. SeeWasher Fluid0375.
.Visually inspect windshield wiperblades for wear, cracking,or contamination. SeeExteriorCare0441.Replacewornordamaged wiper blades. SeeWiper BladeReplacement0384.
.Check tire inflation pressures.SeeTire Pressure0405.
.Inspect tire wear. SeeTireInspection0411.
.Visually check for fluid leaks.
.Inspect engine air cleaner filter.SeeEngine Air Cleaner/Filter0367.
.Inspect brake system. SeeExterior Care0441.
