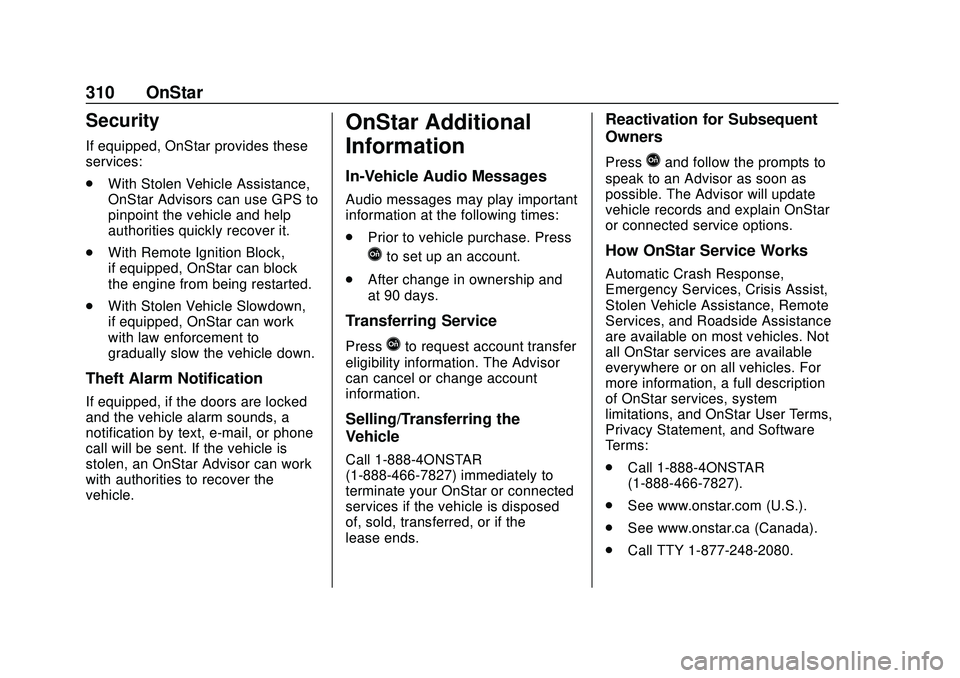

310 OnStar
Security
If equipped, OnStar provides these
services:
.With Stolen Vehicle Assistance,
OnStar Advisors can use GPS to
pinpoint the vehicle and help
authorities quickly recover it.
. With Remote Ignition Block,
if equipped, OnStar can block
the engine from being restarted.
. With Stolen Vehicle Slowdown,
if equipped, OnStar can work
with law enforcement to
gradually slow the vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked
and the vehicle alarm sounds, a
notification by text, e-mail, or phone
call will be sent. If the vehicle is
stolen, an OnStar Advisor can work
with authorities to recover the
vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.
Prior to vehicle purchase. Press
Qto set up an account.
. After change in ownership and
at 90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor
can cancel or change account
information.
Selling/Transferring the
Vehicle
Call 1-888-4ONSTAR
(1-888-466-7827) immediately to
terminate your OnStar or connected
services if the vehicle is disposed
of, sold, transferred, or if the
lease ends.
Reactivation for Subsequent
Owners
PressQand follow the prompts to
speak to an Advisor as soon as
possible. The Advisor will update
vehicle records and explain OnStar
or connected service options.
How OnStar Service Works
Automatic Crash Response,
Emergency Services, Crisis Assist,
Stolen Vehicle Assistance, Remote
Services, and Roadside Assistance
are available on most vehicles. Not
all OnStar services are available
everywhere or on all vehicles. For
more information, a full description
of OnStar services, system
limitations, and OnStar User Terms,
Privacy Statement, and Software
Terms:
. Call 1-888-4ONSTAR
(1-888-466-7827).
. See www.onstar.com (U.S.).
. See www.onstar.ca (Canada).
. Call TTY 1-877-248-2080.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19

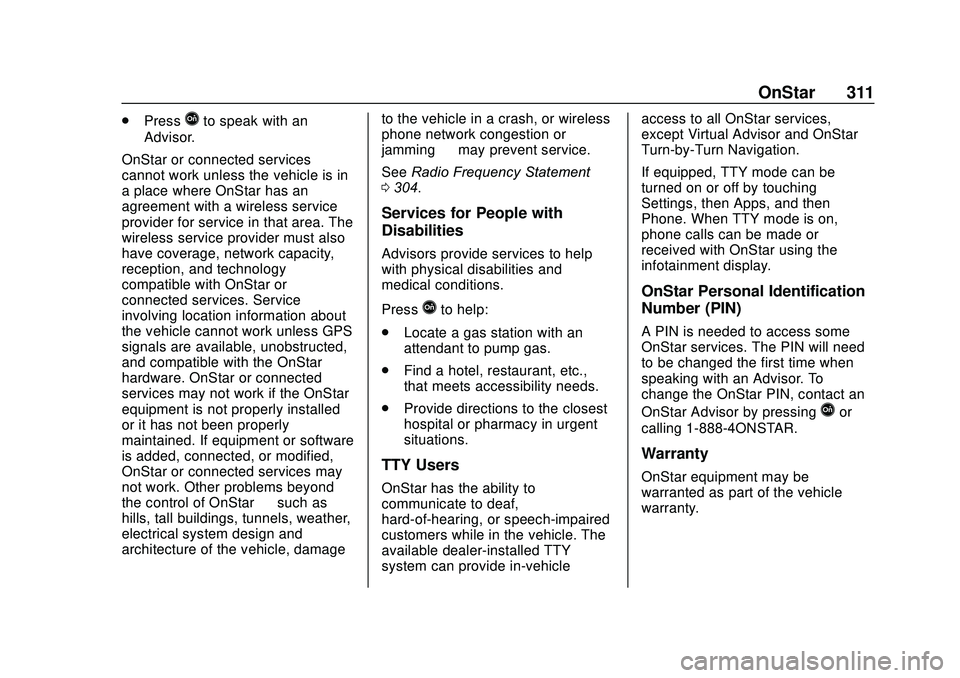

OnStar 311
.PressQto speak with an
Advisor.
OnStar or connected services
cannot work unless the vehicle is in
a place where OnStar has an
agreement with a wireless service
provider for service in that area. The
wireless service provider must also
have coverage, network capacity,
reception, and technology
compatible with OnStar or
connected services. Service
involving location information about
the vehicle cannot work unless GPS
signals are available, unobstructed,
and compatible with the OnStar
hardware. OnStar or connected
services may not work if the OnStar
equipment is not properly installed
or it has not been properly
maintained. If equipment or software
is added, connected, or modified,
OnStar or connected services may
not work. Other problems beyond
the control of OnStar —such as
hills, tall buildings, tunnels, weather,
electrical system design and
architecture of the vehicle, damage to the vehicle in a crash, or wireless
phone network congestion or
jamming
—may prevent service.
See Radio Frequency Statement
0 304.
Services for People with
Disabilities
Advisors provide services to help
with physical disabilities and
medical conditions.
Press
Qto help:
. Locate a gas station with an
attendant to pump gas.
. Find a hotel, restaurant, etc.,
that meets accessibility needs.
. Provide directions to the closest
hospital or pharmacy in urgent
situations.
TTY Users
OnStar has the ability to
communicate to deaf,
hard-of-hearing, or speech-impaired
customers while in the vehicle. The
available dealer-installed TTY
system can provide in-vehicle access to all OnStar services,
except Virtual Advisor and OnStar
Turn-by-Turn Navigation.
If equipped, TTY mode can be
turned on or off by touching
Settings, then Apps, and then
Phone. When TTY mode is on,
phone calls can be made or
received with OnStar using the
infotainment display.
OnStar Personal Identification
Number (PIN)
A PIN is needed to access some
OnStar services. The PIN will need
to be changed the first time when
speaking with an Advisor. To
change the OnStar PIN, contact an
OnStar Advisor by pressing
Qor
calling 1-888-4ONSTAR.
Warranty
OnStar equipment may be
warranted as part of the vehicle
warranty.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19

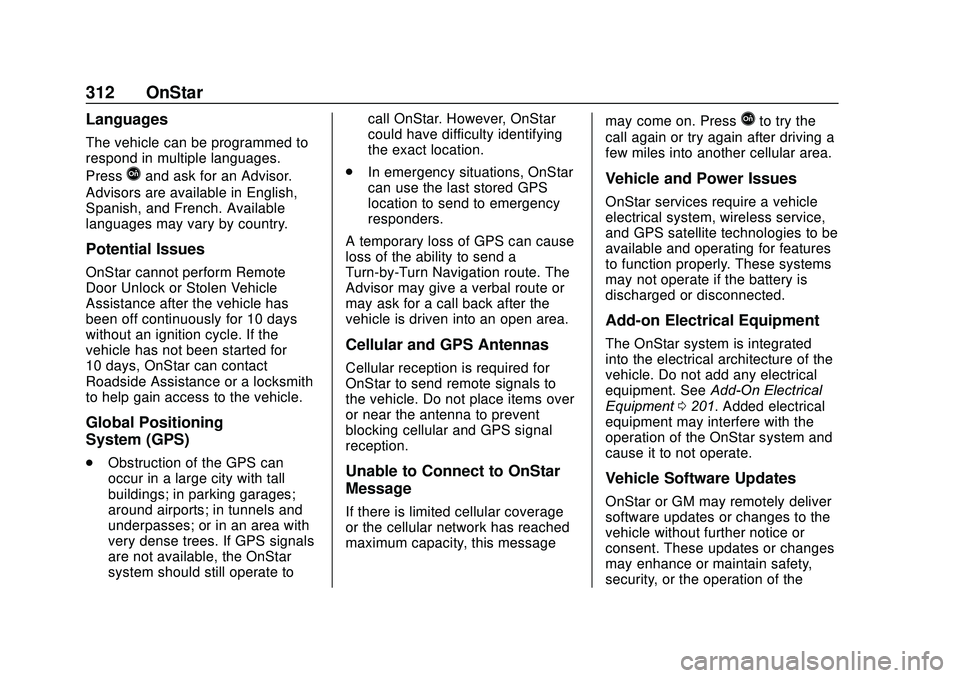

312 OnStar
Languages
The vehicle can be programmed to
respond in multiple languages.
Press
Qand ask for an Advisor.
Advisors are available in English,
Spanish, and French. Available
languages may vary by country.
Potential Issues
OnStar cannot perform Remote
Door Unlock or Stolen Vehicle
Assistance after the vehicle has
been off continuously for 10 days
without an ignition cycle. If the
vehicle has not been started for
10 days, OnStar can contact
Roadside Assistance or a locksmith
to help gain access to the vehicle.
Global Positioning
System (GPS)
. Obstruction of the GPS can
occur in a large city with tall
buildings; in parking garages;
around airports; in tunnels and
underpasses; or in an area with
very dense trees. If GPS signals
are not available, the OnStar
system should still operate to call OnStar. However, OnStar
could have difficulty identifying
the exact location.
. In emergency situations, OnStar
can use the last stored GPS
location to send to emergency
responders.
A temporary loss of GPS can cause
loss of the ability to send a
Turn-by-Turn Navigation route. The
Advisor may give a verbal route or
may ask for a call back after the
vehicle is driven into an open area.
Cellular and GPS Antennas
Cellular reception is required for
OnStar to send remote signals to
the vehicle. Do not place items over
or near the antenna to prevent
blocking cellular and GPS signal
reception.
Unable to Connect to OnStar
Message
If there is limited cellular coverage
or the cellular network has reached
maximum capacity, this message may come on. Press
Qto try the
call again or try again after driving a
few miles into another cellular area.
Vehicle and Power Issues
OnStar services require a vehicle
electrical system, wireless service,
and GPS satellite technologies to be
available and operating for features
to function properly. These systems
may not operate if the battery is
discharged or disconnected.
Add-on Electrical Equipment
The OnStar system is integrated
into the electrical architecture of the
vehicle. Do not add any electrical
equipment. See Add-On Electrical
Equipment 0201. Added electrical
equipment may interfere with the
operation of the OnStar system and
cause it to not operate.
Vehicle Software Updates
OnStar or GM may remotely deliver
software updates or changes to the
vehicle without further notice or
consent. These updates or changes
may enhance or maintain safety,
security, or the operation of the

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19

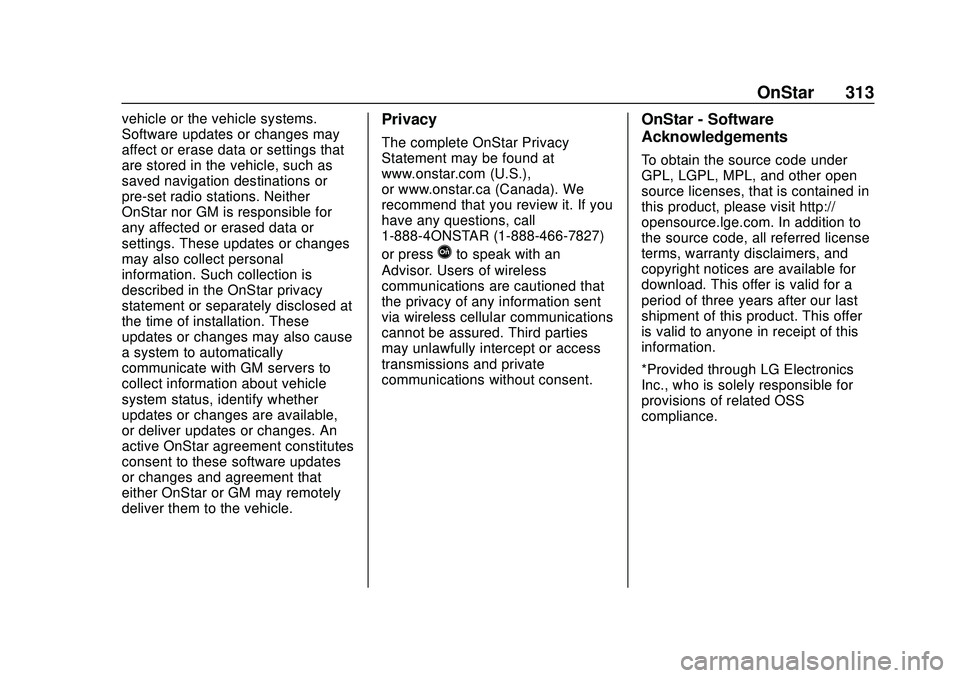

OnStar 313
vehicle or the vehicle systems.
Software updates or changes may
affect or erase data or settings that
are stored in the vehicle, such as
saved navigation destinations or
pre-set radio stations. Neither
OnStar nor GM is responsible for
any affected or erased data or
settings. These updates or changes
may also collect personal
information. Such collection is
described in the OnStar privacy
statement or separately disclosed at
the time of installation. These
updates or changes may also cause
a system to automatically
communicate with GM servers to
collect information about vehicle
system status, identify whether
updates or changes are available,
or deliver updates or changes. An
active OnStar agreement constitutes
consent to these software updates
or changes and agreement that
either OnStar or GM may remotely
deliver them to the vehicle.Privacy
The complete OnStar Privacy
Statement may be found at
www.onstar.com (U.S.),
or www.onstar.ca (Canada). We
recommend that you review it. If you
have any questions, call
1-888-4ONSTAR (1-888-466-7827)
or press
Qto speak with an
Advisor. Users of wireless
communications are cautioned that
the privacy of any information sent
via wireless cellular communications
cannot be assured. Third parties
may unlawfully intercept or access
transmissions and private
communications without consent.
OnStar - Software
Acknowledgements
To obtain the source code under
GPL, LGPL, MPL, and other open
source licenses, that is contained in
this product, please visit http://
opensource.lge.com. In addition to
the source code, all referred license
terms, warranty disclaimers, and
copyright notices are available for
download. This offer is valid for a
period of three years after our last
shipment of this product. This offer
is valid to anyone in receipt of this
information.
*Provided through LG Electronics
Inc., who is solely responsible for
provisions of related OSS
compliance.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19

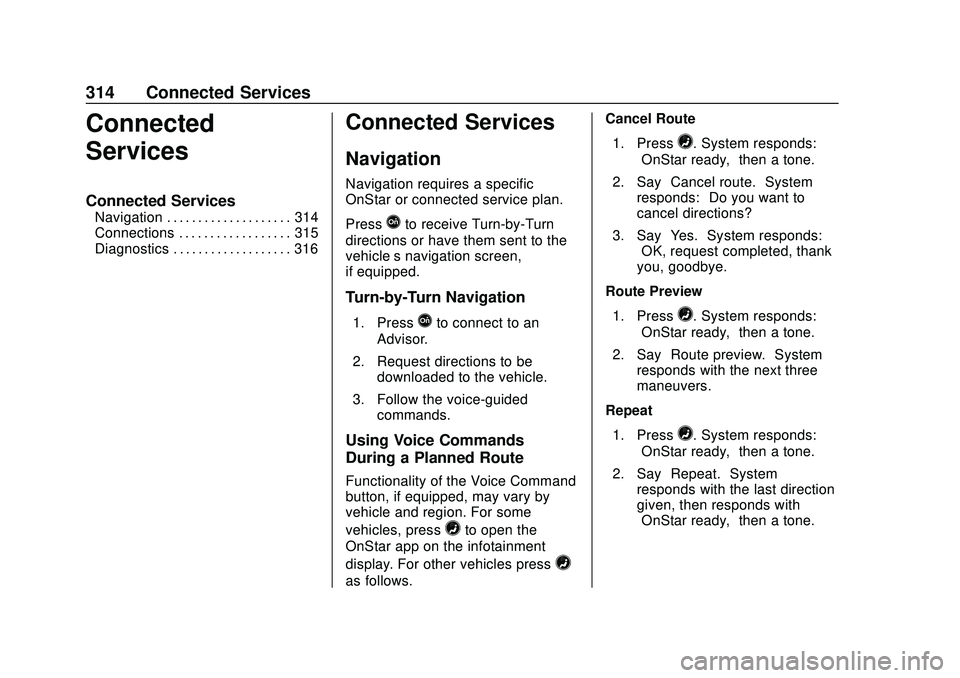

314 Connected Services
Connected
Services
Connected Services
Navigation . . . . . . . . . . . . . . . . . . . . 314
Connections . . . . . . . . . . . . . . . . . . 315
Diagnostics . . . . . . . . . . . . . . . . . . . 316
Connected Services
Navigation
Navigation requires a specific
OnStar or connected service plan.
Press
Qto receive Turn-by-Turn
directions or have them sent to the
vehicle’s navigation screen,
if equipped.
Turn-by-Turn Navigation
1. PressQto connect to an
Advisor.
2. Request directions to be downloaded to the vehicle.
3. Follow the voice-guided commands.
Using Voice Commands
During a Planned Route
Functionality of the Voice Command
button, if equipped, may vary by
vehicle and region. For some
vehicles, press
=to open the
OnStar app on the infotainment
display. For other vehicles press
=
as follows. Cancel Route
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Cancel route.” System
responds: “Do you want to
cancel directions?”
3. Say “Yes.”System responds:
“OK, request completed, thank
you, goodbye.”
Route Preview
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Route preview.” System
responds with the next three
maneuvers.
Repeat
1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Repeat.” System
responds with the last direction
given, then responds with
“OnStar ready,” then a tone.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19

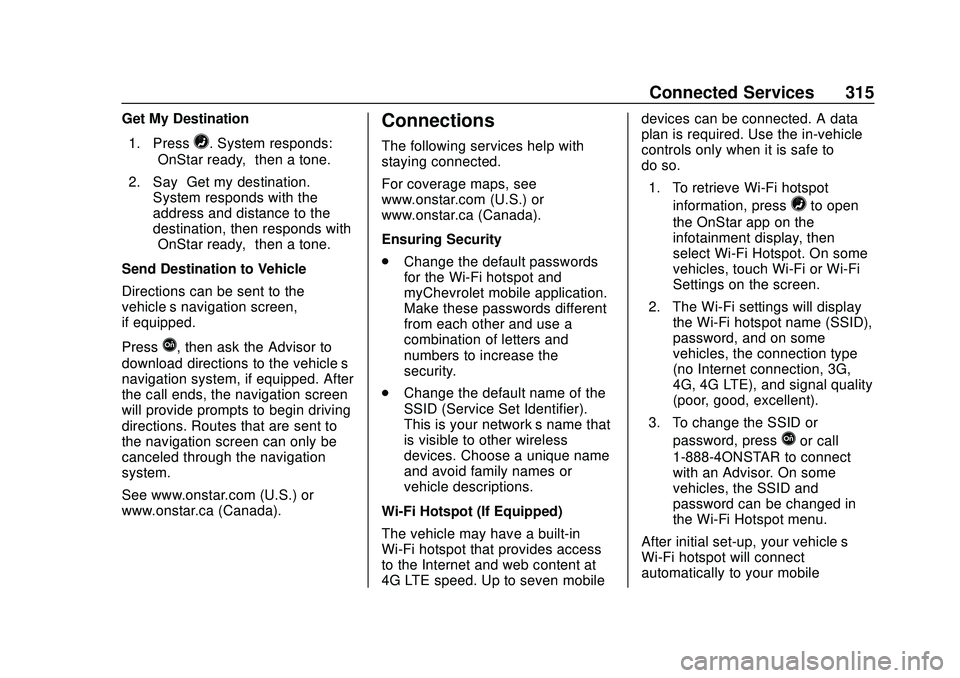

Connected Services 315
Get My Destination1. Press
=. System responds:
“OnStar ready,” then a tone.
2. Say “Get my destination.”
System responds with the
address and distance to the
destination, then responds with
“OnStar ready,” then a tone.
Send Destination to Vehicle
Directions can be sent to the
vehicle’s navigation screen,
if equipped.
Press
Q, then ask the Advisor to
download directions to the vehicle’s
navigation system, if equipped. After
the call ends, the navigation screen
will provide prompts to begin driving
directions. Routes that are sent to
the navigation screen can only be
canceled through the navigation
system.
See www.onstar.com (U.S.) or
www.onstar.ca (Canada).
Connections
The following services help with
staying connected.
For coverage maps, see
www.onstar.com (U.S.) or
www.onstar.ca (Canada).
Ensuring Security
. Change the default passwords
for the Wi-Fi hotspot and
myChevrolet mobile application.
Make these passwords different
from each other and use a
combination of letters and
numbers to increase the
security.
. Change the default name of the
SSID (Service Set Identifier).
This is your network’s name that
is visible to other wireless
devices. Choose a unique name
and avoid family names or
vehicle descriptions.
Wi-Fi Hotspot (If Equipped)
The vehicle may have a built-in
Wi-Fi hotspot that provides access
to the Internet and web content at
4G LTE speed. Up to seven mobile devices can be connected. A data
plan is required. Use the in-vehicle
controls only when it is safe to
do so.
1. To retrieve Wi-Fi hotspot information, press
=to open
the OnStar app on the
infotainment display, then
select Wi-Fi Hotspot. On some
vehicles, touch Wi-Fi or Wi-Fi
Settings on the screen.
2. The Wi-Fi settings will display the Wi-Fi hotspot name (SSID),
password, and on some
vehicles, the connection type
(no Internet connection, 3G,
4G, 4G LTE), and signal quality
(poor, good, excellent).
3. To change the SSID or password, press
Qor call
1-888-4ONSTAR to connect
with an Advisor. On some
vehicles, the SSID and
password can be changed in
the Wi-Fi Hotspot menu.
After initial set-up, your vehicle’s
Wi-Fi hotspot will connect
automatically to your mobile

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19
316 Connected Services
devices. Manage data usage by
turning Wi-Fi on or off on your
mobile device, using the
myChevrolet mobile app, or by
contacting an OnStar Advisor. On
some vehicles, Wi-Fi can also be
managed from the Wi-Fi
Hotspot menu.
MyChevrolet Mobile App (If
Available)
Download the myChevrolet mobile
app to compatible Apple and
Android smartphones. Chevrolet
users can access the following
services from a smartphone:
.Remotely start/stop the vehicle,
if factory-equipped.
. Lock/unlock doors, if equipped
with automatic locks.
. Activate the horn and lamps.
. Check the vehicle’s fuel level, oil
life, or tire pressure,
if factory-equipped with the Tire
Pressure Monitor System.
. Send destinations to the vehicle.
. Locate the vehicle on a map
(U.S. market only). .
Turn the vehicle's Wi-Fi hotspot
on/off, manage settings, and
monitor data consumption,
if equipped.
. Locate a dealer and schedule
service.
. Request roadside assistance.
. Set a parking reminder with pin
drop, take a photo, make a note,
and set a timer.
. Connect with Chevrolet on social
media.
Features are subject to change.
For myChevrolet mobile app
information and compatibility, see
my.chevrolet.com.
An active OnStar or connected
service plan may be required.
A compatible device,
factory-installed remote start, and
power locks are required. Data rates
apply. See www.onstar.com for
details and system limitations.
Remote Services
Contact an OnStar Advisor to
unlock the doors or sound the horn
and flash the lamps.
Marketplace
OnStar Advisors can provide offers
from restaurants and retailers on
your route, help locate hotels,
or book a room. These services
vary by market.
Diagnostics
By monitoring and reporting on the
vehicle's key systems, OnStar
Advanced Diagnostics, if equipped,
provides a way to keep up on
maintenance. Capabilities vary by
model. See www.onstar.com for
details and system limitations.
Features are subject to change. For
updates on feature capabilities, see
my.chevrolet.com. Message and
data rates may apply.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19
Index 317
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 204
Accessory Power . . . . . . . . . . . . . . . 177
Add-On Electrical Equipment . . . 201
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 310
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 284
Agreements
Trademarks and License . . . . . 151
Air Cleaner/Filter, Engine . . . . . . . 212
Air Conditioning . . . . . . . . . . . . . . . . 153
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 156
Air Intake . . . . . . . . . . . . . . . . . . . . . . . 156
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 155
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 63
How Does an Airbag
Restrain? . . . . . . . . . . . . . . . . . . . . . 56
Passenger Sensing System . . . . 58
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 56
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 57
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 55 Airbag System (cont'd)
Where Are the Airbags? . . . . . . . . 54
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 63
Passenger Status Indicator . . . . . 99
Readiness Light . . . . . . . . . . . . . . . . 98
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 62
System Check . . . . . . . . . . . . . . . . . . 52
Alarm Vehicle Security . . . . . . . . . . . . . . . . 27
All-Season Tires . . . . . . . . . . . . . . . . 234
AM-FM Radio . . . . . . . . . . . . . . . . . . . 131
Antenna Backglass . . . . . . . . . . . . . . . . . . . . 133
Multi-band . . . . . . . . . . . . . . . . . . . . 134
Antilock Brake System (ABS) . . . 183 Warning Light . . . . . . . . . . . . . . . . . 103
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 266
Interior . . . . . . . . . . . . . . . . . . . . . . . . 271
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . 146
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . 41
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 298

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19
318 Index
AudioBluetooth . . . . . . . . . . . . . . . . . . . . . 138
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 23
Headlamp System . . . . . . . . . . . . 121
Transmission . . . . . . . . . . . . . . . . . 180
Transmission Fluid . . . . . . . . . . . .211
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 182
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 221
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 137
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 134
B
Backglass Antenna . . . . . . . . . . . . . 133
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 125
Load Management . . . . . . . . . . . . 124
Power Protection . . . . . . . . . . . . . 125
Battery - North America . . . . 220, 260
Blade Replacement, Wiper . . . . . 222
Bluetooth Overview . . . . . . . . . . . . . . . . 140, 141
Bluetooth Audio . . . . . . . . . . . . . . . . 138 Brake
System Warning Light . . . . . . . . 102
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 218 Antilock . . . . . . . . . . . . . . . . . . . . . . . 183
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 184
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Parking . . . . . . . . . . . . . . . . . . . . . . . 184
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 160
Break-In, New Vehicle . . . . . . . . . . 170
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . 225
Headlamp Aiming . . . . . . . . . . . . . 225
Headlamps . . . . . . . . . . . . . . . . . . . 225
Headlamps and Front Turn
Signal . . . . . . . . . . . . . . . . . . . . . . . 225
License Plate Lamps . . . . . . . . . 227
Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 226
Buying New Tires . . . . . . . . . . . . . . . 248
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 93
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 204 California
Proposition
65 Warning . . . . . . . . . .203, 220, 260,
Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . 191
Canadian Vehicle Owners . . . . . . . . 2
Capacities and
Specifications . . . . . . . . . . . . . . . . . 291
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 179
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 26
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Winter Driving . . . . . . . . . . . . . . . . 164
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Caution, Danger, and Warning . . . . 2
Chains, Tire . . . . . . . . . . . . . . . . . . . . 252
Charging System Light . . . . . . . . . 100
Check Engine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 100
Ignition Transmission Lock . . . 221
Child Restraints Infants and Young Children . . . . . 66
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 71
Older Children . . . . . . . . . . . . . . . . . . 64

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S./Canada-13566834) -
2020 - CRC - 10/4/19
Index 319
Child Restraints (cont'd)Securing . . . . . . . . . . . . . . . . . . . . 80, 82
Systems . . . . . . . . . . . . . . . . . . . . . . . . 68
Circuit Breakers . . . . . . . . . . . . . . . . 229
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 266
Interior Care . . . . . . . . . . . . . . . . . . 271
Climate Control Systems . . . . . . . 153 Air Conditioning . . . . . . . . . . . . . . 153
Heating . . . . . . . . . . . . . . . . . . . . . . . 153
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cluster, Instrument . . . . . . . . . . . . . . 95
Collision Damage Repair . . . . . . . 301
Compact Spare Tire . . . . . . . . . . . . 259
Compartment . . . . . . . . . . . . . . . . . . . . 87 Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . 86
Compass . . . . . . . . . . . . . . . . . . . . . . . . 93
Connected Services Connections . . . . . . . . . . . . . . . . . . 315
Diagnostics . . . . . . . . . . . . . . . . . . . 316
Navigation . . . . . . . . . . . . . . . . . . . . 314
Connections Connected Services . . . . . . . . . . 315
Control
Traction and ElectronicStability . . . . . . . . . . . . . . . . . . . . . 185 Control of a Vehicle . . . . . . . . . . . . . 160
Convex Mirrors . . . . . . . . . . . . . . . . . . 30
Coolant
Engine TemperatureWarning Light . . . . . . . . . . . . . . . 106
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . 153
Cooling System . . . . . . . . . . . . . . . . . 213
Courtesy Lamps . . . . . . . . . . . . . . . . 123
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . . . . 300
Cover
Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Cruise Control . . . . . . . . . . . . . . . . . . 187 Light . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Customer Assistance . . . . . . . . . . . 297 Offices . . . . . . . . . . . . . . . . . . . . . . . . 296
Text Telephone (TTY)
Users . . . . . . . . . . . . . . . . . . . . . . . 297
Customer Information Publications OrderingInformation . . . . . . . . . . . . . . . . . . 303
Customer Satisfaction Procedure . . . . . . . . . . . . . . . . . . . . . 294
Cybersecurity . . . . . . . . . . . . . . . . . . . 306
D
Damage Repair, Collision . . . . . . . 301
Danger, Warning, and Caution . . . . 2 Data Collection
OnStar . . . . . . . . . . . . . . . . . . . . . . . 307
Data Recorders, Event . . . . . . . . . 306
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . . . 120
Defensive Driving . . . . . . . . . . . . . . . 160
Delayed Locking . . . . . . . . . . . . . . . . . 23
Diagnostics Connected Services . . . . . . . . . . 316
Distracted Driving . . . . . . . . . . . . . . . 159
Dome Lamps . . . . . . . . . . . . . . . . . . . 123
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . 109
Delayed Locking . . . . . . . . . . . . . . . . 23
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Drive Belt Routing, Engine . . . . . . 293
Driver Assistance Systems . . . . . 190
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . 109
Driving Better Fuel Economy . . . . . . . . . 159
Defensive . . . . . . . . . . . . . . . . . . . . . 160
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 160
Hill and Mountain Roads . . . . . . 163
If the Vehicle is Stuck . . . . . . . . . 165
Loss of Control . . . . . . . . . . . . . . . 162
Off-Road Recovery . . . . . . . . . . . 162
Vehicle Load Limits . . . . . . . . . . . 166
