10-30 Vehicle Care
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Number Usage
1 Windshield Washer
2 Rear Window Washer Relay
3 Windshield Washer Relay
4 Horn Relay
5 Fan High Relay
6 Fan Low Relay
7 Antilock Brake System 1
8 Horn
9 Not Used
10 Not Used
11 Spare Fuse
12 Fan High
13 Front Fog Number Usage
14 Headlamp High Left
15 Headlamp High Right
16 Fan Low
17 Antilock Brake System 2
18 Not Used
19 Spare Fuse
20 Front Fog Relay
21 Headlamp High Relay
22 Fuel Pump Relay
23 Not Used
24 Spare Fuse
25 Antilock Brake System 3
26 EMIS 2
27 Canister
28 Fuel Pump Number Usage
29 Front Wiper
30 Front Wiper Control Relay
31 Spare Fuse
32 Starter
33 Ignition
34 EMIS 1
35 Not Used
36 Not Used
37 Front Wiper Speed Relay
38 Not Used
39 Start Relay
40 Engine Relay
41 RUN/CRANK Relay
42 Interior Electrical Center
43 Not Used

Black plate (31,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-31
Number Usage44 Air Conditioning Relay
45 Air Conditioning
46 ECM/TCM 1
47 ECM/TCM 2
48 Low Vacuum Switch
49 Automatic Occupant Sensing
50 Mirror Heater
51 Rear Defog
52 Fuse Puller
53 Not Used
54 Voltage Sensing
55 Rear Wiper
56 Rear Wiper Relay

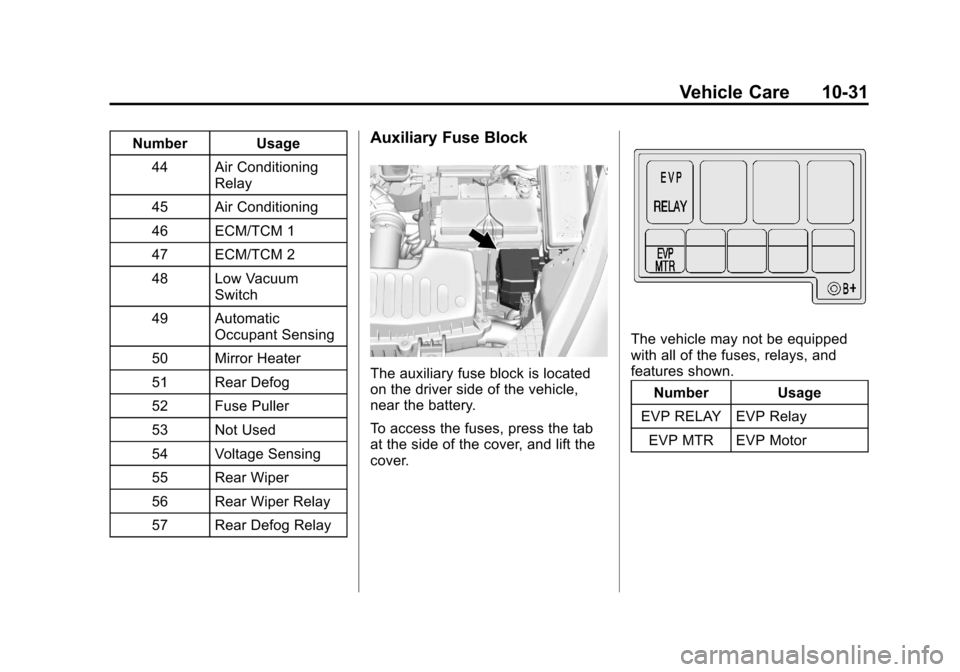

57 Rear Defog RelayAuxiliary Fuse Block
The auxiliary fuse block is located
on the driver side of the vehicle,
near the battery.
To access the fuses, press the tab
at the side of the cover, and lift the
cover.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Number Usage
EVP RELAY EVP Relay EVP MTR EVP Motor

Black plate (33,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-33
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Number Usage
1 Not Used
2 Not Used
3 Heater, Ventilation, and Air
Conditioning
Switch
4 Heated Seat
5 Not Used
6 Blower
7 Body Control Module 4
8 Body Control Module 5
9 Body Control Module 7
10 Instrument Cluster
11 Not Used
12 Air Bag Power Number Usage
13 Radio
14 Not Used
15 Rear Parking Assist
16 Body Control Module 1
17 Body Control Module 2
18 Body Control Module 3
19 Body Control Module 6
20 Body Control Module 8
21 Heater, Ventilation, and Air
Conditioning
22 Data Link Connector

Black plate (34,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-34 Vehicle Care
Number Usage23 Discrete Logic Ignition Sensor
24 Outside Rearview Mirror
25 Spare Fuse
26 Not Used
27 Not Used
28 Instrument Cluster
29 Air Bag Ignition
30 Rear Window
31 Front Window
32 Lighter/Auxiliary Power Outlet
33 Not Used
34 Run Relay
35 Logic Mode Relay Number Usage
36 Accessory/ Retained
Accessory Power
Relay
37 Not Used
38 Radio
39 Heater, Ventilation, and Air
Conditioning
40 OnStar
41 Spare Fuse
42 Spare Fuse
43 Spare Fuse
44 Spare Fuse
45 Spare Fuse
46 Spare FuseWheels and Tires
