technical specifications CHEVROLET SS 2017 1.G Owners Manual

Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Technical Data 361
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 361Service Parts IdentificationLabel . . . . . . . . . . . . . . . . . . . . . . . . 361
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 362Engine Drive Belt Routing . . . . 363
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the frontcorner of the instrument panel, onthe driver side of the vehicle. It canbe seen through the windshield fromoutside. The Vehicle IdentificationNumber (VIN) also appears on theVehicle Certification and ServiceParts labels and certificates of titleand registration.
Engine Identification
The eighth character in the VIN isthe engine code. This codeidentifies the vehicle's engine,specifications, and replacementparts. See“Engine Specifications”underCapacities and Specifications0362for the vehicle's engine code.
Service Parts
Identification Label
This label, on the rear load floor,behind the spare tire tub, has thefollowing information:
.Vehicle IdentificationNumber (VIN).
.Model designation.
.Paint information.
.Production options and specialequipment.
Do not remove this label from thevehicle.

Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
362 Technical Data

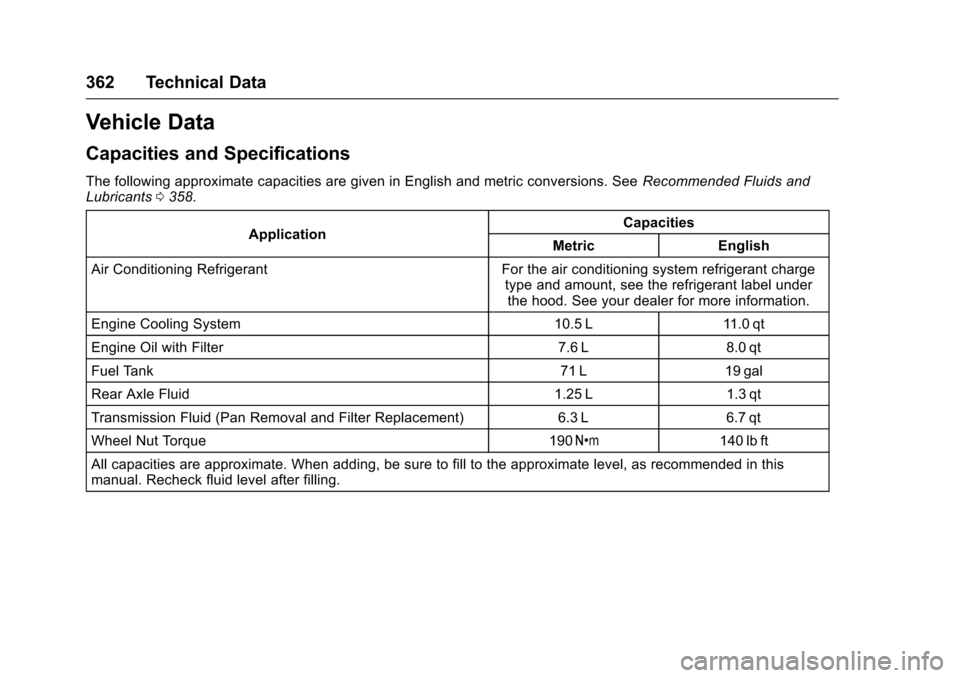

Vehicle Data
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids andLubricants0358.
ApplicationCapacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant chargetype and amount, see the refrigerant label underthe hood. See your dealer for more information.
Engine Cooling System 10.5 L 11.0 qt
Engine Oil with Filter 7.6 L 8.0 qt
Fuel Tank 71 L 19 gal
Rear Axle Fluid 1.25 L 1.3 qt
Transmission Fluid (Pan Removal and Filter Replacement) 6.3 L 6.7 qt
Wheel Nut Torque 190Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in thismanual. Recheck fluid level after filling.

Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
Technical Data 363

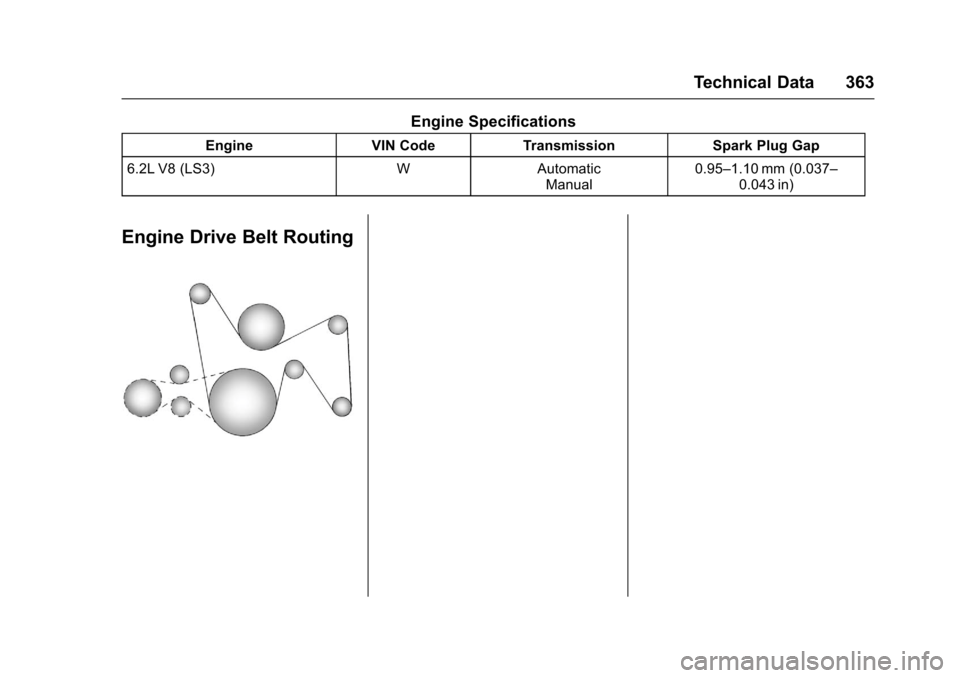

Engine Specifications
EngineVIN CodeTr a n s m i s s i o nSpark Plug Gap
6.2L V8 (LS3)WAutomaticManual0.95–1.10 mm (0.037–0.043 in)
Engine Drive Belt Routing
