CHEVROLET SS 2017 1.G Owners Manual
Manufacturer: CHEVROLET, Model Year: 2017, Model line: SS, Model: CHEVROLET SS 2017 1.GPages: 400, PDF Size: 7.31 MB
Page 1 of 400
23348492 A
SS Sedan Owner’s Manual
2017
SS Sedan
C
M
Y
CM
MY
CY
CMY
K
2k17_Chevrolet_SS_Sedan_23348492A.ai 1 9/6/2016 10:22:02 AM2k17_Chevrolet_SS_Sedan_23348492A.ai 1 9/6/2016 10:22:02 AM
Page 2 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 9/1/16
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 24
Seats and Restraints . . . . . . . . . . . 44
Storage . . . . . . . . . . . . . . . . . . . . . . . . . 87
Instruments and Controls . . . . . . . 90
Lighting . . . . . . . . . . . . . . . . . . . . . . . 126
Infotainment System . . . . . . . . . . 131
Climate Controls . . . . . . . . . . . . . . 210
Driving and Operating . . . . . . . . . 216
Vehicle Care . . . . . . . . . . . . . . . . . . 270
Service and Maintenance . . . . . 348
Te c h n i c a l D a t a . . . . . . . . . . . . . . . . 3 6 1
Customer Information . . . . . . . . . 364
Reporting Safety Defects . . . . . . 374
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 378
Index . . . . . . . . . . . . . . . . . . . . 388
Page 3 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 9/1/16
2 Introduction
Introduction
The names, logos, emblems,slogans, vehicle model names, andvehicle body designs appearing inthis manual including, but not limitedto, GM, the GM logo, CHEVROLET,the CHEVROLET Emblem, SS, andthe SS Emblem are trademarks and/or service marks of General MotorsLLC, its subsidiaries, affiliates,or licensors.
This manual describes features thatmay or may not be on the vehiclebecause of optional equipment thatwas not purchased on the vehicle,model variants, countryspecifications, features/applications
that may not be available in yourregion, or changes subsequent tothe printing of this owner manual.
Refer to the purchasedocumentation relating to yourspecific vehicle to confirm thefeatures.
Keep this manual in the vehicle forquick reference.
Using this Manual
To q u i c k l y l o c a t e i n f o r m a t i o n a b o u tthe vehicle, use the Index in theback of the manual. It is analphabetical list of what is in themanual and the page number whereit can be found.
Danger, Warning, and
Caution
Warning messages found on vehiclelabels and in this manual describehazards and what to do to avoid orreduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
Litho in U.S.A.Part No. 23348492 A First Printing©2016 General Motors LLC. All Rights Reserved.
Page 4 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 9/1/16
Introduction 3

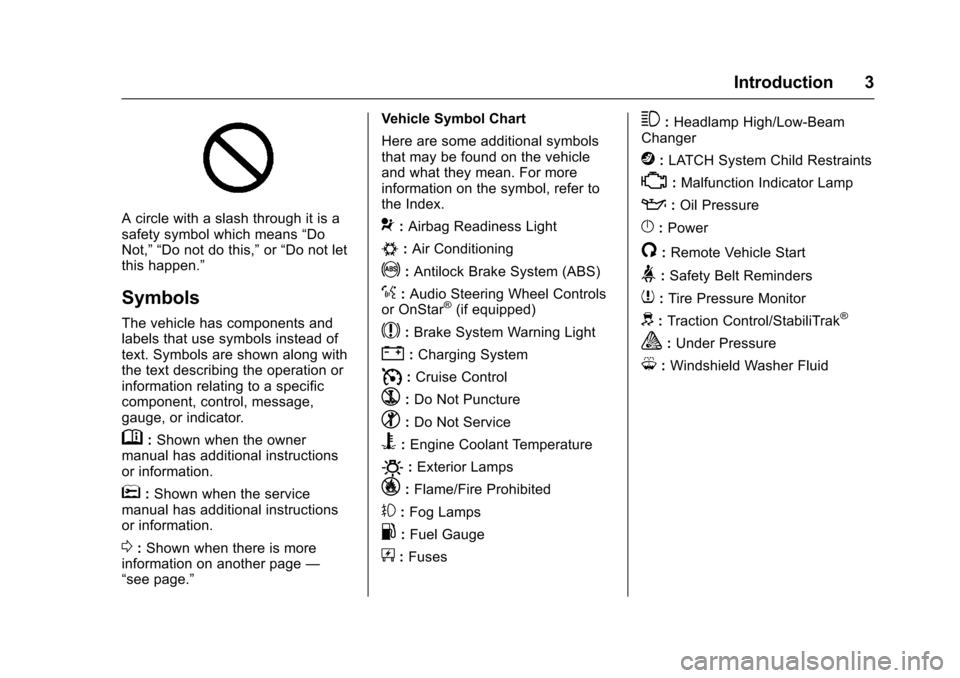

Acirclewithaslashthroughitisasafety symbol which means“DoNot,”“Do not do this,”or“Do not letthis happen.”
Symbols
The vehicle has components andlabels that use symbols instead oftext. Symbols are shown along withthe text describing the operation orinformation relating to a specificcomponent, control, message,gauge, or indicator.
M:Shown when the ownermanual has additional instructionsor information.
*:Shown when the servicemanual has additional instructionsor information.
0:Shown when there is moreinformation on another page—“see page.”
Vehicle Symbol Chart
Here are some additional symbolsthat may be found on the vehicleand what they mean. For moreinformation on the symbol, refer tothe Index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
%:Audio Steering Wheel Controlsor OnStar®(if equipped)
$:Brake System Warning Light
":Charging System
I:Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_:Flame/Fire Prohibited
#:Fog Lamps
.:Fuel Gauge
+:Fuses
3:Headlamp High/Low-BeamChanger
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
d:Traction Control/StabiliTrak®
a:Under Pressure
M:Windshield Washer Fluid
Page 5 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 9/1/16
4 Introduction
2NOTES
Page 6 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
In Brief 5
In Brief
Instrument Panel
Instrument Panel Overview . . . . . . 6
Initial Drive Information
Initial Drive Information . . . . . . . . . . 8Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . . 8Remote Vehicle Start . . . . . . . . . . . 8Door Locks . . . . . . . . . . . . . . . . . . . . . 9Windows . . . . . . . . . . . . . . . . . . . . . . . 10Seat Adjustment . . . . . . . . . . . . . . . 10Memory Features . . . . . . . . . . . . . . 11Heated and Ventilated Seats . . . 11Head Restraint Adjustment . . . . 12Safety Belts . . . . . . . . . . . . . . . . . . . . 12Passenger Sensing System . . . 12Mirror Adjustment . . . . . . . . . . . . . . 13Steering Wheel Adjustment . . . . 13Interior Lighting . . . . . . . . . . . . . . . . 13Exterior Lighting . . . . . . . . . . . . . . . 14Windshield Wiper/Washer . . . . . . 15Climate Controls . . . . . . . . . . . . . . . 16Transmission . . . . . . . . . . . . . . . . . . 16
Vehicle Features
Steering Wheel Controls . . . . . . . 17Cruise Control . . . . . . . . . . . . . . . . . 18
Driver InformationCenter (DIC) . . . . . . . . . . . . . . . . . 18Forward Collision Alert (FCA)System . . . . . . . . . . . . . . . . . . . . . . . 18Lane DepartureWarning (LDW) . . . . . . . . . . . . . . . 19Side Blind ZoneAlert (SBZA) . . . . . . . . . . . . . . . . . . 19Rear Vision Camera (RVC) . . . . 19Rear Cross Traffic Alert (RCTA)System . . . . . . . . . . . . . . . . . . . . . . . 19Parking Assist . . . . . . . . . . . . . . . . . 19Automatic ParkingAssist (APA) . . . . . . . . . . . . . . . . . . 19Power Outlets . . . . . . . . . . . . . . . . . 20Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 20
Performance and Maintenance
Traction Control/ElectronicStability Control . . . . . . . . . . . . . . 21Tire Pressure Monitor . . . . . . . . . . 21Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 22E85 or FlexFuel . . . . . . . . . . . . . . . . 22Engine Oil Life System . . . . . . . . 22Driving for Better FuelEconomy . . . . . . . . . . . . . . . . . . . . . 22Battery . . . . . . . . . . . . . . . . . . . . . . . . . 23Roadside AssistanceProgram . . . . . . . . . . . . . . . . . . . . . . 23
Page 7 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
6 In Brief

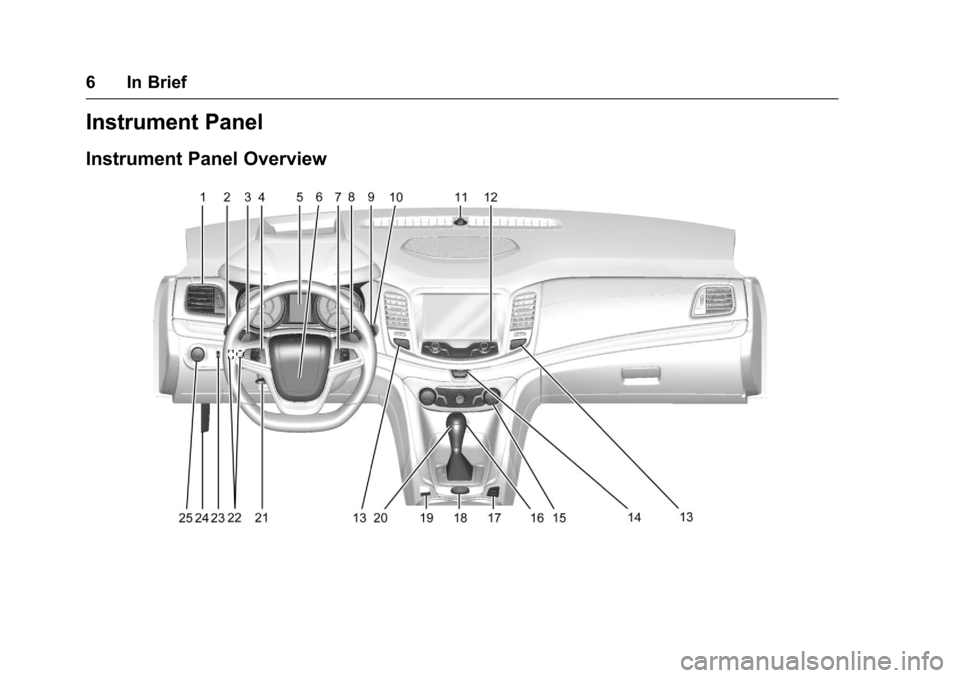

Instrument Panel
Instrument Panel Overview
Page 8 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
In Brief 7
1.Air Vents0214.
2. Turn Signal Lever. SeeTu r nand Lane-Change Signals0128.
Driver Information Center (DIC)Controls. SeeDriverInformation Center (DIC)0108.
3. + (Plus) Paddle. SeeManualMode0238.
4.Cruise Control0251.
Lane Departure Warning(LDW)0263(If Equipped).
Forward Collision Alert (FCA)System0259(If Equipped).
5.Instrument Cluster096.
6.Horn092.
7.Steering Wheel Controls091.
8.✓(Minus) Paddle. SeeManualMode0238.
9.Windshield Wiper/Washer092.
10. ENGINE START/STOP Button.SeeIgnition Positions0229.
11 . S o l a r S e n s o r. S e eDualAutomatic Climate ControlSystem0210.
Light Sensor. SeeAutomaticHeadlamp System0127.
12.Infotainment0131.
13.Heated and Ventilated FrontSeats049.
14.Hazard Warning Flashers0127.
15.Dual Automatic Climate ControlSystem0210.
16.Power Outlets094(Outof View).
17.Tr a c t i o n C o n t r o l / E l e c t r o n i cStability Control0245.
Front and Rear Parking AssistButton (If Equipped). SeeAssistance Systems forParking or Backing0254.
Automatic Parking Assist (APA)Button (If Equipped). SeeAssistance Systems forParking or Backing0254.
18.Driver Mode Control0247.
19.Electric Parking Brake0242.
20. Shift Lever. SeeAutomaticTr a n s m i s s i o n0236orManualTr a n s m i s s i o n0240(IfEquipped).
21.Steering Wheel Adjustment091.
22.Head-Up Display (HUD)011 0(Out of View).
23.Instrument Panel IlluminationControl0128.
24. Hood Release. SeeHood0273.
25.Exterior Lamp Controls0126.
Page 9 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
8 In Brief

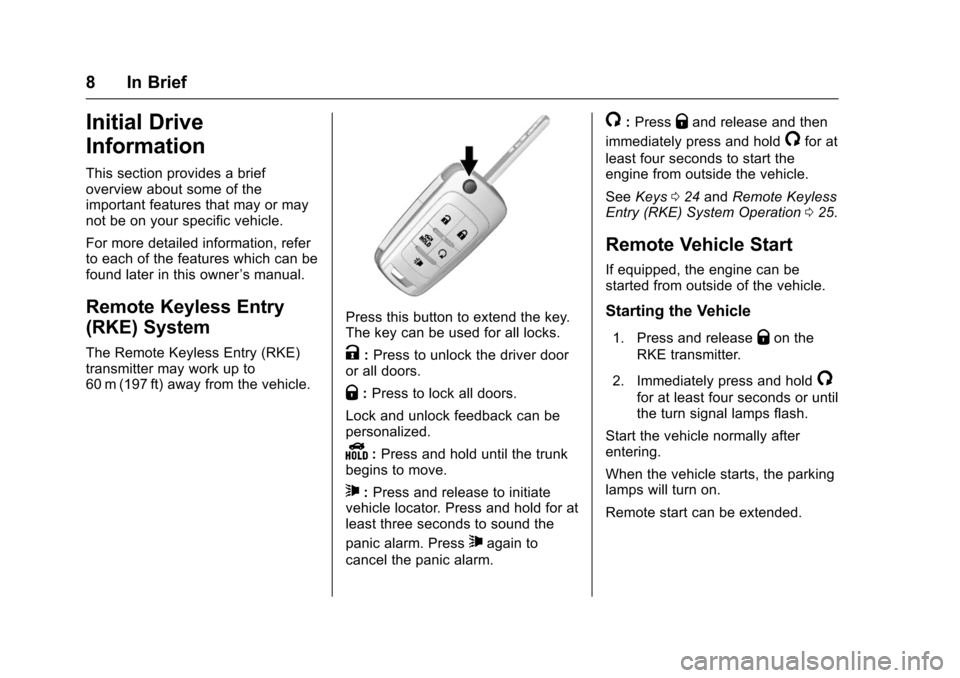

Initial Drive
Information
This section provides a briefoverview about some of theimportant features that may or maynot be on your specific vehicle.
For more detailed information, referto each of the features which can befound later in this owner’smanual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)transmitter may work up to60 m (197 ft) away from the vehicle.
Press this button to extend the key.The key can be used for all locks.
K:Press to unlock the driver dooror all doors.
Q:Press to lock all doors.
Lock and unlock feedback can bepersonalized.
Y:Press and hold until the trunkbegins to move.
7:Press and release to initiatevehicle locator. Press and hold for atleast three seconds to sound the
panic alarm. Press7again to
cancel the panic alarm.
/:PressQand release and then
immediately press and hold/for at
least four seconds to start theengine from outside the vehicle.
SeeKeys024andRemote KeylessEntry (RKE) System Operation025.
Remote Vehicle Start
If equipped, the engine can bestarted from outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
RKE transmitter.
2. Immediately press and hold/
for at least four seconds or untilthe turn signal lamps flash.
Start the vehicle normally afterentering.
When the vehicle starts, the parkinglamps will turn on.
Remote start can be extended.
Page 10 of 400
Chevrolet SS Sedan Owner Manual (GMNA-Localizing-U.S.-10122752) -2017 - crc - 8/31/16
In Brief 9
Canceling a Remote Start
To c a n c e l a r e m o t e s t a r t , d o o n e o fthe following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warningflashers.
.Turn the vehicle on and then off.
SeeRemote Vehicle Start030.
Door Locks
To l o c k o r u n l o c k t h e d o o r s f r o m t h eoutside:
.PressQorKon the Remote
Keyless Entry (RKE) transmitter.SeeRemote Keyless Entry(RKE) System Operation025.
.Use the key in the driver door.Turn the key toward the rear tolock all doors. Turn the keytoward the front to unlock thedriver door. Turn the key againtoward the front to unlock alldoors.
To l o c k o r u n l o c k t h e d o o r s f r o m t h einside:
.PressQorK.
.Push the door lock knob on thetop of the door to lock.
.Pull the door handle once tounlock the door. Pulling thehandle again unlatches the door.
SeeDoor Locks032orPower DoorLocks033.
Keyless Access
If equipped, press the button on thedriver door handle when the RKEtransmitter is within 1 m (3 ft) of thedriver door handle. When unlockingfrom the driver door, the first pressunlocks that door; press againwithin five seconds to unlock allpassenger doors. SeeRemoteKeyless Entry (RKE) SystemOperation025.
