Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on page 2-19
if necessary.
Do not use the accelerator pedal, and be ready
to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or NEUTRAL (N).
If the starter works in any other position, your
vehicle needs service.
Automatic Transmission Shift Lock
Control System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-19if necessary.
Be ready to apply the regular brake immediately
if the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but do not start the engine. Without
applying the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), your vehicle
needs service.
6-11

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to OFF in each shift lever position.
The key should turn to OFF only when the shift
lever is in PARK (P).
The key should come out only in OFF.
Parking Brake and Automatic
Transmission Park (P) Mechanism
Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could
be injured and property could be damaged.
Make sure there is room in front of your
vehicle in case it begins to roll. Be ready to
apply the regular brake at once should the
vehicle begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set
the parking brake.
To check the parking brake’s holding ability: With the
engine running and transmission in NEUTRAL (N),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other
debris can collect.
6-12

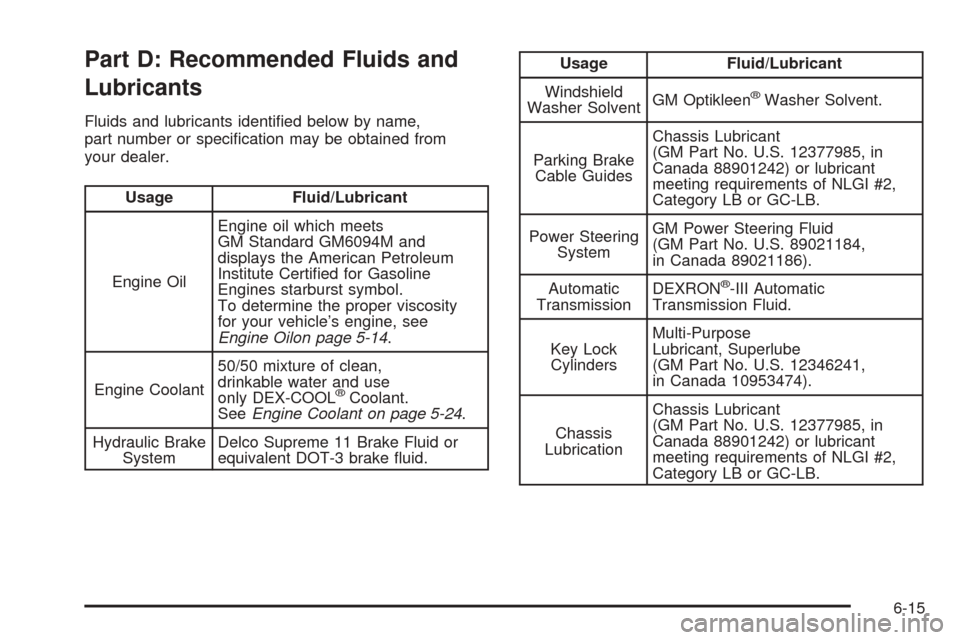

Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets
GM Standard GM6094M and
displays the American Petroleum
Institute Certied for Gasoline
Engines starburst symbol.
To determine the proper viscosity
for your vehicle’s engine, see
Engine Oilon page 5-14.
Engine Coolant50/50 mixture of clean,
drinkable water and use
only DEX-COOL
®Coolant.
SeeEngine Coolant on page 5-24.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Usage Fluid/Lubricant
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-III Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose
Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
6-15

GM Mobility Program for Persons
with Disabilities
This program, available to
qualied applicants, can
reimburse you up to
$1,000 toward eligible
aftermarket driver or
passenger adaptive
equipment that may be
required for your vehicle,
such as hand controls,
wheelchair/scooter
lifts, etc.
This program can also provide you with free resource
information, such as area driver assessment centers and
mobility equipment installers. The offer is available for
a limited period of time from the date of vehicle
purchase/lease. For more details, or to determine your
vehicle’s eligibility, see your GM dealer or call the
GM Mobility Assistance Center at 1-800-323-9935. Text
telephone (TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program. Call
1-800-GM-DRIVE (463-7483) for details. All TTY users
call 1-800-263-3830.
Roadside Assistance Program
To enhance Chevrolet’s strong commitment to customer
satisfaction, Chevrolet is excited to announce the
establishment of the Chevrolet Roadside Assistance
Center. As the owner of a 2003 Chevrolet, membership
in Roadside Assistance is free.
Roadside Assistance is available 24 hours a day,
365 days a year, by calling 1-800-CHEV-USA
(243-8872). This toll-free number will provide you
over-the-phone roadside assistance with minor
mechanical problems. If your problem cannot be
resolved over the phone, our advisors have access to a
nationwide network of dealer recommended service
providers. Roadside membership is free; however some
services may incur costs.
Roadside offers two levels of service to the customer,
Basic CareandCourtesy Care:
RoadsideBasic Careprovides:
Toll-free number, 1-800-CHEV-USA (243-8872),
text telephone (TTY) users, call 1-888-889-2438
Free towing for warranty repairs
Basic over-the-phone technical advice
Available dealer services at reasonable costs (i.e.,
wrecker services, locksmith/key service, glass
repair, etc.)
7-5

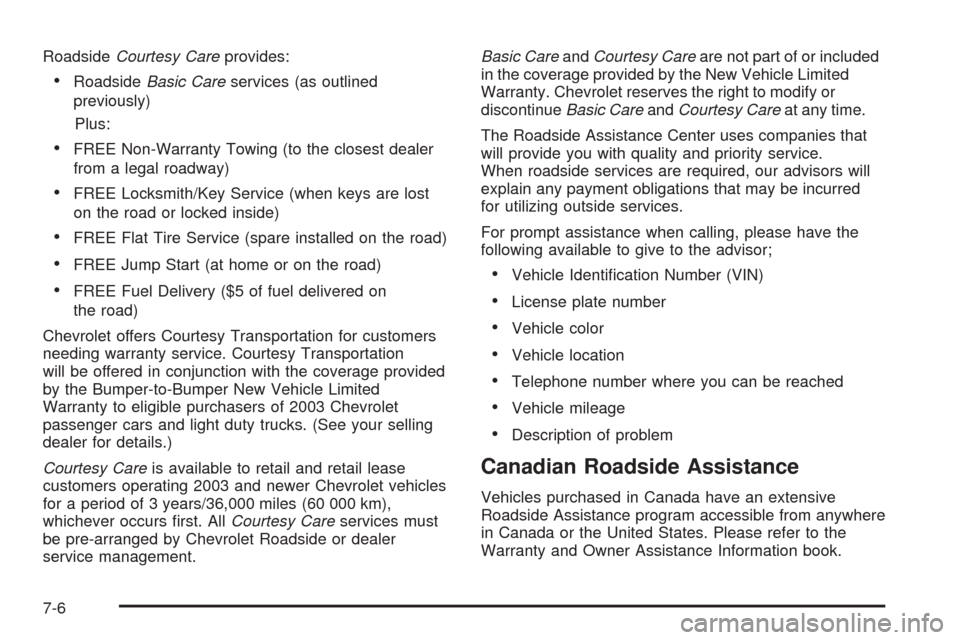

RoadsideCourtesy Careprovides:
RoadsideBasic Careservices (as outlined
previously)
Plus:
FREE Non-Warranty Towing (to the closest dealer
from a legal roadway)
FREE Locksmith/Key Service (when keys are lost
on the road or locked inside)
FREE Flat Tire Service (spare installed on the road)
FREE Jump Start (at home or on the road)
FREE Fuel Delivery ($5 of fuel delivered on
the road)
Chevrolet offers Courtesy Transportation for customers
needing warranty service. Courtesy Transportation
will be offered in conjunction with the coverage provided
by the Bumper-to-Bumper New Vehicle Limited
Warranty to eligible purchasers of 2003 Chevrolet
passenger cars and light duty trucks. (See your selling
dealer for details.)
Courtesy Careis available to retail and retail lease
customers operating 2003 and newer Chevrolet vehicles
for a period of 3 years/36,000 miles (60 000 km),
whichever occurs rst. AllCourtesy Careservices must
be pre-arranged by Chevrolet Roadside or dealer
service management.Basic CareandCourtesy Careare not part of or included
in the coverage provided by the New Vehicle Limited
Warranty. Chevrolet reserves the right to modify or
discontinueBasic CareandCourtesy Careat any time.
The Roadside Assistance Center uses companies that
will provide you with quality and priority service.
When roadside services are required, our advisors will
explain any payment obligations that may be incurred
for utilizing outside services.
For prompt assistance when calling, please have the
following available to give to the advisor;Vehicle Identication Number (VIN)
License plate number
Vehicle color
Vehicle location
Telephone number where you can be reached
Vehicle mileage
Description of problem
Canadian Roadside Assistance
Vehicles purchased in Canada have an extensive
Roadside Assistance program accessible from anywhere
in Canada or the United States. Please refer to the
Warranty and Owner Assistance Information book.
7-6

Inspection
Brake System.............................................6-14
Engine Cooling System................................6-14
Exhaust System..........................................6-13
Fuel System...............................................6-13
Part C - Periodic Maintenance.......................6-13
Steering, Suspension and Front Drive Axle
Boot and Seal.........................................6-13
Instrument Panel
Overview..................................................... 3-2
Storage Area..............................................2-31
Instrument Panel Brightness.............................3-14
Instrument Panel (I/P)
Cluster.......................................................3-23
Integrated Windshield Antenna..........................3-81
Interior Lamps................................................3-14
J
Jump Starting.................................................5-36
K
Key Lock Cylinders Service..............................6-10
Keyless Entry System....................................... 2-4
Keys............................................................... 2-2
L
Lamps
Exterior......................................................3-11
Interior.......................................................3-14
Lamps On Reminder.......................................3-12
Lap-Shoulder Belt...........................................1-12
LATCH System
Child Restraints...........................................1-31
Securing a Child Restraint Designed for the
LATCH System........................................1-33
Latches, Seatback............................................ 1-6
Leaving Your Vehicle......................................... 2-9
Leaving Your Vehicle With the Engine Running . . . 2-21
Light
Airbag Off..................................................3-26
Airbag Readiness........................................3-25
Anti-Lock Brake System Warning...................3-29
Brake System Warning.................................3-28
Change Engine Oil......................................3-35
Charging System.........................................3-27
Check Gages Warning.................................3-36
Cruise Control.............................................3-35
Highbeam On.............................................3-36
Malfunction Indicator....................................3-30
Reduced Engine Power................................3-36
Safety Belt Reminder...................................3-24
Security.....................................................3-35
8

Playing a CD.........................................3-65, 3-75
Playing a Specic Loaded CD..........................3-76
Playing the Radio...................................3-59, 3-68
Power
Accessory Outlets........................................3-16
Door Locks.................................................. 2-8
Electrical System.........................................5-81
Reduced Engine Light..................................3-36
Seat............................................................ 1-2
Steering Fluid.............................................5-31
Windows....................................................2-11
Power Steering...............................................4-10
Programmable Automatic Door Locks.................. 2-8
Programming HomeLink
®.................................2-28
Programming the HomeLink Transmitter.............2-27
Programming the Power Windows.....................2-11
Put Vehicle in Park.........................................3-48
Q
Questions and Answers About Safety Belts.........1-11
R
Radio Data System (RDS).......................3-62, 3-72
Radio Messages.............................................3-65
Radios..........................................................3-58
Care of Your CD Player...............................3-81
Care of Your CDs........................................3-81
Radio with CD............................................3-59
Radio with Six-Disc CD................................3-68
Setting the Time..........................................3-59
Theft-Deterrent............................................3-80
Understanding Reception..............................3-81
RDS Messages......................................3-64, 3-74
Rear Axle......................................................5-42
Rear Window Defogger....................................3-21
Rearview Mirrors.............................................2-24
Reclining Seatbacks.......................................... 1-4
Recreational Vehicle Towing.............................4-31
Reduce Speed...............................................3-48
Reduced Engine Power Light............................3-36
Relay Center..................................................5-87
Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
11
