rear view mirror CHEVROLET SSR 2005 1.G Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Safety Belts
.............................................. 1-6
Child Restraints
.......................................1-19
Airbag System
.........................................1-38
Restraint System Check
............................1-51
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
.................................................2-11
Theft-Deterrent Systems
............................2-13
Starting and Operating Your Vehicle
...........2-15
Mirrors
....................................................2-28
HomeLink
®Transmitter
.............................2-30
Storage Areas
.........................................2-35
Convertible Top
.......................................2-51
Vehicle Personalization
.............................2-59
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-20
Warning Lights, Gages, and Indicators
........3-23
Driver Information Center (DIC)
..................3-42
Audio System(s)
.......................................3-58Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-34
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
Rear Axle
...............................................5-43
Headlamp Aiming
.....................................5-44
Bulb Replacement
....................................5-44
Windshield Wiper Blade Replacement
.........5-50
Tires
......................................................5-52
Appearance Care
.....................................5-74
Vehicle Identication
.................................5-82
Electrical System
......................................5-83
Capacities and Specications
.....................5-93
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance and Information.............. 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-11
Index................................................................ 1
2005 Chevrolet SSR Owner ManualM

To turn off the passenger’s frontal airbag, insert your
ignition key into the switch, push in, and move the
switch to off position.
The airbag off light, located on the roof panel above
the rearview mirror, will come on and stay on to let
you know that the passenger’s frontal airbag is off. United States
Canada
United States
Canada
1-49

Keys...............................................................2-3
Remote Keyless Entry System.........................2-5
Remote Keyless Entry System Operation...........2-6
Doors and Locks.............................................2-9
Door Locks....................................................2-9
Power Door Locks........................................2-10
Programmable Automatic Door Locks..............2-10
Tailgate.......................................................2-11
Windows........................................................2-11
Power Windows............................................2-12
Sun Visors...................................................2-13
Theft-Deterrent Systems..................................2-13
Content Theft-Deterrent.................................2-13
Passlock
®....................................................2-15
Starting and Operating Your Vehicle................2-15
New Vehicle Break-In....................................2-15
Ignition Positions..........................................2-16
Retained Accessory Power (RAP)...................2-17
Starting Your Engine.....................................2-17
Automatic Transmission Operation...................2-19
Manual Transmission Operation......................2-21
Parking Brake..............................................2-23
Shifting Into Park (P)
(Automatic Transmission)............................2-24Shifting Out of Park (P)
(Automatic Transmission)............................2-25
Parking Your Vehicle
(Manual Transmission)...............................2-25
Parking Over Things That Burn.......................2-26
Engine Exhaust............................................2-26
Running Your Engine While You Are Parked.......2-27
Mirrors...........................................................2-28
Manual Rearview Mirror.................................2-28
Automatic Dimming Rearview Mirror
with HomeLink
®........................................2-28
Outside Power Heated Mirrors........................2-29
Outside Convex Mirror...................................2-29
Outside Automatic Dimming
Heated Mirror...........................................2-30
HomeLink
®Transmitter...................................2-30
HomeLink®..................................................2-30
Programming the HomeLink®..........................2-31
Storage Areas................................................2-35
Glove Box...................................................2-35
Cupholder(s)................................................2-35
Instrument Panel Storage Area.......................2-35
Center Console Storage Area.........................2-35
Map Pocket.................................................2-35
Section 2 Features and Controls
2-1

Mirrors
Manual Rearview Mirror
The vehicle may have a manual rearview mirror. While
sitting in a comfortable driving position, adjust the mirror
so you can see clearly behind your vehicle. Grip the
mirror in the center to move it up or down and side to
side. The control at the bottom of the mirror is the
day/night feature that allows adjustment to the mirror so
that the glare of headlamps from behind is reduced.
Push the control for daytime use; pull it for night use.
Automatic Dimming Rearview Mirror
with HomeLink
®
The vehicle may have an automatic dimming rearview
mirror with map lamps and HomeLink®Transmitter
buttons. For more information about this feature, see
HomeLink
®on page 2-30.
While sitting in a comfortable driving position, adjust
the mirror so you can see clearly behind your vehicle.
Grip the mirror in the center to move it up or down
and side to side.
Mirror Operation
The mirror automatically changes to reduce glare from
headlamps behind you. A time delay feature prevents
rapid changing from the day to night positions while
driving under lights and through traffic.
[(On/Off):The automatic dimming feature is
automatically activated when the vehicle is started.
The automatic dimming feature is turned on or off
by pressing this button located on the lower part
of the mirror. Press and hold the button for up to
three seconds to turn this feature on or off.
T(Indicator Light):This light will turn on when the
automatic dimming feature is on.
+(Map Lamps):Press this button to turn the map
lamps on and off.
Press the two outside mirror buttons to light the
transmission positions on the console.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as this could damage
the mirror housing.
2-28

Outside Automatic Dimming
Heated Mirror
If the vehicle has this feature, the driver’s side outside
rearview mirror will adjust for the glare of headlamps
from behind by pushing the on and off settings on the
mirror. SeeAutomatic Dimming Rearview Mirror
with HomeLink
®on page 2-28for more information.
Both outside mirrors are also heated when the
rear window defogger is turned on. See “Rear Window
Defogger” underClimate Control System on page 3-20.
The mirrors can be manually folded inward to prevent
damage when going through an automatic car wash.
To fold, push the mirror toward the vehicle. To return
the mirror to its original position, push outward. Be sure
to return the mirrors to their original unfolded position
before driving.
HomeLink®Transmitter
HomeLink®
If your vehicle has this feature, the HomeLink®
transmitter buttons are located on the automatic
dimming rearview mirror. The three buttons on the left
side of the mirror are the HomeLink
®transmitter buttons.
HomeLink
®, a combined universal transmitter and
receiver, provides a way to replace up to three
hand-held transmitters used to activate devices such
as gate operators, garage door openers, entry door
locks, security systems and home lighting. Additional
HomeLink
®information can be found on the Internet at
www.homelink.com or by calling 1-800-355-3515.
2-30

Theater Dimming
This feature allows for a three to ®ve-second fade out
of the courtesy lamps instead of immediate turn off.
Exit Lighting
With the exit lighting, the interior lamps will come on
when you remove the key from the ignition to help you
see while exiting the vehicle.
Perimeter Lighting
When the button with the unlock symbol on the remote
keyless entry transmitter is pressed, the DRL, parking
lamps and back-up lamps will come on if it is dark
enough outside.
This feature can be personalized for up to two drivers.
See
DIC Vehicle Personalization on page 3-52for
more information.
Map Lamps
If your vehicle has front map lamps, they are located on
the inside rearview mirror. They will automatically come
on for approximately 40 seconds when the doors are
unlocked with the remote keyless entry transmitter or
until the ignition key is turned to RUN or ACCESSORY.
The lamps will also stay on for approximately 40 seconds
after you exit the vehicle unless you lock the doors with
the remote keyless entry transmitter.
You can also turn the lamps on and off by pressing the
button near each lamp.
Battery Run-Down Protection
This feature shuts off all lamps that are left on for
more than 10 minutes when the ignition is off. This
will keep your battery from running down.
3-17

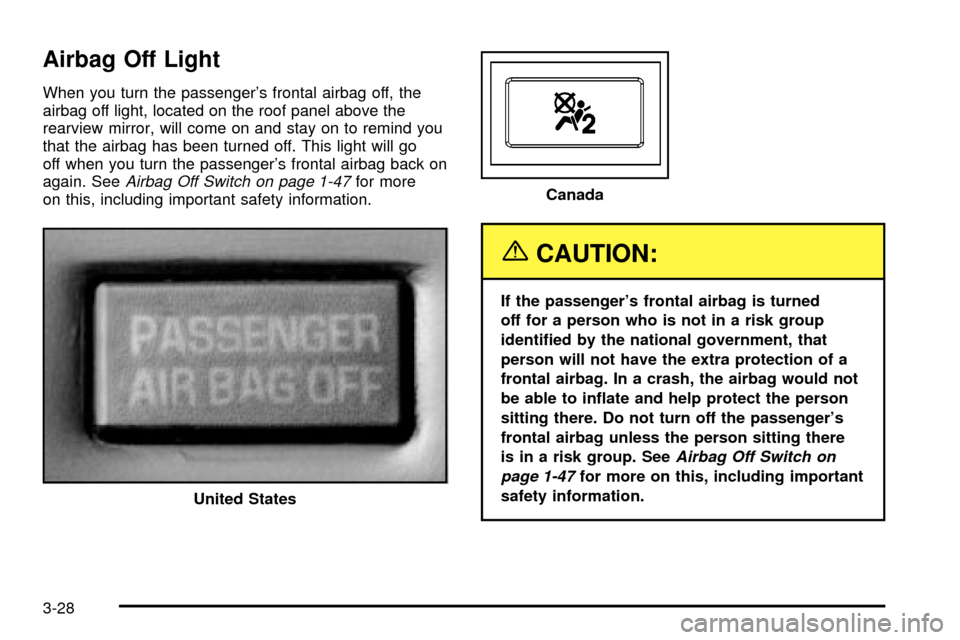

Airbag Off Light
When you turn the passenger's frontal airbag off, the
airbag off light, located on the roof panel above the
rearview mirror, will come on and stay on to remind you
that the airbag has been turned off. This light will go
off when you turn the passenger's frontal airbag back on
again. See
Airbag Off Switch on page 1-47for more
on this, including important safety information.
{CAUTION:
If the passenger's frontal airbag is turned
off for a person who is not in a risk group
identi®ed by the national government, that
person will not have the extra protection of a
frontal airbag. In a crash, the airbag would not
be able to in¯ate and help protect the person
sitting there. Do not turn off the passenger's
frontal airbag unless the person sitting there
is in a risk group. See
Airbag Off Switch on
page 1-47
for more on this, including important
safety information.
United States
Canada
3-28

Manual Transmission
Fluid..........................................................5-24
Operation...................................................2-21
Map Lamps....................................................3-17
Map Pocket...................................................2-35
Memory Seat.................................................2-59
Message
DIC Warnings and Messages........................3-45
Mirrors
Automatic Dimming Rearview Mirror
with HomeLink
®.......................................2-28
Manual Rearview Mirror................................2-28
Outside Automatic Dimming Heated Mirror......2-30
Outside Convex Mirror.................................2-29
Outside Power Heated Mirrors.......................2-29
MyGMLink.com................................................ 7-4
N
New Vehicle Break-In......................................2-15
Normal Maintenance Replacement Parts............6-14
O
Odometer......................................................3-25
Odometer, Trip...............................................3-25
Off-Road Recovery..........................................4-12Oil
Change Engine Oil Light...............................3-37
Engine.......................................................5-13
Pressure Gage............................................3-36
Older Children, Restraints................................1-19
Online Owner Center........................................ 7-4
Other Warning Devices...................................... 3-5
Outlet Adjustment............................................3-22
Outside
Automatic Dimming Heated Mirror..................2-30
Convex Mirror.............................................2-29
Power Heated Mirrors..................................2-29
Owner Checks and Services.............................. 6-8
Owners, Canadian............................................... ii
P
Park (P)
Shifting Into................................................2-24
Shifting Out of............................................2-25
Parking
Brake........................................................2-23
Over Things That Burn.................................2-26
Parking Your Vehicle.......................................2-25
Passenger Position, Safety Belts.......................1-19
Passing.........................................................4-12
Passlock
®......................................................2-15
Perimeter Lighting...........................................3-17
8

Power
Accessory Outlets........................................3-18
Door Locks.................................................2-10
Electrical System.........................................5-84
Reduced Engine Light..................................3-38
Retained Accessory (RAP)............................2-17
Seat............................................................ 1-2
Steering Fluid.............................................5-33
Windows....................................................2-12
Programmable Automatic Door Locks.................2-10
Programming the HomeLink
®Transmitter...........2-31
Q
Questions and Answers About Safety Belts.........1-11
R
Radios..........................................................3-58
Care of Your CD Player...............................3-83
Care of Your CDs........................................3-83
Radio with CD............................................3-59
Radio with Six-Disc CD................................3-71
Setting the Time..........................................3-59
Theft-Deterrent............................................3-82
Understanding Reception..............................3-83
Raising the Convertible Top..............................2-54Rear Axle......................................................5-43
Rearview Mirror, Automatic Dimming Rearview
Mirror with HomeLink
®.................................2-28
Rearview Mirrors.............................................2-28
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-34
Reduced Engine Power Light............................3-38
Remote Keyless Entry System............................ 2-5
Remote Keyless Entry System, Operation............ 2-6
Replacement Bulbs.........................................5-49
Reporting Safety Defects
Canadian Government..................................7-11
General Motors...........................................7-11
United States Government............................7-11
Restraint System Check
Checking Your Restraint Systems...................1-51
Replacing Restraint System Parts
After a Crash..........................................1-52
Restraint Systems
Checking....................................................1-51
Replacing Parts...........................................1-52
Retained Accessory Power (RAP)......................2-17
Roadside
Assistance Program....................................... 7-6
Rocking Your Vehicle to Get it Out....................4-28
Running Your Engine While You Are Parked.......2-27
9
