CHEVROLET SUBURBAN 1994 Owners Manual

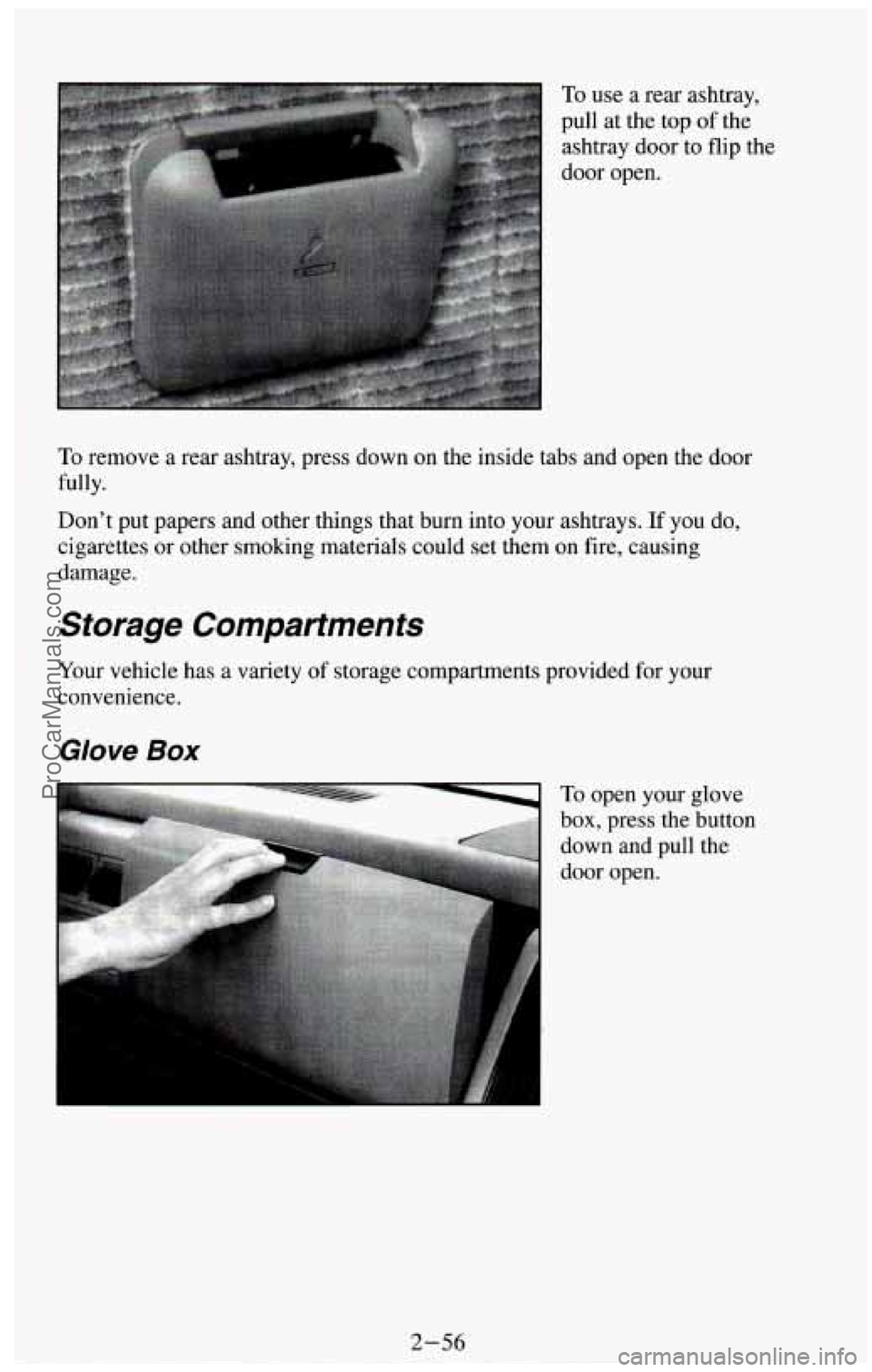

To use a rear ashtray,
pull at the top of the
ashtray door to flip the
door open.
To remove a rear ashtray, press down on the inside tabs and open the door
Don't put papers and other things that burn into your ashtrays. If you do,
cigarettes or other smoking materials could set them on fire, causing
damage. fully.
Storage Compartments
Your vehicle has a variety of storage compartments provided for your
convenience.
Glove Box
To open your glove
box, press the button
down and pull the
door open.
ProCarManuals.com

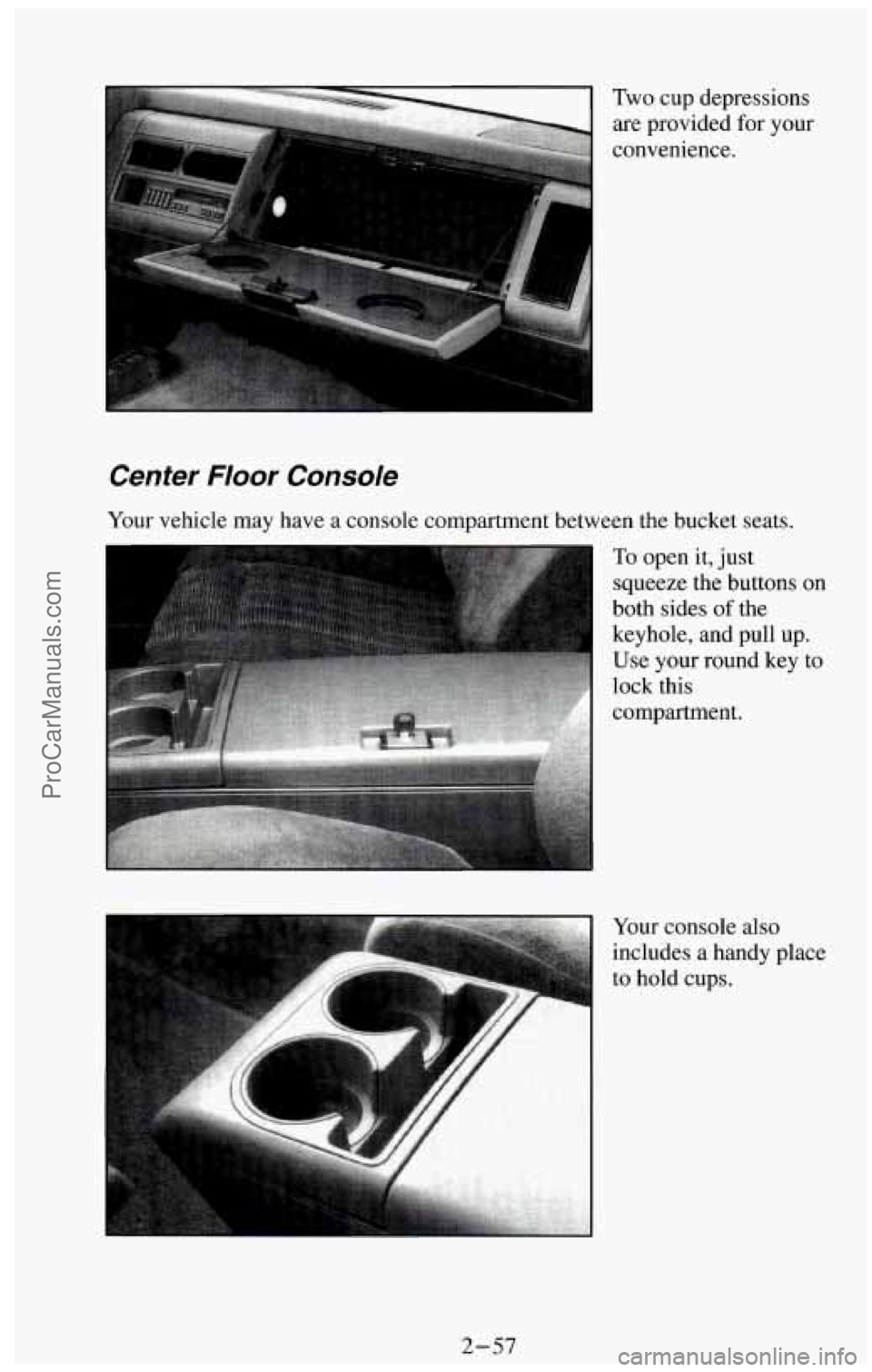

Two cup depressions
are provided for your
convenience.
Center Floor Console
Your vehicle may have a console compartment between the bucket seats.
To open it, just
squeeze the buttons on
both sides
of the
keyhole, and pull up.
Use your round key to
lock this
compartment.
Your console also
includes a handy place
to hold cups.
2-57
ProCarManuals.com

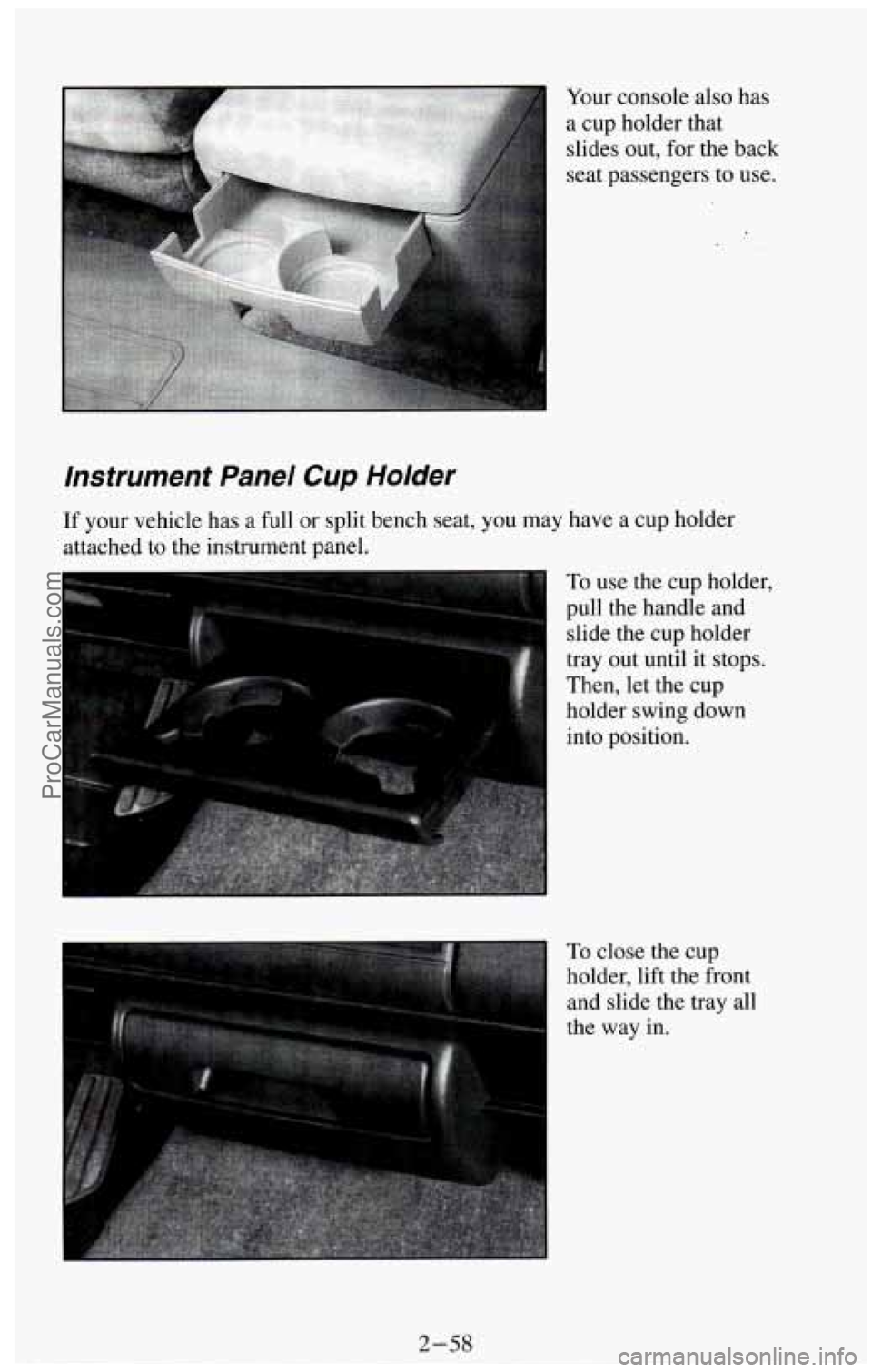

Instrument Panel Cup Holder
Your console also has
a cup holder that
slides out, for the back
seat passengers to use.
If your vehicle has a full or split bench seat, you may have a cup holder
attached to the instrument panel.
To use the cup holder,
pull the handle
and
slide the cup holder
tray out until it stops.
Then, let the cup
holder swing down
into position.
To close the cup
holder, lift the front
and slide the tray all
the way
in.
2-58
ProCarManuals.com

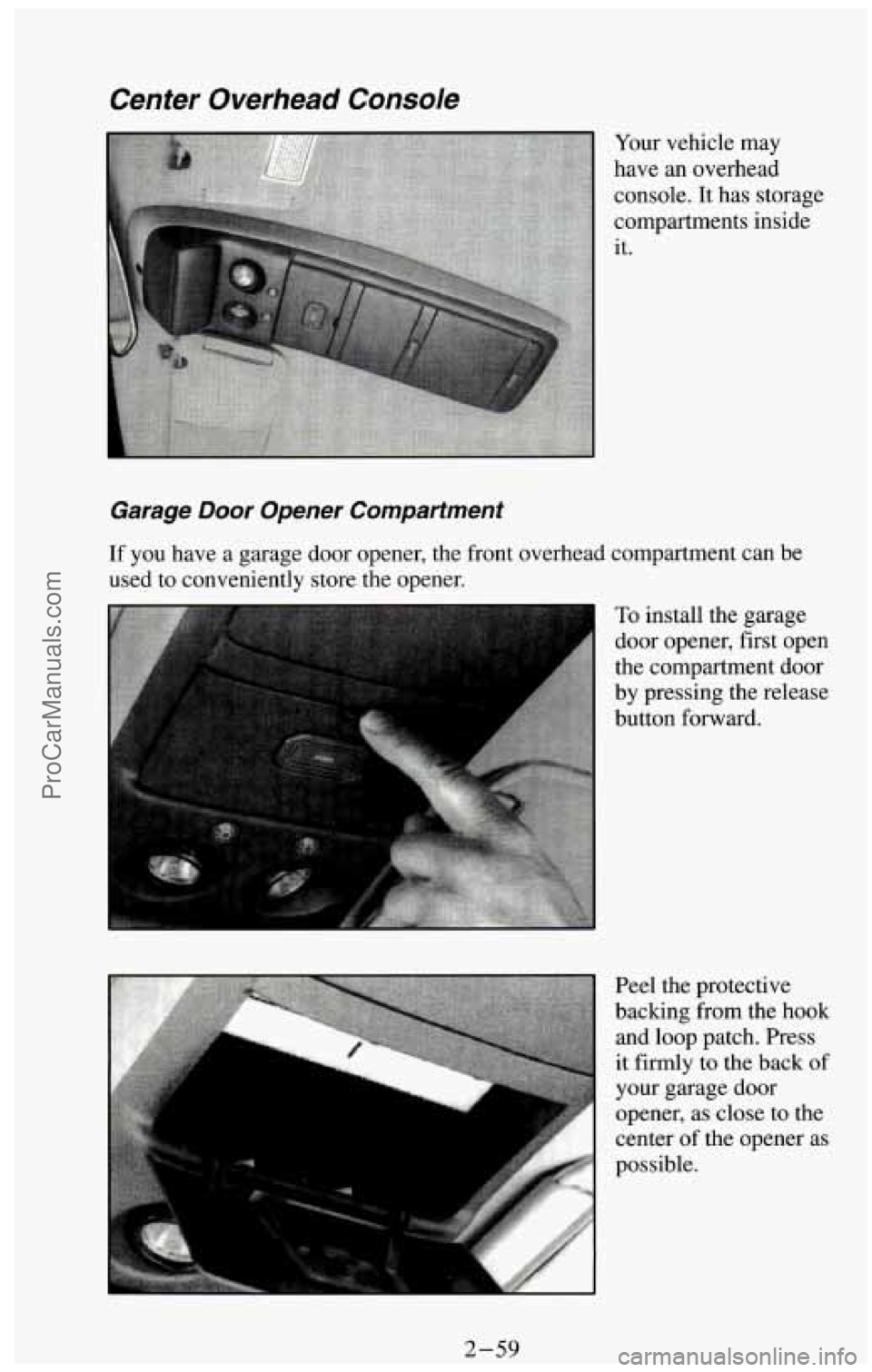

Center Overhead Console
Garage Door Opener Compartment
Your vehicle may
have an overhead
console. It has storage
compartments inside
it.
If you have a garage door opener, the front overhead compartment can be
used to conveniently store the opener.
I To install the garage
door opener, first open
the compartment door
by pressing the release
button forward.
2-59 ProCarManuals.com

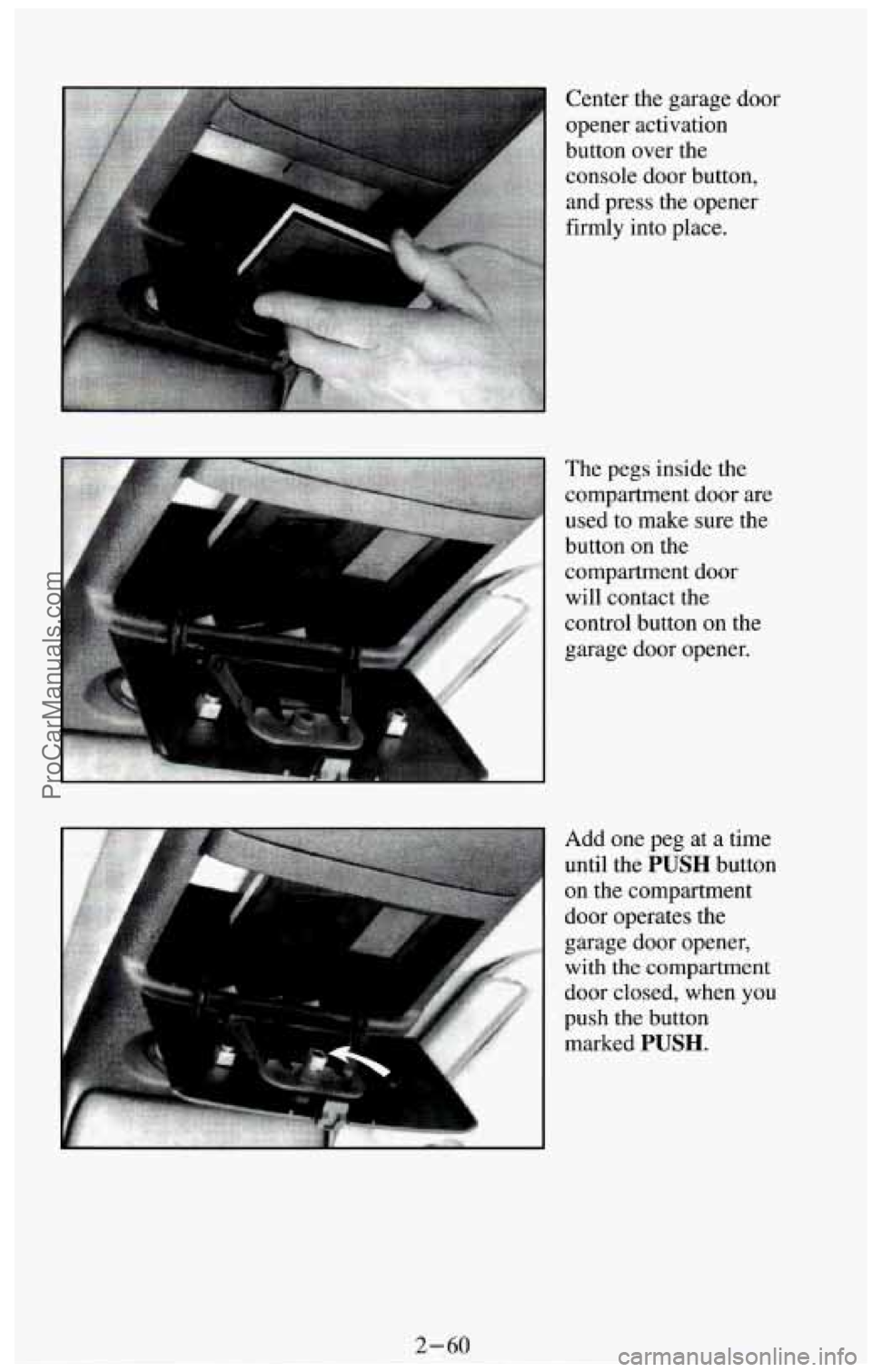

The pegs inside the
compartment door
are
used to make sure the
button on the
compartment door
will contact the
control button on the
garage door opener.
Add one peg at a time
until the
PUSH button
on the compartment
door operates the
garage door opener,
with the compartment
door closed, when
you
push the button
marked
PUSH.
2-60
ProCarManuals.com

?

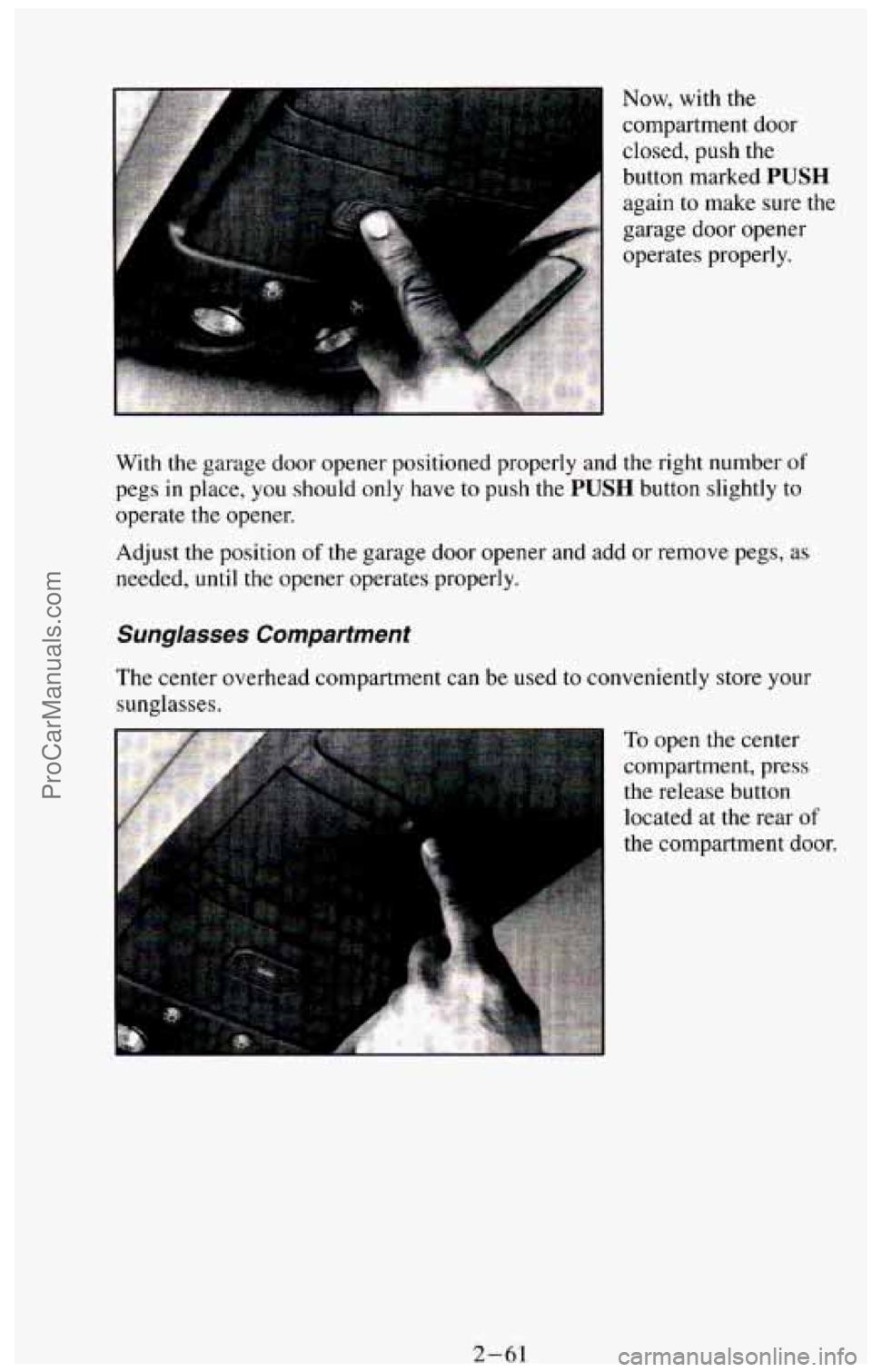

Now, with the
compartment door
closed, push
the
button marked PUSH
again to make sure the
garage door opener
operates properly.
With the garage door opener positioned properly and
the right number of
pegs in place, you should only have to push the PUSH button slightly to
operate the opener.
Adjust the position
of the garage door opener and add or remove pegs, as
needed,
until the opener operates properly.
Sunglasses Compartment
The center overhead compartment can be used to conveniently store your
sunglasses.
To open the center
compartment, press
the release button
located at the rear
of
the compartment door.
2-61 ProCarManuals.com

1

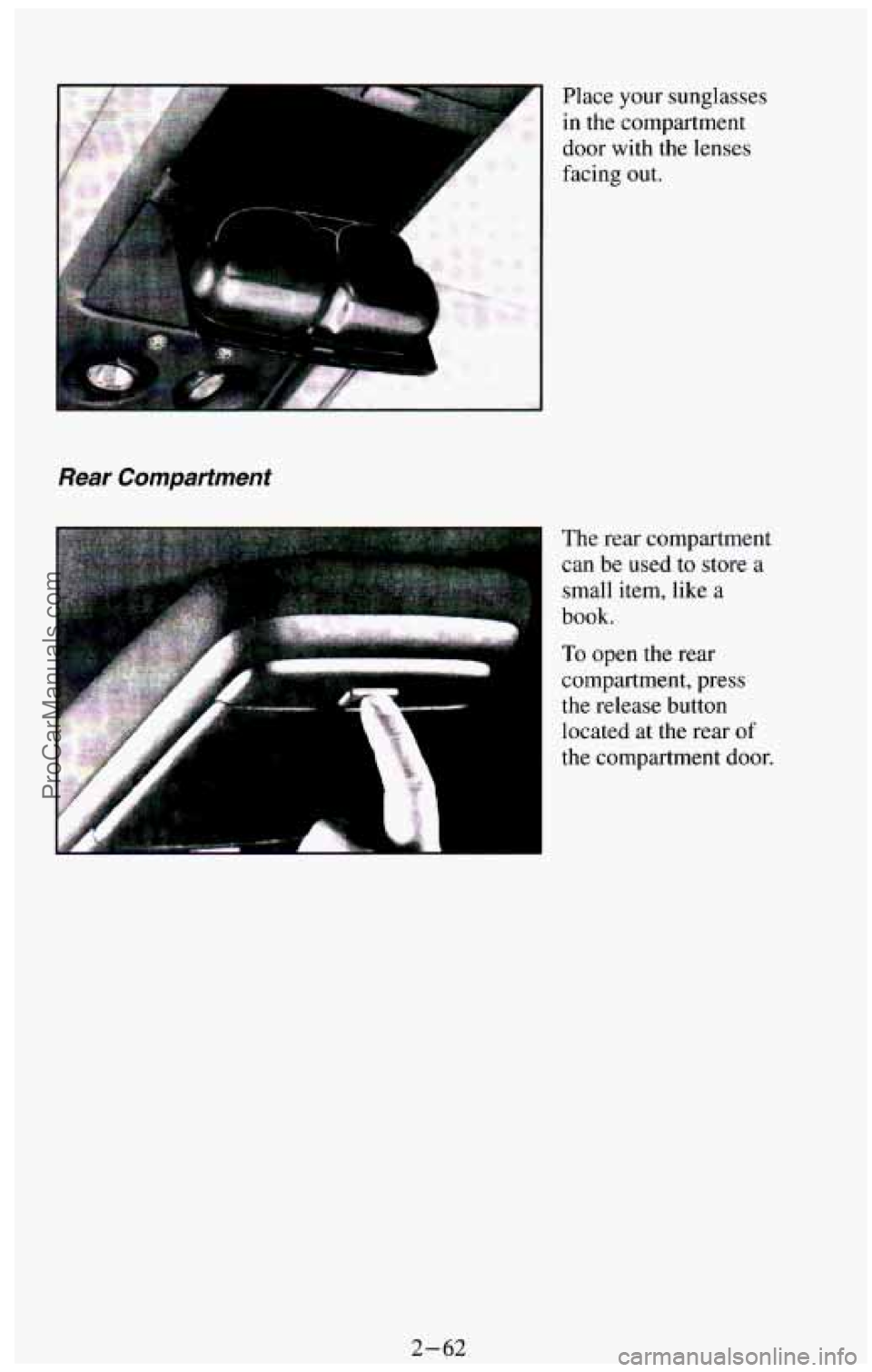

Rear Compartment
Place your sunglasses
in the compartment
door with the lenses
facing out.
The rear compartment
can be used
to store a
small item, like a
book.
To open the rear
compartment, press
the release button
located at the rear
of
the compartment door.
2-62 ProCarManuals.com

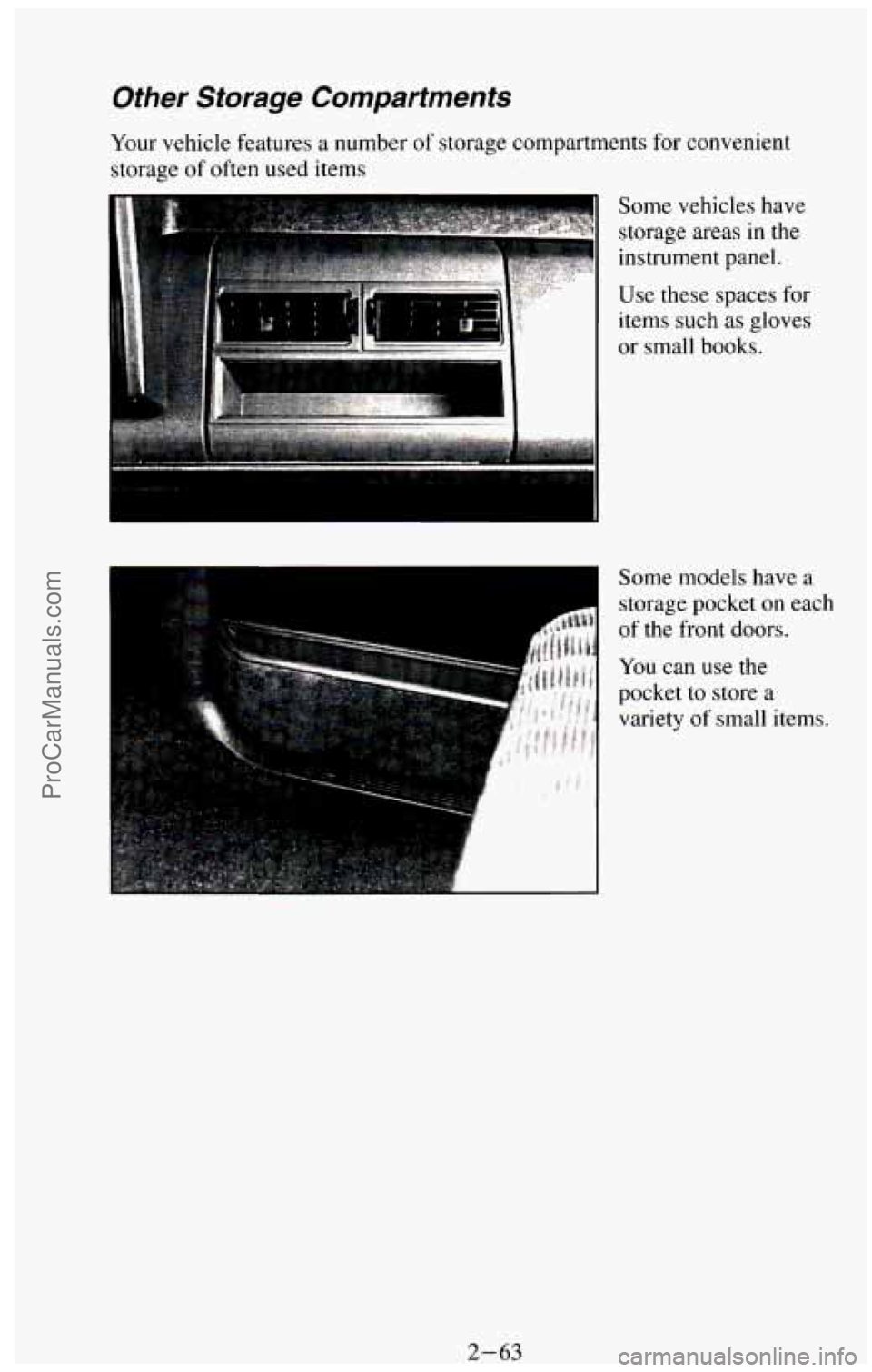

Other Storage Compartments
Your vehicle features a number of storage compartments for convenient
storage
of often used items
Some vehicles have
storage areas
in the
instrument panel.
Use these spaces for
items
such as gloves
or small books.
Some models have
a
storage pocket on each
of the front doors.
You can use the
pocket
to store a
variety of small items.
2-63 ProCarManuals.com

Instrument Panel
13 1’2
1. Side Window Defogger Vents
2. Light Controls
3. Air Vents
4. Multifunction Lever
5. Tilt Lever
6. Instrument Cluster
7. Gearshift Lever
8. Audio System
9. Comfort Control System
10. Glove Box
1 1. Audio System
12. Ashtray
13. Rear Window Defogger Switch
or Rear Heater Switch
15. Dome Light Override Switch
16. Fuse Panel
17. Parking Brake Release Handle
Instrument Cluster
Your instrument cluster is designed to let you know at a glance how your
vehicle is running.
You’ll know how fast you’re going, about how much
fuel you have
and many other things you’ll need to know to drive safely and
economically.
Tachometer Cluster
If you have the tachometer cluster, it looks different but will tell you
everything the standard cluster does, with the addition of displaying your
engine’s revolutions per minute (rpm).
2-64 ProCarManuals.com

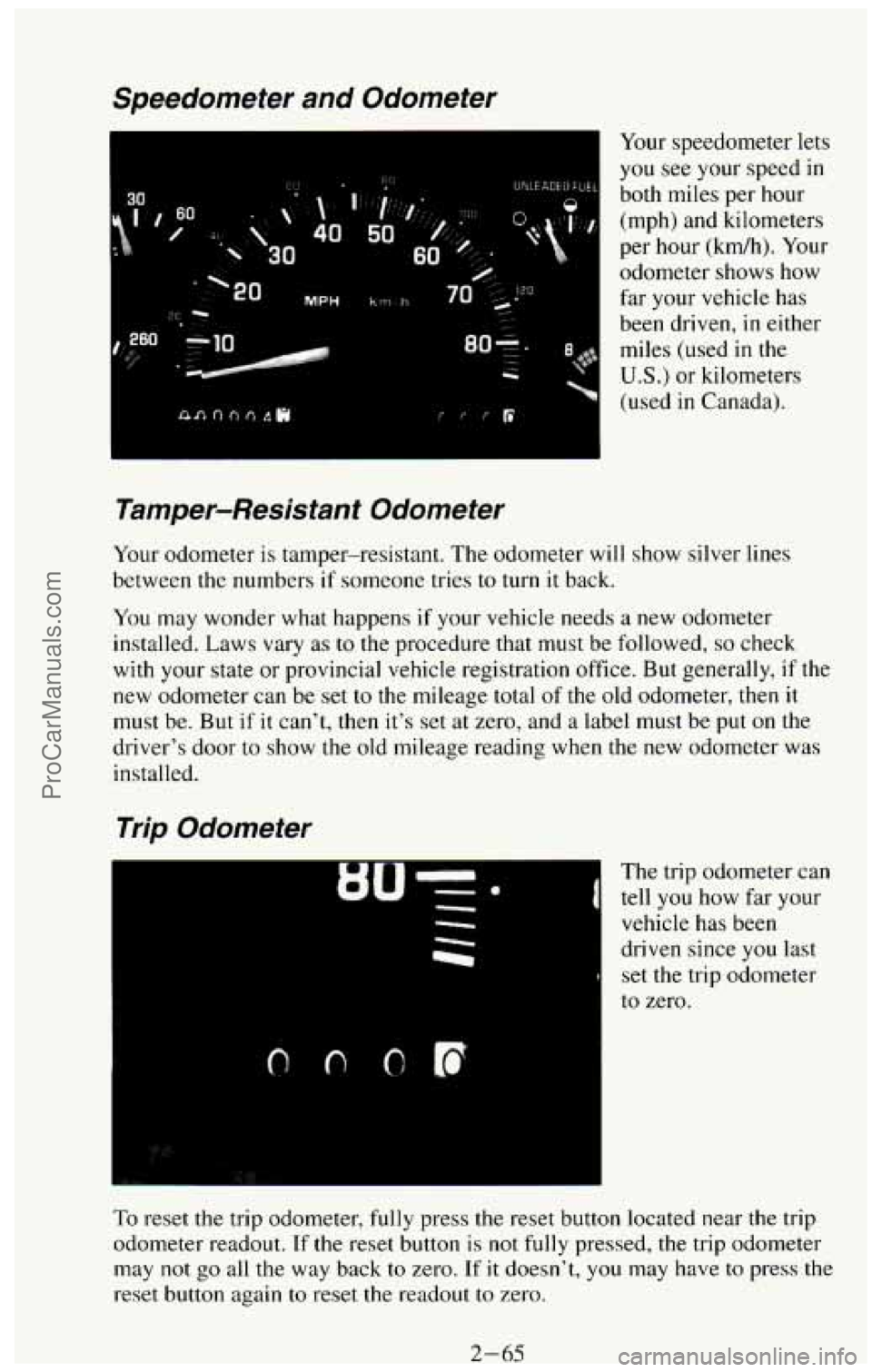

Speedometer and Odometer
. ..
' -20
MPH
Your speedometer lets
you see your speed in
both miles per hour
(mph) and kilometers
per hour (kdh). Your
odometer shows how
far your vehicle has
been driven, in either
miles (used
in the
US.) or kilometers
(used
in Canada).
Tamper-Resistant Odometer
Your odometer is tamper-resistant. The odometer will show silver lines
between
the numbers if someone tries to turn it back.
You may wonder what happens if your vehicle needs a new odometer
installed. Laws vary
as to the procedure that must be followed, so check
with your state or provincial
vehicle registration office. But generally, if the
new odometer can be set to the mileage total
of the old odometer, then it
must be. But if it can't, then it's set at zero, and a label must be put on the
driver's door to show the old mileage reading when the new odometer was
installed.
Trip Odometer
The trip odometer can
tell you how far your
vehicle has been
driven since
you last
set the trip odometer
to zero.
To reset the trip odometer, fully press the reset button located near the trip
odometer readout.
If the reset button is not fully pressed, the trip odometer
may
not go all the way back to zero. If it doesn't, you may have to press the
reset button again
to reset the readout to zero.
