CHEVROLET SUBURBAN 1994 Owners Manual

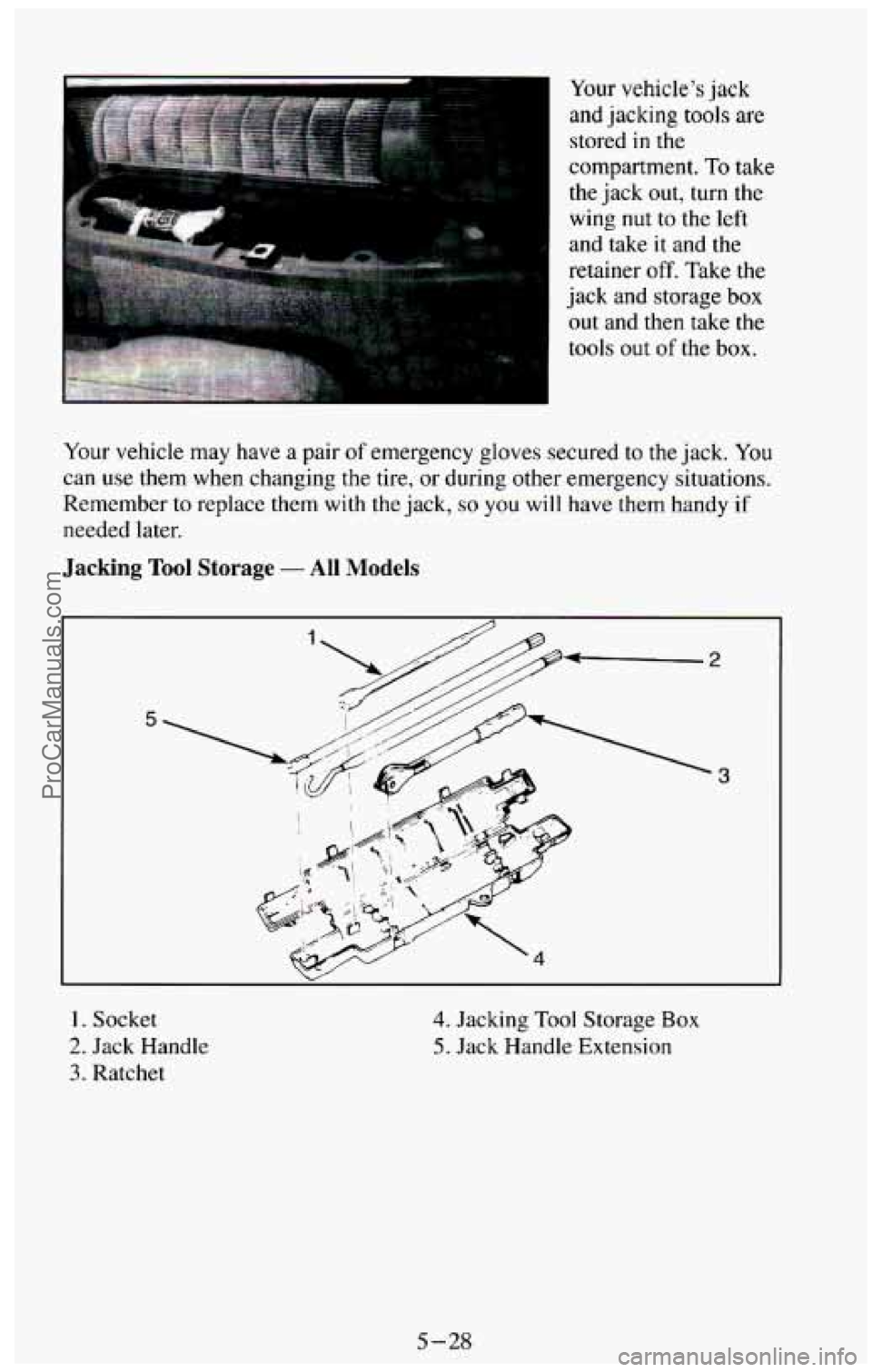

.... .. . . .. ...... . ... .. Your vehicle’s jack
and
jacking tools are
stored in the
compartment.
To take
the jack out,
turn the
wing nut to the left
and take it and the
retainer
off. Take the
jack and storage
box
out and then take the
tools out
of the box.
Your vehicle may have a pair
of emergency gloves secured to the jack. You
can
use them when changing the tire, or during other emergency situations.
Remember to replace them with the jack,
so you will have them handy if
needed later.
Jacking Tool Storage - All Models
1. Socket
2. Jack Handle
3. Ratchet
4. Jacking Tool Storage Box
5. Jack Handle Extension
5-28
ProCarManuals.com

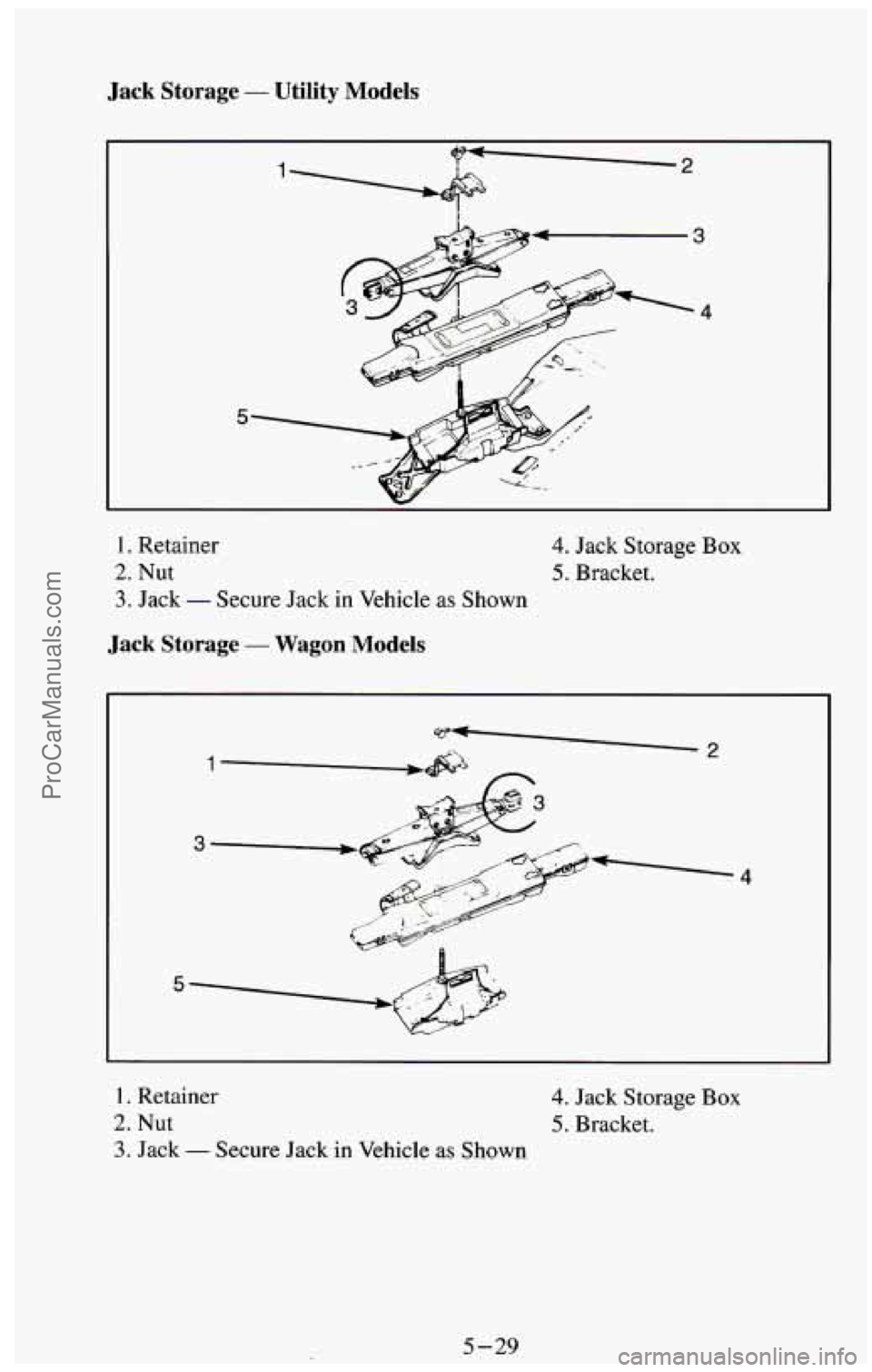

Jack Storage - Utility Models
-3
4
5
1. Retainer
2. Nut
3. Jack - Secure Jack in Vehicle as Shown
Jack Storage - Wagon Models
4. Jack Stbrage Box
5. Bracket.
1. Retainer
2. Nut
3. Jack - Secure Jack in Vehicle as Shown
4. Jack Storage Box
5. Bracket.
5-29
ProCarManuals.com

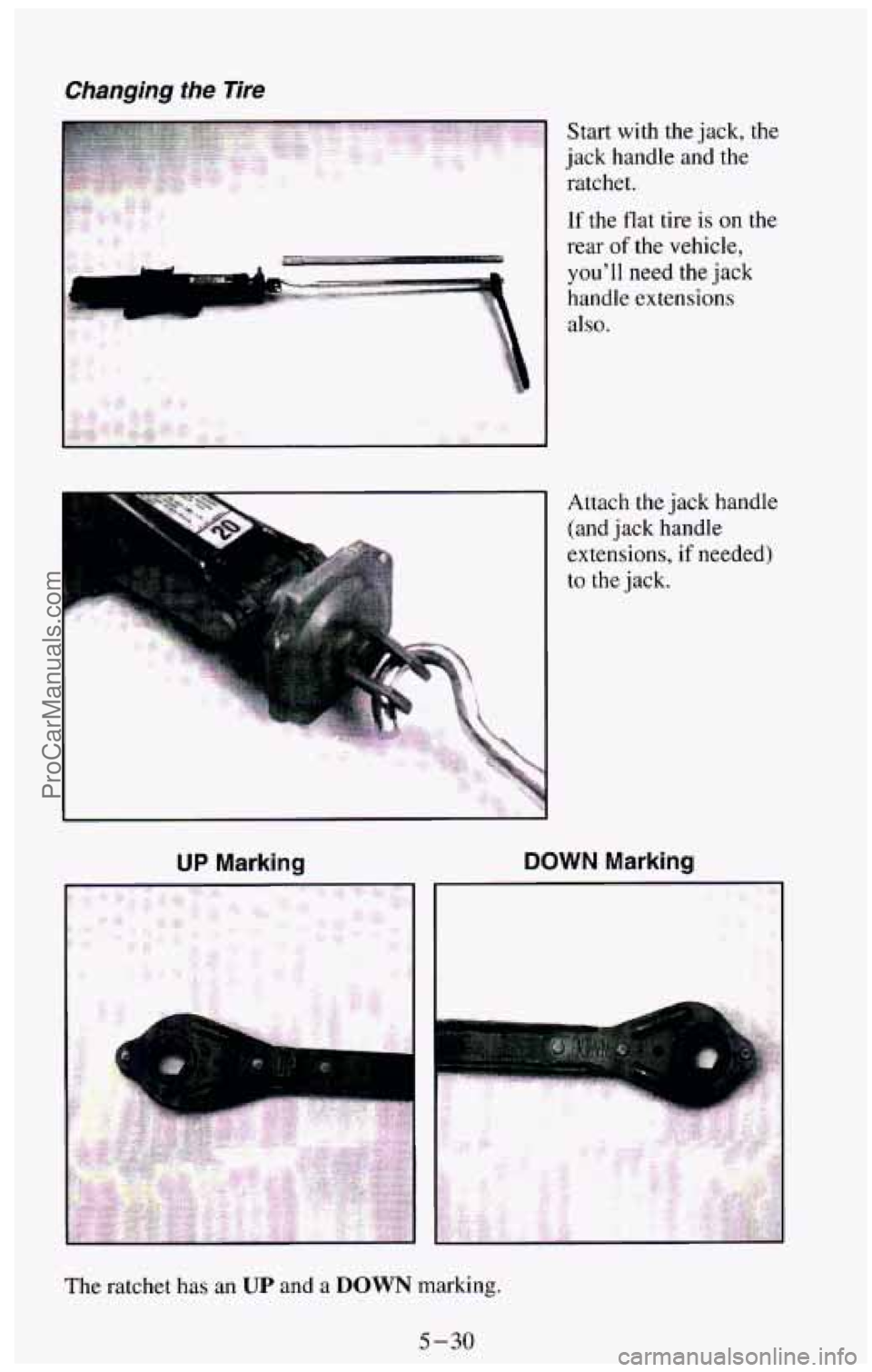

UP Marking DOWN Marking
.:: . ,.... " .....,....., (./ ,~ i..... '."I"' .? . ., .. .. ..,...
The ratchet has an UP and a DOWN marking.
5-30
ProCarManuals.com

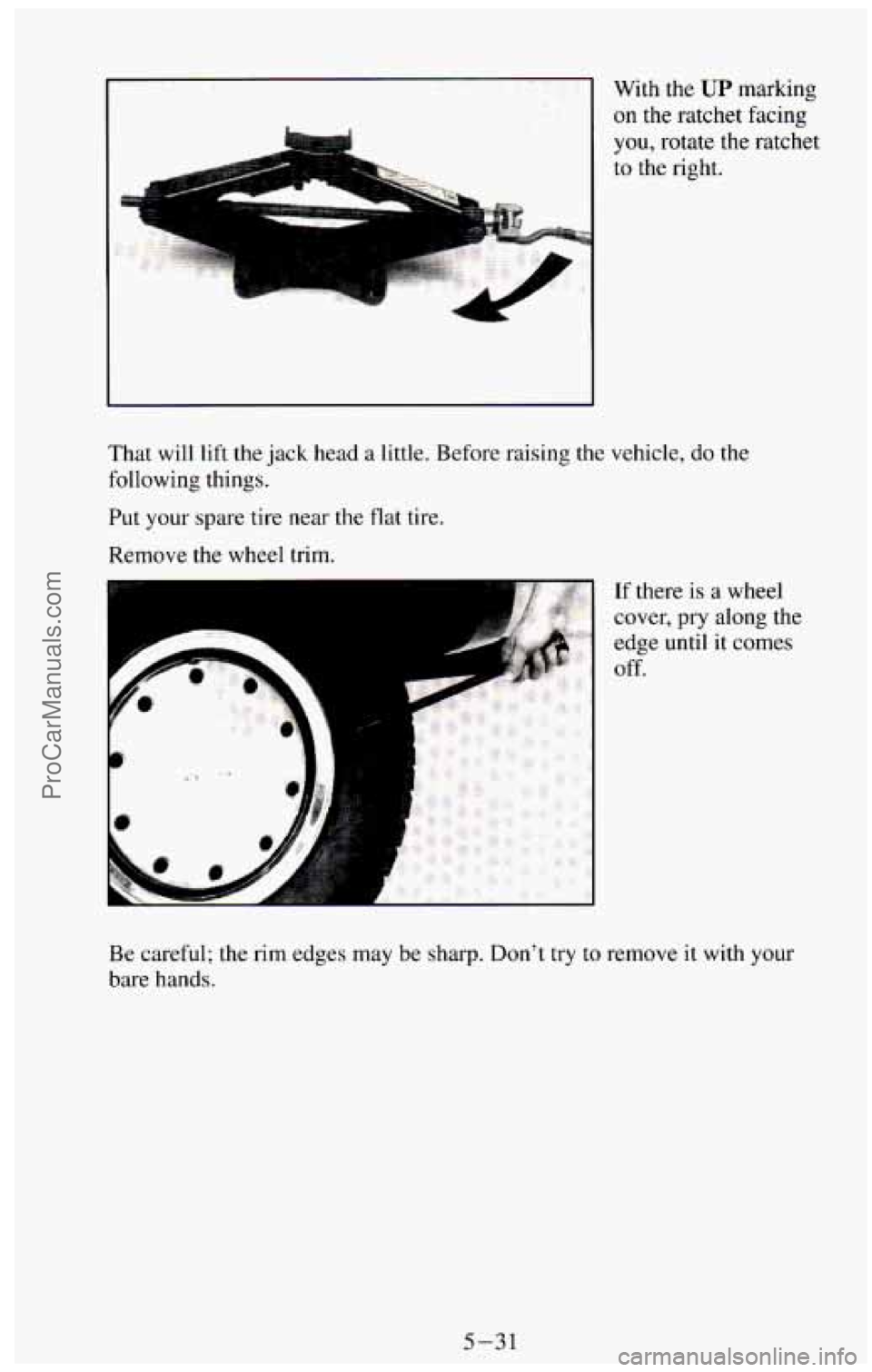

With the UP marking
on the ratchet facing
you, rotate the ratchet
to the right.
That will
lift the jack head a little. Before raising the vehicle, do the
following things.
Put your spare tire near the flat tire.
Remove the wheel trim.
i
2’
If there is a wheel
cover, pry along the
edge until it comes
off.
Be careful; the rim
edges may be sharp. Don’t try to remove it with your
bare hands.
5-31
ProCarManuals.com

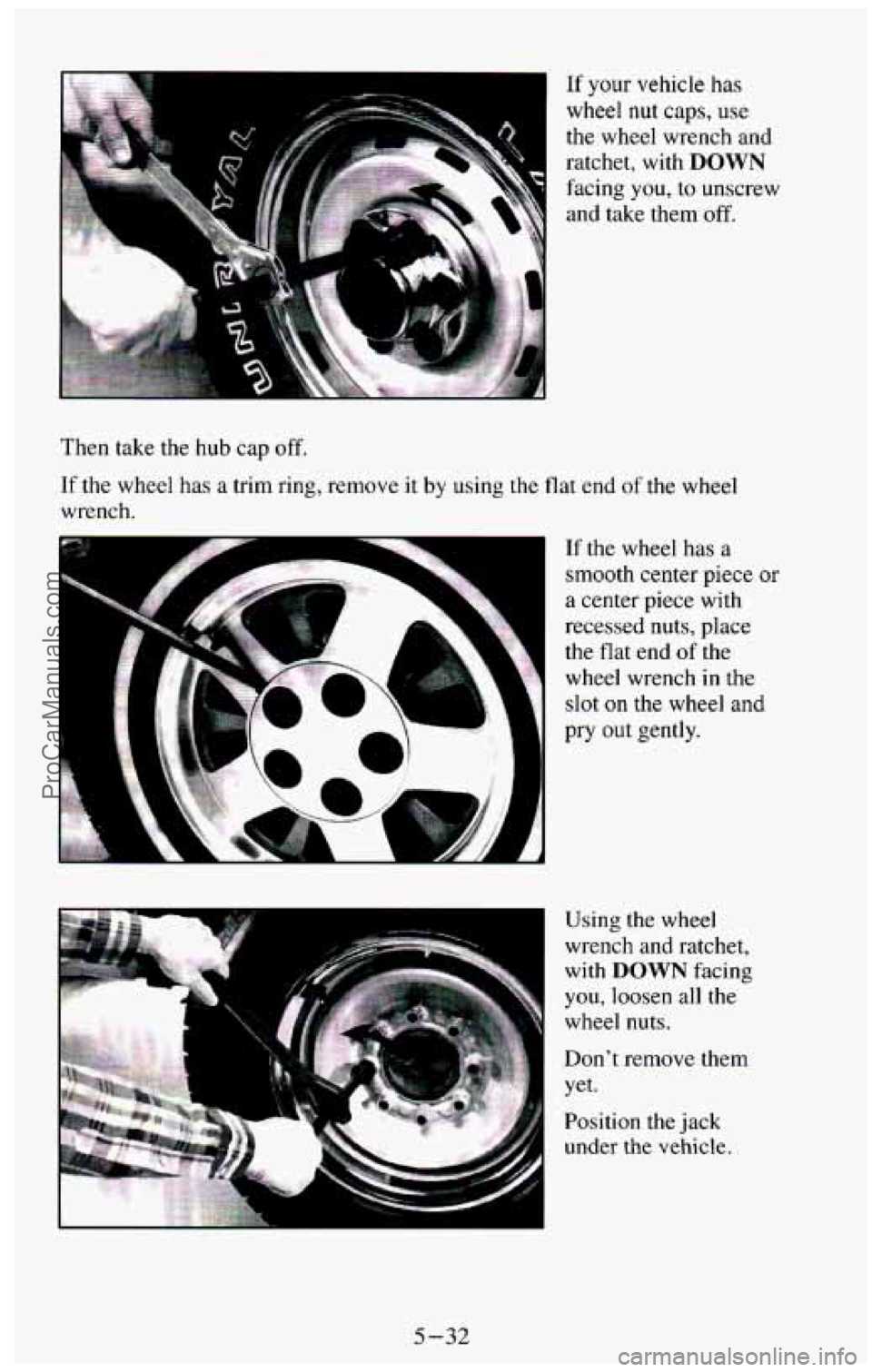

If your vehicle has
wheel nut caps, use
the wheel wrench and
ratchet, with
DOWN
facing you, to unscrew
and take them
off.
Then take the hub cap off.
If the wheel has a trim ring, remove it by using the flat end of the wheel
wrench.
If the wheel has a
smooth center piece or
a center piece with
...
1
I
recessed nuts, place
the flat end
of the
wheel wrench in the slot on the wheel and
pry out gently.
Using the wheel
wrench and ratchet,
with
DOWN facing
you, loosen all the
wheel nuts.
Don’t remove them
yet.
Position the jack
under
the vehicle.
5-32
ProCarManuals.com

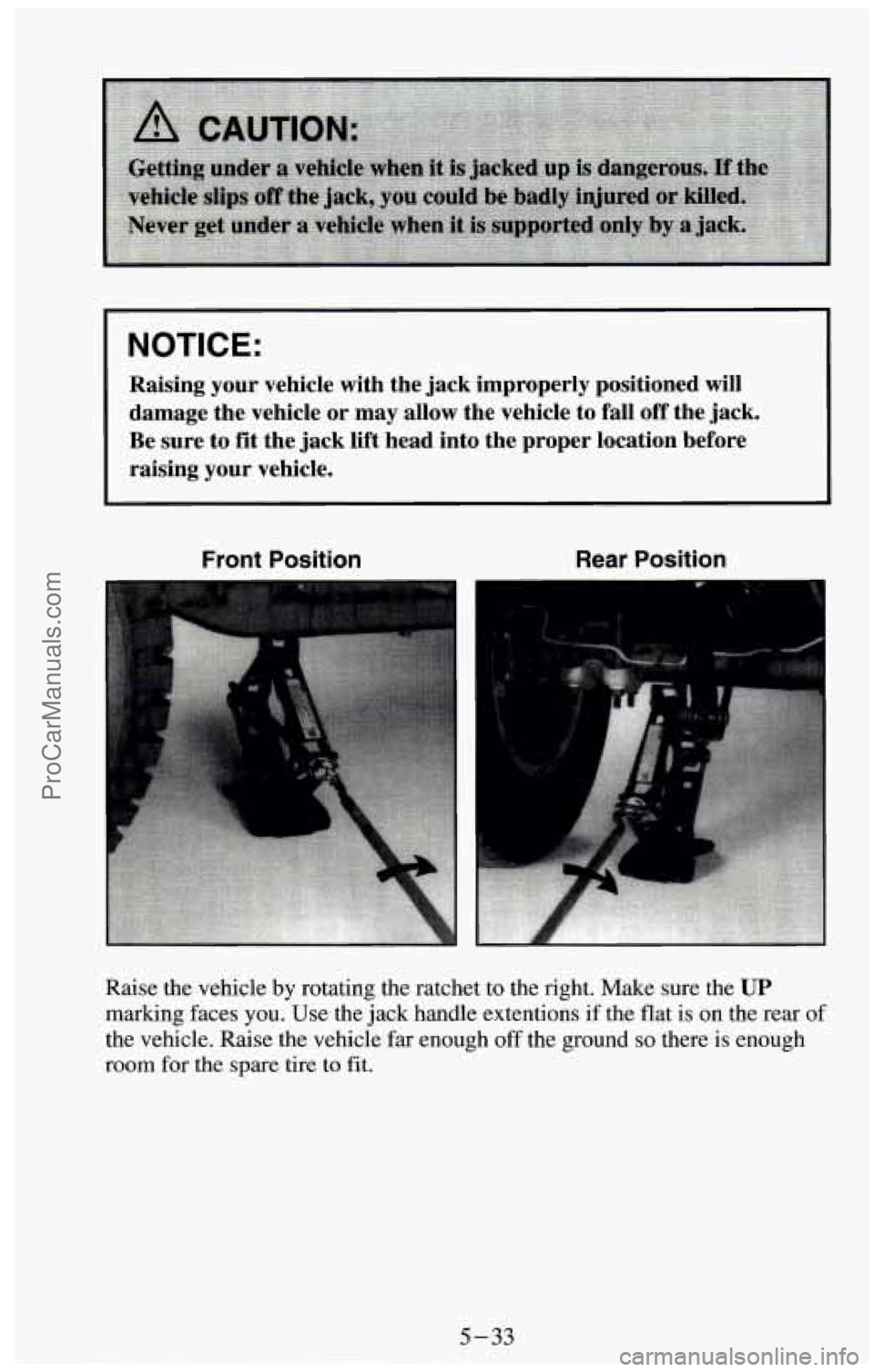

NOTICE:
Raising your vehicle with the jack improperly positioned will damage the vehicle or may allow the vehicle to fall off the \
jack.
Be sure to fit the jack lift head into the proper location before
raising your vehicle.
Front Position Rear Position
Raise the vehicle by rotating the ratchet to the right. Make sure the UP
marking faces you. Use the jack handle extentions if the flat is on the rear of
the vehicle. Raise the vehicle far enough off the ground so there is enough
room for the spare tire to fit.
5-33
- ProCarManuals.com

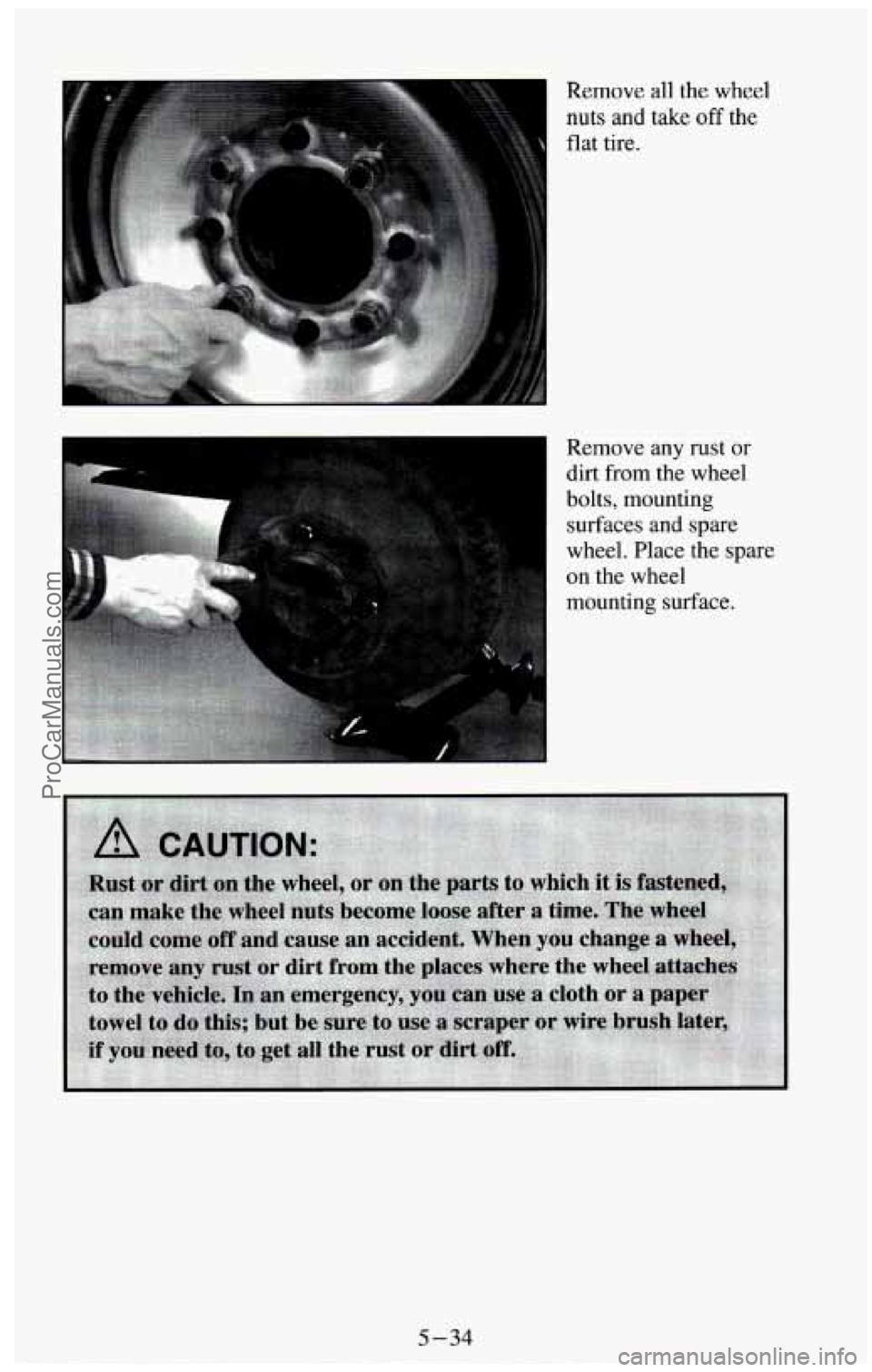

Remove all the wheel
nuts and take
off the
flat tire.
Remove any rust
or
dirt from the wheel
bolts, mounting surfaces and
spare
wheel. Place the spare
on the wheel
mounting surface.
ProCarManuals.com

Front Position Rear Position

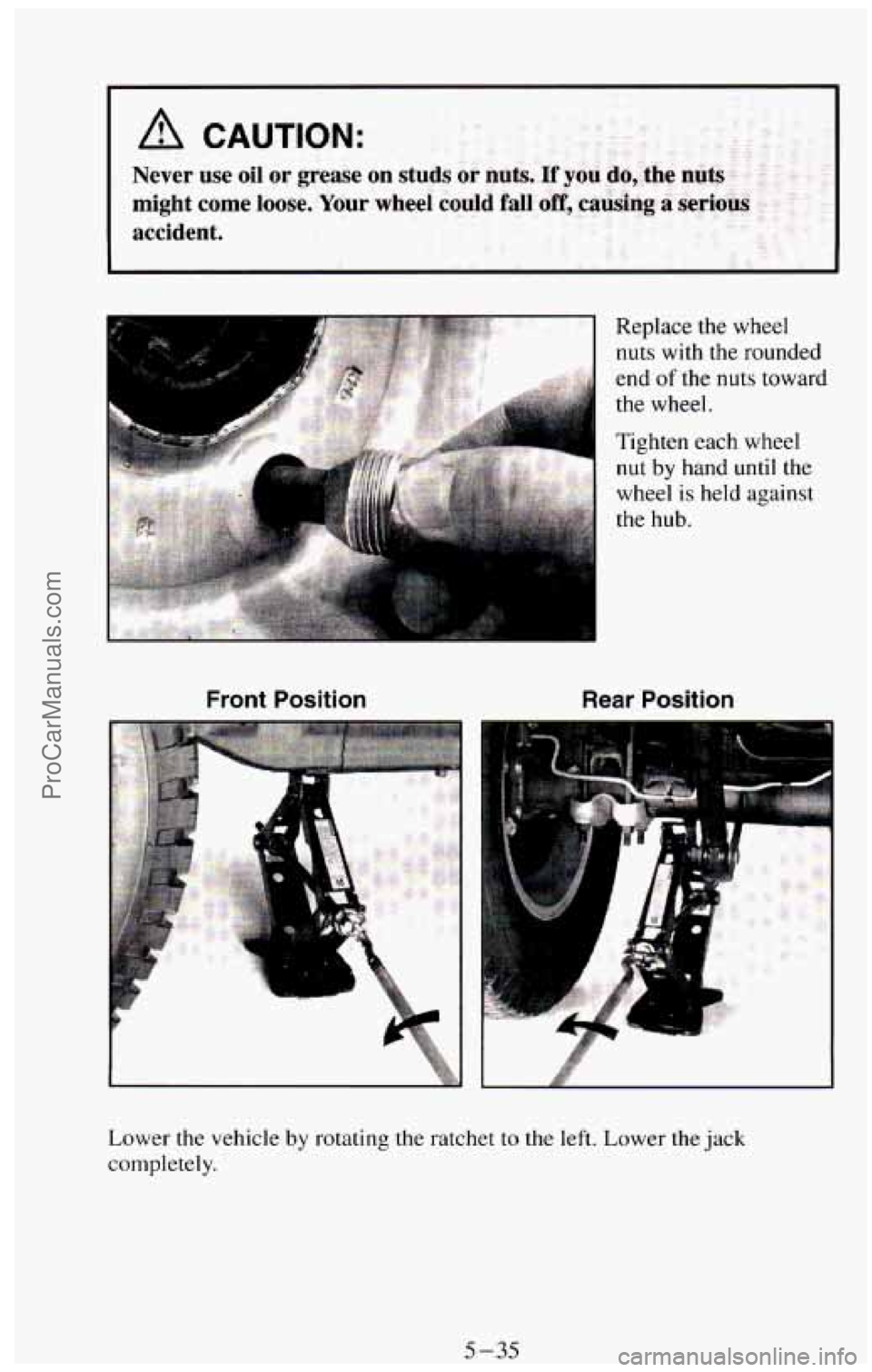

Replace the wheel
nuts with the rounded
end
of the nuts toward
the wheel.
Tighten each wheel
nut
by hand until the
wheel
is held against
the hub.
L
Lower the vehicle by rotating the ratchet to the left. Lower the jack
completely.
5 -35 ProCarManuals.com

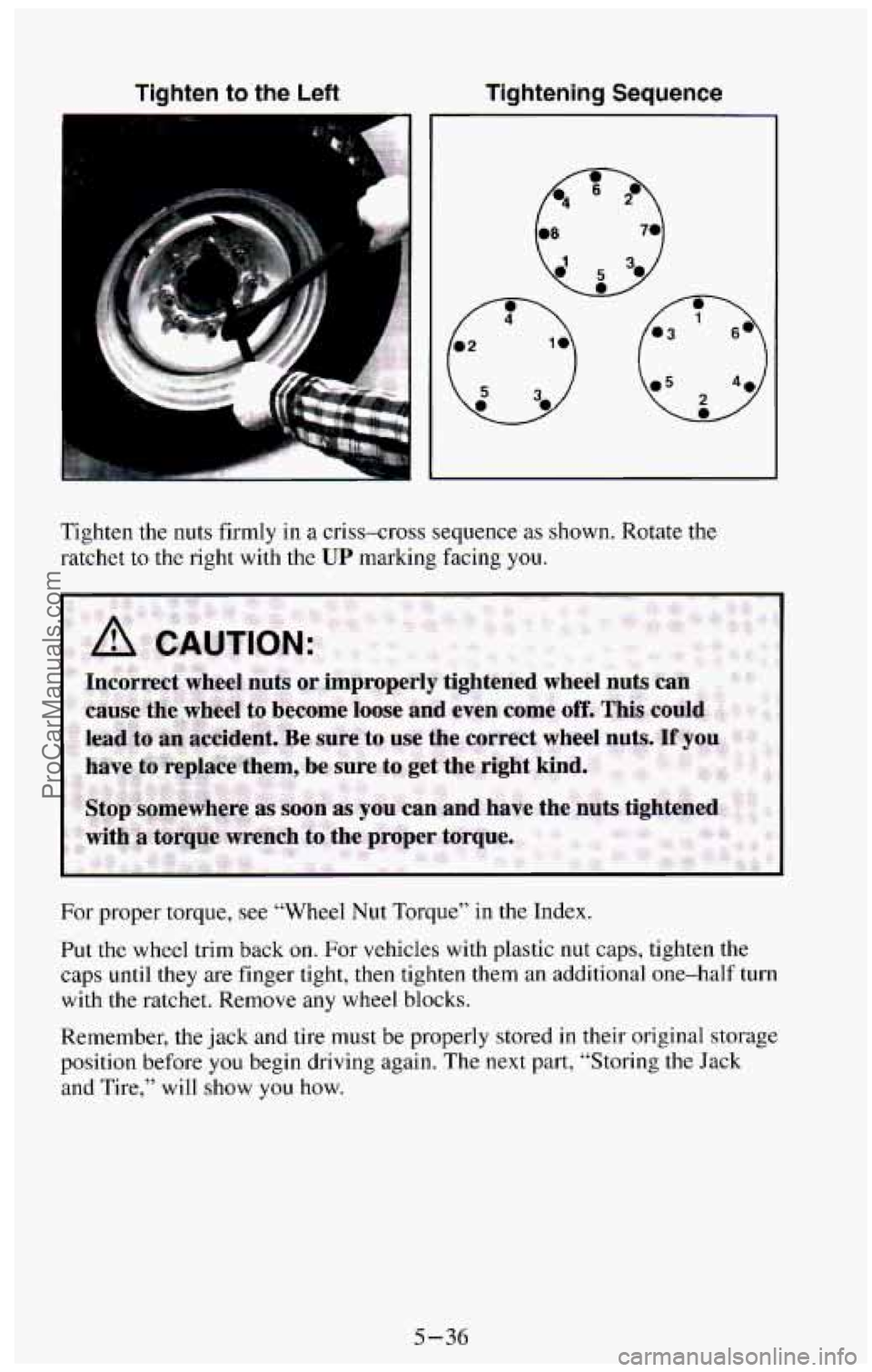

Tiqhten to the Left Tightening Sequence
Tighten the nuts firmly in a criss-cross sequence as shown. Rotate the
ratchet
to the right with the UP marking facing you.
For proper torque, see “Wheel Nut Torque” in the Index.
Put the wheel trim back on.
For vehicles with plastic nut caps, tighten the
caps until they are finger tight, then tighten them
an additional one-half turn
with the ratchet. Remove any wheel blocks.
Kernember, the jack and tire must be properly stored
in their original stbfige
position before you begin driving again. The
next part, “Storing the Jack
and Tire,” will show you how.
5-36
ProCarManuals.com

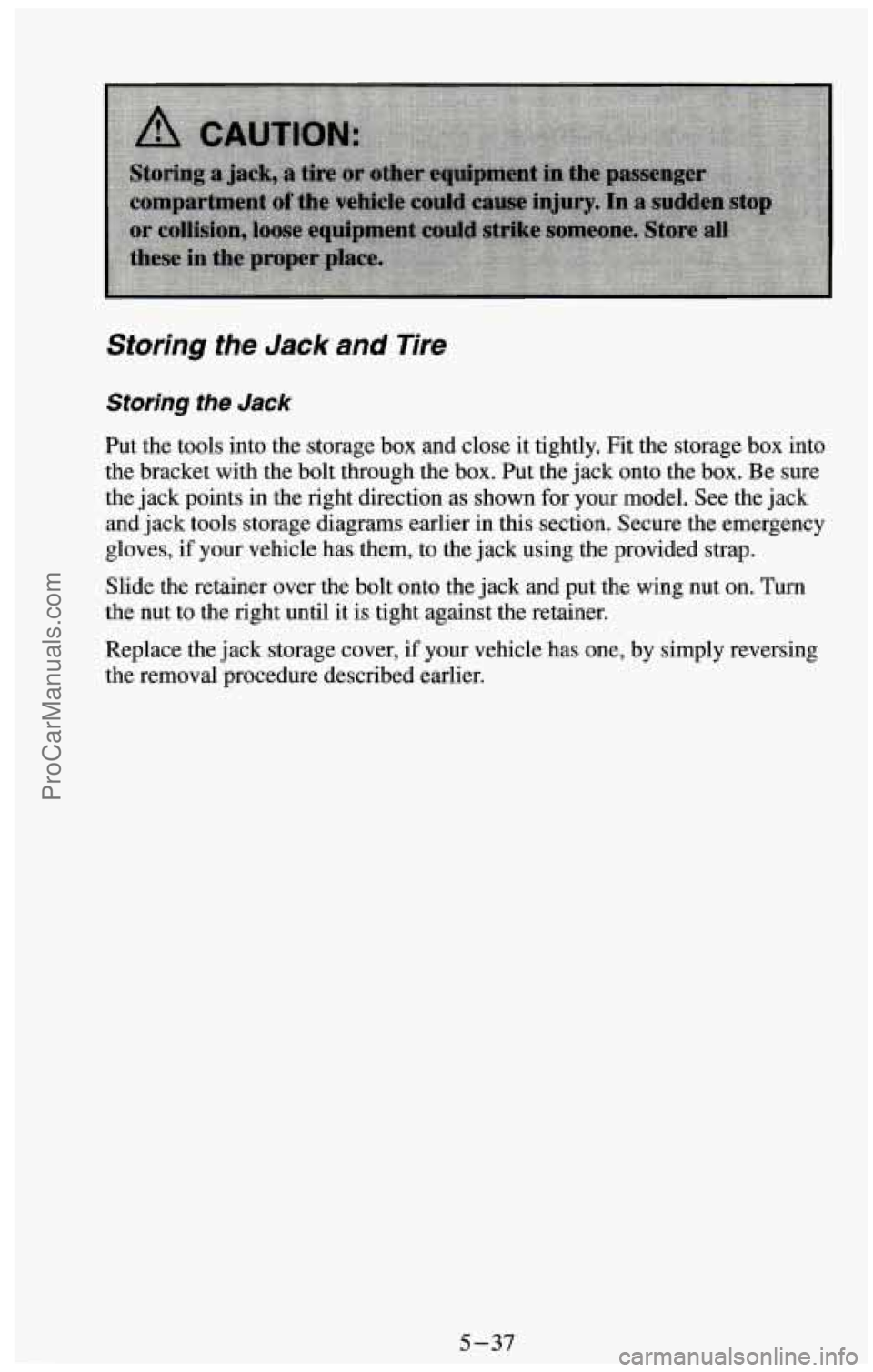

Storing the Jack and Tire
Storing the Jack
Put the tools into the storage box and close it tightly. Fit the storage box into
the bracket with the bolt through the box. Put the jack onto the box. Be sure
the jack points in the right direction as shown for your model. See the jack
and jack tools storage diagrams earlier in this section. Secure the emergency
gloves,
if your vehicle has them, to the jack using the provided strap.
Slide the retainer over the bolt onto the jack and put the wing nut on. Turn
the nut to the right until it is tight against the retainer.
Replace the jack storage cover, if your vehicle has one, by simply reversing
the removal procedure described earlier.
5-37
