keyless entry CHEVROLET SUBURBAN 1997 Owners Manual

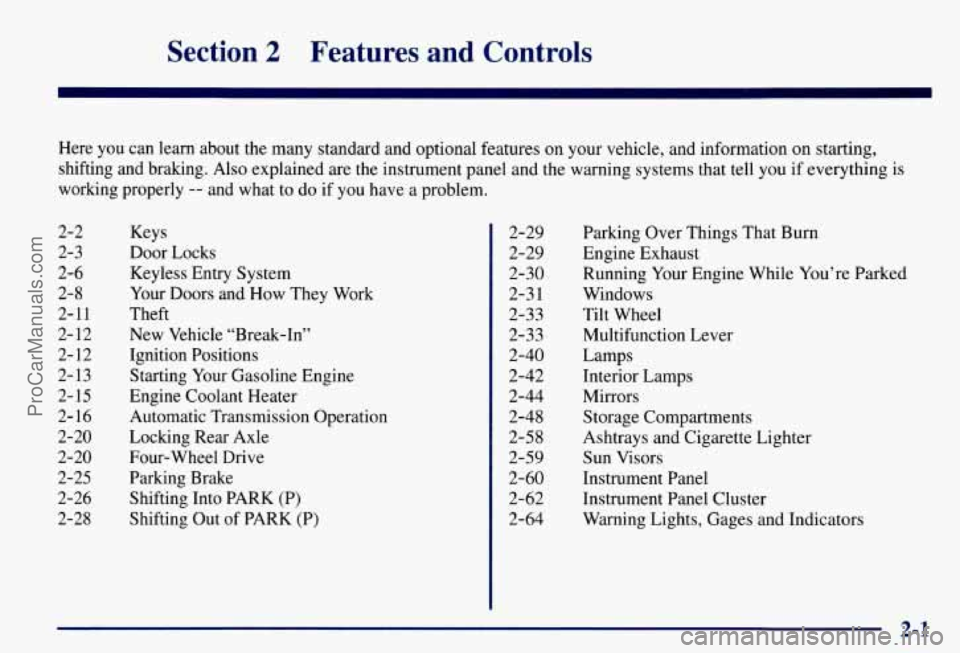

Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2-2
2-3
2-6
2-8
2-11
2- 12
2- 12
2- 13
2- 15
2- 16
2-20
2-20
2-25
2-26
2-28 Keys
Door Locks
Keyless Entry System
Your Doors and How They Work
Theft
New Vehicle “Break-In”
Ignition Positions
Starting Your Gasoline Engine
Engine Coolant Heater
Automatic Transmission Operation
Locking Rear Axle
Four-wheel Drive
Parking Brake
Shifting Into PARK (P)
Shifting Out of PARK
(P)
2-29
2-29
2-30
2-3
1
2-33
2-3 3
2-40
2-42
2-44
2-48
2-5 8
2-59
2-60
2-62
2-64 Parking Over
Things That Burn
Engine Exhaust
Running Your Engine While You’re Parked
Windows
Tilt Wheel
Multifunction Lever
Lamps
Interior Lamps
Mirrors
Storage Compartments
Ashtrays and Cigarette Lighter
Sun Visors
Instrument Panel
Instrument Panel Cluster
Warning Lights, Gages and Indicators
ProCarManuals.com

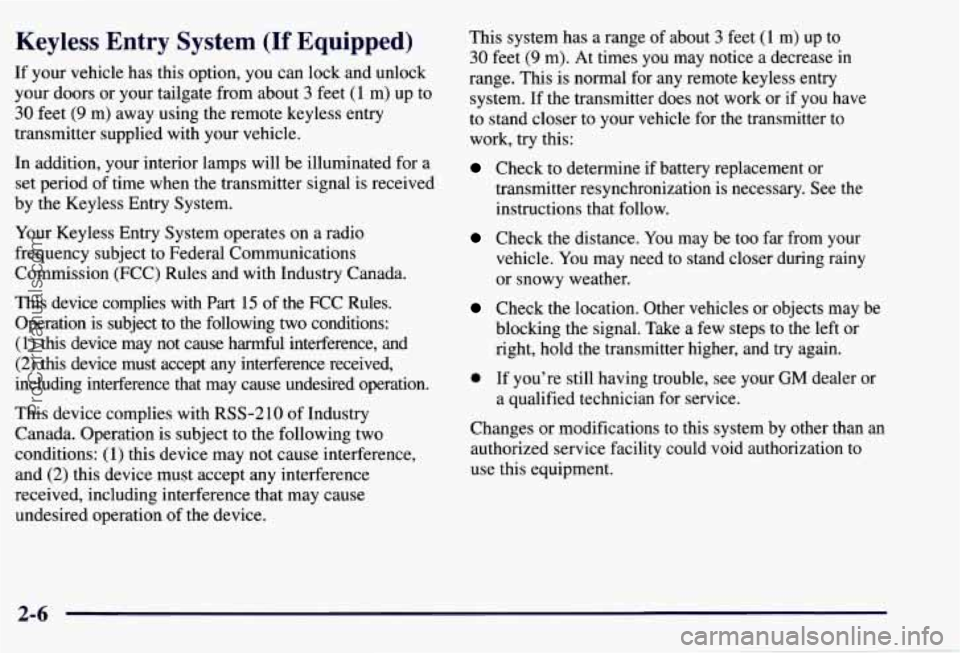

Keyless Entry System (If Equipped)
If your vehicle has this option, you can lock and unlock
your doors or your tailgate from about
3 feet (1 m) up to
30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
In addition, your interior lamps will be illuminated for a
set period of time when the transmitter signal is received
by the Keyless Entry System.
Your Keyless Entry System operates on a radio
frequency subject
to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
(1) this device may not cause interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation of the device. This system has
a range
of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This
is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:
Check to determine if battery replacement or
transmitter resynchronization is necessary. See the
instructions that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and
try again.
0 If you’re still having trouble, see your GM dealer or
a qualified technician for service.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
2-6
ProCarManuals.com

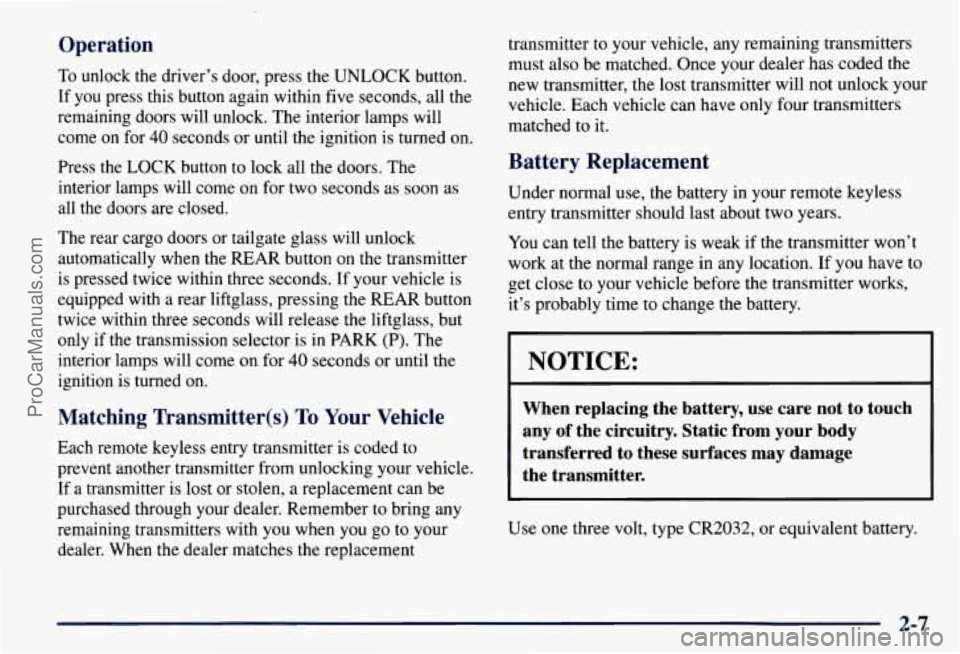

Operation
To unlock the driver’s door, press the UNLOCK button.
If you press this button again within five seconds, all the
remaining doors will unlock. The interior lamps will
come on for
40 seconds or until the ignition is turned on.
Press the
LOCK button to lock all the doors. The
interior lamps will come on for two seconds as soon as
all the doors are closed.
The rear cargo doors or tailgate glass will unlock
automatically when the REAR button on the transmitter
is pressed twice within three seconds. If your vehicle is
equipped with a rear liftglass, pressing the REAR button
twice within three seconds will release the liftglass, but
only if the transmission selector is in PARK
(P). The
interior lamps will come on for
40 seconds or until the
ignition is turned
on.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement transmitter
to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have to
get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
Use one three volt, type CR2032, or equivalent battery.
2-7
ProCarManuals.com

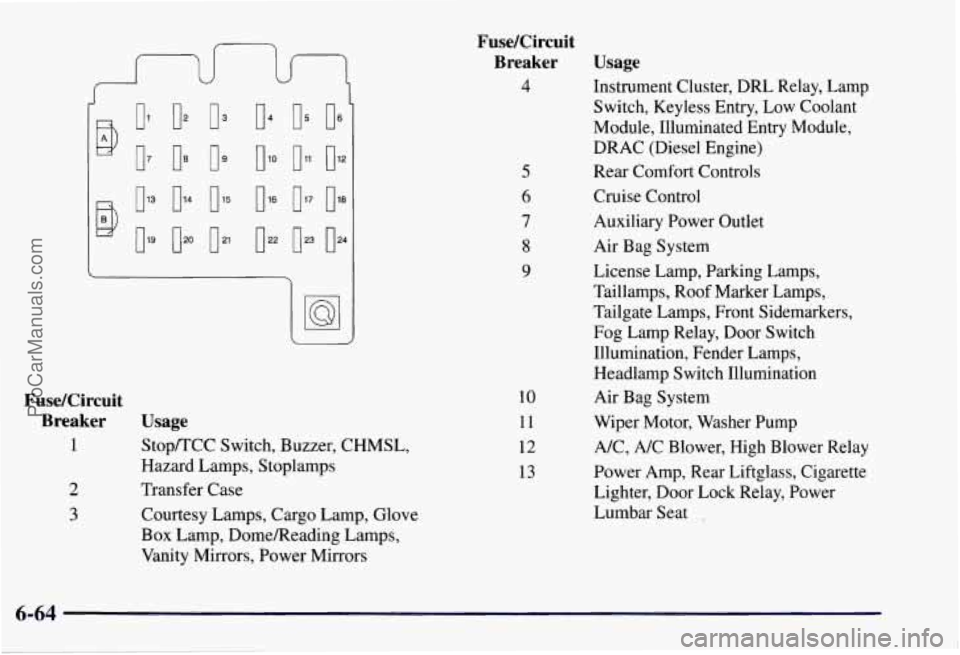

Fuse/Circuit Breaker Usage
4
Fuse/Circuit Breaker Usage
1 Stop/TCC Switch, Buzzer, CHMSL,
2 Transfer Case
Hazard Lamps, Stoplamps
3 Courtesy Lamps, Cargo Lamp, Glove
Box Lamp, DomeReading Lamps,
Vanity Mirrors, Power Mirrors 10
11
12
13 Instrument Cluster, DRL
Relay, Lamp
Switch, Keyless Entry, Low Coolant
Module, Illuminated Entry Module,
DRAC (Diesel Engine)
Rear Comfort Controls
Cruise Control
Auxiliary Power Outlet
Air Bag System
License Lamp, Parking Lamps,
Taillamps, Roof Marker Lamps,
Tailgate Lamps, Front Sidemarkers,
Fog Lamp Relay, Door Switch
Illumination, Fender Lamps,
Headlamp Switch Illumination
Air Bag System
Wiper Motor, Washer Pump
NC, A/C Blower, High Blower Relay
Power Amp, Rear Liftglass, Cigarette
Lighter, Door Lock Relay, Power
Lumbar Seat
,
ProCarManuals.com

15
16
Fuse/Circuit Breaker Usage
14 4WD Indicator, Cluster, Front and
Rear Comfort Controls, Instrument
Switches, Radio Illumination,
Chime Module
DRL Relay, Fog Lamp Relay
17
18
19
20
21
22
23
24
A
B Front and Rear Turn Signals,
Back-up
Lamps, BTSI Solenoid
Radio (Ignition)
4WALNCM, ABS, Cruise Control
Radio (Battery)
PRNDL, Automatic Transmission, Speedometer, Check Gages,
Warning Lights
Variable Effort Steering
Not Used
Rear Wiper, Rear Washer Pump
Front Axle, 4WD Indicator Lamp,
TP2 Relay (Gasoline Engine)
Power Door Lock, Six-Way Power
Seat, Keyless Entry Module
Power Windows
Underhood Fuse/Relay Center
The underhood fusehelay center is located in the rear of
the engine compartment near the brake fluid reservoir.
Move the retainer clips for the cover to access the
fuse block.
You can remove fuses with a fuse extractor. The fuse
extractor is mounted to the interior fuse block. To
remove fuses if you don't have a fuse extractor, hold the
end of the fuse between your thumb and index finger
and pull straight out.
6-65
ProCarManuals.com

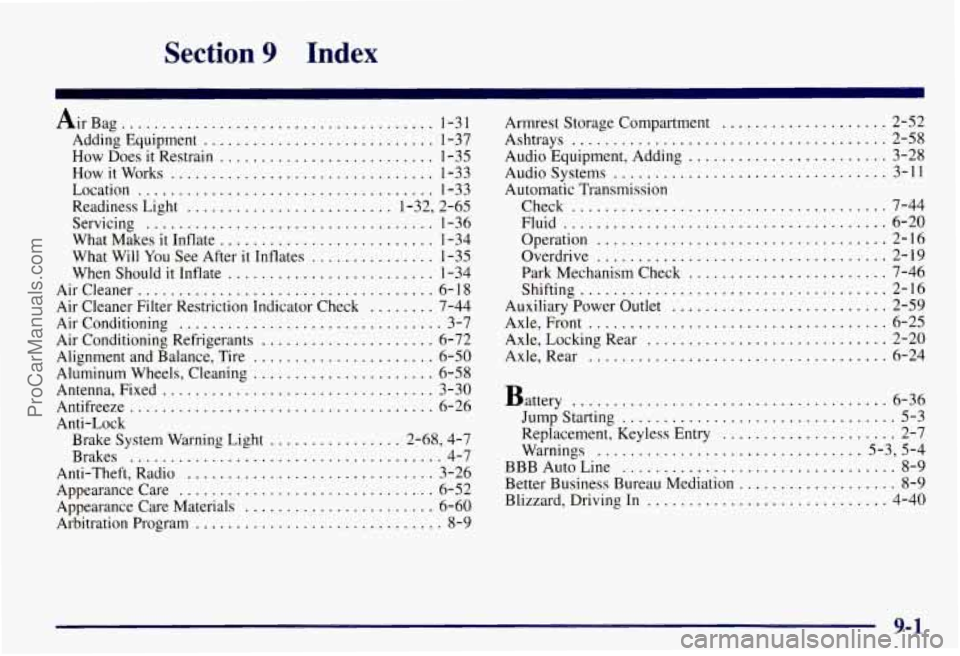

Section 9 Index
Air Bag ...................................... 1-3 1
Adding Equipment ............................ 1-37
How Does
it Restrain .......................... 1-35
How
it Works ................................ 1-33
Location
.................................... 1-33
Readiness Light ......................... 1-32. 2-65
Servicing
................................... 1-36
What Makes
it Inflate .......................... 1-34
What Will
You See After it Inflates ............... 1-35
When Should
it Inflate ......................... 1-34
Aircleaner
.................................... 6-18
Air Cleaner Filter Restriction Indicator Check
........ 7-44
Air Conditioning
................................ 3-7
Air Conditioning Refrigerants
..................... 6-72
Alignment and Balance, Tire
...................... 6-50
Aluminum Wheels, Cleaning
...................... 6-58
Antenna, Fixed
................................. 3-30
Antifreeze
..................................... 6-26
Anti-Lock Brake System Warning Light
................ 2-68, 4-7
Brakes
...................................... 4-7
Anti-Theft, Radio
.............................. 3-26
Appearance Care
............................... 6-52
Appearance Care Materials
....................... 6-60
Arbitration Program
.............................. 8-9 Armrest Storage Compartment
.................... 2-52
Ashtrays
...................................... 2-58
Audio Equipment. Adding
........................ 3-28
Audio Systems
................................. 3-11
Automatic Transmission
Check
.................................... 7-44
Fluid
....................................... 6-20
Operation
................................... 2-16
Overdrive
................................... 2-19
Park Mechanism Check
........................ 7-46
Shifting
..................................... 2-16
Axle. Front
.................................... 6-25
Axle. Locking Rear
............................. 2-20
Axle. Rear
.................................... 6-24
Auxiliary Power Outlet
.......................... 2-59
Battery
...................................... 6-36
Jump Starting
................................. 5-3
Replacement. Keyless Entry
..................... 2-7
Warnings
................................ 5-3. 5-4
BBB Auto Line
................................. 8-9
Better Business Bureau Mediation
................... 8-9
Blizzard. Driving In
............................. 4-40
9-1
ProCarManuals.com

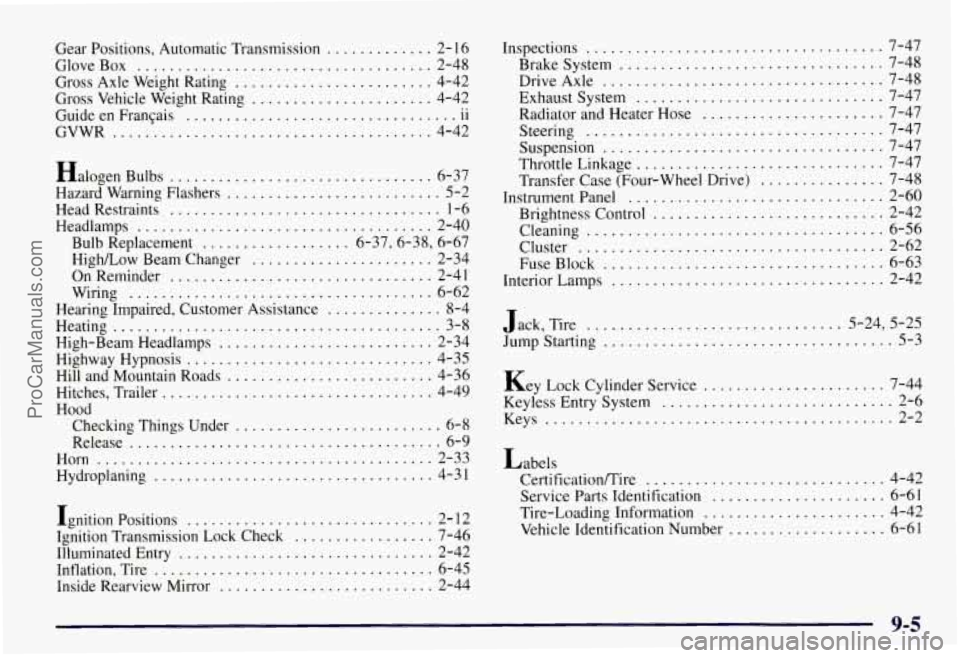

Gear Positions. Automatic Transmission ............. 2- 16
Gross Axle Weight Rating
........................ 4-42
Gross Vehicle Weight Rating
...................... 4-42
Guide en Franqais
11
GloveBox .................................... 2-48
.. .................................
GVWR ....................................... 4-42
Halogen Bulbs
................................ 6-37
Hazard Warning Flashers
.......................... 5-2
Head Restraints
................................. 1-6
Headlamps .................................... 2-40
Bulb Replacement
.................. 6-37,6-38, 6-67
High/Low Beam Changer
...................... 2-34
On Reminder
................................ 2-41
Wiring
..................................... 6-62
Hearing Impaired, Customer Assistance
.............. 8-4
Heating
........................................ 3-8
High-Beam Headlamps
.......................... 2-34
Highway Hypnosis
.............................. 4-35
Hill and Mountain Roads
......................... 4-36
Hitches, Trailer
................................. 4-49
Hood Checking Things Under
......................... 6-8
Release
...................................... 6-9
Horn
......................................... 2-33
Hydroplaning
.................................. 4-31
Ignition Positions
.............................. 2- 12
Ignition Transmission Lock Check
................. 7-46
Illuminated Entry
............................... 2-42
Inflation, Tire
.................................. 6-45
Inside Rearview Mirror
.......................... 2-44 Inspections
.................................... 7-47
Brakesystem
................................ 7-48
DriveAxle
.................................. 7-48
Exhaust System
.............................. 7-47
Radiator and Heater Hose
...................... 7-47
Steering
.................................... 7-47
Suspension
.................................. 7-47
Throttle Linkage
.............................. 7-47
Transfer Case (Four-wheel Drive)
............... 7-48
Instrumentpanel
............................... 2-60
Brightness Control
............................ 2-42
Cleaning
.................................... 6-56
Cluster
..................................... 2-62
FuseBlock
.................................. 6-63
Interior Lamps
..................... ....... 2-42
Jack, Tire
............................... 5-24, 5-25
Jump Starting
................................... 5-3
Key Lock Cylinder Service
...................... 7-44
Keyless Entry System
............................ 2-6
Keys
............... .................... 2-2
Labels Certificatioflire
............................. 4-42
Service Parts Identification
..................... 6-61
Tire-Loading Information
...................... 4-42
Vehicle Identification Number
................... 6-61
9-5
ProCarManuals.com

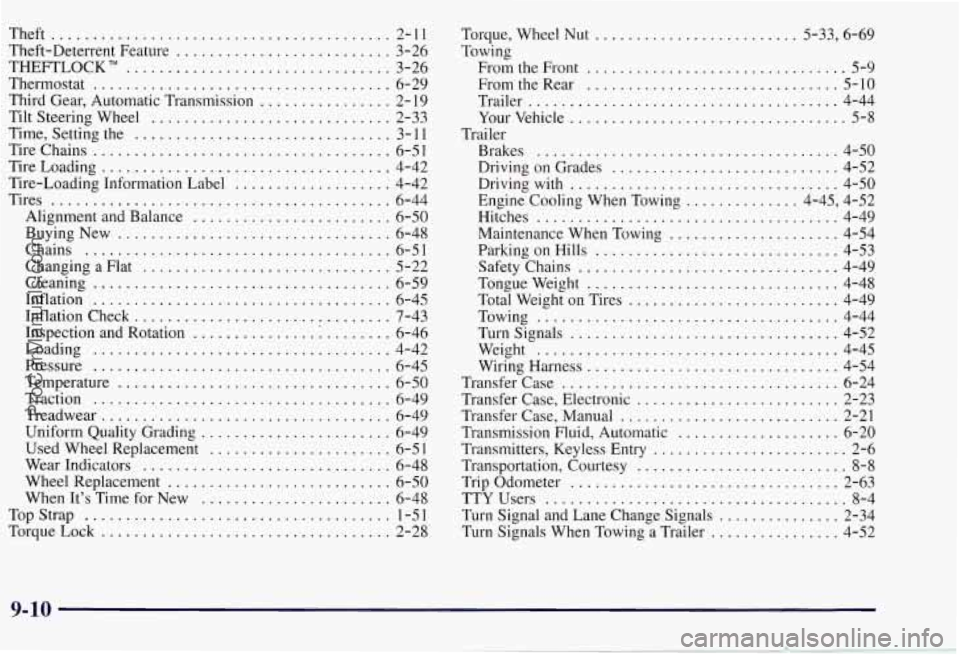

Theft ................... ... 2-11
Theft-Deterrent Feature ...... ... ...... 3-26
THEFTLOCK
........................ ... 3-26
Thermostat
............................ ... 6-29
Third Gear, Automatic Transmission
................ 2- 19
Tilt Steering Wheel ............................. 2-33
Time. Setting the
............................... 3- 11
Tire Chains .................................... 6-5 1
TireLoading ................................... 4-42
Tire-Loading Information Label
................... 4-42
Alignment and Balance
........................ 6-50
BuyingNew
................................. 6-48
Chains
..................................... 6-51
Changing
a Flat .............................. 5-22
Cleaning
.................................... 6-59
Tires
......................................... 6-44
Inflation
.................................... 6-45
Inflation Check
............................... 7-43
Inspection and Rotation
............... 1 ........ 6-46
Loading
.................................... 4-42
Pressure
.................................... 6-45
Temperature ................................. 6-50
Traction
.................................... 6-49
Treadwear
................................... 6-49
Uniform Quality Grading
....................... 6-49
Used Wheel Replacement
...................... 6-51
Wear Indicators
.............................. 6-48
Wheel Replacement
........................... 6-50
When It’s Time for New
....................... 6-48
TopStrap
..................................... 1-51
TorqueLock ................................... 2-28 Torque.
Wheel
Nut ......................... 5.33. 6.69
From the Front
................................ 5-9
From the Rear
............................... 5-10
Trailer
...................................... 4-44
Yourvehicle
.................................. 5-8
Brakes
..................................... 4-50
Driving on Grades
............................ 4-52
Driving with
................................. 4-50
Engine Cooling When Towing
.............. 4-45, 4-52
Maintenance When Towing
..................... 4-54
Safety Chains
................................ 4-49
Tongueweight
............................... 4-48
Total Weight on Tires
.......................... 4-49
Towing
..................................... 4-44
Turnsignals
................................. 4-52
Weight
..................................... 4-45
Wiring Harness
............................... 4-54
Transfer Case
.................................. 6-24
Transfer Case, Electronic
......................... 2-23
Transfer Case, Manual
........................... 2-21
Transmission Fluid, Automatic
.................... 6-20
Transmitters, Keyless Entry
........................ 2-6
Transportation, Courtesy
.......................... 8-8
Trip Odometer
................................. 2-63
Turn Signal and Lane Change.Signals
............... 2-34
Turn Signals When Towing
a Trailer ................ 4-52
Towing
Trailer Hitches
..................................... 4-49
Parking
on Hills .............................. 4-53
TTYUsers
..................................... 8-4
9-10
ProCarManuals.com
