CHEVROLET SUBURBAN 2000 9.G Owners Manual

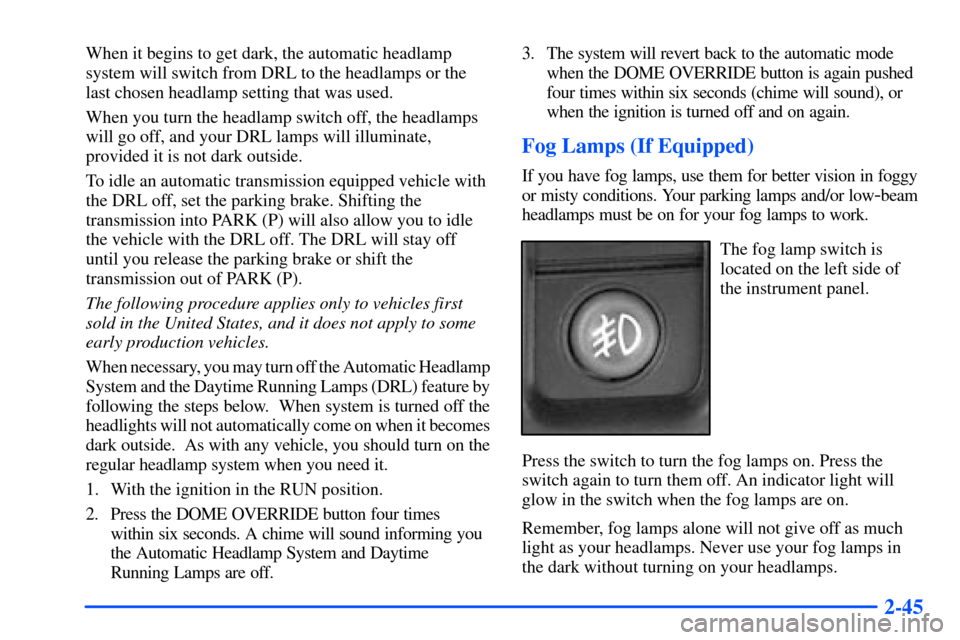

2-45
When it begins to get dark, the automatic headlamp
system will switch from DRL to the headlamps or the
last chosen headlamp setting that was used.
When you turn the headlamp switch off, the headlamps
will go off, and your DRL lamps will illuminate,
provided it is not dark outside.
To idle an automatic transmission equipped vehicle with
the DRL off, set the parking brake. Shifting the
transmission into PARK (P) will also allow you to idle
the vehicle with the DRL off. The DRL will stay off
until you release the parking brake or shift the
transmission out of PARK (P).
The following procedure applies only to vehicles first
sold in the United States, and it does not apply to some
early production vehicles.
When necessary, you may turn off the Automatic Headlamp
System and the Daytime Running Lamps (DRL) feature by
following the steps below. When system is turned off the
headlights will not automatically come on when it becomes
dark outside. As with any vehicle, you should turn on the
regular headlamp system when you need it.
1. With the ignition in the RUN position.
2. Press the DOME OVERRIDE button four times
within six seconds. A chime will sound informing you
the Automatic Headlamp System and Daytime
Running Lamps are off.3. The system will revert back to the automatic mode
when the DOME OVERRIDE button is again pushed
four times within six seconds (chime will sound), or
when the ignition is turned off and on again.
Fog Lamps (If Equipped)
If you have fog lamps, use them for better vision in foggy
or misty conditions. Your parking lamps and/or low
-beam
headlamps must be on for your fog lamps to work.
The fog lamp switch is
located on the left side of
the instrument panel.
Press the switch to turn the fog lamps on. Press the
switch again to turn them off. An indicator light will
glow in the switch when the fog lamps are on.
Remember, fog lamps alone will not give off as much
light as your headlamps. Never use your fog lamps in
the dark without turning on your headlamps.

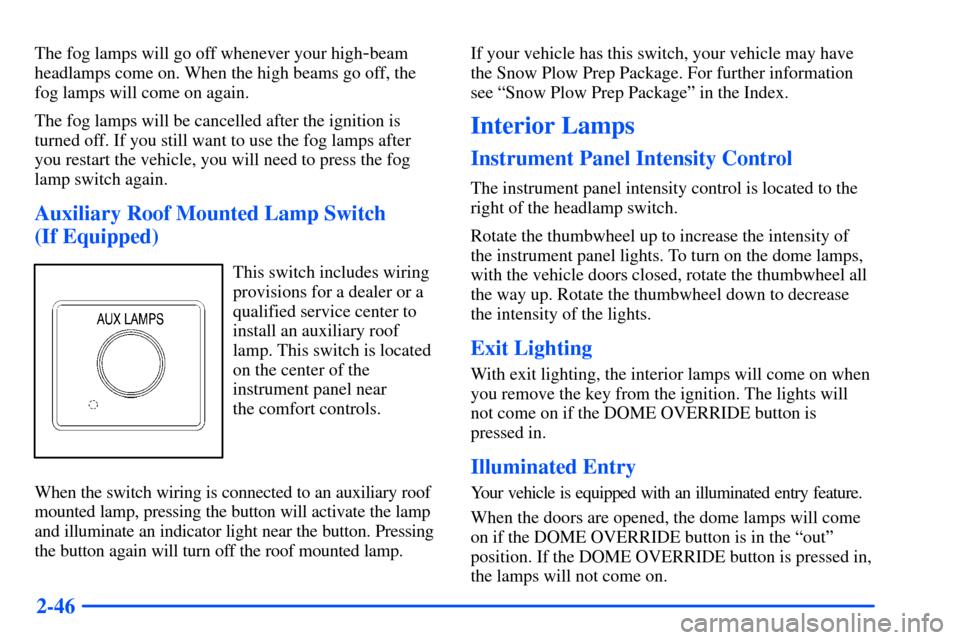

2-46
The fog lamps will go off whenever your high-beam
headlamps come on. When the high beams go off, the
fog lamps will come on again.
The fog lamps will be cancelled after the ignition is
turned off. If you still want to use the fog lamps after
you restart the vehicle, you will need to press the fog
lamp switch again.
Auxiliary Roof Mounted Lamp Switch
(If Equipped)
This switch includes wiring
provisions for a dealer or a
qualified service center to
install an auxiliary roof
lamp. This switch is located
on the center of the
instrument panel near
the comfort controls.
When the switch wiring is connected to an auxiliary roof
mounted lamp, pressing the button will activate the lamp
and illuminate an indicator light near the button. Pressing
the button again will turn off the roof mounted lamp.If your vehicle has this switch, your vehicle may have
the Snow Plow Prep Package. For further information
see ªSnow Plow Prep Packageº in the Index.
Interior Lamps
Instrument Panel Intensity Control
The instrument panel intensity control is located to the
right of the headlamp switch.
Rotate the thumbwheel up to increase the intensity of
the instrument panel lights. To turn on the dome lamps,
with the vehicle doors closed, rotate the thumbwheel all
the way up. Rotate the thumbwheel down to decrease
the intensity of the lights.
Exit Lighting
With exit lighting, the interior lamps will come on when
you remove the key from the ignition. The lights will
not come on if the DOME OVERRIDE button is
pressed in.
Illuminated Entry
Your vehicle is equipped with an illuminated entry feature.
When the doors are opened, the dome lamps will come
on if the DOME OVERRIDE button is in the ªoutº
position. If the DOME OVERRIDE button is pressed in,
the lamps will not come on.

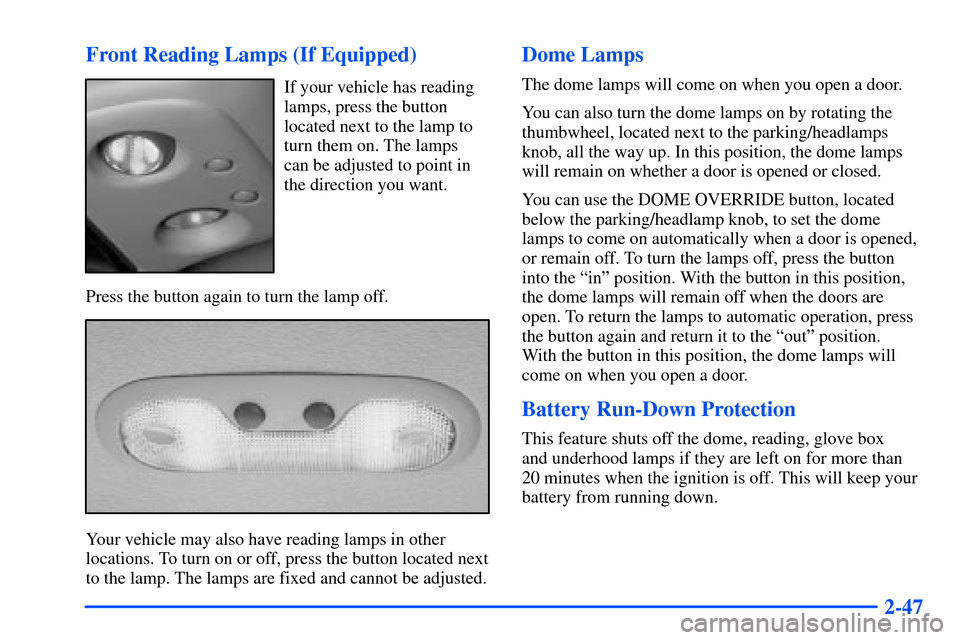

2-47 Front Reading Lamps (If Equipped)
If your vehicle has reading
lamps, press the button
located next to the lamp to
turn them on. The lamps
can be adjusted to point in
the direction you want.
Press the button again to turn the lamp off.
Your vehicle may also have reading lamps in other
locations. To turn on or off, press the button located next
to the lamp. The lamps are fixed and cannot be adjusted.
Dome Lamps
The dome lamps will come on when you open a door.
You can also turn the dome lamps on by rotating the
thumbwheel, located next to the parking/headlamps
knob, all the way up. In this position, the dome lamps
will remain on whether a door is opened or closed.
You can use the DOME OVERRIDE button, located
below the parking/headlamp knob, to set the dome
lamps to come on automatically when a door is opened,
or remain off. To turn the lamps off, press the button
into the ªinº position. With the button in this position,
the dome lamps will remain off when the doors are
open. To return the lamps to automatic operation, press
the button again and return it to the ªoutº position.
With the button in this position, the dome lamps will
come on when you open a door.
Battery Run-Down Protection
This feature shuts off the dome, reading, glove box
and underhood lamps if they are left on for more than
20 minutes when the ignition is off. This will keep your
battery from running down.

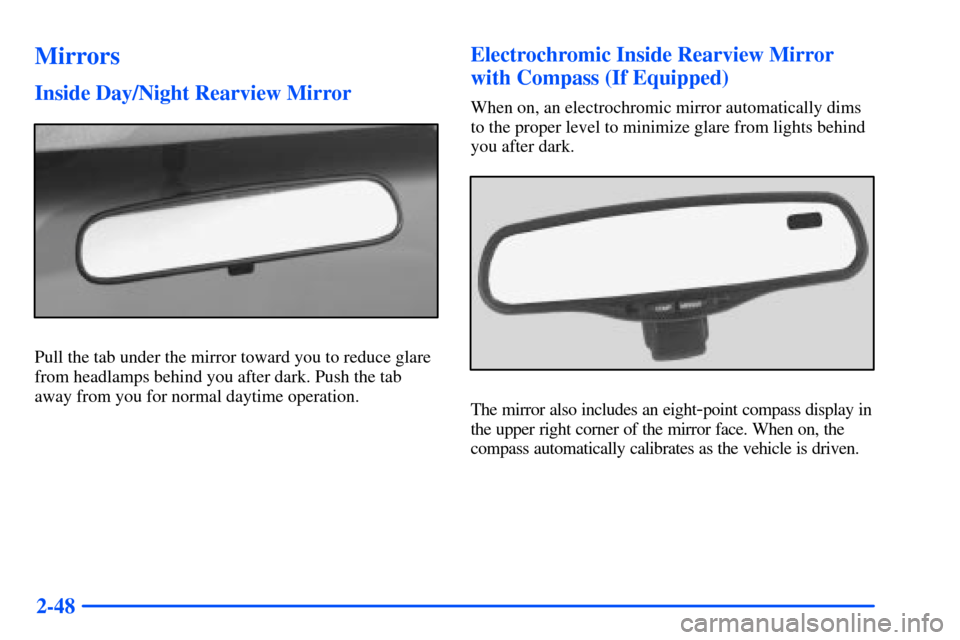

2-48
Mirrors
Inside Day/Night Rearview Mirror
Pull the tab under the mirror toward you to reduce glare
from headlamps behind you after dark. Push the tab
away from you for normal daytime operation.
Electrochromic Inside Rearview Mirror
with Compass (If Equipped)
When on, an electrochromic mirror automatically dims
to the proper level to minimize glare from lights behind
you after dark.
The mirror also includes an eight-point compass display in
the upper right corner of the mirror face. When on, the
compass automatically calibrates as the vehicle is driven.

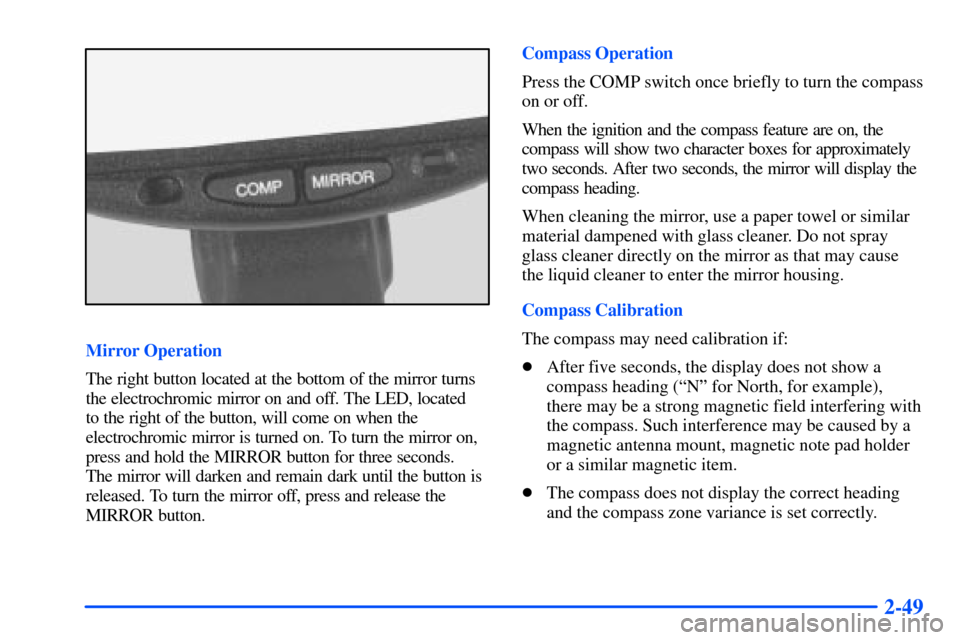

2-49
Mirror Operation
The right button located at the bottom of the mirror turns
the electrochromic mirror on and off. The LED, located
to the right of the button, will come on when the
electrochromic mirror is turned on. To turn the mirror on,
press and hold the MIRROR button for three seconds.
The mirror will darken and remain dark until the button is
released. To turn the mirror off, press and release the
MIRROR button.Compass Operation
Press the COMP switch once briefly to turn the compass
on or off.
When the ignition and the compass feature are on, the
compass will show two character boxes for approximately
two seconds. After two seconds, the mirror will display the
compass heading.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Compass Calibration
The compass may need calibration if:

After five seconds, the display does not show a
compass heading (ªNº for North, for example),
there may be a strong magnetic field interfering with
the compass. Such interference may be caused by a
magnetic antenna mount, magnetic note pad holder
or a similar magnetic item.

The compass does not display the correct heading
and the compass zone variance is set correctly.

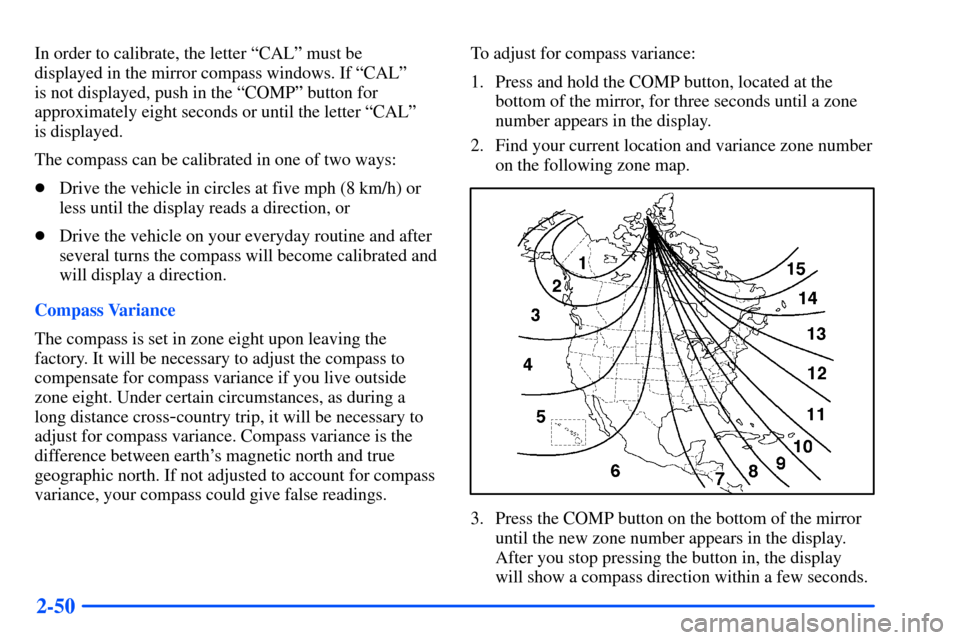

2-50
In order to calibrate, the letter ªCALº must be
displayed in the mirror compass windows. If ªCALº
is not displayed, push in the ªCOMPº button for
approximately eight seconds or until the letter ªCALº
is displayed.
The compass can be calibrated in one of two ways:

Drive the vehicle in circles at five mph (8 km/h) or
less until the display reads a direction, or

Drive the vehicle on your everyday routine and after
several turns the compass will become calibrated and
will display a direction.
Compass Variance
The compass is set in zone eight upon leaving the
factory. It will be necessary to adjust the compass to
compensate for compass variance if you live outside
zone eight. Under certain circumstances, as during a
long distance cross
-country trip, it will be necessary to
adjust for compass variance. Compass variance is the
difference between earth's magnetic north and true
geographic north. If not adjusted to account for compass
variance, your compass could give false readings.To adjust for compass variance:
1. Press and hold the COMP button, located at the
bottom of the mirror, for three seconds until a zone
number appears in the display.
2. Find your current location and variance zone number
on the following zone map.
3. Press the COMP button on the bottom of the mirror
until the new zone number appears in the display.
After you stop pressing the button in, the display
will show a compass direction within a few seconds.

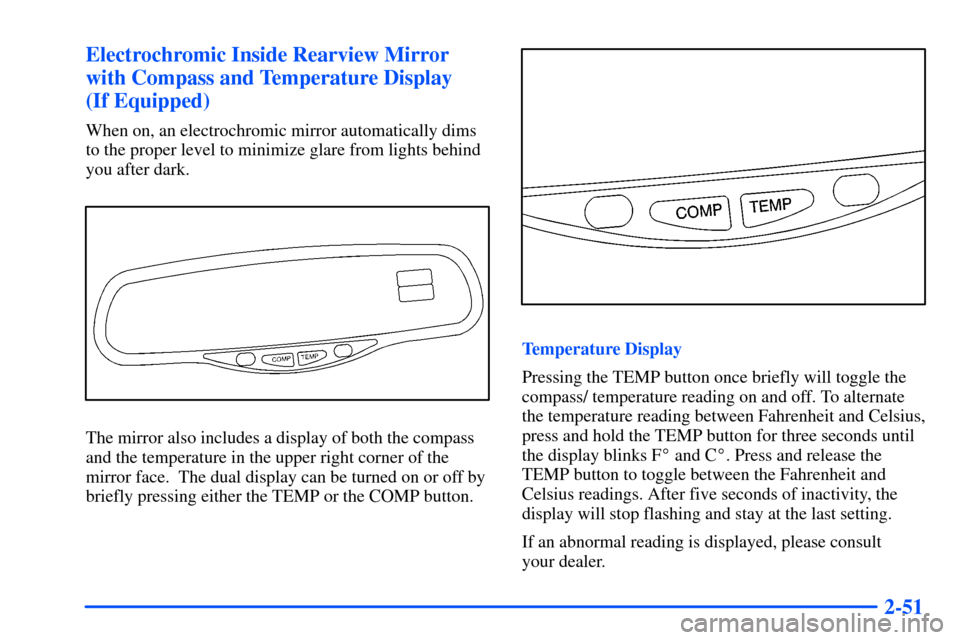

2-51 Electrochromic Inside Rearview Mirror
with Compass and Temperature Display
(If Equipped)
When on, an electrochromic mirror automatically dims
to the proper level to minimize glare from lights behind
you after dark.
The mirror also includes a display of both the compass
and the temperature in the upper right corner of the
mirror face. The dual display can be turned on or off by
briefly pressing either the TEMP or the COMP button.
Temperature Display
Pressing the TEMP button once briefly will toggle the
compass/ temperature reading on and off. To alternate
the temperature reading between Fahrenheit and Celsius,
press and hold the TEMP button for three seconds until
the display blinks F
and C
. Press and release the
TEMP button to toggle between the Fahrenheit and
Celsius readings. After five seconds of inactivity, the
display will stop flashing and stay at the last setting.
If an abnormal reading is displayed, please consult
your dealer.

2-52

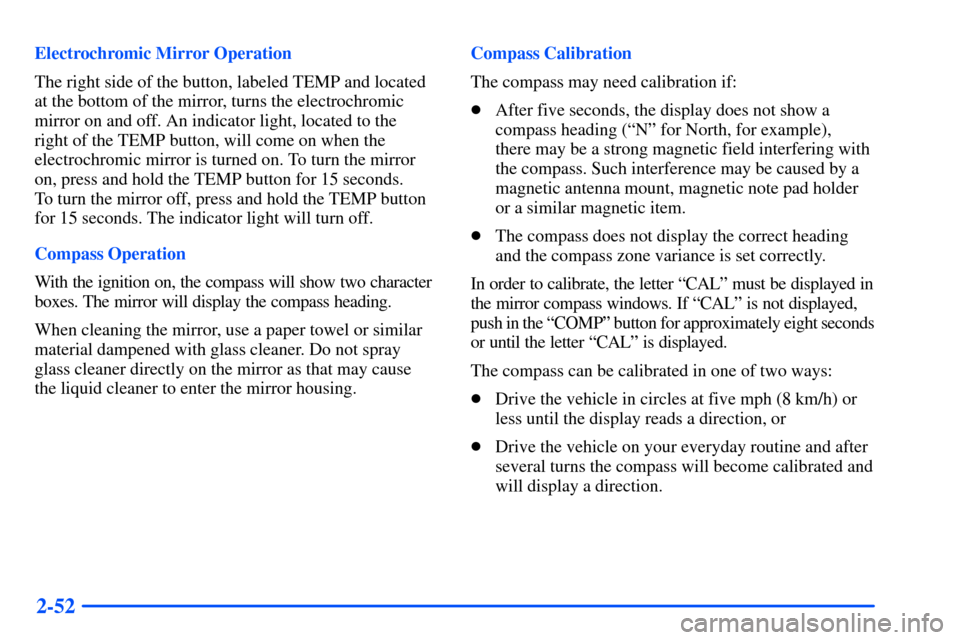

Electrochromic Mirror Operation
The right side of the button, labeled TEMP and located
at the bottom of the mirror, turns the electrochromic
mirror on and off. An indicator light, located to the
right of the TEMP button, will come on when the
electrochromic mirror is turned on. To turn the mirror
on, press and hold the TEMP button for 15 seconds.
To turn the mirror off, press and hold the TEMP button
for 15 seconds. The indicator light will turn off.
Compass Operation
With the ignition on, the compass will show two character
boxes. The mirror will display the compass heading.
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.Compass Calibration
The compass may need calibration if:

After five seconds, the display does not show a
compass heading (ªNº for North, for example),
there may be a strong magnetic field interfering with
the compass. Such interference may be caused by a
magnetic antenna mount, magnetic note pad holder
or a similar magnetic item.

The compass does not display the correct heading
and the compass zone variance is set correctly.
In order to calibrate, the letter ªCALº must be displayed in
the mirror compass windows. If ªCALº is not displayed,
push in the ªCOMPº button for approximately eight seconds
or until the letter ªCALº is displayed.
The compass can be calibrated in one of two ways:

Drive the vehicle in circles at five mph (8 km/h) or
less until the display reads a direction, or

Drive the vehicle on your everyday routine and after
several turns the compass will become calibrated and
will display a direction.

2-53

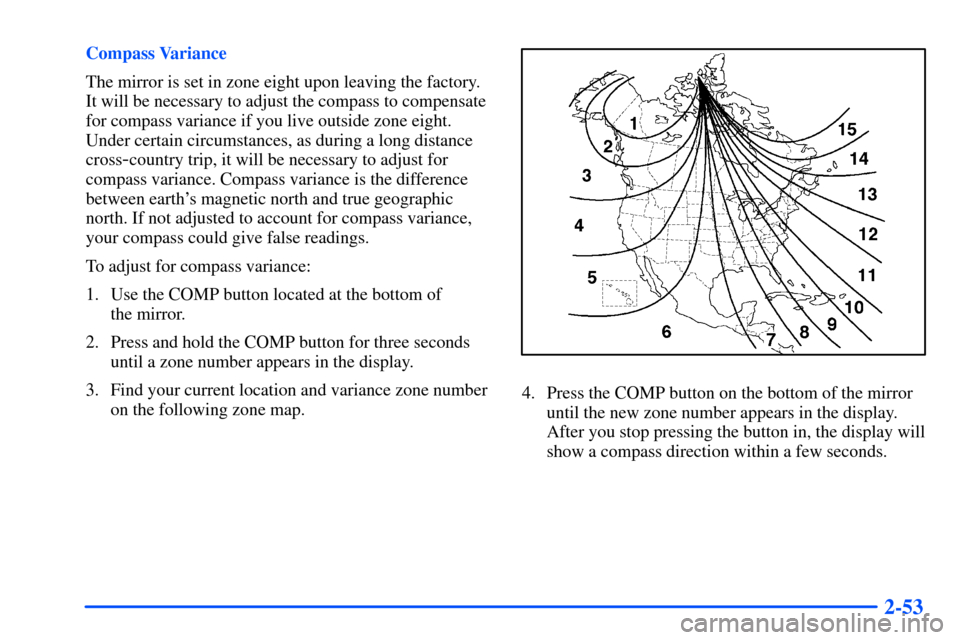

Compass Variance
The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if you live outside zone eight.
Under certain circumstances, as during a long distance
cross
-country trip, it will be necessary to adjust for
compass variance. Compass variance is the difference
between earth's magnetic north and true geographic
north. If not adjusted to account for compass variance,
your compass could give false readings.
To adjust for compass variance:
1. Use the COMP button located at the bottom of
the mirror.
2. Press and hold the COMP button for three seconds
until a zone number appears in the display.
3. Find your current location and variance zone number
on the following zone map.
4. Press the COMP button on the bottom of the mirror
until the new zone number appears in the display.
After you stop pressing the button in, the display will
show a compass direction within a few seconds.

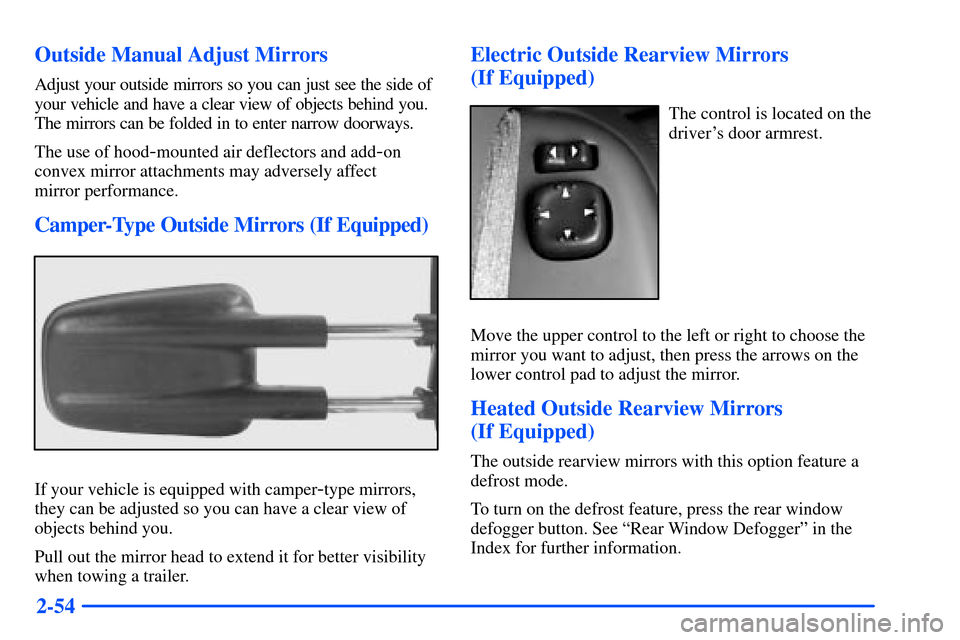

2-54 Outside Manual Adjust Mirrors
Adjust your outside mirrors so you can just see the side of
your vehicle and have a clear view of objects behind you.
The mirrors can be folded in to enter narrow doorways.
The use of hood
-mounted air deflectors and add-on
convex mirror attachments may adversely affect
mirror performance.
Camper-Type Outside Mirrors (If Equipped)
If your vehicle is equipped with camper-type mirrors,
they can be adjusted so you can have a clear view of
objects behind you.
Pull out the mirror head to extend it for better visibility
when towing a trailer.
Electric Outside Rearview Mirrors
(If Equipped)
The control is located on the
driver's door armrest.
Move the upper control to the left or right to choose the
mirror you want to adjust, then press the arrows on the
lower control pad to adjust the mirror.
Heated Outside Rearview Mirrors
(If Equipped)
The outside rearview mirrors with this option feature a
defrost mode.
To turn on the defrost feature, press the rear window
defogger button. See ªRear Window Defoggerº in the
Index for further information.
