CHEVROLET SUBURBAN 2000 9.G Owners Manual

2-85

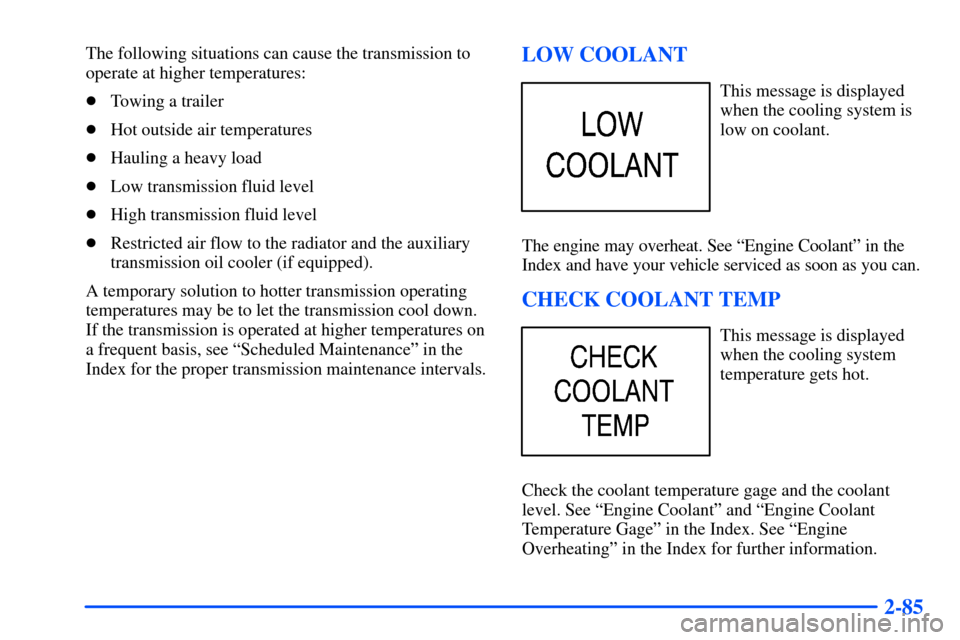

The following situations can cause the transmission to
operate at higher temperatures:

Towing a trailer

Hot outside air temperatures

Hauling a heavy load

Low transmission fluid level

High transmission fluid level

Restricted air flow to the radiator and the auxiliary
transmission oil cooler (if equipped).
A temporary solution to hotter transmission operating
temperatures may be to let the transmission cool down.
If the transmission is operated at higher temperatures on
a frequent basis, see ªScheduled Maintenanceº in the
Index for the proper transmission maintenance intervals.LOW COOLANT
This message is displayed
when the cooling system is
low on coolant.
The engine may overheat. See ªEngine Coolantº in the
Index and have your vehicle serviced as soon as you can.
CHECK COOLANT TEMP
This message is displayed
when the cooling system
temperature gets hot.
Check the coolant temperature gage and the coolant
level. See ªEngine Coolantº and ªEngine Coolant
Temperature Gageº in the Index. See ªEngine
Overheatingº in the Index for further information.

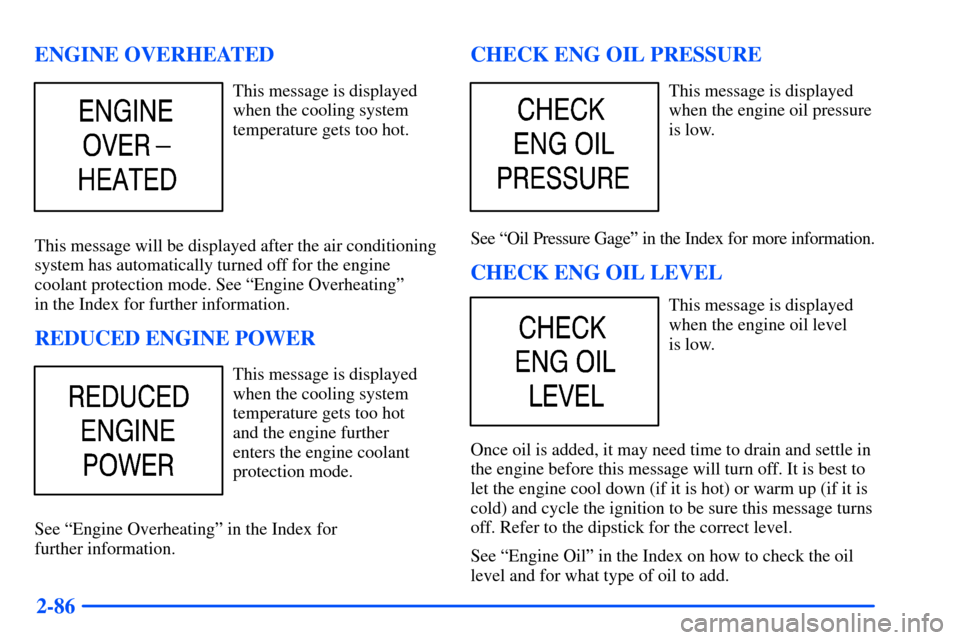

2-86 ENGINE OVERHEATED
This message is displayed
when the cooling system
temperature gets too hot.
This message will be displayed after the air conditioning
system has automatically turned off for the engine
coolant protection mode. See ªEngine Overheatingº
in the Index for further information.
REDUCED ENGINE POWER
This message is displayed
when the cooling system
temperature gets too hot
and the engine further
enters the engine coolant
protection mode.
See ªEngine Overheatingº in the Index for
further information.
CHECK ENG OIL PRESSURE
This message is displayed
when the engine oil pressure
is low.
See ªOil Pressure Gageº in the Index for more information.
CHECK ENG OIL LEVEL
This message is displayed
when the engine oil level
is low.
Once oil is added, it may need time to drain and settle in
the engine before this message will turn off. It is best to
let the engine cool down (if it is hot) or warm up (if it is
cold) and cycle the ignition to be sure this message turns
off. Refer to the dipstick for the correct level.
See ªEngine Oilº in the Index on how to check the oil
level and for what type of oil to add.

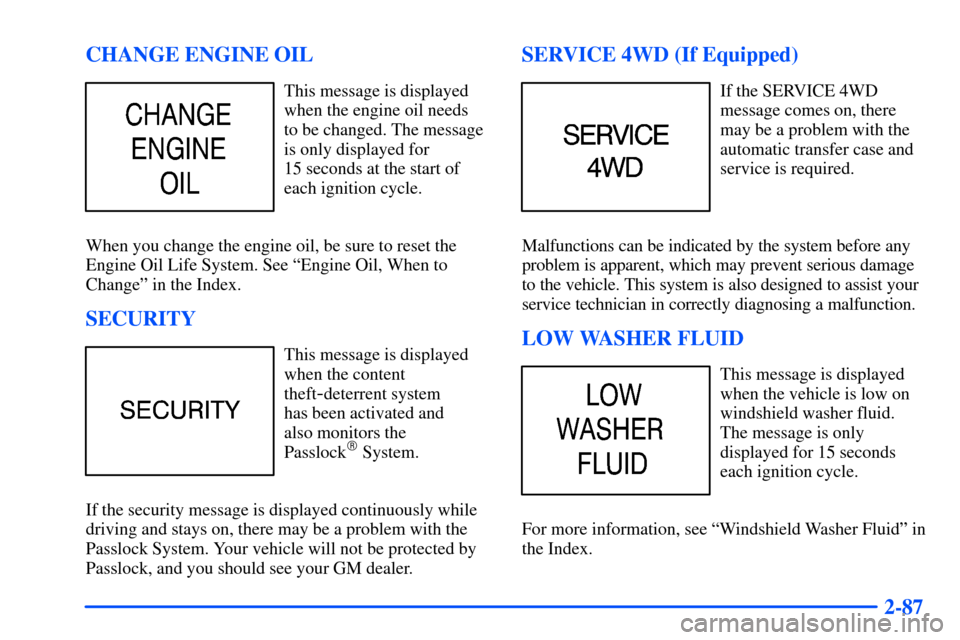

2-87 CHANGE ENGINE OIL
This message is displayed
when the engine oil needs
to be changed. The message
is only displayed for
15 seconds at the start of
each ignition cycle.
When you change the engine oil, be sure to reset the
Engine Oil Life System. See ªEngine Oil, When to
Changeº in the Index.
SECURITY
This message is displayed
when the content
theft
-deterrent system
has been activated and
also monitors the
Passlock

System.
If the security message is displayed continuously while
driving and stays on, there may be a problem with the
Passlock System. Your vehicle will not be protected by
Passlock, and you should see your GM dealer.
SERVICE 4WD (If Equipped)
If the SERVICE 4WD
message comes on, there
may be a problem with the
automatic transfer case and
service is required.
Malfunctions can be indicated by the system before any
problem is apparent, which may prevent serious damage
to the vehicle. This system is also designed to assist your
service technician in correctly diagnosing a malfunction.
LOW WASHER FLUID
This message is displayed
when the vehicle is low on
windshield washer fluid.
The message is only
displayed for 15 seconds
each ignition cycle.
For more information, see ªWindshield Washer Fluidº in
the Index.

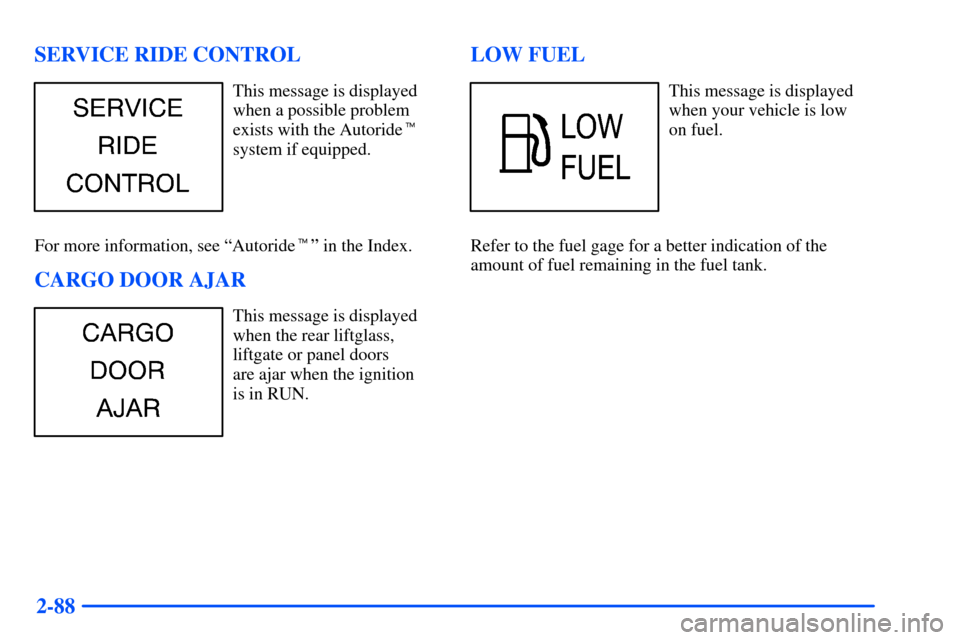

2-88 SERVICE RIDE CONTROL
This message is displayed
when a possible problem
exists with the Autoride

system if equipped.
For more information, see ªAutoride
º in the Index.
CARGO DOOR AJAR
This message is displayed
when the rear liftglass,
liftgate or panel doors
are ajar when the ignition
is in RUN.
LOW FUEL
This message is displayed
when your vehicle is low
on fuel.
Refer to the fuel gage for a better indication of the
amount of fuel remaining in the fuel tank.

3-
3-1
Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-3 Heater and Air Conditioning Comfort
Controls (If Equipped)
3
-5 Electronic Climate Control System
(If Equipped)
3
-11 Air Conditioning
3
-12 Heating
3
-12 Defogging and Defrosting
3
-12 Rear Window Defogger (If Equipped)
3
-13 Ventilation System
3
-15 Audio Systems
3
-15 Setting the Clock for Systems with
SET Button
3
-15 Setting the Clock for Systems with HR
and MN Buttons
3
-15 AM-FM Stereo3
-17 AM-FM Stereo with Cassette Tape Player
(If Equipped)
3
-19 AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control (If Equipped)
3
-24 AM-FM Stereo with Compact Disc Player
and Automatic Tone Control (If Equipped)
3
-28 Rear Seat Audio (If Equipped)
3
-29 Remote Compact Disc Player (If Equipped)
3
-31 Theft-Deterrent Feature (If Equipped)
3
-34 Understanding Radio Reception
3
-34 Tips About Your Audio System
3
-35 Care of Your Cassette Tape Player
3
-37 Care of Your Compact Discs
3
-37 Care of Your Compact Disc Player
3
-37 Fixed Mast Antenna

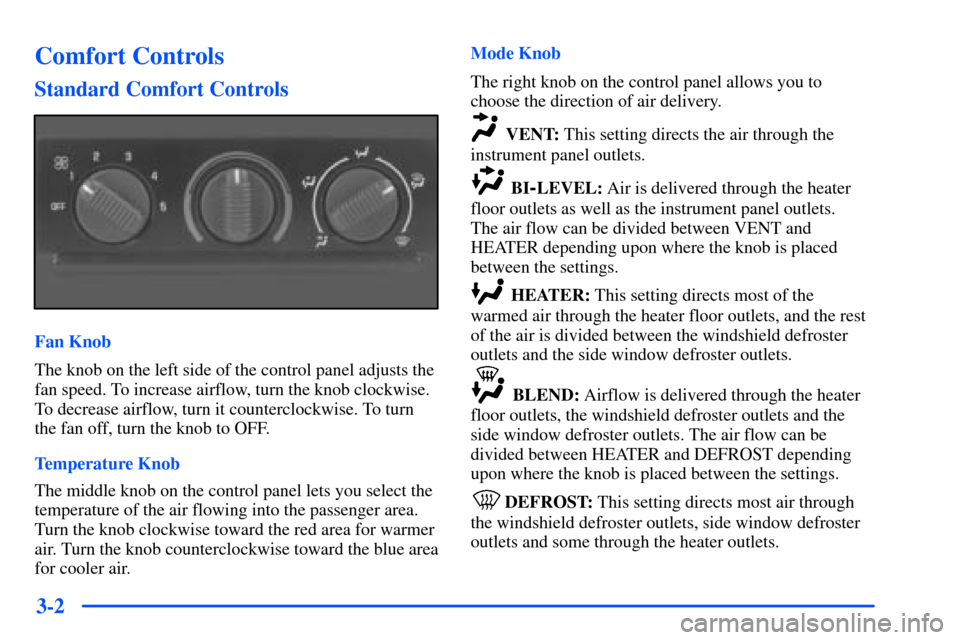

3-2
Comfort Controls
Standard Comfort Controls
Fan Knob
The knob on the left side of the control panel adjusts the
fan speed. To increase airflow, turn the knob clockwise.
To decrease airflow, turn it counterclockwise. To turn
the fan off, turn the knob to OFF.
Temperature Knob
The middle knob on the control panel lets you select the
temperature of the air flowing into the passenger area.
Turn the knob clockwise toward the red area for warmer
air. Turn the knob counterclockwise toward the blue area
for cooler air.Mode Knob
The right knob on the control panel allows you to
choose the direction of air delivery.
VENT: This setting directs the air through the
instrument panel outlets.
BI-LEVEL: Air is delivered through the heater
floor outlets as well as the instrument panel outlets.
The air flow can be divided between VENT and
HEATER depending upon where the knob is placed
between the settings.
HEATER: This setting directs most of the
warmed air through the heater floor outlets, and the rest
of the air is divided between the windshield defroster
outlets and the side window defroster outlets.
BLEND: Airflow is delivered through the heater
floor outlets, the windshield defroster outlets and the
side window defroster outlets. The air flow can be
divided between HEATER and DEFROST depending
upon where the knob is placed between the settings.
DEFROST: This setting directs most air through
the windshield defroster outlets, side window defroster
outlets and some through the heater outlets.

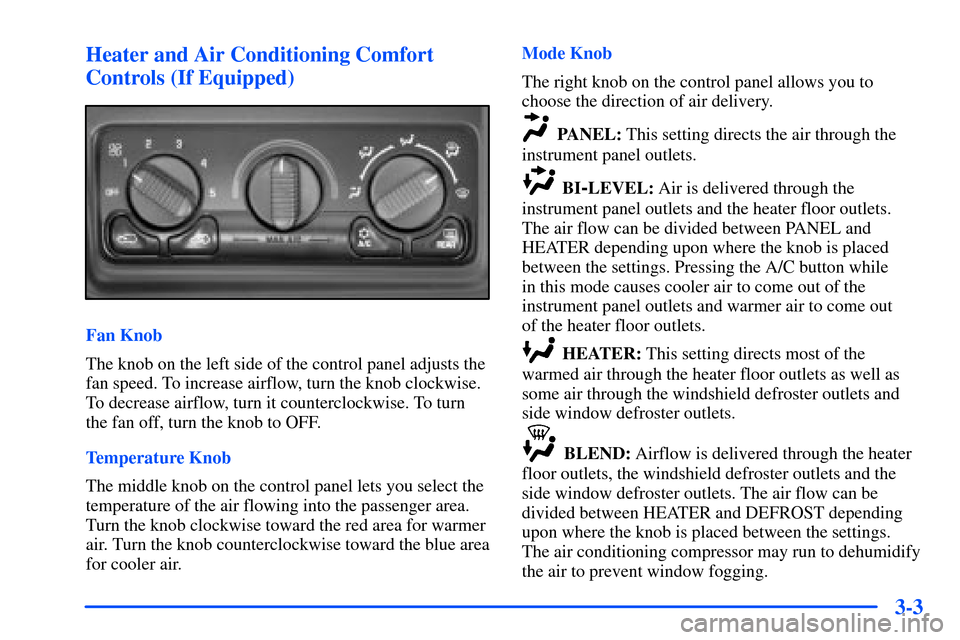

3-3 Heater and Air Conditioning Comfort
Controls (If Equipped)
Fan Knob
The knob on the left side of the control panel adjusts the
fan speed. To increase airflow, turn the knob clockwise.
To decrease airflow, turn it counterclockwise. To turn
the fan off, turn the knob to OFF.
Temperature Knob
The middle knob on the control panel lets you select the
temperature of the air flowing into the passenger area.
Turn the knob clockwise toward the red area for warmer
air. Turn the knob counterclockwise toward the blue area
for cooler air.Mode Knob
The right knob on the control panel allows you to
choose the direction of air delivery.
PANEL: This setting directs the air through the
instrument panel outlets.
BI-LEVEL: Air is delivered through the
instrument panel outlets and the heater floor outlets.
The air flow can be divided between PANEL and
HEATER depending upon where the knob is placed
between the settings. Pressing the A/C button while
in this mode causes cooler air to come out of the
instrument panel outlets and warmer air to come out
of the heater floor outlets.
HEATER: This setting directs most of the
warmed air through the heater floor outlets as well as
some air through the windshield defroster outlets and
side window defroster outlets.
BLEND: Airflow is delivered through the heater
floor outlets, the windshield defroster outlets and the
side window defroster outlets. The air flow can be
divided between HEATER and DEFROST depending
upon where the knob is placed between the settings.
The air conditioning compressor may run to dehumidify
the air to prevent window fogging.

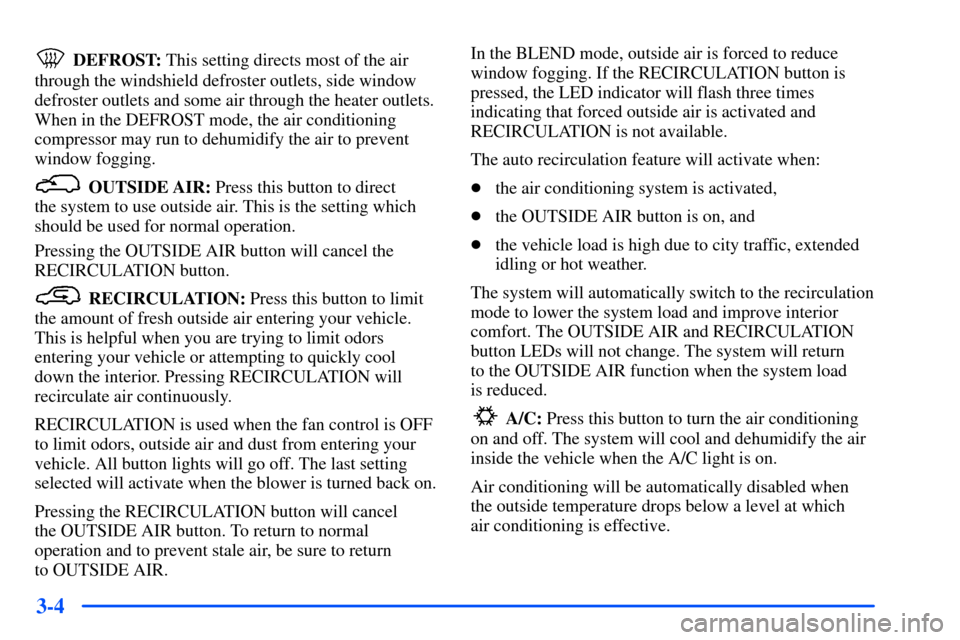

3-4
DEFROST: This setting directs most of the air
through the windshield defroster outlets, side window
defroster outlets and some air through the heater outlets.
When in the DEFROST mode, the air conditioning
compressor may run to dehumidify the air to prevent
window fogging.
OUTSIDE AIR: Press this button to direct
the system to use outside air. This is the setting which
should be used for normal operation.
Pressing the OUTSIDE AIR button will cancel the
RECIRCULATION button.
RECIRCULATION: Press this button to limit
the amount of fresh outside air entering your vehicle.
This is helpful when you are trying to limit odors
entering your vehicle or attempting to quickly cool
down the interior. Pressing RECIRCULATION will
recirculate air continuously.
RECIRCULATION is used when the fan control is OFF
to limit odors, outside air and dust from entering your
vehicle. All button lights will go off. The last setting
selected will activate when the blower is turned back on.
Pressing the RECIRCULATION button will cancel
the OUTSIDE AIR button. To return to normal
operation and to prevent stale air, be sure to return
to OUTSIDE AIR.In the BLEND mode, outside air is forced to reduce
window fogging. If the RECIRCULATION button is
pressed, the LED indicator will flash three times
indicating that forced outside air is activated and
RECIRCULATION is not available.
The auto recirculation feature will activate when:

the air conditioning system is activated,

the OUTSIDE AIR button is on, and

the vehicle load is high due to city traffic, extended
idling or hot weather.
The system will automatically switch to the recirculation
mode to lower the system load and improve interior
comfort. The OUTSIDE AIR and RECIRCULATION
button LEDs will not change. The system will return
to the OUTSIDE AIR function when the system load
is reduced.
A/C: Press this button to turn the air conditioning
on and off. The system will cool and dehumidify the air
inside the vehicle when the A/C light is on.
Air conditioning will be automatically disabled when
the outside temperature drops below a level at which
air conditioning is effective.

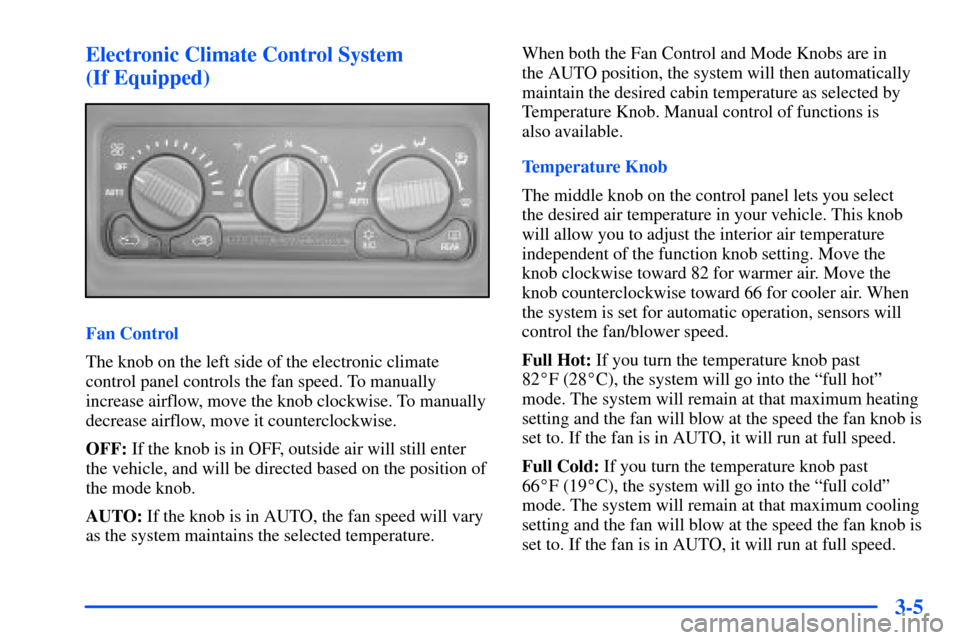

3-5 Electronic Climate Control System
(If Equipped)
Fan Control
The knob on the left side of the electronic climate
control panel controls the fan speed. To manually
increase airflow, move the knob clockwise. To manually
decrease airflow, move it counterclockwise.
OFF: If the knob is in OFF, outside air will still enter
the vehicle, and will be directed based on the position of
the mode knob.
AUTO: If the knob is in AUTO, the fan speed will vary
as the system maintains the selected temperature.When both the Fan Control and Mode Knobs are in
the AUTO position, the system will then automatically
maintain the desired cabin temperature as selected by
Temperature Knob. Manual control of functions is
also available.
Temperature Knob
The middle knob on the control panel lets you select
the desired air temperature in your vehicle. This knob
will allow you to adjust the interior air temperature
independent of the function knob setting. Move the
knob clockwise toward 82 for warmer air. Move the
knob counterclockwise toward 66 for cooler air. When
the system is set for automatic operation, sensors will
control the fan/blower speed.
Full Hot: If you turn the temperature knob past
82
F (28
C), the system will go into the ªfull hotº
mode. The system will remain at that maximum heating
setting and the fan will blow at the speed the fan knob is
set to. If the fan is in AUTO, it will run at full speed.
Full Cold: If you turn the temperature knob past
66
F (19
C), the system will go into the ªfull coldº
mode. The system will remain at that maximum cooling
setting and the fan will blow at the speed the fan knob is
set to. If the fan is in AUTO, it will run at full speed.

3-6
Mode Knob - Automatic Operation
The right knob on the control panel allows you to
choose the direction of air delivery. When the system is
set for automatic operation, sensors will control the air
delivery mode. Air will come primarily from the floor or
instrument panel outlets, with some air directed to the
windshield to prevent fogging.
When the system is in AUTO mode, the air conditioning
light will turn on, and the recirculation and outside air
lights turn off. With the system in full auto control
(both the fan and mode knobs in AUTO), you still
have the ability to override any function. However,
continually overriding the outside air or the A/C
compressor will limit the ability of the system to cool
the vehicle quickly.
If you push a button for a function which is not
available, the light next to that button will flash three
times to alert you that it's not available.
To find your comfort zone, start with the 74
F (23
C)
setting and allow about 20 minutes for the system to
adjust the temperature if necessary.With the automatic setting, the air conditioning
compressor automatically cycles when needed to cool the
air. In cold weather, when the system senses the need
for heat, the airflow will be directed out the floor outlets.
As the interior temperature approaches a desired setting,
the blower speed will decrease. To maintain interior
comfort, the airflow will adjust between the instrument
panel air outlets and floor outlets. On bright sunny days
in cool weather, the airflow may come out of the air
conditioning and floor outlets (bi
-level mode) to maintain
comfort and prevent stuffiness.
To avoid blowing cold air in cold weather, the system
will delay turning on the fan until warm air is available.
The length of delay depends on the outside air
temperature, engine coolant temperature or the time
since the engine was last started. As the coolant warms
up, the blower fan speed will gradually increase and
air will flow from the heater outlets, with some airflow
to the windshield to prevent fogging under most
normal conditions.
Be careful not to put anything over the solar sensor
located around the center of the instrument panel.
This sensor is used by the automatic system to
regulate temperature.
