(b)Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts,
signs of wear, or lack of lubrication. Inspect power
steering lines and hoses for proper hook-up, binding,
leaks, cracks, chang, etc. Visually check constant
velocity joints, rubber boots, and axle seals for leaks.
(c)Visually inspect hoses and have them replaced if they
are cracked, swollen, or deteriorated. Inspect all pipes,
ttings, and clamps; replace with genuine GM parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.
(d)Visually inspect wiper blades for wear or cracking.
Replace wiper blades that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors, and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its job,
have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced. The
airbag system does not need regular maintenance.(f)Lubricate all key lock cylinders, hood latch assembly,
secondary latch, pivots, spring anchor, release pawl,
rear compartment hinges, outer liftgate handle pivot
points, rear door detent link, roller mechanism, liftgate
handle pivot points, latch bolt, fuel door hinge, cargo
door hinge, locks, and folding seat hardware. More
frequent lubrication may be required when exposed to a
corrosive environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
(g)Check vent hose at transfer case for kinks and
proper installation.
(h)Change automatic transmission uid and lter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, ush, and rell cooling system. This service
can be complex; you should have your dealer perform
this service. See Engine Coolant on page 5-26 for
what to use. Inspect hoses. Clean radiator, condenser,
pressure cap, and ller neck. Pressure test the
cooling system and pressure cap.
6-8

(j)A uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the uid level checked. Add uid if needed.
(k)Inspect system. Check all fuel and vapor lines and
hoses for proper hook-up, routing, and condition. Check
that the purge valve works properly, if equipped.
Replace as needed.
(l)If you drive regularly under dusty conditions, inspect
the lter at each engine oil change.
(m)Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench
®dealer can assist
you with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-13.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-16for further
details.
Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. SeeEngine
Coolant on page 5-26for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer tank and add the proper uid if necessary.
6-9

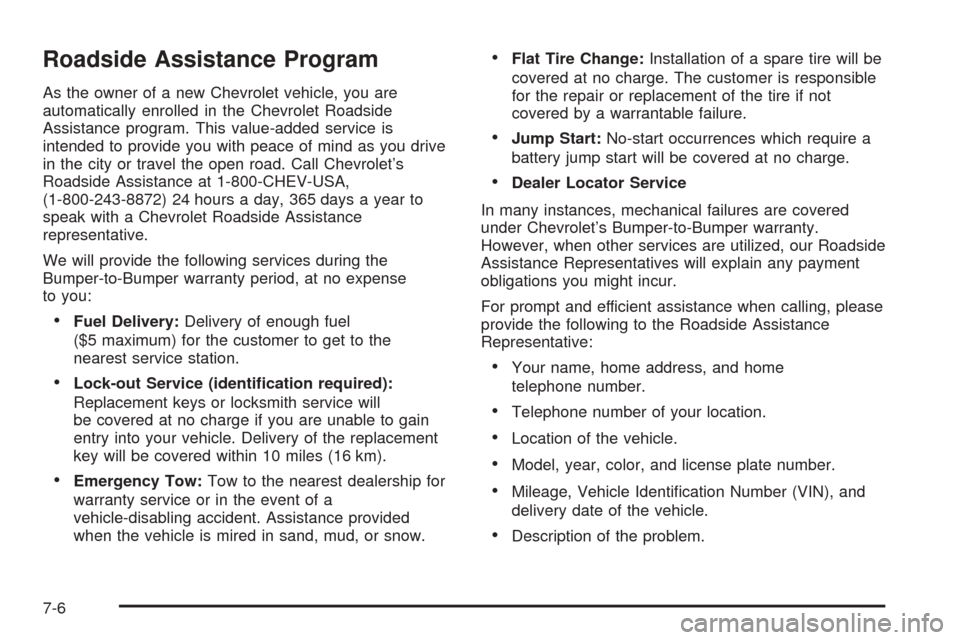

Roadside Assistance Program
As the owner of a new Chevrolet vehicle, you are
automatically enrolled in the Chevrolet Roadside
Assistance program. This value-added service is
intended to provide you with peace of mind as you drive
in the city or travel the open road. Call Chevrolet’s
Roadside Assistance at 1-800-CHEV-USA,
(1-800-243-8872) 24 hours a day, 365 days a year to
speak with a Chevrolet Roadside Assistance
representative.
We will provide the following services during the
Bumper-to-Bumper warranty period, at no expense
to you:
Fuel Delivery:Delivery of enough fuel
($5 maximum) for the customer to get to the
nearest service station.
Lock-out Service (identication required):
Replacement keys or locksmith service will
be covered at no charge if you are unable to gain
entry into your vehicle. Delivery of the replacement
key will be covered within 10 miles (16 km).
Emergency Tow:Tow to the nearest dealership for
warranty service or in the event of a
vehicle-disabling accident. Assistance provided
when the vehicle is mired in sand, mud, or snow.
Flat Tire Change:Installation of a spare tire will be
covered at no charge. The customer is responsible
for the repair or replacement of the tire if not
covered by a warrantable failure.
Jump Start:No-start occurrences which require a
battery jump start will be covered at no charge.
Dealer Locator Service
In many instances, mechanical failures are covered
under Chevrolet’s Bumper-to-Bumper warranty.
However, when other services are utilized, our Roadside
Assistance Representatives will explain any payment
obligations you might incur.
For prompt and efficient assistance when calling, please
provide the following to the Roadside Assistance
Representative:
Your name, home address, and home
telephone number.
Telephone number of your location.
Location of the vehicle.
Model, year, color, and license plate number.
Mileage, Vehicle Identication Number (VIN), and
delivery date of the vehicle.
Description of the problem.
7-6

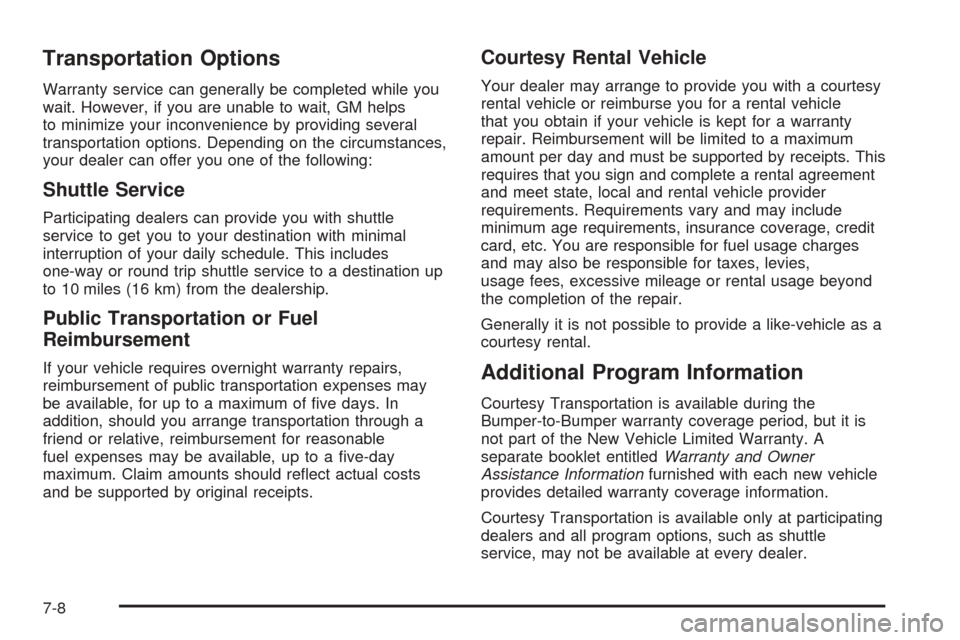

Transportation Options
Warranty service can generally be completed while you
wait. However, if you are unable to wait, GM helps
to minimize your inconvenience by providing several
transportation options. Depending on the circumstances,
your dealer can offer you one of the following:
Shuttle Service
Participating dealers can provide you with shuttle
service to get you to your destination with minimal
interruption of your daily schedule. This includes
one-way or round trip shuttle service to a destination up
to 10 miles (16 km) from the dealership.
Public Transportation or Fuel
Reimbursement
If your vehicle requires overnight warranty repairs,
reimbursement of public transportation expenses may
be available, for up to a maximum of ve days. In
addition, should you arrange transportation through a
friend or relative, reimbursement for reasonable
fuel expenses may be available, up to a ve-day
maximum. Claim amounts should reect actual costs
and be supported by original receipts.
Courtesy Rental Vehicle
Your dealer may arrange to provide you with a courtesy
rental vehicle or reimburse you for a rental vehicle
that you obtain if your vehicle is kept for a warranty
repair. Reimbursement will be limited to a maximum
amount per day and must be supported by receipts. This
requires that you sign and complete a rental agreement
and meet state, local and rental vehicle provider
requirements. Requirements vary and may include
minimum age requirements, insurance coverage, credit
card, etc. You are responsible for fuel usage charges
and may also be responsible for taxes, levies,
usage fees, excessive mileage or rental usage beyond
the completion of the repair.
Generally it is not possible to provide a like-vehicle as a
courtesy rental.
Additional Program Information
Courtesy Transportation is available during the
Bumper-to-Bumper warranty coverage period, but it is
not part of the New Vehicle Limited Warranty. A
separate booklet entitledWarranty and Owner
Assistance Informationfurnished with each new vehicle
provides detailed warranty coverage information.
Courtesy Transportation is available only at participating
dealers and all program options, such as shuttle
service, may not be available at every dealer.
7-8

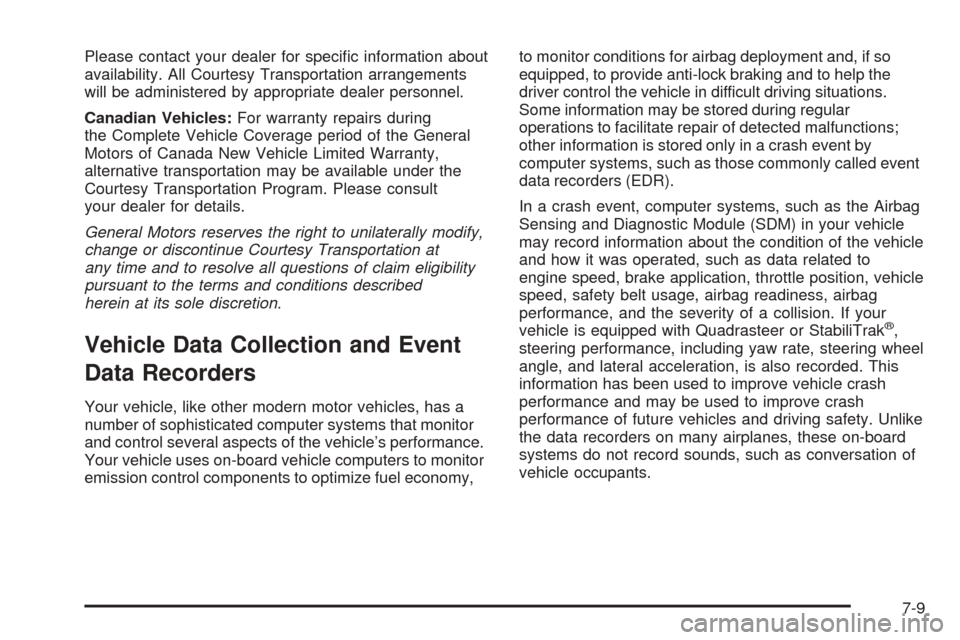

Please contact your dealer for specic information about
availability. All Courtesy Transportation arrangements
will be administered by appropriate dealer personnel.
Canadian Vehicles:For warranty repairs during
the Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited Warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at its sole discretion.
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s performance.
Your vehicle uses on-board vehicle computers to monitor
emission control components to optimize fuel economy,to monitor conditions for airbag deployment and, if so
equipped, to provide anti-lock braking and to help the
driver control the vehicle in difficult driving situations.
Some information may be stored during regular
operations to facilitate repair of detected malfunctions;
other information is stored only in a crash event by
computer systems, such as those commonly called event
data recorders (EDR).
In a crash event, computer systems, such as the Airbag
Sensing and Diagnostic Module (SDM) in your vehicle
may record information about the condition of the vehicle
and how it was operated, such as data related to
engine speed, brake application, throttle position, vehicle
speed, safety belt usage, airbag readiness, airbag
performance, and the severity of a collision. If your
vehicle is equipped with Quadrasteer or StabiliTrak
®,
steering performance, including yaw rate, steering wheel
angle, and lateral acceleration, is also recorded. This
information has been used to improve vehicle crash
performance and may be used to improve crash
performance of future vehicles and driving safety. Unlike
the data recorders on many airplanes, these on-board
systems do not record sounds, such as conversation of
vehicle occupants.
7-9

A
Accessory Power Outlets.................................3-20
Adding a Snow Plow or Similar Equipment.........4-57
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-82
Additives, Fuel................................................. 5-6
Add-On Electrical Equipment...........................5-107
Adjustable Throttle and Brake Pedal..................2-22
Air Cleaner/Filter, Engine.................................5-21
Air Conditioning..............................3-21, 3-22, 3-25
Airbag
Passenger Status Indicator...........................3-40
Readiness Light..........................................3-39
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
Airbag System................................................1-68
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-82
How Does an Airbag Restrain?......................1-75
Passenger Sensing System...........................1-78
Servicing Your Airbag-Equipped Vehicle..........1-82
What Makes an Airbag Inate?......................1-75
What Will You See After an Airbag Inates?....1-76
When Should an Airbag Inate?....................1-73
Where Are the Airbags?...............................1-71
All-Wheel Drive...............................................5-47
All-Wheel Drive with StabiliTrak
®.......................2-32AM-FM Radio.................................................3-79
Antenna, Fixed Mast......................................3-138
Antenna, XM™ Satellite Radio Antenna
System.....................................................3-138
Anti-Lock Brake System (ABS)........................... 4-7
Anti-Lock Brake, System Warning Light..............3-45
Appearance Care............................................5-97
Aluminum or Chrome-Plated Wheels.............5-103
Care of Safety Belts...................................5-101
Chemical Paint Spotting..............................5-104
Cleaning Exterior Lamps/Lenses..................5-101
Cleaning the Inside of Your Vehicle................5-98
Fabric/Carpet..............................................5-99
Finish Care...............................................5-102
Finish Damage..........................................5-104
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-100
Leather....................................................5-100
Sheet Metal Damage..................................5-104
Tires........................................................5-104
Underbody Maintenance.............................5-104
Vehicle Care/Appearance Materials...............5-105
Washing Your Vehicle.................................5-101
Weatherstrips............................................5-101
Windshield, Backglass, and Wiper Blades......5-102
Ashtrays........................................................3-21
1

Bulb Replacement (cont.)
Side Identication Marker Lamps...................5-54
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-57
Buying New Tires...........................................5-72
C
California Fuel.................................................. 5-5
Canadian Owners................................................ ii
Capacities and Specications..........................5-116
Carbon Monoxide...................2-14, 2-39, 4-45, 4-67
Care of
Safety Belts..............................................5-101
Your Cassette Tape Player..........................3-136
Your CD and DVD Player...........................3-137
Your CDs and DVDs..................................3-137
Cargo Cover..................................................2-59
Center Console Storage Area...........................2-57
Center Passenger Position, Safety Belts.............1-37
Chains, Tire...................................................5-76
Check
Engine Light...............................................3-48
Checking Things Under the Hood......................5-10
Chemical Paint Spotting.................................5-104
Child Restraints
Child Restraint Systems...............................1-49
Infants and Young Children...........................1-46Child Restraints (cont.)
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-57
Older Children.............................................1-44
Securing a Child Restraint Designed for the
LATCH System........................................1-59
Securing a Child Restraint in a Center Rear
Seat Position...........................................1-61
Securing a Child Restraint in a Rear Outside
Seat Position...........................................1-59
Securing a Child Restraint in the Center Front
Seat Position...........................................1-63
Securing a Child Restraint in the Right Front
Seat Position...........................................1-64
Top Strap...................................................1-54
Top Strap Anchor Location............................1-55
Where to Put the Restraint...........................1-52
Chime Level Adjustment.................................3-138
Cigarette Lighter.............................................3-21
Cleaning
Aluminum or Chrome-Plated Wheels.............5-103
Exterior Lamps/Lenses................................5-101
Fabric/Carpet..............................................5-99
Finish Care...............................................5-102
Inside of Your Vehicle..................................5-98
Instrument Panel, Vinyl, and Other Plastic
Surfaces...............................................5-100
Leather....................................................5-100
Tires........................................................5-104
Underbody Maintenance.............................5-104
3

Flat Tire, Storing.............................................5-92
Fluid
Automatic Transmission................................5-23
Power Steering...........................................5-36
Windshield Washer......................................5-37
Fog Lamps....................................................3-17
Four-Wheel Drive....................................2-28, 5-49
Four-Wheel-Drive Light....................................3-53
Front Axle......................................................5-50
Front Reading Lamps......................................3-19
Front Storage Area.........................................2-56
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-5
E-85 (85% Ethanol)....................................... 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-8
Gage.........................................................3-54
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Low Warning Light.......................................3-55
Fuses
Center Instrument Panel Fuse Block.............5-110
Fuses and Circuit Breakers.........................5-107
Instrument Panel Fuse Block.......................5-108
Underhood Fuse Block...............................5-111
Windshield Wiper.......................................5-107G
Gage
Engine Coolant Temperature.........................3-46
Fuel..........................................................3-54
Oil Pressure...............................................3-52
Speedometer..............................................3-38
Tachometer.................................................3-38
Transmission Temperature.............................3-46
Voltmeter Gage...........................................3-42
Garage Door Opener.......................................2-52
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-56
GM Mobility Reimbursement Program.................. 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-8
Headlamps............................................3-14, 5-52
Automatic Headlamp System.........................3-16
Bulb Replacement.......................................5-52
Daytime Running Lamps...............................3-15
Flash-to-Pass............................................... 3-9
Front Turn Signal, Sidemarker and Daytime
Running Lamps........................................5-53
Halogen Bulbs............................................5-52
High/Low Beam Changer................................ 3-8
6

Level Control..................................................4-65
Liftgate..........................................................2-14
Light
Airbag Readiness........................................3-39
Anti-Lock Brake System Warning...................3-45
Battery Warning..........................................3-42
Brake System Warning.................................3-43
Cruise Control.............................................3-53
Four-Wheel-Drive.........................................3-53
Highbeam On.............................................3-53
Low Fuel Warning.......................................3-55
Malfunction Indicator....................................3-48
Passenger Airbag Status Indicator..................3-40
Safety Belt Reminder...................................3-39
Security.....................................................3-53
Tire Pressure..............................................3-48
Tow/Haul Mode...........................................3-54
Traction Off................................................3-45
Lighting
Entry.........................................................3-19
Exit...........................................................3-19
Loading Your Vehicle.......................................4-52
Locking Rear Axle...........................................4-10
Lockout Protection..........................................2-13
Locks
Delayed Locking..........................................2-10
Door........................................................... 2-8
Lockout Protection.......................................2-13
Power Door.................................................. 2-9Locks (cont.)
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-13
Loss of Control...............................................4-21
Low Fuel Warning Light...................................3-55
Luggage Carrier..............................................2-57
Lumbar
Power Controls............................................. 1-5
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-9
At Least Once a Month................................6-10
At Least Once a Year..................................6-10
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-16
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-15
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-48
Manual Seats................................................... 1-3
Manual Windows............................................2-15
8
