Page 421 of 578

CHEVROLET SUBURBAN 2009  Owners Manual 3. Remove the engine air cleaner/�lter from the
housing. Care should be taken to dislodge as
little dirt as possible.
4. Clean the engine air cleaner/�lter sealing surfaces
and the housing.5. Inspect

Page 422 of 578

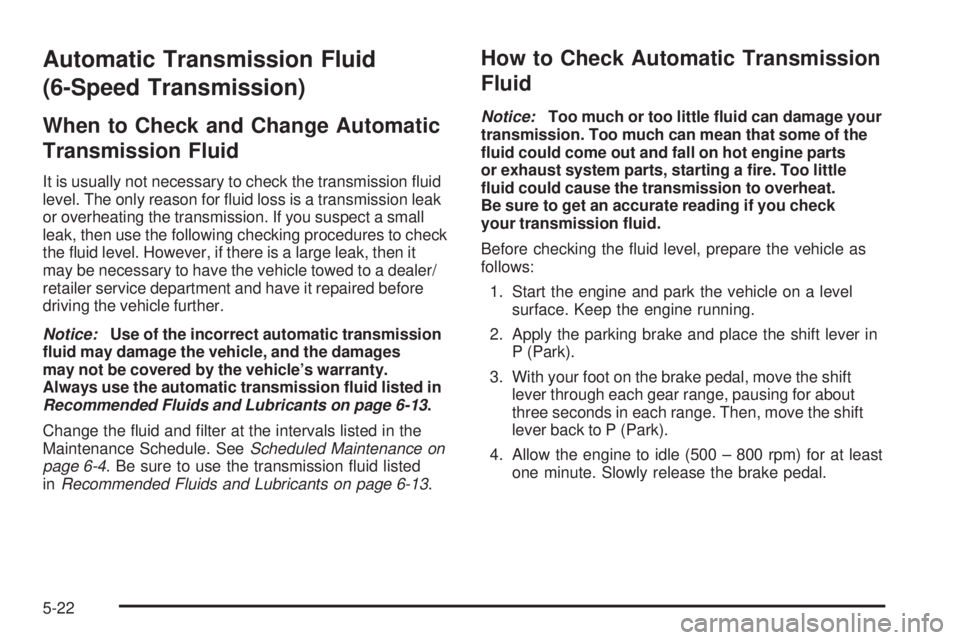

CHEVROLET SUBURBAN 2009  Owners Manual Automatic Transmission Fluid
(6-Speed Transmission)
When to Check and Change Automatic
Transmission Fluid
It is usually not necessary to check the transmission �uid
level. The only reason for �uid los

Page 423 of 578

CHEVROLET SUBURBAN 2009  Owners Manual 5. Keep the engine running and press the Trip/Fuel
button or trip odometer reset stem until TRANS
TEMP (Transmission Temperature) displays on the
Driver Information Center (DIC).
6. Using the TRANS TE

Page 424 of 578

CHEVROLET SUBURBAN 2009  Owners Manual 5. If the �uid level is below the COLD check band, add
only enough �uid as necessary to bring the level
into the COLD band. It does not take much �uid,
generally less than one pint (0.5L). Do not over

Page 425 of 578

CHEVROLET SUBURBAN 2009  Owners Manual 5. Safe operating level is within the HOT cross hatch
band on the dipstick. If the �uid level is not within the
HOT band, and the transmission temperature is
between 160°F and 200°F (71°C and 93°C

Page 426 of 578

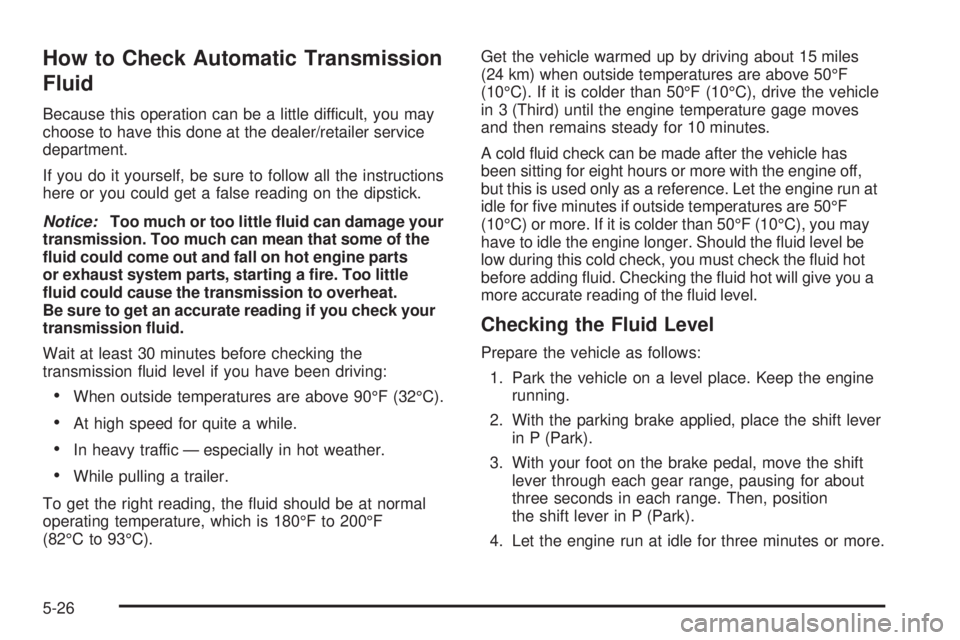

CHEVROLET SUBURBAN 2009  Owners Manual How to Check Automatic Transmission
Fluid
Because this operation can be a little difficult, you may
choose to have this done at the dealer/retailer service
department.
If you do it yourself, be sure t

Page 427 of 578

CHEVROLET SUBURBAN 2009  Owners Manual Then, without shutting off the engine, follow these steps:
1. Locate the transmission
dipstick handle with this
graphic which is located
at the rear of the engine
compartment, on the
passenger side of

Page 428 of 578

CHEVROLET SUBURBAN 2009  Owners Manual How to Add Automatic Transmission
Fluid
Refer to the Maintenance Schedule to determine what
kind of transmission �uid to use. SeeRecommended
Fluids and Lubricants on page 6-13.
Using a funnel, add �ui

Page 429 of 578

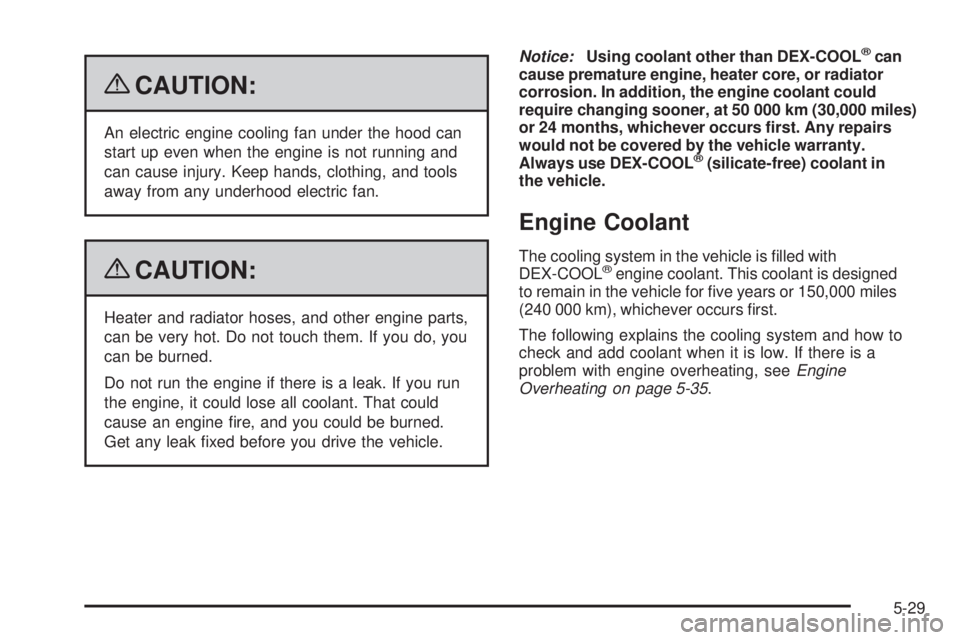

CHEVROLET SUBURBAN 2009  Owners Manual {CAUTION:
An electric engine cooling fan under the hood can
start up even when the engine is not running and
can cause injury. Keep hands, clothing, and tools
away from any underhood electric fan.
{CA

Page 430 of 578

CHEVROLET SUBURBAN 2009  Owners Manual What to Use
{CAUTION:
Adding only plain water to the cooling system can
be dangerous. Plain water, or some other liquid
such as alcohol, can boil before the proper coolant
mixture will. The vehicle’
