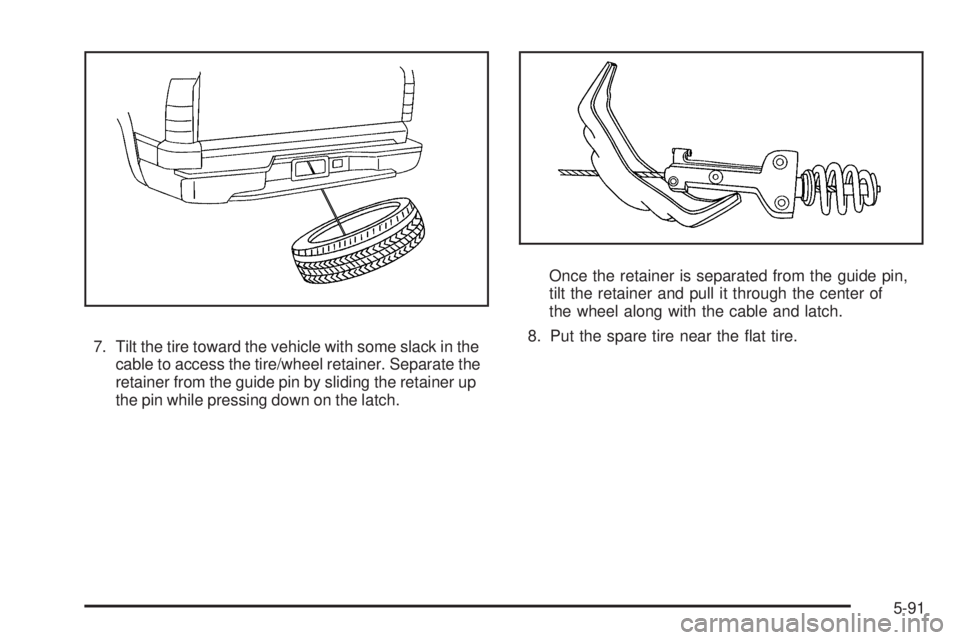

7. Tilt the tire toward the vehicle with some slack in the
cable to access the tire/wheel retainer. Separate the
retainer from the guide pin by sliding the retainer up
the pin while pressing down on the latch.Once the retainer is separated from the guide pin,
tilt the retainer and pull it through the center of
the wheel along with the cable and latch.
8. Put the spare tire near the at tire.
5-91

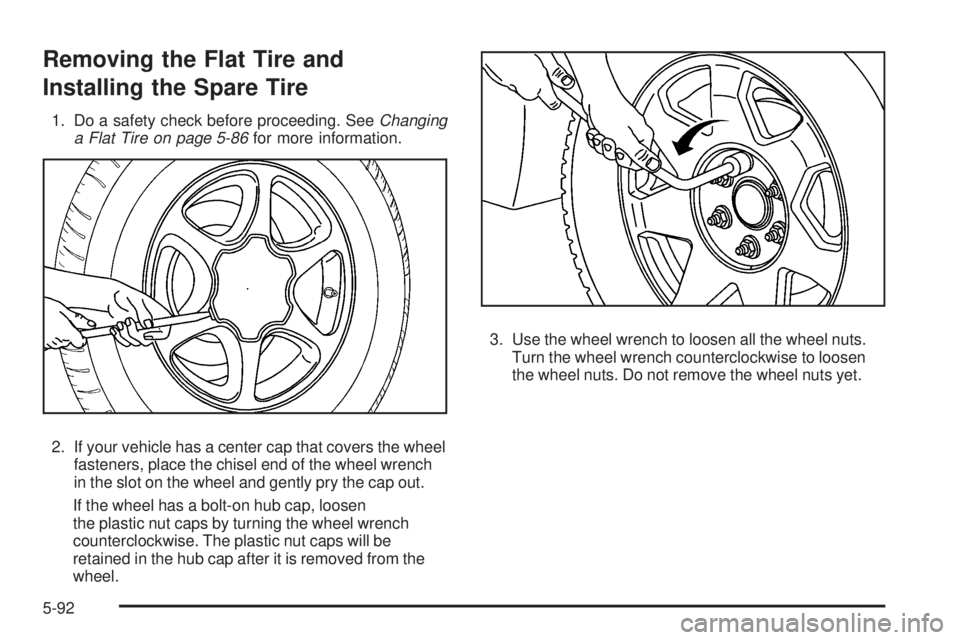

Removing the Flat Tire and
Installing the Spare Tire
1. Do a safety check before proceeding. SeeChanging
a Flat Tire on page 5-86for more information.
2. If your vehicle has a center cap that covers the wheel
fasteners, place the chisel end of the wheel wrench
in the slot on the wheel and gently pry the cap out.
If the wheel has a bolt-on hub cap, loosen
the plastic nut caps by turning the wheel wrench
counterclockwise. The plastic nut caps will be
retained in the hub cap after it is removed from the
wheel.3. Use the wheel wrench to loosen all the wheel nuts.
Turn the wheel wrench counterclockwise to loosen
the wheel nuts. Do not remove the wheel nuts yet.
5-92

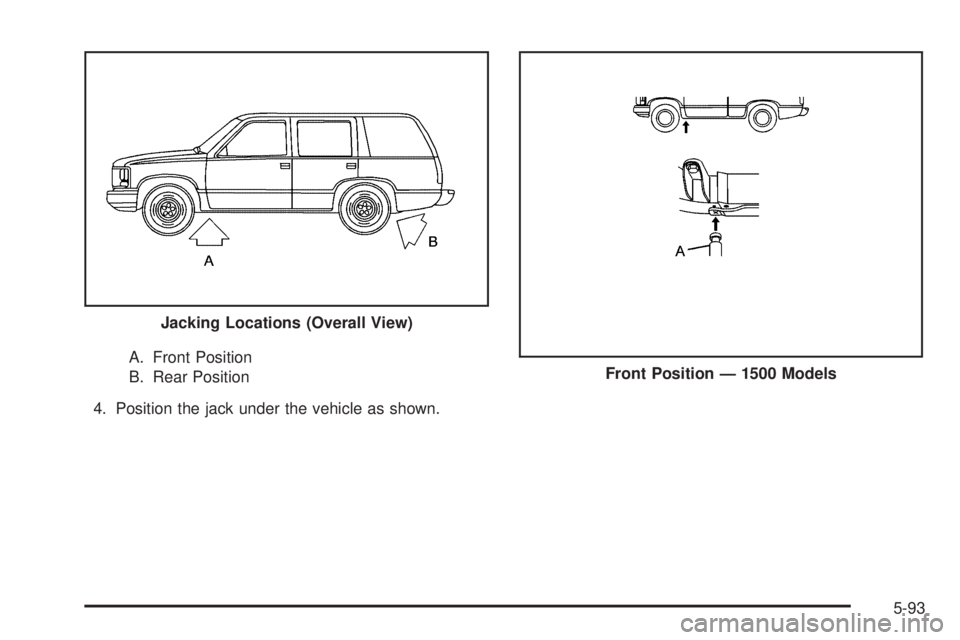

A. Front Position
B. Rear Position
4. Position the jack under the vehicle as shown.Jacking Locations (Overall View)Front Position — 1500 Models
5-93

Front Tire Flat:If the at tire is on a front tire of the
vehicle, you will need to use the jack handle and only
one jack handle extension. Attach the wheel wrench
to the jack handle extension. Attach the jack handle
to the jack (A). Position the jack on the frame behind
the at tire where the frame sections overlap. Turn
the wheel wrench clockwise to raise the vehicle.
Raise the vehicle far enough off the ground so there
is enough room for the spare tire to clear the ground.Front Position – 2500 Models
Rear Position – 1500 Models
5-94

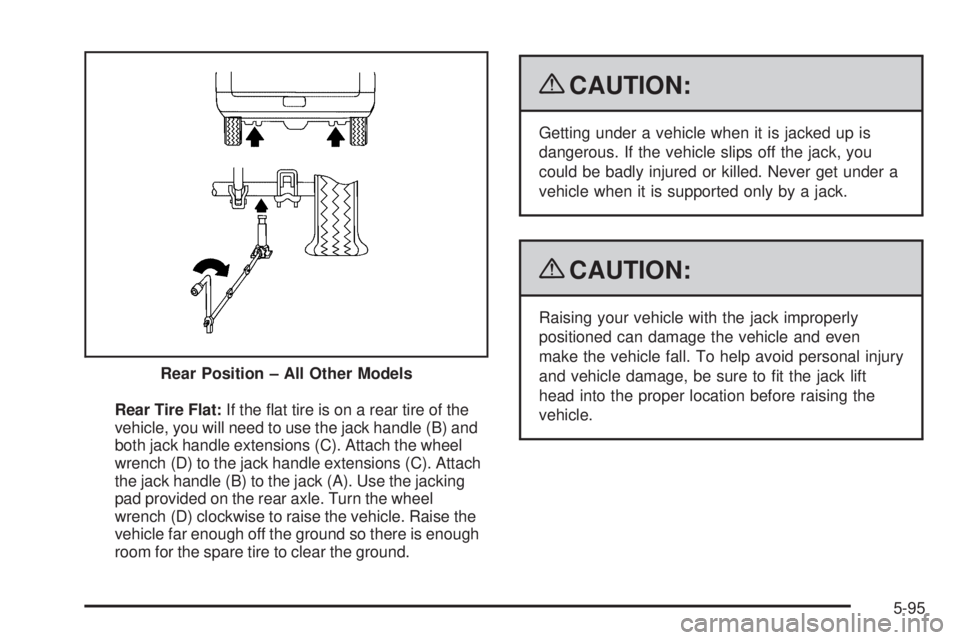

Rear Tire Flat:If the at tire is on a rear tire of the
vehicle, you will need to use the jack handle (B) and
both jack handle extensions (C). Attach the wheel
wrench (D) to the jack handle extensions (C). Attach
the jack handle (B) to the jack (A). Use the jacking
pad provided on the rear axle. Turn the wheel
wrench (D) clockwise to raise the vehicle. Raise the
vehicle far enough off the ground so there is enough
room for the spare tire to clear the ground.
{CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under a
vehicle when it is supported only by a jack.
{CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even
make the vehicle fall. To help avoid personal injury
and vehicle damage, be sure to t the jack lift
head into the proper location before raising the
vehicle. Rear Position – All Other Models
5-95

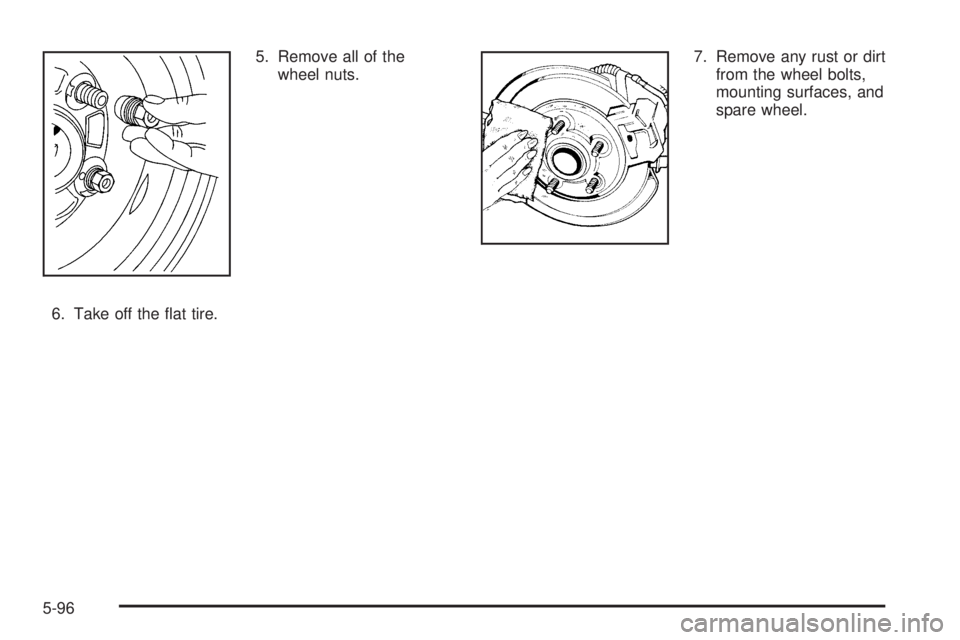

5. Remove all of the
wheel nuts.
6. Take off the at tire.7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces, and
spare wheel.
5-96

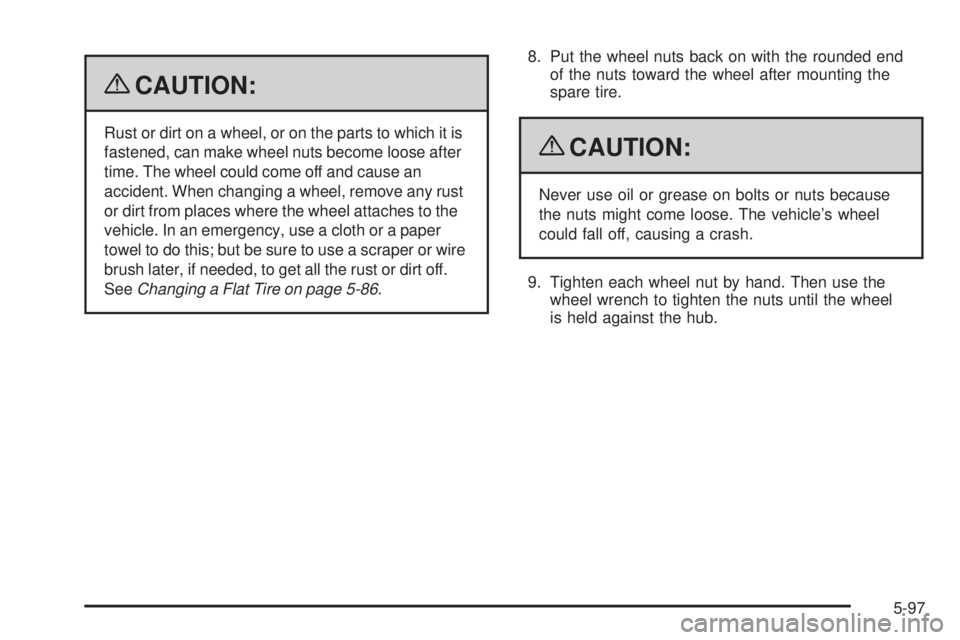

{CAUTION:
Rust or dirt on a wheel, or on the parts to which it is
fastened, can make wheel nuts become loose after
time. The wheel could come off and cause an
accident. When changing a wheel, remove any rust
or dirt from places where the wheel attaches to the
vehicle. In an emergency, use a cloth or a paper
towel to do this; but be sure to use a scraper or wire
brush later, if needed, to get all the rust or dirt off.
SeeChanging a Flat Tire on page 5-86.8. Put the wheel nuts back on with the rounded end
of the nuts toward the wheel after mounting the
spare tire.{CAUTION:
Never use oil or grease on bolts or nuts because
the nuts might come loose. The vehicle’s wheel
could fall off, causing a crash.
9. Tighten each wheel nut by hand. Then use the
wheel wrench to tighten the nuts until the wheel
is held against the hub.
5-97

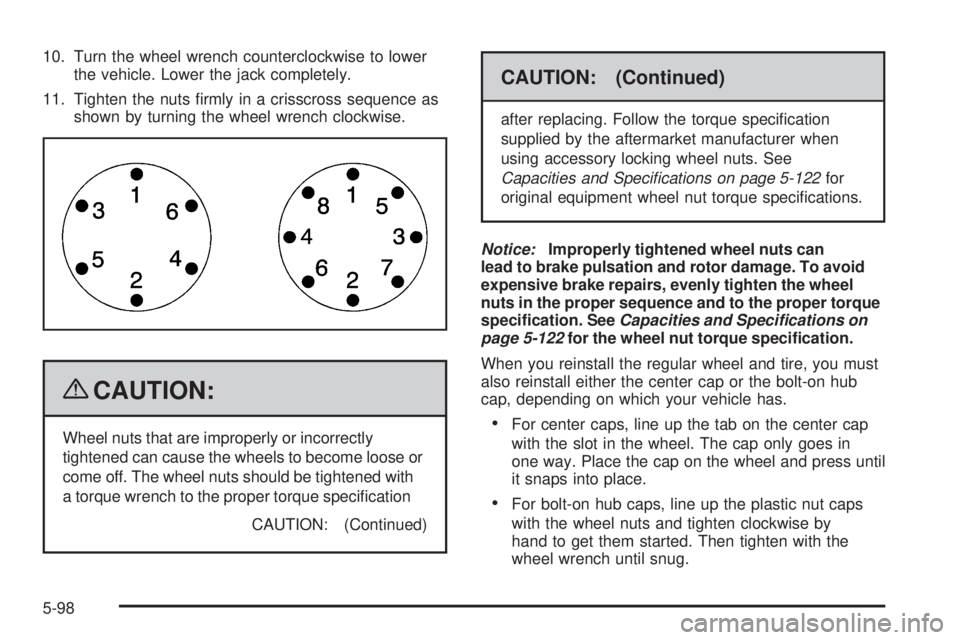

10. Turn the wheel wrench counterclockwise to lower
the vehicle. Lower the jack completely.
11. Tighten the nuts rmly in a crisscross sequence as
shown by turning the wheel wrench clockwise.
{CAUTION:
Wheel nuts that are improperly or incorrectly
tightened can cause the wheels to become loose or
come off. The wheel nuts should be tightened with
a torque wrench to the proper torque specication
CAUTION: (Continued)
CAUTION: (Continued)
after replacing. Follow the torque specication
supplied by the aftermarket manufacturer when
using accessory locking wheel nuts. See
Capacities and Specifications on page 5-122for
original equipment wheel nut torque specications.
Notice:Improperly tightened wheel nuts can
lead to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper torque
specication. SeeCapacities and Specifications on
page 5-122for the wheel nut torque specication.
When you reinstall the regular wheel and tire, you must
also reinstall either the center cap or the bolt-on hub
cap, depending on which your vehicle has.
For center caps, line up the tab on the center cap
with the slot in the wheel. The cap only goes in
one way. Place the cap on the wheel and press until
it snaps into place.
For bolt-on hub caps, line up the plastic nut caps
with the wheel nuts and tighten clockwise by
hand to get them started. Then tighten with the
wheel wrench until snug.
5-98

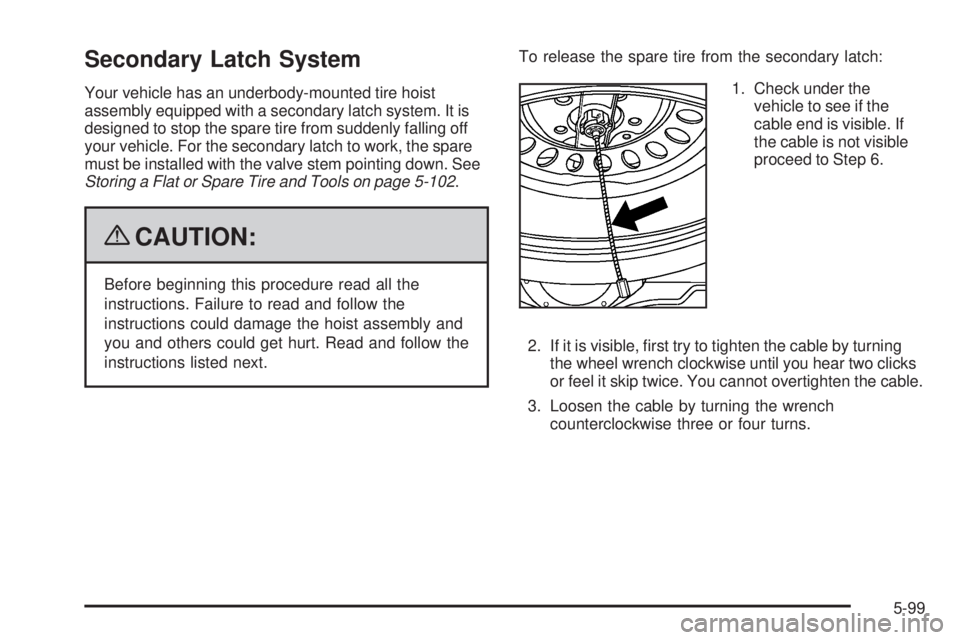

Secondary Latch System
Your vehicle has an underbody-mounted tire hoist
assembly equipped with a secondary latch system. It is
designed to stop the spare tire from suddenly falling off
your vehicle. For the secondary latch to work, the spare
must be installed with the valve stem pointing down. See
Storing a Flat or Spare Tire and Tools on page 5-102.
{CAUTION:
Before beginning this procedure read all the
instructions. Failure to read and follow the
instructions could damage the hoist assembly and
you and others could get hurt. Read and follow the
instructions listed next.To release the spare tire from the secondary latch:
1. Check under the
vehicle to see if the
cable end is visible. If
the cable is not visible
proceed to Step 6.
2. If it is visible, rst try to tighten the cable by turning
the wheel wrench clockwise until you hear two clicks
or feel it skip twice. You cannot overtighten the cable.
3. Loosen the cable by turning the wrench
counterclockwise three or four turns.
5-99

4. Repeat this procedure at least two times. If the spare
tire lowers to the ground, continue with Step 5 of
Removing the Spare Tire and Tools on page 5-87.
5. If the spare does not lower, turn the wrench
counterclockwise until approximately 6 inches
(15 cm) of cable is exposed.
6. Stand the wheel blocks on their shortest ends, with
the backs facing each other.
7. Place the bottom edge
of the jack (A) on the
wheel blocks (B),
separating them so that
the jack is balanced
securely.
8. Attach the jack handle, extension, and wheel
wrench to the jack and place it (with the wheel
blocks) under the vehicle toward the front of the rear
bumper.
