CHEVROLET TAHOE 1996 1.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule -- Gasoline Engines
84,000 Miles (140 000 km)
Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I DATE ACTUAL MILEAGE SERVICED BY:
87,000 Miles (145 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
DATE SERVICED BY ACTUAL MILEAGE
7-24

Downloaded from www.Manualslib.com manuals search engine Short TripKity Maintenance Schedule -- Gasoline Engines
~~~

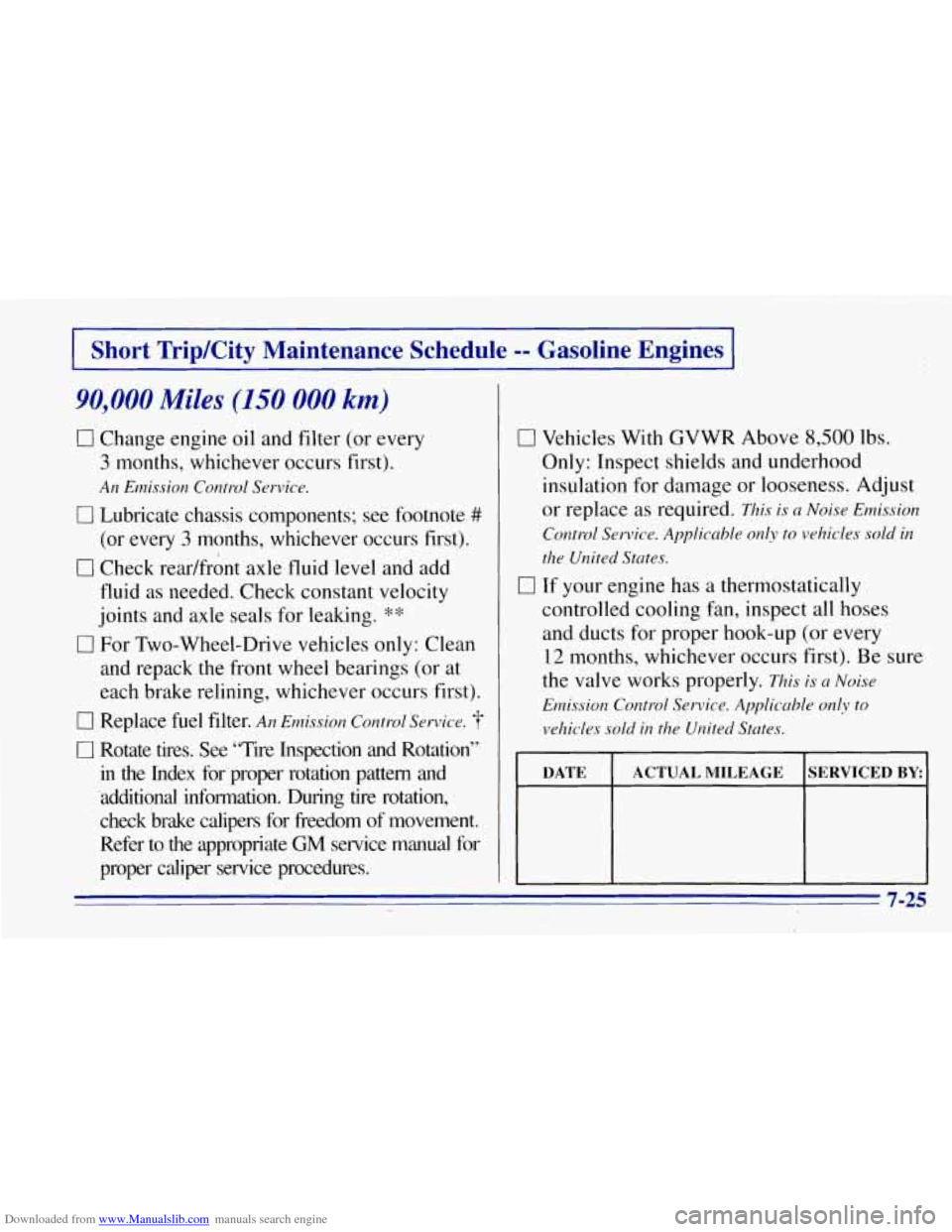

90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
0 For Two-Wheel-Drive vehicles only: Clean
and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Replace fuel filter. An Emission Control Service.
0 Rotate tires. See ‘Tire Inspection and Rotation’’
in the Index for proper rotation .pattern and
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood insulation for damage
or looseness. Adjust
or replace as required. This is n Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
0 If your engine has a thermostatically
controlled cooling fan, inspect all hoses
and ducts for proper hook-up (or every
12 months, whichever occurs first). Be sure
the valve works properly.
This is a Noise
Emission Control Service. Applicable
only to
vehicles sold in the United Stutes.
- 7-25

Downloaded from www.Manualslib.com manuals search engine I Short TripKity Maintenance Schedule -- Gasoline Engines

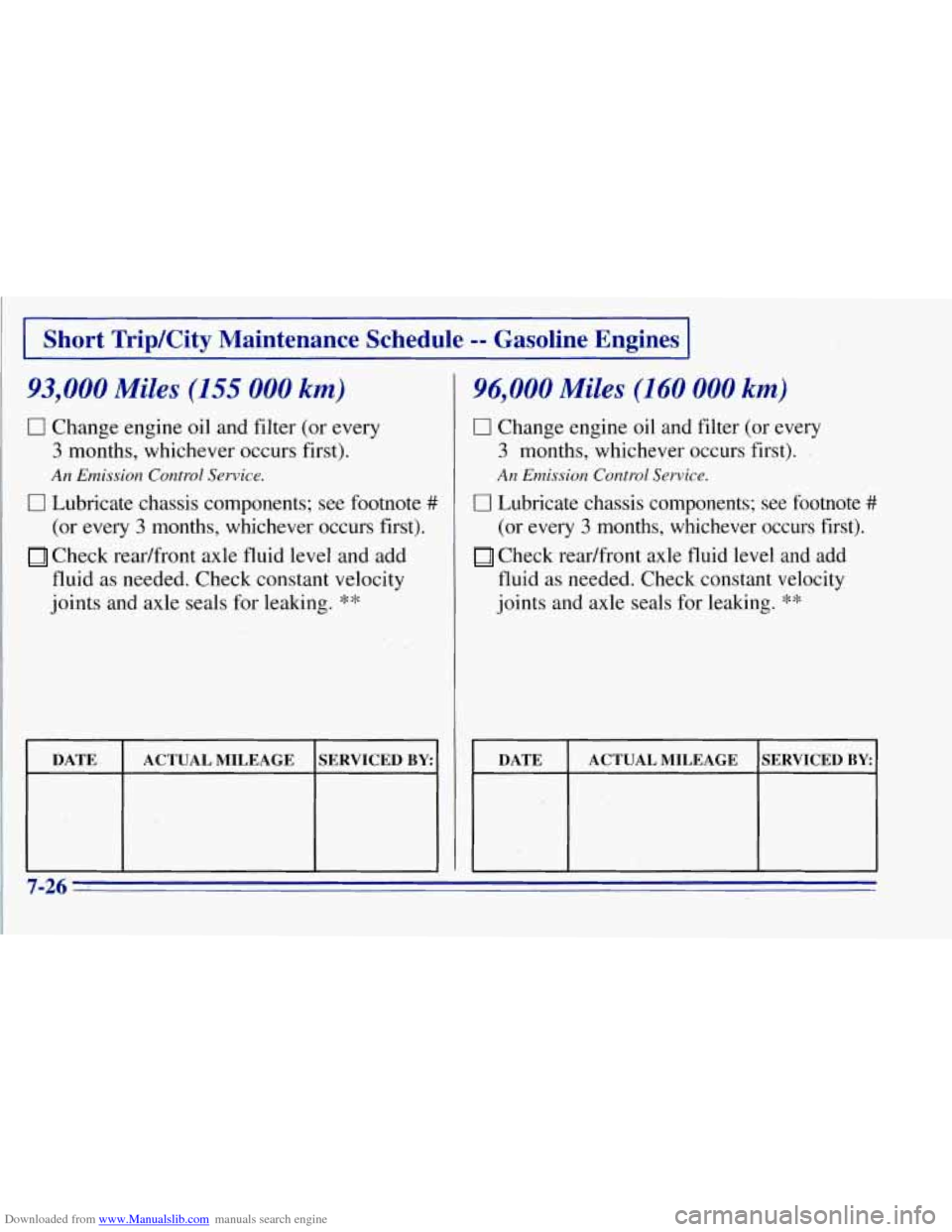

93,000 Miles (155 000 km)
0 Change engine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I DATE I ACTUAL MILEAGE JSERVICED BYI
96,000 Miles (160 000 km)
0 Change engine oil and,filter (or every
.3 ‘months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
I DATE ACTUAL
MILEAGE SERVICED BY
7-26 ”

Downloaded from www.Manualslib.com manuals search engine k i

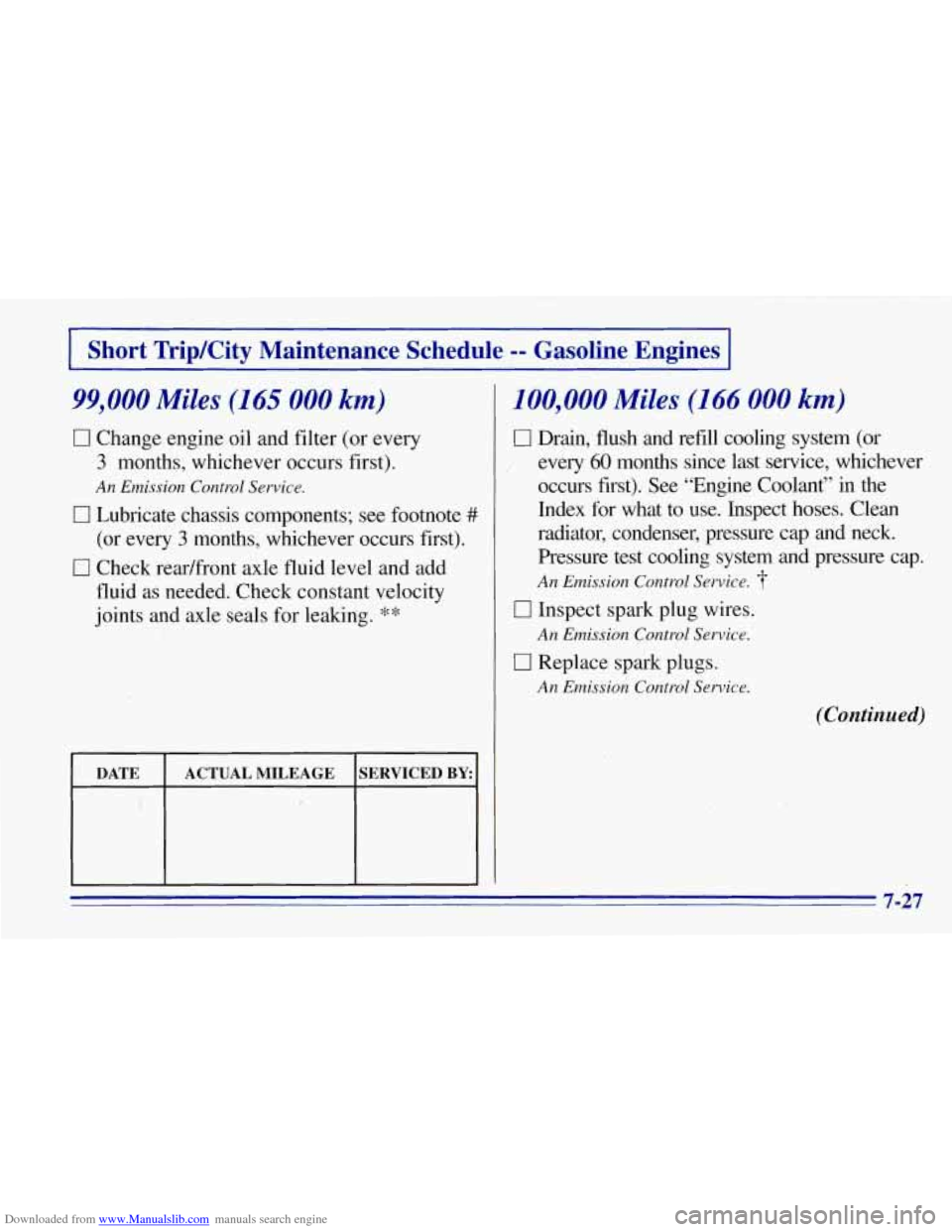

0 Change en,gine oil and filter (or every
3 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 3 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant v joints and axle seals for leaking.
**
DATE SERVICED BY ACTUAL MILEAGE
‘, I
0 Drain, flush and refill cooling system (or
,, every 60 months since last service, whichever
occurs first). See “Engine Coolant” in the
Index for what to use. Inspect hoses. Clean
radiator, condenser, pressure cap and neck.
Pressure test cooling system and pressure cap.
An Emission Control Service. 7
0 Inspect spark plug wires.
0 Replace spark plugs.
An Emission Control Service.
An Emission
Control Service.
(Continued)
7-27

Downloaded from www.Manualslib.com manuals search engine I Short Trip/City Maintenance Schedule -- Gasoline Engines I

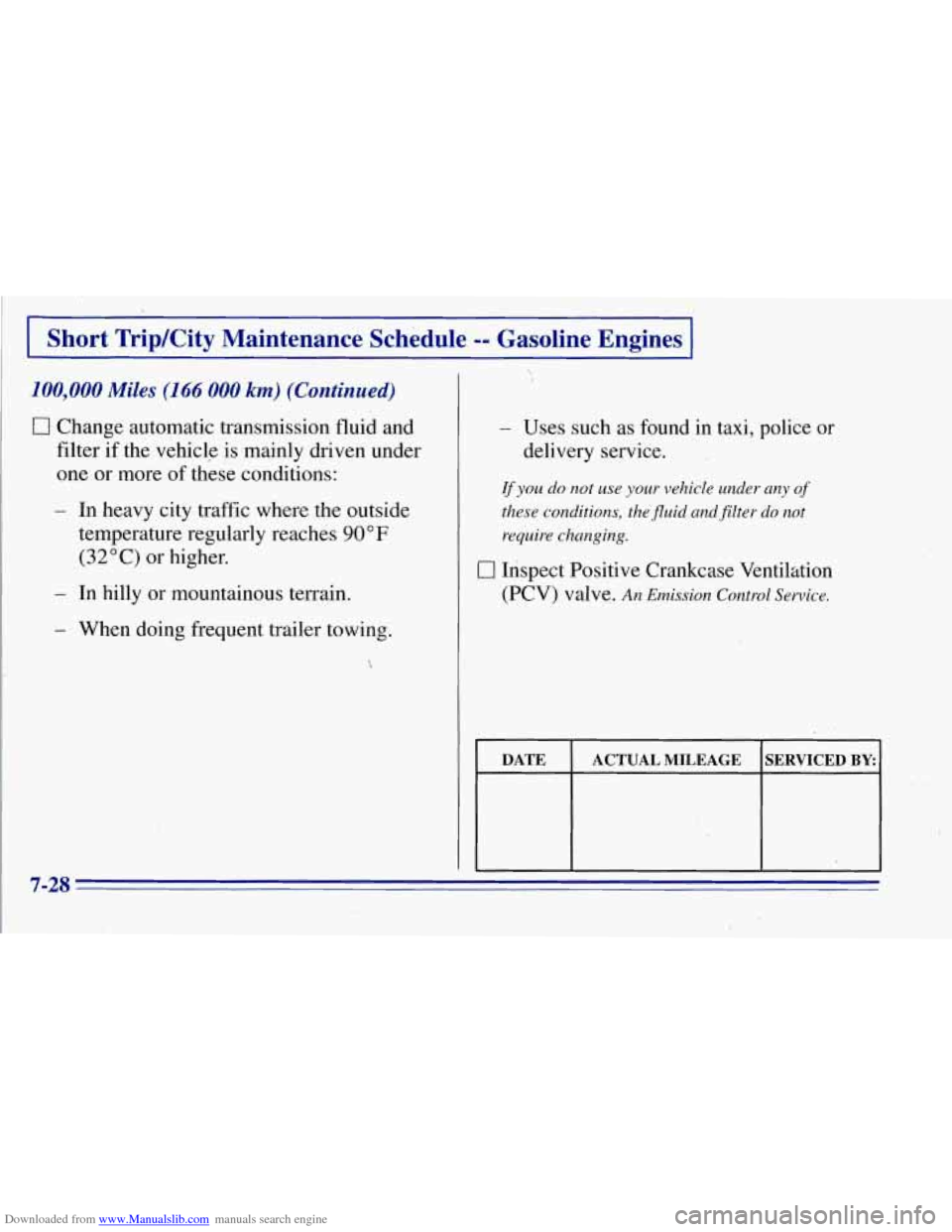

100,SOO Miles' (1 66 000 km) (Continued)
0 Change automatic transmission fluid and
filter if the vehicle is mainly driven under
one or more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32°C) or higher.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.


- Uses such as found. in taxi, police or
delivery service.
If you do not use your vehicle under.any of
these conditions, the fluid
and filter do not
require changing.
0 Inspect Positive Crankcase Ventilation
(Pcv) valve. An Emission Control Service.
DATE ACTUAL MILEAGE SERVICED BY:
7-28

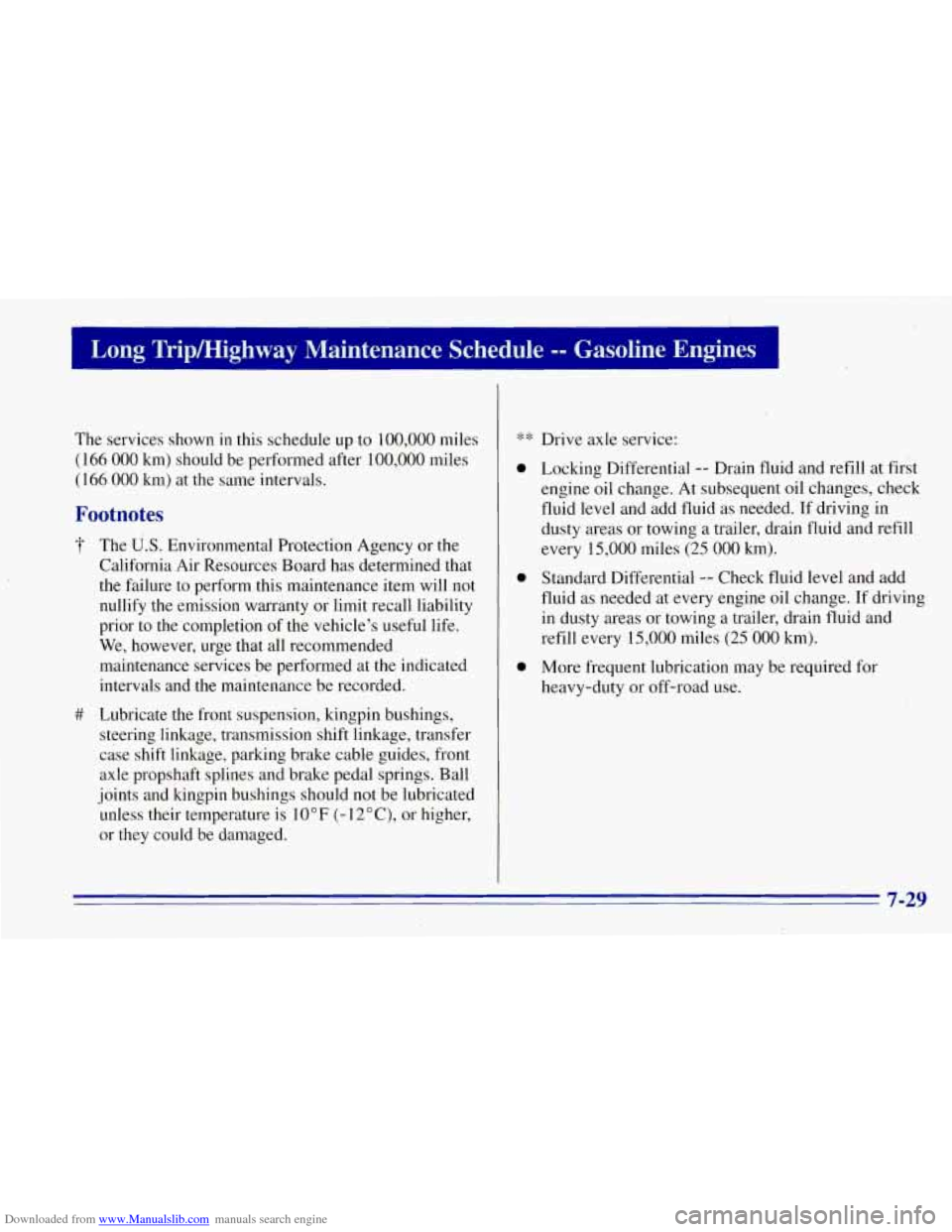

Downloaded from www.Manualslib.com manuals search engine The services shown in this schedule up to 100,000 miles
(166 00.0 km) should be performed after 100,000 miles
(166 000 km) at the same intervals.
Footnotes
-f The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that
the failure to perform this maintenance item will not
nullify the emission warranty or limit recall liability
prior to the completion of the vehicle's useful life.
We, however, urge that all recommended
maintenance services be performed at the indicated
intervals and the maintenance be recorded.
# Lubricate the front suspension, kingpin bushings,
steering linkage, transmission shift linkage, transfer
case shift linkage, parking brake cable guides, front
axle propshaft splines and brake pedal springs. Ball
joints and kingpin bushings should not be lubricated
unless their temperature is
10°F (-12"C), or higher,
or they could be damaged.
** Drive axle service:
0
0
0
Locking Differential -- Drain fluid and refill at first
engine
oil change. At subsequent oil changes, check
fluid level and add fluid as needed. If driving in
dusty areas or towing a trailer, drain fluid and refill
every
15,000 miles (25 000 km).
Standard Differential -- Check fluid level and add
fluid as needed at every engine oil change. If driving
in dusty areas or towing a trailer, drain
fluid and
refill every
15,000 miles (25 '000 km).
More frequent lubrication may be required for
heavy-duty or off-road use.
7-29

Downloaded from www.Manualslib.com manuals search engine I-

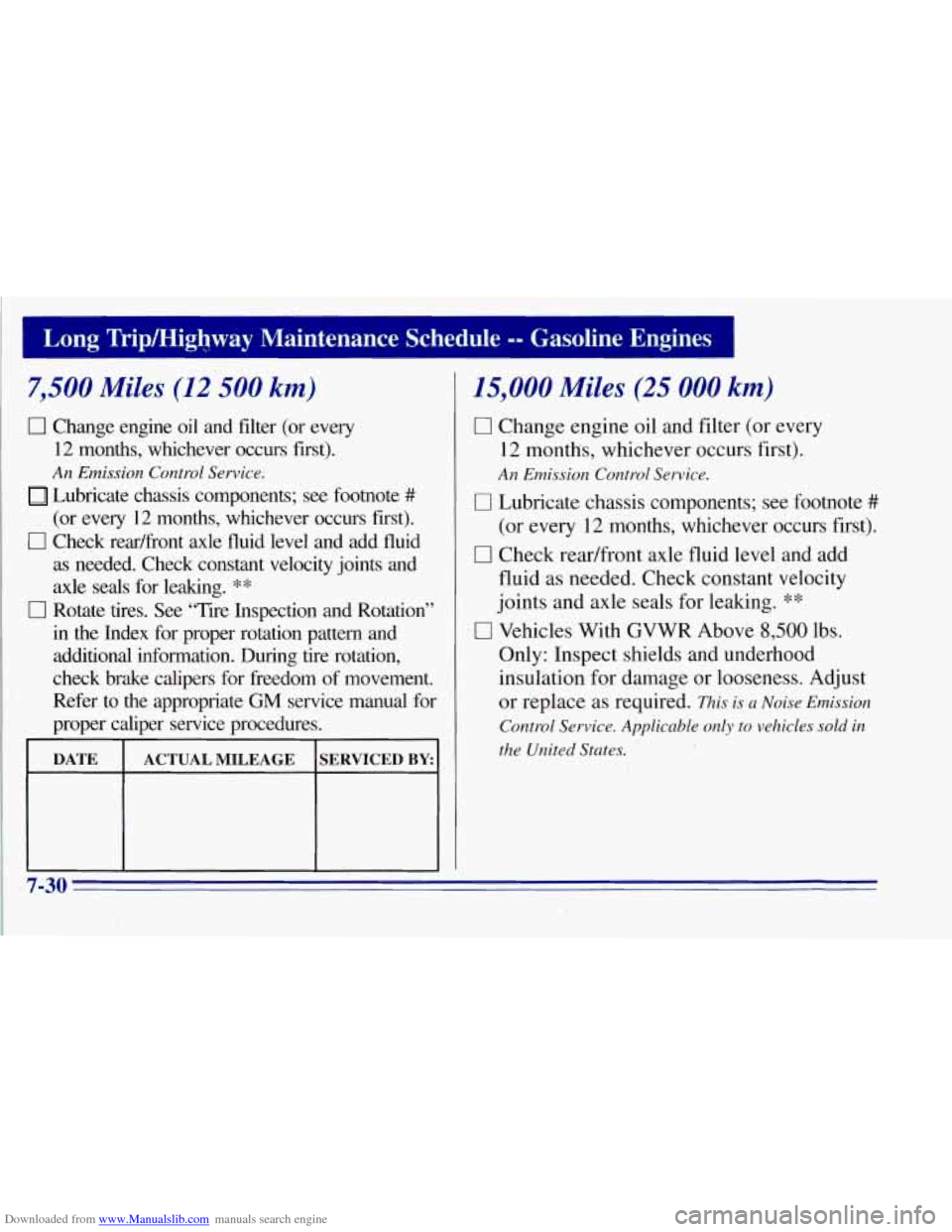

Long Tripmighway Maintenance Schedule -- Gasoline Engines I
7,500 Miles (12 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs fist).
An Emission Control Service;
Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking.
**
0 Rotate tires. See “Tire Inspection and Rotation”
in the Index for proper rotation pattern and
I
15,000 Miles (25 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is a Noise Emission
Control Service. Applicable only
to vehicles sold in
the United States.
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE SERVICED BY ACTUAL MILEAGE
‘ 7-30

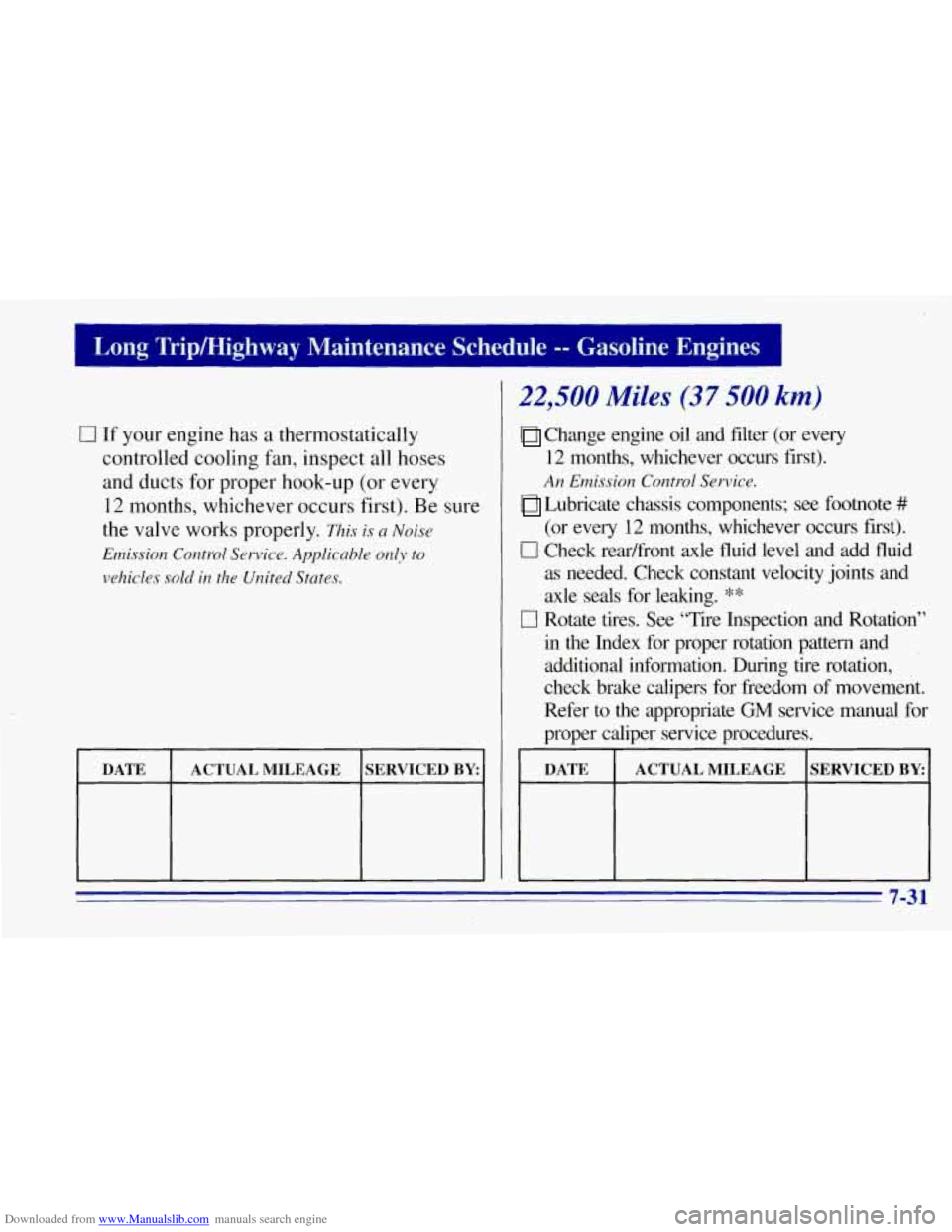

Downloaded from www.Manualslib.com manuals search engine 0 If your engine has a thermo,statically
controlled cooling fan, inspect all hoses
and ductsfor proper hook-up
(or every
12 months, whichever occurs first). Be sure
the valve works properly.
This is a Noise
Emission Control Service. Applicable
only to
vehicles sold in the United States.
DATE
SERVICED BY ACTUAL MILEAGE
22,500 Miles (37 500 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check constant velocity joints and
axle seals for leaking.
**
0 Rotate tires. See “Tire Inspection and Rotation’’
in the Index for proper rotation pattern and additional information. During tire rotation,
check brake calipers for freedom of movement. Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE SERVICED BY ACTUAL MILEAGE
7-31

Downloaded from www.Manualslib.com manuals search engine 1 Long Z’rip/Highway Maintenance Schedule -- Gasoline Engines

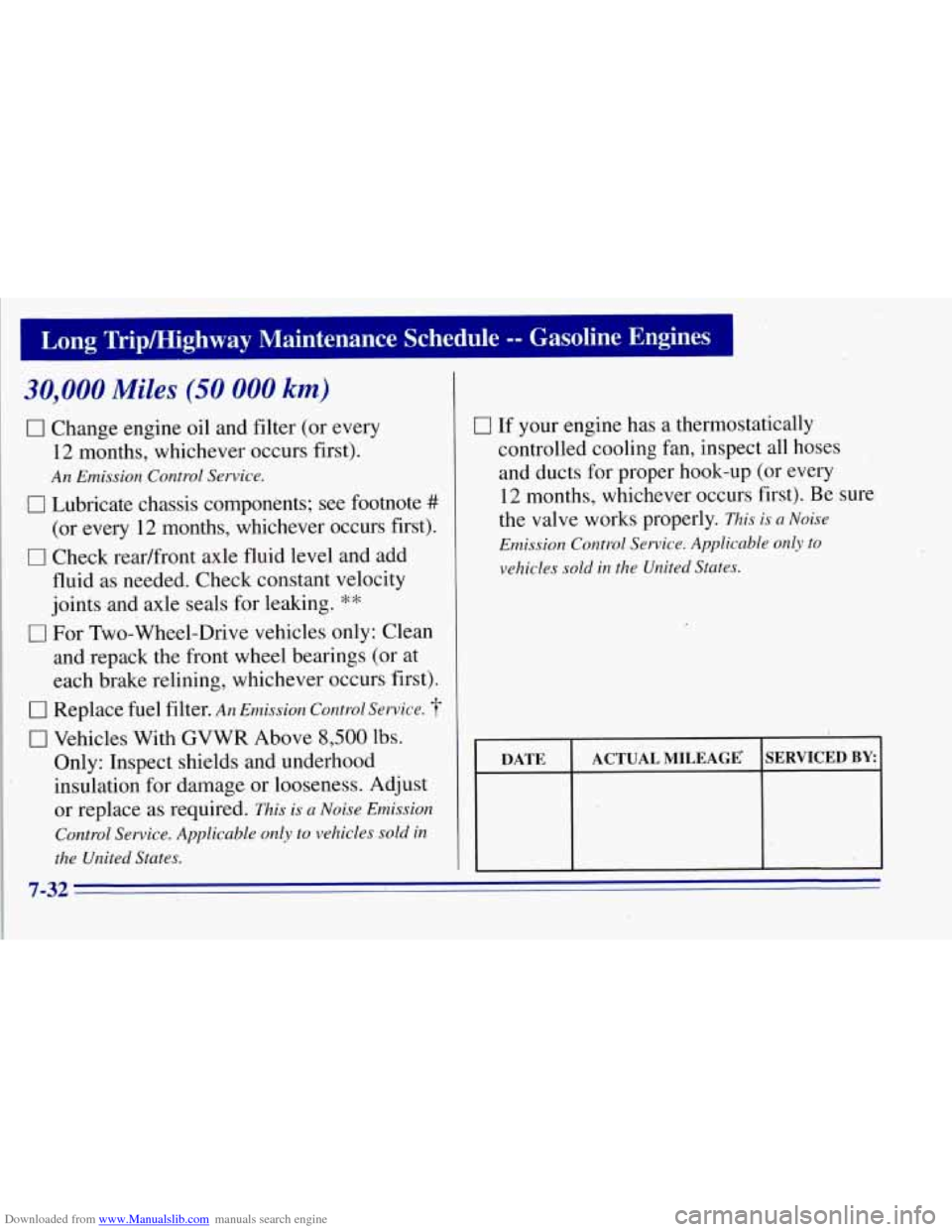

30,000 Miles (50 000 km)
I7 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
CI Check readfront axle fluid level and add
fluid as needed. Check constant velocity
, joints and axle seals for lealung. **
0 For Two-Wheel-Drive vehicles only: Clean
and repack the front wheel bearings (or at
each brake relining, whichever occurs first).
0 Replace fuel filter. An Emission Control Service.
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust or replace as required.
This is a’Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
0 If your engine has a thermostatically
controlled cooling fan, inspect all hoses
and ducts for proper hook-up (or every
12 months, whichever occurs first).
Be sure
the valve works properly.
This is a Noise
Emission Control Service. Applicable only to
vehicles sold in the United States.
I
7-32

Downloaded from www.Manualslib.com manuals search engine Long Trip/Highway. Maintenance Schedule -- Gasoline Engines

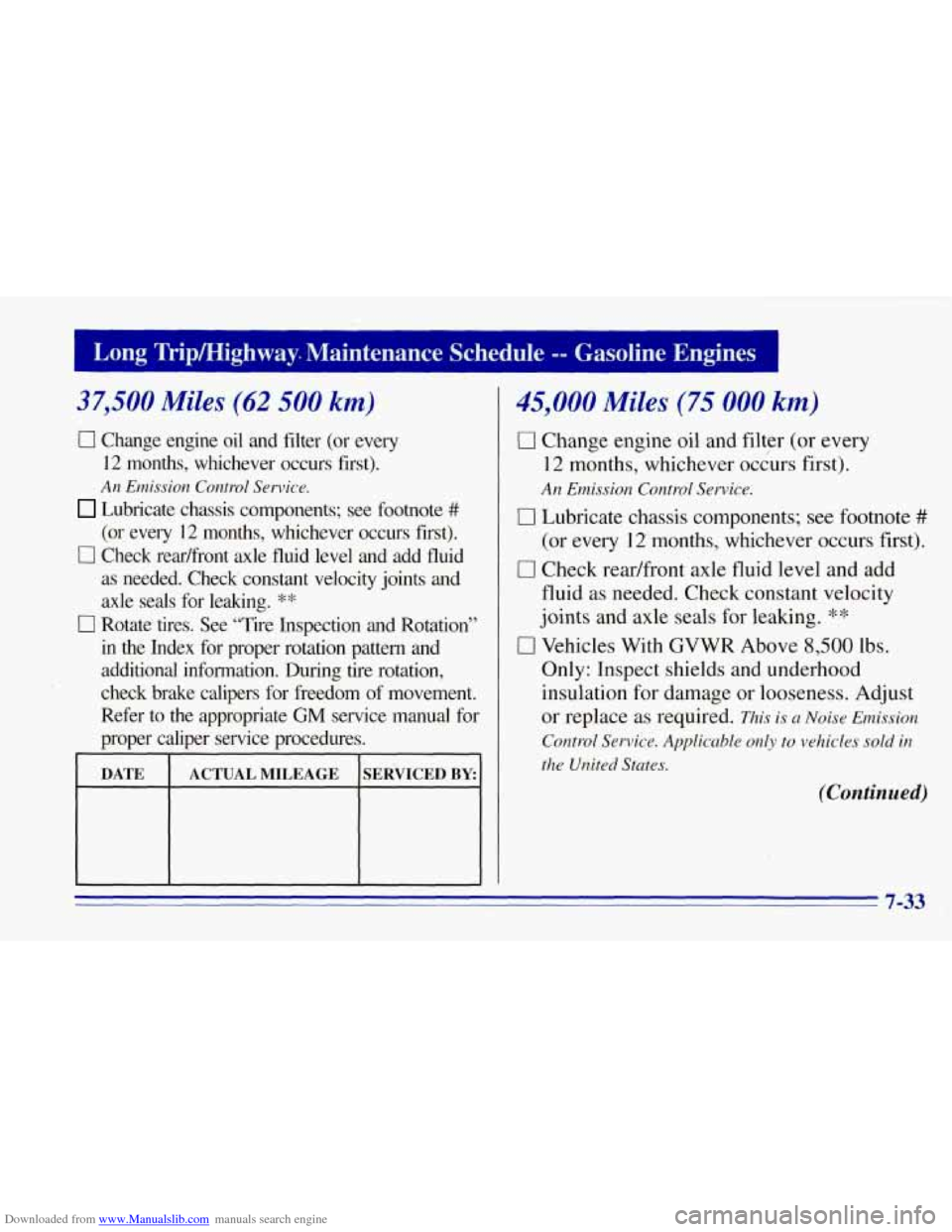

37,500 Miles (62 500 km)
[7 Change engine oil and filter (or every
12 months, whichever occurs frrst).
An Emission Control Service.
Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid
as needed. Check‘ constant velocity joints and
axle seals for leaking.
**
0 Rotate- tires. See “Tire Inspection and Rotation”
in the Index for proper rotation pattern and
additional information. During tire rotation,
check brake calipers for fieedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE I ACTUAL MIL,EAGE IsERVICED BY:
45,000 Miles (75 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Check readfront axle fluid level and add
fluid as needed. Check constant velocity
joints and axle seals for leaking.
**
0 Vehicles With GVWR Above 8,500 lbs.
Only: Inspect shields and underhood
insulation for damage or looseness. Adjust
or replace as required.
This is a Noise Emission
Control Service. Applicable
only to vehicles sold in
the United States.
(Continued)
