Front Seats
Power Seat Adjustment (Tahoeand Yukon Hybrid) . . . . . . . . . . . 3-1
Lumbar Adjustment (Tahoe and Yukon Hybrid) . . . . . . . . . . . . . . . 3-1
Reclining Seatbacks (Tahoe and Yukon Hybrid) . . . . . . . . . . . 3-2
Airbag System
Replacing Airbag System PartsAfter a Crash . . . . . . . . . . . . . . . . 3-2
Front Seats
Power Seat Adjustment
(Tahoe and Yukon Hybrid)

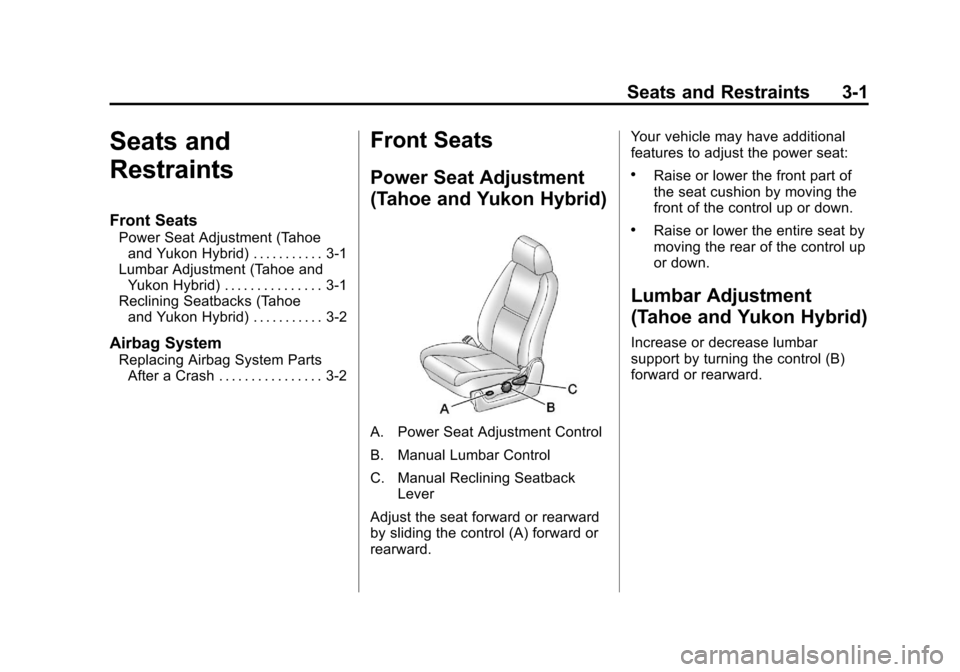

A. Power Seat Adjustment Control
B. Manual Lumbar Control
C. Manual Reclining Seatback
Lever
Adjust the seat forward or rearward
by sliding the control (A) forward or
rearward. Your vehicle may have additional
features to adjust the power seat:
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the entire seat by
moving the rear of the control up
or down.
Lumbar Adjustment
(Tahoe and Yukon Hybrid)
Increase or decrease lumbar
support by turning the control (B)
forward or rearward.

Black plate (2,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
3-2 Seats and Restraints
Reclining Seatbacks
(Tahoe and Yukon Hybrid)

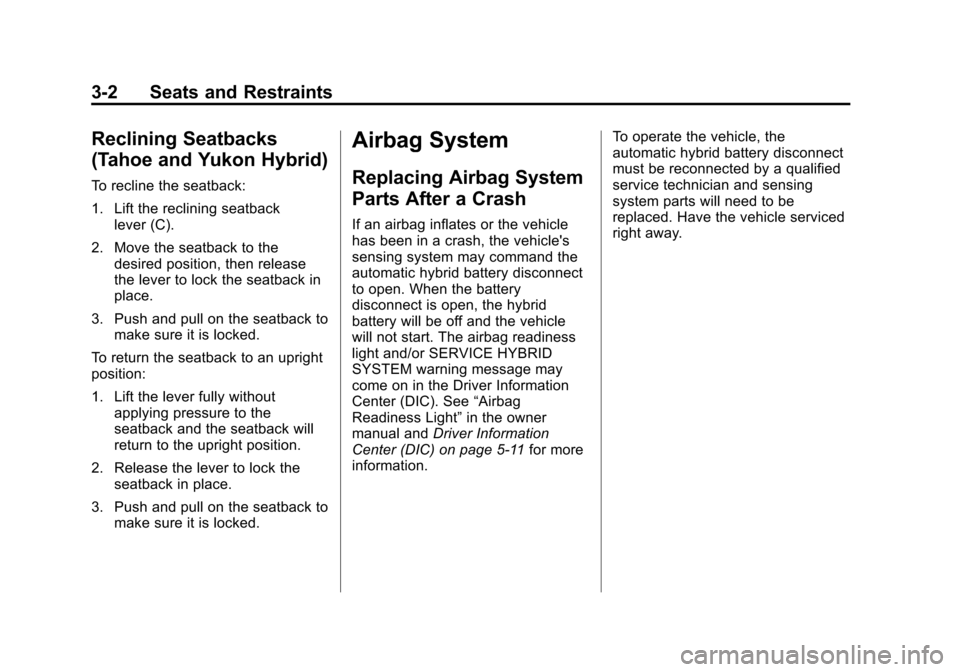

To recline the seatback:
1. Lift the reclining seatbacklever (C).
2. Move the seatback to the desired position, then release
the lever to lock the seatback in
place.
3. Push and pull on the seatback to make sure it is locked.
To return the seatback to an upright
position:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will
return to the upright position.
2. Release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is locked.
Airbag System
Replacing Airbag System
Parts After a Crash
If an airbag inflates or the vehicle
has been in a crash, the vehicle's
sensing system may command the
automatic hybrid battery disconnect
to open. When the battery
disconnect is open, the hybrid
battery will be off and the vehicle
will not start. The airbag readiness
light and/or SERVICE HYBRID
SYSTEM warning message may
come on in the Driver Information
Center (DIC). See “Airbag
Readiness Light” in the owner
manual and Driver Information
Center (DIC) on page 5‑11 for more
information. To operate the vehicle, the
automatic hybrid battery disconnect
must be reconnected by a qualified
service technician and sensing
system parts will need to be
replaced. Have the vehicle serviced
right away.

Black plate (1,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-1
Instruments and
Controls
Controls
Power Outlets . . . . . . . . . . . . . . . . . 5-2
Warning Lights, Gauges, and
Indicators
Instrument Cluster . . . . . . . . . . . . 5-3
Tachometer . . . . . . . . . . . . . . . . . . . 5-4
Fuel Gauge . . . . . . . . . . . . . . . . . . . 5-4
Fuel Economy Gauge . . . . . . . . . 5-6
Engine Oil Pressure Gauge . . . 5-6
Engine Coolant TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . 5-8
Charging System Light . . . . . . . . 5-8 Brake System Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . 5-10
StabiliTrak
®OFF Light . . . . . . . 5-10
Engine Oil Pressure Light . . . . 5-11
Information Displays
Driver Information Center (DIC) . . . . . . . . . . . . . . . . 5-11
Vehicle Messages
Vehicle Messages . . . . . . . . . . . 5-12
Battery Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . 5-12
Brake System Messages . . . . 5-12
Door Ajar Messages . . . . . . . . . 5-13
Engine Oil Messages . . . . . . . . 5-13
Service Vehicle Messages . . . 5-13
Transmission Messages . . . . . 5-13

Black plate (2,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-2 Instruments and Controls
Controls

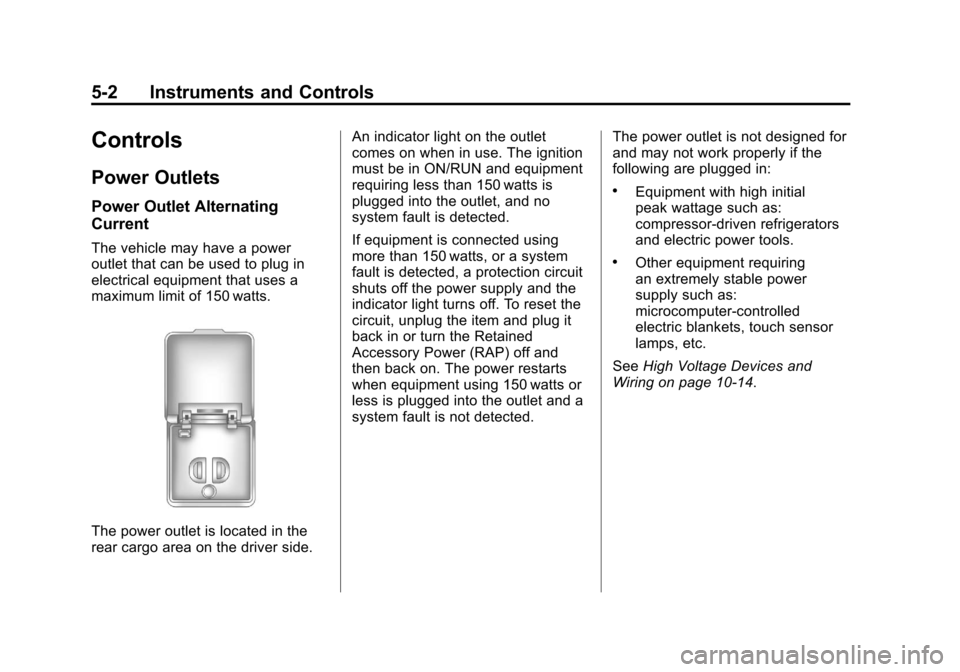

Power Outlets
Power Outlet Alternating
Current
The vehicle may have a power
outlet that can be used to plug in
electrical equipment that uses a
maximum limit of 150 watts.
The power outlet is located in the
rear cargo area on the driver side.An indicator light on the outlet
comes on when in use. The ignition
must be in ON/RUN and equipment
requiring less than 150 watts is
plugged into the outlet, and no
system fault is detected.
If equipment is connected using
more than 150 watts, or a system
fault is detected, a protection circuit
shuts off the power supply and the
indicator light turns off. To reset the
circuit, unplug the item and plug it
back in or turn the Retained
Accessory Power (RAP) off and
then back on. The power restarts
when equipment using 150 watts or
less is plugged into the outlet and a
system fault is not detected.
The power outlet is not designed for
and may not work properly if the
following are plugged in:
.Equipment with high initial
peak wattage such as:
compressor-driven refrigerators
and electric power tools.
.Other equipment requiring
an extremely stable power
supply such as:
microcomputer-controlled
electric blankets, touch sensor
lamps, etc.
See High Voltage Devices and
Wiring on page 10‑14.

Black plate (3,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-3
Warning Lights, Gauges, and Indicators

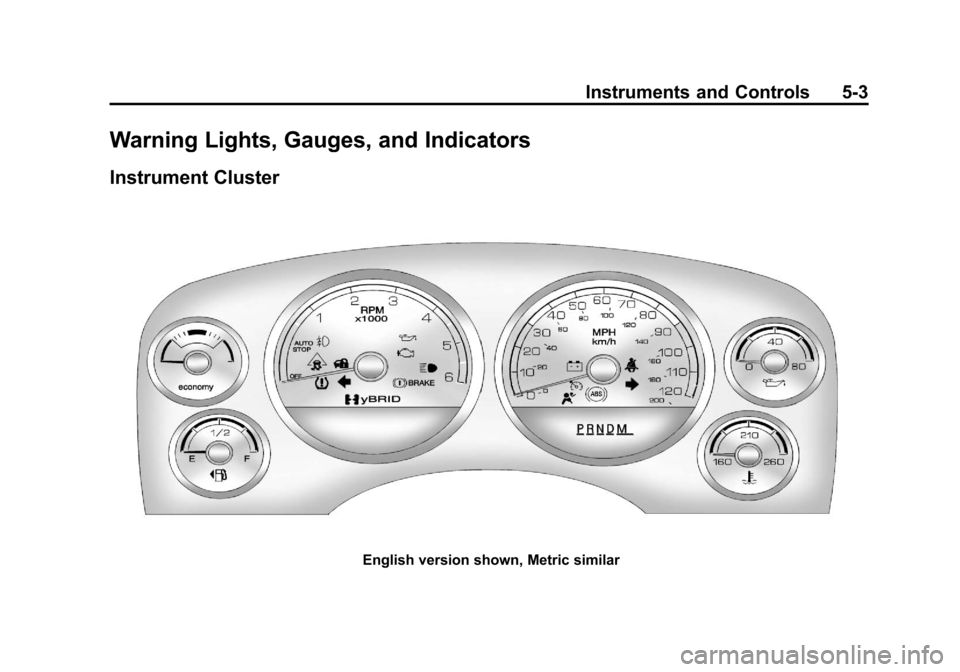

Instrument Cluster
English version shown, Metric similar

Black plate (4,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-4 Instruments and Controls

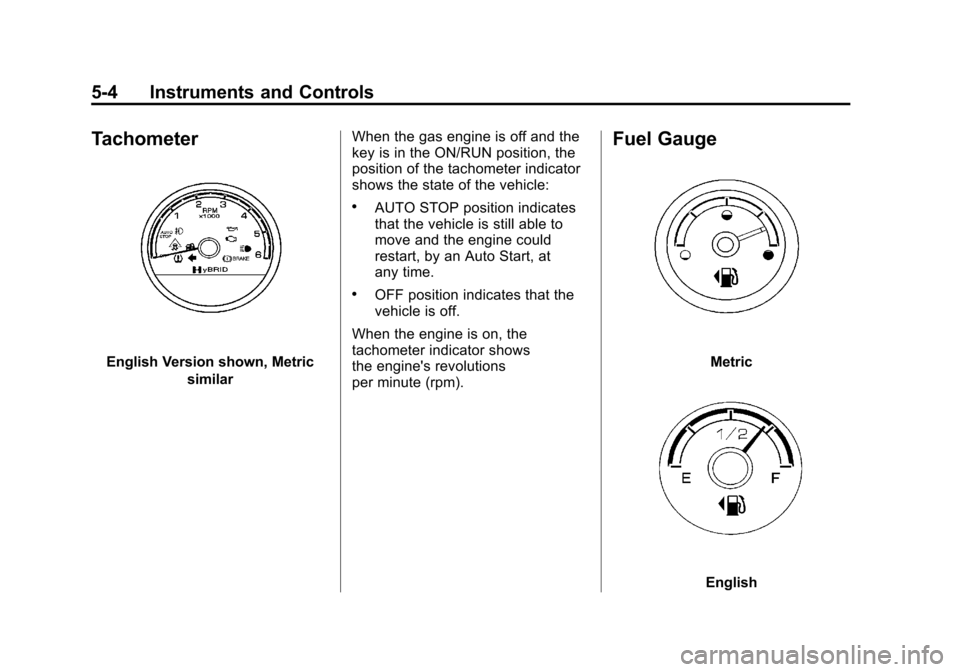

Tachometer
English Version shown, Metricsimilar When the gas engine is off and the
key is in the ON/RUN position, the
position of the tachometer indicator
shows the state of the vehicle:
.AUTO STOP position indicates
that the vehicle is still able to
move and the engine could
restart, by an Auto Start, at
any time.
.OFF position indicates that the
vehicle is off.
When the engine is on, the
tachometer indicator shows
the engine's revolutions
per minute (rpm).
Fuel Gauge
Metric
English

Black plate (5,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-5
When the ignition is on, the fuel
gauge shows approximately how
much fuel is left in the tank. The
gauge will first indicate E (empty)
before it is out of fuel, but the
vehicle should be refueled as
soon as possible.
An arrow on the fuel gauge
indicates the side of the vehicle the
fuel door is on.Listed are four situations that may
occur with the fuel gauge, none of
these indicate a problem:
.At the gas station, the fuel pump
shuts off before the gauge reads
F (full).
.It takes a little more or less fuel
to fill up than the fuel gauge
indicated. For example, the
gauge may have indicated the
tank was half full, but it actually
took a little more or less than
half the tank's capacity to fill
the tank.
.The gauge moves a little while
turning a corner or speeding up.
.The gauge does not go back to
E (empty) when the ignition is
turned off.

Black plate (6,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-6 Instruments and Controls

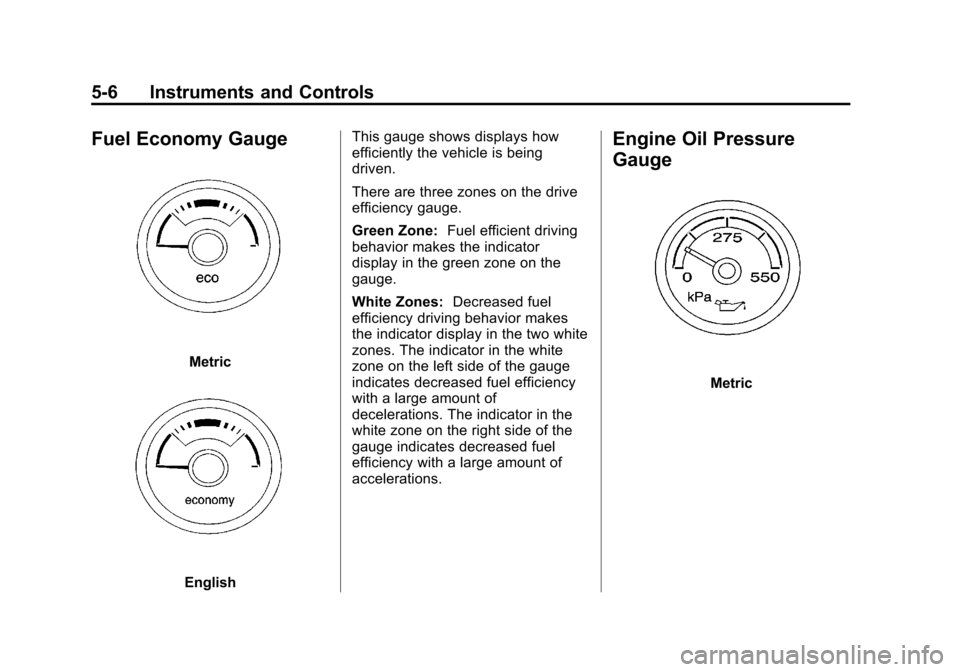

Fuel Economy Gauge
Metric
EnglishThis gauge shows displays how
efficiently the vehicle is being
driven.
There are three zones on the drive
efficiency gauge.
Green Zone:
Fuel efficient driving
behavior makes the indicator
display in the green zone on the
gauge.
White Zones: Decreased fuel
efficiency driving behavior makes
the indicator display in the two white
zones. The indicator in the white
zone on the left side of the gauge
indicates decreased fuel efficiency
with a large amount of
decelerations. The indicator in the
white zone on the right side of the
gauge indicates decreased fuel
efficiency with a large amount of
accelerations.
Engine Oil Pressure
Gauge
Metric

Black plate (7,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-7
English

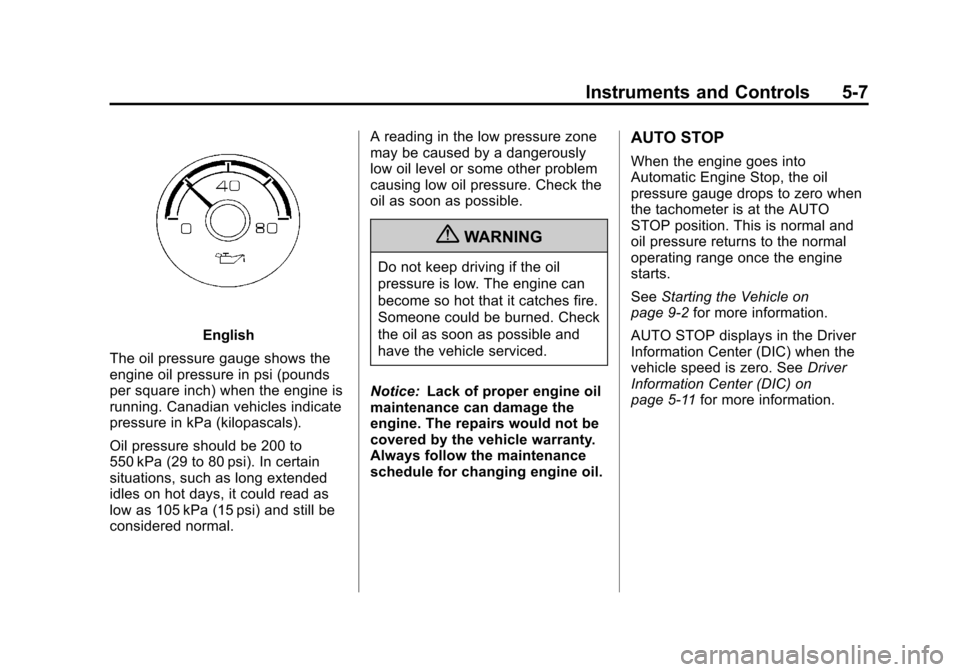

The oil pressure gauge shows the
engine oil pressure in psi (pounds
per square inch) when the engine is
running. Canadian vehicles indicate
pressure in kPa (kilopascals).
Oil pressure should be 200 to
550 kPa (29 to 80 psi). In certain
situations, such as long extended
idles on hot days, it could read as
low as 105 kPa (15 psi) and still be
considered normal. A reading in the low pressure zone
may be caused by a dangerously
low oil level or some other problem
causing low oil pressure. Check the
oil as soon as possible.
{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
AUTO STOP
When the engine goes into
Automatic Engine Stop, the oil
pressure gauge drops to zero when
the tachometer is at the AUTO
STOP position. This is normal and
oil pressure returns to the normal
operating range once the engine
starts.
See Starting the Vehicle on
page 9‑2 for more information.
AUTO STOP displays in the Driver
Information Center (DIC) when the
vehicle speed is zero. See Driver
Information Center (DIC) on
page 5‑11 for more information.

Black plate (8,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-8 Instruments and Controls

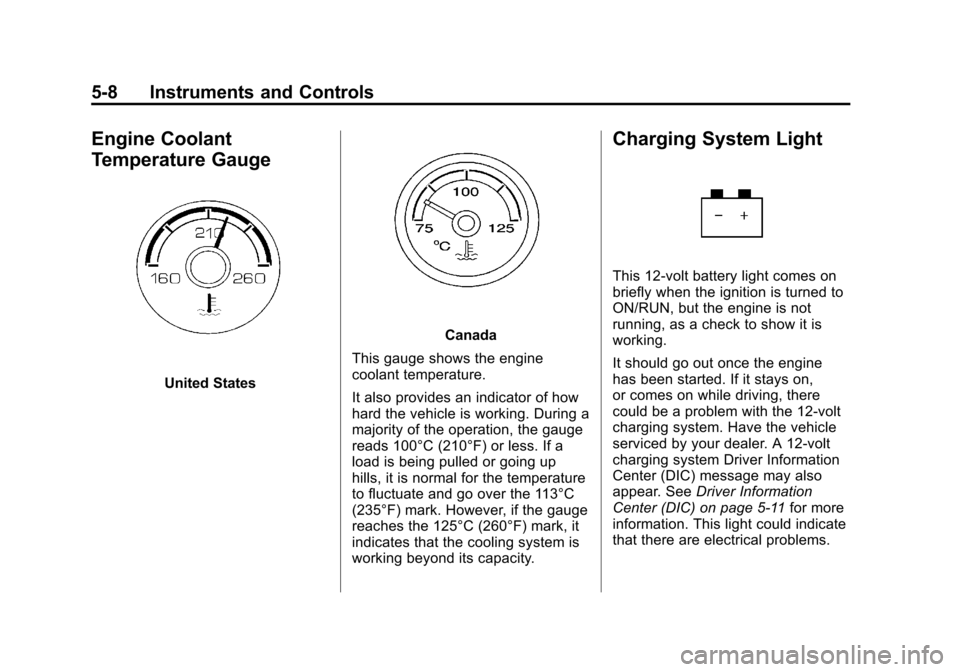

Engine Coolant
Temperature Gauge
United States
Canada
This gauge shows the engine
coolant temperature.
It also provides an indicator of how
hard the vehicle is working. During a
majority of the operation, the gauge
reads 100°C (210°F) or less. If a
load is being pulled or going up
hills, it is normal for the temperature
to fluctuate and go over the 113°C
(235°F) mark. However, if the gauge
reaches the 125°C (260°F) mark, it
indicates that the cooling system is
working beyond its capacity.
Charging System Light
This 12‐volt battery light comes on
briefly when the ignition is turned to
ON/RUN, but the engine is not
running, as a check to show it is
working.
It should go out once the engine
has been started. If it stays on,
or comes on while driving, there
could be a problem with the 12‐volt
charging system. Have the vehicle
serviced by your dealer. A 12‐volt
charging system Driver Information
Center (DIC) message may also
appear. See Driver Information
Center (DIC) on page 5‑11 for more
information. This light could indicate
that there are electrical problems.
