CHEVROLET TAHOE 2011 3.G Owner's Manual

Black plate (9,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-9
Have it checked right away. If a
short distance must be driven with
the light on, be certain to turn off all
the accessories.
Brake System Warning
Light
With the ignition in ON/RUN, the
brake system warning light comes
on when the parking brake is set.
If the vehicle is driven with the
parking brake engaged, a chime
sounds when the vehicle speed is
greater than 8 km/h (5 mph).
The vehicle brake system consists
of two hydraulic circuits. If one
circuit is not working, the remaining
circuit can still work to stop the
vehicle. For normal braking
performance, both circuits need to
be working.If the warning light comes on and a
chime sounds there could be a
brake problem. Have the brake
system inspected right away.
This light also comes on due to low
brake fluid. See the owner manual
for more information.
MetricEnglish
This light should come on briefly
when the ignition key is turned to
ON/RUN. If it does not come on
then, have it fixed so it will be ready
to warn if there is a problem.
{WARNING
The brake system might not be
working properly if the brake
system warning light is on.
Driving with the brake system
warning light on can lead to a
crash. If the light is still on after
the vehicle has been pulled off
the road and carefully stopped,
have the vehicle towed for
service.
If the light comes on while driving,
pull off the road and stop carefully.
The pedal might be harder to push
or can go closer to the floor. It may
take longer to stop. If the light does
not go out, have the vehicle towed
for service. See General Towing
Information on page 9‑16.

Black plate (10,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-10 Instruments and Controls

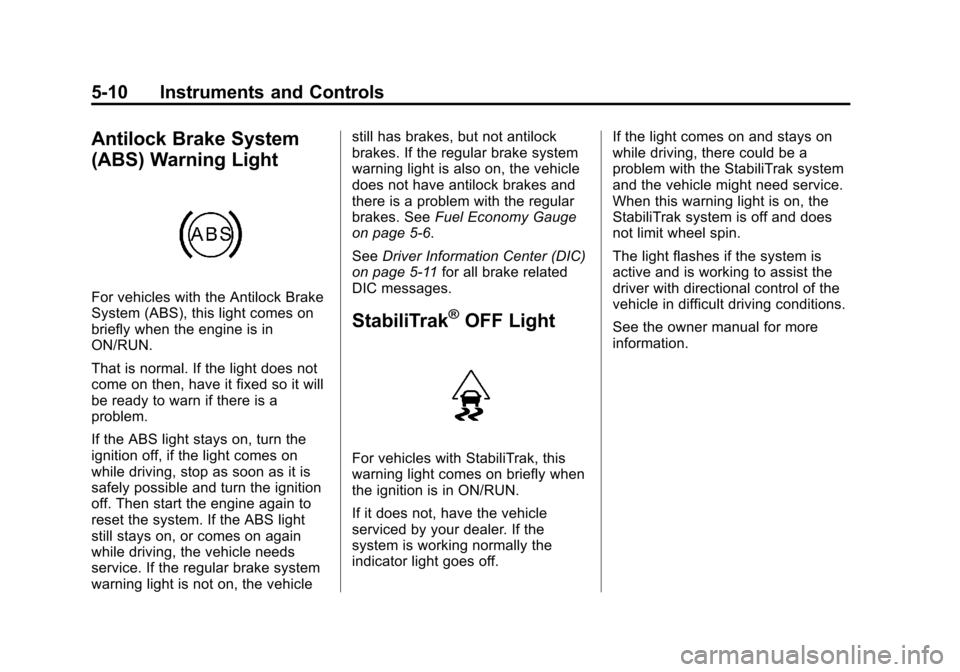

Antilock Brake System
(ABS) Warning Light
For vehicles with the Antilock Brake
System (ABS), this light comes on
briefly when the engine is in
ON/RUN.
That is normal. If the light does not
come on then, have it fixed so it will
be ready to warn if there is a
problem.
If the ABS light stays on, turn the
ignition off, if the light comes on
while driving, stop as soon as it is
safely possible and turn the ignition
off. Then start the engine again to
reset the system. If the ABS light
still stays on, or comes on again
while driving, the vehicle needs
service. If the regular brake system
warning light is not on, the vehiclestill has brakes, but not antilock
brakes. If the regular brake system
warning light is also on, the vehicle
does not have antilock brakes and
there is a problem with the regular
brakes. See
Fuel Economy Gauge
on page 5‑6.
See Driver Information Center (DIC)
on page 5‑11 for all brake related
DIC messages.
StabiliTrak®OFF Light
For vehicles with StabiliTrak, this
warning light comes on briefly when
the ignition is in ON/RUN.
If it does not, have the vehicle
serviced by your dealer. If the
system is working normally the
indicator light goes off. If the light comes on and stays on
while driving, there could be a
problem with the StabiliTrak system
and the vehicle might need service.
When this warning light is on, the
StabiliTrak system is off and does
not limit wheel spin.
The light flashes if the system is
active and is working to assist the
driver with directional control of the
vehicle in difficult driving conditions.
See the owner manual for more
information.

Black plate (11,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-11
Engine Oil Pressure Light
{WARNING
Do not keep driving if the oil
pressure is low. The engine can
become so hot that it catches fire.
Someone could be burned. Check
the oil as soon as possible and
have the vehicle serviced.
Notice: Lack of proper engine oil
maintenance can damage the
engine. The repairs would not be
covered by the vehicle warranty.
Always follow the maintenance
schedule for changing engine oil.
This light comes on briefly as a
check it works, when the ignition is
in ON/RUN. If it does not, have the
vehicle serviced.
If the light comes on and stays on, it
means that oil is not flowing through
the engine properly. The vehicle
could be low on oil and might have
some other system problem.
During an AUTO STOP there is zero
oil pressure, but this light will not
come on.
Information Displays
Driver Information
Center (DIC)
Trip/Fuel Menu Items
Press the trip/fuel button to display
the Trip/Fuel Menu items. For more
items see “Driver Information Center
(DIC)” in the owner manual.
BATTERY VOLTAGE
This display shows the current
battery voltage. If the voltage is in
the normal range, the value will
display. For example, the display
may read BATTERY VOLTAGE
13 VOLTS. Your vehicle's charging
system regulates voltage based on
the state of the battery. The battery
voltage may fluctuate when viewing
this information on the DIC. This is
normal. See “Charging System
Light” in the owner manual for more
information. If there is a problem
with the battery charging system,

Black plate (12,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-12 Instruments and Controls
the DIC will display a message. See
Battery Voltage and Charging
Messages on page 5‑12.
INST ECON (Instantaneous
Economy)
This display normally shows
instantaneous fuel economy. When
the vehicle is in Auto Stop mode
AUTO STOP or IFE = 0 L/100km or
IFE = 99 MPG will be displayed.
SeeStarting the Vehicle on
page 9‑2 for more information.Vehicle Messages
Messages displayed on the DIC
indicate the status of the vehicle or
some action may be needed to
correct a condition. Multiple
messages may appear one after
another.
The messages that do not require
immediate action can be
acknowledged and cleared by
pressing
V(Set/Reset).
The messages that require
immediate action cannot be cleared
until that action is performed.
All messages should be taken
seriously. Clearing the message
does not correct the problem.
The following are the possible
messages for the Hybrid and some
information about them. For
information on other DIC messages,
see “Vehicle Messages” in the
owner manual.
Battery Voltage and
Charging Messages
SERVICE BATTERY
CHARGING SYSTEM
If the 12V battery system faults or
fails this message will appear on the
DIC. The battery/charging system
light will appear in the instrument
panel cluster. See “Battery Warning
Light” in the owner manual. Driving
with this message on could drain
the battery. Have the electrical
system checked as soon as
possible.
Brake System Messages
SERVICE BRAKE SYSTEM
This message may be displayed if
there is a problem with the brake
system. You will still be able to
brake, but it will be noticeably more
difficult. Pull off the road to a safe
location and have your vehicle
towed to the nearest dealer for
service. See “Brakes,” “Brake

Black plate (13,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Instruments and Controls 5-13

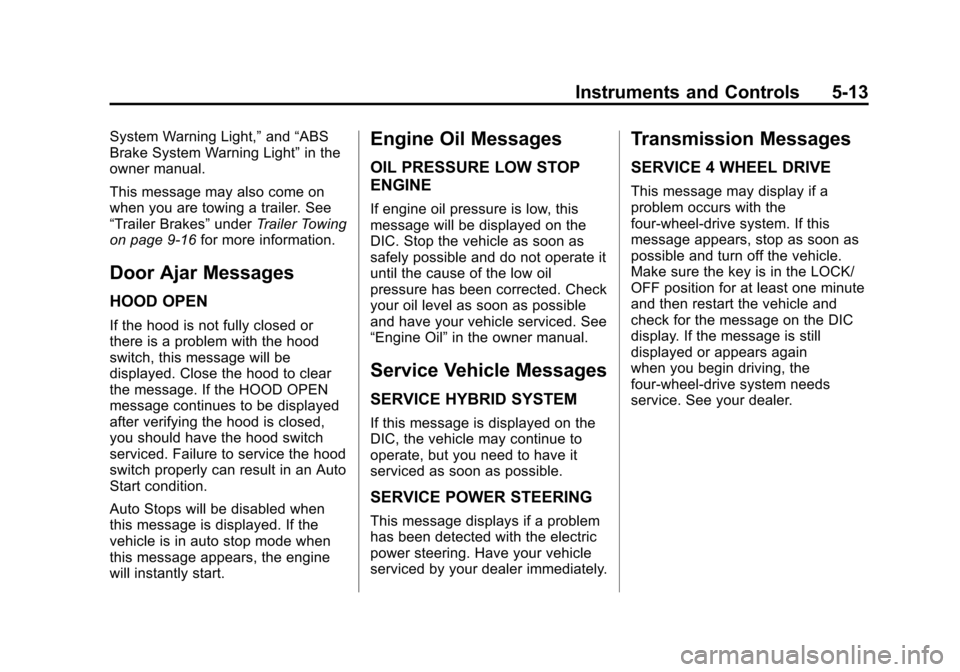

System Warning Light,”and“ABS
Brake System Warning Light” in the
owner manual.
This message may also come on
when you are towing a trailer. See
“Trailer Brakes” underTrailer Towing
on page 9‑16 for more information.
Door Ajar Messages
HOOD OPEN
If the hood is not fully closed or
there is a problem with the hood
switch, this message will be
displayed. Close the hood to clear
the message. If the HOOD OPEN
message continues to be displayed
after verifying the hood is closed,
you should have the hood switch
serviced. Failure to service the hood
switch properly can result in an Auto
Start condition.
Auto Stops will be disabled when
this message is displayed. If the
vehicle is in auto stop mode when
this message appears, the engine
will instantly start.
Engine Oil Messages
OIL PRESSURE LOW STOP
ENGINE
If engine oil pressure is low, this
message will be displayed on the
DIC. Stop the vehicle as soon as
safely possible and do not operate it
until the cause of the low oil
pressure has been corrected. Check
your oil level as soon as possible
and have your vehicle serviced. See
“Engine Oil”in the owner manual.
Service Vehicle Messages
SERVICE HYBRID SYSTEM
If this message is displayed on the
DIC, the vehicle may continue to
operate, but you need to have it
serviced as soon as possible.
SERVICE POWER STEERING
This message displays if a problem
has been detected with the electric
power steering. Have your vehicle
serviced by your dealer immediately.
Transmission Messages
SERVICE 4 WHEEL DRIVE
This message may display if a
problem occurs with the
four-wheel-drive system. If this
message appears, stop as soon as
possible and turn off the vehicle.
Make sure the key is in the LOCK/
OFF position for at least one minute
and then restart the vehicle and
check for the message on the DIC
display. If the message is still
displayed or appears again
when you begin driving, the
four-wheel-drive system needs
service. See your dealer.

Black plate (14,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
5-14 Instruments and Controls
2NOTES

Black plate (1,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Infotainment System 7-1
Infotainment
System
Introduction
Introduction . . . . . . . . . . . . . . . . . . . 7-1
Introduction
For vehicles with a navigation radio
system, see the Navigation System
manual for more information.
To view the hybrid screen, press the
MENU button on the radio. The
hybrid screen displays when
entering the Configuration Menu.
The display shows:
.Auto Stop
.Battery Charging
.Engine Idle
.2‐Wheel and 4‐Wheel Drive
Modes for:
‐Engine Power
‐ Battery Power
‐ Hybrid Power

Black plate (2,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
7-2 Infotainment System
2NOTES

Black plate (1,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
Climate Controls 8-1

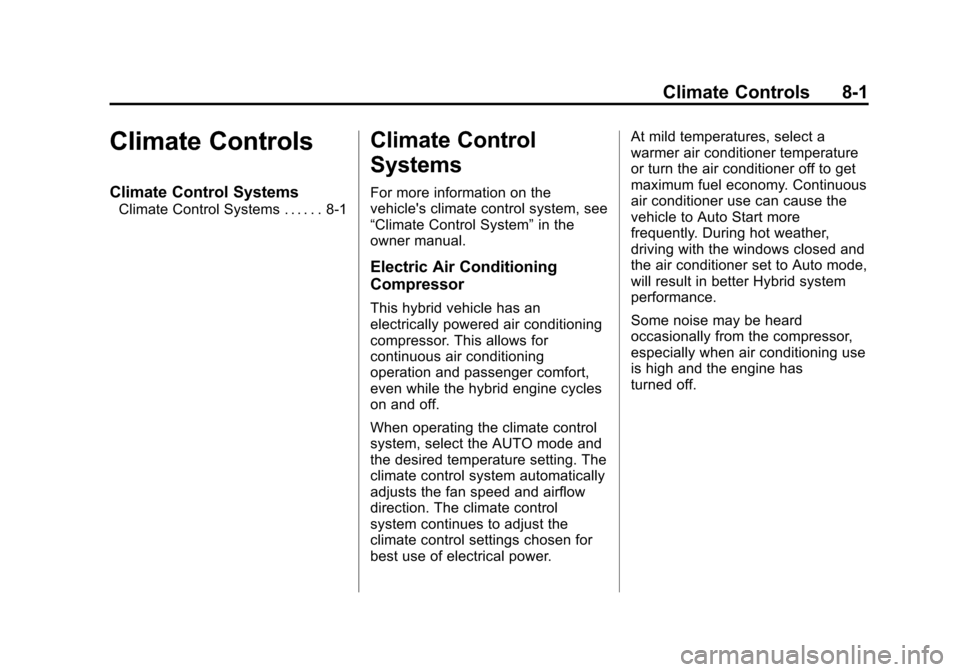

Climate Controls
Climate Control Systems
Climate Control Systems . . . . . . 8-1
Climate Control
Systems
For more information on the
vehicle's climate control system, see
“Climate Control System”in the
owner manual.
Electric Air Conditioning
Compressor
This hybrid vehicle has an
electrically powered air conditioning
compressor. This allows for
continuous air conditioning
operation and passenger comfort,
even while the hybrid engine cycles
on and off.
When operating the climate control
system, select the AUTO mode and
the desired temperature setting. The
climate control system automatically
adjusts the fan speed and airflow
direction. The climate control
system continues to adjust the
climate control settings chosen for
best use of electrical power. At mild temperatures, select a
warmer air conditioner temperature
or turn the air conditioner off to get
maximum fuel economy. Continuous
air conditioner use can cause the
vehicle to Auto Start more
frequently. During hot weather,
driving with the windows closed and
the air conditioner set to Auto mode,
will result in better Hybrid system
performance.
Some noise may be heard
occasionally from the compressor,
especially when air conditioning use
is high and the engine has
turned off.

Black plate (2,1)Chevrolet Tahoe and GMC Yukon/Yukon Denali Hybrid - 2011
8-2 Climate Controls
2NOTES
