Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
206 Infotainment System
The device battery recharges
automatically while the vehicle is on.
When the vehicle is off while a
device is connected using the USB
cable, the device battery stops
charging and the device will
automatically turn off.
If the device is an unsupported
model, it can still be listened to in
the vehicle by connecting to the
auxiliary input jack using a standard
3.5 mm (1/8 in) stereo cable.
Menu
Press the MENU knob to display the
device Menu and the following may
display:
Browse :Select to display the files
or songs on the device. See
“Browse Device Media” later in this
section.
Tone Settings : Select to adjust
Bass, Midrange, Treble, Balance,
Fade, and EQ (Equalizer). See
“Tone Settings” underAM-FM Radio
0 198.
Auto Volume : If equipped, see
“Playing an Audio CD” previously in
this section. EQ (Equalizer) Settings :
If equipped, this feature adjusts the
equalizer settings. See
“EQ
(Equalizer) Settings” inAM-FM
Radio 0198.
Browse Device Media
Use the following to browse:
Playlists: 1. Turn the MENU knob to highlight and press to view the
playlists stored on the device.
2. Turn the MENU knob to highlight and press to select a
playlist name to view a list of
all songs in the playlist.
3. Turn the MENU knob to highlight and press to select
the song from the list to begin
playback.
Artists: 1. Turn the MENU knob to highlight and press to view the
artists stored on the device.
2. Turn the MENU knob to highlight and press to select an
artist name to view a list of all
albums by the artist. 3. Turn the MENU knob to
highlight and press to select an
album name to view a list of all
songs on the album.
4. Turn the MENU knob to highlight and press to select
the song from the list to begin
playback.
Albums:
1. Turn the MENU knob to highlight and press to view the
albums stored on the device.
2. Turn the MENU knob to highlight and press to select an
album name to view a list of all
songs on the album.
3. Turn the MENU knob to highlight and press to select
the song from the list to begin
playback.
Genres: 1. Turn the MENU knob to highlight and press to view the
genres stored on the device.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15

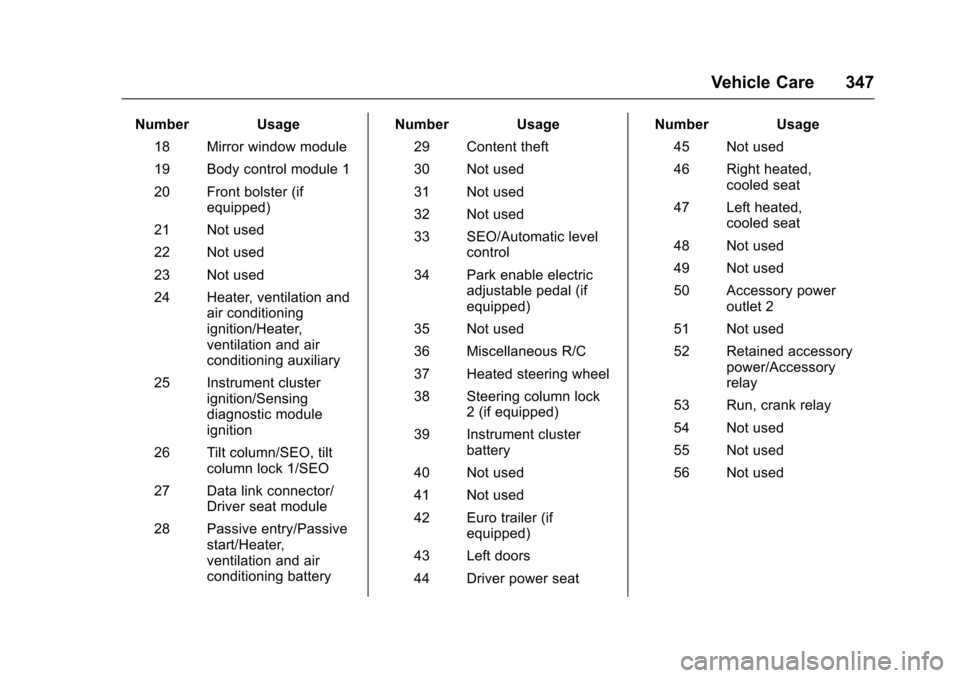

Vehicle Care 347
Number Usage18 Mirror window module
19 Body control module 1
20 Front bolster (if equipped)
21 Not used
22 Not used
23 Not used
24 Heater, ventilation and air conditioning
ignition/Heater,
ventilation and air
conditioning auxiliary
25 Instrument cluster ignition/Sensing
diagnostic module
ignition
26 Tilt column/SEO, tilt column lock 1/SEO
27 Data link connector/ Driver seat module
28 Passive entry/Passive start/Heater,
ventilation and air
conditioning battery Number Usage
29 Content theft
30 Not used
31 Not used
32 Not used
33 SEO/Automatic level control
34 Park enable electric adjustable pedal (if
equipped)
35 Not used
36 Miscellaneous R/C
37 Heated steering wheel
38 Steering column lock 2 (if equipped)
39 Instrument cluster battery
40 Not used
41 Not used
42 Euro trailer (if equipped)
43 Left doors
44 Driver power seat Number Usage
45 Not used
46 Right heated, cooled seat
47 Left heated, cooled seat
48 Not used
49 Not used
50 Accessory power outlet 2
51 Not used
52 Retained accessory power/Accessory
relay
53 Run, crank relay
54 Not used
55 Not used
56 Not used

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-9159366) - 2016 - crc - 5/19/15
442 Index
Appearance CareExterior . . . . . . . . . . . . . . . . . . . . . . . 391
Interior . . . . . . . . . . . . . . . . . . . . . . . . 395
Armrest Storage . . . . . . . . . . . . . . . . 123
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 421
Assistance Systems for
Driving . . . . . . . . . . . . . . . . . . . . . . . . 283
Assistance Systems for Parking and Backing . . . . . . . . . . 281
Audio
Theft-Deterrent Feature . . . . . . . 193
Audio Players CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 45
Headlamp System . . . . . . . . . . . . 186
Level Control . . . . . . . . . . . . . . . . . 270
Transmission . . . . . . . . . . . . . . . . . 255
Transmission Fluid . . . . . . . . . . . 318
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . 257
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 334
Auxiliary Jack . . . . . . . . . . . . . . . . . . . 207
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 332
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 332B
Battery
Load Management . . . . . . . . . . . . 190
Power Protection . . . . . . . . . . . . . 191
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 161
Battery - North America . . . . 331, 382
Blade Replacement, Wiper . . . . . 335
Blind Spot Mirrors . . . . . . . . . . . . . . . 57
Bluetooth Overview . . . . . . . . . . . 208, 209, 213
Brake Pedal and AdjustableThrottle . . . . . . . . . . . . . . . . . . . . . . 244
System Warning Light . . . . . . . . 148
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 328 Antilock . . . . . . . . . . . . . . . . . . . . . . . 265
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 266
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Parking . . . . . . . . . . . . . . . . . . . . . . . 265
System Messages . . . . . . . . . . . . 162
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 229
Break-In, New Vehicle . . . . . . . . . . 244
Bulb Replacement . . . . . . . . . . . . . . 341 Fog Lamps . . . . . . . . . . . . . . 188, 338
Front Turn Signal Lamps . . . . . 339
Halogen Bulbs . . . . . . . . . . . . . . . . 337
Headlamp Aiming . . . . . . . . . . . . . 337 Bulb Replacement (cont'd)
Headlamps . . . . . . . . . . . . . . 337, 338
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 338
License Plate Lamps . . . . . . . . . 340
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 339
Buying New Tires . . . . . . . . . . . . . . . 366
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 132
California Fuel Requirements . . . . . . . . . . . 292
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 312
California Proposition
65 Warning . . . . . . . . . . 311, 331, 382
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 415
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 254
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 47
Winter Driving . . . . . . . . . . . . . . . . 237
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . 124
Caution, Danger, and Warning . . . . 2
