What to Use:
Refer to the Maintenance Schedule to
determine what kind of lubricant to use.
See “Recommended Fluids and
Lubricants” in the Index.

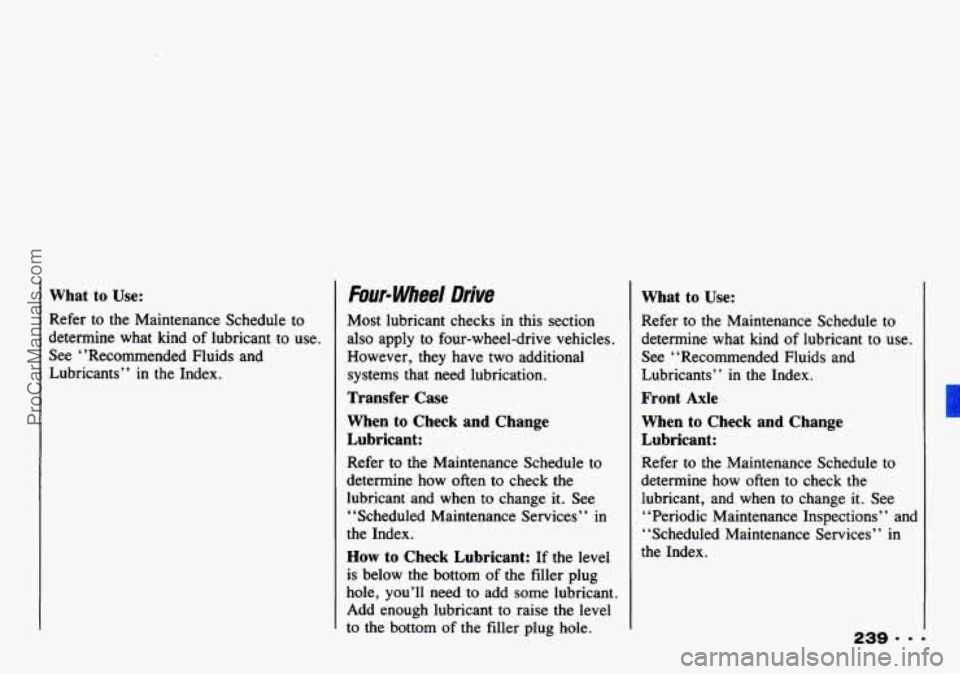

Four- Wheel Drive
Most lubricant checks in this section
also apply to four-wheel-drive vehicles.
However, they have two additional
systems that need lubrication.
Transfer Case
When to Check
and Change
Lubricant:
Refer to the Maintenance Schedule to
determine how often to check the
lubricant and when
to change it. See
‘ ‘Scheduled Maintenance Services’ ’ in
the Index.
How to Check Lubricant: If the level
is below the bottom of the filler plug
hole, you’ll need to add some lubricant.
Add enough lubricant to raise the level
to the bottom of the filler plug hole.
What to Use:
Refer to the Maintenance Schedule to
determine what kind of lubricant to use.
See “Recommended Fluids and
Lubricants” in the Index.
Front Axle
When
to Check and Change
Lubricant:
Refer to the Maintenance Schedule to
determine how often to check the
lubricant, and when to change it. See
“Periodic Maintenance Inspections” and
“Scheduled Maintenance Services”
in
the Index.
ProCarManuals.com

Service & Appearance Care
How to Check Lubricant:
If the level is below the bottom of the
filler plug hole, you’ll need to add some
lubricant.
If the differential is at operating
temperature (warm), add enough
lubricant to raise the level to the bottom
of the filler plug hole.
If the differential
is cold, add enough
lubricant to raise the level to
1/2 inch
(12 mm) below the filler plug hole.
What to Use:
Refer to the Maintenance Schedule to
determine what kind of lubricant to use.
See “Recommended Fluids and
Lubricants” in the Index.
Engine Coolant
The following explains your cooling
system and how to add coolant when it
is low. If you have a problem with
engine overheating, see “Engine
Overheating” in the Index.
The proper coolant for your Geo will:
Give freezing protection down to
Give boiling protection up to 258°F
Protect against rust and corrosion.
Help keep the proper engine
Let the warning lights work as they
-34°F (-37°C).
(125°C).
temperature. should.
What to Use:
Use a mixture of one-half clean water
(preferably distilled) and one-half
antifreeze or approved recycled coolant
that meets “GM Specification 6038M,”
which won’t damage aluminum parts.
Also use GM Engine Coolant
Supplement (sealer) with a complete
coolant change. If you use these, you
don’t need to add anything else.
ProCarManuals.com

r

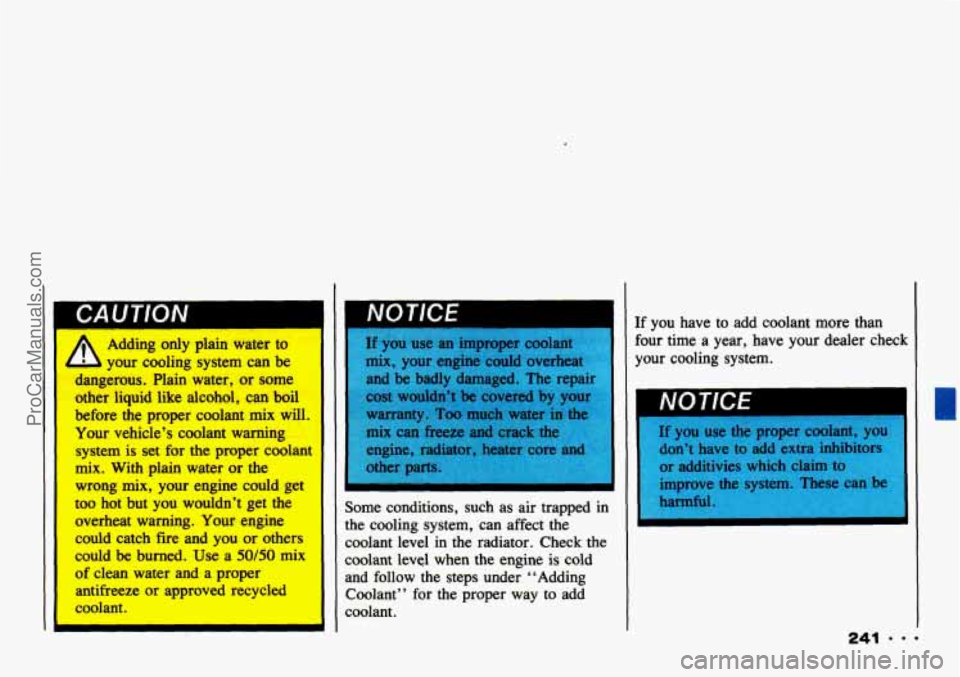

Adding only plain water to
b your cooling system can be
dmgemus. Plaia water, or some
other liquid like alcohol, can boil
before the proper coolant mix will.
Your vehicle’s coolant warning
system is set for the proper coolant
mix, With plain water or the
wrong mix, your engine could get
too hot but you wouldn’t get the
overheat warning. Your engine
could catch fire and you or others
could be burned. Use a 50/50 mix
of clean water and a proper
antifreeve or approved recycled
coolant.
I
Some conditions, such as air trapped in
the cooling system, can affect the
coolant level in the radiator. Check the
coolant level when the engine is cold
and follow the steps under ‘‘Adding Coolant” for
the proper way to add
coolant. If you have to add coolant
more than
four time
a year, have your dealer check
your cooling system.
If
you use the proper coolant, you
don’t have to add extra inhibitors
or additivies which claim to
II
241
ProCarManuals.com

Service & Appearance Care

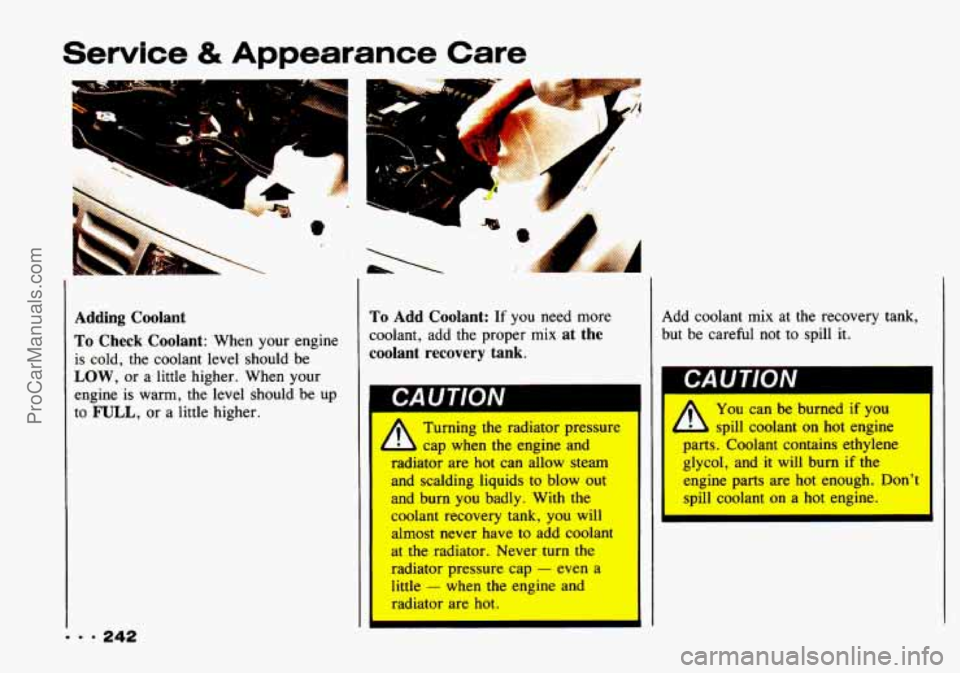

Adding Coolant
To Check Coolant: When your engine
is cold, the coolant level should be
LOW, or a little higher. When your
engine is warm, the level should be up
to
FULL, or a little higher.
To Add Coolant: If you need more
coolant, add the proper mix
at the
coolant recovery tank.
r Turning the radiator pressure
radiator are hot can allow steam
and scalding liquids to blow out
and burn you badly. With the
coolant recovery tank, you will
almost never have to add coolant
at the radiator. Never turn the
radiator pressure cap
- even a
little
- when the engine and
radiator are hot.
cap
when the engine and Add
coolant
mix at the recovery tank,
but be careful not to spill
it.
, You can be burned if you
- L spill coolant on hot engine
parts. Coolant contains ethylene
glycol, and
it will burn if the
engine parts are hot enough. Don't
spill coolant on a hot engine.
ProCarManuals.com

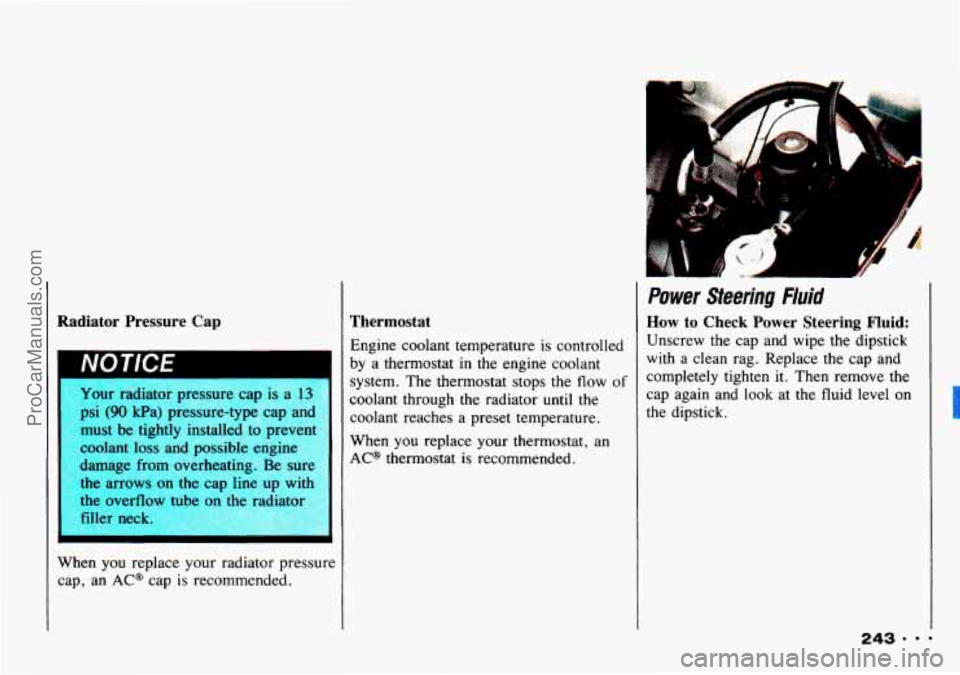

Radiator Pressure Cap
IVU I IIJt
Your radiator pressure cap is a 13
- i (90 kPa) pressure-type cap and
must be tightly installed to prevent
coolant
loss and possible engine
damage from overheating. Be sure
the arrows on the cap line up with
the overflow tube on the radiato
filler neck.
I
When you replace your radiator pressure
cap, an
AC* cap is recommended.
Thermostat
Engine coolant temperature is controlled
by a thermostat in the engine coolant
system. The thermostat stops the flow
of
coolant through the radiator until the
coolant reaches a preset temperature.
When you replace your thermostat, an
AC@ thermostat is recommended.
Power Steering Fluid
How to Check Power Steering Fluid:
Unscrew the cap and wipe the dipstick
with a clean rag. Replace the cap and
completely tighten it. Then remove the
cap again and look at the fluid level on
the dipstick.
ProCarManuals.com

Service & Appearance Care
1

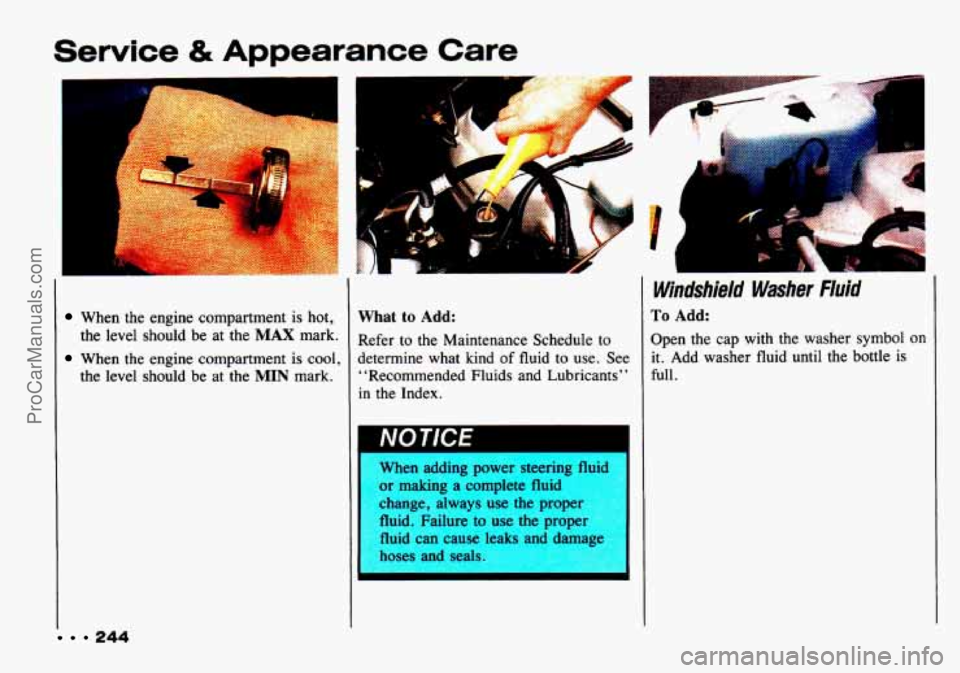

Windshield Washer Fluid
To Add:
Open the cap with the washer symbol on
it. Add washer fluid until the bottle is
full.
When the engine compartment is hot,
the level should be at the
MAX mark.
When the engine compartment is cool,
the level should be at the
MIN mark.
What to Add:
Refer to the Mainten lance Schedule to
determine what kind
of fluid to use. See
“Recommended Fluids and Lubricants”
in
the Index.
When adding power steering fluid
or making a complete fluid
change, always use the prope:
fluid. Failure to use the proper
fluid can cause leaks and damage
hoses and seals.
244
ProCarManuals.com

x
NO TIC€
When using concentrated wash fluid, follow the manufacturer‘
instructions for adding water.
ready-to-use washer fluid. Water can cause the solution to freeze
and damage your washer fluid
tank and other parts of the
washer system. Also, water
doesn’t clean as well as washer
fluid.
Fill your
I. -;her fl--- tank onl.
314 full when it’s very cold.
’his allows for expansion.
Don’t mix water with
it is completely full.

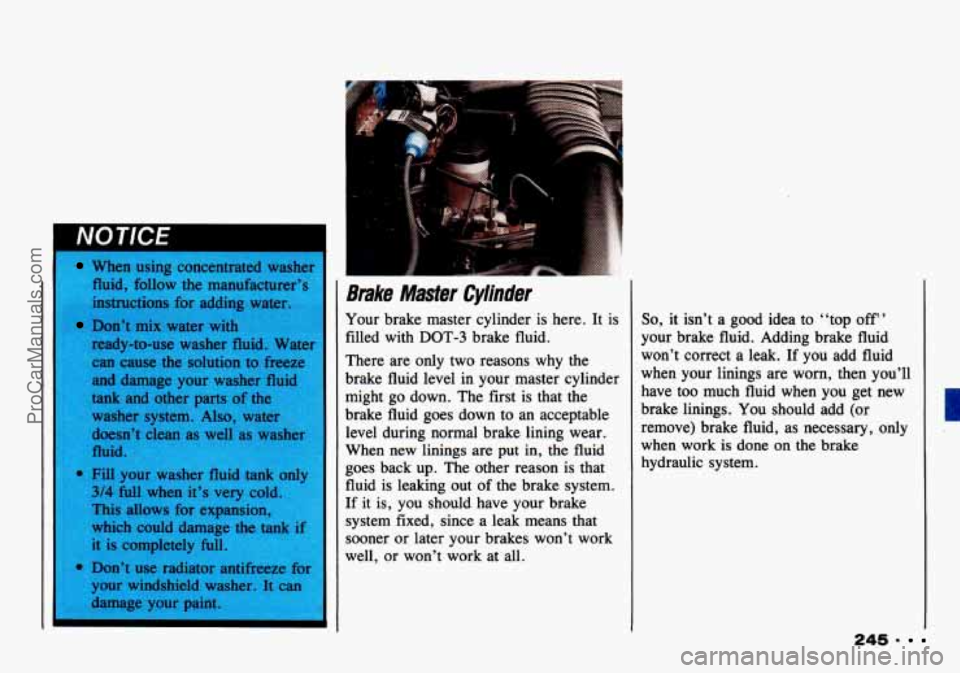

Brake Master Cylinder
Your brake master cylinder is here. It is
filled with DOT-3 brake fluid.
There are only two reasons why the
brake fluid level in your master cylinder
might go down. The first is that the
brake fluid goes down
to an acceptable
level during normal brake lining wear.
When new linings are put
in, the fluid
goes back up. The other reason is that
fluid is leaking out
of the brake system.
If it is, you should have your brake
system fixed, since a leak means that
sooner or later your brakes won’t work
well, or won’t work at
all.
So, it isn’t a good idea to “top ofr ’
your brake fluid. Adding brake fluid
won’t correct a leak.
If you add fluid
when your linings are worn, then you’ll
have too much fluid when you get new
brake linings. You should add (or
remove) brake fluid, as necessary, only
when work is done
on the brake
hydraulic system.
245 -
ProCarManuals.com

Service & Appearance Care
CA U TlON
R
d
fl
I1
A If you have too much brake
L,,E;ine. The fluid will burn
if the
engine is hot enough.
You or
others could be burned, and your
vehicle could be damaged. Add
brake fluid only when work
is
done on the brake hydraulic
system.
L fluid, it can spill on the
Lefer to
the Maintenance Schedule to
etermine when to check your brake
hid. See ‘‘Periodic Maintenance
Ispections” in the Index.

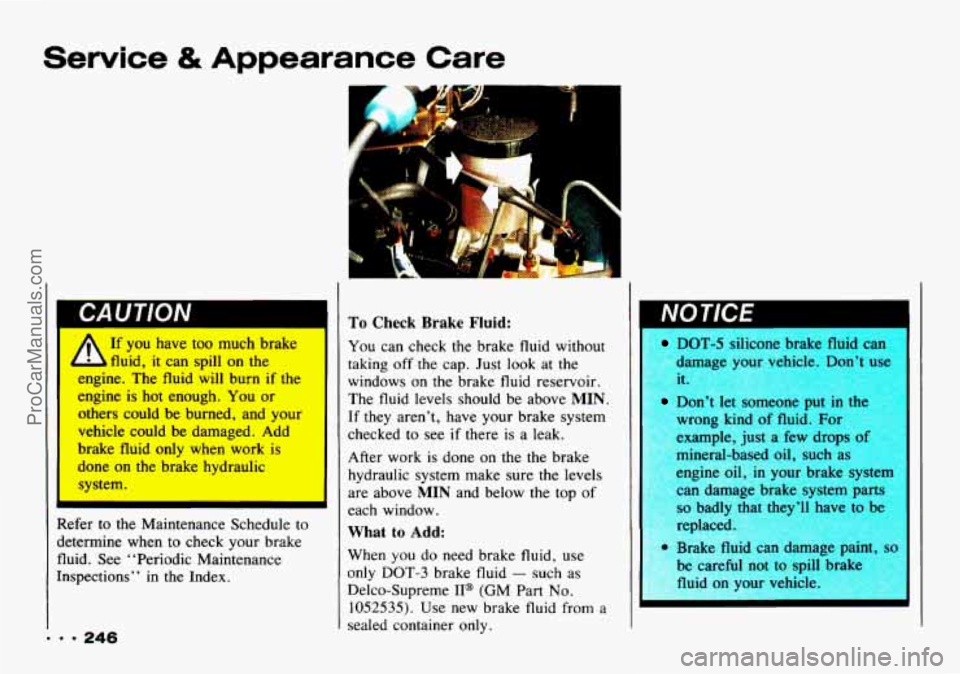

’ To Check Brake Fluid:
1
You can check the brake fluid without
taking
off the cap. Just look at the
windows on the brake fluid reservoir.
The fluid levels should be above
MIN.
If they aren’t, have your brake system
checked to see
if there is a leak.
After work is done
on the the brake
hydraulic system make sure the levels
are above
MIN and below the top of
each window.
What to Add:
When you do need brake fluid, use
only DOT-3 brake fluid
- such as
Delco-Supreme
II@ (GM Part No.
I DOT-5 silicone brake fluid can
damage your llehicle. Don’t use
it.
I D0n.t so1 : put In tf
wrong mnd 01 kd. For
example, just a few drops
mineral-based oil,
such as
engine oil,
in your brake systt
can damage brake system part
so badly that they’ll have to b
replaced.
Brake fluid
I Ige paint,
be careful not to spill
fluid
on your vehicle
1052535). Use new brake fluid from a
sealed container only.
ProCarManuals.com

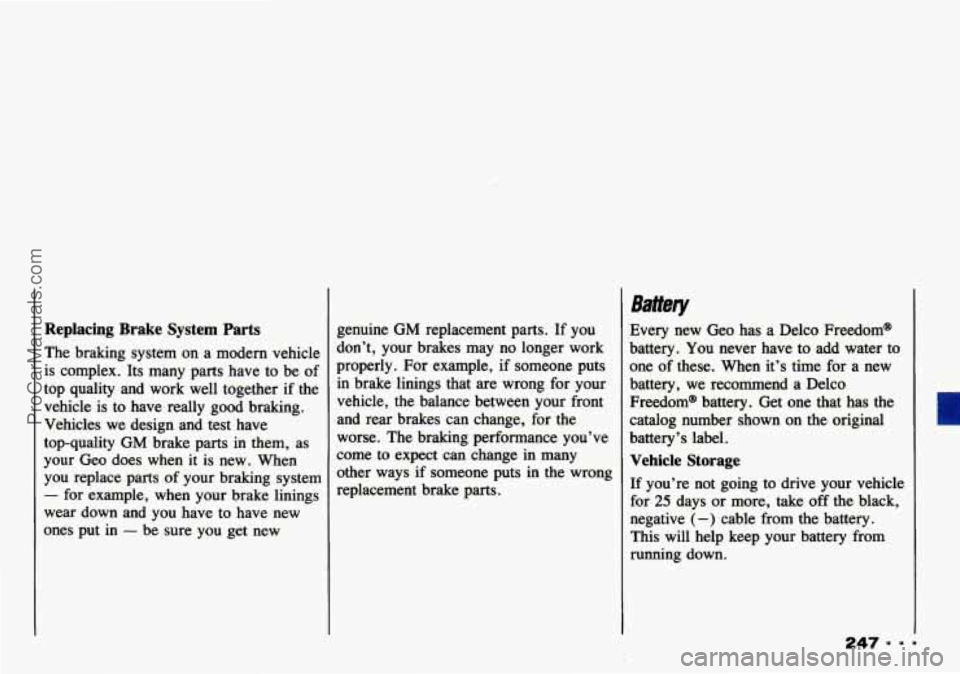

Replacing Brake System Parts
The braking system on a modern vehicle
is complex. Its many parts have to be of
top quality and work well together if the
vehicle is to have really good braking.
Vehicles we design and test have
top-quality
GM brake parts in them, as
your Geo does when it is new. When
you replace parts of your braking system
- for example, when your brake linings
wear down and you have to have new
ones put in
- be sure you get new
genuine GM replacement parts. If you
don’t, your brakes may
no longer work
properly. For example, if someone puts
in brake linings that are wrong for your
vehicle, the balance between your front
and rear brakes can change,
for the
worse. The braking performance you’ve
come to expect can change in many
other ways if someone puts in the wrong
replacement brake parts.
Battery
Every new Geo has a Delco Freedom@
battery.
You never have to add water to
one of these. When it’s time for a new
battery, we recommend a Delco
Freedom@ battery. Get one that has the
catalog number shown on the original
battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle
for
25 days or more, take off the black,
negative
(-) cable from the battery.
This will help keep your battery from
running down.
ProCarManuals.com

Service & Appearance Care
I- ‘.-I
hdrm .

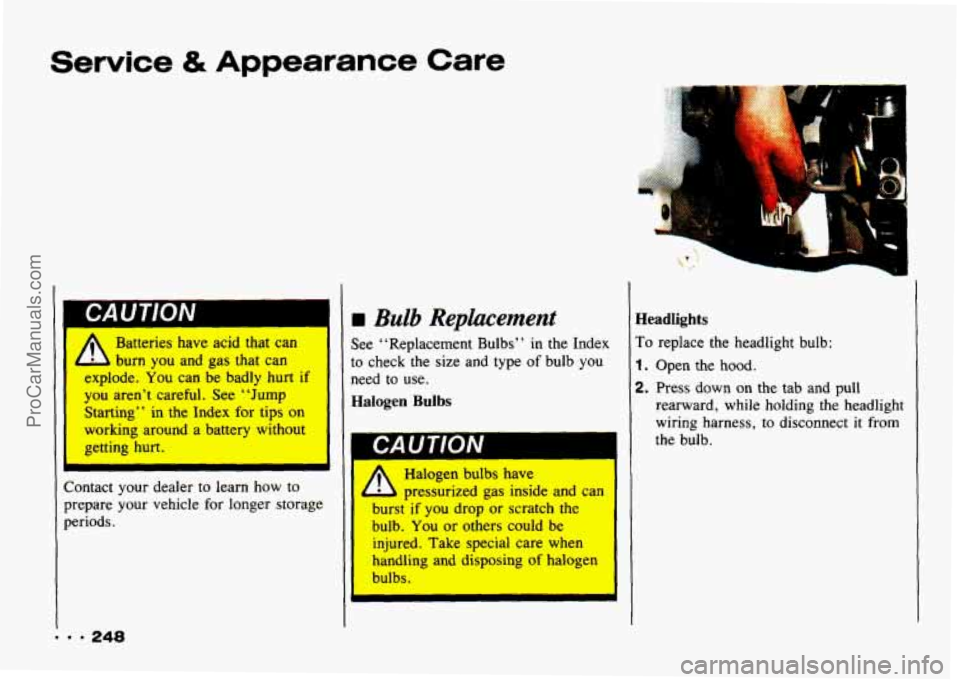

rn Bulb Replacement I LUU 1 lUIV
~ A Batteries have acid that can
burn you and gas that can
explode.
You can be badly hurt if
you aren’t careful. See
“Jump
Starting” in the Index for tips on
working around a battery without
getting hurt.
L
Contact your dealer to learn how to
prepare your vehicle for longer storage
periods. See “Replacement Bulbs” in the Index
to check
the size and type of bulb you
need to use.
Halogen Bulbs
Halogen bulbs have
pressurized gas inside and can
uurst
if you drop or scratch the
bulb.
You or others could be
injured. Take special care when
handling and disposing
of halogen
bulbs.
Headlights
To replace the headlight bulb:
1. Open the hood.
2. Press down on the tab and pull
rearward, while holding the headlight
wiring harness, to disconnect
it from
the bulb.
ProCarManuals.com
