CHEVROLET TRACKER 1993 Owners Manual

The services shown in this schedule up to 100,OOO miles (160 OOO km) should be
performed after 100,OOO miles (160 OOO km) at the same intervals.
ProCarManuals.com

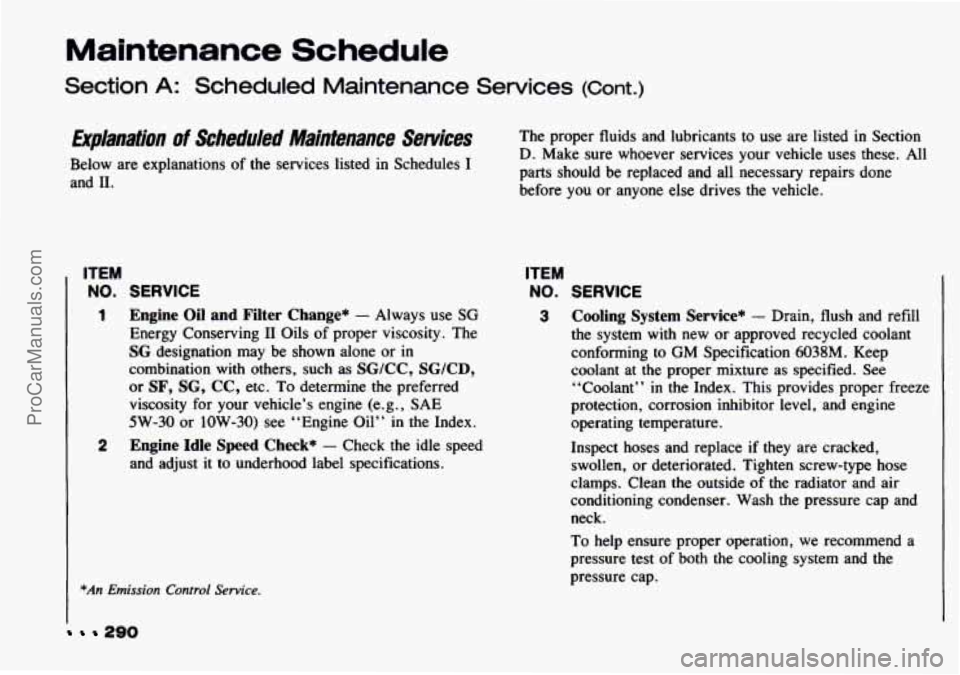

Maintenance Schedule
Section A: Scheduled Maintenance Services (Cont.)
Dplanatiun of Scheduled Maintenance Services
Below are explanations of the services listed in Schedules I
and 11.
290
ITEM
NO.
1
2
SERVICE
Engine Oil and Filter Change* - Always use SG
Energy Conserving I1 Oils of proper viscosity. The
SG designation may be shown alone or in
combination with others, such as SG/CC, SG/CD,
or SF, SG, CC, etc. To determine the preferred
viscosity for your vehicle’s engine (e.g., SAE
5W-30 or 1OW-30) see “Engine Oil’’ in the Index.
Engine Idle Speed Check* - Check the idle speed
and adjust it to underhood label specifications.
*An Emission Control Service.
The proper fluids and lubricants to use are listed in Section
D. Make sure whoever services your vehicle uses these. All
parts should be replaced and all necessary repairs done
before
you or anyone else drives the vehicle.
ITEM
NO. SERVICE
3 Cooling System Service* - Drain, flush and refill
the system with new or approved recycled coolant
conforming to
GM Specification 4038M. Keep
coolant at
the proper mixture as specified. See
“Coolant”
in the Index. This provides proper freeze
protection, corrosion inhibitor level, and engine
operating temperature.
Inspect hoses and replace
if they are cracked,
swollen, or deteriorated. Tighten screw-type hose
clamps. Clean the outside of the radiator and air
conditioning condenser. Wash
the pressure cap and
neck.
To help ensure proper operation, we recommend a
pressure test of both
the cooling system and the
pressure cap.
ProCarManuals.com

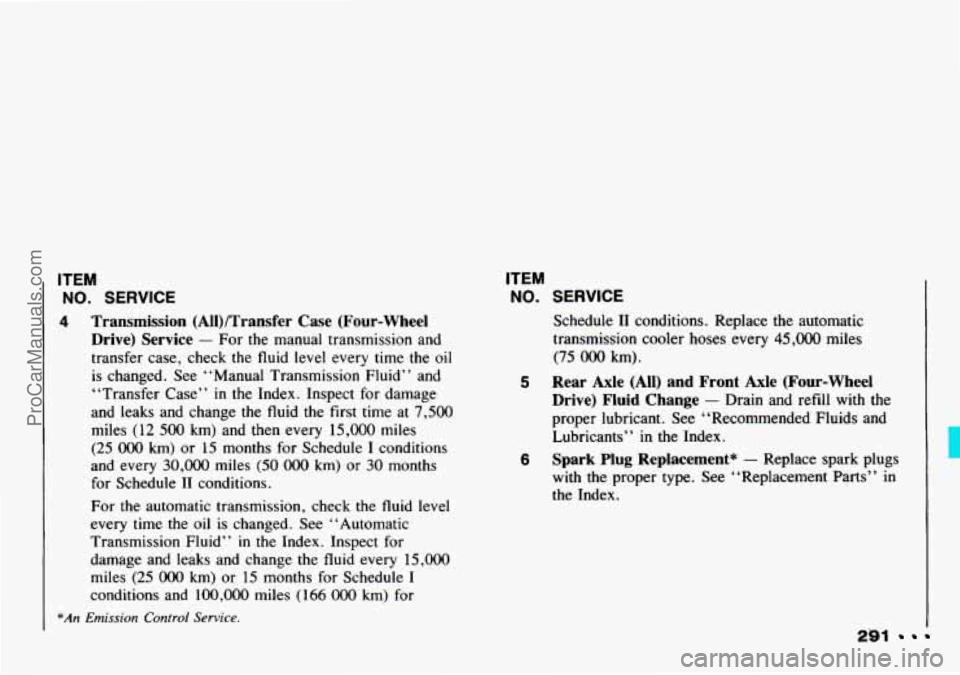

ITEM
NO. SERVICE
4 Transmission (AlI)/Transfer Case (Four-wheel
Drive) Service
- For the manual transmission and
transfer case, check the fluid level every
time the oil
is changed. See “Manual Transmission Fluid” and
“Transfer Case”
in the Index. Inspect for damage
and leaks and change the fluid the first time at
7,500
miles (12 500 km) and then every 15,000 miles
(25 000 km) or 15 months for Schedule I conditions
and every
30,000 miles (50 OOO km) or 30 months
for Schedule
I1 conditions.
For the automatic transmission, check the fluid level
every time the oil is changed. See “Automatic
Transmission Fluid”
in the Index. Inspect for
damage and leaks and change the
fluid every 15,000
miles (25 OOO km) or 15 months for Schedule I
conditions and
100,OOO miles (166 000 km) for
*An Emission Control Service.
ITEM
NO. SERVICE
Schedule I1 conditions. Replace the automatic
transmission cooler hoses every
45,000 miles
(75 000 km).
5 Rear Axle (All) and Front Axle (Four-wheel
Drive) Fluid Change
- Drain and refill with the
proper lubricant. See “Recommended Fluids and
Lubricants”
in the Index.
6 Spark Plug Replacement* - Replace spark plugs
with the proper type. See “Replacement Parts’’ in
the Index.
291
ProCarManuals.com

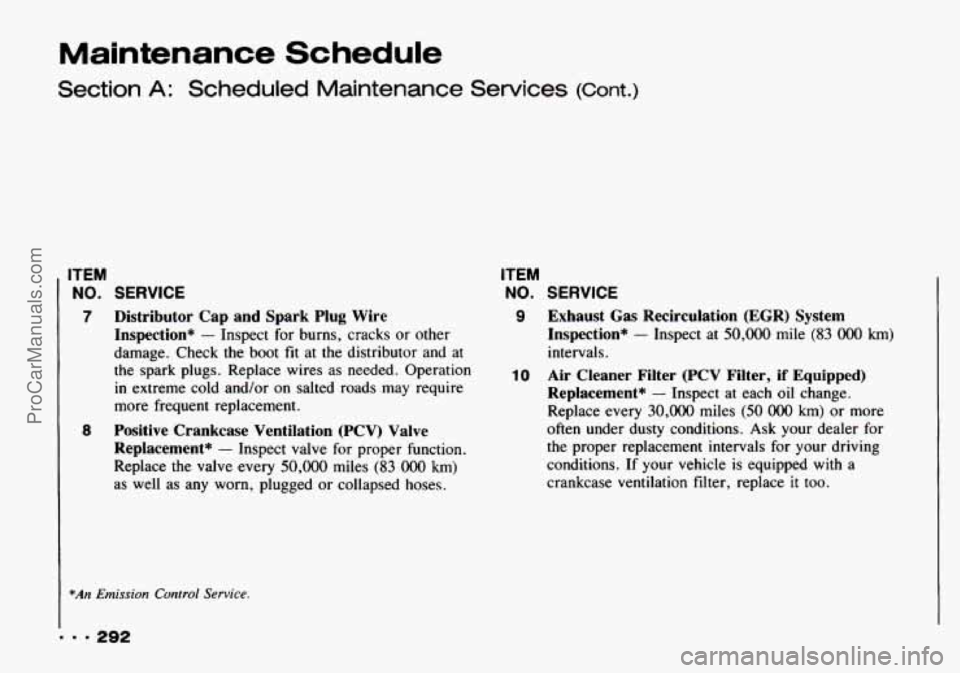

Maintenance Schedule
Section A: Scheduled Maintenance Services (Cont.)
ITEM
NO. SERVICE
7 Distributor Cap and Spark Plug Wire
Inspection*
- Inspect for burns, cracks or other
damage. Check the boot
fit at the distributor and at
the spark plugs. Replace wires as needed. Operation
in extreme cold and/or on salted roads may require
more frequent replacement.
Replacement* - Inspect valve for proper function.
Replace the valve every
50,000 miles (83 OOO km)
as well as any worn, plugged or collapsed hoses.
8 Positive Crankcase Ventilation (PCV) Valve
ITEM
NO. SERVICE
9 Exhaust Gas Recirculation (EGR) System
Inspection*
- Inspect at 50,000 mile (83 OOO km)
intervals.
Replacement* - Inspect at each oil change.
Replace
every 30,000 miles (50 000 km) or more
often under dusty conditions.
Ask your dealer for
the proper replacement intervals for your driving
conditions.
If your vehicle is equipped with a
crankcase ventilation filter, replace
it too.
10 Air Cleaner Filter (PCV Filter, if Equipped)
1 *An Emission Control Service.
ProCarManuals.com

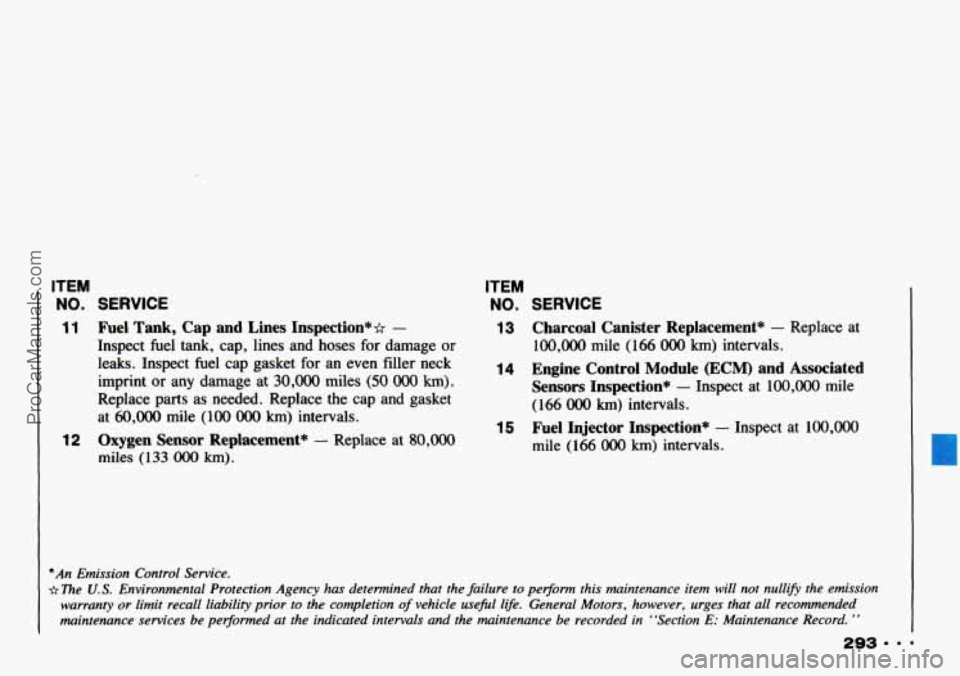

ITEM
NO. SERVICE
11 Fuel Tank, Cap and Lines Inspection** -
Inspect fuel tank, cap, lines and hoses for damage or
leaks. Inspect fuel cap gasket for an even filler neck
imprint or any damage at
30,000 miles (50 OOO km).
Replace parts as needed. Replace the cap and gasket
at
60,OOO mile (100 OOO km) intervals.
12 Oxygen Sensor Replacement* - Replace at 80,000
miles (133 OOO km).
ITEM
NO. SERVICE
13 Charcoal Canister Replacement* - Replace at
100,OOO mile
(166 OOO km) intervals.
14 Engine Control Module (ECM) and Associated
Sensors Inspection*
- Inspect at 100,OOO mile
(166 OOO km) intervals.
15 Fuel Injector Inspection* - Inspect at 100,OOO
mile (166 OOO km) intervals.
*An Emission Control Service.
*The
U. S. Environmental Protection Agency has determined that the failure to pe~orm this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion
of vehicle useful life. General Motors, however, urges that all recommended
maintenance services be pe~ormed at the indicated intervals and the maintenance be recorded in “Section
E: Maintenance Record. ”
ProCarManuals.com

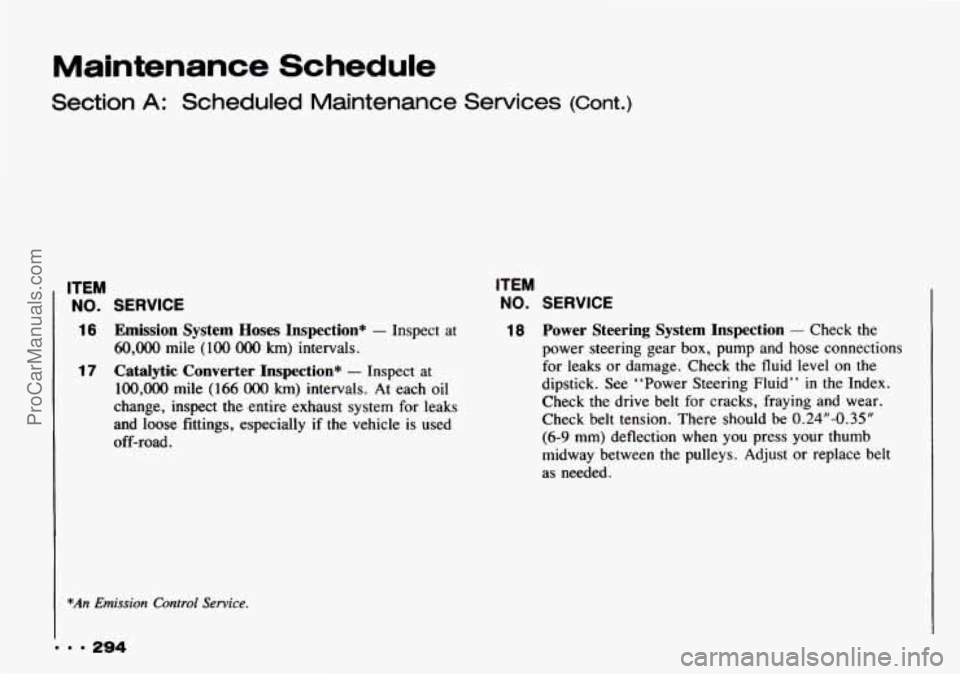

Maintenance Schedule
Section A: Scheduled Maintenance Services (Cont.)
ITEM
NO. SERVICE
16 Emission System Hoses Inspection* - Inspect at
60,OOO mile (lo0 OOO km) intervals.
17 Catalytic Converter Inspection* - Inspect at
100,OOO mile (166 OOO km) intervals. At each oil
change, inspect the entire exhaust system for leaks
and loose fittings, especially if the vehicle is used
off-road.
*An Emission Control Service.
9 9 294
ITEM
NO. SERVICE
18 Power Steering System Inspection - Check the
power steering gear box, pump and hose connections
for leaks
or damage. Check the fluid level on the
dipstick.
See “Power Steering Fluid” in the Index.
Check the drive belt for cracks, fraying and wear.
Check belt tension. There should be
0.24”-0.35”
(6-9 mm) deflection when you press your thumb
midway between the pulleys. Adjust or replace belt
as needed.
ProCarManuals.com

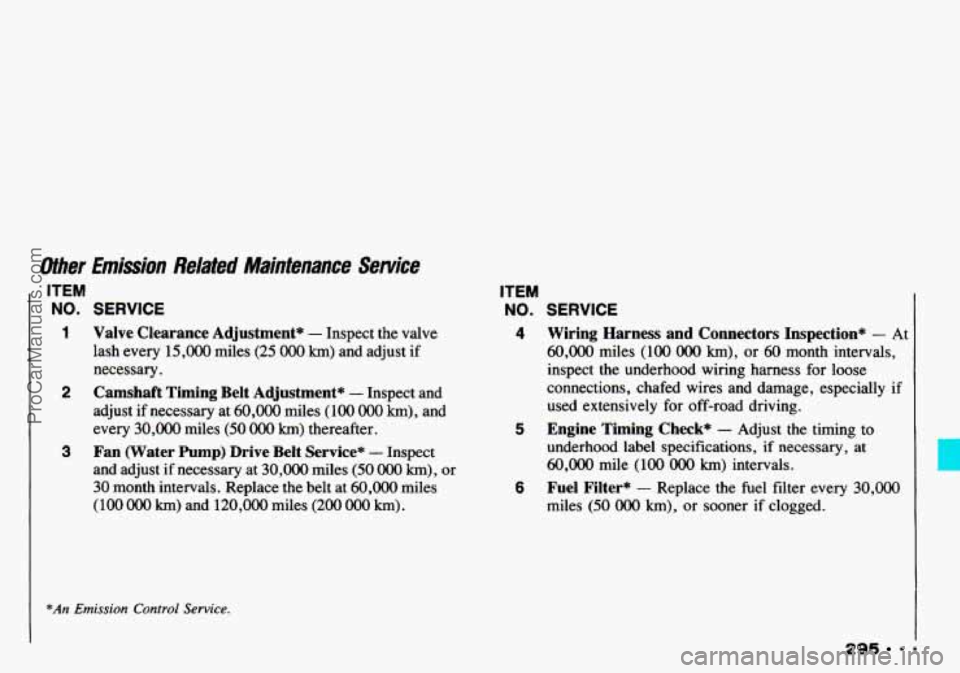

Other Emission Related Mainfenance Setvice
ITEM
NO. SERVICE
1 Valve Clearance Adjustment* - Inspect the valve
lash every
15,000 miles (25 000 km) and adjust if
necessary.
2 Camshaft Timing Belt Adjustment* - Inspect and
adjust if necessary at
60,000 miles (100 OOO km), and
every 30,000 miles (50 OOO km) thereafter.
3 Fan (Water Pump) Drive Belt Service* - Inspect
and adjust if necessary at
30,000 miles (50 000 km), or
30 month intervals. Replace the belt at 60,000 miles
(100
OOO km) and 120,000 miles (200 OOO km).
*An Emission Control Service.
ITEM
NO. SERVICE
4 Wiring Harness and Connectors Inspection* - At
60,000 miles (100 OOO km), or 60 month intervals,
inspect
the underhood wiring harness for loose
connections, chafed wires and damage, especially if
used extensively for off-road driving.
underhood label specifications,
if necessary, at
60,000 mile (100 000 km) intervals.
6 Fuel Filter* - Replace the fuel filter every 30,000
miles (50 OOO km), or sooner if clogged.
5 Engine Timing Check* - Adjust the timing to
295 9
ProCarManuals.com

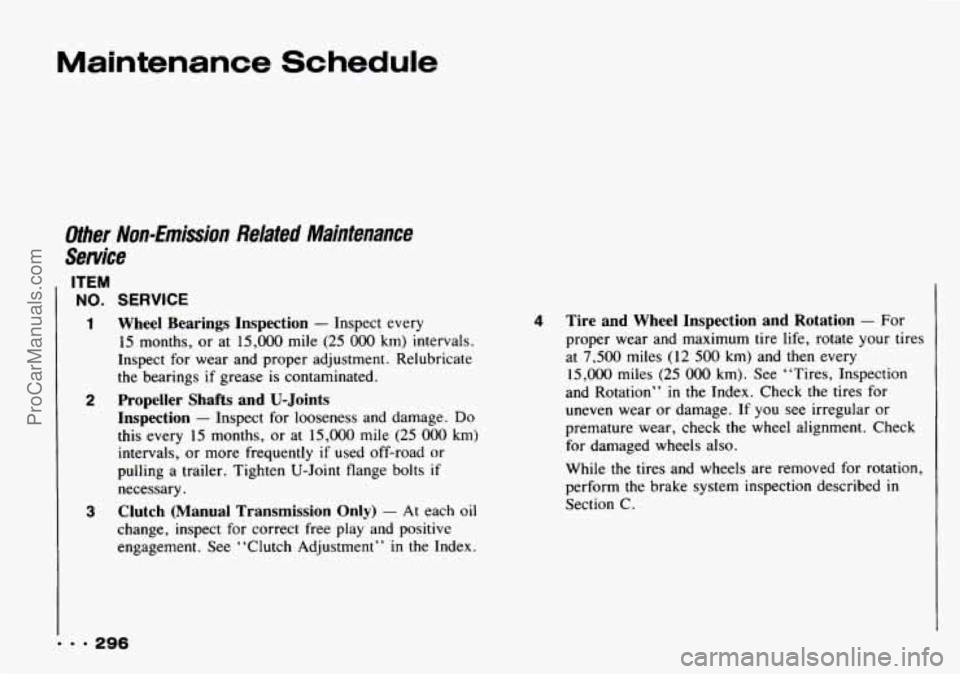

NO.
1
2
3
SERVICE
Wheel Bearings Inspection - Inspect every
15 months, or at 15,000 mile (25 OOO km) intervals.
Inspect for wear and proper adjustment. Relubricate
the bearings
if grease is contaminated.
Propeller Shafts and U-Joints
Inspection
- Inspect for looseness and damage. Do
this every 15 months, or at 15,000 mile (25 000 km)
intervals, or more frequently if used off-road or
pulling a trailer. Tighten U-Joint flange bolts if
necessary.
Clutch (Manual Transmission Only) - At each oil
change, inspect for correct free play and positive
engagement. See “Clutch Adjustment’’
in the Index.
Maintenance Schedule
Uther Nun-Emissun Related Maintenance
Service
ITEM
4 Tire and Wheel Inspection and Rotation - For
proper wear and maximum tire life, rotate your tires
at
7,500 miles (12 500 km) and then every
15 ,OOO miles (25 OOO km). See “Tires, Inspection
and Rotation”
in the Index. Check the tires for
uneven wear or damage. If you see irregular or
premature wear, check the wheel alignment. Check
for damaged wheels also.
While the tires and wheels are removed for rotation,
perform
the brake system inspection described in
Section C.
ProCarManuals.com

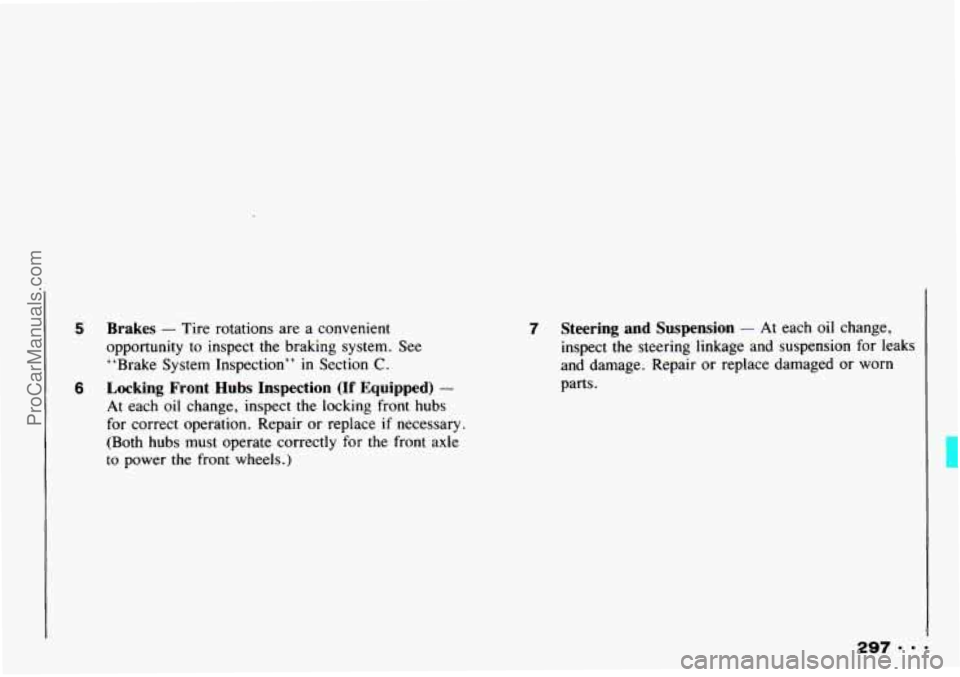

5
6
Brakes - Tire rotations are a convenient
opportunity
to inspect the braking system. See
“Brake System Inspection”
in Section C.
Locking Front Hubs Inspection (If Equipped) -
At each oil change, inspect the locking front hubs
for correct operation. Repair or replace
if necessary.
(Both hubs must operate correctly for the front axle
to power
the front wheels.)
7 Steering and Suspension - At each oil change,
inspect the steering linkage and suspension for leaks
and damage. Repair or replace damaged or worn
parts.
ProCarManuals.com

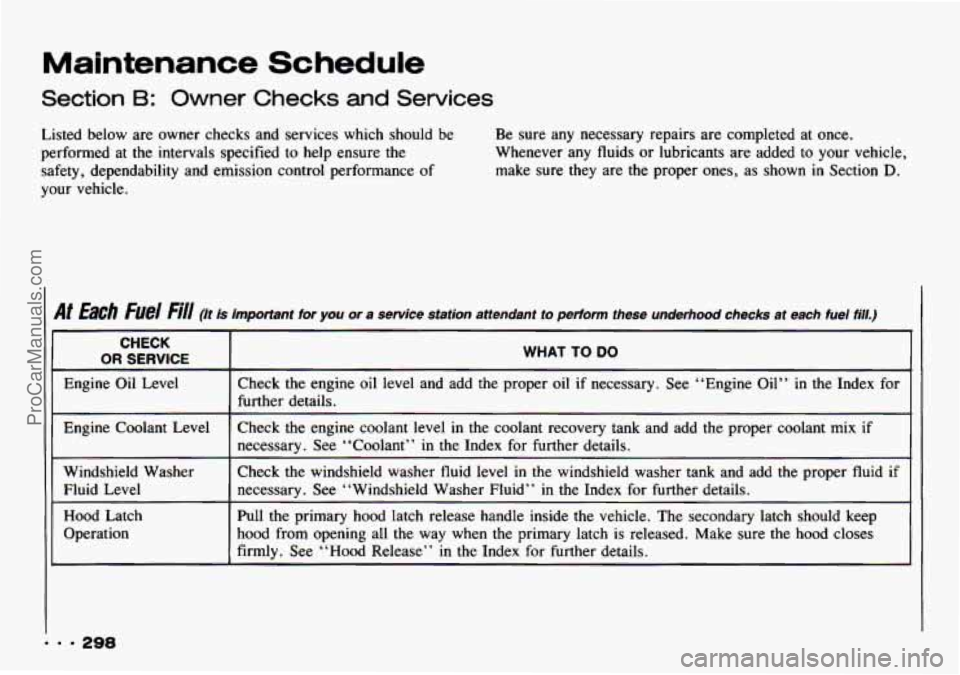

Maintenance Schedule
Section B: Owner Checks and Services
Listed below are owner checks and services which should be
performed at the intervals specified to help ensure the
safety, dependability and emission control performance of
your vehicle. Be
sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your vehicle,
make sure they are the proper ones, as shown
in Section D.
Af Each Fuel fj// (It is important for you or a service station attendant to perform these underhood checks at \
each fuel fill.)
1
CHECK
1 OR SERVICE I WHAT TO DO
I Engine Oil Level Check the engine oil level and add the proper oil if necessary. See “Engine Oil” in the Index for
further details.
I
I Engine Coolant Level Check the engine coolant level in the coolant recovery tank and add the proper coolant mix if
1 necessary. See “Coolant” in the Index for further details.
Windshield Washer
Fluid Level
Hood Latch
Operation Check
the windshield washer fluid level in the windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index for further details.
Pull the primary hood latch release handle inside the vehicle. The secondary latch should keep
hood from opening all the way when the primary latch is released. Make sure the hood closes
firmly. See
“Hood Release” in the Index for further details.
... 298
