CHEVROLET TRACKER 1996 Service Manual

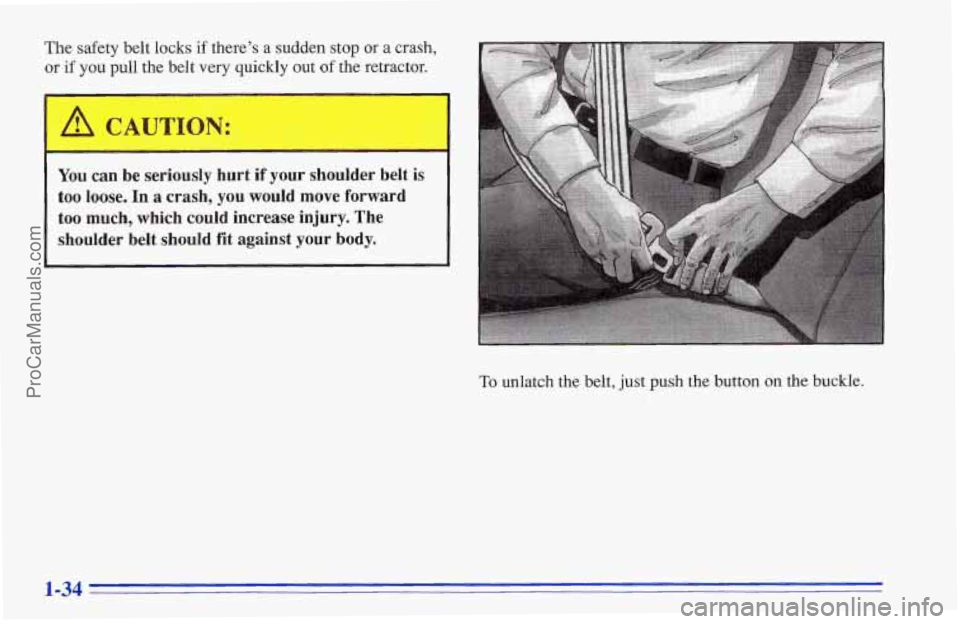

The safety belt locks if there's a sudden stop or a crash,
or if you pull the belt very quickly out of the retractor.
You can be seriously hurt if your shoulder belt
too loose. In a crash, you would move forward
too much, which could increase injury. The
shoulder belt should
fit against your body.
~
is
To unlatch the belt, just push the button on the buckle.
1-34
ProCarManuals.com

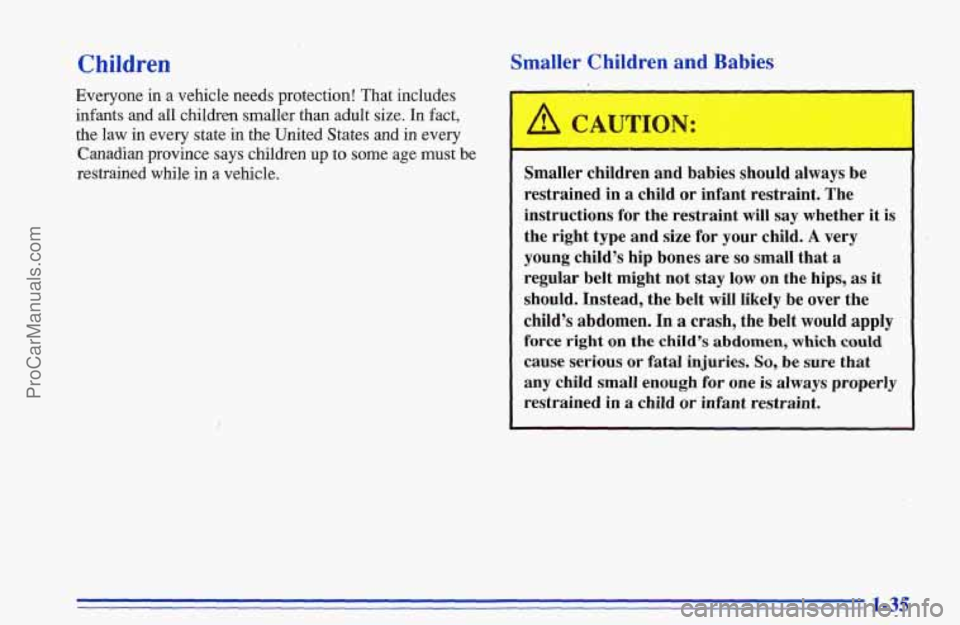

Children
Everyone in a vehicle needs protection! That includes
infants and all children smaller than adult size. In fact,
the law in every state in the
United States and in every
Canadian province says children up
to some age must be
restrained while in a vehicle.
Smaller Children and Babies
~~
Smaller children and babies should always be
restrained in
a child or infant restraint. The
instructions
for the restraint will say whether it is
the right type and size for your child.
A very
young child’s hip bones
are so small that a
regular belt might not stay low on the hips, as it
should. Instead, the belt will likely be
over the
child’s abdomen.
In a crash, the belt would apply
force right on the child’s abdomen, which could
cause serious or fatal injuries. So, be sure that
any child small enough
for one is always properly
restrained in
a child or infant restraint.
1-35
ProCarManuals.com

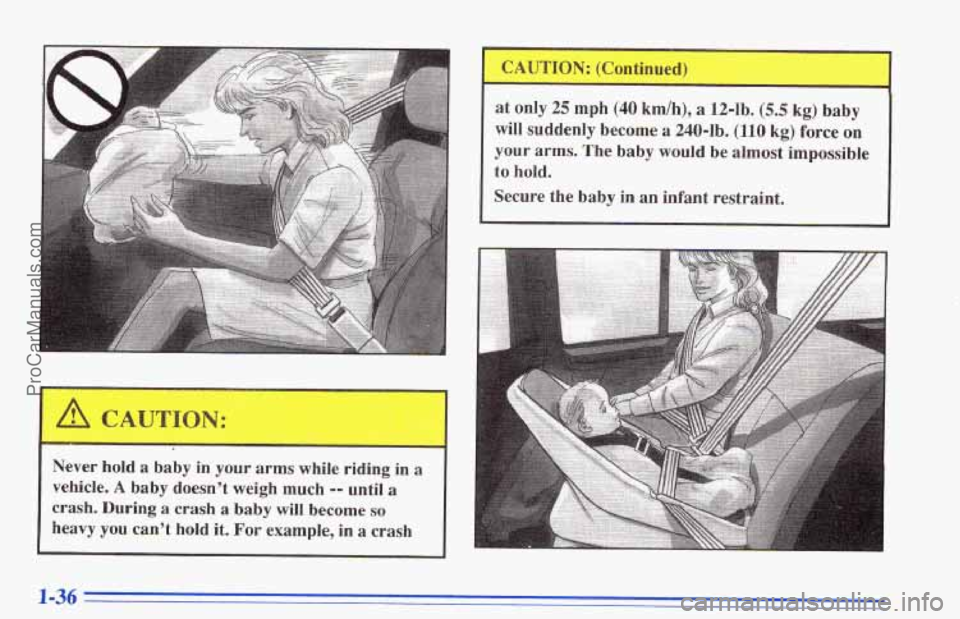

Never hold a baby in your arms while riding in a
vehicle. A baby doesn’t weigh much -- until a
crash. During a crash a baby will become so
heavy you can’t hold it. For example, in a crash
at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby
will suddenly become a 240-lb. (110 kg) force on
your arms. The baby would be almost impossible
to hold.
Secure the baby in an infant restraint.
ProCarManuals.com

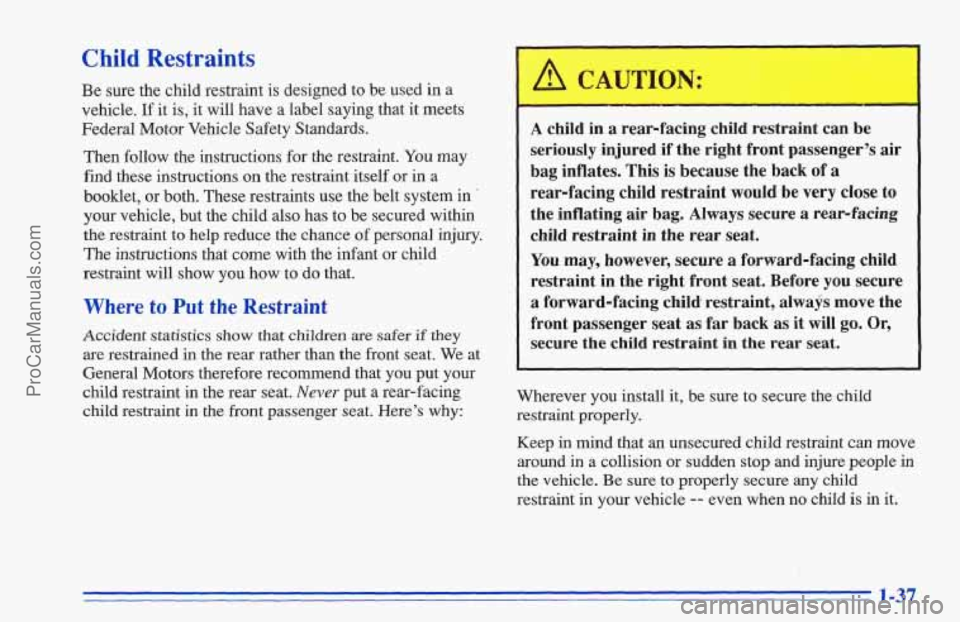

Child Restraints
Be sure the child restraint is designed to be used in a
vehicle.
If it is, it will have a label saying that it meets
Federal Motor Vehicle Safety Standards.
Then follow the instructions for the restraint.
You may
find these instructions
on the restraint itself or in a
booklet, or both. These restraints use the belt system in
your vehicle, but the child also has to be secured within
the restraint to help reduce the chance
of personal injury.
The instructions that come with the infant or child
restraint will show you
how to do that.
Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. We at
General Motors therefore recommend that you put your
child restraint in the rear seat.
Never put a rear-facing
child restraint in
the front passenger seat. Here’s why:
U
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates. This is because the back of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint in the rear seat.
You may, however, secure a forward-facing child
restraint in the right front seat. Before you secure
a forward-facing child restraint, always move the
front passenger seat as
far back as it will go. Or,
secure the child restraint in
the rear seat.
Wherever you install it, be sure to secure the child
restraint properly.
Keep in mind that
an unsecured child restraint can move
around in a collision or sudden stop and injure people
in
the vehicle. Be sure to properly secure any child
restraint in your vehicle
-- even when no child is in it.
1-37
ProCarManuals.com

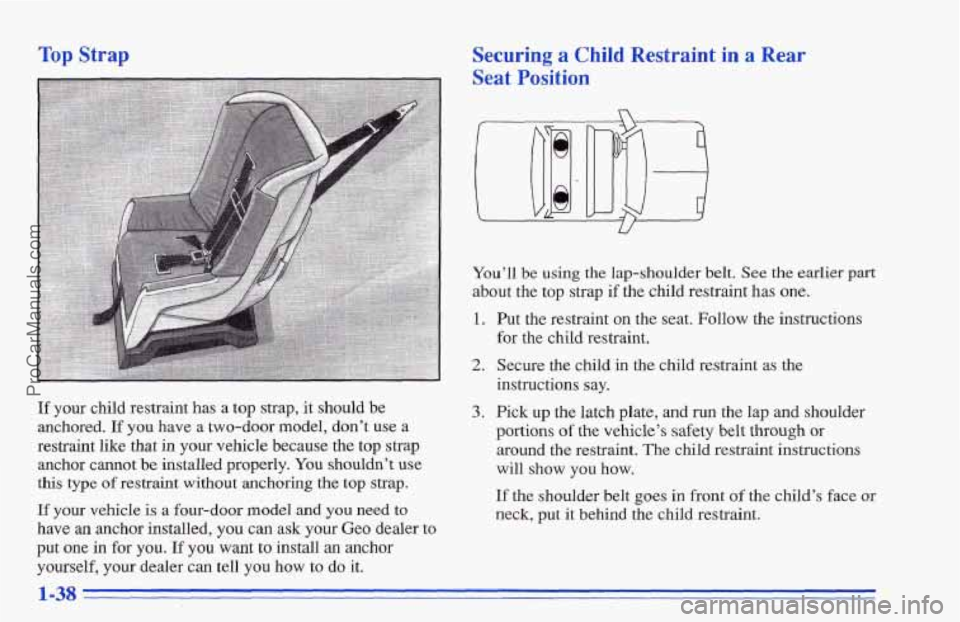

Top Strap Securing a Child Restraint in a Rear
Seat Position
If your child restraint has a top strap, it should be
anchored.
If you have a two-door model, don’t use a
restraint like
that in your vehicle because the top strap
anchor cannot be installed properly.
You shouldn’t use
this type of restraint without anchoring the top strap.
If your vehicle is a four-door model and you need to
have
an anchor installed, you can ask your Geo dealer to
put one
in for you. If you want to install an anchor
yourself,
your dealer can tell you how to do it. You’ll
be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has
one.
1. Put the restraint on the seat. Follow the instructions
for the child restraint.
2. Secure the child in the child restraint as the
instructions say.
3. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around
the restraint. The child restraint instructions
will show
you how.
If the shoulder belt goes in front of the child’s face or
neck, put it behind the child restraint.
1-38
ProCarManuals.com

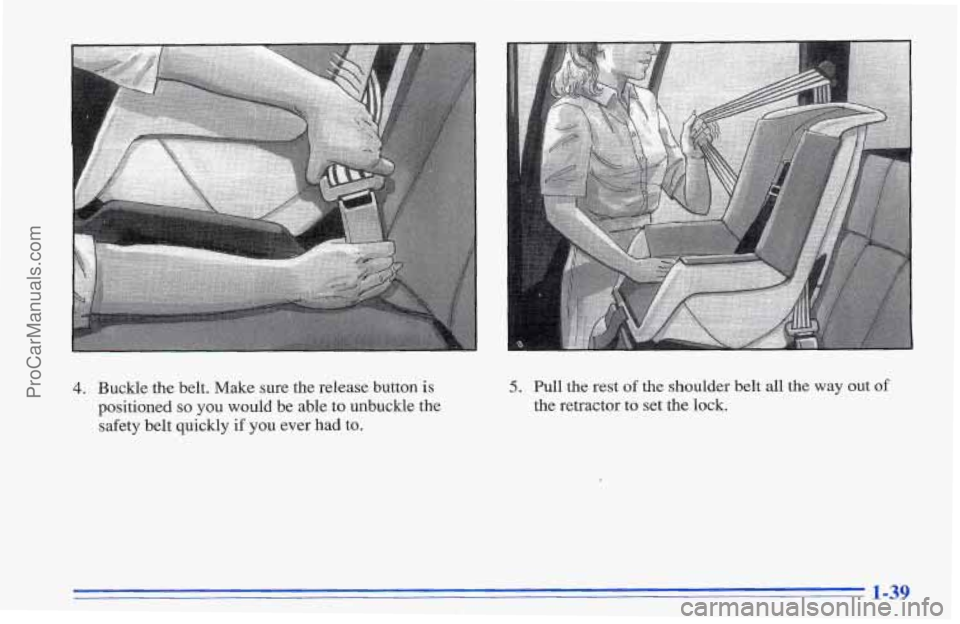

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
ProCarManuals.com

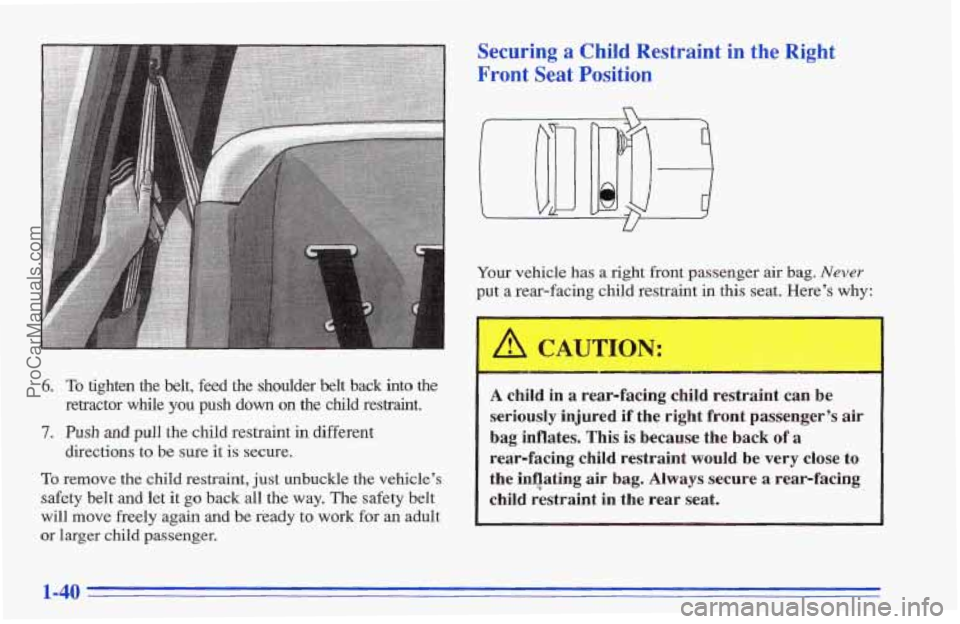

6. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint.
directions to be sure it is secure.
7. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety belt
will move freely again and be ready
to work for an adult
or larger child passenger.
Securing a Child Restraint in the Right
Front Seat Position
Your vehicle has a right front passenger air bag. Never
put a rear-facing child restraint in this seat. Here’s why:
I
A CAUTION:
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates. This
is because the back of a
rear-facing child restraint would be very close to
the inQating air bag. Always secure a rear-facing
child restraint in the rear seat.
1-40
ProCarManuals.com

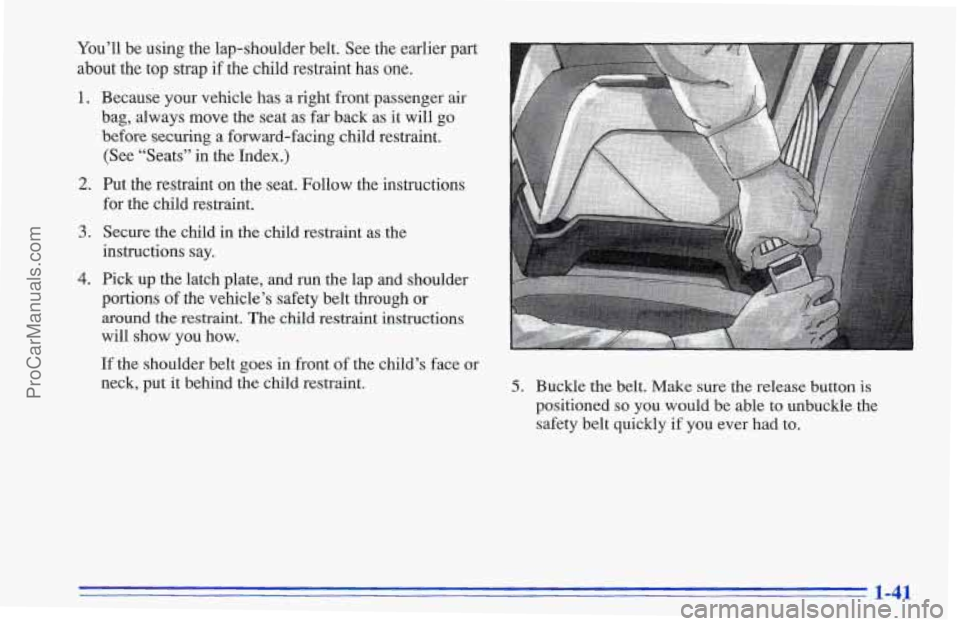

You’ll be using the lap-shoulder belt. See the earlier part
about the top strap
if the child restraint has one.
1. Because your vehicle has a right front passenger air
bag, always move the seat as far back as it will
go
before securing a forward-facing chld restraint.
(See “Seats” in the Index.)
2. Put the restraint on the seat. Follow the instructions
for the child restraint.
3. Secure the child in the child restraint as the
instructions say.
4. Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint. 5. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever
had to.
1-41
ProCarManuals.com

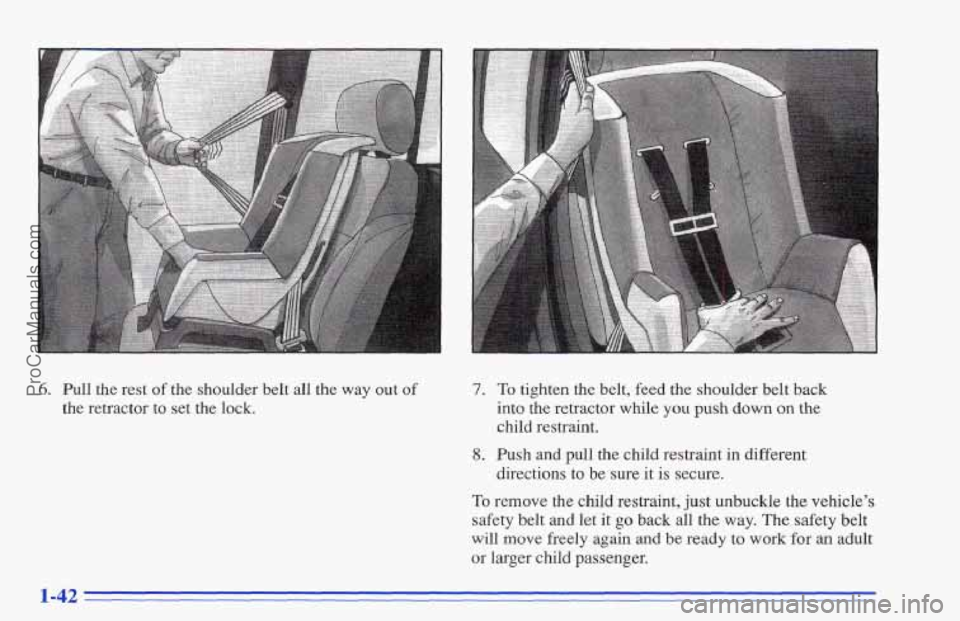

6. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
7. To tighten the belt, feed the shoulder belt back
into the retractor while you push down on the
child restraint,
8. Push and pull the child restraint in different
directions
to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
ProCarManuals.com

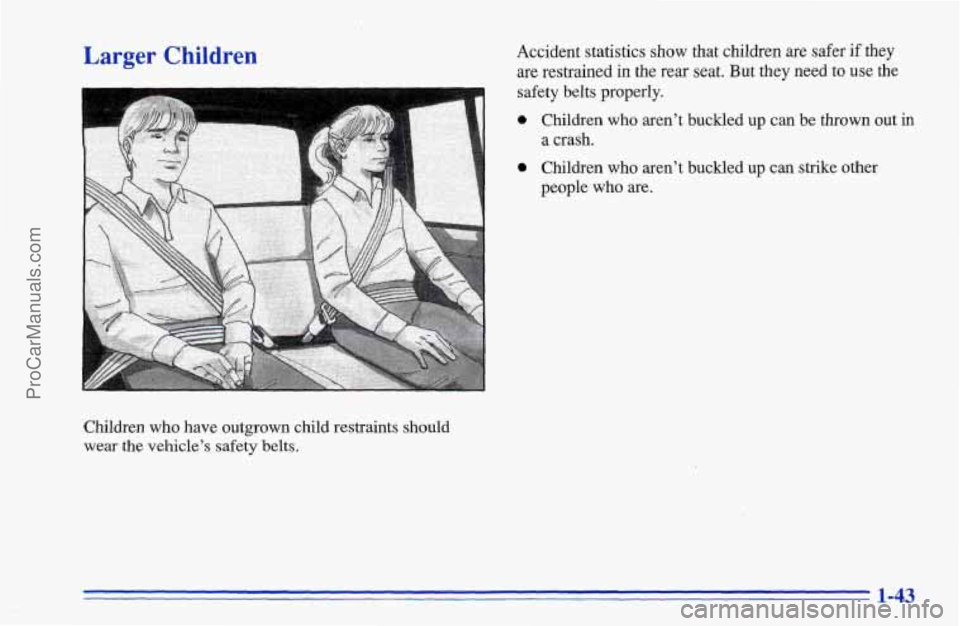

Larger Children
Children who have outgrown child restraints should
wear the vehicle’s safety belts. Accident statistics
show that children are safer
if they
are restrained in the rear seat.
But they need to use the
safety belts properly.
0 Children who aren’t buckled up can be thrown out in
a crash.
0 Children who aren’t buckled up can strike other
people who are.
1-43
