CHEVROLET TRACKER 1996 Manual PDF

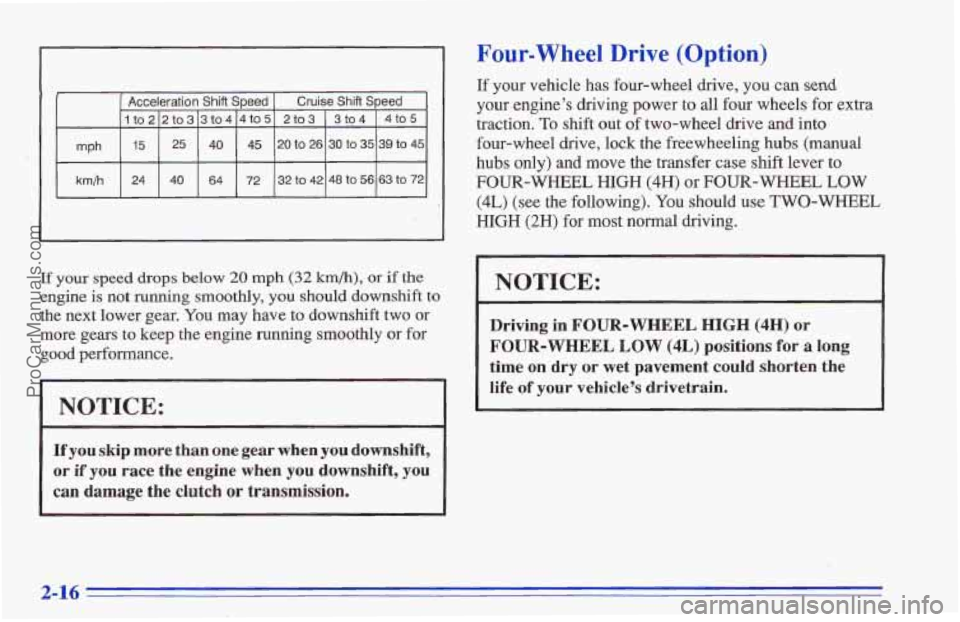

I Acceleration Shift Speed I Cruise Shift Speed I
It02 2to3 3to4 4to5 2to3 3to4 4to5
mph 15 25 40 45 20tO 26 30 to 35 39to 45
I km/h I 24 I 40 I 64 1 72 132 to 42148 to 56163 to 721
If your speed drops below 20 mph (32 km/h), or if the
engine is not running smoothly, you should downshift to
the next lower gear. You may have to downshift two or
more gears to keep the engine running smoothly
or for
good performance.
NOTICE:
If you skip more than one gear when you downshift,
or if you race the engine when you downshift, you
can damage the clutch or transmission.
Four-wheel Drive (Option)
If your vehicle has four-wheel drive, you can send
your engine’s driving power to all four wheels for extra
traction.
To shift out of two-wheel drive and into
four-wheel drive, lock the freewheeling hubs (manual
hubs only) and move the transfer case shift lever
to
FOUR-WHEEL HIGH (4H) or FOUR-WHEEL LOW
(4L) (see the following). You should use TWO-WHEEL
HIGH (2H) for most normal driving.
NOTICE:
Driving in FOUR-WHEEL HIGH (4H) or
FOUR-WHEEL LOW (4L) positions for a long
time
on dry or wet pavement could shorten the
life
of your vehicle’s drivetrain.
2-16
ProCarManuals.com

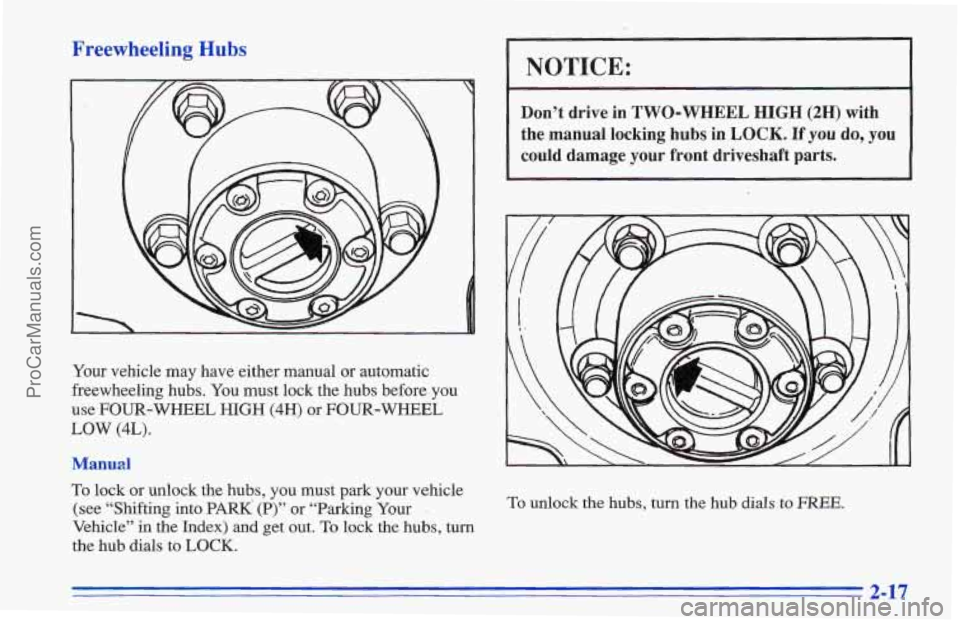

Freewheeling Hubs
Your vehicle may have either manual or automatic
freewheeling hubs. You must lock the hubs before you
use
FOUR-WHEEL HIGH (4H) or FOUR-WHEEL
LOW (4L).
Manu21
To lock or unlock the hubs, you must park your vehicle
(see “Shifting into
PARK‘ (P>” or “Parking Your I
Vehicle” in the Index) and get out. To lock the hubs, turn
the hub dials to
LOCK.
NOTICE:
Don’t drive in TWO-WHEEL HIGH (2H) with
the manual locking hubs in
LOCK. If you do, you
could damage your front driveshaft parts.
To unlock the hubs, turn the hub dials to FREE.
2-17
ProCarManuals.com

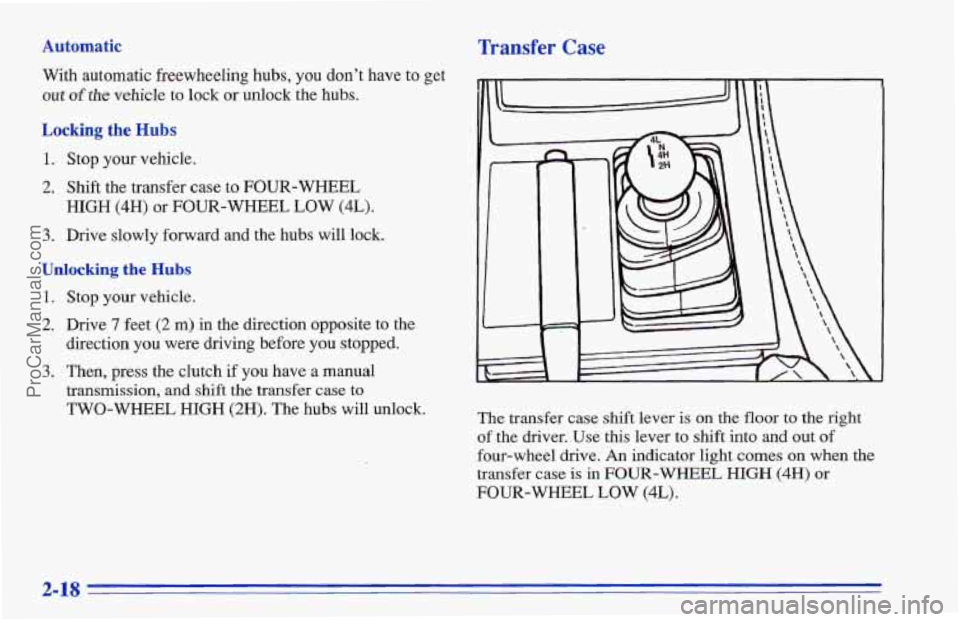

Automatic Transfer Case
With automatic freewheeling hubs, you don’t have to get
out &the vehicle to lock or unlock the hubs.
Locking the Hubs
1. Stop your vehicle.
2. Shift the transfer case to FOUR-WHEEL
HIGH (4H) or FOUR-WHEEL LOW (4L).
3, Drive slowly forward and the hubs will lock.
Unlocking the Hubs
1. Stop your vehicle.
2. Drive 7 feet (2 m) in the direction opposite to the
direction
you were driving before you stopped.
3. Then, press the clutch if you have a manual
transmission, and shift the transfer case to
TWO-WHEEL HIGH (2H). The hubs will unlock. The transfer case shift lever is on the floor to the right
of the driver. Use this lever to shift into and out of
four-wheel drive.
An indicator light comes on when the
transfer
case is in FOUR-WHEEL HIGH (4H) or
FOUR-WHEEL LOW (4L).
2-18
ProCarManuals.com

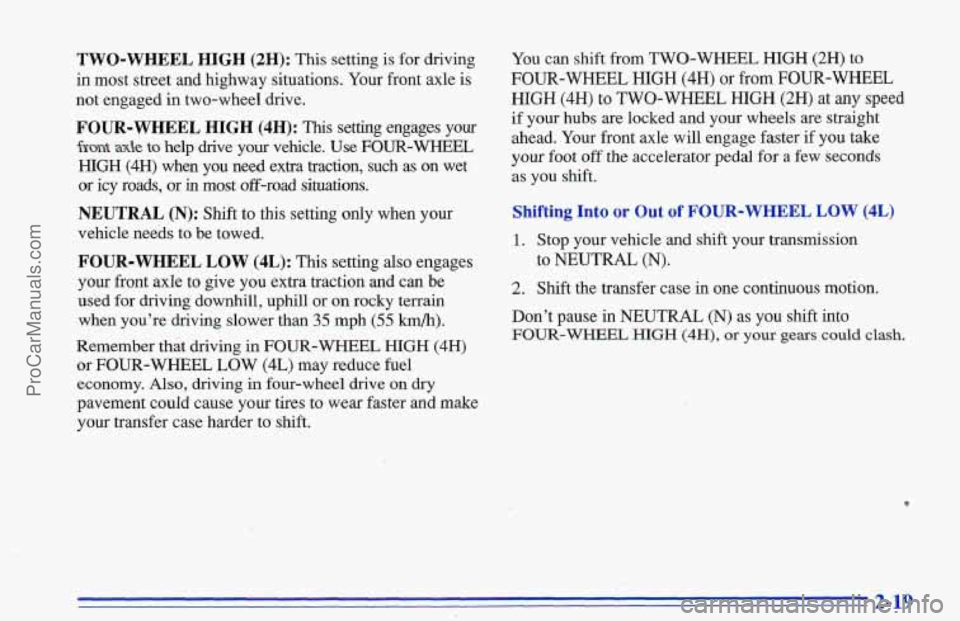

TWO-WHEEL HIGH (2H): This setting is for driving
in most street and highway situations. Your front axle is
not engaged
in two-wheel drive.
FOUR-WHEEL HIGH (4H): This setting engages your
front axle to help drive your vehicle. Use FOUR-WHEEL
HIGH (4H) when you need extra traction, such as on wet
or icy roads, or in most off-road situations.
NEUTRAL (N): Shft to this setting only when your
vehicle needs to be towed.
FOUR-WHEEL LOW (4L): This setting also engages
your front axle to give you extra traction and can be
used for driving downhill, uphill or
on rocky terrain
when you’re driving slower than
35 mph (55 km/h).
Remember that driving in FOUR-WHEEL HIGH (4H)
or FOUR-WHEEL LOW (4L) may reduce fuel
economy. Also, driving
in four-wheel drive on dry
pavement could cause your tires to wear faster and make
your transfer case harder to shift. You
can shift from TWO-WHEEL
HIGH (2H) to
FOUR-WHEEL
HIGH (4H) or from FOUR-WHEEL
HIGH (4H) to TWO-WHEEL HIGH (2H) at any speed
if your hubs are locked and your wheels are straight
ahead. Your front axle will engage fas,ter if you take
your foot
off the accelerator pedal for a few seconds
as you shift.
Shifting Into or Out of FOUR-WHEEL LOW (4L)
1. Stop your vehicle and shift your transmission
2. Shift the transfer case in one continuous motion.
to NEUTRAL (N).
Don’t pause in NEUTRAL
(N) as you shift into
FOUR-WHEEL HIGH (4H), or your gears could clash.
2-19 ProCarManuals.com

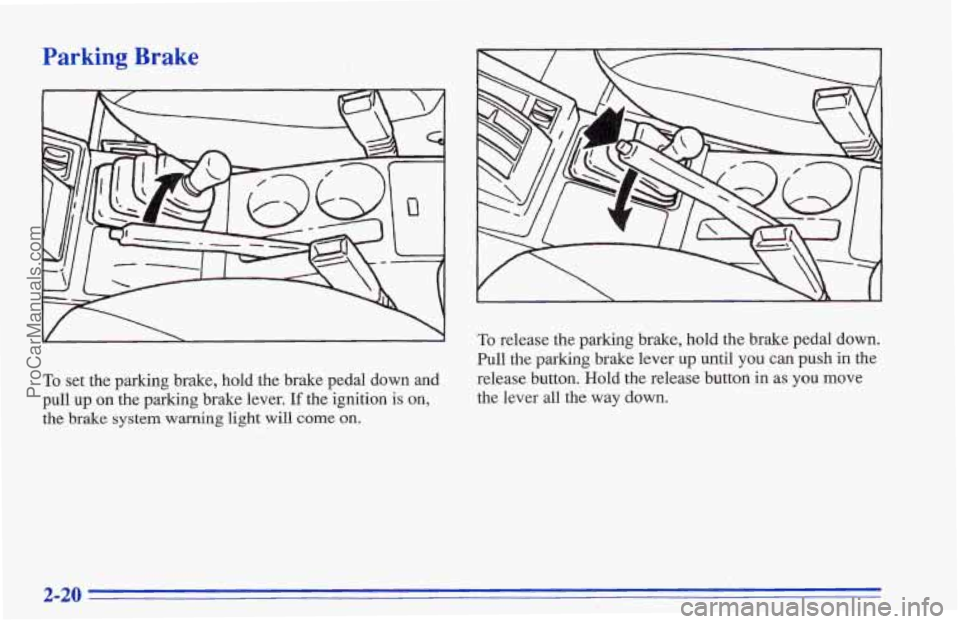

Parking Brake
To set the parking brake, hold the brake pedal down and
pull up
on the parking brake lever. If the ignition is on,
the brake system warning light will come on.
To release the parking brake, hold the brake pedal down.
Pull the parking brake lever up until
you can push in the
release button. Hold the release button in as you move
the lever all the way down.
2-20
ProCarManuals.com

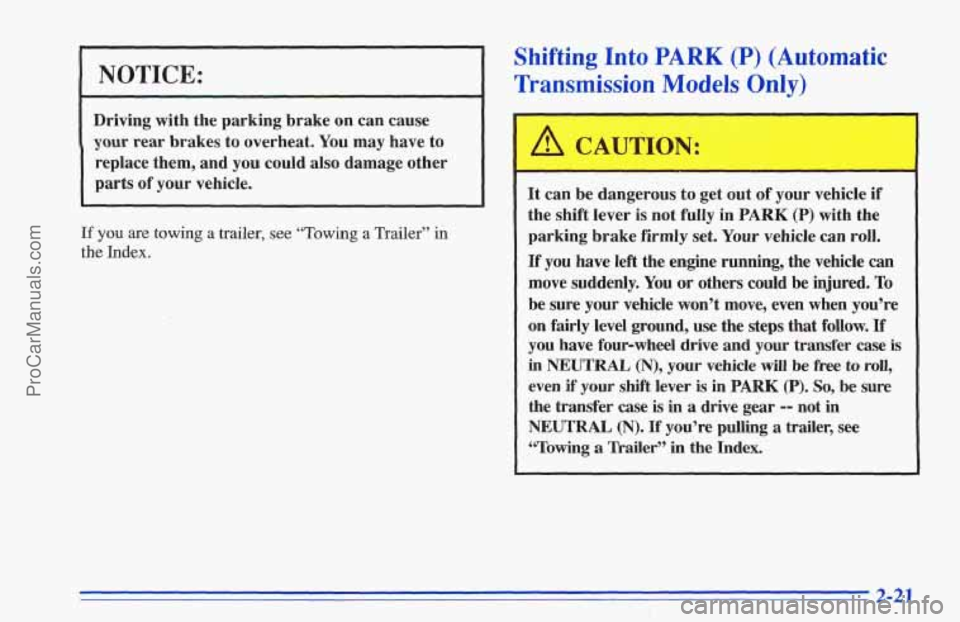

I NOTICE:
Driving with the parking brake on can cause
your rear brakes to overheat. You may have to
replace them, and
you could also damage other
parts of your vehicle.
If you are towing a trailer, see “Towing a Trailer” in
the Index.
Shifting Into PARK (P) (Automatic
Transmission Models Only)
A CAUTION:
- -
It can be dangerous to get out of your vehicle if
the shift lever is not
fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
If you have left the engine running, the vehicle can
move suddenly.
You or others could be injured. To
be sure your vehicle won’t move, even when you’re
on fairly level ground, use the steps that follow. If
you have four-wheel drive and your transfer case is
in NEUTRAL (N), your vehicle will be free to roll,
even if your shift lever is in PARK (P). So, be sure
the transfer case is in
a drive gear -- not in
NEUTRAL (N). If you’re pulling a trailer, see
“Towing a Trailer” in the Index.
- 2-21
t ProCarManuals.com

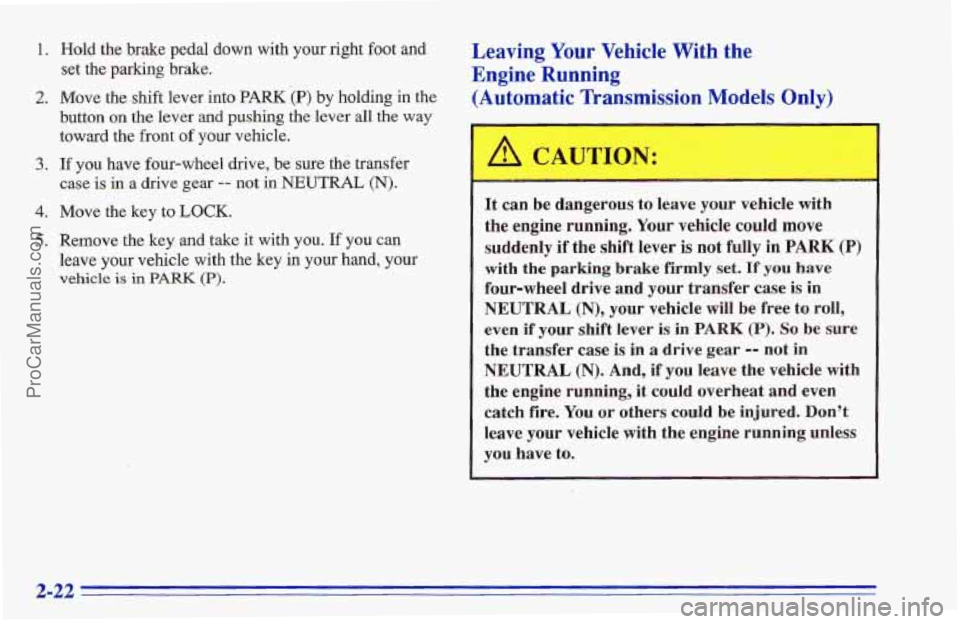

1. Hold the brake pedal down with your right foot and
set the parking brake.
2. Move the shift lever into PARK (P) by holding in the
button on
the lever and pushing the lever all the way
toward the front of your vehicle.
3. If you have four-wheel drive, be sure the transfer
case is in a drive gear -- not in NEUTRAL (N).
4. Move the key to LOCK.
5. Remove the key and take it with you. If you can
leave your vehicle with the key in your hand, your
vehicle is in PARK (P).
Leaving Your Vehicle With the
Engine Running
(Automatic Transmission Models Only)
A CAUTION:
It can be dangerous to leave your vehicle with
the engine running. Your vehicle
could move
suddenly if the shift lever is not fully in PARK (P)
with the parking brake firmly set. If you have
four-wheel drive
and your transfer case is in
NEUTRAL (N), your vehicle will be free to roll,
even
if your shift lever is in PARK (P). So be sure
the transfer
case is in a drive gear -- not in
NEUTRAL (N). And, if you leave the vehicle with
the engine running, it
could overheat and even
catch
fire. You or others could be injured. Don’t
leave your vehicle with the engine running
unless
you have to.
2-22
ProCarManuals.com

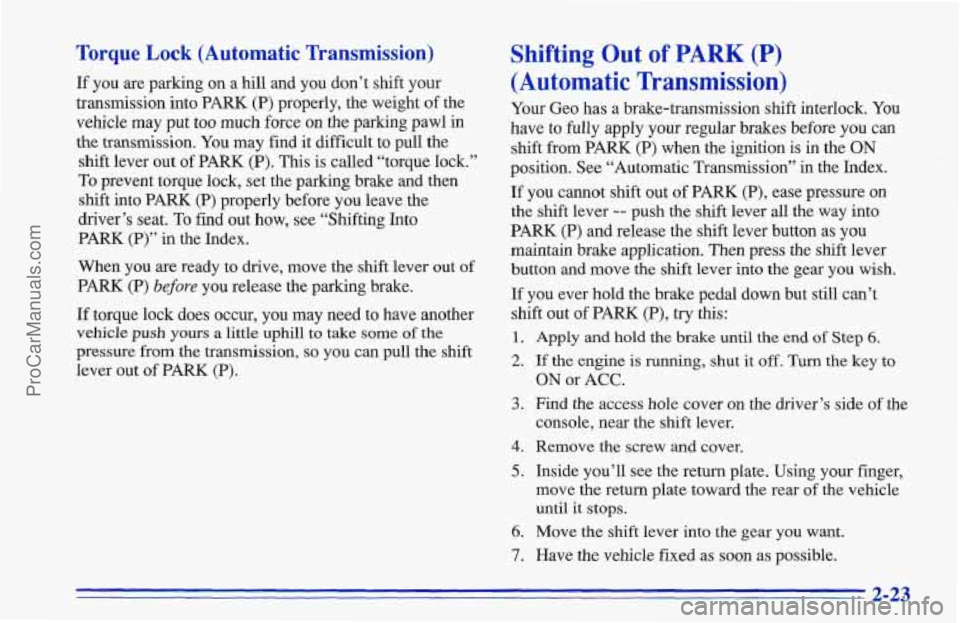

Torque Lock (Automatic Transmission)
If you are parlung on a hill and you don’t shift your
transmission into PARK
(P) properly, the weight of the
vehicle may put too much force on the parking pawl in
the transmission. You may find it difficult to pull the
shift lever out of PARK
(P). This is called “torque lock.”
To prevent torque lock, set the parking brake and then
shift into
PARK (P) properly before you leave the
driver’s seat.
To find out how, see “Shifting Into
PARK (P)” in the Index.
When you are ready to drive, move the shift lever out of
PARK (P) before you release the parking brake.
If torque lock does occur, you may need to have another
vehicle push yours a little uphill to take some of the
pressure from the transmission,
so you can pull the shift
lever out
of PARK (P).
Shifting Out of PARK (P)
(Automatic Transmission)
Your Geo has a brake-transmission shift interlock. You
have to fully apply your regular brakes before you can
shift from PARK (P) when the ignition is in the ON
position. See “Automatic Transmission’’ in the Index.
If you cannot shift out of PARK (P), ease pressure on
the shift lever
-- push the shift lever all the way into
PARK
(P) and release the shift lever button as you
maintain brake application. Then press the shift lever
button and move the shift lever into the gear you wish.
If you ever hold the brake pedal down but still can’t
shift out
of PARK (P), try this:
1. Apply and hold the brake until the end of Step 6.
2. If the engine is running, shut it off. Turn the key to
ON or ACC.
3. Find the access hole cover on the driver’s side of the
console, near the shift lever.
4. Remove the screw and cover.
5. Inside you’ll see the return plate. Using your finger,
move the return plate toward the rear of the vehicle
until
it stops.
6. Move the shift lever into the gear you want.
7. Have the vehicle fixed as soon as possible.
2-23
ProCarManuals.com

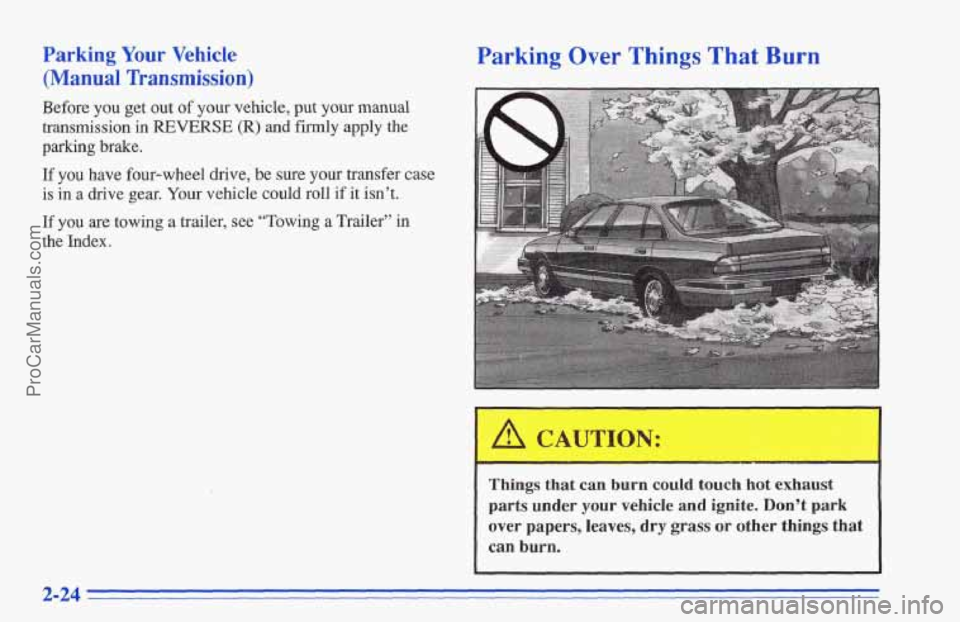

Parking Your Vehicle
(Manual Transmission)
Before you get out of your vehicle, put your manual
transmission in
REVERSE (R) and firmly apply the
parking brake.
If you have four-wheel drive, be sure your transfer case
is
in a drive gear. Your vehicle could roll if it isn’t.
If you are towing a trailer, see “Towing a Trailer” in
the
Index.
Parking Over Things That Burn
CAUTION:
I
Things that can burn could touch hot exhaust
parts under your vehicle and ignite.
Don’t park
over papers, leaves, dry grass or other things that
can burn.
2-24
ProCarManuals.com

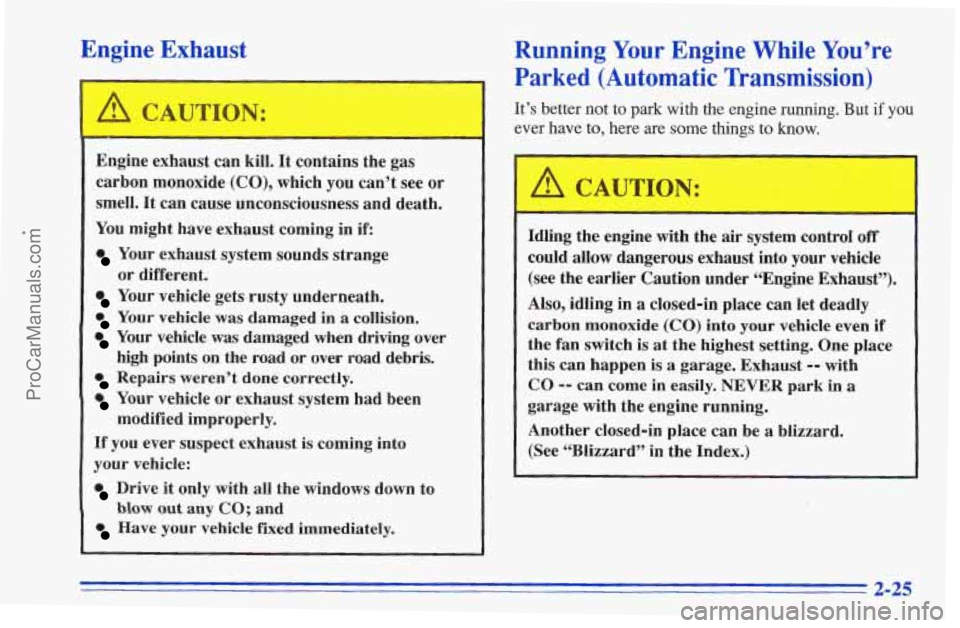

Engine Exhaust tunning Your Engine While You’re
’arked (Automatic Transmission)
Engine exhaust can kill. It contains the gas
carbon monoxide
(CO), which you can’t see or
smell.
It can cause unconsciousness and death.
You might have exhaust coming in if:
Your exhaust system sounds strange
Your vehicle gets rusty underneath.
Your vehicle was damaged in a collision.
Your vehicle was damaged when driving over
high points on the road or over road debris.
Repairs weren’t done correctly.
Your vehicle or exhaust system had been
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows down to
Have your vehicle fixed immediately.
or different.
modified improperly.
blow out any CO; and
It’s better not to park with the engine running. But if you
I ever have to, here are some things to know.
L
Idling the engine with the air system controI off
could allow dangerous exhaust into your vehicle
(see the earlier Caution under “Engine Exhaust”).
Also, idling in
a closed-in place can let deadly
carbon monoxide
(CO) into your vehicle even if
the fan switch is at the highest setting. One place
this can happen is
a garage. Exhaust -- with
CO -- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be
a blizzard.
(See “Blizzard” in the Index.)
2-25
