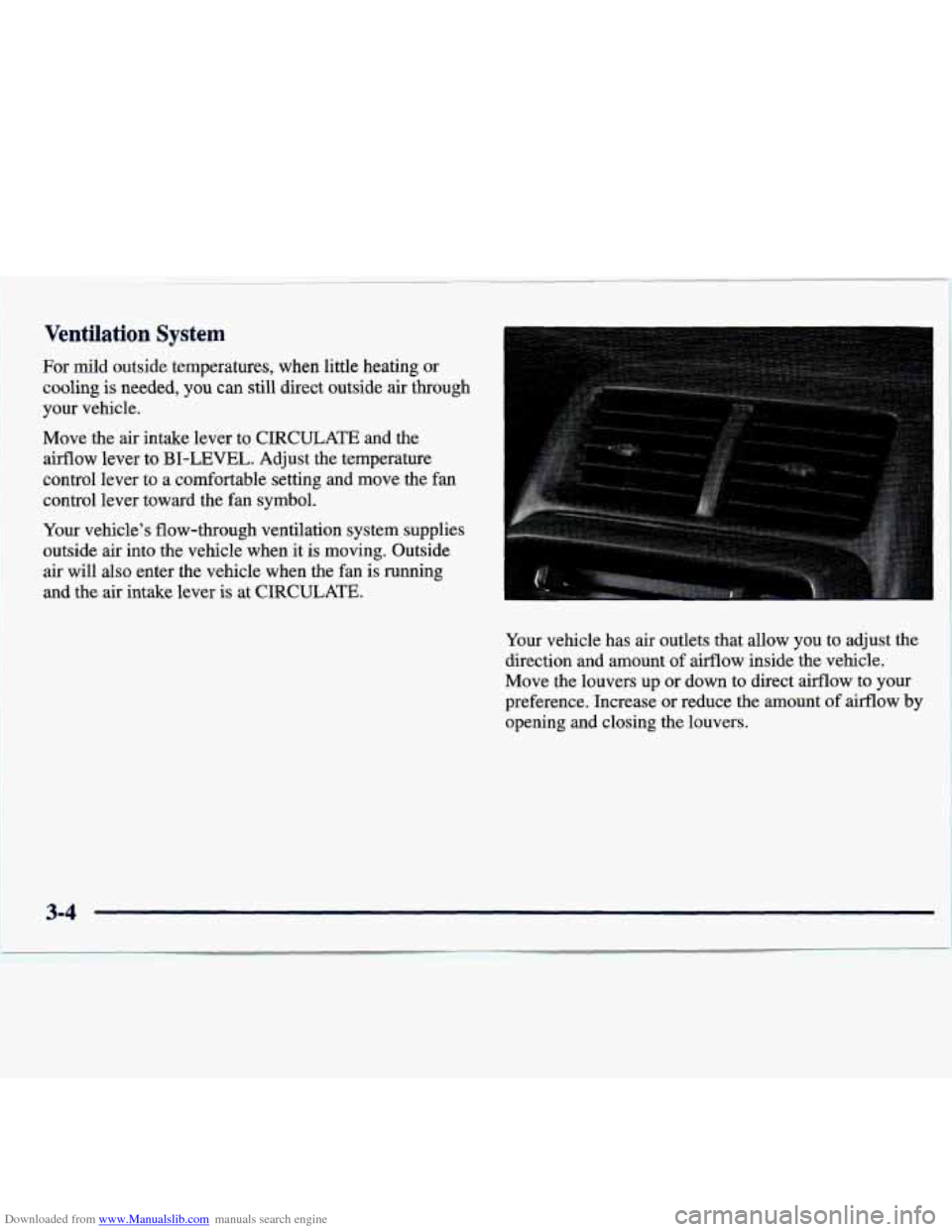

Downloaded from www.Manualslib.com manuals search engine Ventilation System
For mild outside temperatures, when little heating or
cooling
is needed, you can still direct outside air through
your vehicle.
Move the air intake lever to CIRCULATE and the aifflow lever to
BI-LEVEL. Adjust the temperature
control lever
to a comfortable setting and move the fan
control lever toward the fan symbol.
Your vehicle’s flow-through ventilation system supplies outside air into the vehicle when it is moving. Outside
air will also enter the vehicle when the fan is running
and the air intake lever is at
CIRCULATE.
Your vehicle has air outlets that allow you to adjust the
direction and mount of airflow inside the vehicle.
Move the louvers up or down to direct airflow to your preference. Increase
or reduce the amount of airflow by
opening and closing the louvers.

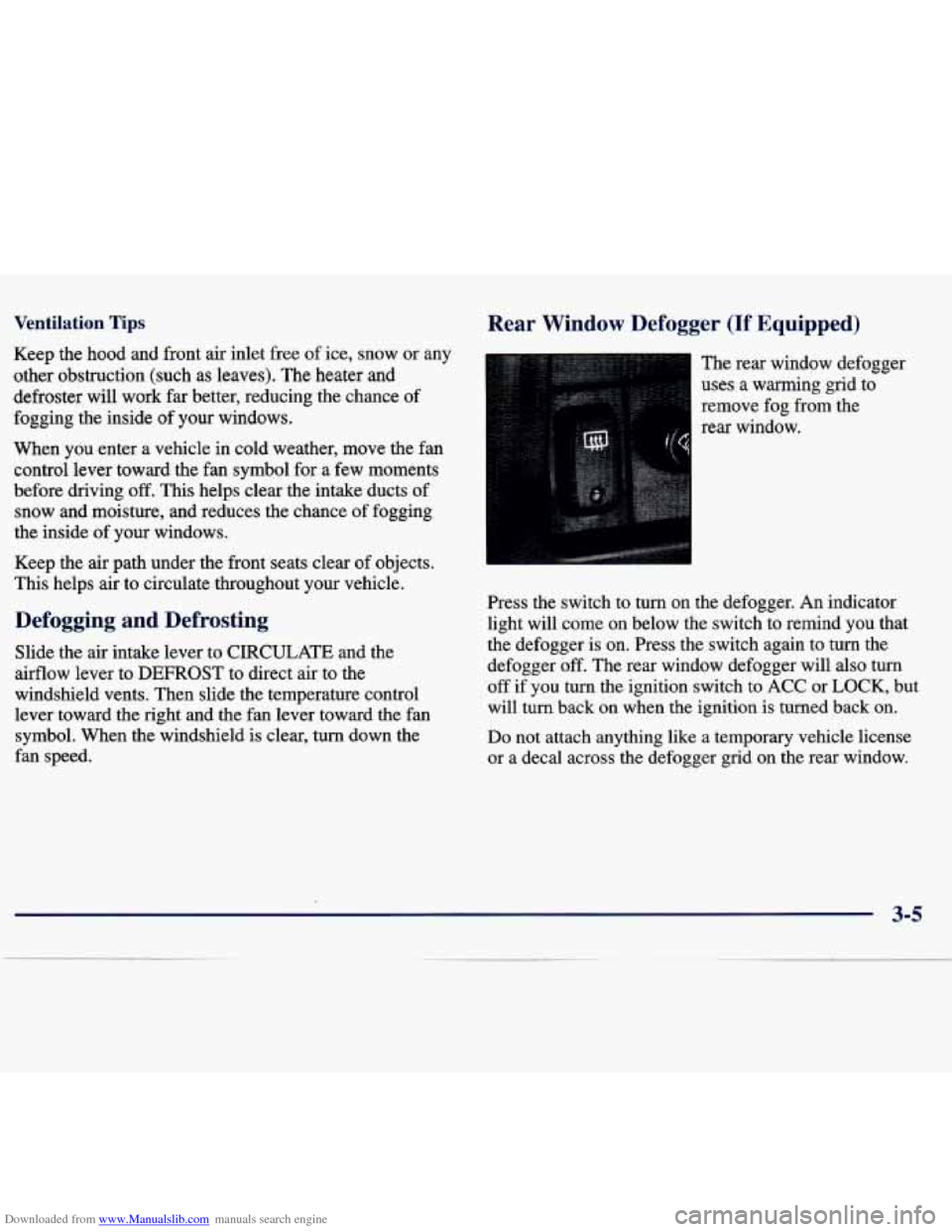

Downloaded from www.Manualslib.com manuals search engine Ventilation Tips Rear Window Defogger (If Equipped)
Keep the hood and front air inlet free of ice, snow or any
other obstruction (such
as leaves). The heater and
defroster will work far better, reducing the chance of
fogging the inside
of your windows.
When
you enter a vehicle in cold weather, move the fan
control lever toward the fan symbol for a few moments
before driving
off. This helps clear the intake ducts of
snow and moisture, and reduces the chance
of fogging
the inside
of your windows. The
rear window defogger
uses
a warming grid to
remove fog from the
rear window.
Keep the air path under the front seats clear of objects.
This helps air to circulate throughout your vehicle.
Defogging and Defrosting
Slide the air intake lever to CIRCULATE and the
airflow lever to DEFROST to direct air to the
windshield vents. Then slide the temperature control
lever toward
the right and the fan lever toward the fan
symbol. When the windshield is clear, turn down the
fan speed. Press the switch to turn on the defogger. An indicator
light will come on below the switch to remind you that
the defogger is on. Press the switch again to turn the
defogger
off. The rear window defogger will also turn
off if you turn the ignition switch to ACC or LOCK, but
will turn back on when the ignition is turned back on.
Do not attach anything like a temporary vehicle license
or a decal across the defogger grid on the rear window.
3-5

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Don't use a razor blade or something else sharp on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered
by your warranty.
Audio Systems
Your Delco Electronics audio system has been designed
to operate easily and give years
of listening pleasure.
You will get the most enjoyment out
of it if you acquaint
yourself with it first. Find out what your Delco
Electronics system can do and how to operate all its
controls, to be sure you're getting the most out of the
advanced engineering that went into it.
Setting the Clock
Press and hold RECALL (TIME SET) to set the correct
hour. At the same time, press and hold the TUNE left arrow
(H) until the correct hour appears.
Press and hold
RECALL (TIME SET) to set the correct
minute. At the same time, press and hold the TUNE
right arrow
(M) until the correct minute appears.
AM-FM Stereo (If Equipped)
Playing the Radio
PWR-VOLUME:
This knob turns the system on and
off and controls the volume. To increase volume and
turn the radio on, turn the knob to the right. Turn it to
the left to decrease volume and
turn off the system.
RECALL: Display the time with the ignition off by
pressing this button. When the radio
is playing, press
this button to recall the station frequency.
3-6

Downloaded from www.Manualslib.com manuals search engine Finding a Station Setting the
Tone
AM.FM:
Press this button to switch between AM and
FM. The display shows your selection.
TUNE: Press the right or left arrows to go to a higher or
lower station. Press and hold to continue tuning and
release when you find your station. The display will
show the frequency of each station tuned.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your previously played stations. You can
set
up to 12 stations (six AM and six FM). Just:
1. Turn the radio on.
2. Press
AM.FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbuttons for at least
two seconds. The sound will mute and then return
when the station
is stored. Whenever you press that
numbered button, the station you set will return.
5. Repeat the steps for each pushbutton.
BASS: Press this knob lightly so it extends. Turn the
knob to the right to increase bass and to the left to
decrease bass.
TREB: Press this knob lightly so it extends. Turn the
knob to the right to increase treble and to the left to
decrease treble.
If a station is weak or noisy, you may
want to decrease the treble.
hsh these knobs back into their stored positions when
you’re not using them.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Then pull the
knob
all the way out. Turn the knob to the right for the
right speakers and to the left for the left speakers. The
middle position balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn the knob to the right to
adjust the sound to the rear speakers and to the left
for
the fi-ont speakers. The middle position balances the
sound between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
3-7

Downloaded from www.Manualslib.com manuals search engine AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control (If Equipped)
Playing the Radio
PWR-VOLUME:
This knob turns the system on and
off and controls the volume. To increase volume and
turn the radio on, turn the
knob to the right. Turn it to
the left to decrease volume and turn
off the system.
RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button to recall the station frequency.
Finding a Station
AM-FM: Press this button to switch between AM, FM1
and
FM2. The display shows your selection.
TUNE: Press the right or left arrows to go to a higher or
lower station. Press and hold to continue tuning and
release when you find your station. The display will
show the frequency of each station tuned.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there.
PUSHBUTTONS: The six numbered pushbuttons
let you return to your previously played stations. You
can
set up to 18 stations (six AM, six FM1 and six
FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbu ittons
for a .t least
two seconds. The sound will mute and then return
when the station is stored. Whenever you press that
numbered button, the station you set will return.
5. Repeat the steps for each pushbutton.
3-8

Downloaded from www.Manualslib.com manuals search engine Setting the Tone
BASS:
Press this knob lightly so it extends. Turn me
knob to the right to increase bass and to the left to
decrease bass.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Then pull the
knob
all the way out. Turn the knob to the right for the
right speakers and
to the left for the left speakers. The
middle position balances
the sound between the speakers.
FADE: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn the knob to the right to
adjust the sound to the rear speakers and to the left for
the front speakers. The middle position balances the
sound between the speakers.
Push these knobs back into their stored positions when
you’re not using them.
TREB: Press this knob lightly so it extends. Turn the
knob to the right to increase treble and to the left to
decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Push these knobs back into their stored positions when you’re not using them.
TONE: Press this button to choose preset bass and
treble equalization settings designed for ROCK,
NEWS,
POP, JAZZ and CLASSIC. ROCK will appear when
you first press TONE. Each time you press it, another
setting will appear on the display. If you press it one
more time, after CLASSIC appears
on the display, tone
control will be back to the
BASS and TREB knobs.

Downloaded from www.Manualslib.com manuals search engine Playing a Cassette Tape
With the ignition and radio on, insert a cassette tape.
The tape will begin playing as soon as it is inserted.
Press EJECT or RECALL to load a tape with the
ignition
off. Then insert the cassette tape. A tape symbol
is shown in the center
of the graphic display whenever a
tape is inserted. When a tape is active, the tape symbol
will be accompanied by a direction arrow.
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
The longer side with the tape visible should face to the
right.
If you hear nothing or hear just a garbled sound, it
may not be in squarely. Press
EJECT to remove the tape
and start over.
While the tape is playing, use the VOLUME, FADE,
BAL, TREB, BASS and TONE controls just as you do for
the
radio. The display will show an arrow to show which
side of the tape is playing. When the down indicator arrow
is lit, selections listed on the bottom side of the cassette \
are
playing. When the up arrow is lit, selections listed on the top side of the cassette are playing.
REV (TUNE): Press the left arrows to reverse the tape
rapidly. Press
REV (TUNE) or TAPE to return to
playing speed.
FWD (TUNE): Press the right arrows to advance
rapidly to another part
of the tape. Press FWD (TUNE)
or TAPE to return to playing speed.
PREV (SEEK): Press the left arrow to go to the start of
the current selection if more than eight seconds have
played. If you hold the button or press it more than once,
the player will continue moving back through the tape.
Press the left arrow or TAPE to return to playing speed.
NEXT (SEEK): Press the right arrow to go to the start of
the next selection if more than eight seconds have played. If
you hold the button or press it more than once, the player
will continue moving forward through
the tape. Press the
right
arrow or TAPE to return to playing speed.
01 (2): Press this button to reduce background noise
from tapes encoded with Dolby
NR.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby and the double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.

Downloaded from www.Manualslib.com manuals search engine MTL: Your bias is set automatically. MTL will appear
on your display when a metal or chrome tape is inserted.
AMeFM: Press this button to play the radio when a tape
is playing.
TAPE: With a tape loaded in the player and the radio
playing, press this button once to play the tape.
To
switch from the tape to the radio when the tape is
playing, press the AMeFM button. Press this button to
switch from one side of the tape to the other. Your
cassette tape player can play continuously because the
player has an auto-reverse feature.
EJECT: Press this button to remove the tape. The radio
will play.
CLEAN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean
it as soon as possible to
prevent damage to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the
CLEAN indicator. The radio will display --- to
show the indicator was reset.
AM-FM Stereo with Compact Disc Player
and Automatic Tone Control
(If Equipped)
Playing the Radio
PWR-VOLUME: This knob turns the system on and
off and controls the volume. To increase volume and
turn the radio on, turn the knob to the right. Turn it to
the left to decrease volume and turn
off the system.
RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button to recall the station frequency.
3-11

Downloaded from www.Manualslib.com manuals search engine Finding a Station
AM-FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press the right or left arrows to go to a higher or
lower station. Press and hold to continue tuning and
release when you find your station. The display will
show the frequency of each station tuned.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there.
Setting the Tone
BASS: Press this knob lightly so it extends. Turn the
knob to the right to increase
bass and to the left to
decrease bass.
PUSHBUTTONS: The six numbered pushbuttons
let you return to your previously played stations.
You
can set up to 18 stations (six AM, six FM1 and six
FM2). Just:
1. Turn the radio on.
2. Press AM.FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbuttons for at least
two seconds. The sound will mute and then return
when the station is stored. Whenever you press that
numbered button, the station you set will return.
5. Repeat the steps for each pushbutton.
TREB: Press this knob lightly so it extends. Turn the
knob to the right to increase treble and to the left to
decrease treble.
If a station is weak or noisy, you may
want to decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
TONE: Press this button to choose preset bass and
treble equalization settings designed for ROCK,
NEWS,
POP, JAZZ and CLASSIC. ROCK will appear when
you first press TONE. Each time you press it, another
setting will appear on the display.
If you press it one
more time, after CLASSIC appears
on the display, tone
control will be back to the
BASS and TREB knobs.
3-12

Downloaded from www.Manualslib.com manuals search engine Adjusting the Speakers
BAL: Press this knob lightly so it extends. Then pull the
knob all the way out. Turn the
knob to the right for the
right speakers and to the left for the
left speakers. The
middle position balances
the sound between the speakers.
FADE: Press this knob lightly so it extends. Then pull
the knob all the way out. Turn the knob to the right to
adjust the sound to the rear speakers and to the left for
the front speakers. The middle position balances the
sound between the speakers.
Push these knobs back into their stored positions when you’re not using them.
Playing a Compact Disc
With the radio on, insert a disc into the CD slot, label
side up. The player will pull it in. The disc should begin
playing. A CD symbol
is shown in the center of the
graphic display whenever a disc is inserted.
Don’t use the smaller discs (three-inch singles). They
won’t eject. Use full-size compact discs. If
you’re driving on a very rough road
or if it’s very hot,
the disc may not play and
Err (error) may appear on the
display. Press
RECALL to take Err off the display.
When things get back to normal, the disc should play. If
the disc comes out, it could be that:
The disc is upside down. The player will not pull the
disc in.
0 It is dirty, scratched or wet.
0 It is very humid. (If so, wait about an hour and
While the
CD is playing, use the VOLUME, FADE,
BAL, TREB, BASS and TONE controls just as you do
for the radio. The
CD player automatically begins
playing again when it reaches the end
of the disc.
try again
.)
A disc that has been ejected but is still sitting in the
CD player will be pulled back into the player after approximately
30 seconds. This protects the disc and
player from damage. The disc will not
start playing. To
remove the disc, press the EJECT button and remove the
disc
from the player.
3-13
