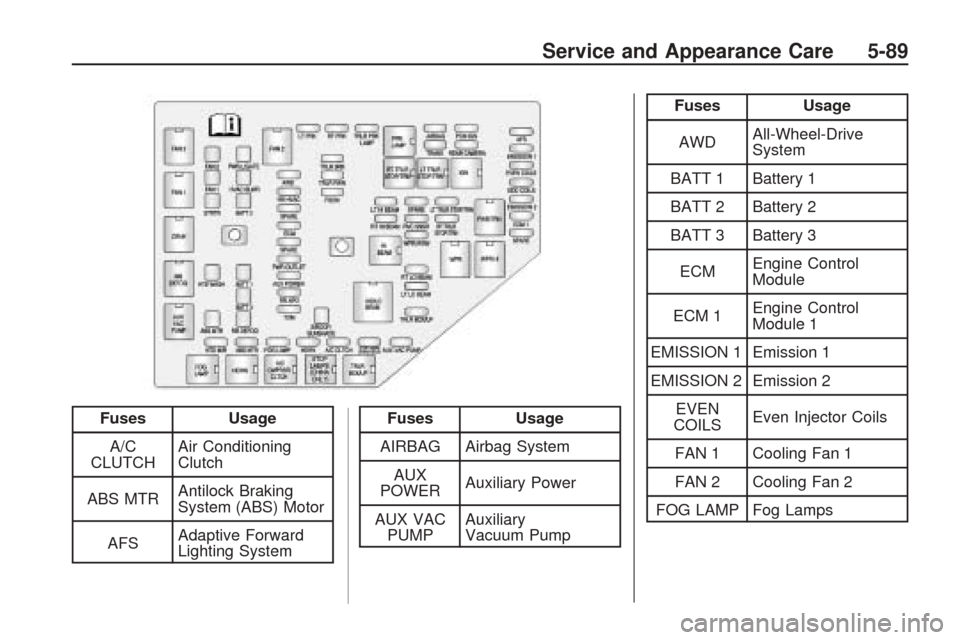

FusesUsage
A/C
CLUTCH Air Conditioning
Clutch
ABS MTR Antilock Braking
System (ABS) Motor
AFS Adaptive Forward
Lighting SystemFuses
Usage
AIRBAG Airbag System AUX
POWER Auxiliary Power
AUX VAC PUMP Auxiliary
Vacuum Pump
Fuses
Usage
AWD All-Wheel-Drive
System
BATT 1 Battery 1
BATT 2 Battery 2
BATT 3 Battery 3
ECM Engine Control
Module
ECM 1 Engine Control
Module 1
EMISSION 1 Emission 1
EMISSION 2 Emission 2 EVEN
COILS Even Injector Coils
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FOG LAMP Fog Lamps
Service and Appearance Care 5-89

Fuses Usage
FSCMFuel System Control
Module
HORN Horn
HTD WASHHeated Windshield
Washer Fluid
HTD MIRHeated Outside
Rearview Mirror
HVAC
BLWRHeating, Ventilation
and Air Conditioning
Blower
LT HI
BEAMLeft High-Beam
Headlamp
LT LO
BEAMLeft Low-Beam
Headlamp
LT PRK Left Parking Lamp
LT TRLR
STOP/TRNTrailer Left
Stoplamp and Turn
SignalFuses Usage
ODD
COILSOdd Injector Coils
PCM IGNPowertrain Control
Module Ignition
PWR
L/GATEPower Liftgate
PWR
OUTLETPower Outlet
REAR
CAMERARear Camera
RR APORear Accessory
Power Outlet
RR DEFOG Rear Defogger
RR HVACRear Climate
Control System
RT HI
BEAMRight High-Beam
Headlamp
RT LO
BEAMRight Low-Beam
HeadlampFuses Usage
RT PRK Right Parking Lamp
RT TRLR
STOP/TRNTrailer Right
Stoplamp and Turn
Signal
RVC SNSRRegulated Voltage
Control Sensor
S/ROOF/
SUNSHADESunroof
SPARE Spare
Stop Lamps
(China
Only)Stop Lamps
(China Only)
STRTR Starter
TCMTransmission
Control Module
TRANS Transmission
TRLR
BCK/UPTrailer Back-up
Lamps
5-90 Service and Appearance Care

Fuses Usage
TRLR BRK Trailer Brake
TRLR PRK
LAMPTrailer Parking
Lamps
TRLR PWR Trailer Power
WPR/WSWWindshield
Wiper/Washer
Relays Usage
A/C
CMPRSR
CLTCHAir Conditioning
Compressor Clutch
AUX VAC
PUMPAuxiliary Vacuum
Pump
CRNK Switched Power
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
FOG LAMP Fog Lamps
HI BEAMHigh-Beam
Headlamps
Relays Usage
HID/LO
BEAMHigh Intensity
Discharge (HID)
Low-Beam
Headlamps
HORN Horn
IGN Ignition Main
LT TRLR
STOP/TRNTrailer Left
Stoplamp and Turn
Signal Lamp
PRK LAMP Park Lamp
PWR/TRN Powertrain
RR DEFOGRear Window
Defogger
RT TRLR
STOP/TRNTrailer Right
Stoplamp and Turn
Signal Lamp
Stop Lamps
(China
Only)Stop Lamps
(China Only)
TRLR
BCK/UPTrailer Back-up
Lamps
WPR Windshield Wiper
WPR HIWindshield Wiper
High Speed
Service and Appearance Care 5-91

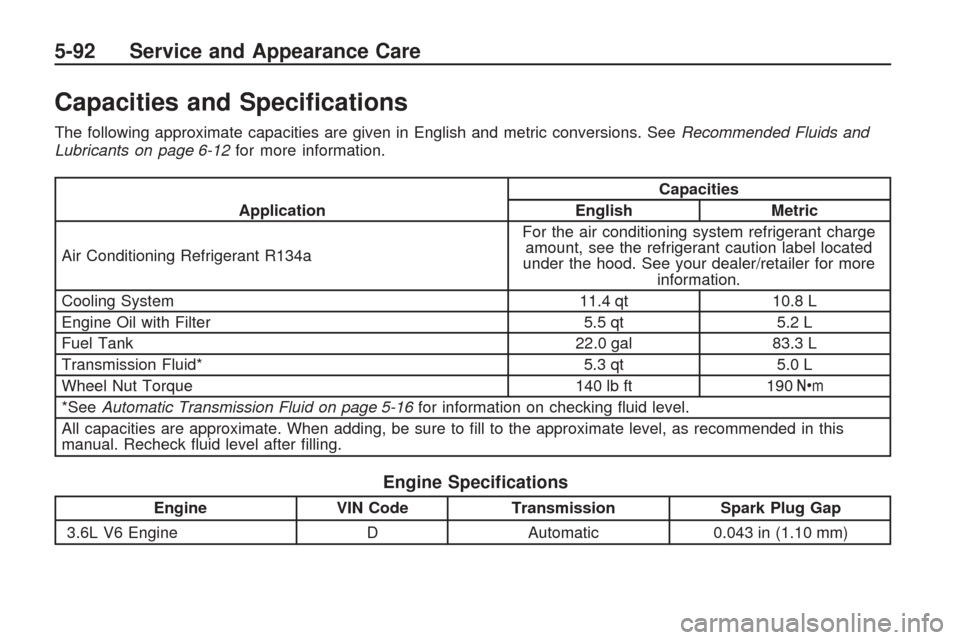

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants on page 6-12 for more information.
Application Capacities
English Metric
Air Conditioning Refrigerant R134a For the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer/retailer for more information.
Cooling System 11.4 qt 10.8 L
Engine Oil with Filter 5.5 qt 5.2 L
Fuel Tank 22.0 gal 83.3 L
Transmission Fluid* 5.3 qt 5.0 L
Wheel Nut Torque 140 lb ft 190 Y
*See Automatic Transmission Fluid on page 5-16 for information on checking uid level.
All capacities are approximate. When adding, be sure to ll to the approximate level, as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN CodeTransmission Spark Plug Gap
3.6L V6 Engine DAutomatic 0.043 in (1.10 mm)
5-92 Service and Appearance Care

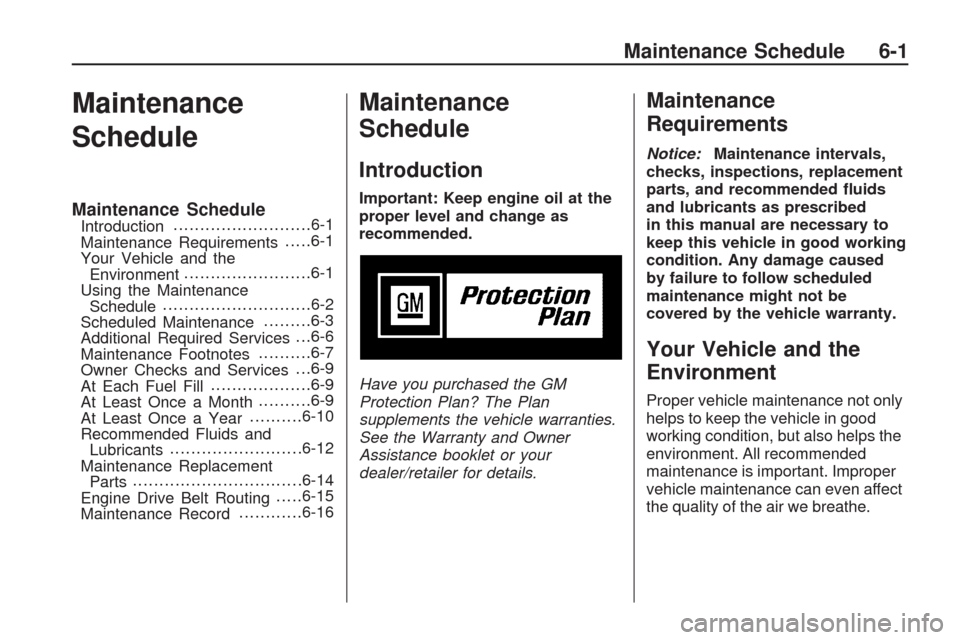

Maintenance
Schedule
Maintenance ScheduleIntroduction..........................6-1
Maintenance Requirements.....6-1
Your Vehicle and the
Environment........................6-1
Using the Maintenance
Schedule............................6-2
Scheduled Maintenance.........6-3
Additional Required Services. . .6-6
Maintenance Footnotes..........6-7
Owner Checks and Services. . .6-9
At Each Fuel Fill...................6-9
At Least Once a Month..........6-9
At Least Once a Year..........6-10
Recommended Fluids and
Lubricants.........................6-12
Maintenance Replacement
Parts................................6-14
Engine Drive Belt Routing.....6-15
Maintenance Record............6-16
Maintenance
Schedule
Introduction
Important: Keep engine oil at the
proper level and change as
recommended.
Have you purchased the GM
Protection Plan? The Plan
supplements the vehicle warranties.
See the Warranty and Owner
Assistance booklet or your
dealer/retailer for details.
Maintenance
Requirements
Notice:Maintenance intervals,
checks, inspections, replacement
parts, and recommended uids
and lubricants as prescribed
in this manual are necessary to
keep this vehicle in good working
condition. Any damage caused
by failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
Your Vehicle and the
Environment
Proper vehicle maintenance not only
helps to keep the vehicle in good
working condition, but also helps the
environment. All recommended
maintenance is important. Improper
vehicle maintenance can even affect
the quality of the air we breathe.
Maintenance Schedule 6-1

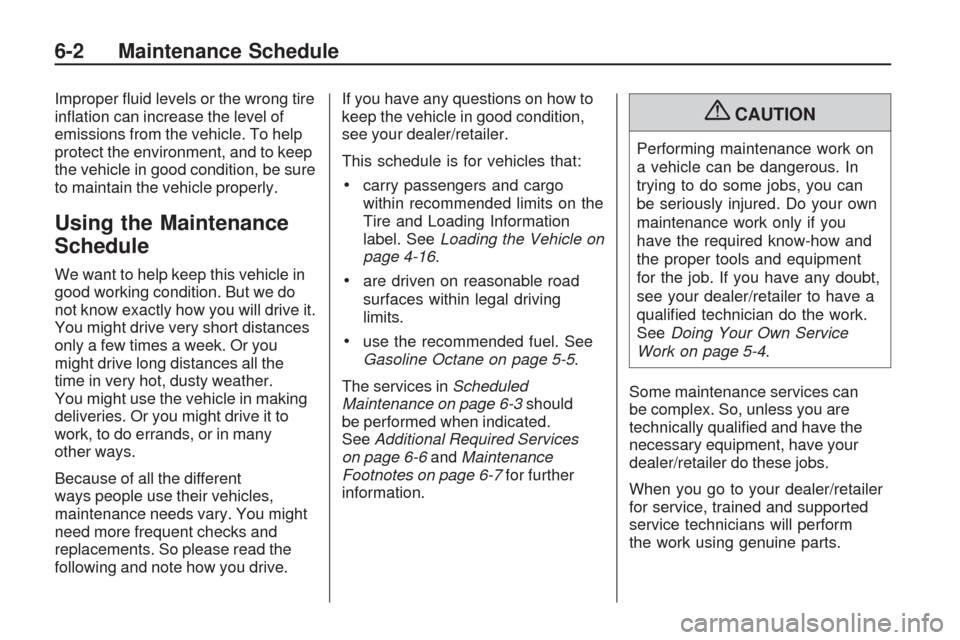

Improper uid levels or the wrong tire
ination can increase the level of
emissions from the vehicle. To help
protect the environment, and to keep
the vehicle in good condition, be sure
to maintain the vehicle properly.
Using the Maintenance
Schedule
We want to help keep this vehicle in
good working condition. But we do
not know exactly how you will drive it.
You might drive very short distances
only a few times a week. Or you
might drive long distances all the
time in very hot, dusty weather.
You might use the vehicle in making
deliveries. Or you might drive it to
work, to do errands, or in many
other ways.
Because of all the different
ways people use their vehicles,
maintenance needs vary. You might
need more frequent checks and
replacements. So please read the
following and note how you drive.If you have any questions on how to
keep the vehicle in good condition,
see your dealer/retailer.
This schedule is for vehicles that:
carry passengers and cargo
within recommended limits on the
Tire and Loading Information
label. SeeLoading the Vehicle on
page 4-16.
are driven on reasonable road
surfaces within legal driving
limits.
use the recommended fuel. See
Gasoline Octane on page 5-5.
The services inScheduled
Maintenance on page 6-3should
be performed when indicated.
SeeAdditional Required Services
on page 6-6andMaintenance
Footnotes on page 6-7for further
information.
{CAUTION
Performing maintenance work on
a vehicle can be dangerous. In
trying to do some jobs, you can
be seriously injured. Do your own
maintenance work only if you
have the required know-how and
the proper tools and equipment
for the job. If you have any doubt,
see your dealer/retailer to have a
qualied technician do the work.
SeeDoing Your Own Service
Work on page 5-4.
Some maintenance services can
be complex. So, unless you are
technically qualied and have the
necessary equipment, have your
dealer/retailer do these jobs.
When you go to your dealer/retailer
for service, trained and supported
service technicians will perform
the work using genuine parts.
6-2 Maintenance Schedule

To purchase service information,
seeService Publications Ordering
Information on page 7-15.
Owner Checks and Services on
page 6-9tells what should be
checked, when to check it, and what
can easily be done to help keep
the vehicle in good condition.
The proper replacement parts,
uids, and lubricants to use are
listed inRecommended Fluids and
Lubricants on page 6-12and
Maintenance Replacement Parts
on page 6-14. When the vehicle is
serviced, make sure these are used.
All parts should be replaced and all
necessary repairs done before you
or anyone else drives the vehicle.
We recommend the use of genuine
parts from your dealer/retailer.Scheduled Maintenance

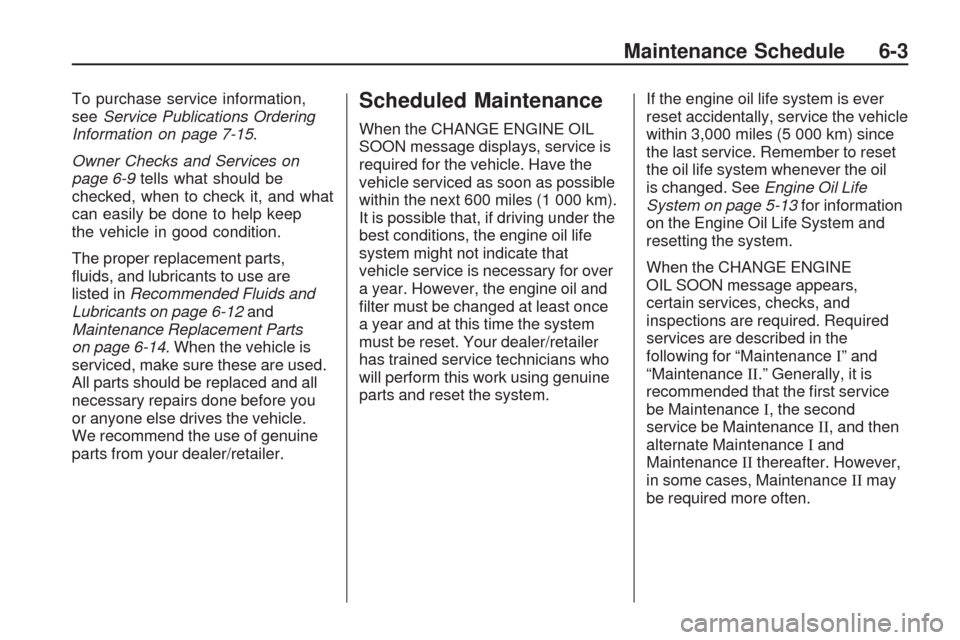

When the CHANGE ENGINE OIL
SOON message displays, service is
required for the vehicle. Have the
vehicle serviced as soon as possible
within the next 600 miles (1 000 km).
It is possible that, if driving under the
best conditions, the engine oil life
system might not indicate that
vehicle service is necessary for over
a year. However, the engine oil and
lter must be changed at least once
a year and at this time the system
must be reset. Your dealer/retailer
has trained service technicians who
will perform this work using genuine
parts and reset the system.If the engine oil life system is ever
reset accidentally, service the vehicle
within 3,000 miles (5 000 km) since
the last service. Remember to reset
the oil life system whenever the oil
is changed. SeeEngine Oil Life
System on page 5-13for information
on the Engine Oil Life System and
resetting the system.
When the CHANGE ENGINE
OIL SOON message appears,
certain services, checks, and
inspections are required. Required
services are described in the
following for “MaintenanceI” and
“MaintenanceII.” Generally, it is
recommended that the rst service
be MaintenanceI, the second
service be MaintenanceII, and then
alternate MaintenanceIand
MaintenanceIIthereafter. However,
in some cases, MaintenanceIImay
be required more often.
Maintenance Schedule 6-3

MaintenanceI—Use
Maintenance Iif the CHANGE
ENGINE OIL SOON message
displays within 10 months since
the vehicle was purchased or
Maintenance IIwas performed. Maintenance
II—Use
Maintenance IIif the previous
service performed was
Maintenance I. Always use
Maintenance IIwhenever the message displays 10 months or
more since the last service or if the
message has not come on at all
for one year.

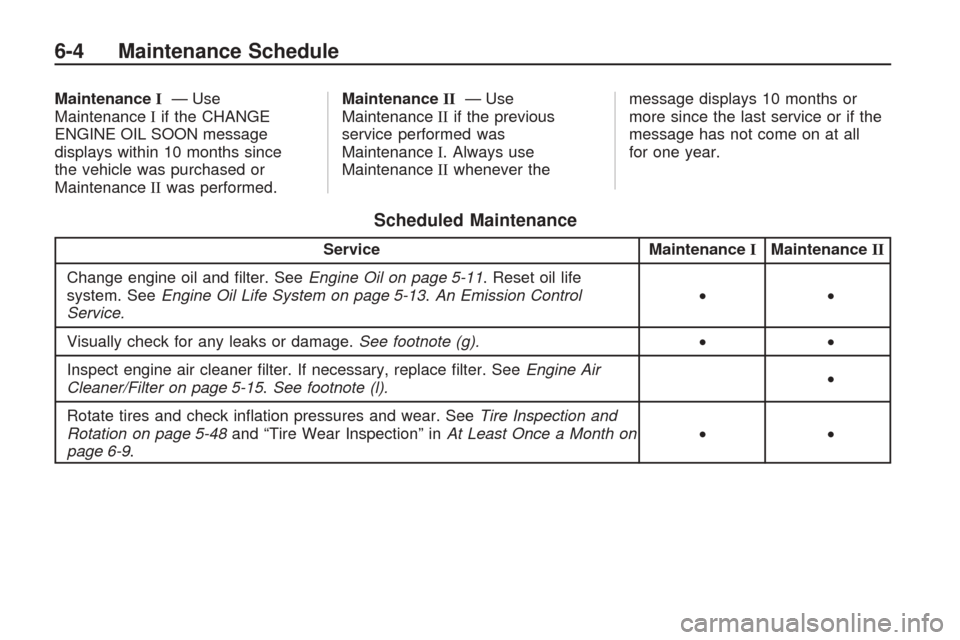

Scheduled Maintenance
Service
MaintenanceIMaintenance II
Change engine oil and lter. See Engine Oil on page 5-11. Reset oil life
system. See Engine Oil Life System on page 5-13 .An Emission Control
Service. ••
Visually check for any leaks or damage. See footnote (g). ••
Inspect engine air cleaner lter. If necessary, replace lter. See Engine Air
Cleaner/Filter on page 5-15 .See footnote (l). •
Rotate tires and check ination pressures and wear. See Tire Inspection and
Rotation on page 5-48 and “Tire Wear Inspection” in At Least Once a Month on
page 6-9. ••
6-4 Maintenance Schedule

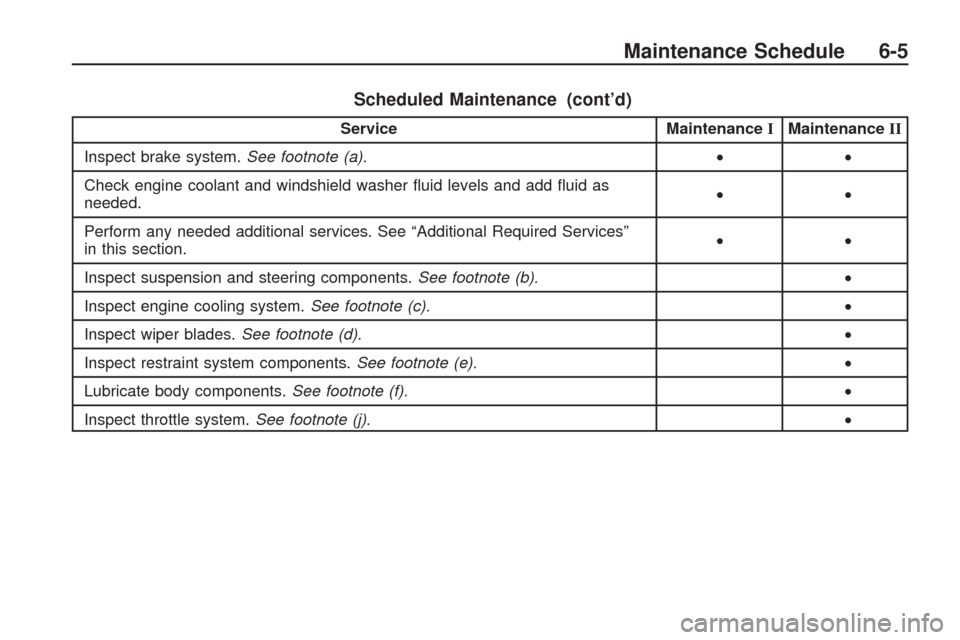

Scheduled Maintenance (cont’d)
ServiceMaintenanceIMaintenance II
Inspect brake system. See footnote (a). ••
Check engine coolant and windshield washer uid levels and add uid as
needed. ••
Perform any needed additional services. See “Additional Required Services”
in this section. ••
Inspect suspension and steering components. See footnote (b). •
Inspect engine cooling system. See footnote (c). •
Inspect wiper blades. See footnote (d). •
Inspect restraint system components. See footnote (e). •
Lubricate body components. See footnote (f). •
Inspect throttle system. See footnote (j). •
Maintenance Schedule 6-5

Additional Required Services
The following services should be performed at the rst maintenance service (Ior II) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Inspect fuel system for damage or leaks. • •••••
Inspect exhaust system for loose or
damaged components. • •••••
Replace engine air cleaner lter. See
Engine Air Cleaner/Filter on page 5-15 .•••
Change automatic transmission uid
(severe service). See footnote (h). •••
Change automatic transmission uid
(normal service). •
All-wheel-drive vehicles: Change
transfer case uid (severe service).
See footnote (m). •••
All-wheel-drive vehicles: Change
transfer case uid (normal service). •
Replace spark plugs and inspect spark
plug wires. An Emission Control
Service. •
6-6 Maintenance Schedule
