CHEVROLET TRAVERSE 2009 1.G Owners Manual

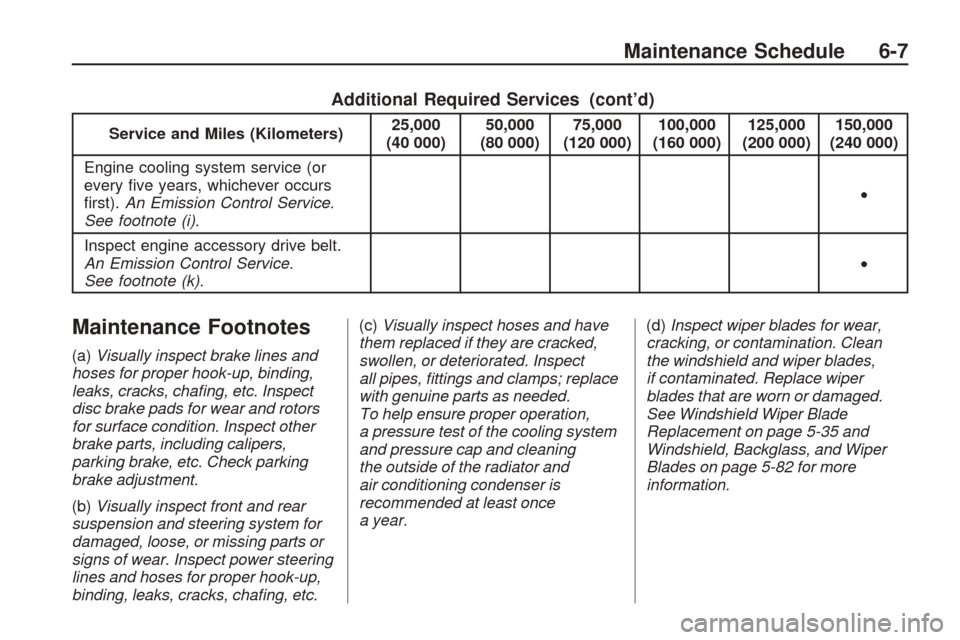

Additional Required Services (cont’d)
Service and Miles (Kilometers)25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Engine cooling system service (or
every ve years, whichever occurs
rst). An Emission Control Service.
See footnote (i). •
Inspect engine accessory drive belt.
An Emission Control Service.
See footnote (k). •
Maintenance Footnotes
(a)
Visually inspect brake lines and
hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors
for surface condition. Inspect other
brake parts, including calipers,
parking brake, etc. Check parking
brake adjustment.
(b) Visually inspect front and rear
suspension and steering system for
damaged, loose, or missing parts or
signs of wear. Inspect power steering
lines and hoses for proper hook-up,
binding, leaks, cracks, chafing, etc. (c)
Visually inspect hoses and have
them replaced if they are cracked,
swollen, or deteriorated. Inspect
all pipes, fittings and clamps; replace
with genuine parts as needed.
To help ensure proper operation,
a pressure test of the cooling system
and pressure cap and cleaning
the outside of the radiator and
air conditioning condenser is
recommended at least once
a year. (d)
Inspect wiper blades for wear,
cracking, or contamination. Clean
the windshield and wiper blades,
if contaminated. Replace wiper
blades that are worn or damaged.
See Windshield Wiper Blade
Replacement on page 5-35 and
Windshield, Backglass, and Wiper
Blades on page 5-82 for more
information.
Maintenance Schedule 6-7

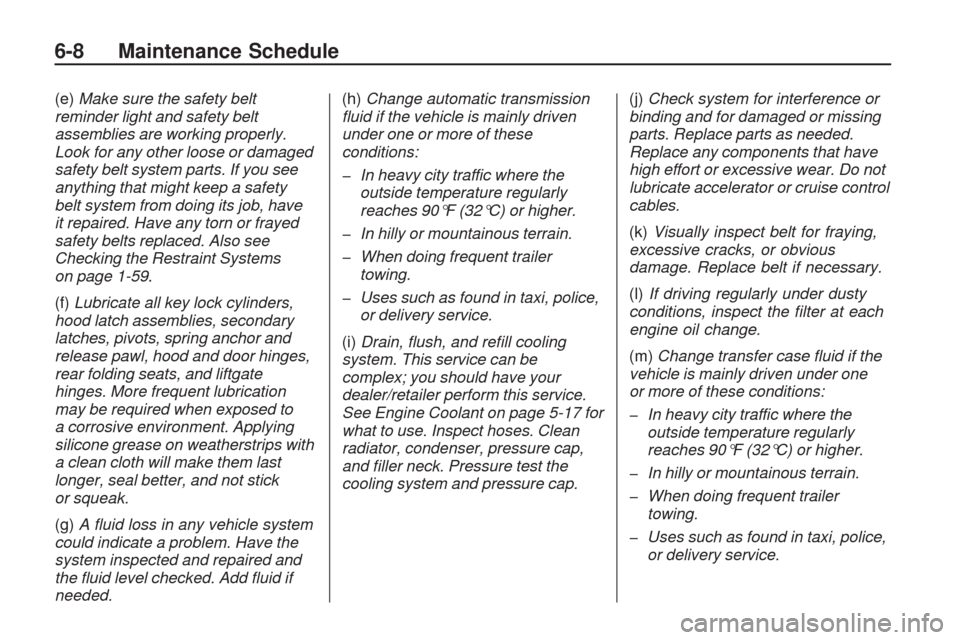

(e)Make sure the safety belt
reminder light and safety belt
assemblies are working properly.
Look for any other loose or damaged
safety belt system parts. If you see
anything that might keep a safety
belt system from doing its job, have
it repaired. Have any torn or frayed
safety belts replaced. Also see
Checking the Restraint Systems
on page 1-59.
(f)Lubricate all key lock cylinders,
hood latch assemblies, secondary
latches, pivots, spring anchor and
release pawl, hood and door hinges,
rear folding seats, and liftgate
hinges. More frequent lubrication
may be required when exposed to
a corrosive environment. Applying
silicone grease on weatherstrips with
a clean cloth will make them last
longer, seal better, and not stick
or squeak.
(g)A fluid loss in any vehicle system
could indicate a problem. Have the
system inspected and repaired and
the fluid level checked. Add fluid if
needed.(h)Change automatic transmission
fluid if the vehicle is mainly driven
under one or more of these
conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi, police,
or delivery service.
(i)Drain, flush, and refill cooling
system. This service can be
complex; you should have your
dealer/retailer perform this service.
See Engine Coolant on page 5-17 for
what to use. Inspect hoses. Clean
radiator, condenser, pressure cap,
and filler neck. Pressure test the
cooling system and pressure cap.(j)Check system for interference or
binding and for damaged or missing
parts. Replace parts as needed.
Replace any components that have
high effort or excessive wear. Do not
lubricate accelerator or cruise control
cables.
(k)Visually inspect belt for fraying,
excessive cracks, or obvious
damage. Replace belt if necessary.
(l)If driving regularly under dusty
conditions, inspect the filter at each
engine oil change.
(m)Change transfer case fluid if the
vehicle is mainly driven under one
or more of these conditions:
In heavy city traffic where the
outside temperature regularly
reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer
towing.
Uses such as found in taxi, police,
or delivery service.
6-8 Maintenance Schedule

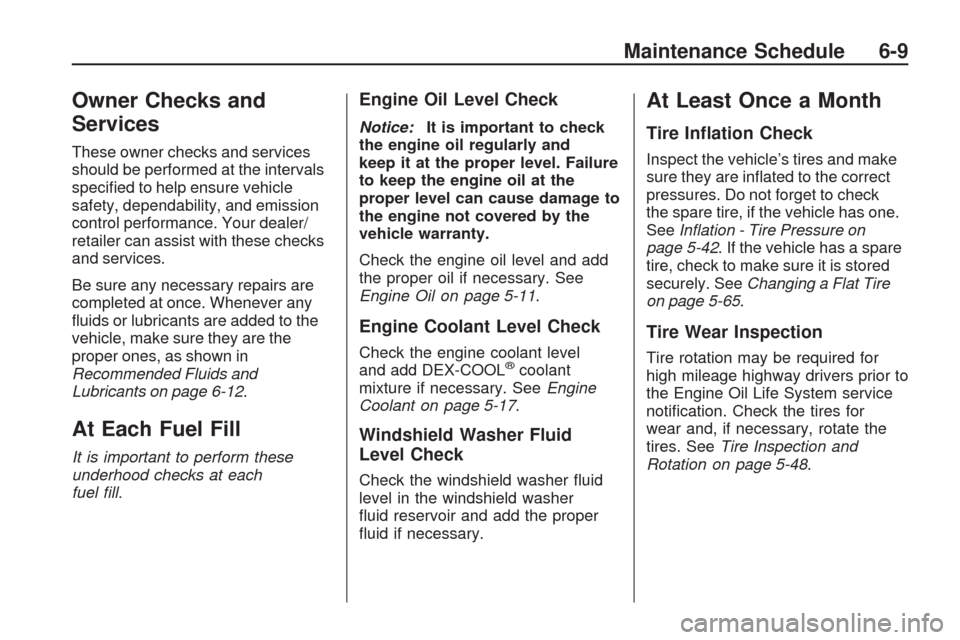

Owner Checks and
Services
These owner checks and services
should be performed at the intervals
specied to help ensure vehicle
safety, dependability, and emission
control performance. Your dealer/
retailer can assist with these checks
and services.
Be sure any necessary repairs are
completed at once. Whenever any
uids or lubricants are added to the
vehicle, make sure they are the
proper ones, as shown in
Recommended Fluids and
Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these
underhood checks at each
fuel fill.
Engine Oil Level Check
Notice:It is important to check
the engine oil regularly and
keep it at the proper level. Failure
to keep the engine oil at the
proper level can cause damage to
the engine not covered by the
vehicle warranty.
Check the engine oil level and add
the proper oil if necessary. See
Engine Oil on page 5-11.
Engine Coolant Level Check
Check the engine coolant level
and add DEX-COOL®coolant
mixture if necessary. SeeEngine
Coolant on page 5-17.
Windshield Washer Fluid
Level Check
Check the windshield washer uid
level in the windshield washer
uid reservoir and add the proper
uid if necessary.
At Least Once a Month
Tire Ination Check
Inspect the vehicle’s tires and make
sure they are inated to the correct
pressures. Do not forget to check
the spare tire, if the vehicle has one.
SeeInflation - Tire Pressure on
page 5-42. If the vehicle has a spare
tire, check to make sure it is stored
securely. SeeChanging a Flat Tire
on page 5-65.
Tire Wear Inspection
Tire rotation may be required for
high mileage highway drivers prior to
the Engine Oil Life System service
notication. Check the tires for
wear and, if necessary, rotate the
tires. SeeTire Inspection and
Rotation on page 5-48.
Maintenance Schedule 6-9

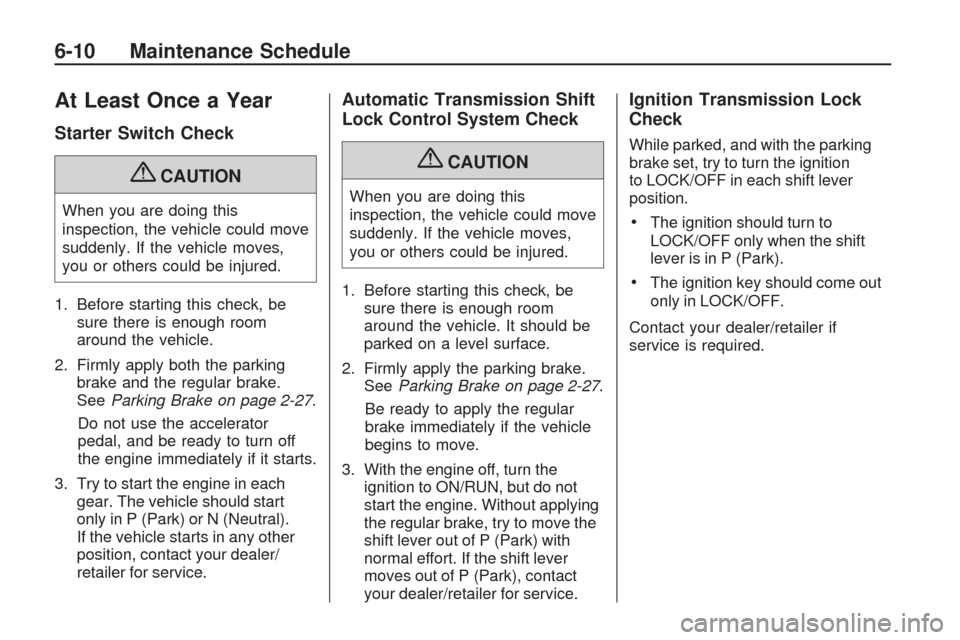

At Least Once a Year
Starter Switch Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle.
2. Firmly apply both the parking
brake and the regular brake.
SeeParking Brake on page 2-27.
Do not use the accelerator
pedal, and be ready to turn off
the engine immediately if it starts.
3. Try to start the engine in each
gear. The vehicle should start
only in P (Park) or N (Neutral).
If the vehicle starts in any other
position, contact your dealer/
retailer for service.
Automatic Transmission Shift
Lock Control System Check
{CAUTION
When you are doing this
inspection, the vehicle could move
suddenly. If the vehicle moves,
you or others could be injured.
1. Before starting this check, be
sure there is enough room
around the vehicle. It should be
parked on a level surface.
2. Firmly apply the parking brake.
SeeParking Brake on page 2-27.
Be ready to apply the regular
brake immediately if the vehicle
begins to move.
3. With the engine off, turn the
ignition to ON/RUN, but do not
start the engine. Without applying
the regular brake, try to move the
shift lever out of P (Park) with
normal effort. If the shift lever
moves out of P (Park), contact
your dealer/retailer for service.
Ignition Transmission Lock
Check
While parked, and with the parking
brake set, try to turn the ignition
to LOCK/OFF in each shift lever
position.
The ignition should turn to
LOCK/OFF only when the shift
lever is in P (Park).
The ignition key should come out
only in LOCK/OFF.
Contact your dealer/retailer if
service is required.
6-10 Maintenance Schedule

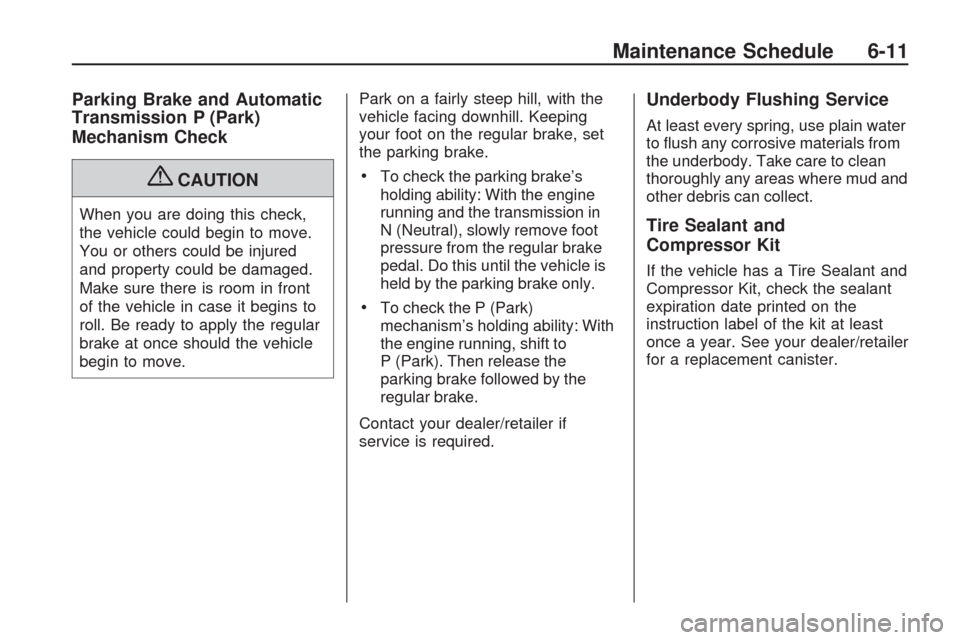

Parking Brake and Automatic
Transmission P (Park)
Mechanism Check
{CAUTION
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
To check the parking brake’s
holding ability: With the engine
running and the transmission in
N (Neutral), slowly remove foot
pressure from the regular brake
pedal. Do this until the vehicle is
held by the parking brake only.
To check the P (Park)
mechanism’s holding ability: With
the engine running, shift to
P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer/retailer if
service is required.
Underbody Flushing Service
At least every spring, use plain water
to ush any corrosive materials from
the underbody. Take care to clean
thoroughly any areas where mud and
other debris can collect.
Tire Sealant and
Compressor Kit
If the vehicle has a Tire Sealant and
Compressor Kit, check the sealant
expiration date printed on the
instruction label of the kit at least
once a year. See your dealer/retailer
for a replacement canister.
Maintenance Schedule 6-11

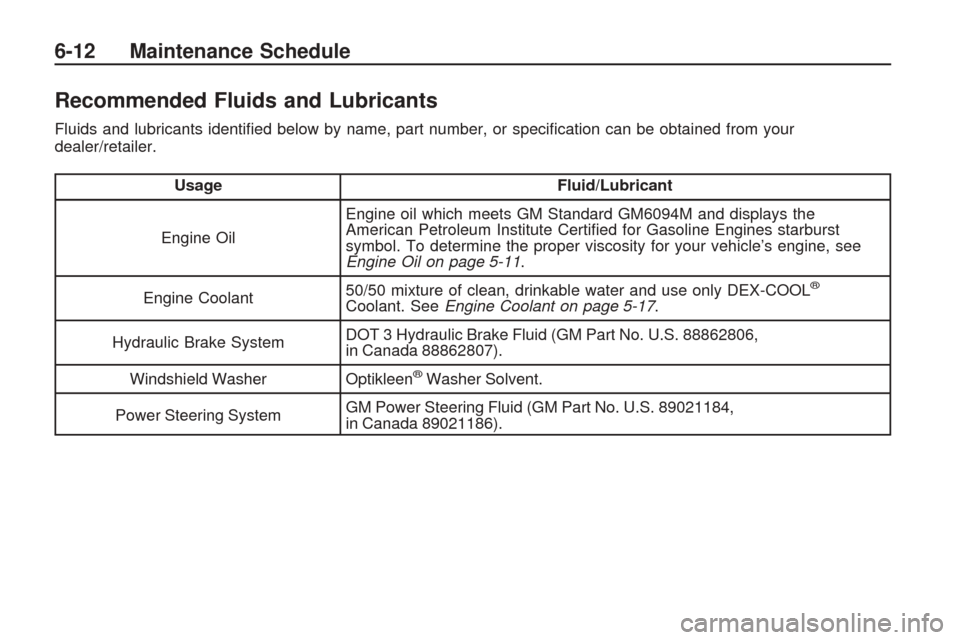

Recommended Fluids and Lubricants
Fluids and lubricants identied below by name, part number, or specication can be obtained from your
dealer/retailer.
UsageFluid/Lubricant
Engine Oil Engine oil which meets GM Standard GM6094M and displays the
American Petroleum Institute Certied for Gasoline Engines starburst
symbol. To determine the proper viscosity for your vehicle’s engine, see
Engine Oil on page 5-11
.
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL
®
Coolant. See
Engine Coolant on page 5-17 .
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. U.S. 88862806,
in Canada 88862807).
Windshield Washer Optikleen
®Washer Solvent.
Power Steering System GM Power Steering Fluid (GM Part No. U.S. 89021184,
in Canada 89021186).
6-12 Maintenance Schedule

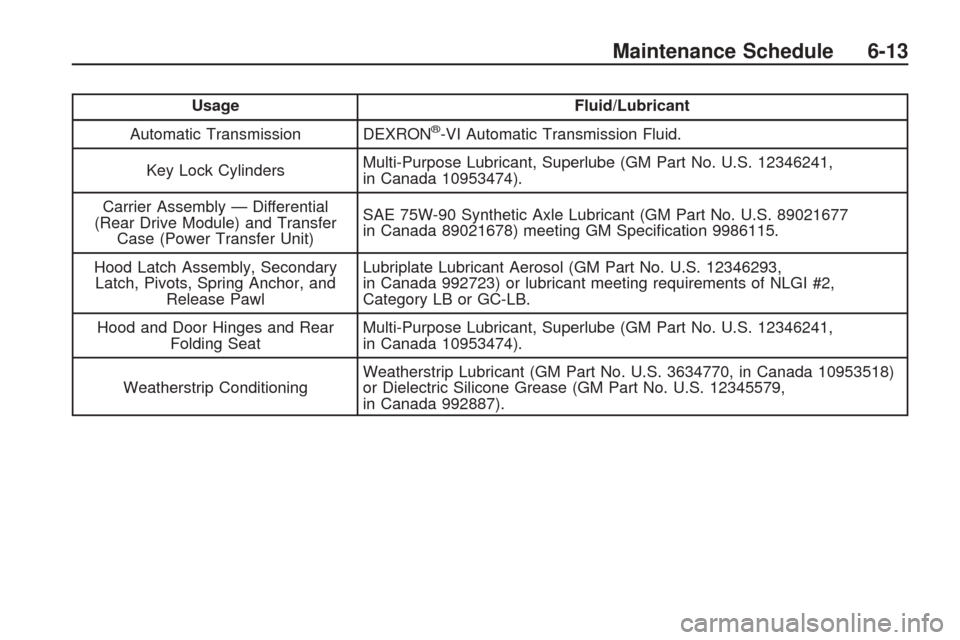

UsageFluid/Lubricant
Automatic Transmission DEXRON
®-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Carrier Assembly — Differential
(Rear Drive Module) and Transfer Case (Power Transfer Unit) SAE 75W-90 Synthetic Axle Lubricant (GM Part No. U.S. 89021677
in Canada 89021678) meeting GM Specication 9986115.
Hood Latch Assembly, Secondary Latch, Pivots, Spring Anchor, and Release Pawl Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293,
in Canada 992723) or lubricant meeting requirements of NLGI #2,
Category LB or GC-LB.
Hood and Door Hinges and Rear Folding Seat Multi-Purpose Lubricant, Superlube (GM Part No. U.S. 12346241,
in Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. U.S. 3634770, in Canada 10953518)
or Dielectric Silicone Grease (GM Part No. U.S. 12345579,
in Canada 992887).
Maintenance Schedule 6-13

Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
PartGM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15278634—
Engine Oil Filter 89017524PF48
Spark Plugs 1261188241-107
Wiper Blades Front Driver – 24.6 in (62.5 cm) 15254805—
Front Passenger – 20.8 in (53.0 cm) 15254804—
Rear – 11.6 in (30.0 cm) 25920067—
6-14 Maintenance Schedule

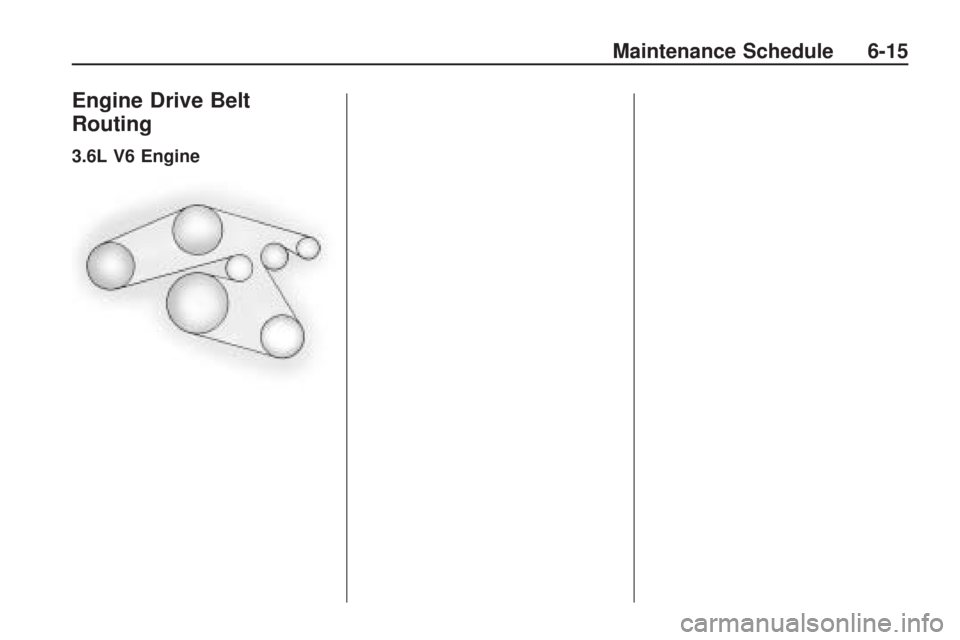

Engine Drive Belt
Routing
3.6L V6 Engine
Maintenance Schedule 6-15

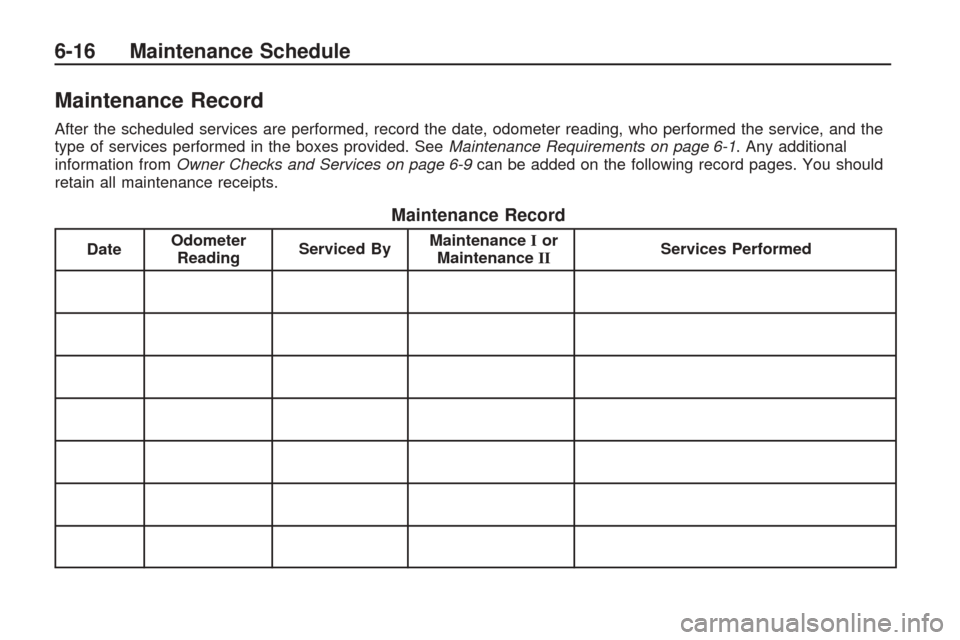

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-1. Any additional
information from Owner Checks and Services on page 6-9 can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
Date Odometer
Reading Serviced By Maintenance
Ior
Maintenance II Services Performed
6-16 Maintenance Schedule
